ALLEN AW21 SERIES WHEELED BUGGIES
$0.00
4/26

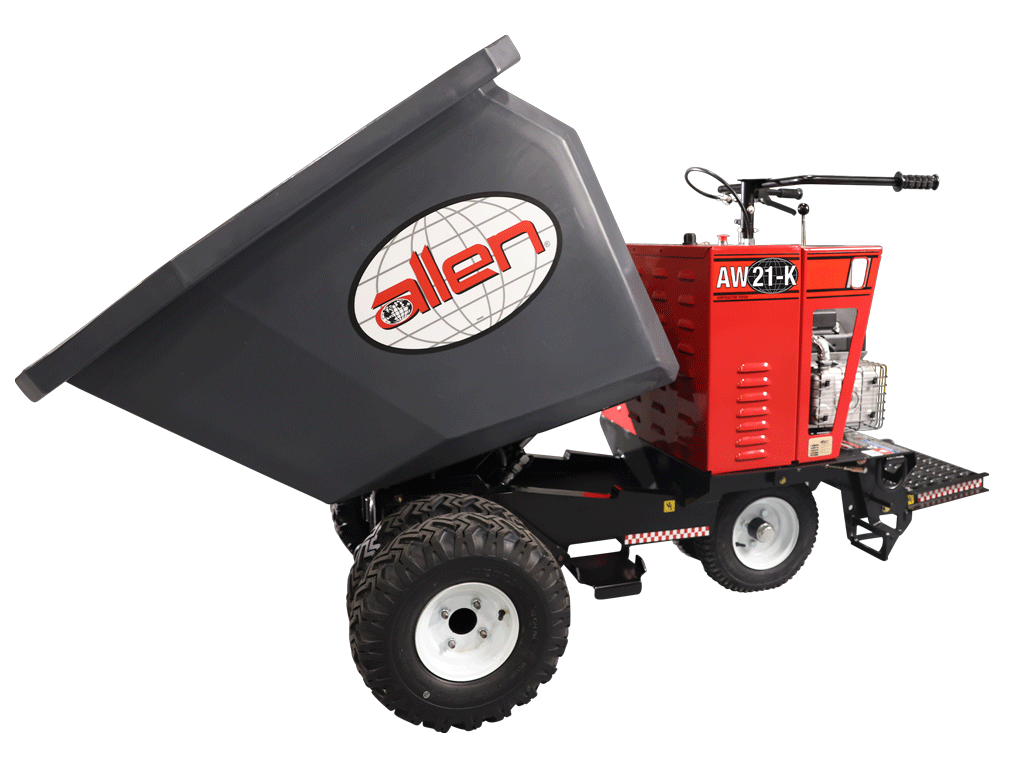

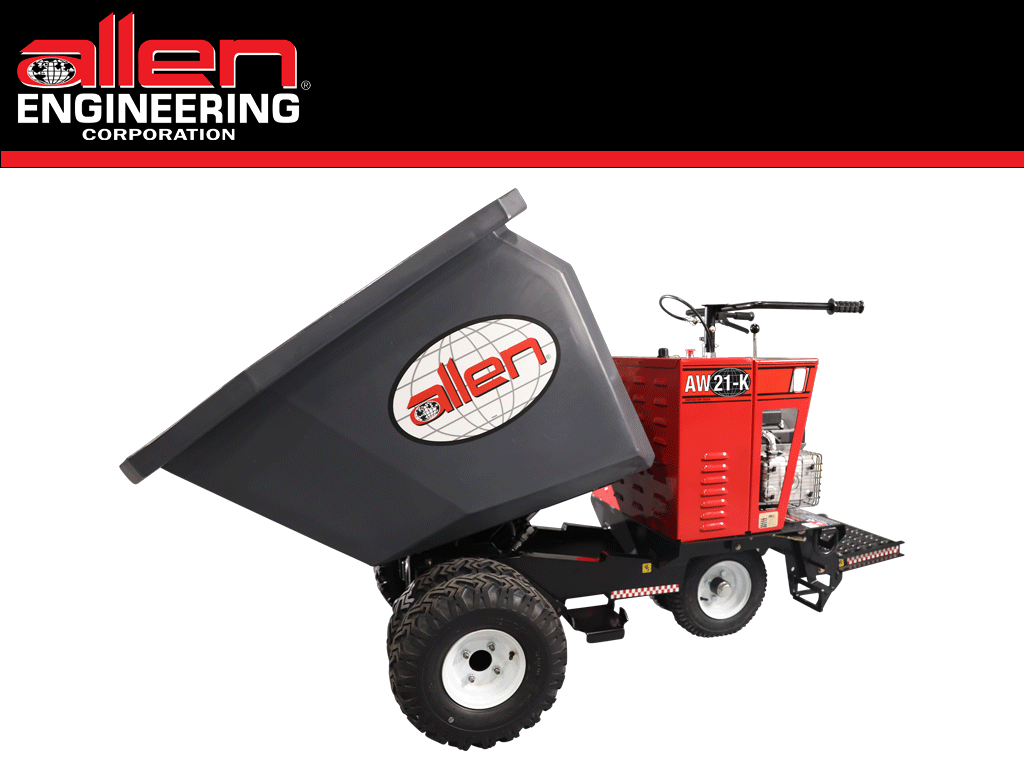

ALLEN WHEEL BUGGIES // AW21-H & AW21-K
21 cu. ft. Capacity • 3,200 lb Payload • High-Performance Material Handling
The Allen AW21 Series Wheel Buggies are built for contractors who need greater capacity, more power, and increased productivity on demanding jobsites. Featuring a large 21 cubic foot polyethylene bucket and a 3,200 lb payload capacity, these buggies are designed to move more material in fewer trips—saving time, labor, and cost.
Available with your choice of Honda GX630 (AW21-H) or Kohler CH640 (AW21-K) engines, the AW21 Series delivers reliable performance for concrete work, landscaping, construction, and material handling applications.
⛽ AW21-H Gas Powered (Honda GX630)
Proven Honda Power • Jobsite Reliability
The AW21-H is powered by the trusted Honda GX630 engine, delivering smooth, dependable performance in tough conditions.
- ✔ 20 HP Honda engine
- ✔ Electric start for easy operation
- ✔ Consistent power under load
- ✔ Ideal for daily jobsite use
Best for: contractors who prefer Honda reliability and proven performance.
⛽ AW21-K Gas Powered (Kohler CH640)
Durable Power • Contractor-Grade Performance
The AW21-K features a Kohler CH640 engine, offering strong output and durability for heavy-duty applications.
- ✔ 20.5 HP Kohler engine
- ✔ Electric start
- ✔ Built for demanding environments
- ✔ Same high-capacity platform with Kohler performance
Best for: contractors who prefer Kohler engines and need rugged, consistent output.
🚧 BUILT FOR HIGH-CAPACITY JOBSITES
The AW21 Series is designed to handle more material with ease.
- ✔ 3,200 lb payload capacity
- ✔ 21 cu. ft. bucket capacity
- ✔ Moves over 3,000 lbs fully loaded at up to 6 mph
- ✔ Ideal for concrete, gravel, dirt, and bulk materials
🛠️ HEAVY-DUTY DESIGN & PERFORMANCE
Engineered for durability and long service life.
- ✔ Polyethylene bucket for reduced material sticking
- ✔ Heavy-duty frame construction
- ✔ Foam-filled tires for puncture resistance
- ✔ Stable handling under full loads
⚙️ EFFICIENT MATERIAL HANDLING
- ✔ 90° dump angle for clean unloading
- ✔ 8-second dump/return cycle
- ✔ Larger bucket reduces cycle times
- ✔ Improves jobsite efficiency and productivity
📊 SPECIFICATIONS
| Specification | AW21-H | AW21-K |
|---|---|---|
| Engine | Honda GX630 | Kohler CH640 |
| Horsepower Class | 20 HP / 15 kW | 20.5 HP / 15 kW |
| Starter | Electric | Electric |
| Fuel Type | Gasoline | Gasoline |
| Fuel Capacity | 2.1 gal / 8 L | 2.1 gal / 8 L |
| Top Speed | 6 mph (10 kph) | 6 mph (10 kph) |
| Payload Capacity | 3,200 lb / 1,451 kg | 3,200 lb / 1,451 kg |
| Bucket Capacity | 21 cu. ft. / 0.59 m³ | 21 cu. ft. / 0.59 m³ |
| Lift Cylinder | 2.5" | 2.5" |
| Dump Angle | 90° | 90° |
| Dump/Return Speed | 8 seconds | 8 seconds |
| Wheelbase | 40" | 40" |
| Tires | Foam Filled | Foam Filled |
| Operating Weight | 1,475 lb | 1,475 lb |
| Dimensions | 97" × 47" × 50" | 97" × 47" × 50" |

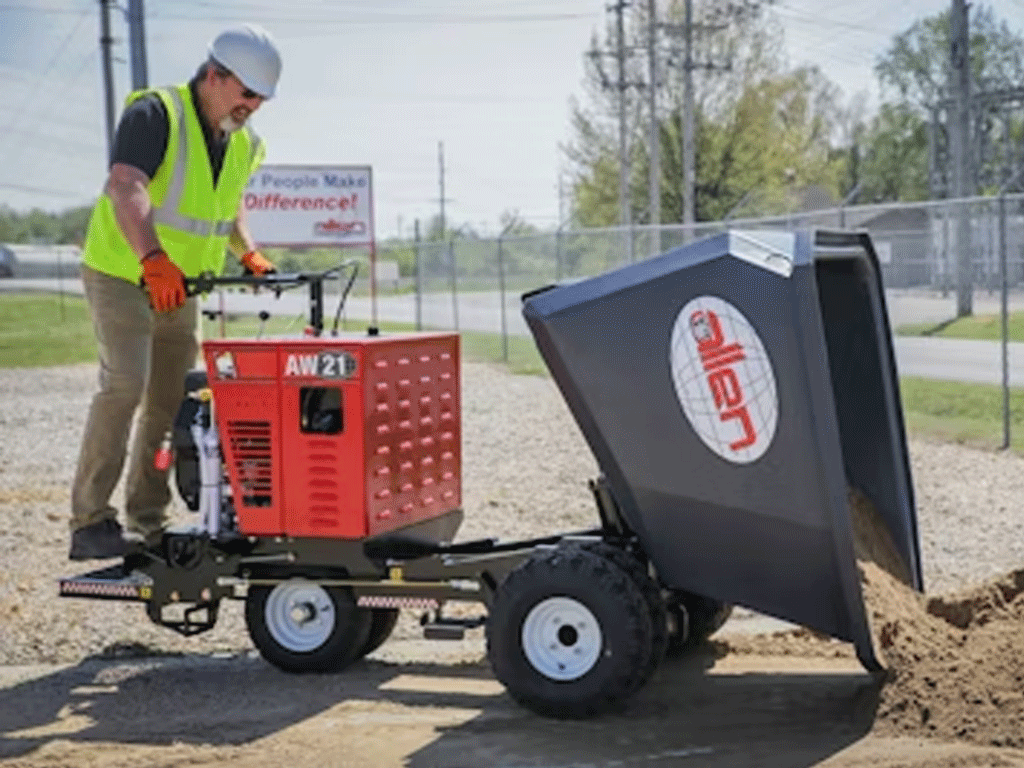

🏗️ IDEAL APPLICATIONS
- Concrete placement and transport
- Landscaping and hardscaping
- Material hauling (gravel, dirt, mulch)
- Demolition cleanup
- Construction jobsite logistics
💡 WHY CHOOSE THE ALLEN AW21 SERIES?
- Larger capacity than standard 16 cu. ft. buggies
- High payload for increased efficiency
- Choice of Honda or Kohler engines
- Durable design for demanding jobsites
- Built for contractors who need to move more material, faster
🔧 BUILT FOR PRODUCTIVITY
The Allen AW21-H and AW21-K Wheel Buggies deliver the power, capacity, and durability needed to maximize efficiency and reduce labor on any jobsite.
SPECIFICATIONS
| ALLEN AW21-K | DETAILS |
|---|---|
| Engine | Kohler CH640 |
| Horsepower Class | 20.5 HP / 15 kW |
| Starter | Electric |
| Fuel Type | Gasoline |
| Fuel Capacity | 2.1 gal / 8 L |
| Top Speed | 6 mph (10 kph) |
| Payload Capacity | 3,200 lb / 1,451 kg |
| Bucket Capacity | 21 cu. ft. / 0.59 m³ |
| Lift Cylinder Diameter | 2.5" / 63.5 mm |
| Dump Angle | 90° |
| Dump/Return Speed (Empty) | 8 seconds |
| Wheelbase | 40" / 102 cm |
| Tires | Foam Filled |
| Operating Weight | 1,475 lb / 637 kg |
| Dimensions (L × W × H) | 97" × 47" × 50" (246 × 119 × 127 cm) |
SPECIFICATIONS
| ALLEN AW21-H | DETAILS |
|---|---|
| Engine | Honda GX630 |
| Horsepower Class | 20 HP / 15 kW |
| Starter | Electric |
| Fuel Type | Gasoline |
| Fuel Capacity | 2.1 gal / 8 L |
| Top Speed | 6 mph (10 kph) |
| Payload Capacity | 3,200 lb / 1,451 kg |
| Bucket Capacity | 21 cu. ft. / 0.59 m³ |
| Lift Cylinder Diameter | 2.5" / 63.5 mm |
| Dump Angle | 90° |
| Dump/Return Speed (Empty) | 8 seconds |
| Wheelbase | 40" / 102 cm |
| Tires | Foam Filled |
| Operating Weight | 1,475 lb / 669 kg |
| Dimensions (L × W × H) | 97" × 47" × 50" (246 × 119 × 127 cm) |
