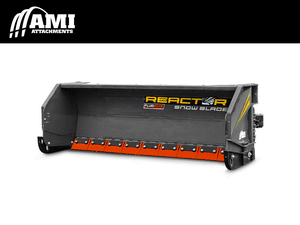

AMI Reactor 4-in-1 Hydraulic Wing Angle Blade with Segmented Fluid Edge 2.75 to 3.0 Yard wheel loaders

3/26

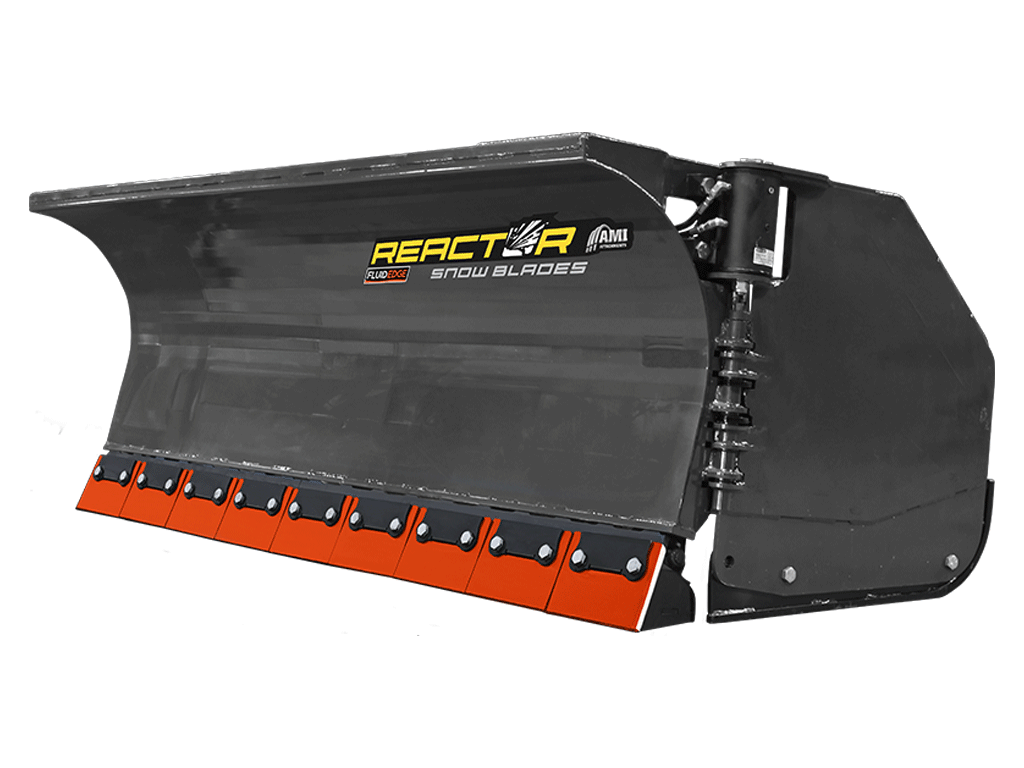

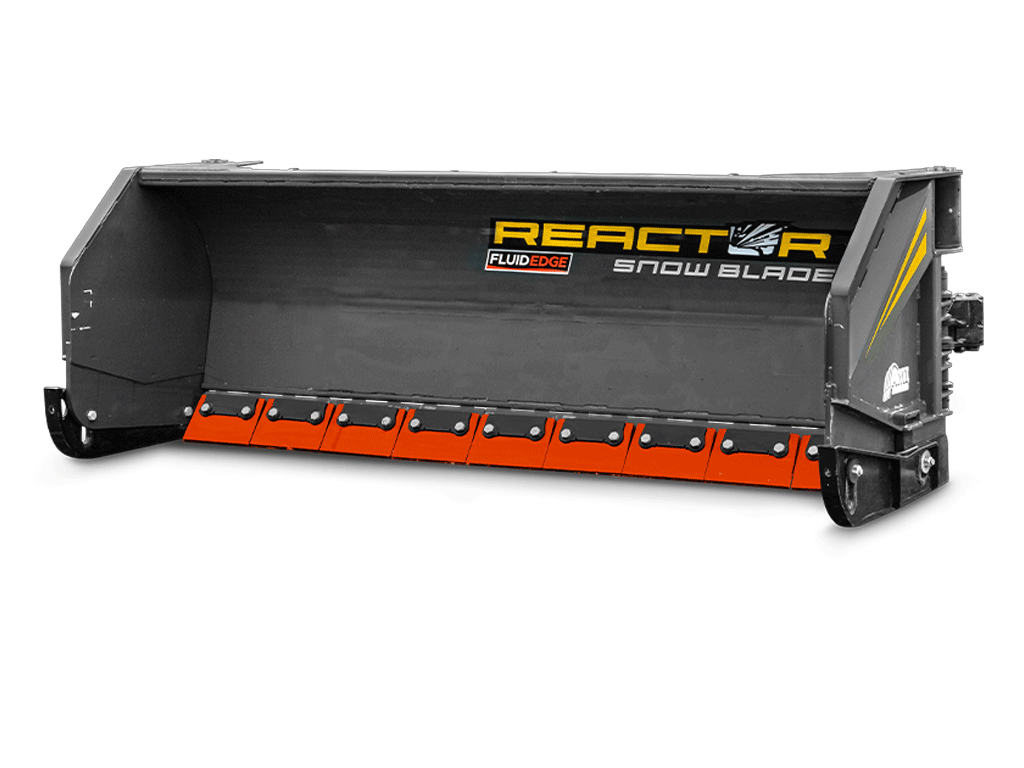

AMI Reactor 4-in-1 Hydraulic Wing Angle Blade with Segmented Fluid Edge

When winter hits hard, you need equipment that can adapt fast, clear efficiently, and perform in any condition. The AMI Reactor 4-in-1 Hydraulic Wing Angle Blade with Fluid Edge is built to dominate snow removal with unmatched versatility, control, and durability.

This powerful system combines four blade configurations in one attachment—box, reverse box, angle, and straight blade—giving operators the flexibility to tackle everything from tight urban spaces to wide-open lots. Hydraulically controlled wing endplates with 180° rotation allow for precise, on-the-fly adjustments right from the cab, making it easy to work around buildings, curbs, and obstacles.

What truly sets the Reactor apart is the Fluid Edge Segmented Cutting Edge system. Designed with independent 12-inch Hardox 500 segments, this innovative edge conforms to uneven terrain, delivering superior scraping performance on rough or inconsistent surfaces. The simple, low-maintenance design uses a rubber suspension block and minimal moving parts, making service quick and cost-effective—each segment can be replaced by one person with just two bolts.

Built for contractors and municipalities alike, the AMI Reactor 4-in-1 Blade delivers maximum productivity, reduced downtime, and cleaner results, even in the toughest winter conditions.

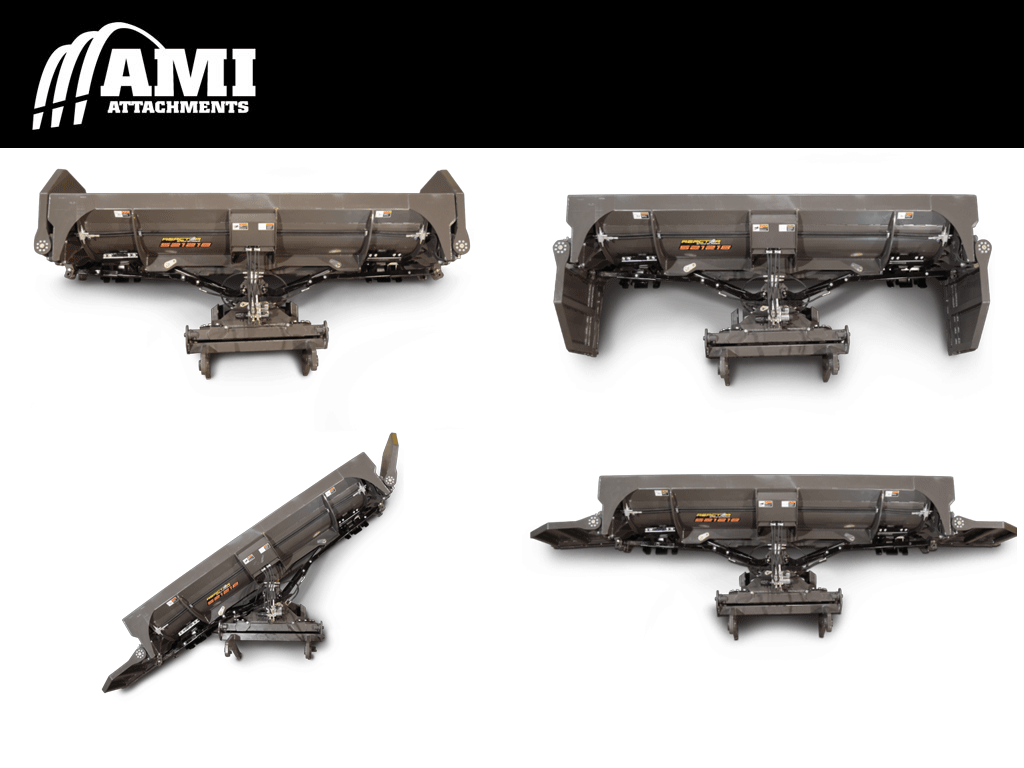

4-in-1 Blade Configurations

• Box Blade – Maximum snow containment and pushing power

• Reverse Box Blade – Efficient back-dragging near buildings and loading docks

• Angle Blade – Windrow snow quickly across large areas

• Straight Blade – Standard plowing for general applications

Key Features

• Hydraulic Wing Control – Fully adjustable endplates for maximum versatility

• 180° Pilot Range – Limitless blade positioning for precision snow removal

• Forward & Lateral Float – Maintains consistent ground contact on uneven surfaces

• Crossover Relief Valve – Protects blade and machine from impact damage

• Spring Trip Cutting Edges – Absorbs shock when hitting obstacles

• Heavy-Duty Moldboard Design – Optimized for efficient snow rolling and discharge

• Tire Protection System – Prevents damage when operating near curbs and edges

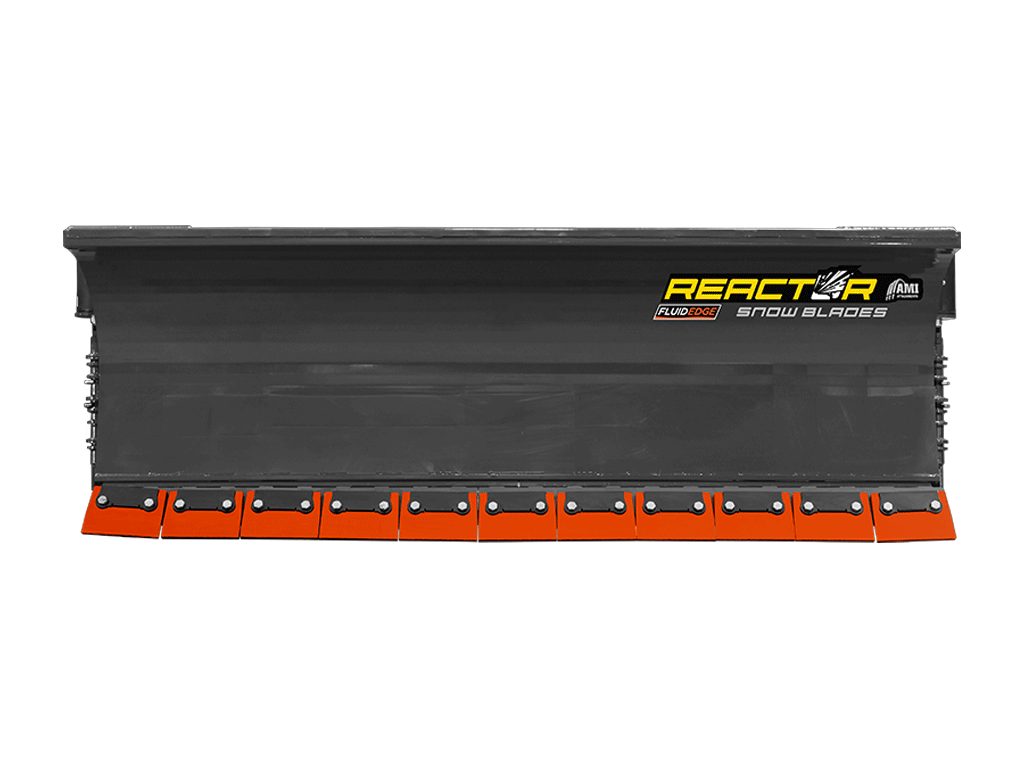

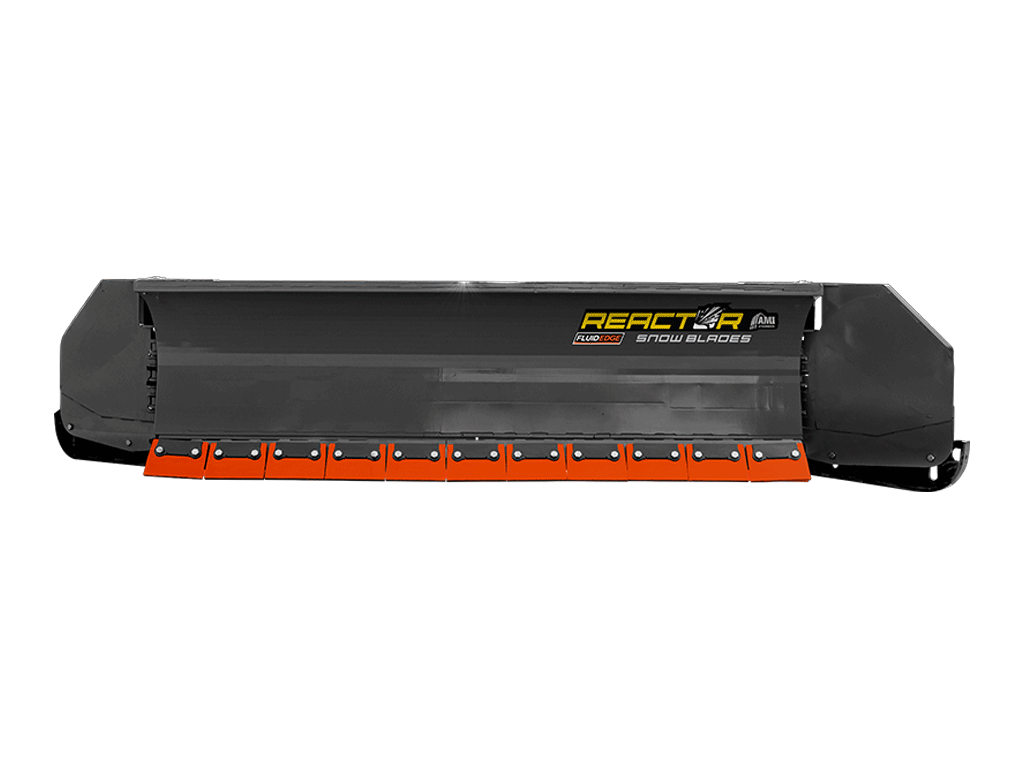

Fluid Edge Technology

• 12" Segmented Cutting Edge – Conforms to uneven terrain for cleaner scraping

• Hardox 500 Steel – Industry-leading durability and wear resistance

• Rubber Suspension Block – Allows flexibility and shock absorption

• 5° Tilt Capability – Maintains consistent edge contact

• 1.5" Vertical Travel – Improves performance on rough surfaces

• Simple Maintenance Design – Replace individual segments quickly with minimal tools

• Cost-Effective Operation – No need to replace the entire cutting edge

Performance & Versatility

The AMI Reactor is available in multiple sizes to match a wide range of machines, with retracted widths from 6 ft to 16 ft and extended widths up to 22 ft. Built for machine classes ranging from 1.00 to 3.50 cubic yards, this blade is ideal for loaders handling everything from commercial lots to large-scale snow removal operations.

With weights ranging from approximately 1,460 lbs to 4,490 lbs, the Reactor delivers the strength and stability needed for demanding winter work.

FastTrack Availability

AMI’s FastTrack Program ensures select high-demand models are built and shipped quickly without compromising quality—keeping your fleet ready when the snow starts falling.

Why Choose the AMI Reactor 4-in-1 Blade?

If you’re looking to increase efficiency, reduce operating costs, and gain total control in snow removal, the AMI Reactor with Fluid Edge is a serious upgrade. It replaces multiple attachments with one powerful system and delivers cleaner results in less time—no matter the conditions.
