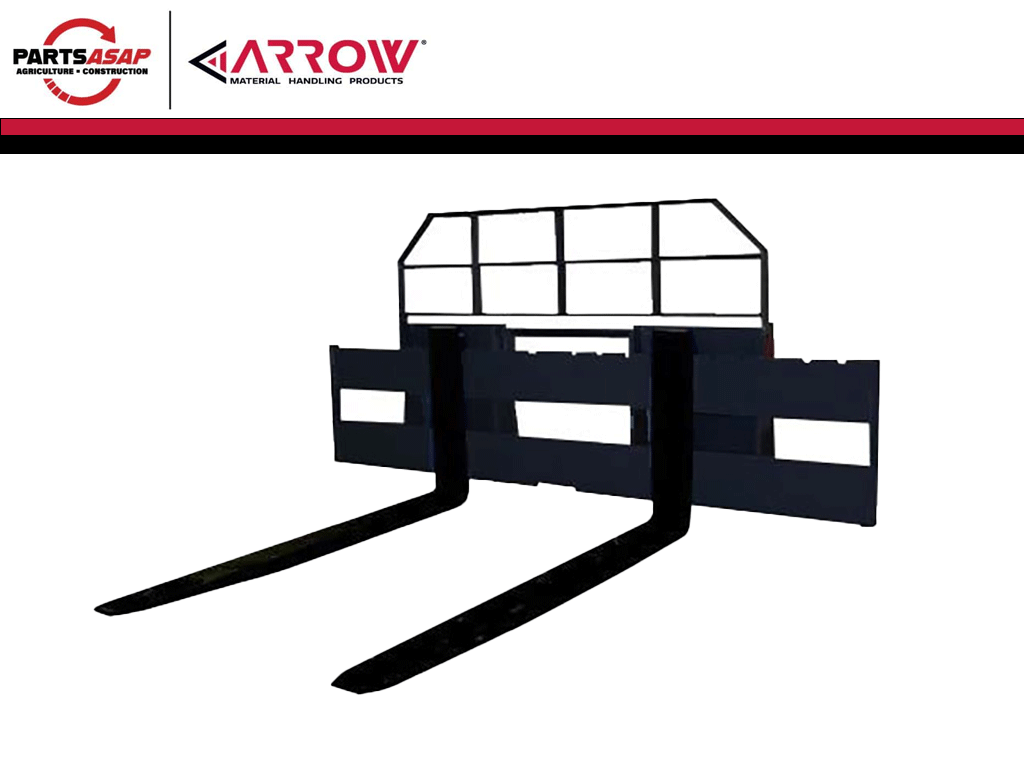

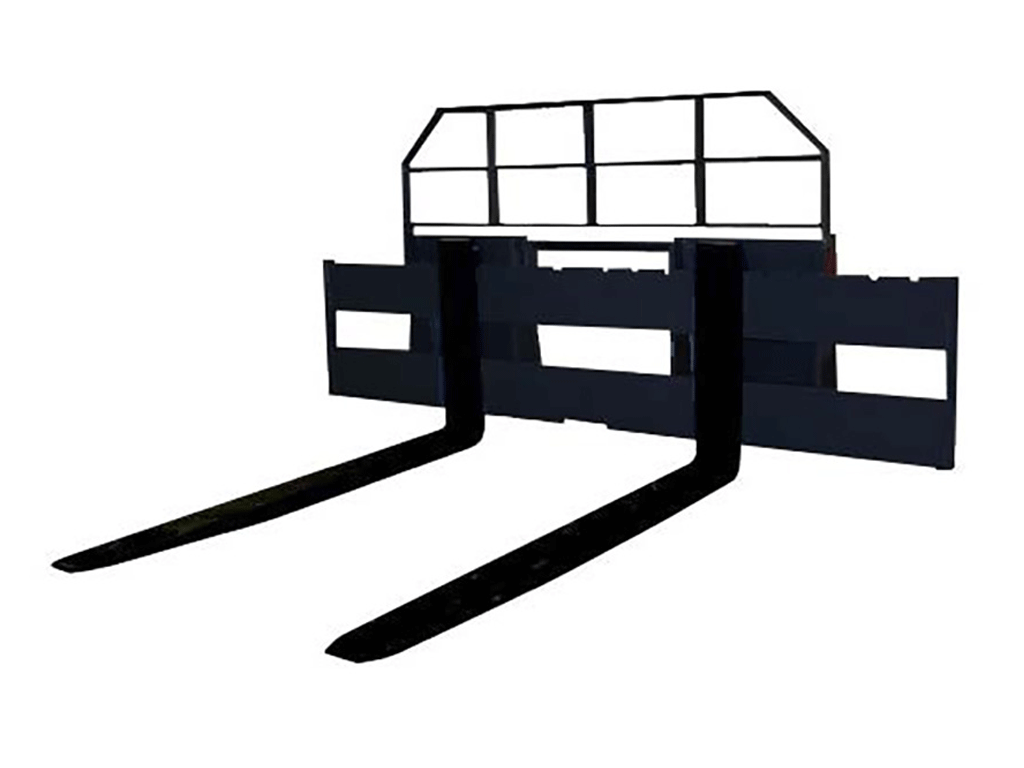

ARROW Extra Wide Skid Steer Pallet Forks
TheARROW Extra Wide Skid Steer Pallet Forks are engineered for safely handling oversized, bulky, and awkward loads that require additional fork spacing and maximum stability. Designed to fit all universal skid steer quick-attach couplers, these heavy-duty pallet forks feature extra-wide frames, reinforced construction, and a5,500 lb. lifting capacity to tackle demanding jobs in construction, agriculture, manufacturing, landscaping, and material handling.
Available in60-inch and 72-inch frame widths with additional custom widths available, these pallet forks provide the extra support needed for wide pallets, lumber bundles, pipe, trusses, crates, and other oversized materials.
Built for Heavy-Duty Material Handling
Constructed with reinforced hitch plates and6-inch ITA Class II upper and lower fork bars, the ARROW Extra Wide Pallet Forks are built to withstand years of demanding use. The robust frame design offers exceptional strength while maintaining excellent visibility for the operator.
A lower ground reach allows operators to easily slide forks under loads, making these forks an excellent choice for skid steers equipped with tracks or oversized tires.
Features
- Fits all universal skid steer quick-attach couplers
- Heavy-duty5,500 lb. capacity
- Available in60" and 72" wide frames
- Optional custom frame widths available
- Reinforced hitch plates for added durability
- Heavy-duty6" ITA Class II upper and lower fork rails
- Lower ground reach for tracked machines and large tires
- Available withHigh Carbon Steel forks
- Fork lengths available from36" to 96"
- Standard safety load backrest
- Excellent operator visibility
- Easy access to the operator's station
- Built for commercial and industrial applications
Specifications
| Specification | Details |
|---|---|
| Attachment Type | Extra Wide Skid Steer Pallet Forks |
| Mounting | Universal Skid Steer Quick Attach |
| Capacity | 5,500 lbs. |
| Standard Frame Widths | 60", 72" |
| Optional Widths | Available |
| Fork Bar | 6" ITA Class II Upper & Lower Rails |
| Fork Length Options | 36", 42", 48", 60", 72", 84", 96" |
| Fork Material | High Carbon Steel |
| Safety Guard | Standard |
| Hitch Plates | Reinforced |
Ideal Applications
The ARROW Extra Wide Pallet Forks are ideal for:
- Lumber yards
- Building supply centers
- Farms and ranches
- Construction sites
- Landscape supply yards
- Manufacturing facilities
- Warehouses
- Pipe and steel handling
- Truss and roof package installation
- Oversized pallet handling
Designed for Strength and Visibility
The open-frame design provides outstanding visibility to the fork tips, allowing operators to place loads with greater accuracy and confidence. Combined with the heavy-duty frame and high-strength fork rails, these pallet forks are built for years of dependable service in the toughest working environments.
CAUTION: Extra-wide pallet fork frames can affect the stability of your skid steer, especially when lifting heavy or uneven loads. Always follow your machine manufacturer's rated operating capacity and safe lifting procedures.
