Erskine Mini Skid Steer V-Plow | 48" & 60" Heavy-Duty Snow Plow Attachment

SIZE-STYLE

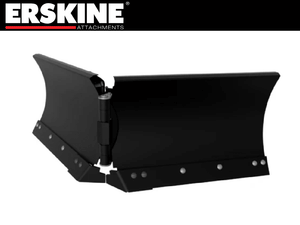

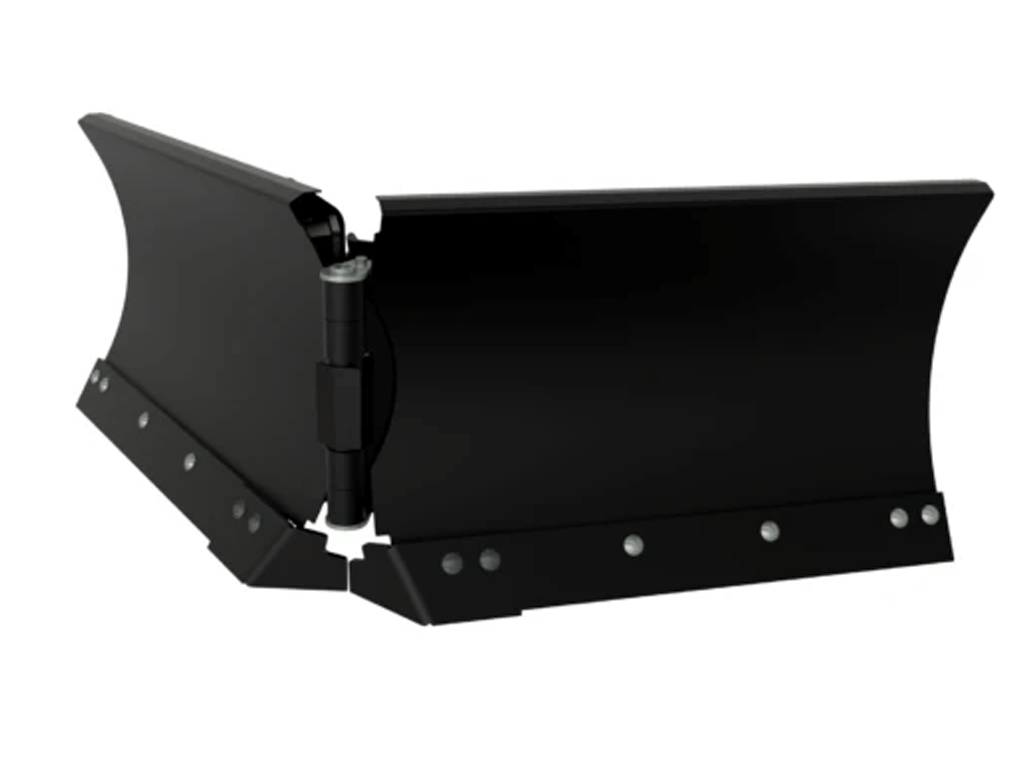

Erskine Mini Skid Steer V-Plow

48" & 60" Heavy-Duty Snow Plow Attachment

4-Position Mini Skid Steer V-Plow | Straight Blade, Angle Plow, V-Plow & Scoop | Manual Positioning with Optional Hydraulic Angling

TheErskine Mini Skid Steer V-Plow is a versatile, heavy-dutymini skid steer snow plow attachment designed for efficient snow removal from sidewalks, driveways, parking areas, commercial properties, and confined spaces. Available in48-inch and 60-inch models, this professional-grade snow plow provides multiple blade configurations to handle changing snow conditions and different clearing applications.

Unlike a conventional straight snow blade, theErskine Mini V-Plow can be positioned in straight, angled, V, and scoop configurations, giving operators greater flexibility when pushing, directing, and collecting snow.

The standard manual blade positioning system offers simple operation without requiring hydraulic blade controls. Anoptional hydraulic angling package is available for operators who want additional convenience.

Built with12-gauge steel moldboards, 1/2" × 4" AR400 bolt-on cutting edges, adjustable trip springs, and greasable pivot points, the Erskine Mini Skid Steer V-Plow is engineered for demanding winter maintenance.

Its integrated float and oscillation system allows the blade to follow uneven ground, while adjustable skid shoes help control cutting edge height and reduce unnecessary surface disturbance.

Whether you're a professional snow removal contractor, landscaper, property maintenance operator, or mini skid steer owner, theErskine Mini V-Plow provides the versatility needed to handle a wide range of snow removal applications.

Erskine Mini Skid Steer V-Plow Features & Benefits

  • 48" & 60" V-Plow Models: Two sizes for different mini skid steer machines and snow removal applications.

  • Multiple Blade Positions: Straight, angled, V, and scoop configurations provide flexibility for different snow conditions.

  • Manual Blade Position Selection: Simple adjustment system for reliable snow plow operation.

  • Optional Hydraulic Angling: Available for operators seeking powered blade adjustment.

  • 30° Blade Angling: Allows the blade to direct snow left or right.

  • Built-In Float & Oscillation: Provides ±5° movement to help follow uneven surfaces.

  • Trip Edge Protection: Helps absorb impact when encountering certain hidden obstacles.

  • Adjustable Trip Springs: Allow adjustment of trip resistance according to operating conditions.

  • AR400 Bolt-On Cutting Edges: Heavy-duty 1/2" × 4" cutting edges designed for wear resistance.

  • 12-Gauge Steel Moldboards: Durable construction for demanding snow removal applications.

  • Greasable Pivot Points: Help reduce wear and support long-term serviceability.

  • Adjustable Skid Shoes: Help control cutting edge clearance on different surfaces.

  • 2-Year Factory Warranty: Backed by Erskine's manufacturer warranty.

Multiple Snow Plow Positions for Maximum Versatility

TheErskine Mini Skid Steer V-Plow provides multiple blade positions so operators can adapt to different snow removal conditions.

Straight Blade Position – General Snow Pushing

The straight blade configuration is useful for pushing snow forward and clearing open areas.

Ideal for:

  • Driveways

  • Sidewalks

  • Parking areas

  • Access lanes

  • General snow cleanup

Angled Blade Position – Direct Snow Left or Right

The angled blade configuration directs snow to the side of the travel path.

Withup to 30° blade angling, operators can move snow toward the edge of a driveway, sidewalk, or parking area.

Ideal for:

  • Long sidewalks

  • Driveway snow removal

  • Parking lot edges

  • Access roads

  • Continuous snow clearing

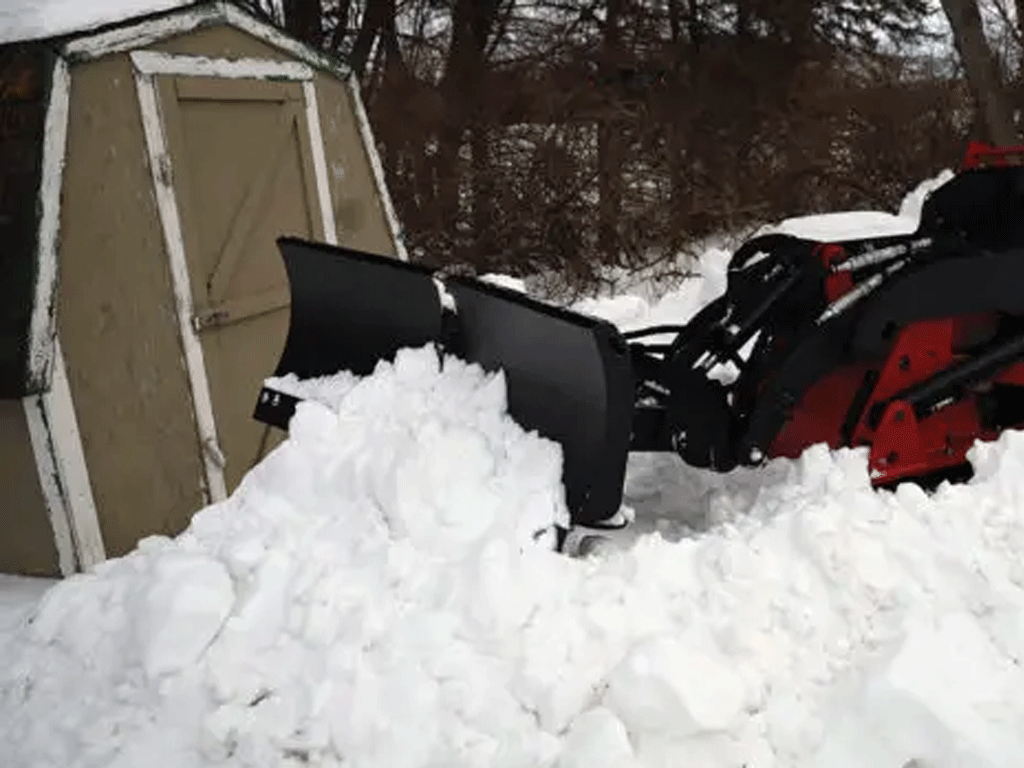

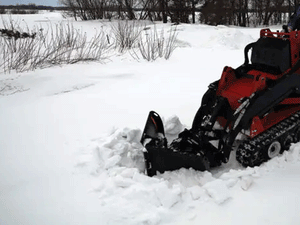

V-Plow Position – Breaking Through Snow

The V configuration positions the blade wings forward at the center, helping divide snow and direct it outward.

This configuration is useful for opening a path through accumulated snow.

Ideal for:

  • Initial snow clearing passes

  • Narrow access routes

  • Heavier snow accumulation

  • Opening snow-covered driveways

  • Creating a path through snow buildup

Scoop Position – Carrying Snow Forward

The scoop configuration positions the blade wings to help contain snow in front of the attachment.

This reduces the amount of snow spilling off the sides compared with a straight blade in suitable conditions.

Ideal for:

  • Parking area cleanup

  • Moving snow toward designated pile locations

  • Short-distance snow relocation

  • Confined snow removal areas

  • Final snow cleanup

The ability to change blade configurations makes the Erskine Mini V-Plow a practical alternative to a traditional straight snow blade.

Manual Blade Positioning with Optional Hydraulic Angling

The standardErskine Mini V-Plow features a manual blade positioning system.

This straightforward design allows operators to select the desired blade configuration without relying on additional hydraulic blade controls.

Advantages of Manual Positioning

  • Simple operation

  • Reduced system complexity

  • No hydraulic angling package required for standard positioning

  • Multiple blade configurations

  • Durable mechanical design

Optional Hydraulic Angling

Erskine also offers anoptional hydraulic angling package.

This option can provide more convenient blade adjustments for operators who regularly change snow removal direction.

Hydraulic angling is especially useful for commercial snow removal contractors working on properties with changing layouts and obstacles.

Note: Hydraulic angling is optional. Confirm the available hydraulic functions and controls for the specific package before ordering.

Float & Oscillation for Uneven Ground

The Erskine Mini Skid Steer V-Plow includes a built-infloat and oscillation system with ±5° movement.

This allows the blade to adapt to surface variations during operation.

Benefits of Float & Oscillation

  • Helps follow uneven pavement

  • Supports more consistent scraping

  • Reduces excessive cutting edge pressure

  • Helps limit surface disturbance

  • Improves blade contact on changing ground contours

  • Supports more efficient snow removal

This feature is particularly useful when clearing sidewalks, driveways, and parking areas that are not perfectly level.

Trip Edge Protection with Adjustable Springs

Hidden obstacles are a common problem during snow removal.

TheErskine Mini V-Plow features a trip edge protection system designed to reduce impact forces when the cutting edge encounters certain obstructions.

Trip Edge Benefits

  • Helps absorb impact from certain obstacles

  • Reduces shock transferred to the attachment

  • Helps protect the carrier machine

  • Supports operation on paved surfaces

  • Helps reduce potential attachment damage

Adjustable Trip Springs

The trip springs can be adjusted to match operating conditions and the manufacturer's recommended settings.

This allows operators to balance trip resistance with snow clearing performance.

Important: Trip edges reduce certain impact forces but do not prevent all damage. Operators should maintain safe plowing speeds and inspect work areas for obstacles.

Heavy-Duty AR400 Bolt-On Cutting Edges

The Erskine Mini V-Plow is equipped with1/2" × 4" AR400 steel bolt-on cutting edges.

AR400 is abrasion-resistant steel designed for demanding wear applications.

AR400 Cutting Edge Advantages

  • Abrasion-resistant steel construction

  • Durable cutting edge design

  • Replaceable bolt-on configuration

  • Suitable for repeated snow removal work

  • Designed for long-term serviceability

The bolt-on design allows worn cutting edges to be replaced without replacing the entire moldboard assembly.

12-Gauge Steel Moldboard Construction

Both Erskine Mini V-Plow models feature12-gauge steel moldboards.

The moldboards are designed to handle demanding snow removal conditions while keeping attachment weight manageable for compatible mini skid steer loaders.

Construction Highlights

  • 12-gauge steel moldboards

  • AR400 bolt-on cutting edges

  • Greasable pivot pins

  • Adjustable trip springs

  • Adjustable skid shoes

  • Heavy-duty snow removal design

Greasable Pivot Points for Easier Maintenance

The Erskine Mini V-Plow featuresgreasable pins at all pivot points.

Regular lubrication helps reduce friction and wear on moving components.

Maintenance Benefits

  • Simplified lubrication

  • Reduced pivot point wear

  • Improved serviceability

  • Supports smooth blade movement

  • Helps extend component service life

For contractors who use their snow plow throughout the winter, accessible grease points make routine maintenance easier.

Adjustable Skid Shoes for Surface Protection

Adjustable skid shoes allow operators to control cutting edge clearance relative to the ground.

This is particularly useful when working on gravel, uneven pavement, or surfaces where aggressive scraping is undesirable.

Skid Shoe Benefits

  • Adjustable blade clearance

  • Helps reduce surface disturbance

  • Supports operation on uneven ground

  • Helps manage cutting edge contact

  • Provides flexibility for different snow removal conditions

48" Erskine Mini V-Plow – Part #901618

The48-inch Erskine Mini Skid Steer V-Plow provides versatile snow removal performance in a compact configuration.

Its 360-pound approximate attachment weight and 48-inch V-position width make it suitable for compatible mini skid steer loaders working in restricted areas.

Key Specifications

  • Part Number: 901618

  • V Position Width: 48"

  • Straight Blade Width: 53.5"

  • Angled Blade Width: 43.8"

  • Scoop Position Width: 39.7"

  • Blade Height: 21.3"

  • Blade Angle: ±30°

  • Approximate Weight: 360 LB

Best For: Suitable narrow sidewalks, driveways, residential properties, and confined snow removal areas.

60" Erskine Mini V-Plow – Part #901619

The60-inch Erskine Mini Skid Steer V-Plow provides additional clearing width for larger snow removal applications.

Its 390-pound approximate attachment weight and 60-inch V-position width make it a practical option for compatible mini skid steer loaders used on larger properties.

Key Specifications

  • Part Number: 901619

  • V Position Width: 60"

  • Straight Blade Width: 68.1"

  • Angled Blade Width: 55.8"

  • Scoop Position Width: 51.7"

  • Blade Height: 21.3"

  • Blade Angle: ±30°

  • Approximate Weight: 390 LB

Best For: Driveways, wider sidewalks, commercial properties, parking areas, and larger snow removal jobs.

Erskine Mini V-Plow vs. Straight Snow Blade

FEATURE ERSKINE MINI V-PLOW TYPICAL STRAIGHT SNOW BLADE
Straight Blade Operation Yes Yes
Angled Plowing Yes Often Available
V Position Yes No
Scoop Position Yes No
Manual Positioning Standard Varies
Hydraulic Angling Optional Varies
Trip Edge Protection Standard Varies
Float & Oscillation ±5° Varies
Adjustable Skid Shoes Standard Varies
Replaceable Cutting Edge AR400 Bolt-On Varies

The Erskine Mini V-Plow provides additional blade configurations that are not available on a conventional straight snow blade.

Ideal Applications for the Erskine Mini Skid Steer V-Plow

Sidewalk Snow Removal

Clear suitable sidewalks and pedestrian access areas with a compact mini skid steer.

Residential Driveways

Use straight, angled, V, or scoop positions to manage snow on residential properties.

Commercial Property Maintenance

Maintain access areas, smaller parking lots, and commercial walkways.

Landscaping & Snow Removal Businesses

Add winter snow removal capabilities to a mini skid steer used for landscaping during warmer months.

Equipment Yards & Storage Facilities

Clear snow around equipment, buildings, and confined storage areas.

Municipal & Facility Maintenance

Maintain suitable walkways, access routes, and other snow-covered areas.

Which Erskine Mini V-Plow Size Should You Choose?

FEATURE 48" MODEL 60" MODEL
Part Number 901618 901619
V Position Width 48" 60"
Straight Blade Width 53.5" 68.1"
Angled Width 43.8" 55.8"
Scoop Width 39.7" 51.7"
Approximate Weight 360 LB 390 LB
Best Consideration Narrow access and maneuverability Greater snow clearing width

Our Recommendation: Choose the 48-inch Mini V-Plow when working in narrower areas or when attachment weight is a priority. The 60-inch model offers additional clearing width for larger areas and appropriately sized carrier machines.

Buy Erskine Mini Skid Steer V-Plows from Langefels Equipment Co.

Upgrade your snow removal equipment with theErskine Mini Skid Steer V-Plow, available in 48-inch and 60-inch models.

With multiple blade configurations, adjustable trip springs, AR400 cutting edges, float and oscillation, and optional hydraulic angling, this professional-grade mini skid steer snow plow is designed to handle changing winter conditions.

Langefels Equipment Co. supplies professional-grade Erskine snow plows, mini skid steer attachments, V-plows, snow pushers, and construction equipment accessories to customers nationwide.

Call Langefels Equipment Co. at 513-777-6666 for pricing, availability, mounting compatibility, and ordering information.


Erskine Mini V-Plow Technical Specifications

SPECIFICATION 48" MINI V-PLOW 60" MINI V-PLOW
Manufacturer Erskine Attachments Erskine Attachments
Model Mini V-Plow 48" Mini V-Plow 60"
Part Number 901618 901619
V Position Width 48" 60"
Straight Blade Width 53.5" 68.1"
Angled Blade Width 43.8" 55.8"
Scoop Position Width 39.7" 51.7"
Blade Height 21.3" 21.3"
Overall Length (By Position) 33" / 35.4" / 50" 33" / 35.4" / 50"
Blade Angle ±30° ±30°
Amount of Float ±5° ±5°
Moldboard Thickness 12-Gauge Steel 12-Gauge Steel
Bolt-On Cutting Edge 1/2" × 4" AR400 1/2" × 4" AR400
Approximate Weight 360 LB 390 LB
Blade Positioning Manual Manual
Trip Edge Protection Standard Standard
Adjustable Trip Springs Standard Standard
Greasable Pivot Pins Standard Standard
Adjustable Skid Shoes Standard Standard
Hydraulic Angling Optional Optional
Factory-Installed Couplers Optional Optional
Mounting Universal – Verify Fitment Universal – Verify Fitment
Warranty 2-Year Factory Warranty 2-Year Factory Warranty

Compatibility Note: Confirm the correct mounting system, carrier lifting capacity, and any hydraulic requirements before purchasing. The optional hydraulic angling package requires a compatible hydraulic system.

Big Dave Review & Frequently Asked Questions

Big Dave Review – Erskine Mini Skid Steer V-Plow

"If you're using a mini skid steer for snow removal, a V-plow gives you a lot more flexibility than a standard straight blade."

What I like about theErskine Mini Skid Steer V-Plow is that you can change the blade configuration depending on what you're trying to accomplish.

When you need to open a path through snow, the V position is useful. When you're trying to carry snow forward without spilling as much off the sides, the scoop position comes in handy. And when you're clearing long driveways or sidewalks, you can use the angled position to direct snow to the side.

I also like theAR400 bolt-on cutting edges. Snow plows take a lot of wear, and having replaceable cutting edges is important if you're using the attachment commercially.

The trip edge protection and adjustable springs are another big advantage. Hidden obstacles are part of snow removal, and anything that helps reduce impact forces is worth having.

Thefloat and oscillation system is also a feature I appreciate because not every driveway or sidewalk is perfectly level.

For contractors who frequently change blade positions, I'd consider the optional hydraulic angling package. Just confirm exactly which adjustments the hydraulic option controls.

The 48-inch model weighs approximately 360 pounds, while the 60-inch model weighs around 390 pounds. Make sure your mini skid steer has the proper capacity before choosing a size.

My recommendation: If you're doing snow removal around homes, businesses, sidewalks, or equipment yards, the Erskine Mini V-Plow is a versatile attachment worth considering. It gives you multiple ways to manage snow without switching between several different plows.

– Big Dave, LEC

Frequently Asked Questions – Erskine Mini Skid Steer V-Plow

What is the Erskine Mini Skid Steer V-Plow?

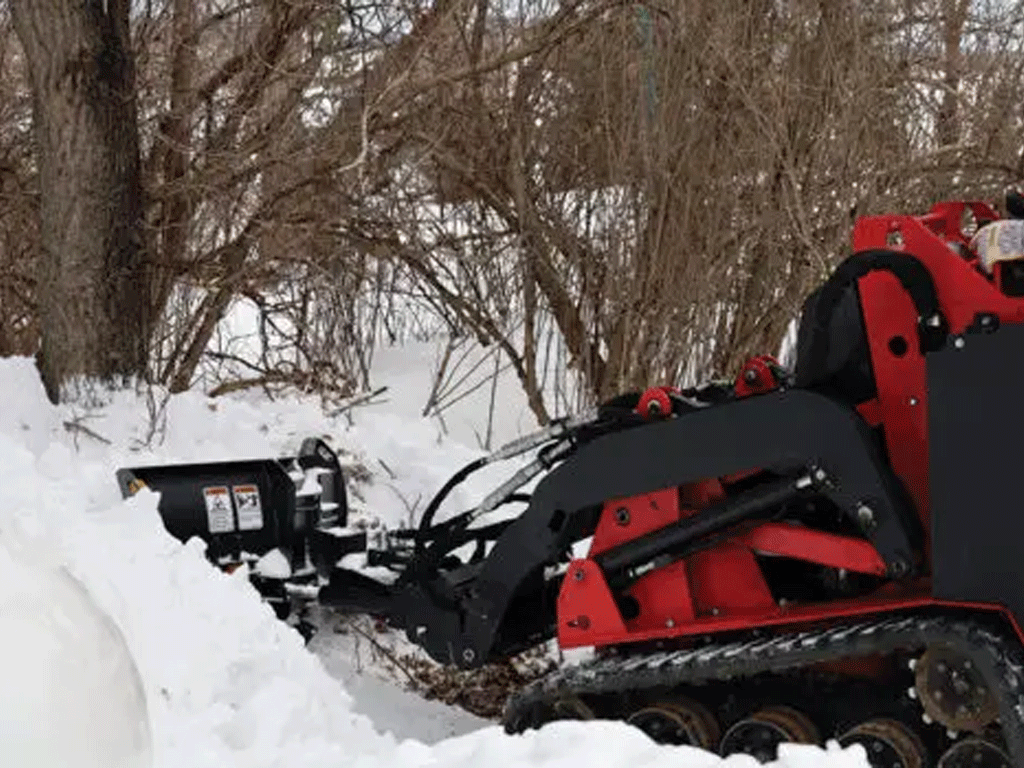

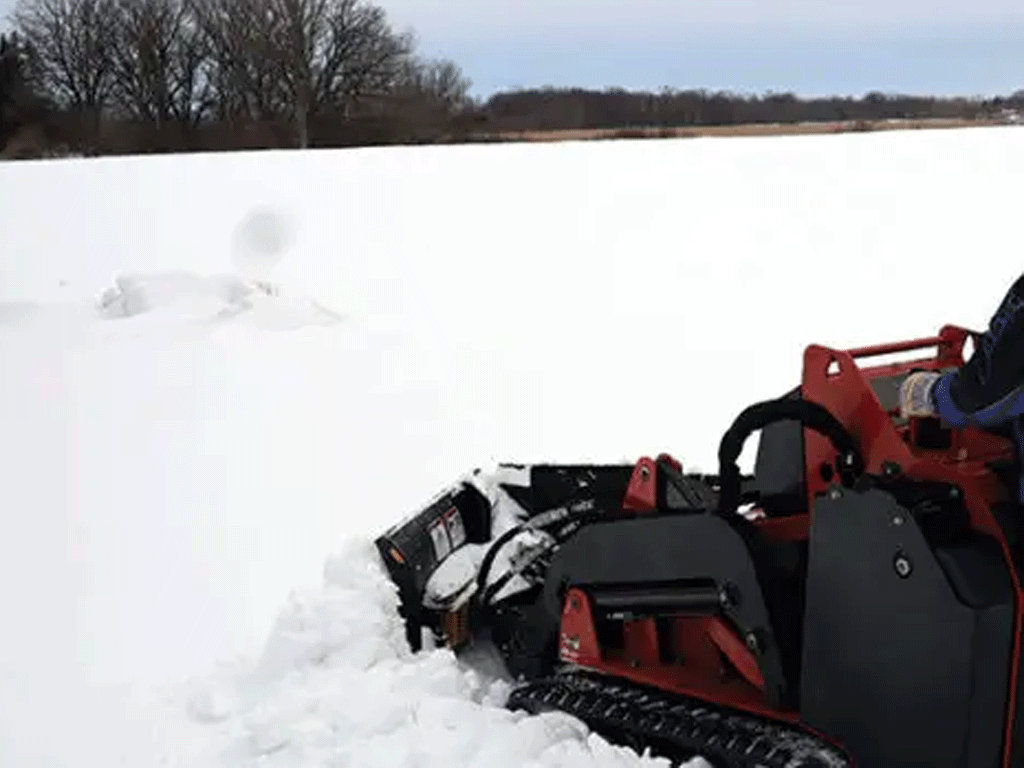

The Erskine Mini V-Plow is a snow removal attachment for compatible mini skid steer loaders and compact tool carriers. It offers multiple blade configurations for pushing, directing, and collecting snow.

What sizes are available?

The Erskine Mini V-Plow is available in48-inch and 60-inch models.

What are the part numbers?

The 48-inch model is901618, and the 60-inch model is901619.

What blade positions does the Erskine Mini V-Plow offer?

The blade can be configured for straight plowing, angled plowing, V-position plowing, and scoop-position snow handling.

Is the Erskine Mini V-Plow manually operated?

Yes. Manual blade position selection is standard.

Is hydraulic angling available?

Yes. Hydraulic angling is listed as an optional upgrade.

How much does the Erskine Mini V-Plow weigh?

The 48-inch model weighs approximately360 pounds, and the 60-inch model weighs approximately390 pounds.

How tall is the blade?

Both models have a blade height of21.3 inches.

What is the straight blade width?

The 48-inch model has a straight blade width of53.5 inches, and the 60-inch model has a straight blade width of68.1 inches.

What is the V-position width?

The 48-inch model measures48 inches in the V position, and the 60-inch model measures60 inches.

What is the scoop-position width?

The 48-inch model has a scoop-position width of39.7 inches, while the 60-inch model measures51.7 inches.

How far can the blade angle?

Both models have a listed blade angle of±30°.

Does the Erskine Mini V-Plow float over uneven ground?

Yes. It features built-in float and oscillation with±5° movement to help follow surface contours.

Does the Erskine Mini V-Plow have trip edge protection?

Yes. The attachment includes trip edge protection with adjustable trip springs.

What type of cutting edge does the Erskine Mini V-Plow use?

Both models use1/2" × 4" AR400 steel bolt-on cutting edges.

Are the pivot points greasable?

Yes. Erskine specifies greasable pins at all pivot points.

Does the Erskine Mini V-Plow have adjustable skid shoes?

Yes. Adjustable skid shoes are standard.

Will the Erskine Mini V-Plow fit my mini skid steer?

Compatibility depends on the machine's mounting system, rated capacity, and hydraulic connections if the optional hydraulic angling package is selected.

What warranty comes with the Erskine Mini V-Plow?

Both models include a2-year factory warranty, subject to Erskine's warranty terms.
