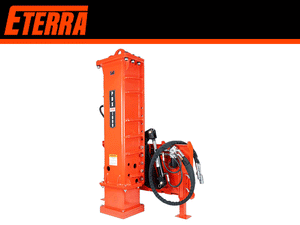

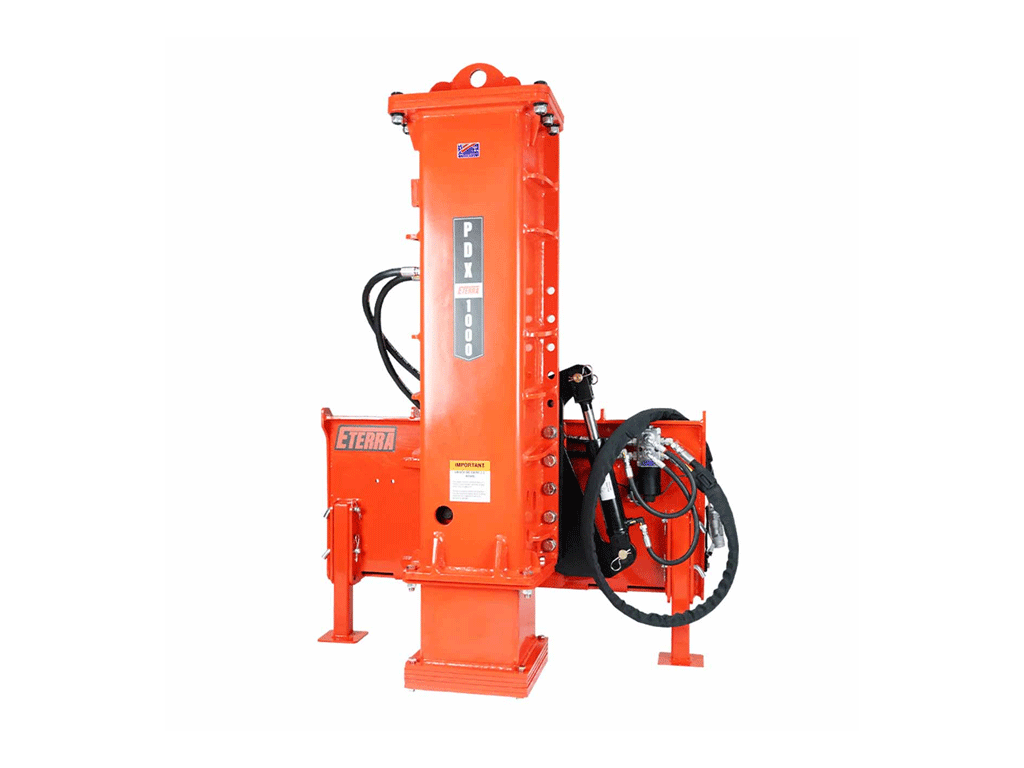

ETERRA Skid Steer PDX-1000 Post Driver Attachment

Drive fence posts faster, straighter, and with less effort using the ETERRA PDX-1000 Skid Steer Post Driver. Built for professional fencing contractors, land managers, and ag operations, the PDX-1000 delivers consistent power, precise control, and rugged durability for demanding job sites.

Meet the Skid Steer PDX-1000 Post Driver

The PDX-1000 is engineered to take the punishment of daily fence installation. A nitrogen-charged power cell, activated by your skid steer’s hydraulics, delivers a full 1,000 ft-lbs of driving energy per strike—plenty of force to drive posts into hard-packed soil, clay, or mixed ground conditions. The power cell is mounted inside a heavy-duty housing with rubber isolators to reduce vibration, protecting both the attachment and your machine while improving operator comfort.

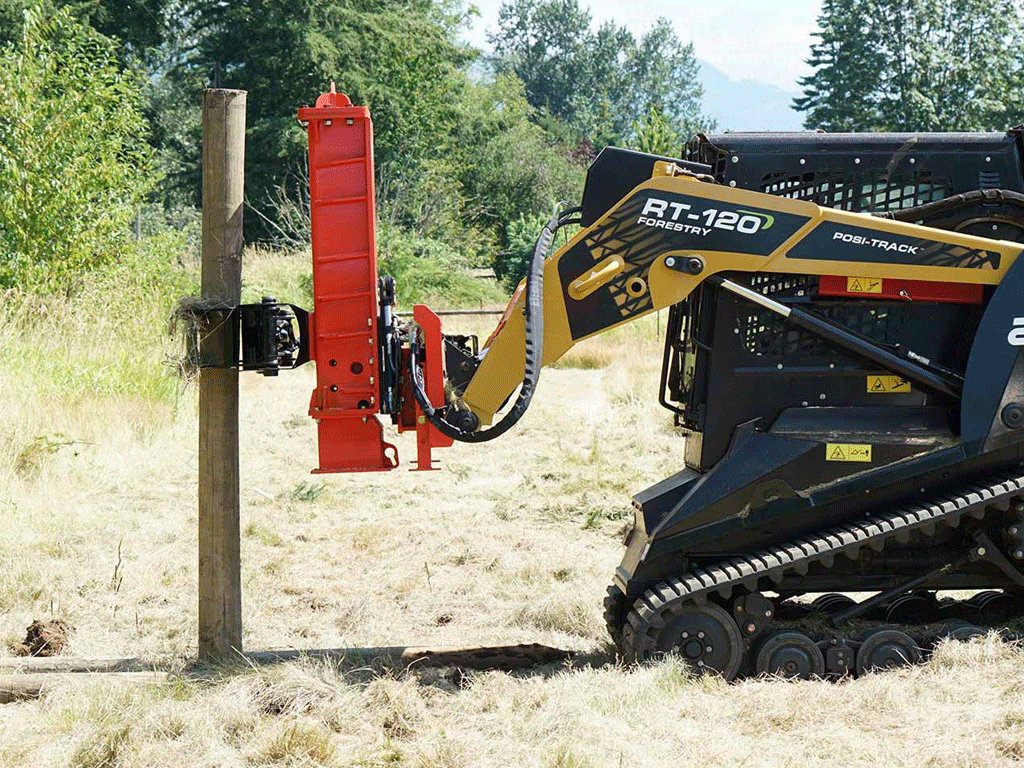

A hydraulically controlled 15° tilt mechanism allows precise post placement on uneven terrain, slopes, and fence lines that don’t run perfectly level. Unlike bulkier designs, the PDX-1000 positions the driver body closer to the skid steer, improving downforce, visibility, and maneuverability—especially helpful when working along tight fence rows or obstacles.

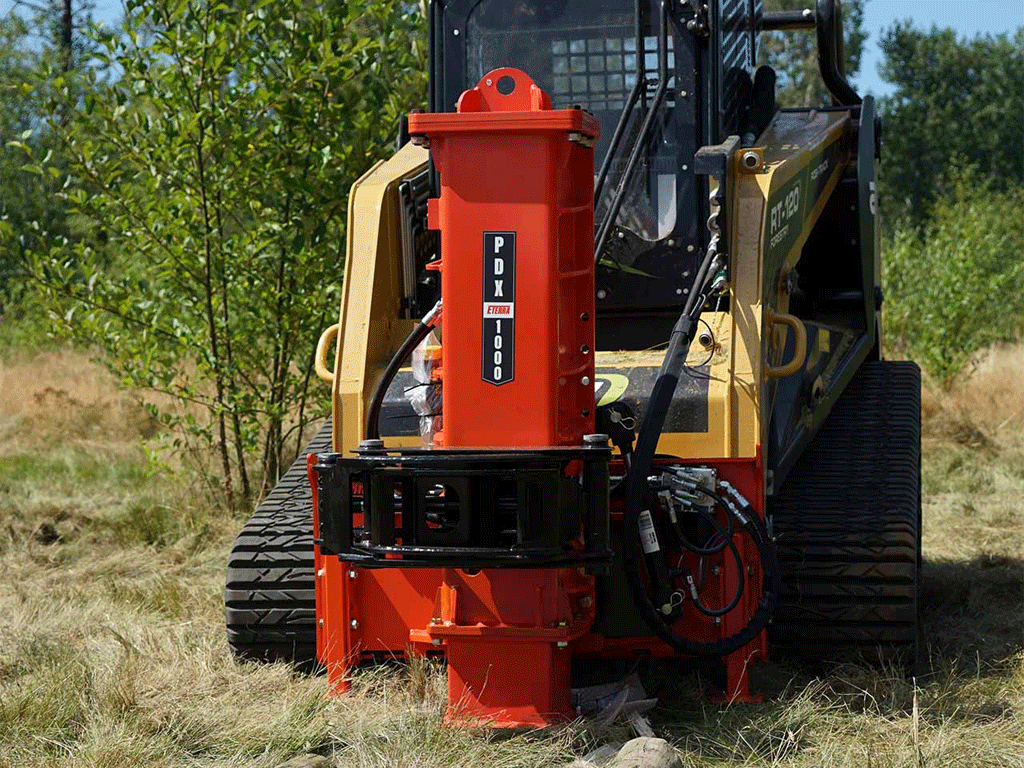

Versatility is built in. The standard post guide housing array accommodates 2", 4", 6", and 8" posts, with removable guides for posts larger than 9". Choose between domed or flat driver head tools, and tackle tough ground with the included 5-foot breaker spike, all manufactured from high-tensile 4140 tool steel for long service life under repeated impacts.

If you need a skid steer post driver that installs fence efficiently, holds alignment, and stands up to real-world abuse, the ETERRA PDX-1000 is built to get it done.

Specs at a Glance

• Energy Class: 1,000 ft-lbs

• Flow Requirement: 13–21 GPM

• Impact Force: 32,000 lbs-force

• Hit Rate: 400–800 BPM

• Tilt Angle: 15° left & right (tilt models)

• Operating Pressure: 1,700 PSI

• Minimum Machine Lift Capacity: 1,500 lbs

• Weight: 1,186–1,656 lbs

• Compatible Post Sizes: 2"–8" standard (larger with guides removed)
