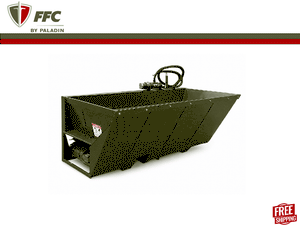

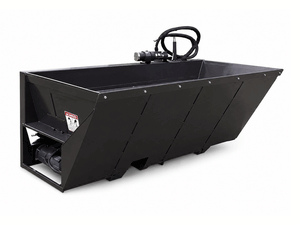

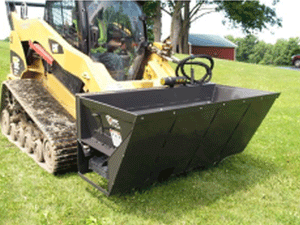

FFC Side Discharge Bucket by Paladin

Precision Side Discharge Buckets for Sand, Sawdust, Feed & Aggregate

The FFC Side Discharge Bucket by Paladin is designed to deliver precise placement of sand, sawdust, feed, aggregate, mulch, and other loose materials. Built for skid steer loaders and compact track loaders, these innovative buckets allow operators to discharge material from either the right or left side, making them ideal for agricultural, landscaping, road maintenance, and construction applications.

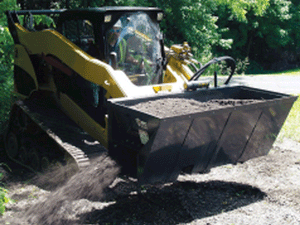

Unlike a standard bucket that dumps material all at once, the FFC Side Discharge Bucket uses a hydraulically driven conveyor belt to provide a smooth, controlled flow of material exactly where it's needed. Whether you're backfilling trenches, bedding pipe, spreading feed, or placing sawdust in livestock facilities, this attachment increases productivity while reducing material waste.

Ideal Applications

The FFC Side Discharge Bucket is perfect for:

• Sand spreading
• Pipe bedding
• Utility trench backfill
• Road and shoulder maintenance
• Livestock bedding
• Feed distribution
• Mulch placement
• Sawdust handling
• Agricultural operations
• Landscaping
• Material stockpiling
• General construction

Sand Discharge Bucket Features

The Sand Discharge Bucket is engineered for controlled handling of dense materials while maximizing reliability and reducing downtime.

Features

• Removable belt cover helps reduce belt loading and minimizes stalling
• 13.5-inch conveyor belt with 1/2-inch tall grousers
• Direct hydraulic drive for the conveyor
• Right or left side discharge
• Heavy-duty cast steel drive sprockets
• Bucket edge drilled for optional bolt-on cutting edge
• Tool-free discharge door adjustment

These features provide consistent material flow while simplifying maintenance and improving productivity.

Sawdust Discharge Bucket Features

Designed specifically for lightweight materials, the Sawdust Bucket incorporates additional features to prevent bridging and maintain a constant flow.

Features

• Material agitator prevents bridging
• Direct hydraulic agitator drive (eliminates chain and sprocket system)
• 15-inch conveyor belt
• 1-inch tall belt grousers
• Smooth, consistent material delivery
• Excellent performance with sawdust, mulch, feed, and silage

The integrated agitator keeps lightweight materials moving efficiently, even in damp conditions.

Direct Hydraulic Drive

Both bucket models utilize direct hydraulic drive systems for dependable conveyor performance.

Benefits include:

• Fewer moving parts
• Reduced maintenance
• Smooth conveyor operation
• Reliable power transfer
• Improved durability

Right or Left Side Discharge

Operators can choose to discharge material from either side of the machine, making the bucket ideal for:

• Utility work
• Trenching
• Shoulder repair
• Fence line maintenance
• Livestock facilities
• Tight work areas

This flexibility improves accuracy while reducing machine repositioning.

Heavy-Duty Construction

The FFC Side Discharge Bucket is built for commercial use with:

• Heavy-duty steel bucket
• Cast steel conveyor sprockets
• Reinforced conveyor system
• Optional bolt-on cutting edge
• Commercial-grade hydraulic components

Designed for years of dependable service in demanding applications.

FFC Sand Discharge Bucket Specifications

FFC Sawdust Discharge Bucket Specifications

All models require 15–25 GPM hydraulic flow and a maximum operating pressure of 2,000 PSI.

Why Choose the FFC Side Discharge Bucket?

The FFC Side Discharge Bucket by Paladin offers a fast, efficient, and precise method of placing loose materials exactly where they're needed. Its direct hydraulic conveyor drive, reversible side discharge, heavy-duty construction, and specialized configurations for sand and lightweight materials make it an ideal attachment for contractors, municipalities, farmers, landscapers, and utility crews.

Whether you're spreading sand for road maintenance, bedding livestock with sawdust, distributing feed, or placing aggregate in trenches, the FFC Side Discharge Bucket delivers professional results while saving time and reducing labor.

Key Features

• Available in Sand and Sawdust models
• Right or left side discharge
• Direct hydraulic conveyor drive
• Hydraulic flow requirement: 15–25 GPM
• Heavy-duty conveyor belts with aggressive grousers
• Material agitator on sawdust models
• Cast steel conveyor sprockets
• Tool-free discharge door adjustment
• Optional bolt-on cutting edge
• Built for skid steer loaders and compact track loaders
