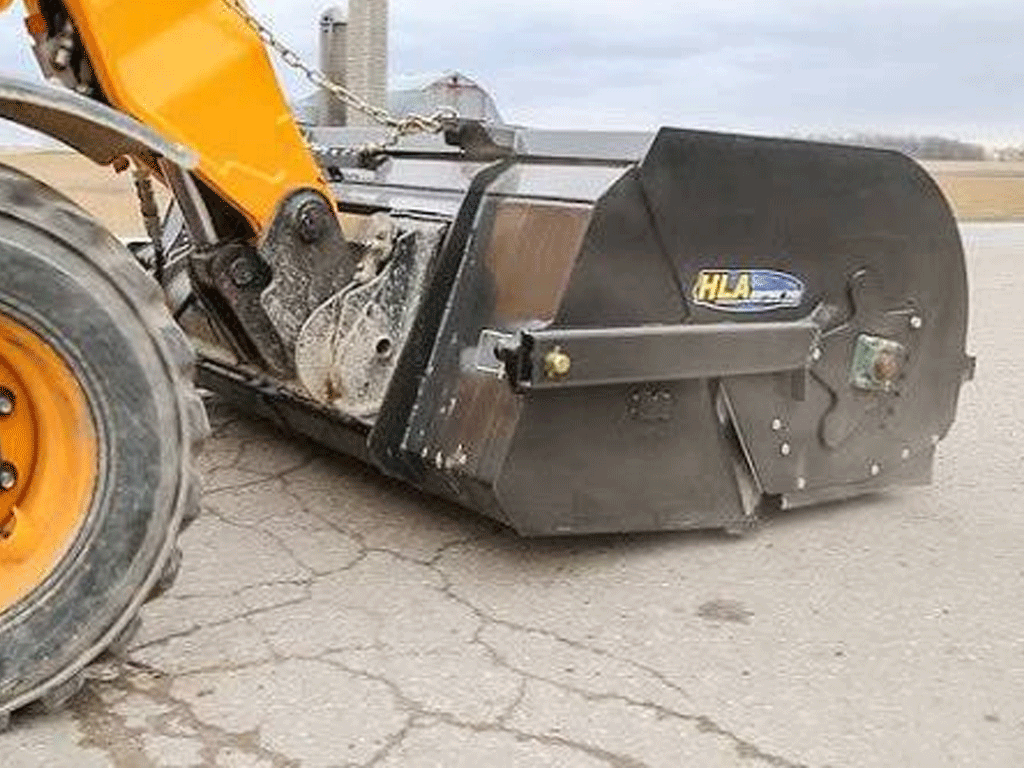

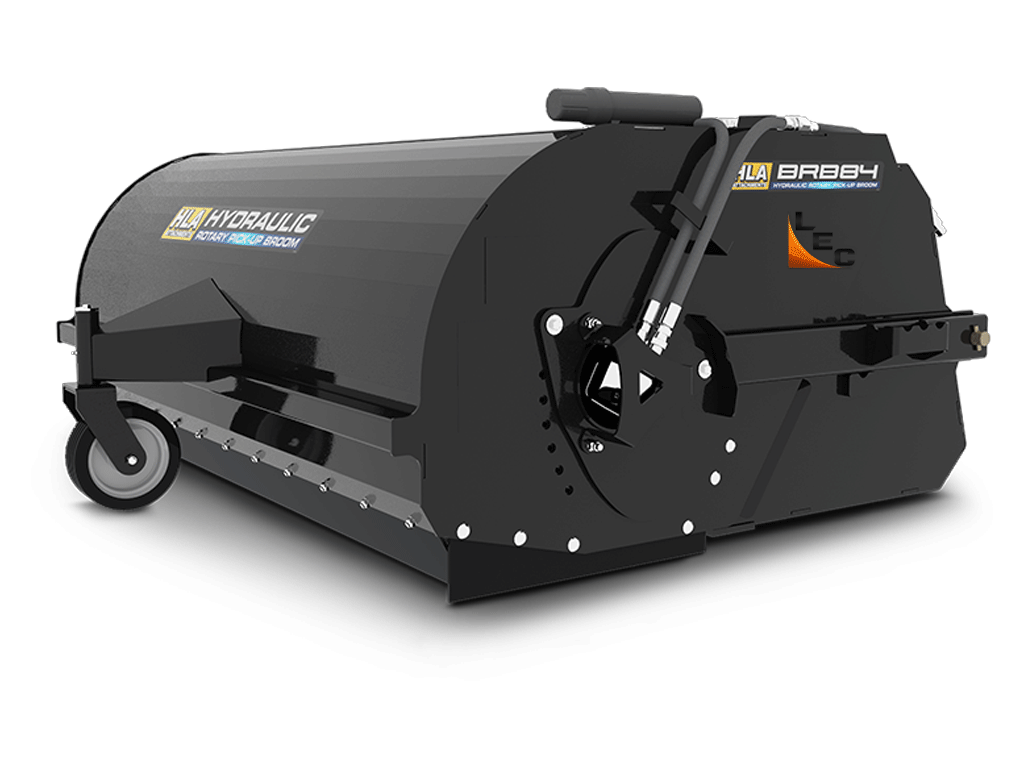

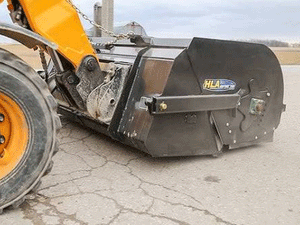

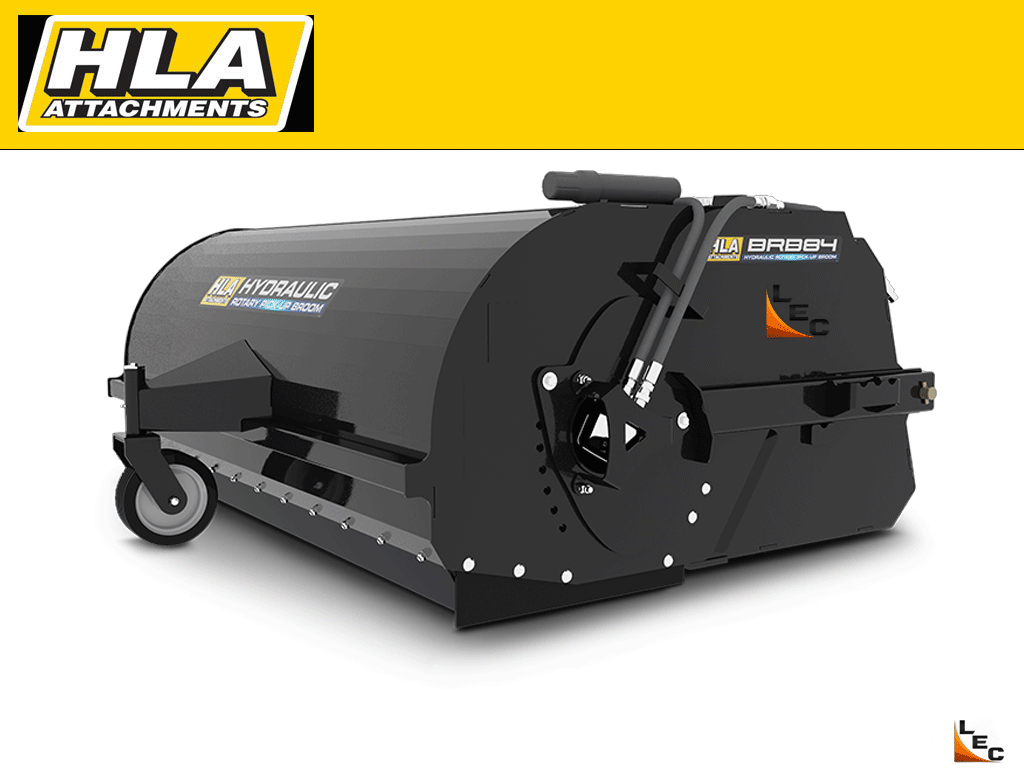

HLA Hydraulic Pick-Up Broom for Backhoe Loaders

The HLA Hydraulic Pick-Up Broom for Backhoe Loaders is a heavy-duty backhoe loader sweeper attachment designed to sweep and collect dirt, gravel, leaves, construction debris, and other loose material in a single pass. Available in 60", 72", 84", and 96" widths, this hydraulic rotary pick-up broom is built for construction sites, road maintenance, parking lots, streets, curbs, gutters, parks, and municipal cleanup.

Unlike an angle broom that pushes material to the side, the HLA Backhoe Loader Pick-Up Broom sweeps debris directly into the integrated collection bucket. This makes it an excellent choice when material needs to be swept, collected, and removed from the work area.

Heavy-Duty Backhoe Loader Pick-Up Broom

The HLA Hydraulic Rotary Pick-Up Broom turns a backhoe loader into an efficient jobsite cleanup machine. The combination of a 26" diameter rotary brush and debris collection bucket allows operators to clean large areas without leaving a windrow of material behind.

Common applications include:

• Construction site cleanup
• Road and street sweeping
• Parking lot sweeping
• Curb and gutter cleaning
• Municipal maintenance
• Industrial yards
• Parks and recreation areas
• Dirt and gravel cleanup
• Commercial property maintenance

For contractors and municipalities, a hydraulic pick-up broom for a backhoe loader provides an efficient way to perform final cleanup using the same machine already working on the jobsite.

Sweeps & Collects Debris in One Pass

The HLA Backhoe Loader Sweeper Broom is designed to pick up material instead of simply pushing it aside. As the hydraulic broom rotates, loose debris is swept into the collection bucket for removal.

This design is particularly useful for cleaning paved surfaces where dirt, gravel, and construction debris cannot simply be swept to the side.

26″ Diameter Poly/Steel Rotary Broom

The HLA Pick-Up Broom uses 26" diameter poly/steel bristle wafers for aggressive sweeping performance.

The poly and steel bristle combination is designed for demanding road, construction, municipal, and commercial cleanup applications where a heavy-duty backhoe loader rotary broom is required.

Direct Hydraulic Motor Drive

The HLA Hydraulic Pick-Up Broom uses a direct motor drive on the broom for a straightforward and efficient hydraulic drive system.

Hydraulic Requirements

Hydraulic Flow: 12–20 GPM
Hydraulic Pressure: 1,500–3,000 PSI

Hydraulic hoses and flat-faced hydraulic couplers are included.

Always verify the backhoe loader's auxiliary hydraulic flow and pressure before ordering.

Reversible Broom Rotation

The HLA Pick-Up Broom features reversible broom rotation, adding versatility when working around buildings, garage doors, loading areas, and other structures.

Reversing the brush allows material to be swept away from doors and structures when needed.

Heavy-Duty Collection Bucket

The collection bucket is built for demanding cleanup work and features a replaceable hardened 3/4" x 6" double-bevel cutting edge.

The heavy-duty cutting edge helps protect the bucket in abrasive applications and can be replaced as it wears.

Front Gauge Wheel

A front gauge wheel helps the HLA Backhoe Loader Pick-Up Broom maintain the proper working position while following the surface being cleaned.

This helps provide consistent broom contact when sweeping parking lots, roads, construction sites, and other large areas.

60", 72", 84" & 96" Backhoe Loader Pick-Up Brooms

The HLA Hydraulic Pick-Up Broom is available in four widths to accommodate different machines and cleanup requirements.

As broom width increases, collection capacity increases from 13.7 cu. ft. on the 60" model to 21.9 cu. ft. on the 96" model, providing options for both compact cleanup jobs and larger high-production sweeping applications.

Backhoe Loader Mounting Options

For mounting configurations other than the standard skid steer interface, HLA offers additional mounting options.

This allows the HLA Pick-Up Broom to be configured for compatible backhoe loader mounting systems.

Optional 25-Gallon Dust Suppression Water Kit

For dry and dusty environments, an optional Dust Suppression Water Kit is available.

The BRBWK 25-gallon water kit includes a spray nozzle and helps control airborne dust while sweeping roads, parking lots, construction sites, and other dry surfaces.

HLA Backhoe Loader Pick-Up Broom Features

The HLA Hydraulic Rotary Pick-Up Broom combines the features needed for professional road and jobsite cleanup, including a 26" poly/steel brush, direct hydraulic motor drive, reversible broom rotation, front gauge wheel, heavy-duty collection bucket, replaceable hardened cutting edge, included hydraulic hoses and flat-faced couplers, and an optional dust suppression system.

Four available broom widths—60", 72", 84", and 96"—make it easier to match the sweeper to the backhoe loader and application.

Hydraulic Pick-Up Broom for Road & Construction Cleanup

For contractors searching for a backhoe loader pick-up broom, hydraulic pick-up broom, backhoe loader sweeper attachment, backhoe loader rotary broom, hydraulic sweeper for backhoe loaders, road sweeper attachment, construction site sweeper, parking lot sweeper, or heavy-duty backhoe broom, the HLA Hydraulic Pick-Up Broom provides a practical way to sweep and collect debris with one attachment.

With 12–20 GPM hydraulic requirements, a 26" diameter brush, reversible rotation, four broom widths, and collection capacities up to 21.9 cubic feet, the HLA Backhoe Loader Pick-Up Broom is built for efficient construction, road, municipal, and commercial cleanup.
