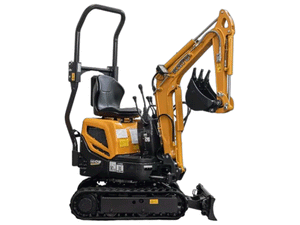

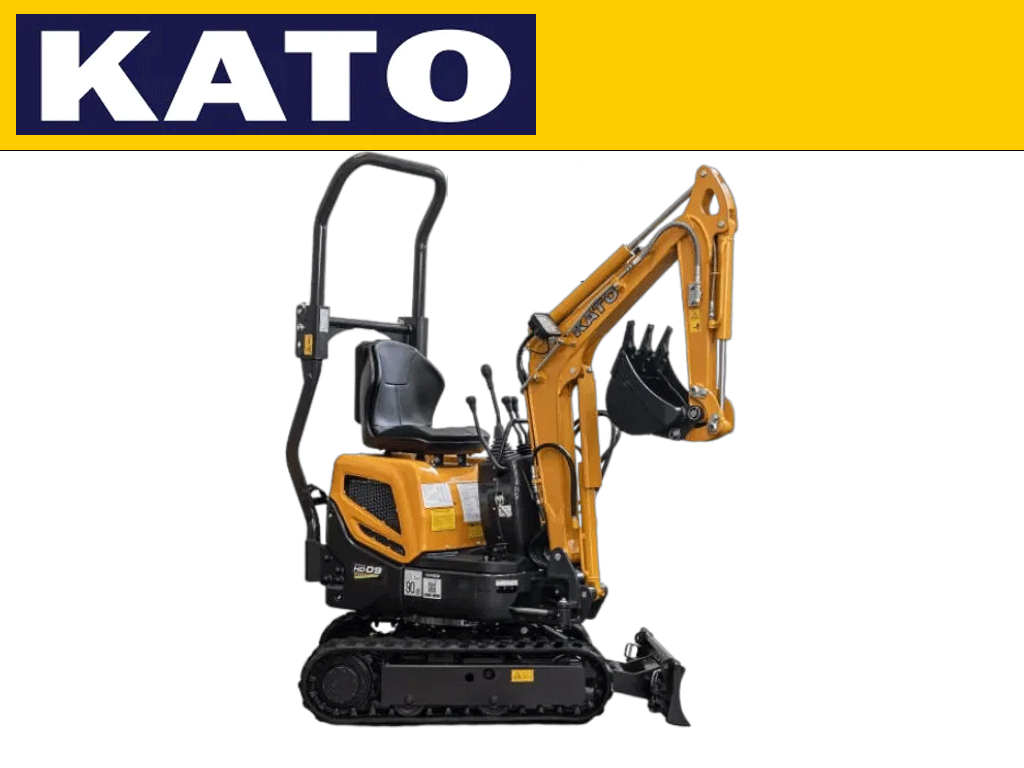

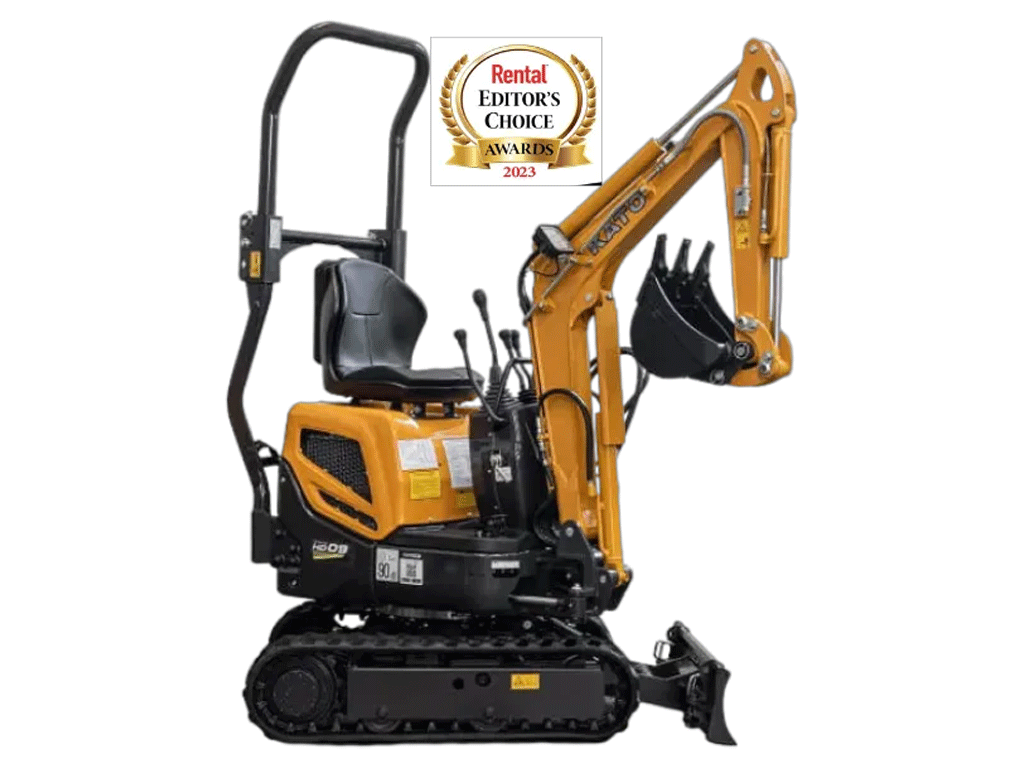

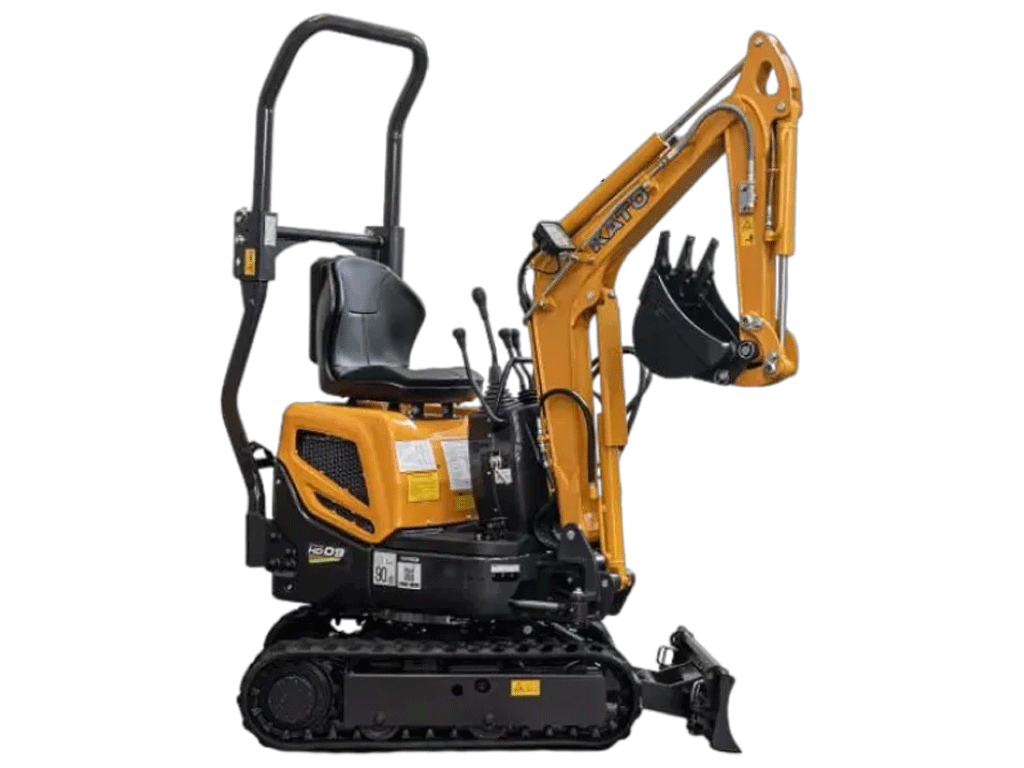

KATO 9V5 MINI EXCAVATOR

ULTRA-COMPACT POWER FOR TIGHT WORK AREAS

The KATO 9V5 Mini Excavator delivers impressive performance in an ultra-compact, zero tail swing design—making it the ideal solution for residential, landscaping, utility, and indoor or limited-access job sites. Part of KATO’s V5 series, the 9V5 features increased digging force, a fast-responding hydraulic system, and excellent stability for precise, efficient operation in confined spaces.

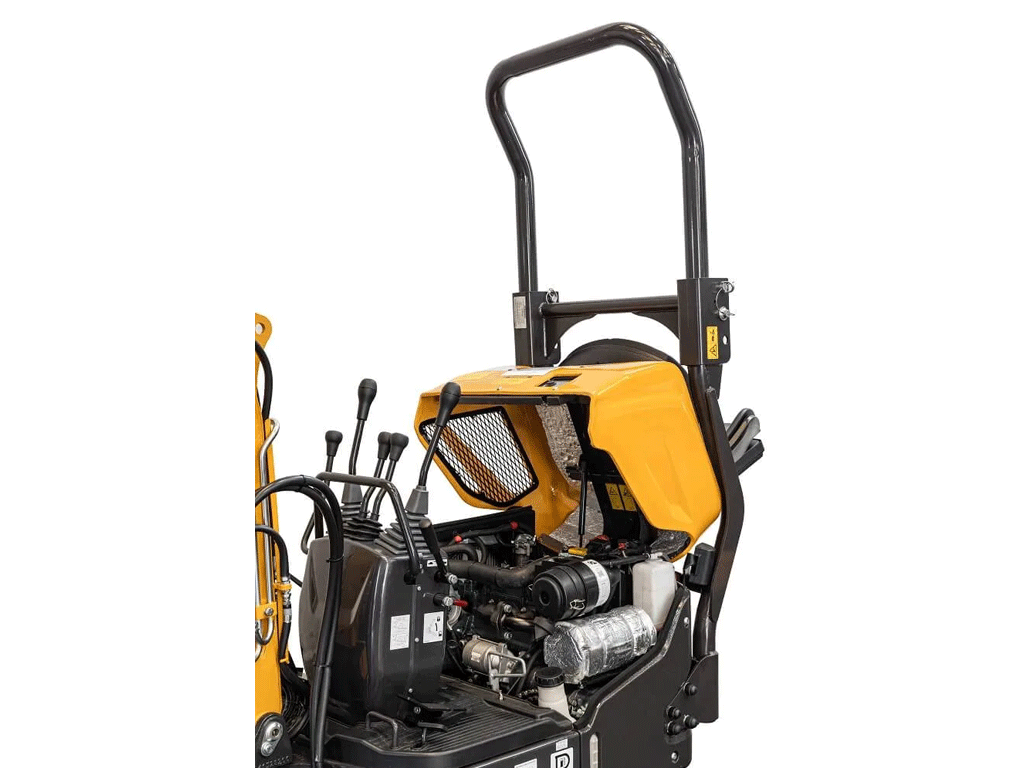

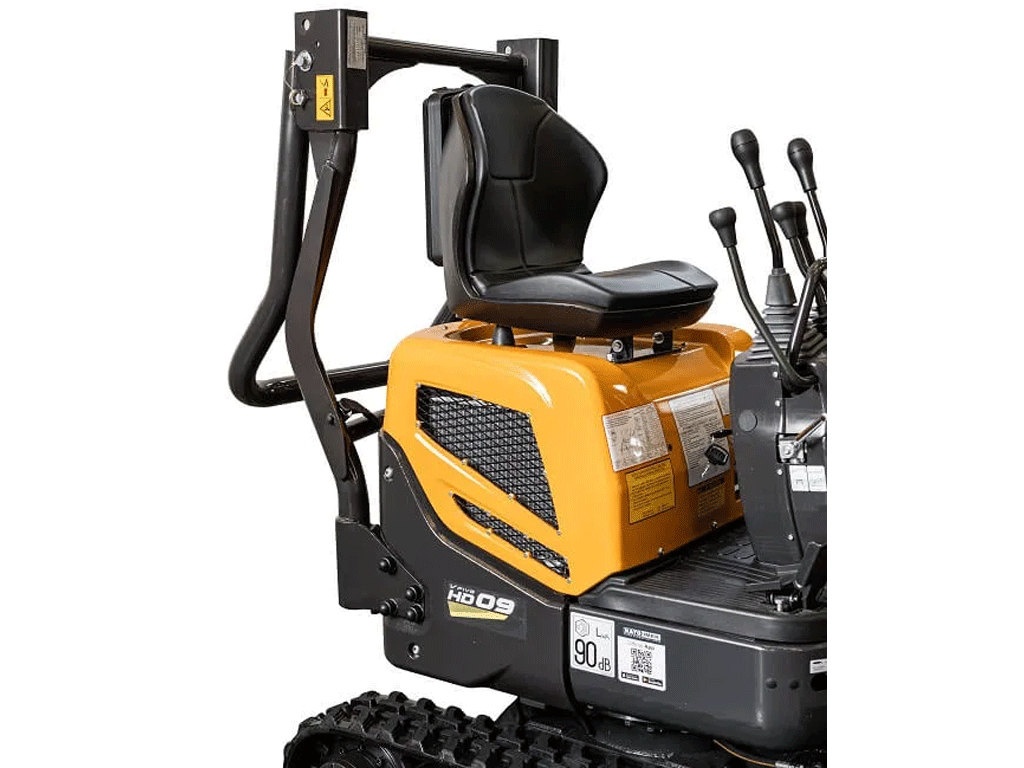

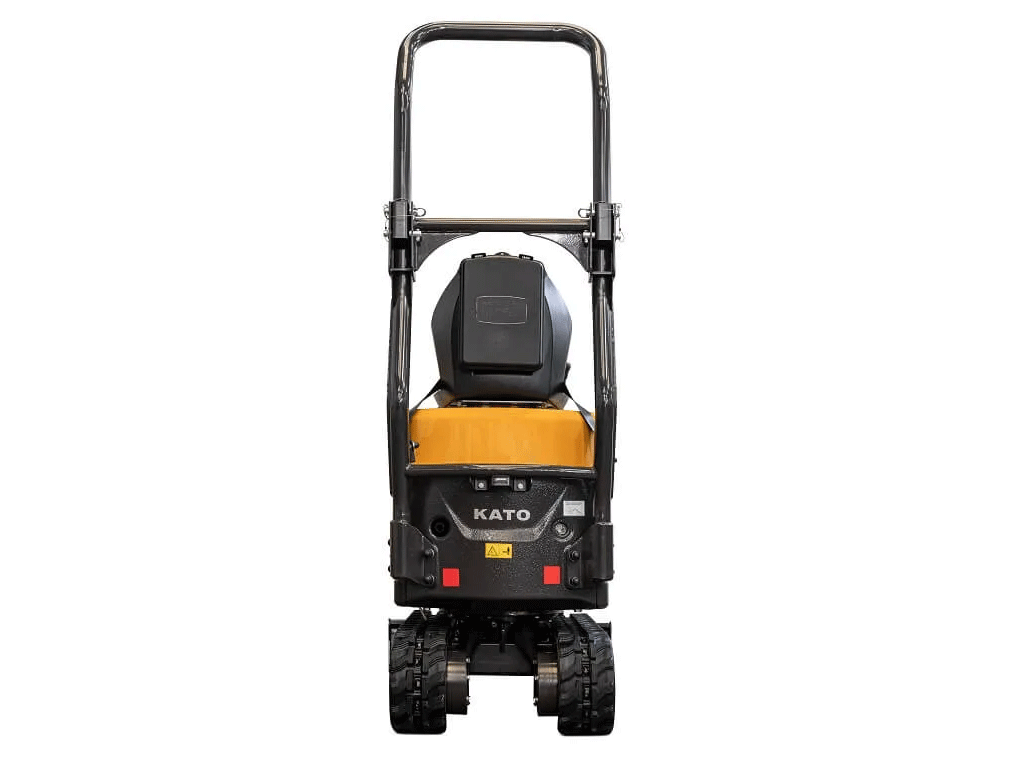

Designed with operator comfort and ease of use in mind, the 9V5 includes a fold-down canopy, folding push blade, and expandable rubber tracks that allow access through narrow gates and doorways. Powered by a fuel-efficient Kubota D722 diesel engine, this mini excavator delivers reliable performance while remaining easy to maintain. Safety features such as an auto-parking brake and neutral engine-start system help prevent unintended movement and operational errors.

KEY FEATURES & BENEFITS

• Operating weight: 2,400 lbs (transport weight: 2,169 lbs)

• Bucket capacity: 0.77 ft³, bucket width: 12"

• Bucket digging force: 2,340 lbs

• Zero tail swing design for confined job sites

• Swing speed: 8.0 RPM, travel speed (low/high): 1.1 / 1.9 mph

• Gradeability: 30°, ground pressure: 4.4 psi

• Offset boom with hydraulic cylinder, boom swing angle: 50° left / 70° right

• Total hydraulic flow: 5.9 GPM, max auxiliary flow: 4 GPM

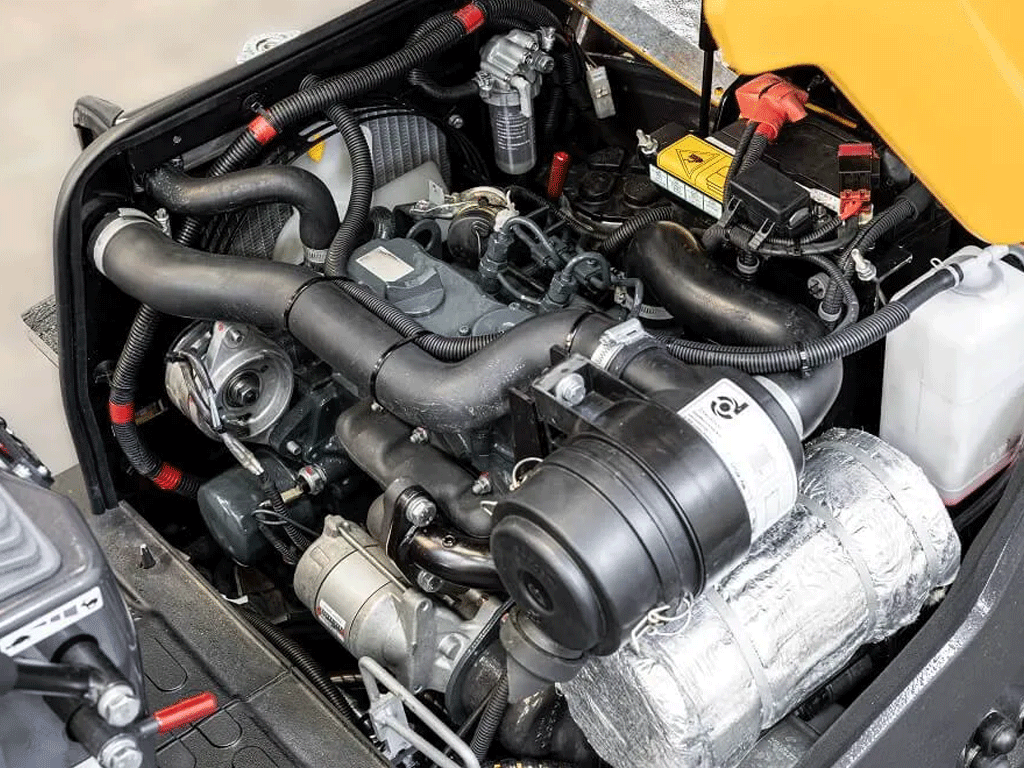

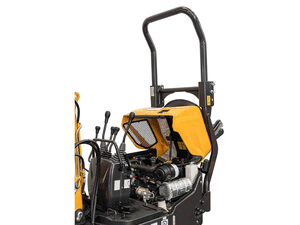

• Engine: Kubota D722, 9.9 HP @ 2000 RPM, fuel tank: 2.9 gal

• Expandable rubber tracks for narrow access

• Standard dozer blade: 2’5” x 8.6”, lift/drop: 8.6” / 6”

The KATO 9V5 Mini Excavator combines compact size, dependable power, and smooth hydraulics, making it a smart choice for operators who need maximum productivity in the tightest work environments.
