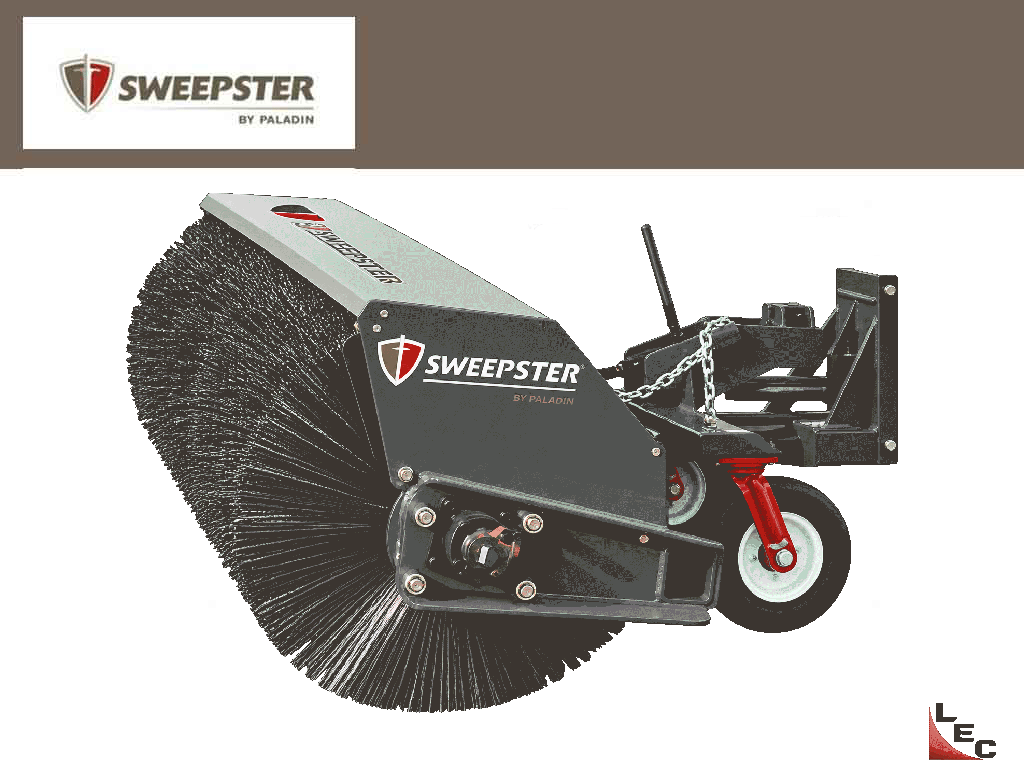

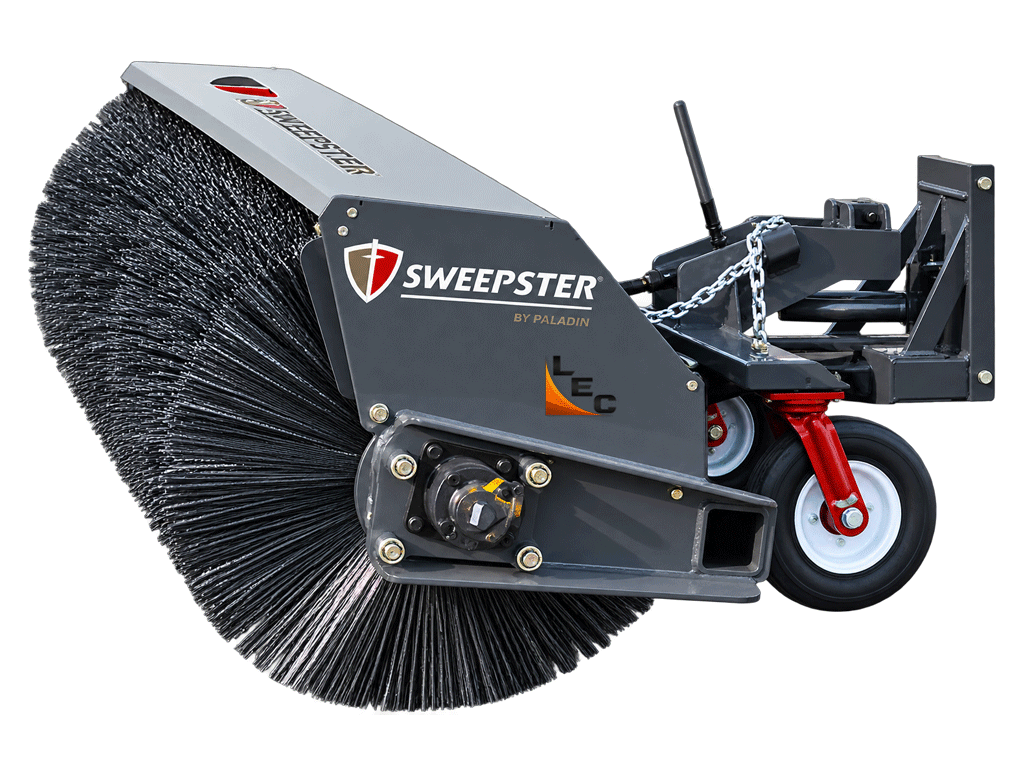

LA & WLA Backhoe Loader Angle Sweeper – Heavy-Duty Hydraulic Broom Attachment

The LA and WLA Backhoe Loader Angle Sweepers are heavy-duty hydraulic angle broom attachments for backhoe loaders designed for road construction, municipal maintenance, jobsite cleanup, parking lots, industrial yards, and other demanding sweeping applications. Powered directly by the loader's auxiliary hydraulics, these backhoe loader sweeper attachments provide wide sweeping coverage with dual hydraulic motors and large-diameter brushes.

Choose the LA Backhoe Loader Angle Sweeper for an 8' or 9' brush, or step up to the larger WLA Backhoe Loader Angle Sweeper with 10' and 12' brush widths.

Heavy-Duty Backhoe Loader Angle Broom

Built for professional cleanup, the backhoe loader angle sweeper turns your backhoe into a powerful road and jobsite sweeping machine. The rotating brush moves dirt, gravel, leaves, millings, construction debris, and other loose material away from the working surface.

Common applications include road and street sweeping, construction cleanup, municipal maintenance, parking lot sweeping, industrial facilities, stockyards, jobsite cleanup, and general property maintenance.

LA Backhoe Loader Angle Sweeper – 8' & 9'

The LA Backhoe Loader Angle Sweeper is designed for operators who need a heavy-duty backhoe sweeper broom without moving up to the larger WLA series.

A 32" diameter brush provides aggressive sweeping performance, while dual hydraulic motors are powered by the backhoe loader's hydraulic system.

LA Angle Sweeper Features

• 8' and 9' brush widths
• Heavy-duty hydraulic sweeper
• 32" diameter brush
• Dual hydraulic motors
• 20–36 GPM hydraulic flow
• 2,000–3,500 PSI operating pressure
• Mechanical angle standard
• Hydraulic angle optional
• Casters included
• Parallel-arm mounting follows ground contours
• Quick-change brush core
• Various quick-attach and pin-on mounting options

The combination of caster wheels and a parallel-arm mounting system allows the backhoe loader broom to follow changing ground contours for more consistent brush contact.

WLA Backhoe Loader Angle Sweeper – 10' & 12'

For larger backhoe loaders and applications requiring maximum sweeping coverage, the WLA Backhoe Loader Angle Sweeper is available with 10' and 12' brush widths.

The WLA uses a larger 36" diameter sweeper brush and offers a broad 12–60 GPM hydraulic flow range, allowing configurations for different backhoe loader hydraulic systems.

WLA Angle Sweeper Features

• 10' and 12' brush widths
• Heavy-duty construction
• 36" diameter brush
• Dual hydraulic motors
• 12–60 GPM hydraulic flow
• 2,000–4,000 PSI hydraulic pressure
• Mechanical angle standard
• Hydraulic angle optional
• Heavy-duty caster wheels included
• Parallel-arm mounting system
• Quick-change brush core
• Multiple quick-attach and pin-on mounting options

LA vs. WLA Backhoe Loader Sweeper

Hydraulic Backhoe Loader Sweeper Attachment

Both LA and WLA models use dual hydraulic motors powered by the loader hydraulics. This gives contractors a hydraulically driven backhoe loader broom attachment without requiring a separate power source.

Selecting the correct model and motor configuration depends on the backhoe loader's available hydraulic GPM and PSI. Always match the sweeper's hydraulic requirements to the carrier before ordering.

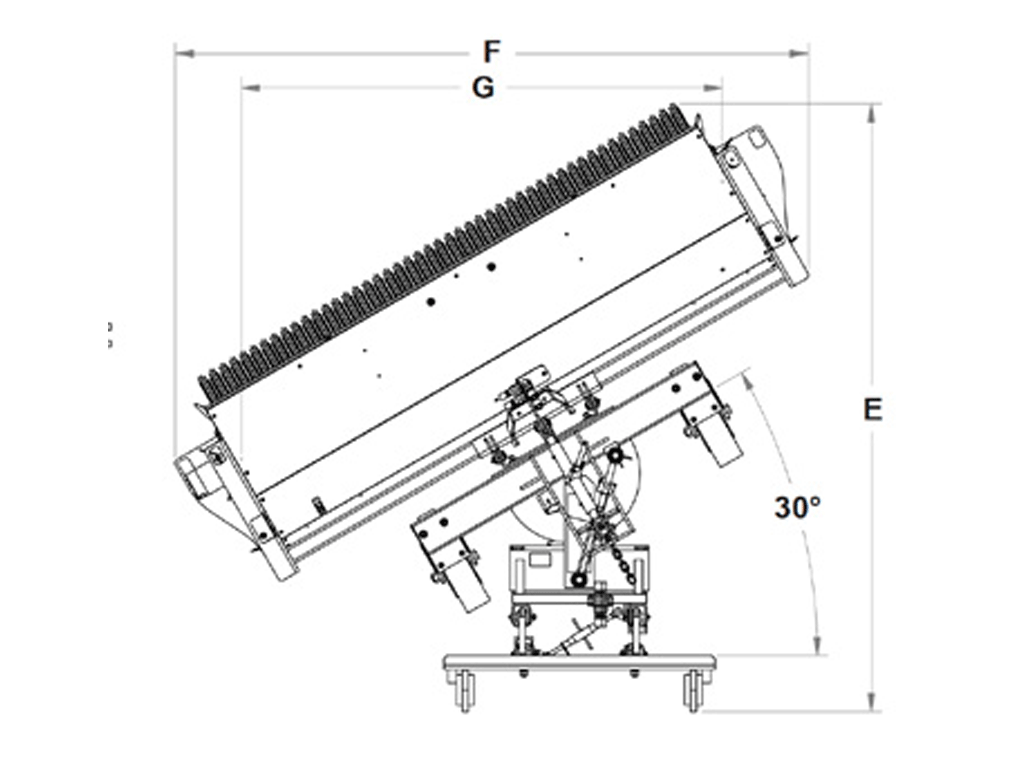

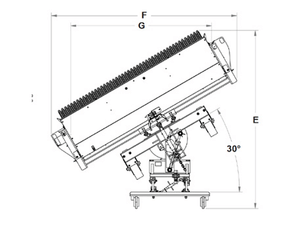

Mechanical or Hydraulic Angle Broom

A mechanical angle system comes standard, allowing the backhoe sweeper to direct material away from the machine's path. An optional hydraulic angle system is available for operators who want to adjust the broom position hydraulically.

Angling is especially valuable when using the attachment as a backhoe road sweeper, allowing dirt, gravel, debris, and other material to be windrowed toward the edge of a roadway or work area.

Backhoe Loader Road Sweeper for Construction & Municipal Cleanup

The LA and WLA are designed for contractors, municipalities, road crews, industrial facilities, and equipment fleets that need a heavy-duty road sweeper attachment for a backhoe loader.

Instead of bringing a dedicated sweeper to the job, operators can use the same backhoe loader for excavation and material handling and then switch to the angle broom attachment for road and jobsite cleanup.

8', 9', 10' & 12' Backhoe Sweeper Brooms

With four available brush widths, the LA and WLA series cover a wide range of backhoe loader sweeping applications:

LA Series: 8' and 9' widths with a 32" diameter brush for general construction, road maintenance, and municipal cleanup.

WLA Series: 10' and 12' widths with a larger 36" diameter brush for wide roads, large construction projects, industrial properties, and high-production sweeping.

Backhoe Loader Angle Sweeper for Sale

If you're looking for a backhoe loader angle sweeper, backhoe loader broom attachment, hydraulic backhoe sweeper, backhoe road sweeper, backhoe angle broom, construction sweeper attachment, heavy-duty backhoe broom, or hydraulic sweeper attachment for a backhoe loader, the LA and WLA series provide multiple sizes and hydraulic configurations to match demanding applications.

Choose the LA 8' or 9' Backhoe Loader Angle Sweeper or the larger WLA 10' or 12' Backhoe Loader Angle Sweeper based on your machine, hydraulic flow, required sweeping width, and application.
