Paladin / Sweepster CS Utility Tractor and Backhoe Loader Collector Sweeper
$0.00
9/26
Paladin / Sweepster CS
Utility Tractor & Loader Collector Sweeper

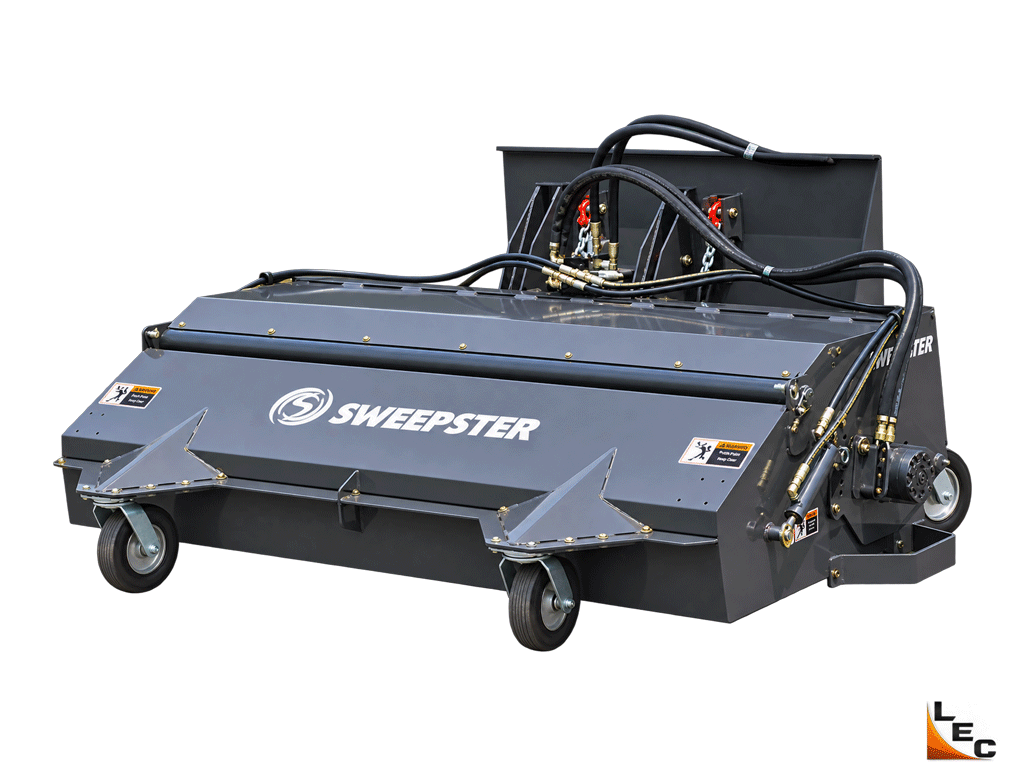

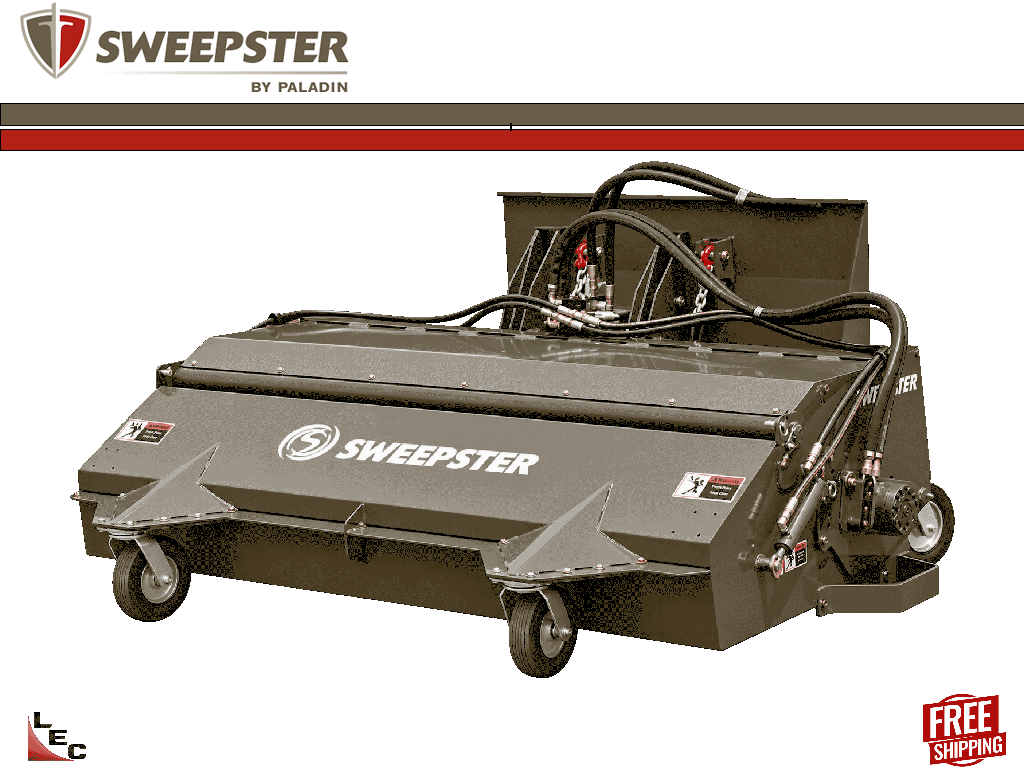

The Paladin / Sweepster CS Utility Tractor and Loader Collector Sweeper is a heavy-duty hydraulic collector broom attachment designed to sweep, collect, and dump dirt, gravel, road millings, snow, and jobsite debris. Built for utility tractors, compact loaders, wheel loaders, and other compatible loader applications, the Sweepster CS combines a large rotary broom with a front-mounted collection hopper for efficient cleanup in a single pass.
Available in 6', 7', 8', and 9' sweeping widths, the Sweepster CS Collector Sweeper offers 26" and 32" brush diameters, hydraulic flow configurations from 15–50 GPM, and quick-attach or pin-on mounting options.
Heavy-Duty Collector Sweeper for Utility Tractors & Loaders
The Sweepster CS hydraulic collector sweeper is designed for high-production cleanup where loose material needs to be collected rather than simply pushed to the side.
The front-mounted hopper collects material as the rotating broom sweeps, making the CS an excellent utility tractor sweeper and loader sweeper attachment for:
- Road and street cleanup
- Asphalt and road millings
- Construction sites
- Parking lots
- Industrial yards
- Dirt and gravel cleanup
- Municipal maintenance
- Snow removal
- General property maintenance
The combination of sweeping and collection reduces the need for separate cleanup equipment and helps operators finish large areas efficiently.
Hydraulic Collector Broom Powered by Loader Hydraulics
The Paladin Sweepster CS is powered directly from the loader's hydraulic system. Depending on the model and configuration, the collector sweeper requires 15–50 GPM hydraulic flow.
This hydraulic-drive design makes the CS well suited for utility tractors and loaders equipped with the proper auxiliary hydraulic system.
High-Dump Collector Sweeper
A key feature of the Sweepster CS Collector Broom is its hydraulic high-dump system.
The high-dump function is activated by reversing hydraulic flow, allowing collected material to be dumped after sweeping. This design makes the CS particularly useful for handling dirt, gravel, construction debris, road millings, and snow.
Front-Mounted Collection Hopper
The collection hopper is positioned in front of the rotary broom. As the machine travels forward, the hydraulic brush sweeps material into the hopper.
This configuration creates an efficient sweep-and-collect attachment for utility tractors and loaders, allowing operators to clean surfaces without leaving a windrow of debris behind.
26″ & 32″ Diameter Rotary Brooms
Sweepster offers the CS Collector Sweeper with 26" and 32" diameter brushes.
The CS26 models use a 26" diameter brush and are available in 6', 7', and 8' sweeping widths.
The larger CS32 uses a 32" diameter brush and is available in 8' and 9' sweeping widths, providing additional capacity for larger machines and higher-production cleanup.
Sweepster CS26 & CS32 Specifications
| Specification | CS26 – 6' | CS26 – 7' | CS26 – 8' | CS32 – 8' | CS32 – 9' |
|---|---|---|---|---|---|
| Overall Length – Without Quick Coupler | 75.25" | 75.25" | 75.25" | 80.25" | 80.25" |
| Overall Width | 93.0" | 105.0" | 117.0" | 117.0" | 129.0" |
| Sweeping Width | 72" | 84" | 96" | 96" | 108" |
| Brush Diameter | 26" | 26" | 26" | 32" | 32" |
| Hopper Capacity | 0.40 yd³ | 0.53 yd³ | 0.61 yd³ | 0.91 yd³ | 1.02 yd³ |
| Weight | 1,080 lbs. | 1,260 lbs. | 1,440 lbs. | 1,705 lbs. | 1,918 lbs. |
| Horizontal CG – Broom Lifted | 24.5" | 25.5" | 26.5" | 30.0" | 30.0" |
6', 7', 8' & 9' Loader Sweeper Options
The multiple widths allow the Paladin / Sweepster Collector Sweeper to be matched to different utility tractors and loaders.
The 6' CS26 provides a 72" sweeping width and 0.40 cubic yard hopper. The 7' CS26 increases sweeping width to 84", while the 8' CS26 provides a full 96" sweeping path.
For larger applications, the 8' CS32 combines a 96" sweeping width with a larger 0.91 cubic yard hopper. The 9' CS32 provides a 108" sweeping width and 1.02 cubic yard hopper capacity for high-production cleanup.
Quick-Attach & Pin-On Sweeper Mounts
The Sweepster CS is available with quick-attach and pin-on mounting options, allowing the collector broom to be configured for various compatible utility tractors and loaders.
Correct mounting, hydraulic flow, machine capacity, and operating weight should be verified before ordering.
Quick-Change Broom Core
A quick-change broom core helps simplify brush service and replacement. This is especially valuable for commercial, construction, and municipal operations where the sweeper sees frequent use and minimizing downtime is important.
Collector Sweeper for Road Millings, Snow & Construction Debris
The Sweepster CS Utility Tractor and Loader Collector Sweeper is built for more than ordinary dirt and dust. Its heavy-duty design can be used for cleanup of road millings, gravel, construction debris, and snow, making it a versatile year-round sweeper attachment.
For road crews, contractors, municipalities, property-maintenance companies, and equipment fleets, the ability to sweep, collect, carry, and hydraulically dump material makes the CS a productive alternative to a standard angle broom.
Paladin / Sweepster CS Collector Sweeper for Sale
For operators searching for a utility tractor collector sweeper, loader collector sweeper, hydraulic pick-up broom, tractor sweeper attachment, loader sweeper attachment, hydraulic collector broom, road sweeper attachment, construction sweeper, parking lot sweeper, road millings sweeper, or heavy-duty rotary broom, the Paladin / Sweepster CS offers multiple sizes for different machines and applications.
With 6', 7', 8', and 9' sweeping widths, 26" and 32" brush diameters, hopper capacities up to 1.02 cubic yards, 15–50 GPM hydraulic configurations, high-dump capability, and quick-attach or pin-on mounts, the Sweepster CS is designed for demanding utility tractor and loader cleanup applications.
