0F30-GP

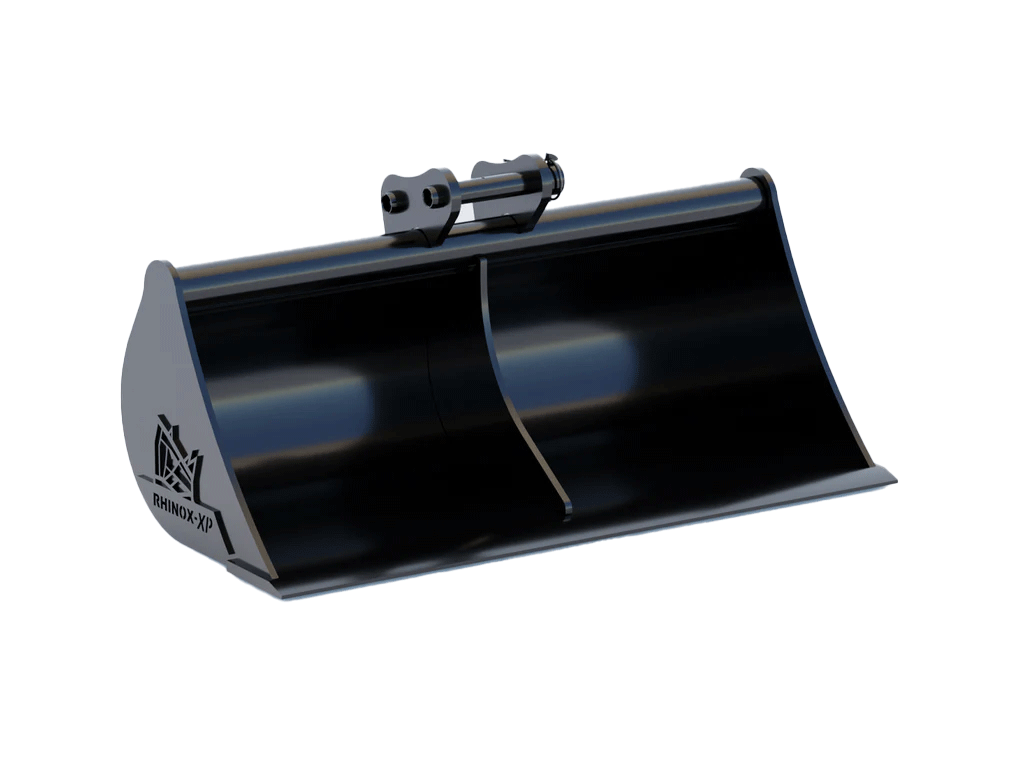

RHINOX ditching and grading buckets for 1mt class excavators (1500 to 2500 Lbs.)

SIZE
MACHINE MOUNT
8/25

Ditching / Grading

Excavator Buckets - 1 Metric Ton Class

Rhinox excavator grading buckets—also called ditching buckets, ditch cleaning buckets, or excavator clean-up buckets—are designed for precision ground leveling, grading, and bulk material handling. Built wider than standard digging buckets with a straight cutting edge, they’re perfect for landscaping, site preparation, and earthmoving projects.

Manufactured from high-strength, wear-resistant steel and backed by a lifetime weld guarantee, these heavy-duty excavator buckets feature center supports for added strength, bossed hangers with removable pins, and reinforced leading edges and side plates for long service life.

Available for mini excavators, compact excavators, 1 Metric tons class (2205 Lbs.) Machines with a weigh equaling approximately (1,000–2,500 lbs.)



  • SEE "FITS" TAB FOR STOCK BUCKET MAKE AND MODEL LIST.
  • THESE BUCKETS ARE TYPICALLY IN STOCK!

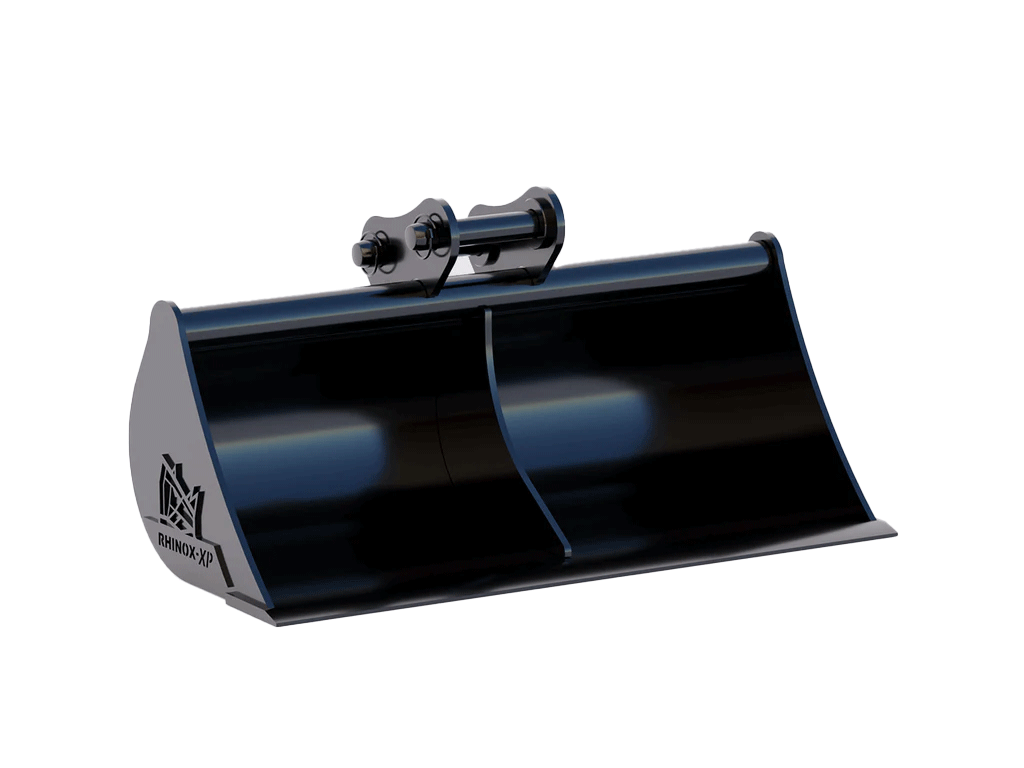

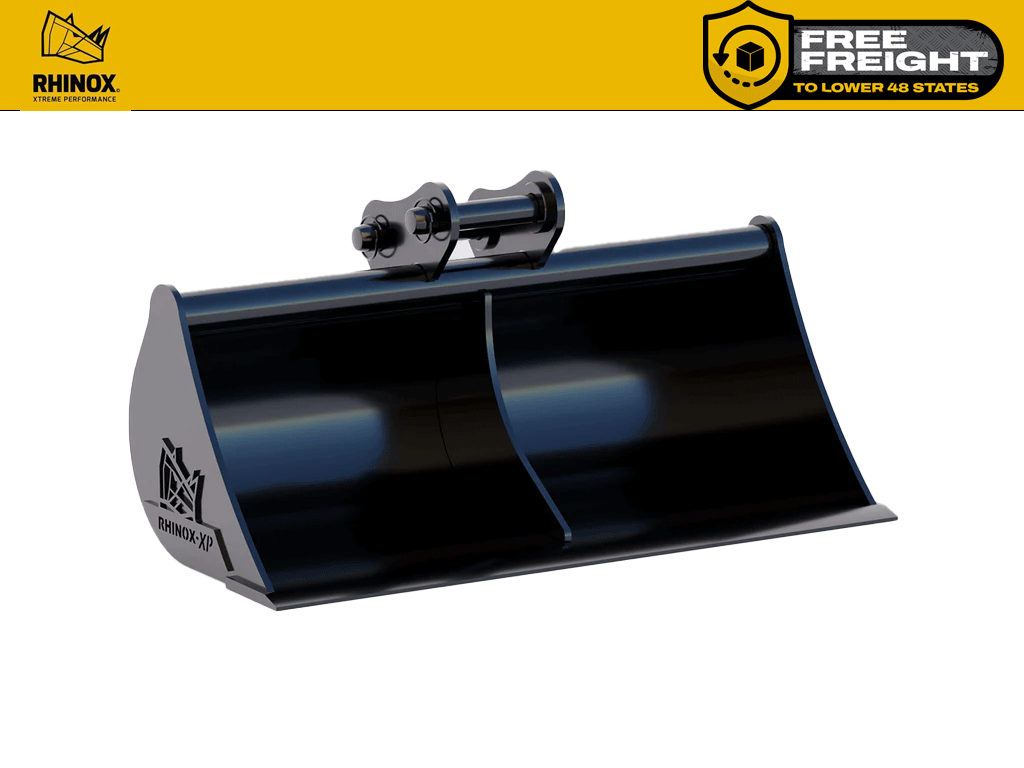

BOBCAT 418 / E10
PIN DIAMETER 30mm / 1 3/16"
DIPPER GAP 105mm / 4 1/8"
PIN CENTERS 123mm / 4 13/16"
WEIGHT 80.82 Lbs.
CAPACITY 1.77

CAT 300.9D
PIN DIAMETER 25mm / 1"
DIPPER GAP 101mm / 4"
PIN CENTERS 85mm / 3 3/8"
WEIGHT 76.19 Lbs.
CAPACITY 1.77



JCB 8008 / 8010
PIN DIAMETER 25mm / 1"
DIPPER GAP 90mm / 3 9/16""
PIN CENTERS 86mm / 3 3/8"
WEIGHT 76.75 Lbs.
CAPACITY 1.77

KUBOTA KX008-3, U10-3, U10-5
PIN DIAMETER 25mm / 1"
DIPPER GAP 101mm / 4"
PIN CENTERS 85mm / 3 3/8"
WEIGHT 76.19 Lbs.
CAPACITY 1.77

TAKEUCHI TB007, TB108, TB20
PIN DIAMETER 25mm / 1"
DIPPER GAP 105mm / 4 1/8"
PIN CENTERS 90mm / 3 1/2"
WEIGHT 76.84 Lbs.
CAPACITY 1.77

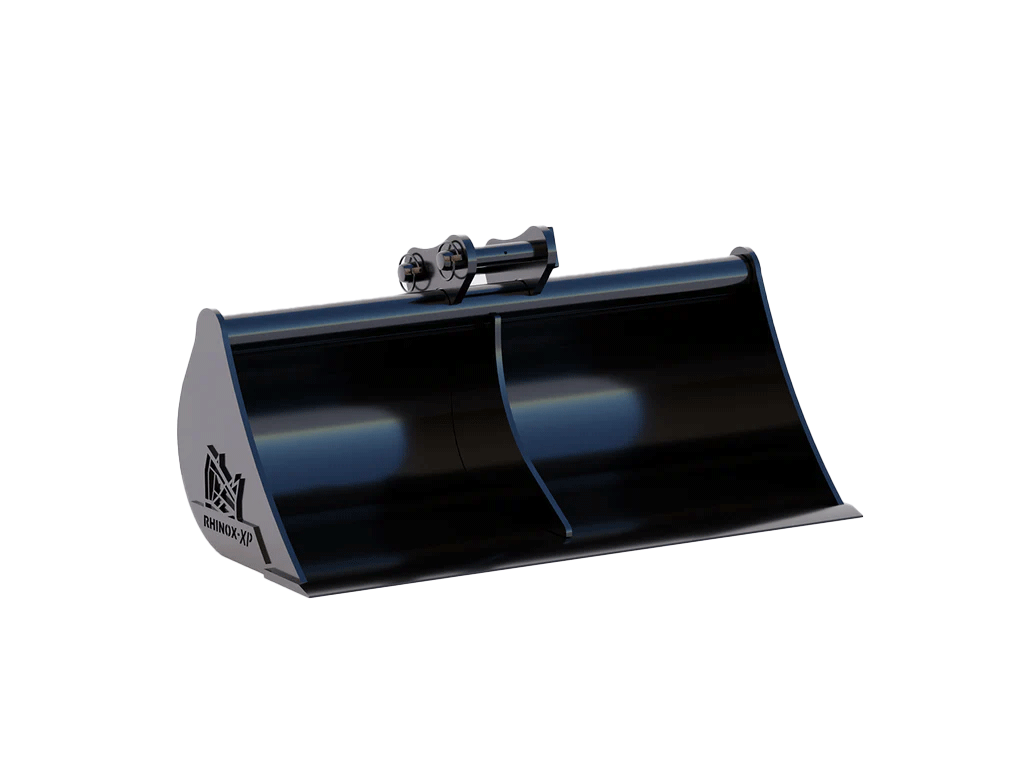

YANMAR VIO10, SV08, B08-3
PIN DIAMETER 25mm / 1"
DIPPER GAP 97mm / 3 13/16"
PIN CENTERS 100mm / 3 15/16"
WEIGHT  Lbs.
CAPACITY 1.77

These are the make and model of the machines that "in stock" buckets are for.

MOUNT TYPE  MAKE MODEL
PIN ON BOBCAT 418, E10
PIN ON CAT 300.9D
PIN ON HITACHI EX08
PIN ON JCB 8008, 8010
PIN ON KUBOTA U10-5, U10-3, K008-3
PIN ON TAKEUCHI TB007,TB 108, TB210
PIN ON YANMAR VIO10, SV08, B08-3
*
