1K36-GP

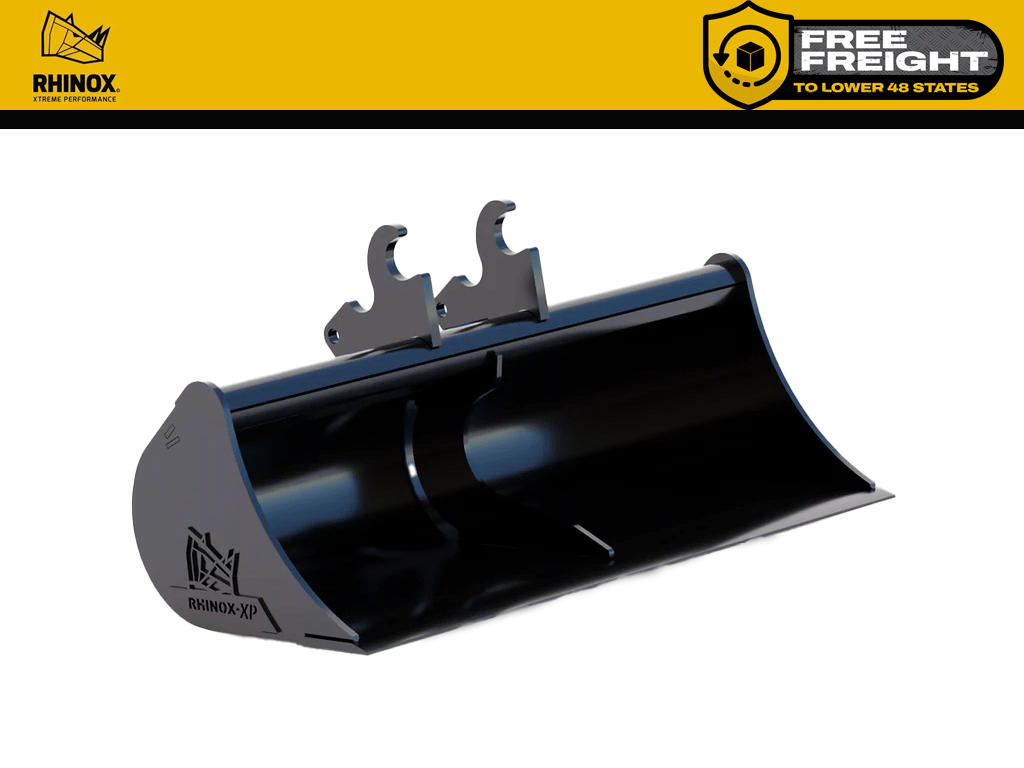

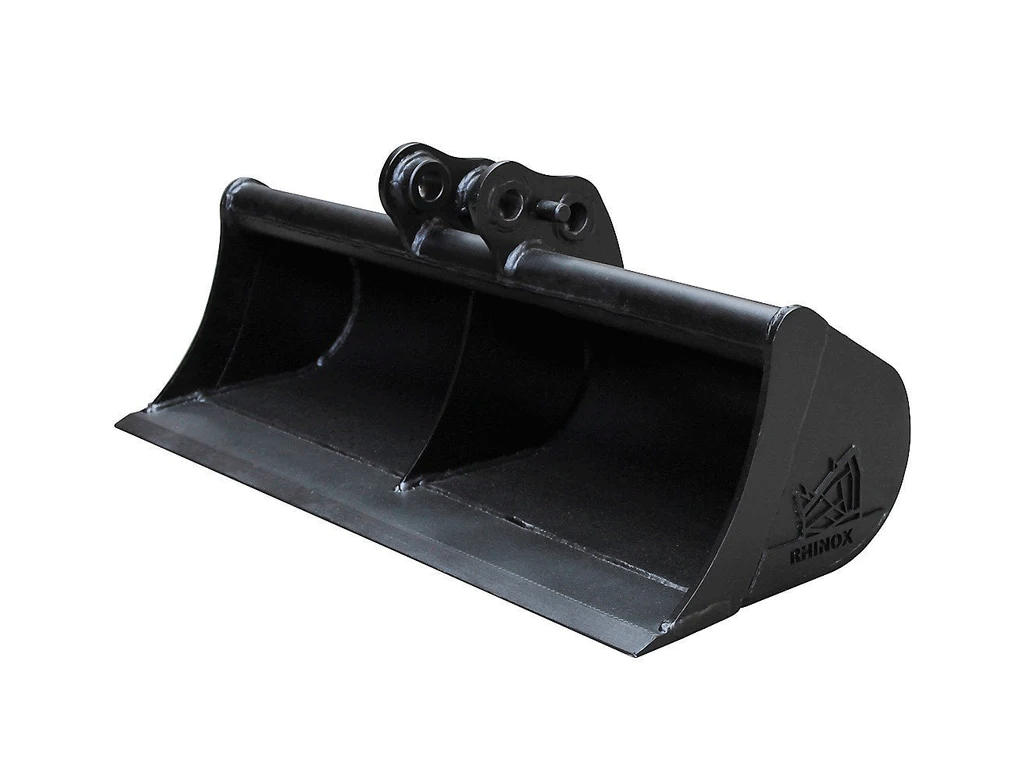

Rhinox excavator grading buckets—also called ditching buckets, ditch cleaning buckets, or excavator clean-up buckets—are designed for precision ground leveling, grading, and bulk material handling. Built wider than standard digging buckets with a straight cutting edge, they’re perfect for landscaping, site preparation, and earthmoving projects.
Manufactured from high-strength, wear-resistant steel and backed by a lifetime weld guarantee, these heavy-duty excavator buckets feature center supports for added strength, bossed hangers with removable pins, and reinforced leading edges and side plates for long service life.
Available for mini excavators, compact excavators, 2 Metric tons class (4410 Lbs.) Machines with a weigh equaling approximately (2,500–4,000 lbs.)

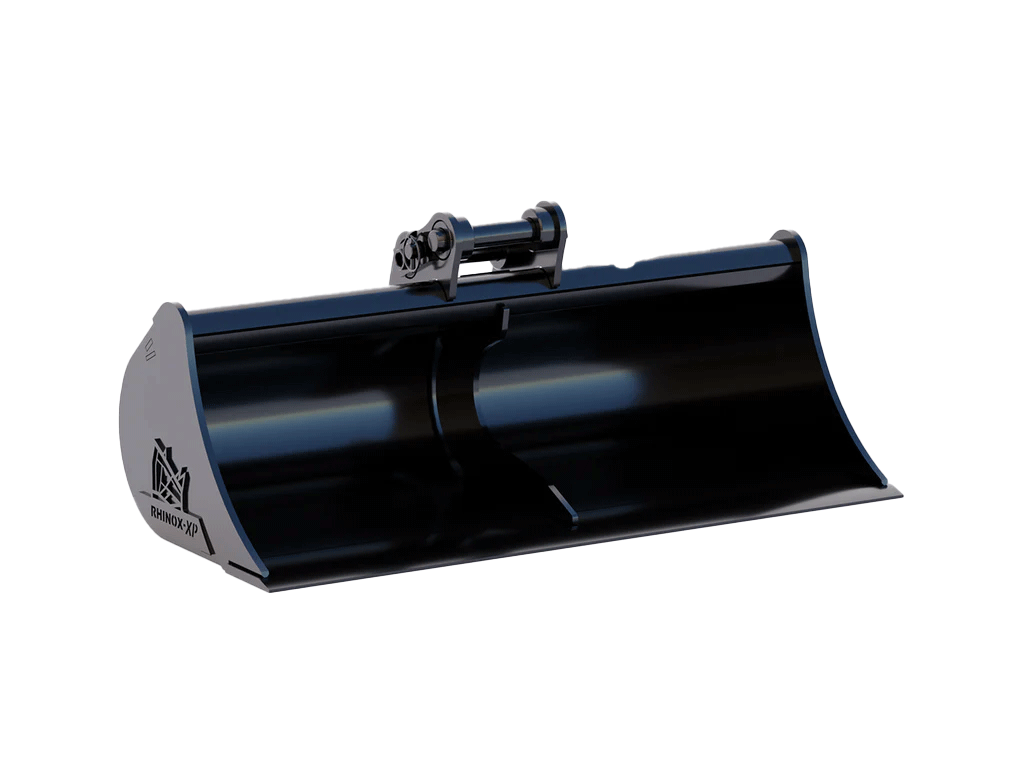

Pins included with pin on bucket types.
| BOBCAT E20, 320, 322, 324, 322D, 418 | |
| PIN DIAMETER | 30mm / 1 3/16" |
| DIPPER GAP | 105mm / 4 1/8" |
| PIN CENTERS | 123mm / 4 13/16" |
| WEIGHT | 100.76 Lbs. |
| CAPACITY | 2.48 |
|
CAT 301.7DCR, 301.5, 301.6C, 301.7D, 301.8, 302CR, 301.4C, 302CR |
|
| PIN DIAMETER | 30mm / 1 3/16" |
| DIPPER GAP | 105mm / 4 1/8" |
| PIN CENTERS | 126mm / 4 5/16" |
| WEIGHT | 100.93 Lbs. |
| CAPACITY | 2.48 |

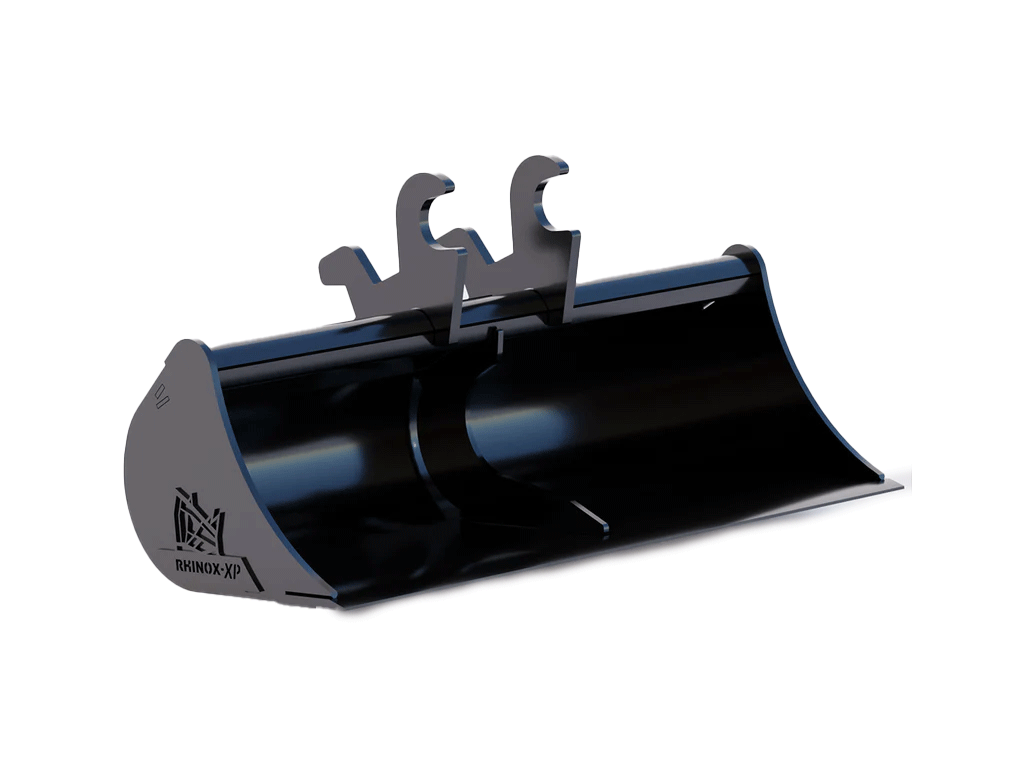

| HITACHI ZX19U, ZX17U-2, ZX17U, ZX16 | WEDGE |
| PIN DIAMETER | |
| DIPPER GAP | |
| PIN CENTERS | |
| WEIGHT | 102.34 Lbs. |
| CAPACITY | 2.48 |
| HITACHI ZX16, ZX17U-2 | |
| PIN DIAMETER | 30mm / 1 3/16" |
| DIPPER GAP | 120mm / 4 3/4" |
| PIN CENTERS | 118mm / 4 5/8" |
| WEIGHT | 47.14 Lbs. |
| CAPACITY | 2.48 |
|
JCB 18Z-1, 15C-1, 16C-1, 19C-1, 8020, 8016, 8018 |
|
| PIN DIAMETER | 30mm / 1 3/16" |
| DIPPER GAP | 95mm / 3 3/14" |
| PIN CENTERS | 120mm / 4 3/4" |
| WEIGHT | 102.28 Lbs. |
| CAPACITY | 2.48 |
These are the make and model of the machines that "in stock" buckets are for.
| MOUNT TYPE | MAKE | MODEL |
| PIN ON | BOBCAT | E20, 320, 322, 324, 322D, 418 |
| PIN ON | CAT |
301.7DCR, 301.5, 301.6C, 301.7D,301.8, 302CR, 301.4C, 302CR |
| PIN ON | DOOSAN |
DX17, DX19 |
| WEDGE LOCK | JOHN DEERE |
17G, 17P |
| PIN ON | JOHN DEERE |
17 |
| PIN ON | HITACHI | ZX16, ZX17U-2 |
| WEDGE LOCK | HITACHI | ZX19U, ZX17U-2, ZX17U, ZX16 |
| PIN ON | JCB |
18Z-1, 15C-1, 16C-1, 19C-1, 8020,8016, 8018 |

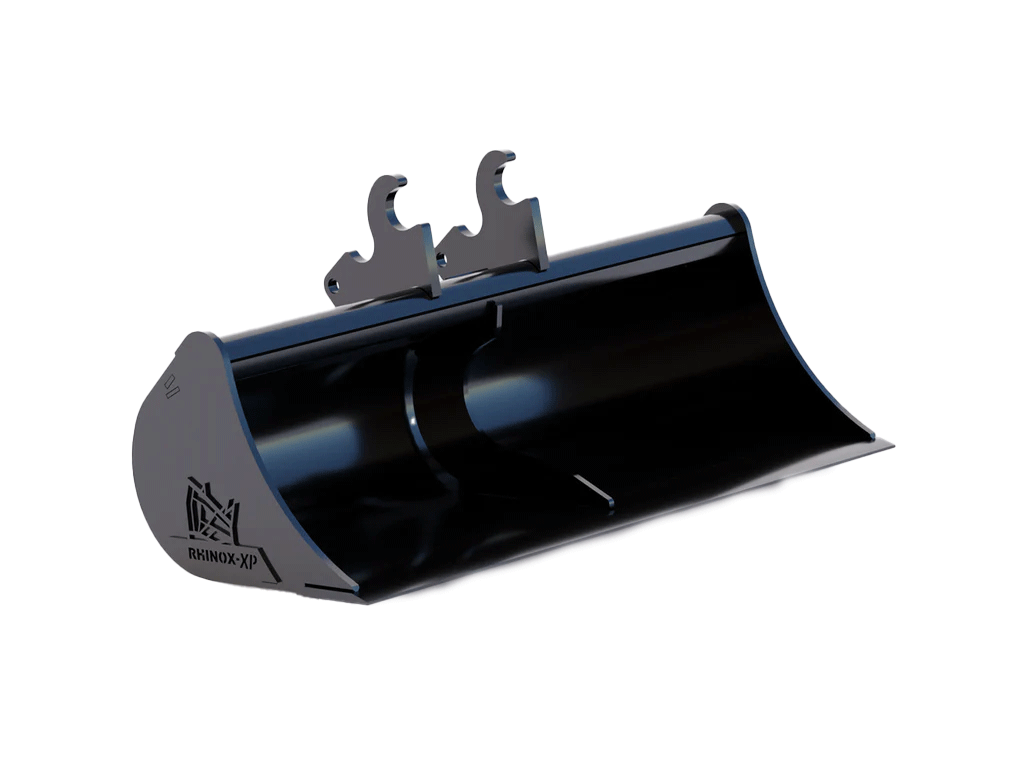

| KUBOTA COUPLER USA | KUBOTA |
KX41-2, U17-3, KX018-4, KX41,KX41.3, KX018-3 |
| PIN ON | TAKEUCHI | TB014, TB216, TB016 |
| PIN ON | YANMAR | VIO17, SV15, SV17, SV18 |
| PIN ON | XCMG | XE15U, XE18U, XE20E |
