USED JLG 1932 RS Scissor Lift
$7,500.00

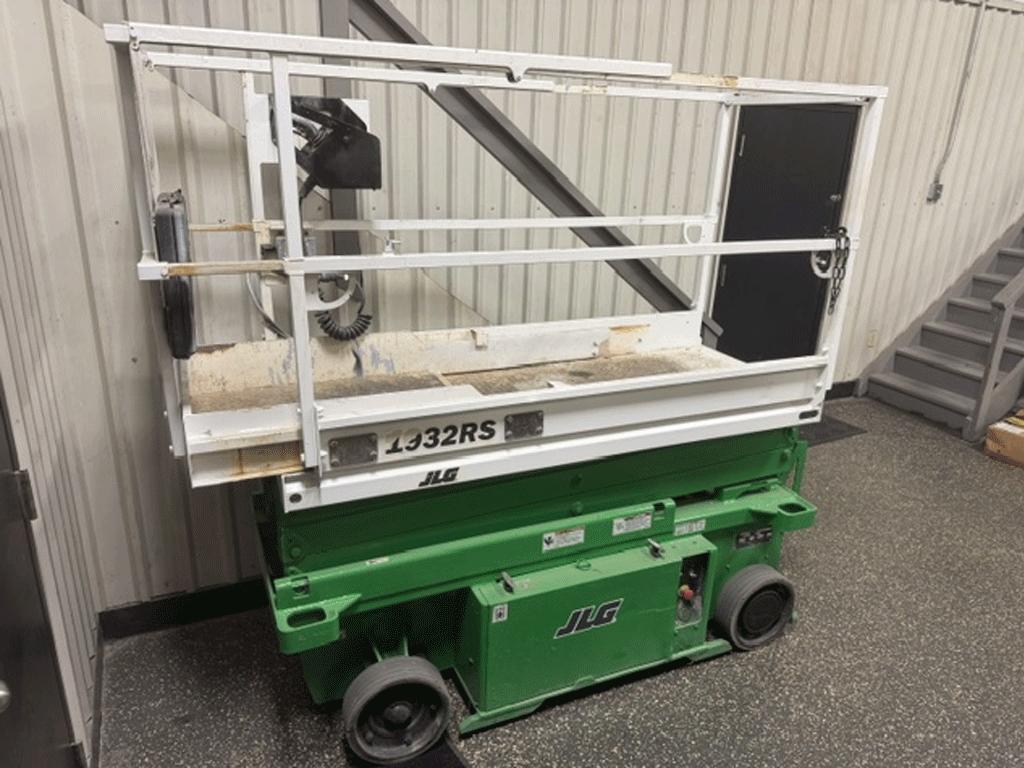

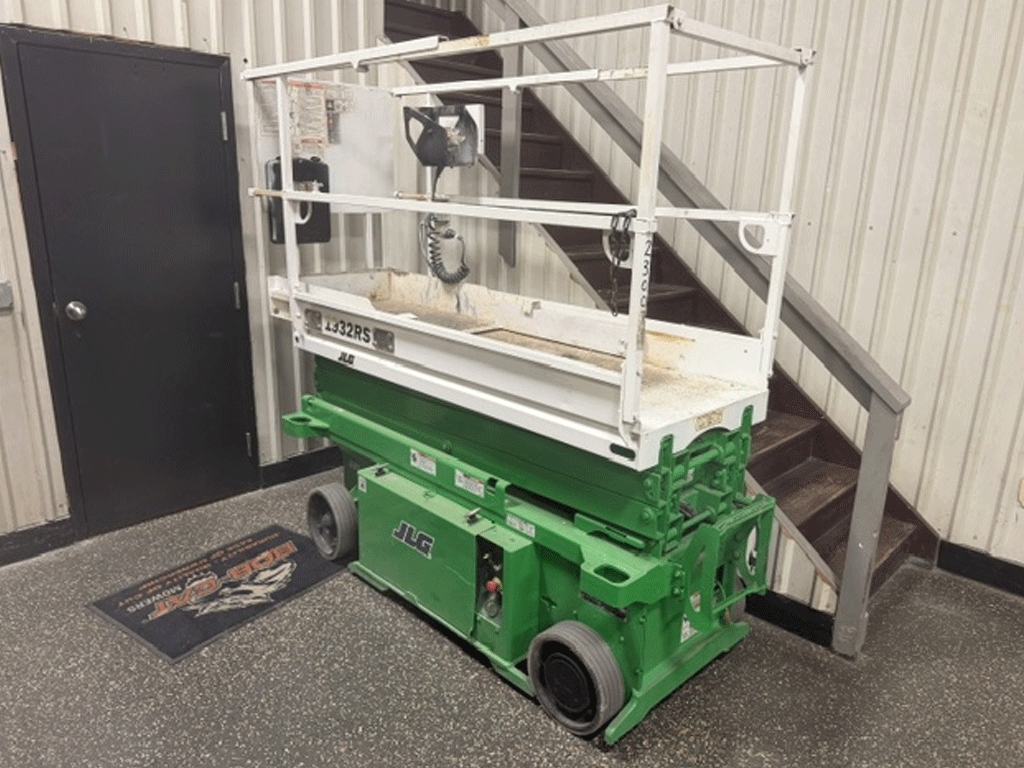

JLG 1932 RS Scissor Lift
- USED

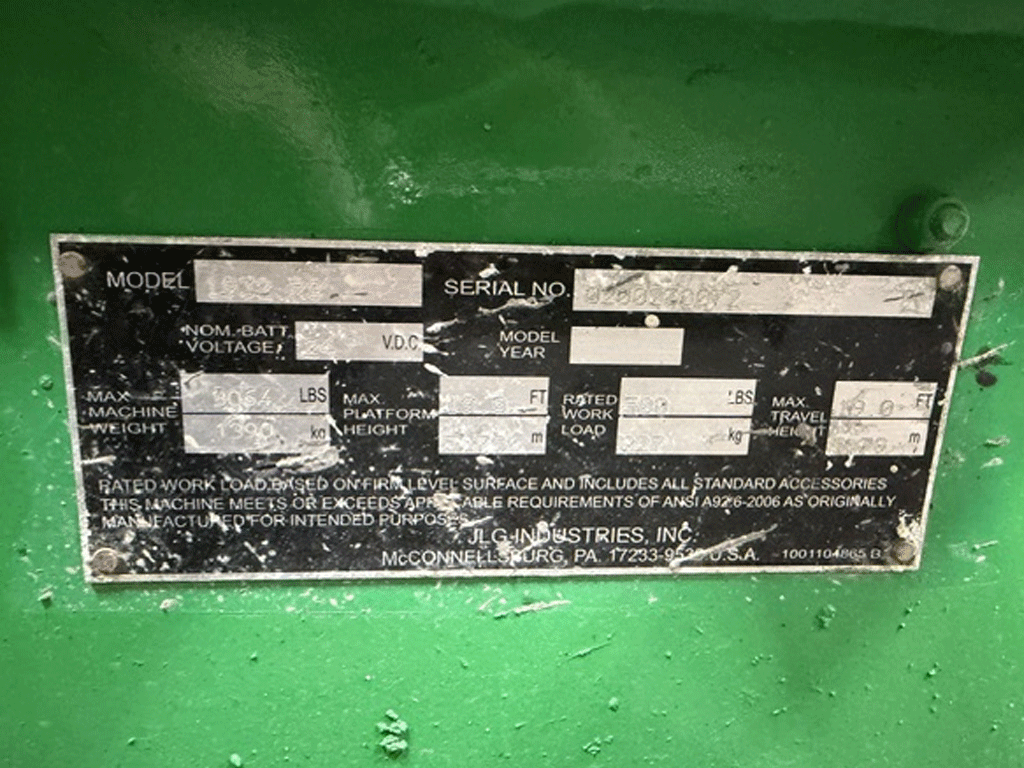

- SN. 0200220072
- MODEL 1932RS
Kept indoors. Everything works fine and charges properly. We are upgrading to larger lift.
JLG 1932RS Electric Scissor Lift Specifications
| Specification | JLG 1932RS |
|---|---|
| Power Source | 24V Electric |
| Working Height | 25 ft (7.62 m) |
| Platform Height | 19 ft (5.79 m) |
| Platform Capacity | 500 lbs (227 kg) |
| Platform Capacity (Extension) | 250 lbs (113 kg) |
| Platform Length | 6 ft 0 in (1.83 m) |
| Platform Width | 2 ft 3 in (0.69 m) |
| Platform Extension | 3 ft (0.91 m) |
| Overall Length | 6 ft 9 in (2.07 m) |
| Overall Width | 2 ft 8 in (0.81 m) |
| Overall Height (Stowed) | 6 ft 7 in (2.02 m) |
| Wheelbase | 4 ft 7 in (1.40 m) |
| Ground Clearance | 3 in (0.08 m) |
| Operating Weight | 3,450 lbs (1,565 kg) |
| Drive Speed (Stowed) | 3.0 mph (4.8 km/h) |
| Drive Speed (Elevated) | 0.5 mph (0.8 km/h) |
| Gradeability | 25% |
| Turning Radius (Outside) | 7 ft 3 in (2.21 m) |
| Drive System | Hydraulic Front Wheel |
| Hydraulic Pump | Fixed Displacement Gear |
| Batteries | 4 × 6V, 220 Ah |
| Battery Charger | 25 Amp |
| Tires | Non-Marking Solid |
| Application | Indoor / Outdoor (Firm, Level Surfaces) |
| Specification | JLG 1932RS |
|---|---|
| Power Source | 24V Electric |
| Working Height | 25 ft (7.62 m) |
| Platform Height | 19 ft (5.79 m) |
| Platform Capacity | 500 lbs (227 kg) |
| Platform Capacity (Extension) | 250 lbs (113 kg) |
| Platform Length | 6 ft 0 in (1.83 m) |
| Platform Width | 2 ft 3 in (0.69 m) |
| Platform Extension | 3 ft (0.91 m) |
| Overall Length | 6 ft 9 in (2.07 m) |
| Overall Width | 2 ft 8 in (0.81 m) |
| Overall Height (Stowed) | 6 ft 7 in (2.02 m) |
| Wheelbase | 4 ft 7 in (1.40 m) |
| Ground Clearance | 3 in (0.08 m) |
| Operating Weight | 3,450 lbs (1,565 kg) |
| Drive Speed (Stowed) | 3.0 mph (4.8 km/h) |
| Drive Speed (Elevated) | 0.5 mph (0.8 km/h) |
| Gradeability | 25% |
| Turning Radius (Outside) | 7 ft 3 in (2.21 m) |
| Drive System | Hydraulic Front Wheel |
| Hydraulic Pump | Fixed Displacement Gear |
| Batteries | 4 × 6V, 220 Ah |
| Battery Charger | 25 Amp |
| Tires | Non-Marking Solid |
| Application | Indoor / Outdoor (Firm, Level Surfaces) |
Key Features
- 19-foot platform height with a 25-foot working height
- 500 lb platform capacity
- Compact 32-inch overall width fits through most commercial doorways
- Slide-out deck extension for increased reach
- Active pothole protection
- Non-marking tires for indoor use
- Electric drive for quiet, zero-emission operation
- Heavy-duty steel platform and component doors
- 25% gradeability
- Low-maintenance electric drivetrain
The JLG 1932RS is designed for construction, maintenance, warehouse operations, electrical work, HVAC installation, and facility management. Its compact footprint and 500 lb platform capacity make it one of JLG's most popular 19-foot electric scissor lifts for indoor and outdoor applications on firm, level surfaces.
