SD3208652BJW
Camso has two styles of tracks available for compact track loaders.
Count on enhanced durability and excellent traction to maximize your uptime on heavy-duty applications.
The versatile solution for compact track loaders. On top of excellent performance all year long their enhanced durability and traction make them the best choice for use on various surface conditions.
| CAMSO HXD | |||
|---|---|---|---|
| WIDTH (MM) | PITCH (MM) | LINKS | |
| OEM Track Size | 320 | 86 | 52 |
| PART NUMBER | PID | WIDTH | PITCH | LINKS | TREAD PATTERN | GUIDING | METAL PIECE | CARCASS THICKNESS | LUG HEIGHT | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| MM | MM | MM | MM | KG/LB | ||||||
| HXD3208652HHJW | 16.2934.8916 | 320 | 86 | 52 | HH | J | W | 34 | 30 | 163/360 |
| CAMSO SD | |||
|---|---|---|---|
| WIDTH (MM) | PITCH (MM) | LINKS | |
| OEM Track Size | 320 | 86 | 52 |
| PART NUMBER | PID | WIDTH | PITCH | LINKS | TREAD PATTERN | GUIDING | METAL PIECE | CARCASS THICKNESS | LUG HEIGHT | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| MM | MM | MM | MM | KG/LB | ||||||
| SD3208652BJW | 16.2870.8843 | 320 | 86 | 52 | B | J | W | 37 | 25 | 166 / 366 |
Track availability is based on what CAMSO has in stock at there warehouses. We ship the product direct to you from CAMSO's warehouse.

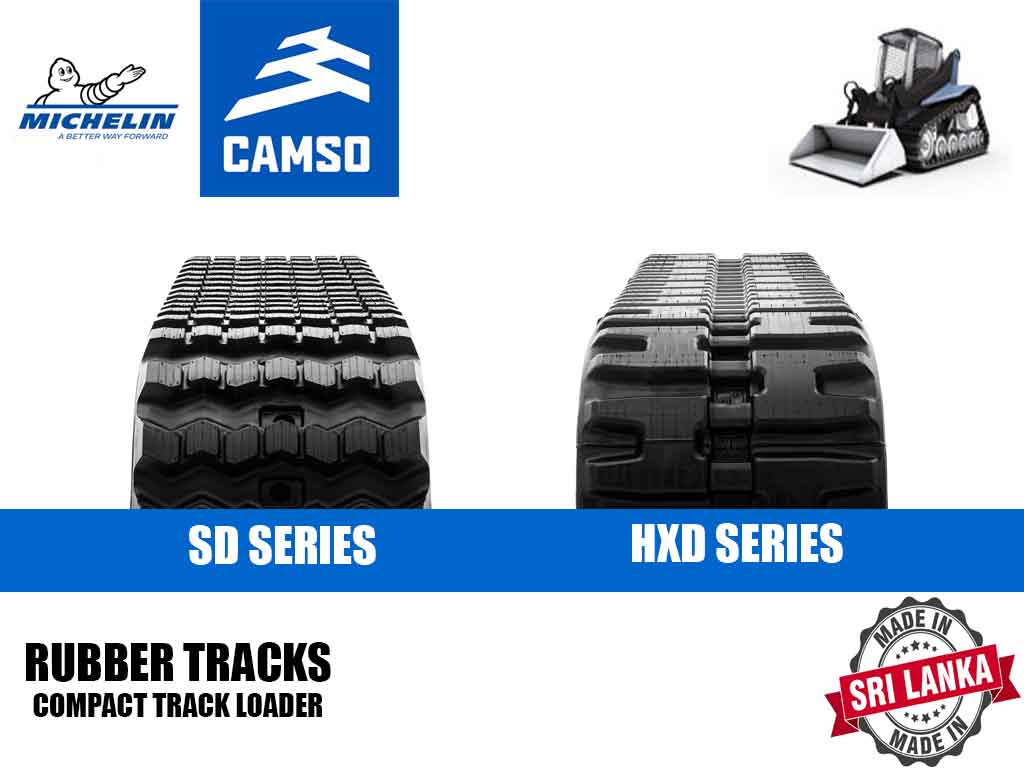

There at two types of tracks from Camso, SD series and HXD series. Many describe SD as standard duty and HXD as heavy duty. It is my understanding that the tracks are made of the exact same material and design. This means there really isn't a "duty" difference. The difference is the tread pattern. You may see longer life out of the HXD track over the SD track because there is more rubber surface area to wear.
HXD - also called the H pattern is a block design track with two additional cut outs that make it look like a "H". This track is great for all around use and will have very good capabilities in wear, durability and traction.

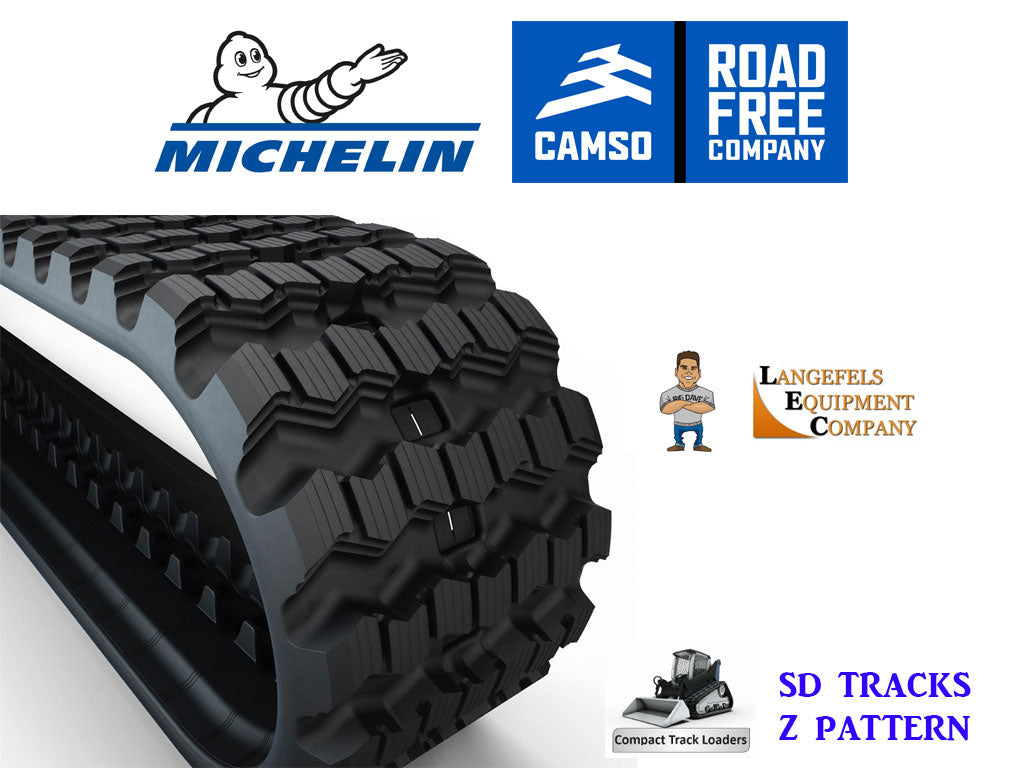

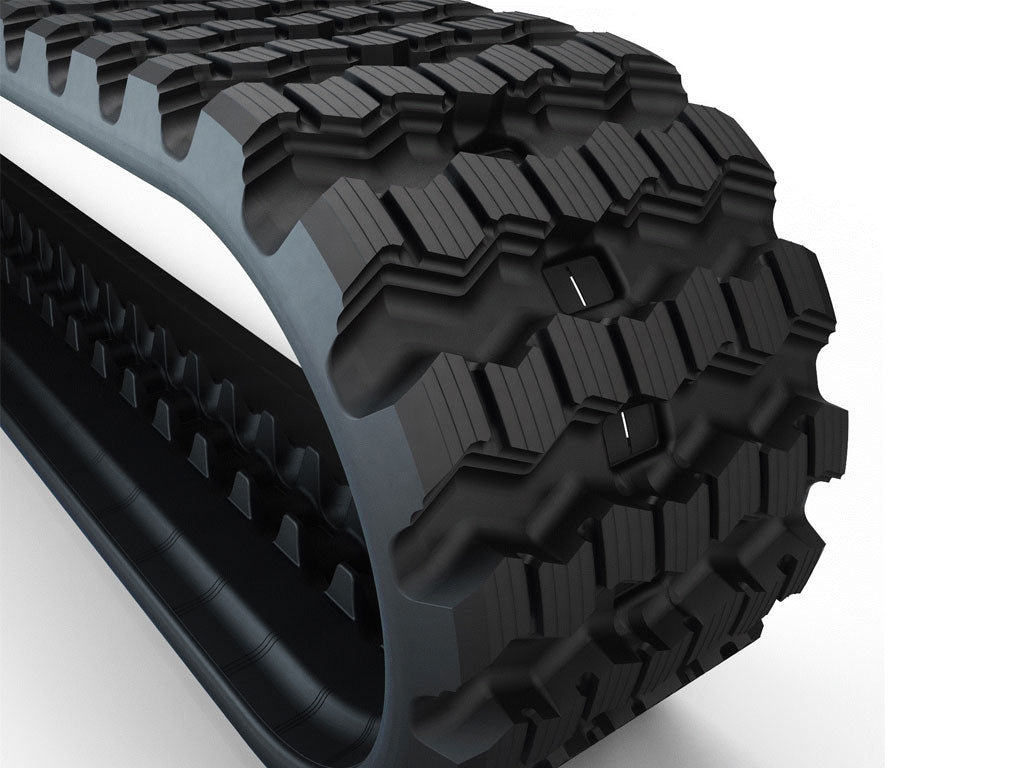

SD - also called the Z pattern is a multi bar like design. This track will perform excellent in snow, ice and mud. The extra biting edges give the track more traction. This track is great for all around use and will have very good capabilities in wear, durability and traction.
