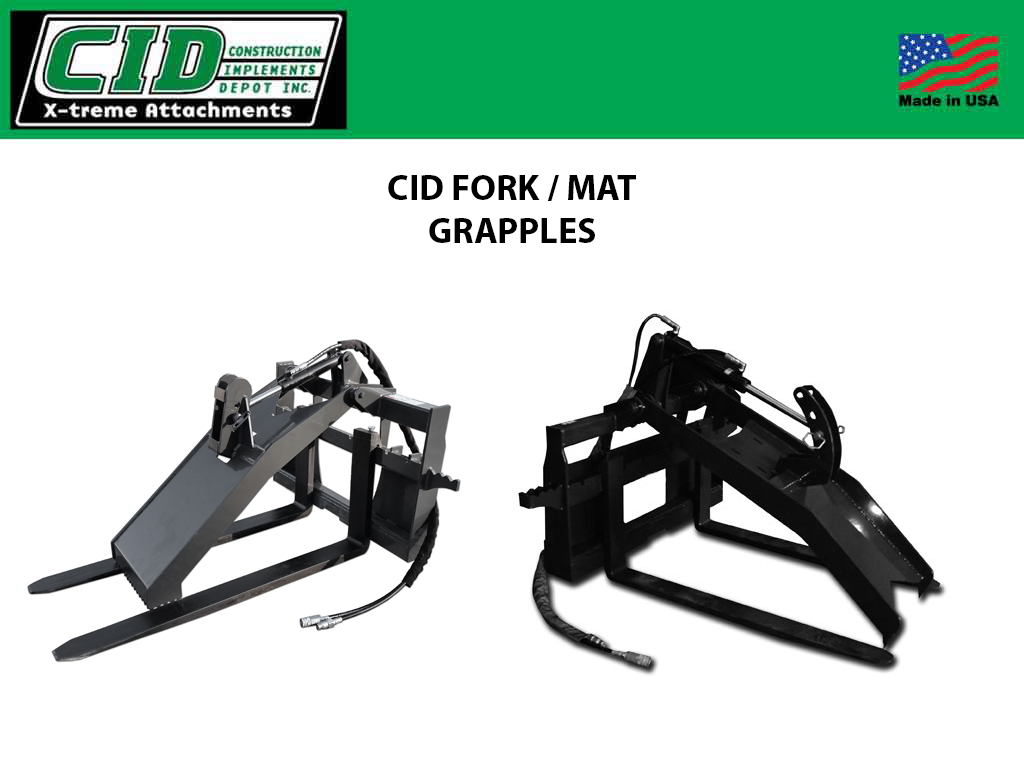

CID Fork Grapple & Mat Grapple for Skid Steers

Style
Capacity

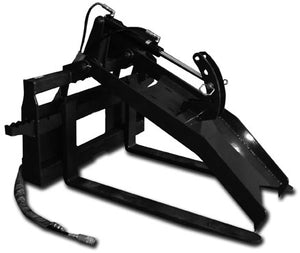

 Skid Steer Pallet Fork Grapple Attachment

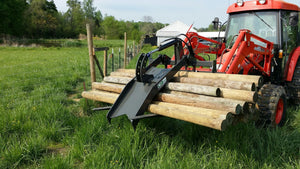

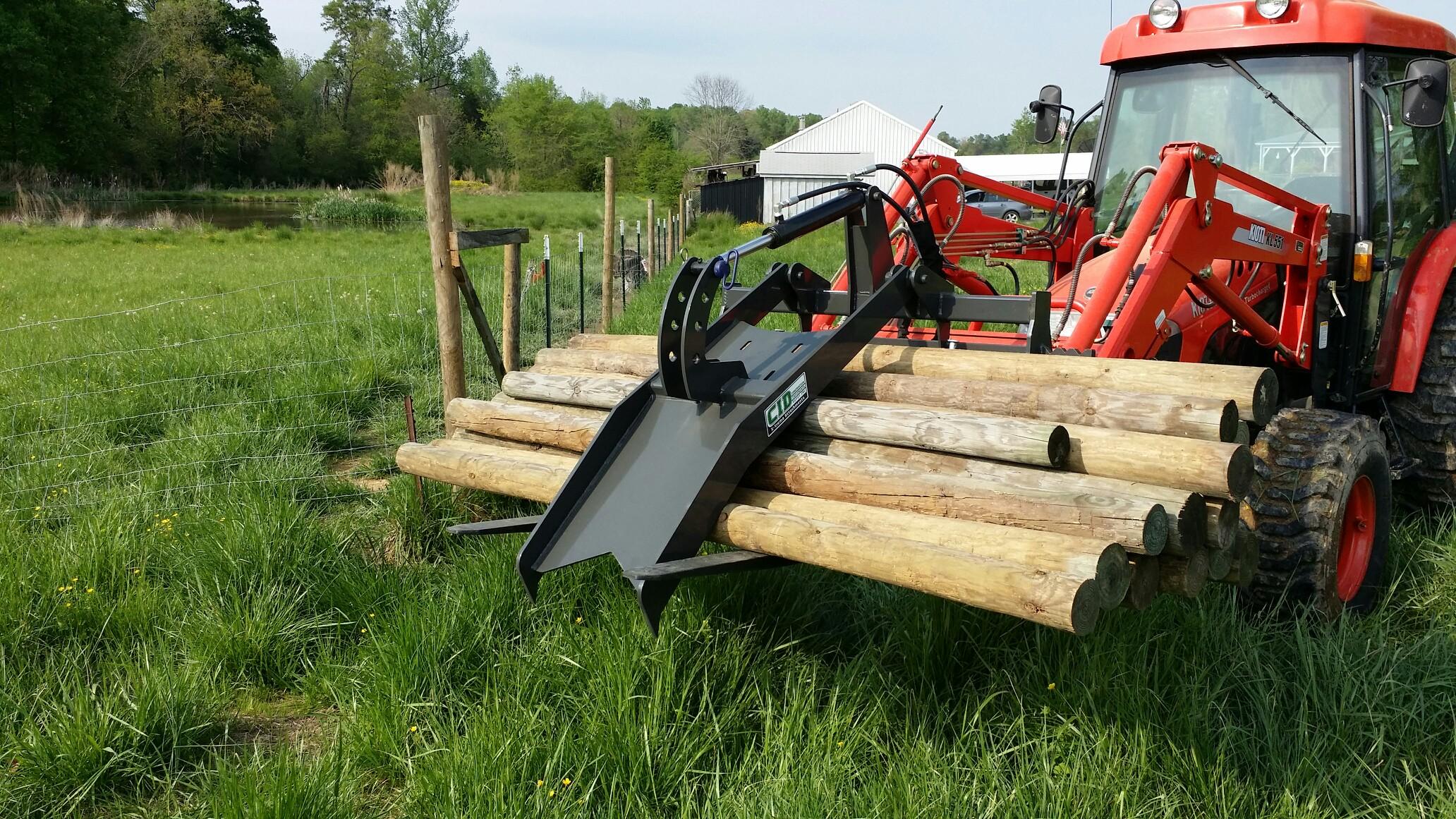

Our Skid Steer Pallet Fork Grapple is ideal for use on the farm, in logging operations and by general contractors. With the skid steer fork grapple attachment you can easily grab bundles of fence post when it’s time to start setting or replacing fence post out on the range, ranch or farm. Easily move around logs in the staging area on your logging job site. The skid steer pallet fork grapple comes standard with a class 2 4,000 lbs. fork tines. It can be upgraded to a class 2 5,500 lbs. fork tines. We also carry a class 3 8,000 lbs. skid steer pallet fork grapple.

Need a more versatile attachment on the construction job site? The CID fork grapple is a better attachment to have on site. It can be used from start to finish. Its great for moving logs or debris at the beginning stages and bricks, lumber, pipes and many others things in the middle and ending stages on the job site.

 Skid Steer Pallet Fork Grapple Attachment Specs

Our fork tines are completely heat treated from the tip to the heel and made in the U.S.A. The top tine is adjustable for small or large loads and the hydraulic cylinder gives you plenty of clamping force. The grapple fully opens to 72.34 inches.

  • Heat treated American made forks.
  • Adjustable top tine to handle any size load.
  • 2″ x 12″ cylinder.
  • Optional class 2 4,000 lbs.
  • Optional class 2 5,500 lbs.
  • Optional class 3 8,000 lbs.
  • Available with 48″, 60″, 72″ tines.

CID Skid Steer Pallet Fork Grapple Attachment Extra Protection

Our skid steer pallet fork grapple attachment comes powder coated and all hoses come with protective sleeves to give the attachment the best protection. All CID attachments are warranted to be free from defects in materials and workmanship for a period of 12 months. This warranty starts from the initial sale, lease or rental date.

 ___________________________________________________________________________________________________________________________________________________________________________________

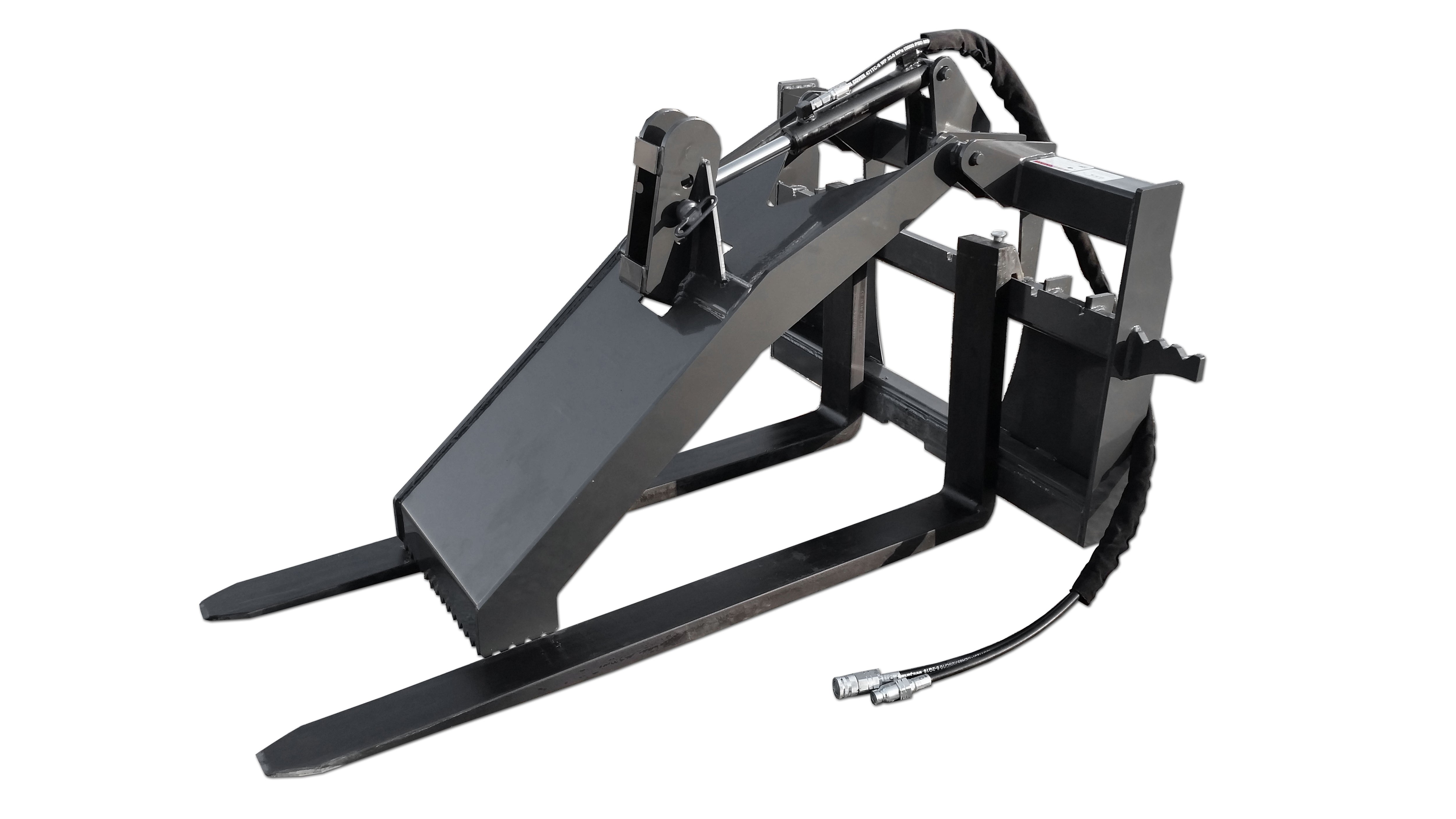

X-treme Skid Steer Mat Grapple

Our x-treme mat grapple is designed to pick up and move equipment mats. It can also be used to transport logs, poles and just about anything else. We build this in a class 3 carriage with a lifting capacity of 8,000 pounds.

X-treme Skid Steer Mat Grapple Specs.

  •  60″ forks standard.
  • 48″, and 72″ forks available.
  •  Designed to lift equipment mats.
  •  Teeth on the grapple to grip the mats.

CID X-treme Skid Steer Mat Grapple Attachment Extra Protection

Our skid steer mat grapple attachment also comes powder coated and all hoses come with protective sleeves to give the attachment the best protection. All CID attachments are warranted to be free from defects in materials and workmanship for a period of 12 months. This warranty starts from the initial sale, lease or rental date.

MODEL WIDTH  OPENING  CAPACITY (LBS.)
FG
50"
66"
4000 LBS.
FG5500
50"
66"
5500 LBS.
C3FG
50" 66"
8000 LBS.
C3MG
46"
71" - 79"
8000 LBS.
TINE OPTIONS

48" TINES ARE STANDARD FOR FORK GRAPPLES, CALL FOR 60" OR 72" TINES.

60" TINES ARE STANDARD FOR MAT GRAPPLES, CALL FOR 48" OR 72" TINES.
