ARSGR63

CID Grapple Rakes for Skid Steers

Style
Size
5-24

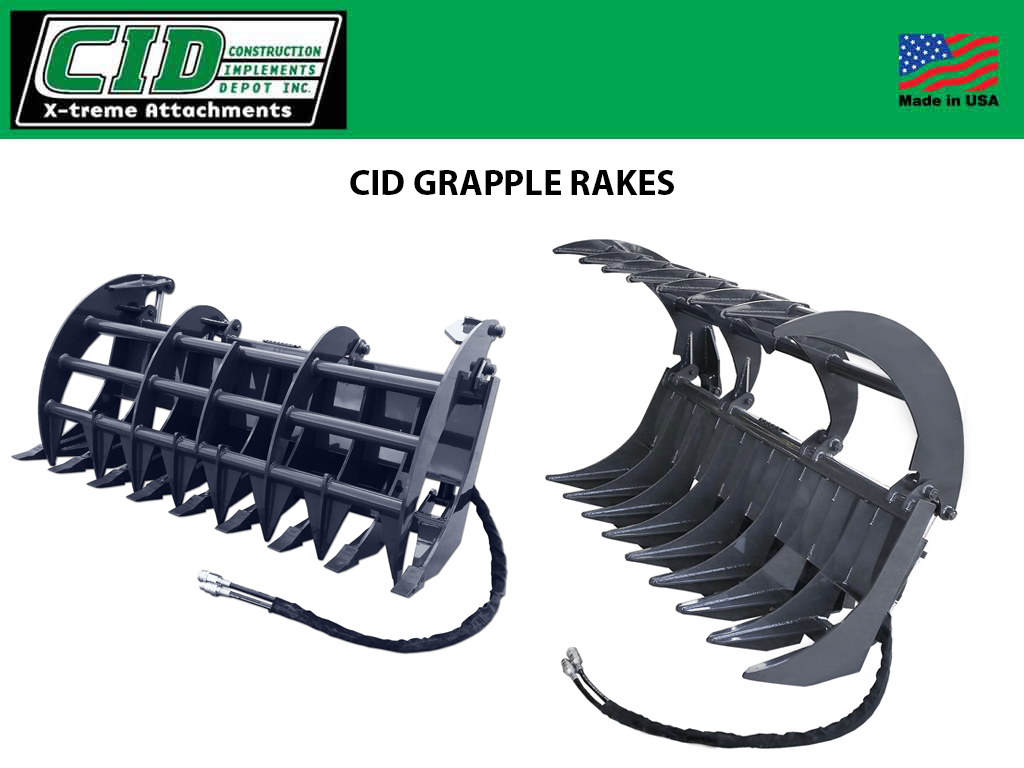

Grapple Rake Attachment

Our Grapple Rake Attachment are one of the best attachments for raking up all kinds of material and debris. The grapple rake attachment is great to use on land clearing jobs and construction job sites. These grapples can be used to load the debris into a dump truck or trailer. The compact tractor grapple rakes have the option of the single cylinder or dual cylinder version.

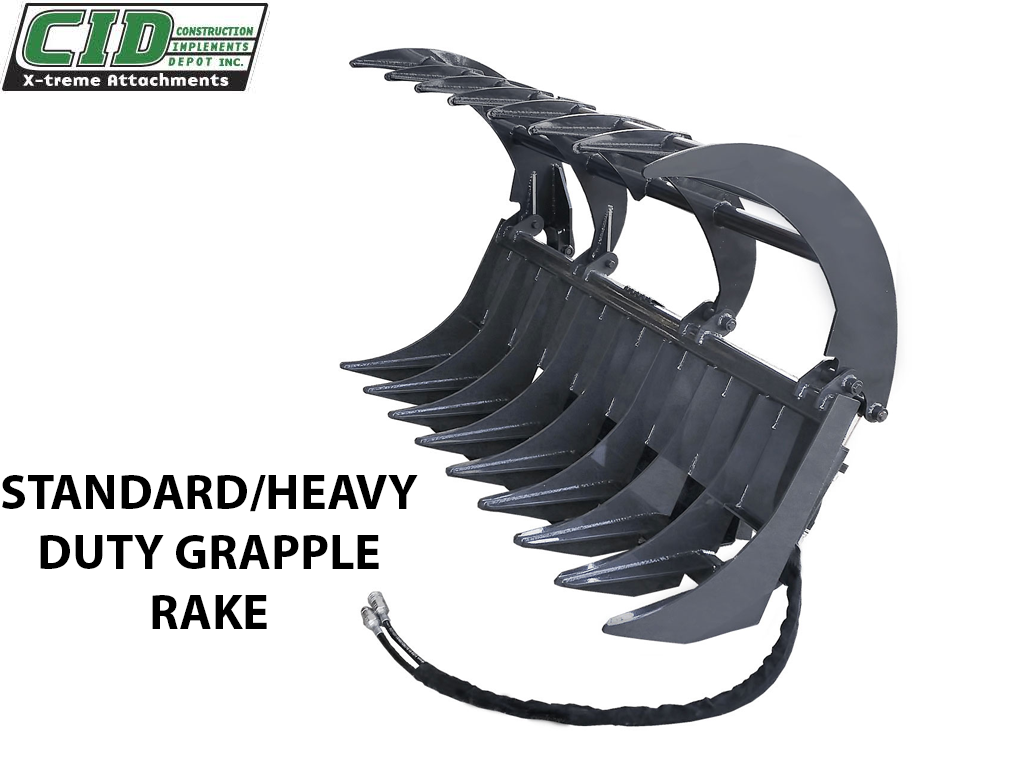

Standard and Heavy Duty Skid Steer Grapple Rake Attachment Specs

Two independent grapples. We use twin 2” bore by 10” stroke cylinders, rated at 4000 psi to handle the toughest jobs. Our compact tractor grapple rake is for use on tractors less than 40 hp. This Grapple fully opens to 33 inches. Our Standard Duty Grapple Rake are built with 3/8″ top quality steel and rated for 35 to 50 hp. Our Heavy Duty Grapple Rake are built with 1/2″ top quality steel and rated for 45 to 65 hp. Both of these Grapples fully opens to 51 inches.

  • Available as a single grapple or two independent grapples.
  • Unique design makes it easy to roll debris into tight piles.
  • Compact Tractor sizes: 48″, 54″, 60″.
  • Standard Duty sizes: 63”, 66″, 72”.
  • Heavy Duty sizes: 63″, 72″, 81″, 84″, 96″.

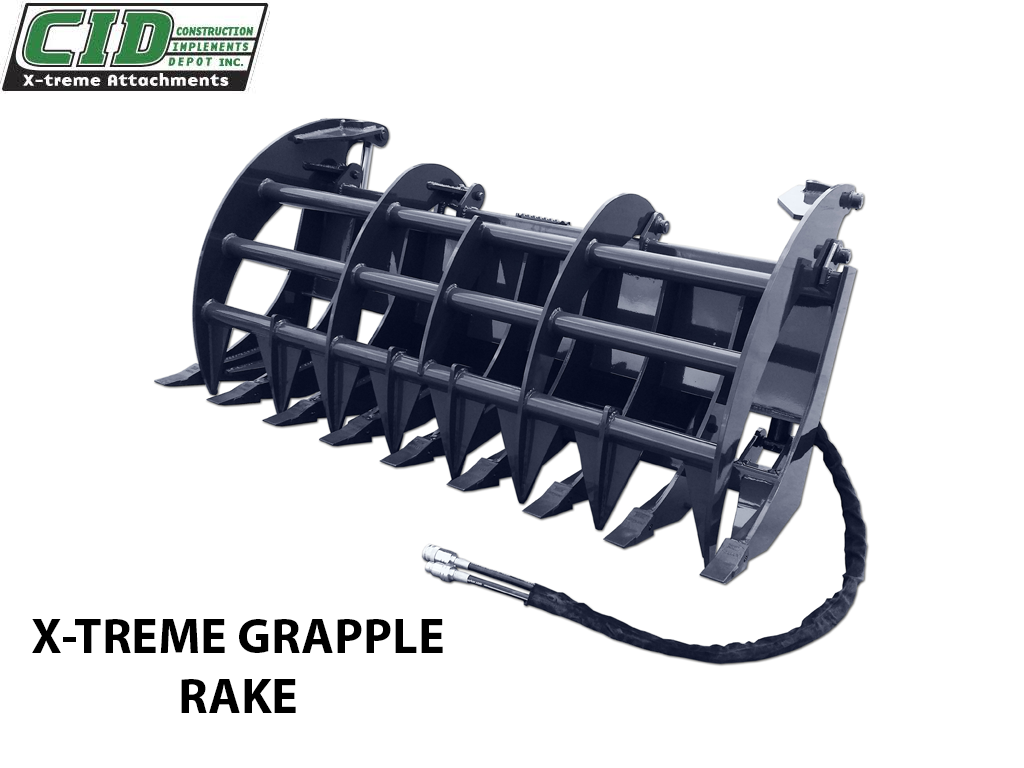

X-treme Skid Steer Grapple Rake Attachment.

Our X-treme Skid Steer Grapple Rake Attachment are ideal for raking up debris, moving or picking up logs, rocks, brush and other oddly shaped and hard to lift material.

The grapple rake attachment can then be used to load the material into a dump truck. The shape of the grapple rake makes it easy to roll debris into tight piles if you are planning to burn.

X-treme Skid Steer Grapple Rake Attachment Specs.

Two independent grapples. We use twin 2” bore by 10” stroke cylinders, rated at 4000 psi to handle the toughest jobs. Our X-treme Grapple Rakes are built with 1/2″ top quality steel and comes standard with 23 series teeth. Our Grapple Rake fully opens to 51 inches and rated for 65 hp and up.

  • Available as a single grapple or two independent grapples.
  • Twin 2” bore by 10” stroke cylinders.
  • Unique design makes it easy to roll debris into tight piles.
  • X-treme sizes: 63”, 72”, 81″, 84”, 96”.

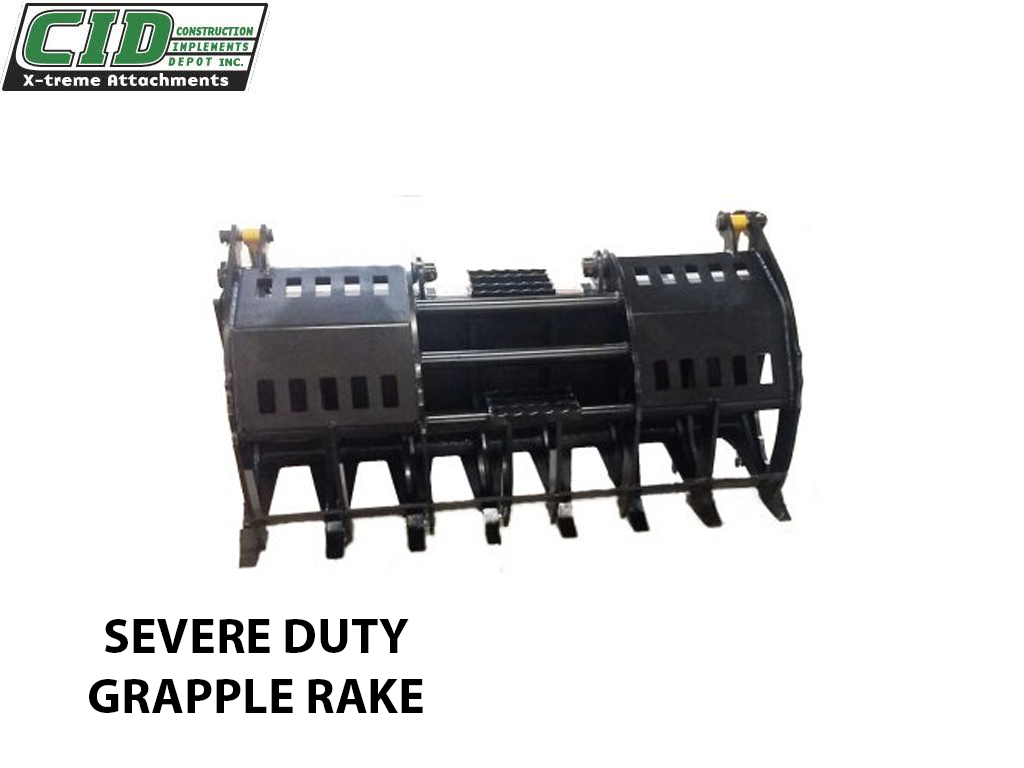

Severe Skid Steer Grapple Rake Attachment.

Our Severe Skid Steer Grapple Rake Attachment is the ideal grapple for machines 80 HP and higher.  The Severe Grapple is used for raking up debris, moving or picking up logs, rocks, brush and other oddly shaped and hard to lift material.  The grapple rake attachment can then be used to load the material into a dump truck. The shape of the grapple rake makes it easy to roll debris into tight piles if you are planning to burn.

The Severe Grapples is built from 3/4″ steel, using 4″ tubing in the frame construction.  The Severe Grapple is available with single or dual grapples.. This grapple features oversized pins and bushings, and uses an oversized step to allow easy entry into your machine.

Severe Skid Steer Grapple Rake Attachment Specs.

Two independent grapples. We use twin 2” bore by 10” stroke cylinders, rated at 4000 psi to handle the toughest jobs. Our Severe Grapple Rakes are built with 3/4″ top quality steel and comes standard with 23 series teeth. Our Grapple Rake fully opens to 43″ inches and rated for 80 hp and up.

  • Single or Dual Grapples available
  • Twin 2” bore by 10” stroke cylinders.
  • Unique design makes it easy to roll debris into tight piles.
  • X-treme sizes: 72″, 84″
      STYLE / BUCKET SIZE 48" 54" 60" 63" 66" 72" 78" 81" 84" 96"
      STANDARD DUTY - - - - - - -
      HEAVY DUTY - - -
      X-TREME - - -
      SEVERE DUTY - - - - - - - -

      Standard / Heavy

      compact-tractor-rake-grapple-specs

      heavy duty grapple rake spec

      X-treme Duty

       xtreme grapple rake spec

      Severe Duty



      Compact, Standard, Heavy, X-treme, and Severe Duty Skid Steer Grapple Rake Attachment Extra Protection

      Our Compact, Standard, Heavy, X-treme and Severe Duty Skid Steer Grapple Rake Attachment are powder coated and all hoses come with protective sleeves to give the attachment the best protection. All CID attachments are warranted to be free from defects in materials and workmanship for a period of 12 months. This warranty starts from the initial sale, lease or rental date.
