DIGGA

4DDS-3-SPH

DIGGA DSS & DDT SERIES AUGER DRIVE (EXC)(BKH) - 5000 TO 16000 LB

Size
MOUNTING

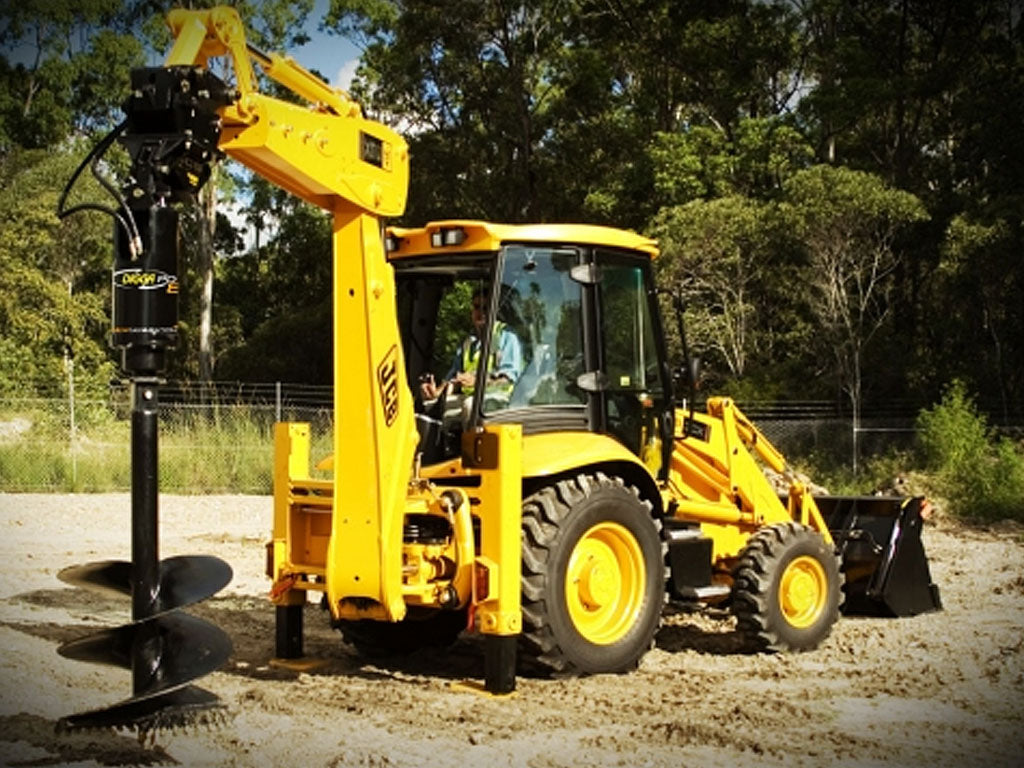

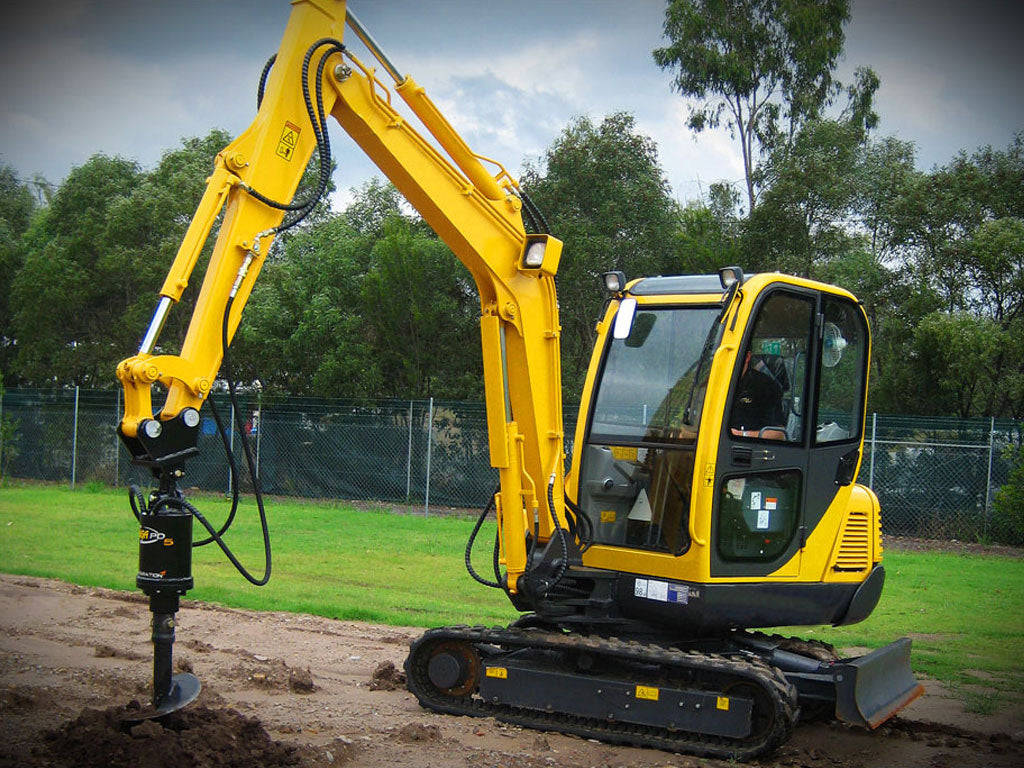

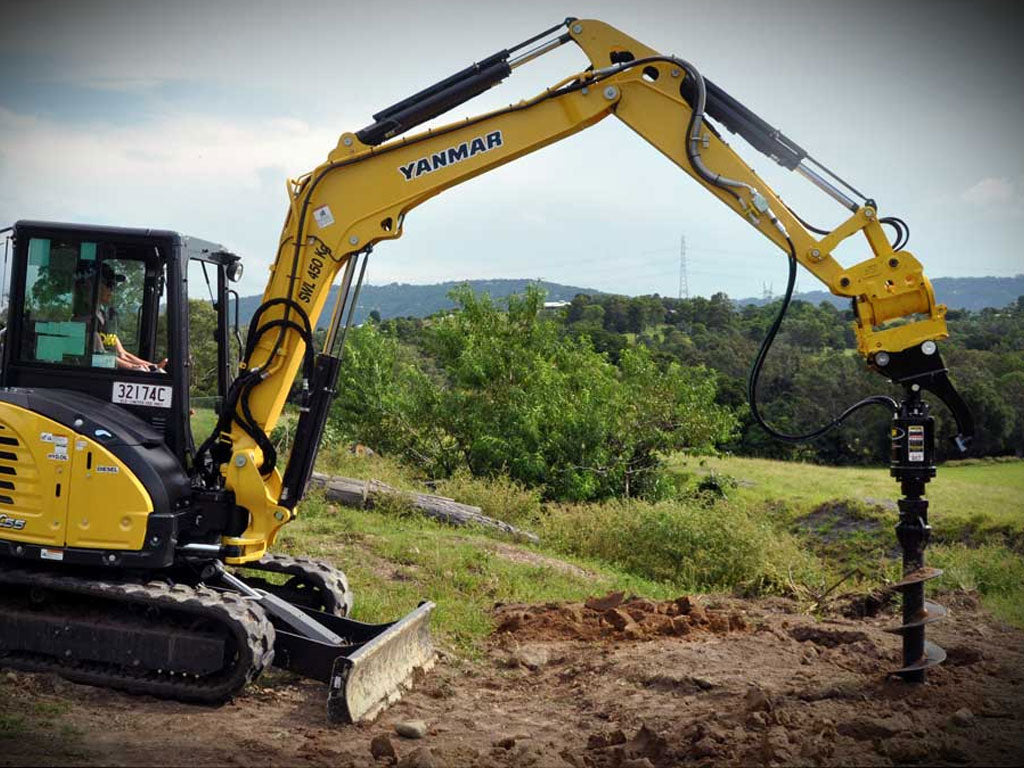

Drilling Drives for Excavators and Backhoes 4.5ton to 8ton

Digga's range of drilling drives for 4.5-8t excavators and backhoes are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with Digga / Eaton bell motors with integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximise drilling depth without extensions.

Available in Single Speed Std, low pressure (for machines with 3000 psi), Two Speed, and Two Speed low pressure (for machines with 3000 psi). Want to install Screw Anchors with your Drive? Absolutely, but to ensure full warranty protection, the addition of our patented ECV "Energy Control Valve" ensures complete protection against pile ‘flickback’ damaging your motor.

Drive Features:

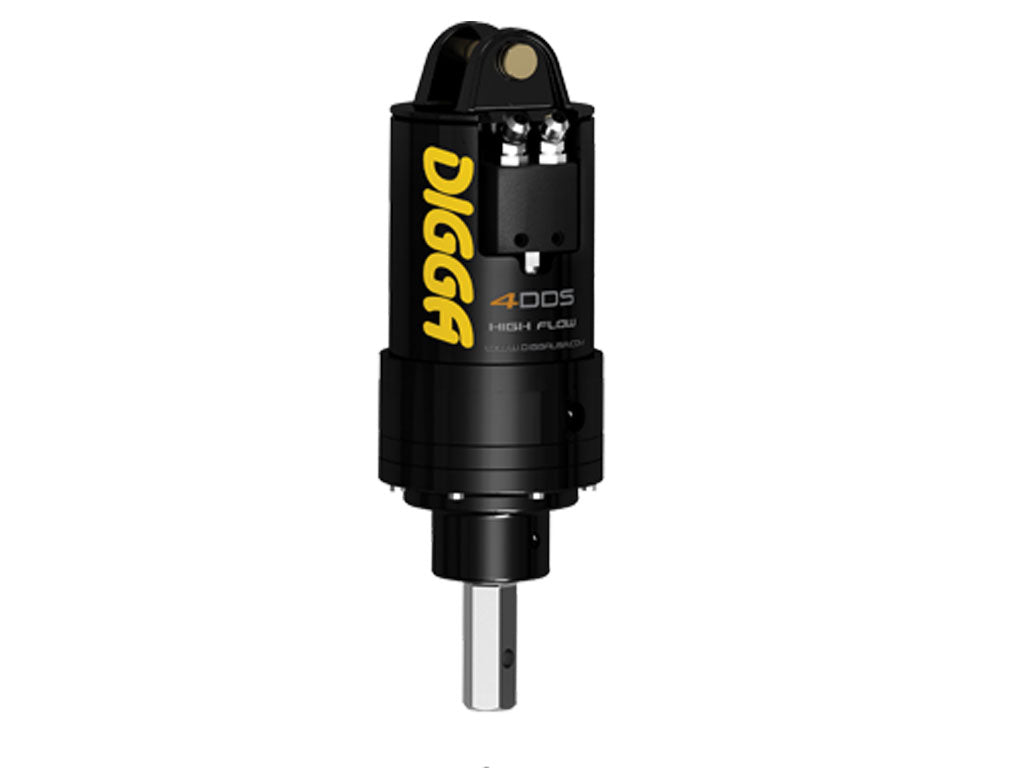

  • Compact high torque Digga manufactured gearbox
  • Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Single speed & two speed models available
  • Lifetime shaft pull out warranty

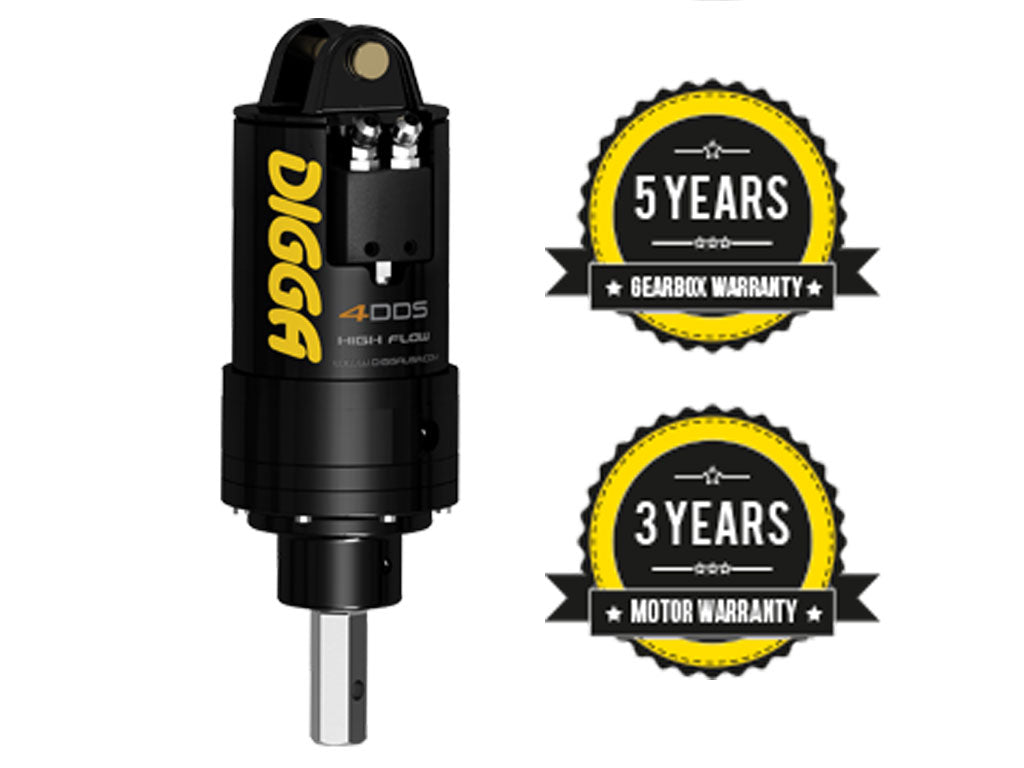

  • 5 year gear box and 3 year motor warranty
  • Over 30 years design and manufacturing experience
  • Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'
2 Speed Drilling Drives for Excavators and Backhoes

Digga's 2 Speed Auger Drives are designed to suit excavators & skid steer loaders, truck cranes, front end loaders, wheeled loaders and backhoes with flows between 10 to 36 gpm. We distribute our 2 Speed Drilling Drives throughout North America.

  • Compact high torque Digga manufactured gearbox
  • Highly efficient design with less moving parts
  • Fitted with Eaton VIS motor
  • Integrated PRV (Pressure Relief Valve)
  • Extreme duty shaft locking system
  • Drive fits down the hole for greater digging depth
  • Low maintenance with 5yr gear box and 3yr motor warranty

Includes:

  • HOSES & FITTINGS (7' LONG)
  • UNIVERSAL LOADER MOUNTING (BOBCAT)
  • 2" HEX SHAFT

DETAILS 5DDS 6DDS 7DDS
TORQUE (FT-LBS @ 3000 PSI) 3,903 4,909 6,162
MAX TORQUE (FT-LBS @ 3500 PSI) 4,553 5,728 7,189
RECOMMENDED FLOW (GPM) 10-36 12-36 14-36
MOTOR TYPE EATON EATON EATON
MAX PRESSURE (DO NOT EXCEED) 3500 PSI @ 27 GPM
MAX FLOW (DO NOT EXCEED) 55 GPM @ 1700 PSI
MAX HORSE POWER 55 55 55
PRESSURE RELIEF VALVE INCLUDED INCLUDED INCLUDED
STANDARD OUTPUT SHAFT 2.5" HEX 2.5" HEX 2.5" HEX

RECOMMENDED AUGER A6 / RC6 A6 / RC6 A6 / RC6
MAX DRILLING DIAMETER
(CLAY / SHALE)*
24" 30" 30"
MAX DRILLING DIAMETER (EARTH)* 40" 40" 48"
WEIGHT (LBS) 290 290 290
OVERALL LENGTH (IN) 33.7" 33.7" 33.7"
DIAMETER (IN) 11.4" 11.4" 11.4"



DETAILS 5DDT 6DDT 7DDT
TORQUE (FT-LBS @ 3000 PSI) 4,067 5,012 6,306
MAX TORQUE (FT-LBS @ 3500 PSI) 4,745 5,847 7,357
RECOMMENDED FLOW (GPM) 10-36 10-36 10-36
MOTOR TYPE EATON EATON EATON
MAX PRESSURE (DO NOT EXCEED) 3500 PSI @ 27 GPM
MAX FLOW (DO NOT EXCEED) 53 GPM @ 1800 PSI
MAX HORSE POWER 55 55 55
PRESSURE RELIEF VALVE INCLUDED INCLUDED INCLUDED
STANDARD OUTPUT SHAFT 2.5" HEX 2.5" HEX 2.5" HEX

RECOMMENDED AUGER A6 / RC6 A6 / RC6 A6 / RC6
MAX DRILLING DIAMETER
(CLAY / SHALE)*
24" 30" 30"
MAX DRILLING DIAMETER (EARTH)* 40" 40" 48"
WEIGHT (LBS) 350 350 350
OVERALL LENGTH (IN) 34.4" 34.4" 34.4"
DIAMETER (IN) 14.4" 14.4" 14.4"


USUALLY SHIPS IN (3) TO (10) DAYS

The 5DSS, 6DSS, 7DSS, 5DDT, 6DDT and 7DDT are designed for heavy duty drilling. These augers can handle 10 to 36 GPM flow depending on the model. The DDT models are two speed auger drives. The two speed drives require a case drain line. The two speed units come with a 10' power lead & 2 pin connector - the controller is sold separately. These augers have a four way swing mounting (forward and back, side to side). An mounting extension option allows you to use bit extensions to drill deep holes. The package includes The hoses, fittings, drive and mountings so it is ready to go on the job site.
