DIGGA

1DSS-3-SPH

DIGGA DSS SERIES AUGER DRIVE (EXC) - 650 TO 6000 LB

Size
MOUNTING

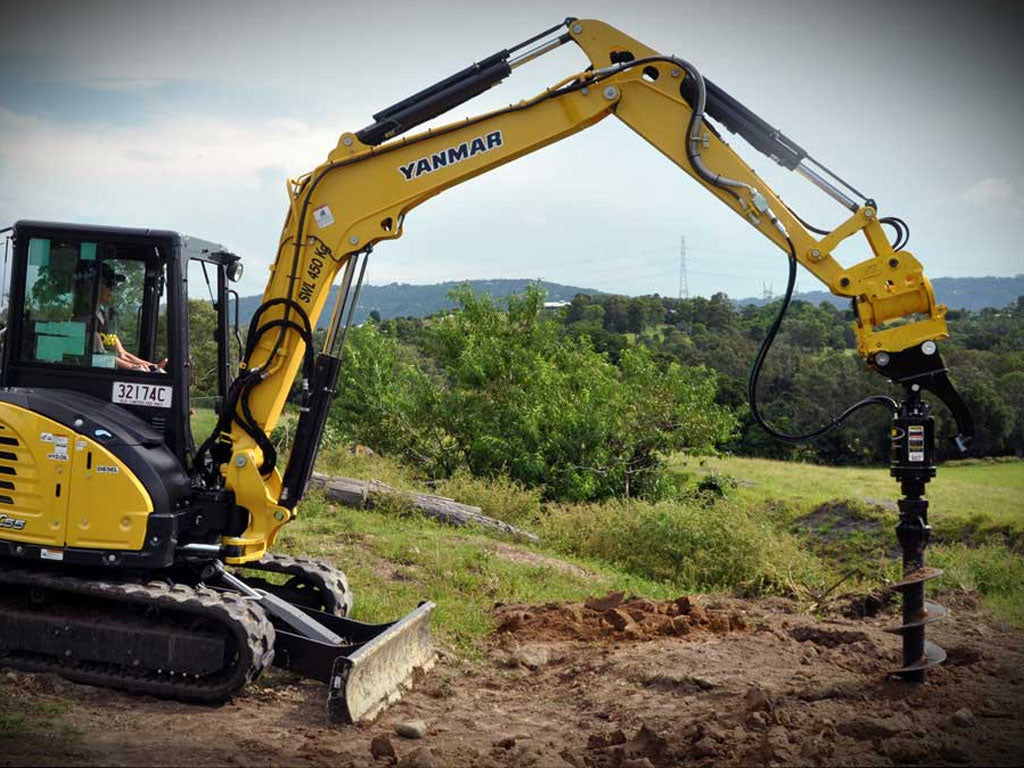

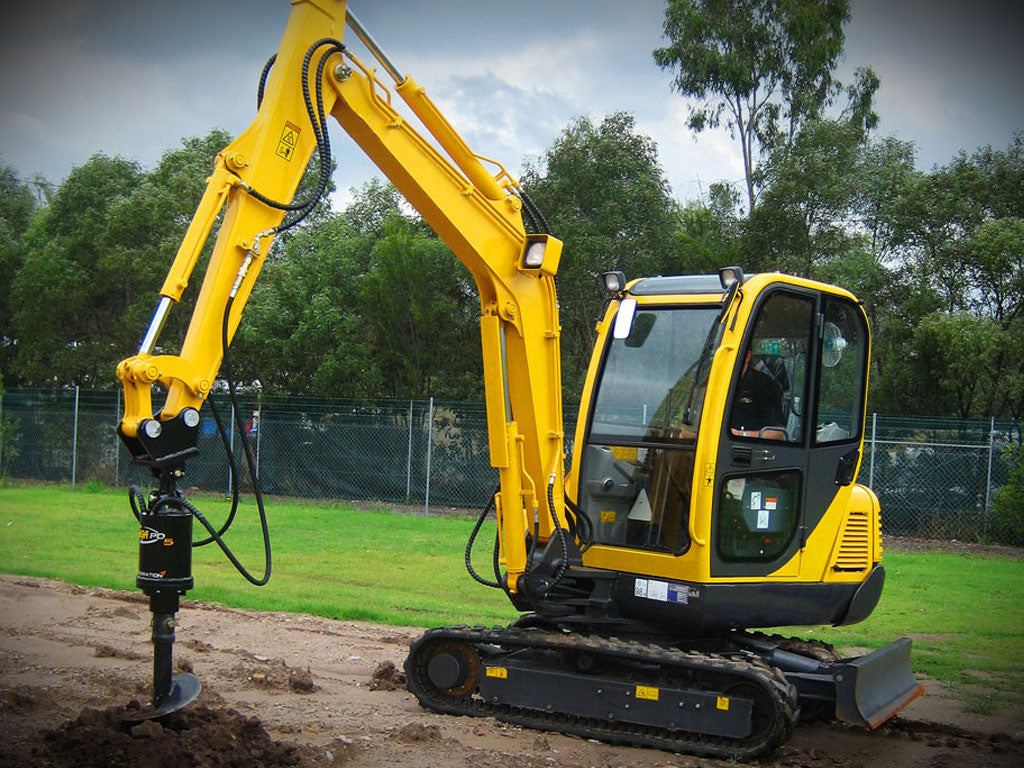

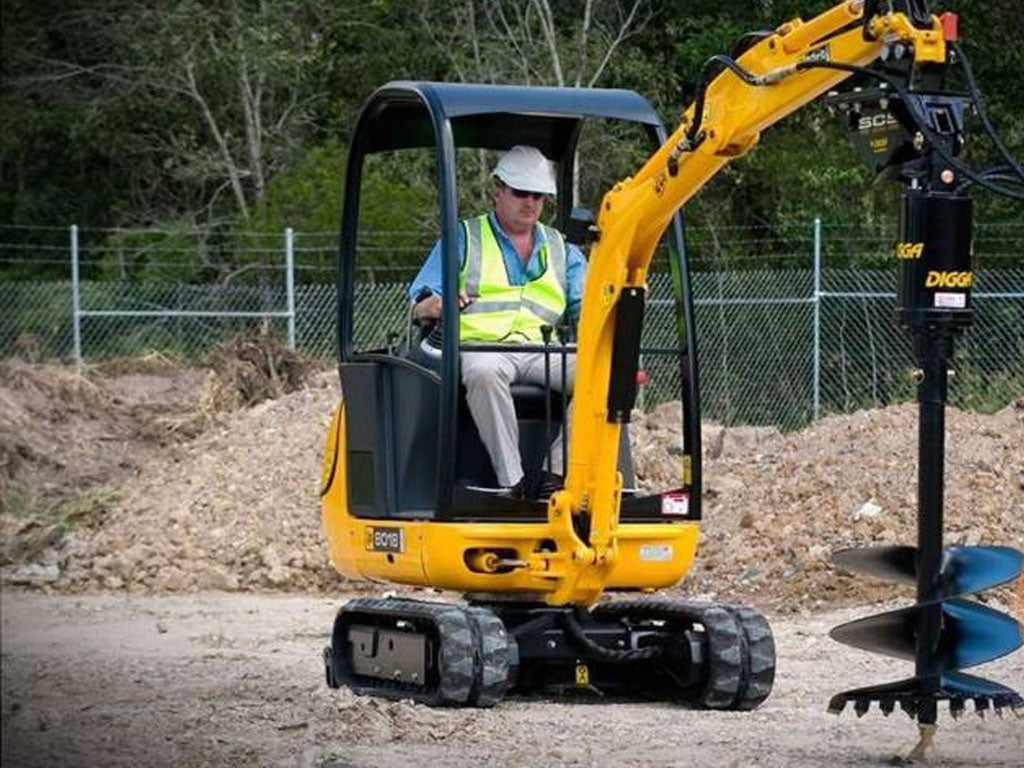

Drilling Drives for Mini Excavators 0.75ton to 3ton

Digga's range of drilling drives for 0.75 ton to 3 ton Excavators are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with Digga / Eaton motors with optional pressure relief valve the innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimising your returns.

Digga drilling drives are backed by industry leading warranty and local factory support.

Drive Features:

  • Compact Digga manufactured gearbox
  • Digga designed Eaton motor with optional intergrated pressure relief valve to eliminate the need for bulky valve blocks and reduce many potential leak points
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty
  • 5 year gear box and 3 year motor warranty
  • Over 30 years design and manufacturing experience
  • Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'

Includes:

  • HOSES & FITTINGS (87" LONG)
  • UNIVERSAL LOADER MOUNTING (BOBCAT)
  • 2" HEX SHAFT

DESCRIPTION 1DSS 2DSS 3DDS
TORQUE (FT-LBS @ 3000 PSI 1,467 2,254 2829
MAX TORQUE FT-LBS @ 3500 PSI 1,712 2,630 3300
RECOMMENDED FLOW (GPM) 6-16 10-26 10-30
MOTOR TYPE EATON EATON EATON
MAX PRESSURE - DO NOT EXCEED 3500 PSI @ 16 GPM
MAX FLOW - DO NOT EXCEED 30 GPM @ 1800 PSI
MAX HORSE POWER 33 33 34
PRESSURE RELIEF VALVE N/A N/A N/A
STANDARD OUTPUT SHAFT 2" HEX 2" HEX 2" HEX

RECOMMENDED AUGER A4 / RC4 A4 / RC4 A4 / RC4
MAX DRILLING DIAMETER (CLAY / SHALE)* 12" 24" 24"
MAX DRILLING DIAMETER EARTH* 24" 30" 30"
WEIGHT (LBS) 101 123 123
OVERALL LENGTH (IN) 24.5" 25.9" 25.9"
DIAMETER (IN) 7.4" 9.4" 9.4"



USUALLY SHIPS IN (3) TO (10) DAYS

The 1DSS, 2DSS, 3DSS, 4DSS and 4DDS are designed for heavy duty drilling. These augers can only handle 6 to 42 GPM flow depending on the model. These augers have a four way swing mounting (forward and back, side to side). An mounting extension option allows you to use bit extensions to drill deep holes. The package includes The hoses, fittings, drive and mountings so it is ready to go on the job site.
