SPIDER ATTACHMENTS

SPD0140701060

SPIDER extreme duty low profile buckets

STYLE
SIZE
EDGE

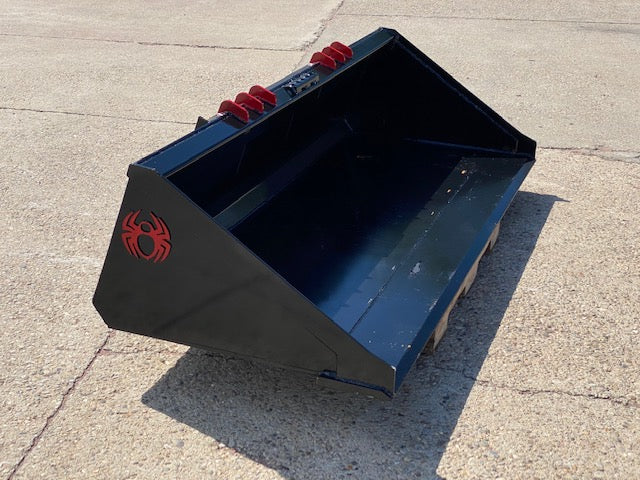

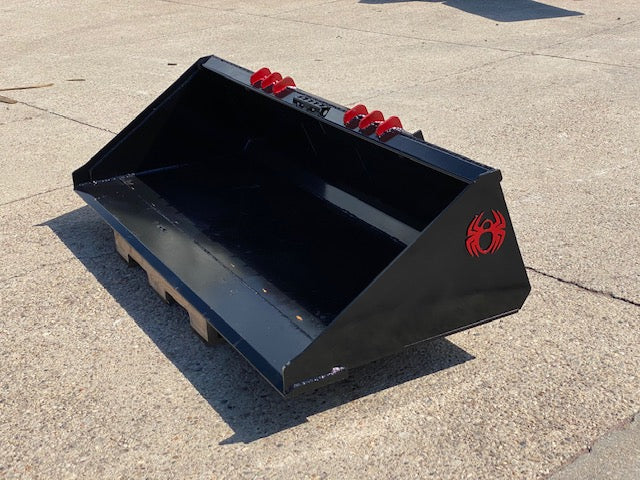

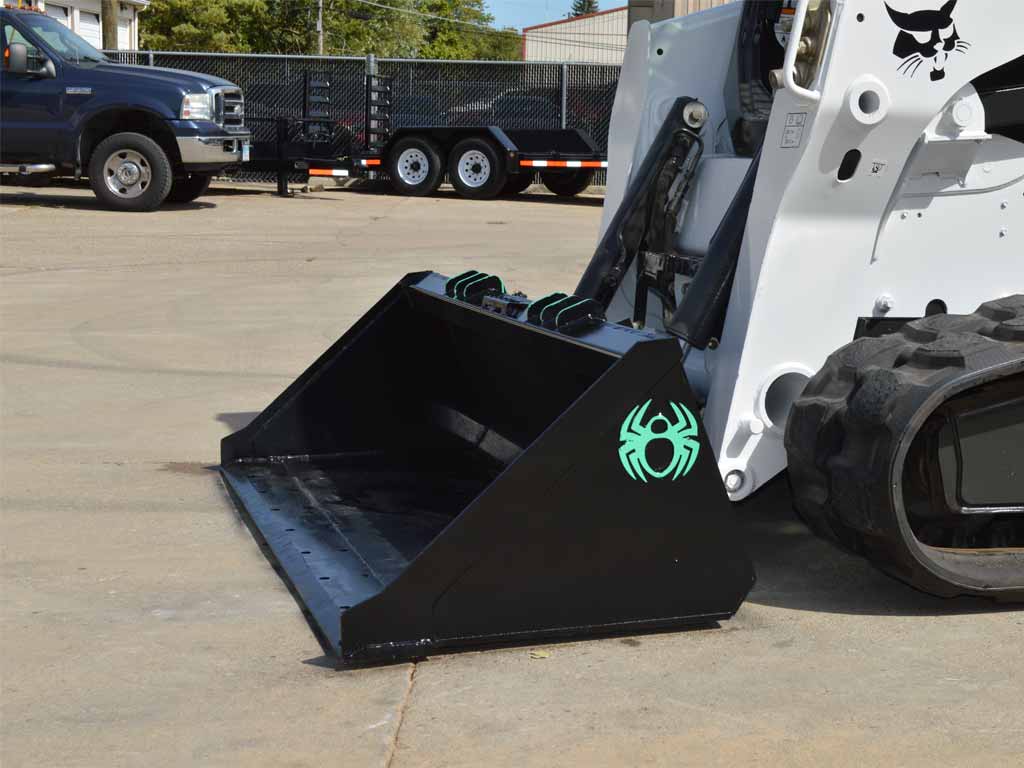

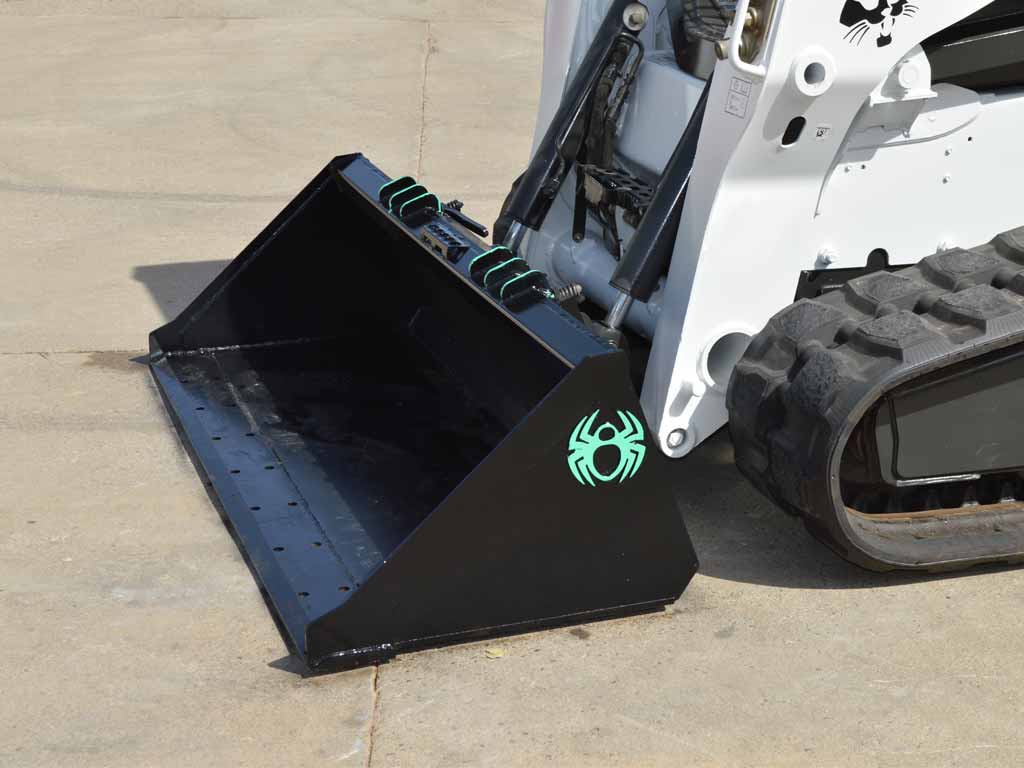

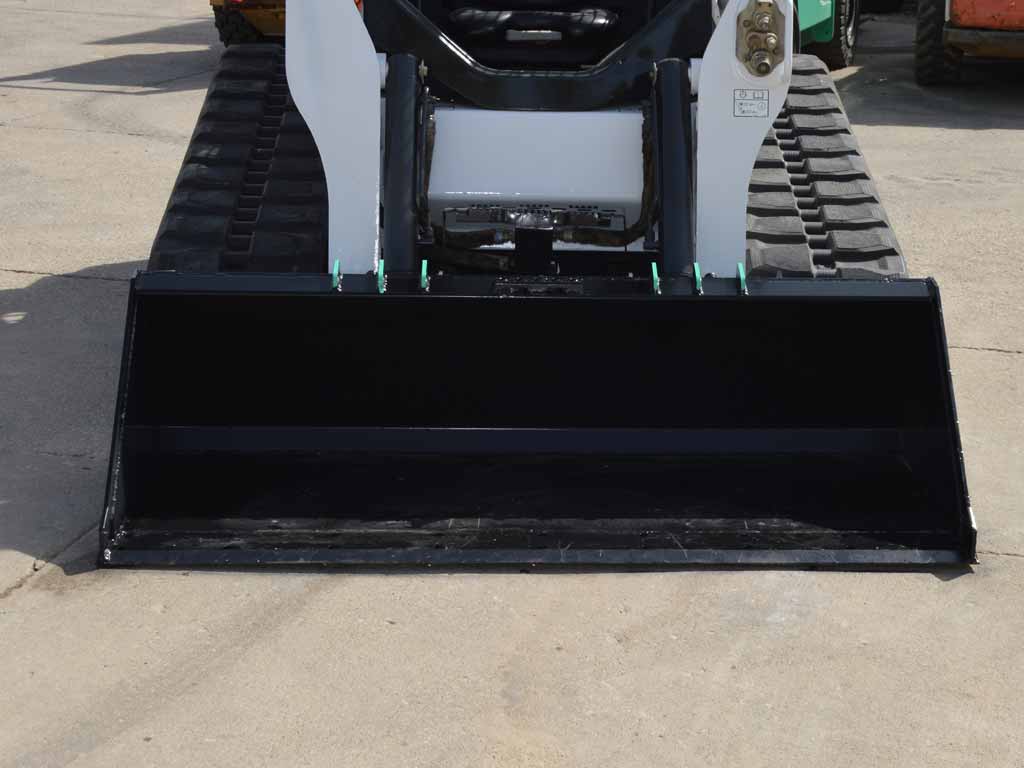

SPIDER  EXTREME DUTY LOW PROFILE BUCKETS

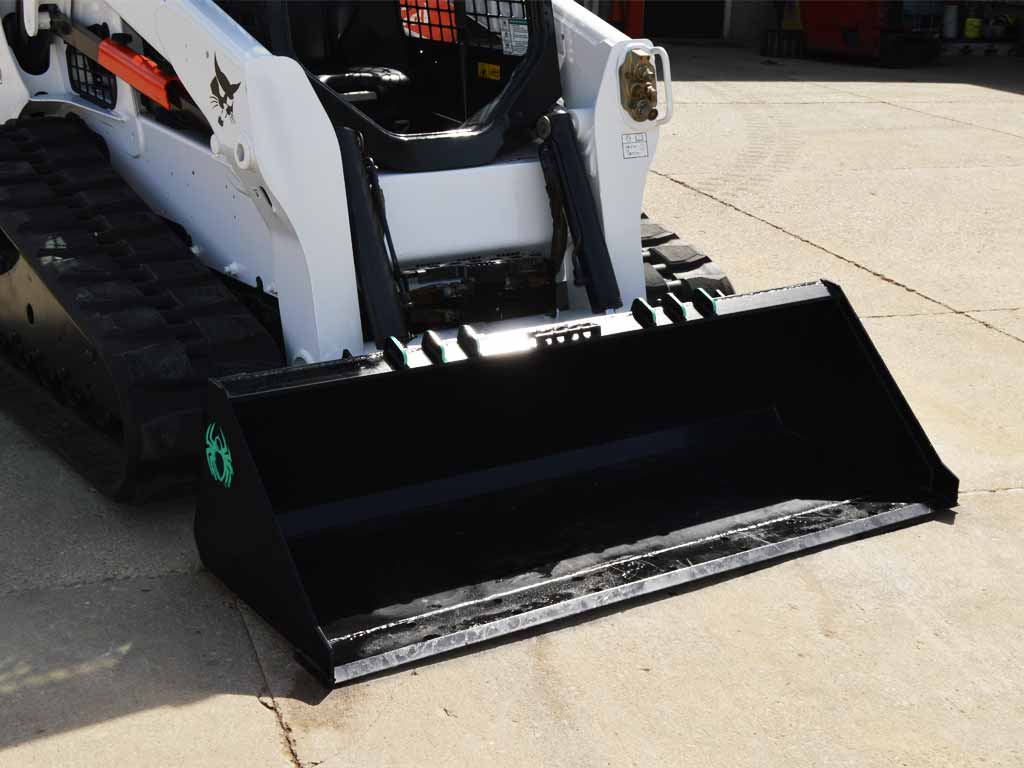

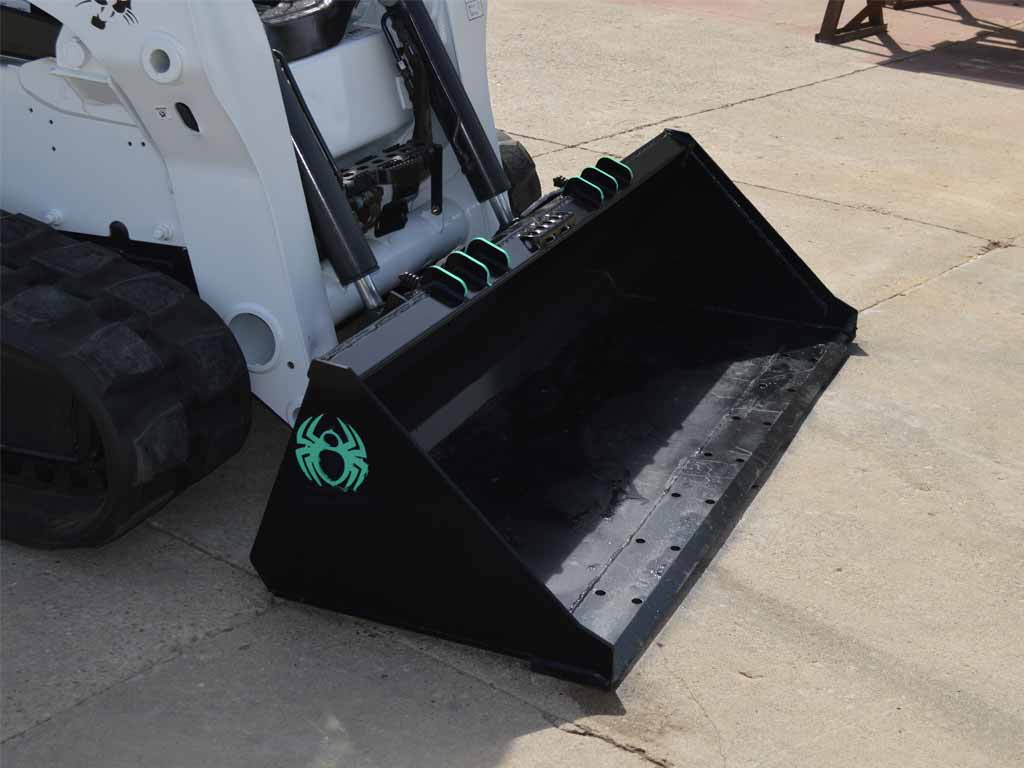

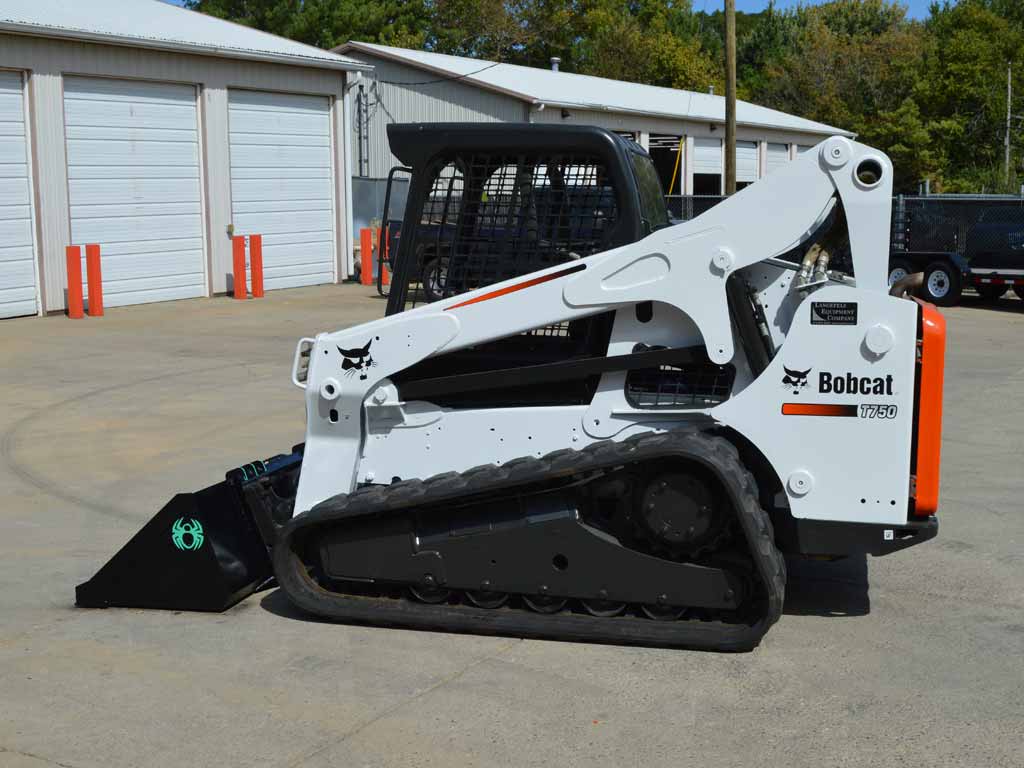

This rugged bucket has been designed and build for the demands today's modern larger skid steer loaders, compact track loaders and wheel loaders. As time has passed the machines keep getting bigger and wider but the buckets have not changed. After researching the machines that are currently in the market place we decided the bucket widths needed to change. We also saw large increases in horsepower and weight of the machines. These newer machine designs need stronger buckets, so we added more steel and gusset support. The low profile design provides excellent visibility to the cutting edge. Choose this bucket for your larger skid steer loader, compact track loader or wheel loader with universal (Bobcat) coupler.

    Why Spider extreme duty low profile buckets....

    • New widths  match up with the new machines in the market place.

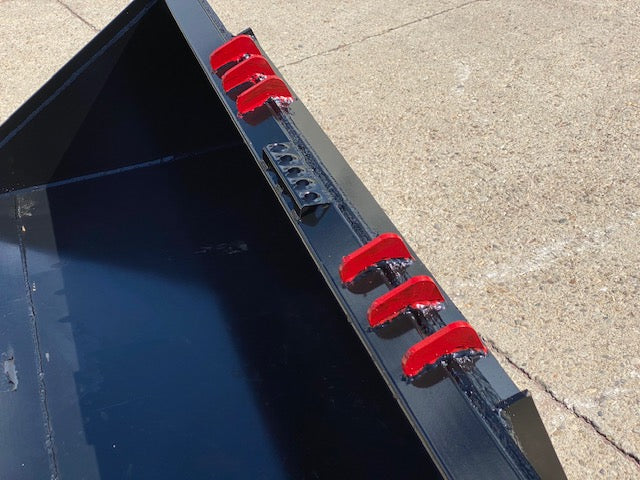

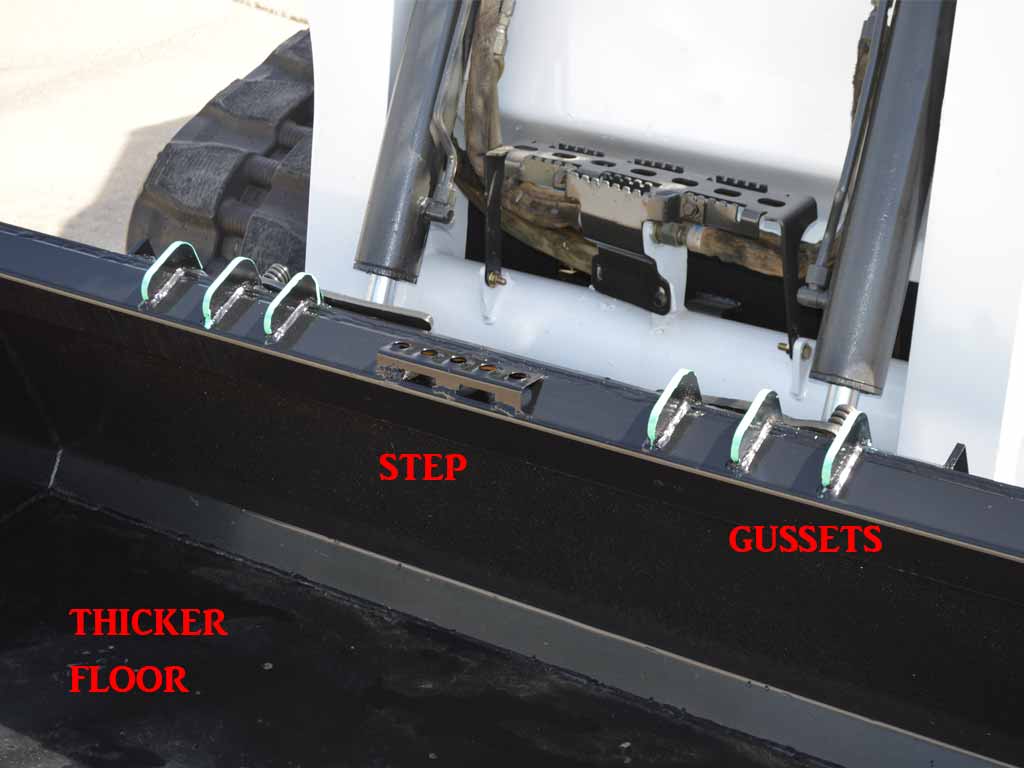

    • Extreme duty design increases durability and longevity of the bucket for skid steer loaders, compact track loaders and wheel loaders. Double plated quick-tach, support gussets and 3x3 tubing all beef up this bucket to handle the demand of the larger more powerful machines.

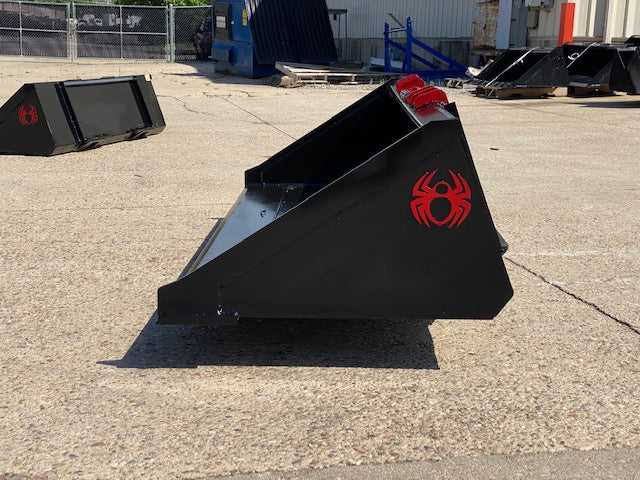

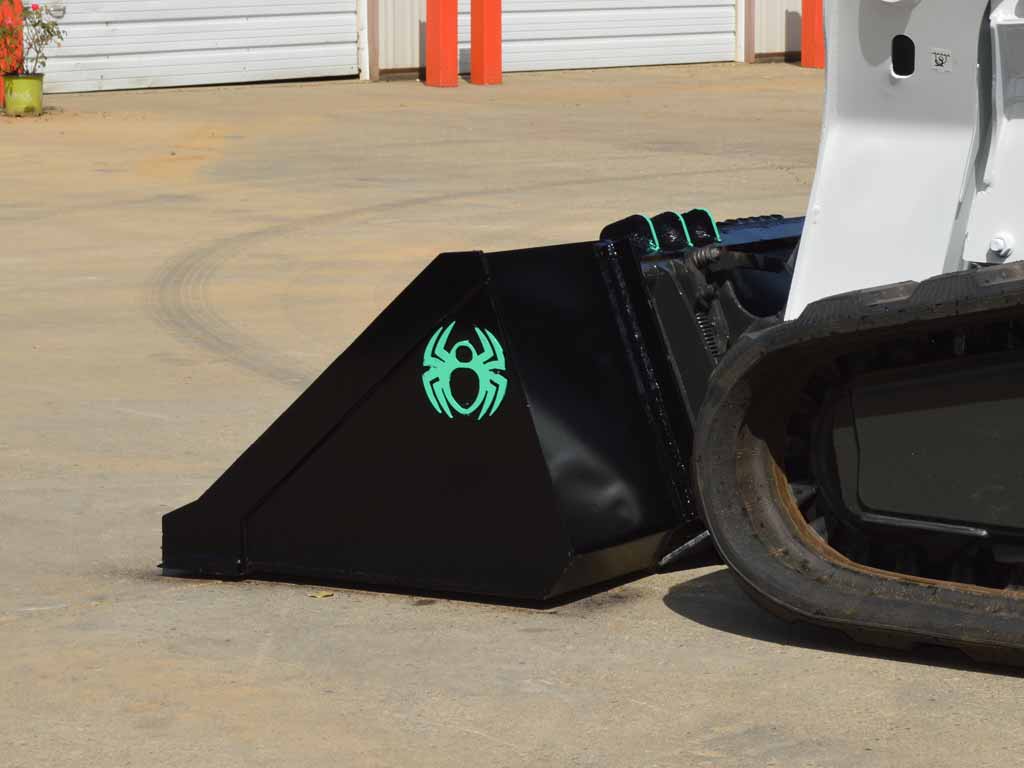

    • Low profile provides excellent visibility to the cutting edge

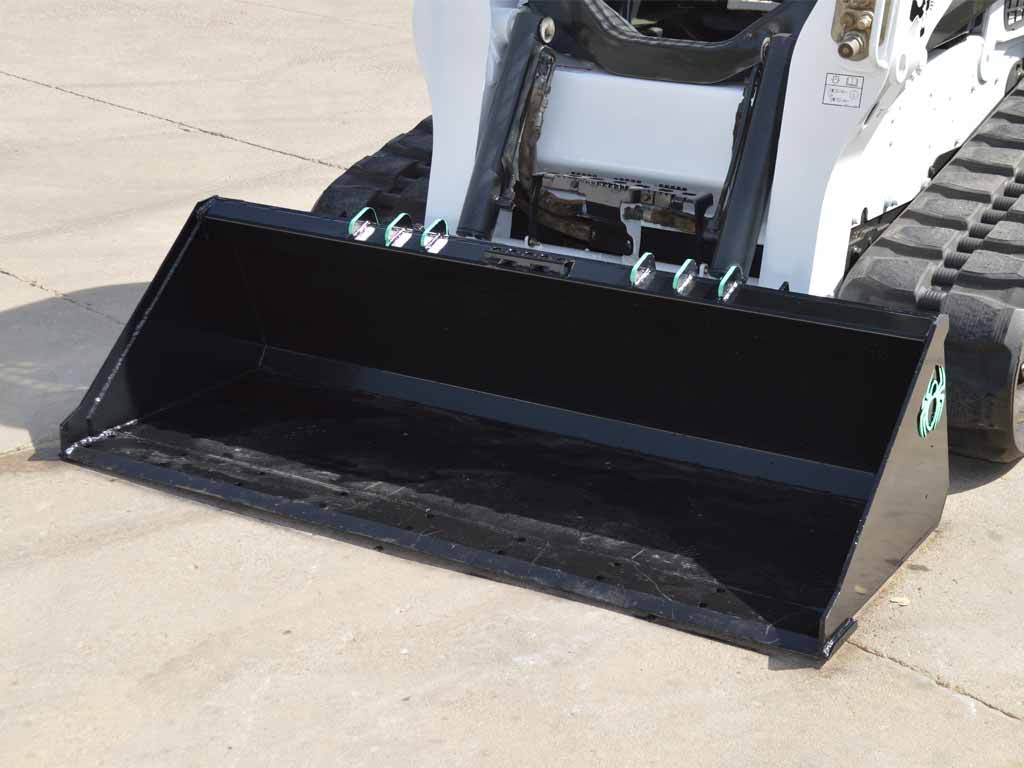

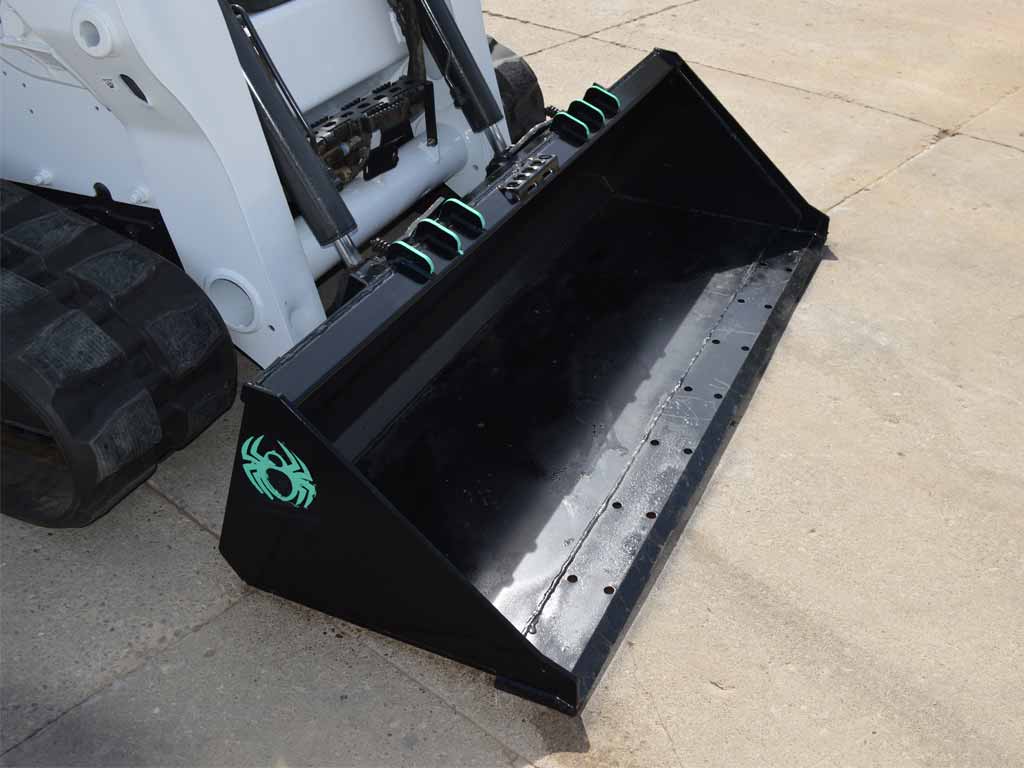

    • Double hole punched cutting edge  accepts bolt on shanks & teeth or bolt on reversible edge (some buckets)



    MODEL EX74 EX80 EX84
    WEIGHT 654 695 747
    LENGTH 28.8" 28.8" 28.8"
    WIDTH 74" 80" 84"
    HEIGHT 22.3" 22.3" 22.3"
    CAPACITY
    2 HOLE EDGE YES YES YES
    # OF TEETH 8 8 9
    • TEETH AND SHANK KIT INCLUDES - 23 SERIES TEETH, 2 HOLE BOLT ON SHANK, FLEX PIN ADAPTERS, TWO BOLTS AND TWO NUTS PER SHANK

    BOCE = BOLT ON CUTTING EDGE

      Item # 6718007, CENTER EDGE, 74" BUCKET

      • Bobcat style bolt on center cutting edge.  This is a double bevel reversible bucket cutting edge that is .625” thick, 8” wide and 74” in length.  It takes 8 of a 5/8” X 2 ¾” (625X275) plow bolt and 8 of a 5/8” (625 HEX NUT) hex nut.  The bolt hold spacing is 9.94” from center to center of the bolt holes, and 2.3” when measured from the edge of the bucket cutting edge to the center of the first hole.

      Item # 6718008, CENTER EDGE, 80" BUCKET

      • Bobcat style bolt on center cutting edge.  This is a double bevel reversible bucket cutting edge that is .625” thick, 8” wide and 80.14” in length.  It takes 8 of a 5/8” X 2 ¾” (625X275) plow bolt and 8 of a 5/8” (625 HEX NUT) hex nut.  The bolt hold spacing is 10.8” from center to center of the bolt holes, and 2.22” when measured from the edge of the bucket cutting edge to the center of the first hole.
      • USUALLY SHIPS IN (3) DAYS OR LESS
      • IF BACK ORDERED IT CAN TAKE UP TO (4) WEEKS

      These are the best buckets for the money...HANDS DOWN!
