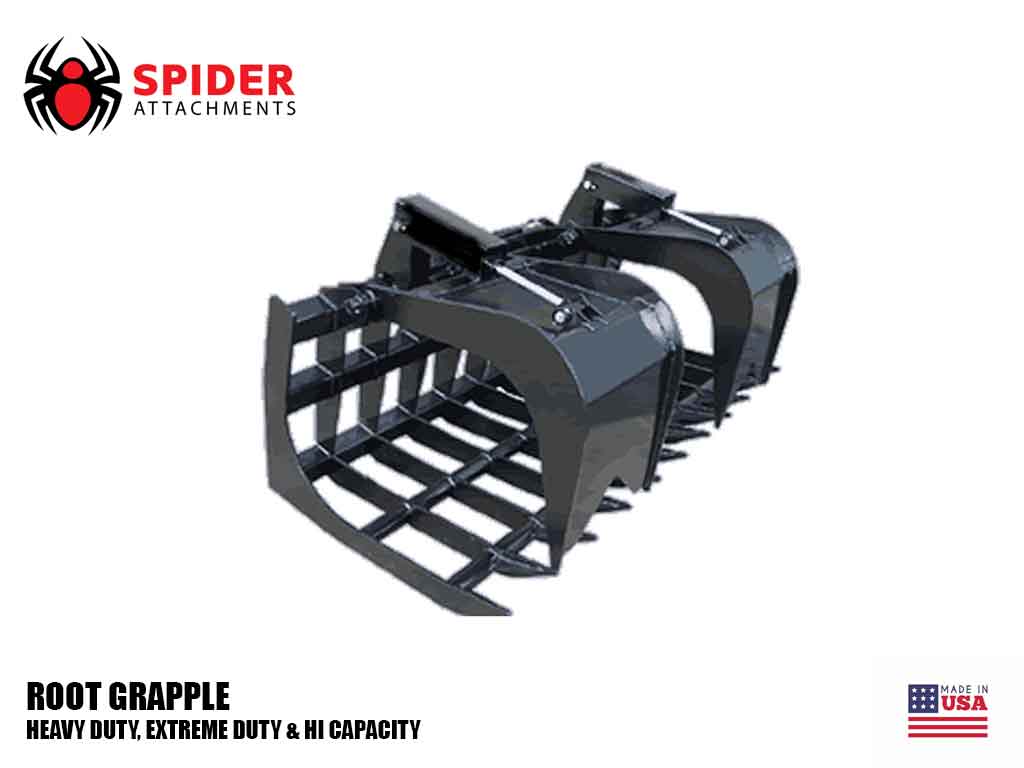

SPIDER Root Grapples

Root grapples are great for land clearing and cleaning up brush and logs. The tine spacing is wider than a rock grapple so more material can fall through to the ground. The tine tips are also turned up at the ends.

Why SPIDER root grapples.....

• Options - multiple size option, pick the grapple that best fits your machine and job needs.
• Reliability - backed by one year limited warranty
• Ready to go to work - root grapples are equipped with hoses and fittings and ready for the job-site.

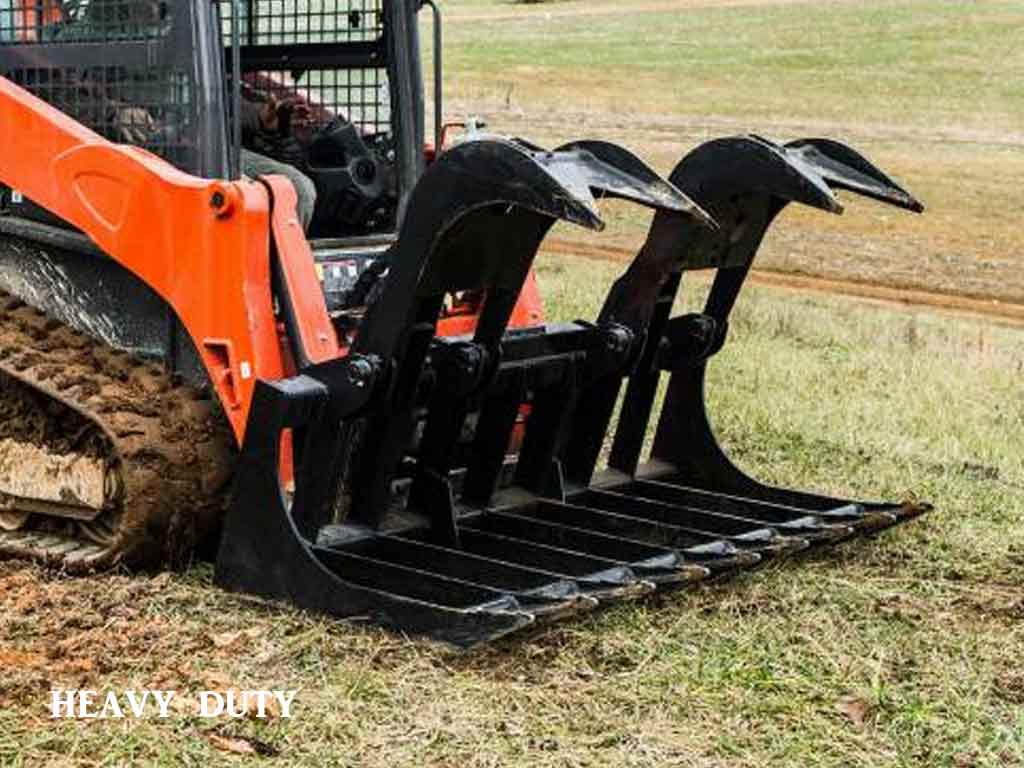

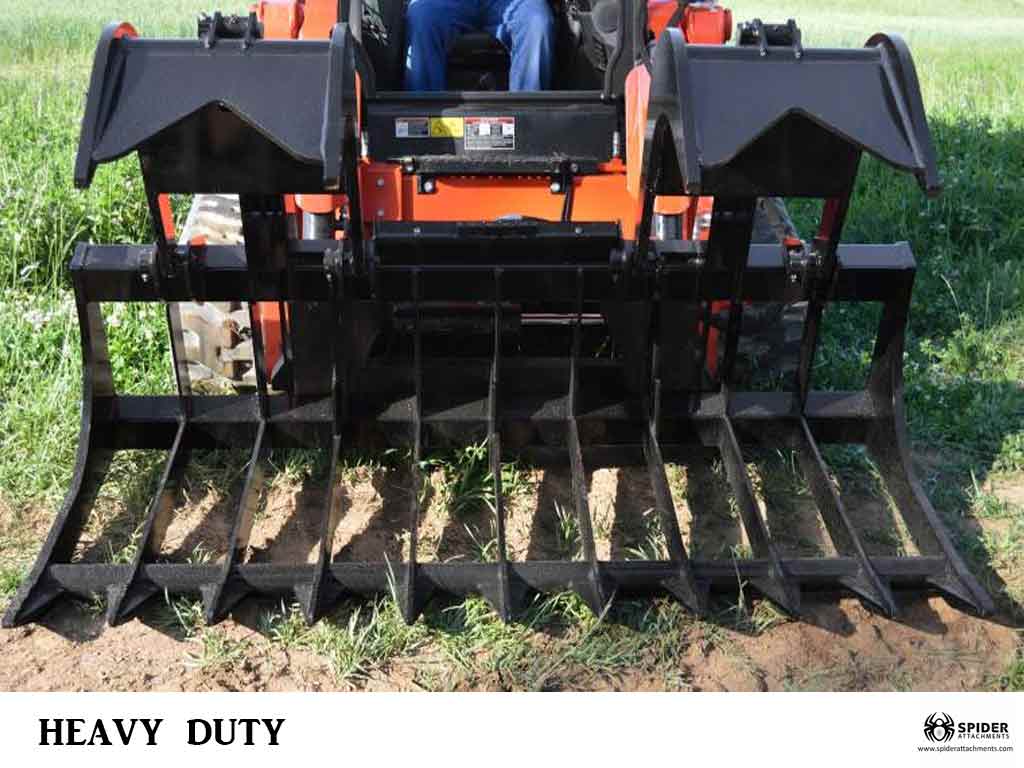

HEAVY DUTY

• Allows dirt to fall through
• Independent grapple tines, for grappling uneven loads
• 2″ X 10″ covered cylinders with 1¹⁄₄” pins
• Comes equipped with Parker brand hoses, fittings, and couplers (Jobsite ready)
• ³⁄₈” thick steel tines
• Reinforced quick attach
• Fully protected hoses
• Fully greasable hinge points
• Greasable pins on top tines
• Opening width: 34¹⁄₄“
• Able to slide along top of the ground without digging in (avoiding underground damage)
• Lighter design for smaller machines, 50 horse power and less
• 8¹⁄₂” to 9” spacing depending on width
• Available in 60″, 66″, 72″ and custom sizes are also available
• Treaded step

EXTREME DUTY

• Allows dirt to fall through
• Independent grapple tines
• 2″ X 10″ cylinders
• 9,500 lbs of grappling force
• ¹⁄₂” thick steel tines
• Reinforced quick attach
• Fully protected hoses
• Covered hydraulic cylinders
• Fully greasable hinge points
• Over-sized, greasable 1¹⁄₄“pins
• Opening width: 34¹⁄₂“
• Able to slide along top of the ground without digging in (avoiding underground damage)
• Comes equipped with Parker brand hoses, fittings, and couplers (Jobsite ready)
• 8¹⁄₂” to 9″ tine spacing and custom spacing also available
• Up to 75 horse power

SEVERE DUTY

• Allows dirt to fall through
• 1″ thick independent grapple tines
• 2″ X 10″ cylinders
• 9,500 lbs of grappling force
• ¹⁄₂” thick steel tines with 1″ thick outside tines
• Reinforced quick attach
• Fully protected hoses
• Covered hydraulic cylinders
• Fully greasable hinge points
• Over-sized, greasable 1¹⁄₄“pins
• Opening width: 33¹⁄₄“
• Able to slide along top of the ground without digging in (avoiding underground damage)
• Comes equipped with Parker brand hoses, fittings, and couplers (Jobsite ready)
• 8¹⁄₂” to 9″ tine spacing and custom spacing also available
• Up to 110 horse power
• We stock sizes: 72″, 78″, 84″, and custom sizes are also available

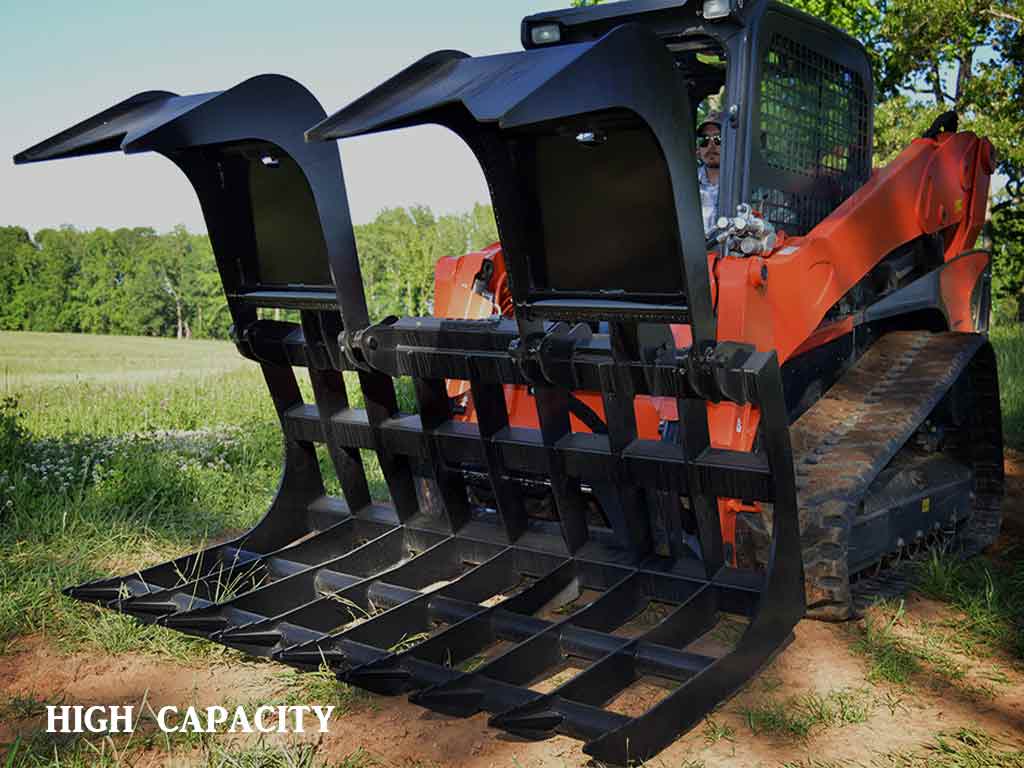

MONSTER - BIG MOUTH HIGH CAPACITY

• Allows dirt to fall through
• Independent grapple tines, for grappling uneven loads
• 2″ x 10″ cylinders
• 7,500 lbs of grappling force
• Comes equipped with Parker brand hoses, fittings, and couplers (Jobsite ready)
• ¹⁄₂” thick steel tines
• Reinforced quick attach
• Fully protected hoses
• Covered hydraulic cylinders
• Over-sized, greasable 1¹⁄₄” pins
• Opening width: 51″
• Able to slide along top of the ground without digging in (avoiding underground damage)
• 2 pieces of 3″ round steel tubing in the bottom and 3 pieces of 4″ X 4″ tube in back for added strength
• For 75 horse power and below
• 8¹⁄₂” to 9″ spacing depending on width
• We stock sizes: , 72″, 78″, 84″, 96″, and custom sizes are also available
