P300SG6436

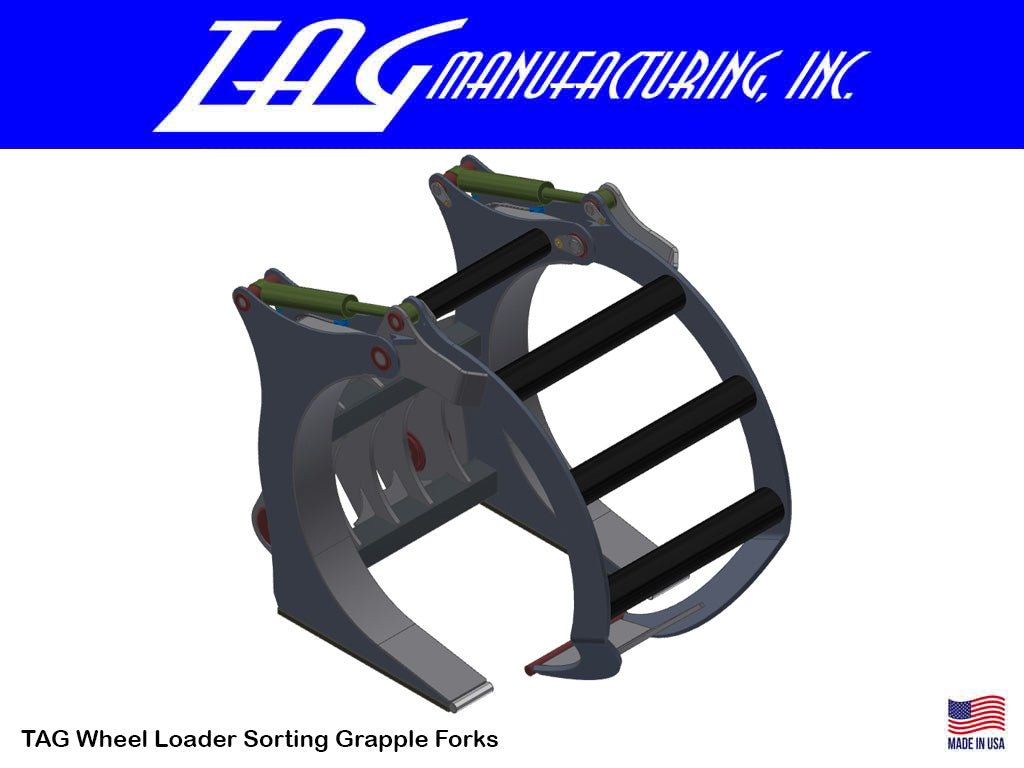

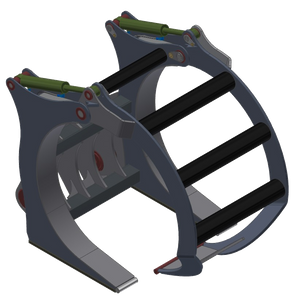

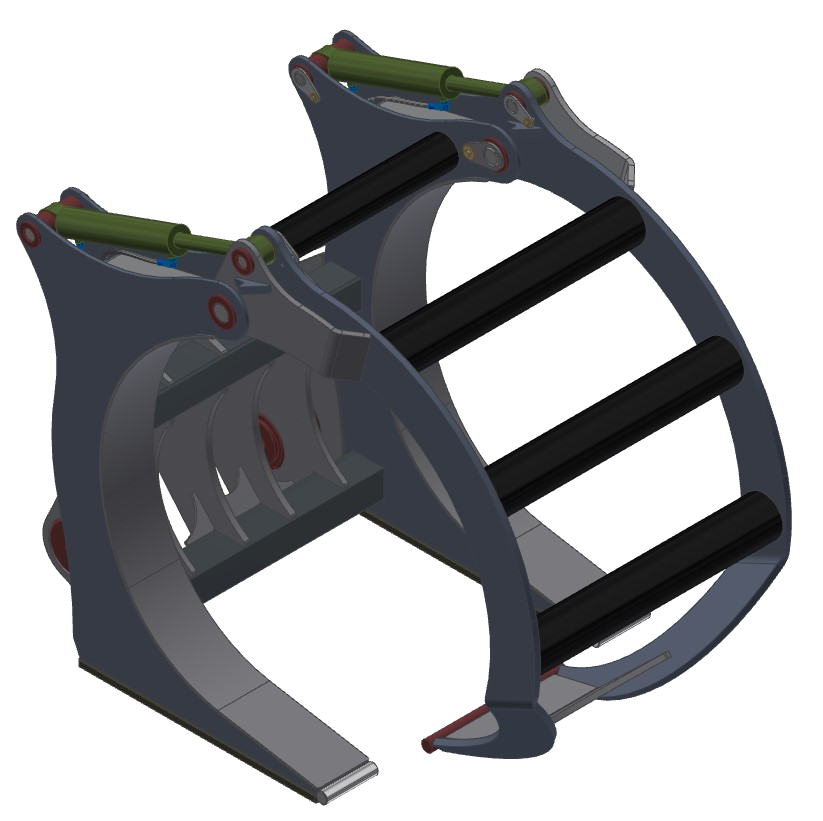

TAG Sorting Grapple Forks for Wheel Loaders
$30,330.00 - $62,425.00
Wheel Loader Sorting Grapple Forks
TAG Sorting Grapple Offers A Robust Boxed Tine Integrated Carriage With A Curved Paddle Style Clamp Offer Max Loading Capacities Per Class Of Wheel Loader.
- Boxed Tines Fabricated From High Strength Steel
- Single Piece High Strength Steel Clamp Plates & Skins
- Adjustable Cross-Over Relief Valve To Protect Cylinders
- Oversized Heat-Treated Hinge & Cylinder Pins
- Standard Weld On Bottom Wear Strips For Additional Tine Wear Protection
- Carriages: 64" - 84"
- Tines: 36" - 60"
- Required 3Rd Function Hydraulics
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the "FITS" tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
| Size | SKU # | Width | Tine Length | HT | SQF AREA | Min-Max Clamp Opening | Weight |
| 300 |
P300SG6436 QC300SG6436 |
64" | 36" | 64" | 15 | 39"-84" | 3600 LBS |
| 500 |
P500SG6448 QC500SG6448 |
64" | 48" | 80" | 26 | 47"-118" | 4165 LBS |
| 600 |
P600SG7654 QC600SG7654 |
76" | 54" | 84" | 34 | 52"-128" | 6350 LBS |
| 700 |
P700SG8058 QC700SG8058 |
78" | 58" | 88" | 40 | 55"-136" | 7100 LBS |
| 800 |
P800SG8460 QC800SG8460 |
84" | 60" | 94" |
46 | 60"-148" |
8050 LBS |
