TORO DINGO

TORO DINGO TX427 #315000199

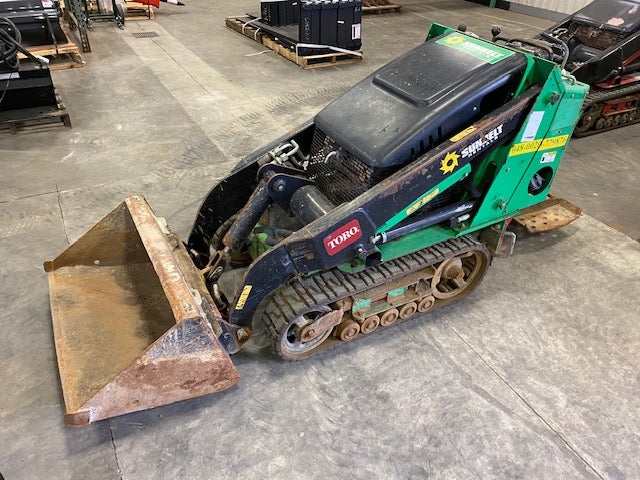

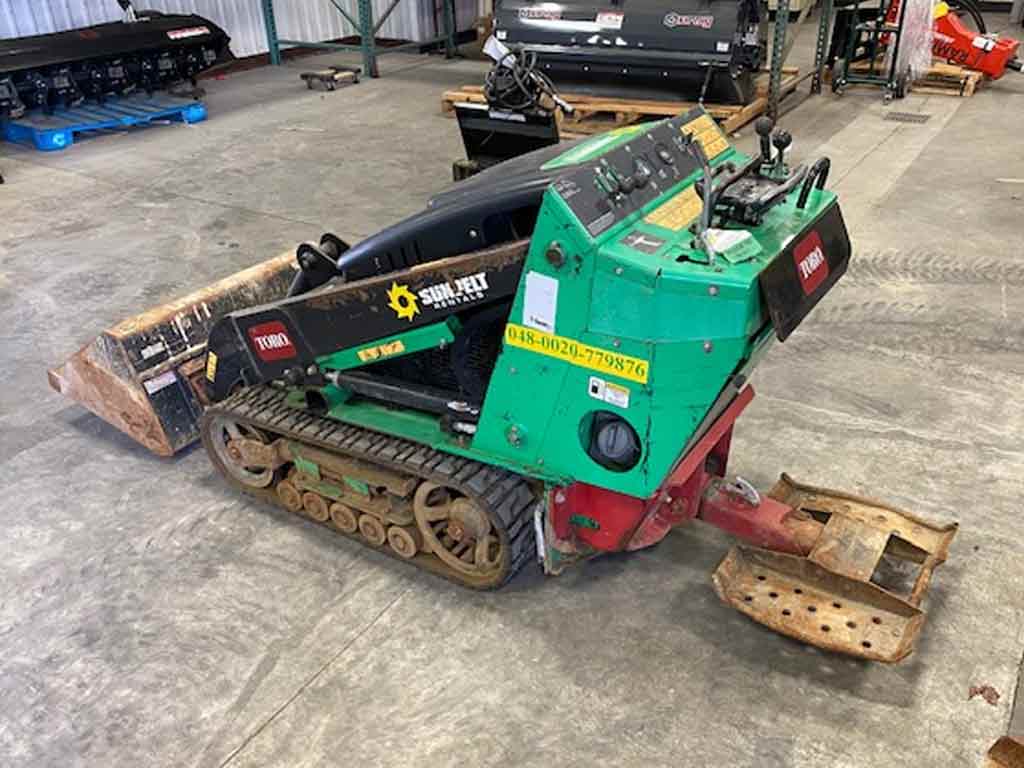

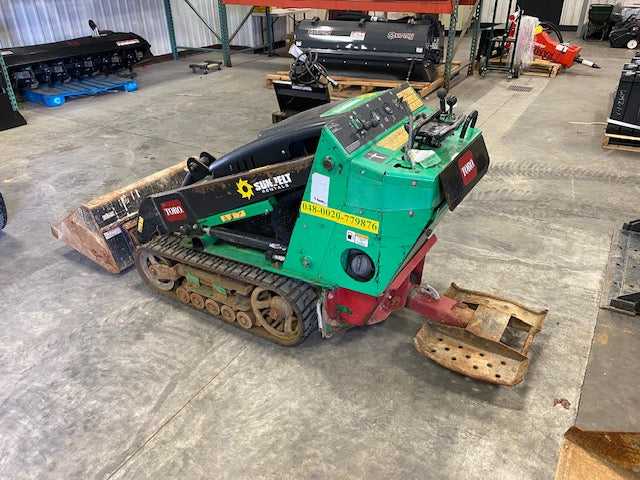

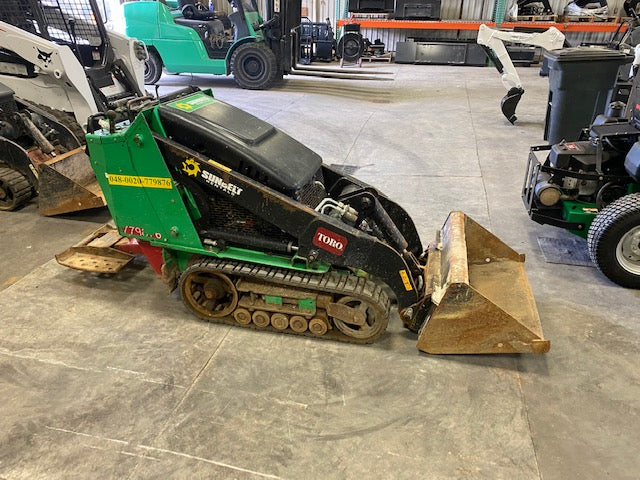

USED 2015 TORO DINGO TX427

  • NARROW TRACK
  • SMOOTH BUCKET
  • REAR PLATFORM
  • MODEL 22321G
  • SN# 315000199
  • 710 HRS

Toro Dingo Mini Loader

Toro Dingo compact utility loaders possess the versatility to handle countless jobs on every site: dig, haul, plant and build. The TX 427 design provides a low ground pressure which is easy on turf. Designed with workers in mind, all of its power is harnessed in only 3 easy to use controls, which make it simple for any worker to step up and be productive immediately! The TX427 comes in narrow and wide configurations.

Simple Controls

You're up and running in a flash with three easy-to-use controls. 1) The joystick loader control lets you curl, dump or float the bucket while simultaneously raising or lowering the loader arms - all with one hand. 2) With your other hand, you can grab the one-hand traction drive from any angle, for effortless control. 3) The third control, the auxiliary circuit control lever, which can be activated while operating the traction drive, powers the attachments instantly.

Exclusive TX Track Drive

Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.

4-Pump Hydraulic System

4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!

Compact Size

Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.

Air-Cooled Gasoline Engine

A 27 hp (20 kw) Kohler® engine provides the necessary power to drive any one of the multitude of Toro attachments available for the Dingo TX.

Reinforced Tracks

Durable Kevlar reinforced tracks offer extended life, unlike competitive units with metal inserts. Open design of tracks offers self cleaning, preventing the collection of sand, rock, mud, and debris that could jam tracks.

TRANSPORT / DIMENSIONS NARROW WIDE
 WEIGHT 1882 LB 1990 LB
LENGTH W/ BUCKET 92" 92"
LENGTH W/O BUCKET 70.7" 70.7"
WIDTH 33.7" 41"
HEIGHT 46.1" 46.1"
GROUND CLEARANCE 4.6" 4.6"
PERFORMANCE
OPERATING CAPACITY 535 LB 535 LB
TIP CAPACITY 1530 LB 1530 LB
SPEED FORWARD 0 - 4.5 MPH 0 - 4.5 MPH
SPEED REVERSE 0 - 2 MPH 0 - 2 MPH
HINGE PIN HEIGHT 65.8" 65.8"
TRACK 96"X5.9" 96"X9.5"
GROUND PRESSURE 5.0 PSI 3.5 PSI
ENGINE
HORSEPOWER 25 HP 25 HP
MAKE  KOHLER KOHLER
MODEL PRO CH740 PRO CH740
COOLING SYSTEM AIR AIR
HYDRAULICS
FLOW (AUX) 11.4 GPM 11.4 GPM
PRESSURE 3000 PSI 3000 PSI
RESERVOIR  10.5 GAL 10.5 GAL
WARRANTY
MACHINE 1 YEAR 1 YEAR
ENGINE 3 YEAR 3 YEAR

     Toro is the top selling mini loader. More attachments, low cost of ownership, and by far the best resale value. When looking for a mini loader the Toro Dingo TX427 is defiantly a unit to look at. The TX427 can come in narrow or wide track. All TX427’s have gas engines. A nice option to add is the Toro rear platform so you can ride rather than walk.
