Virnig

BSV48F

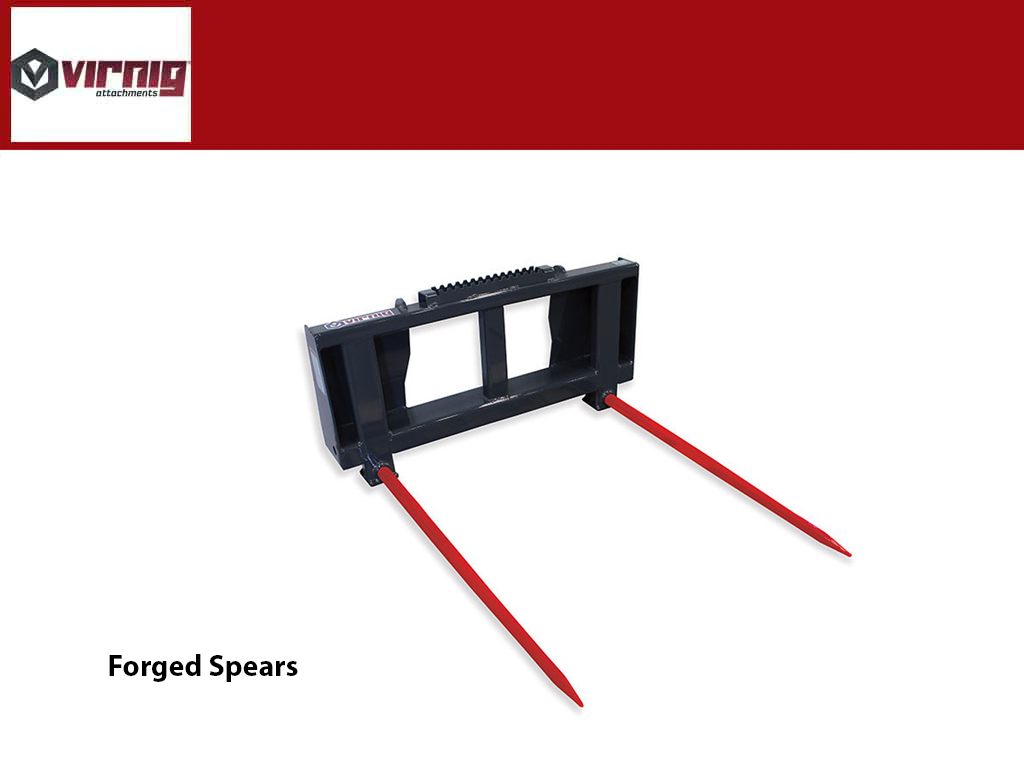

Virnig Hay Handling - Forged Spears (SSL) (CTL)

Model

Virnig offers five different Forged Spear Hay Handling models to accommodate round and large square hay bales.

  • Removable spears are forged and tapered to make piercing compacted bales easier.
  • Stabilizers made from 1045 Cold Finished Stress Relieved (CFSR) round stock.
  • Manufactured with a universal mount to fit most skid steer loaders

Model Options:

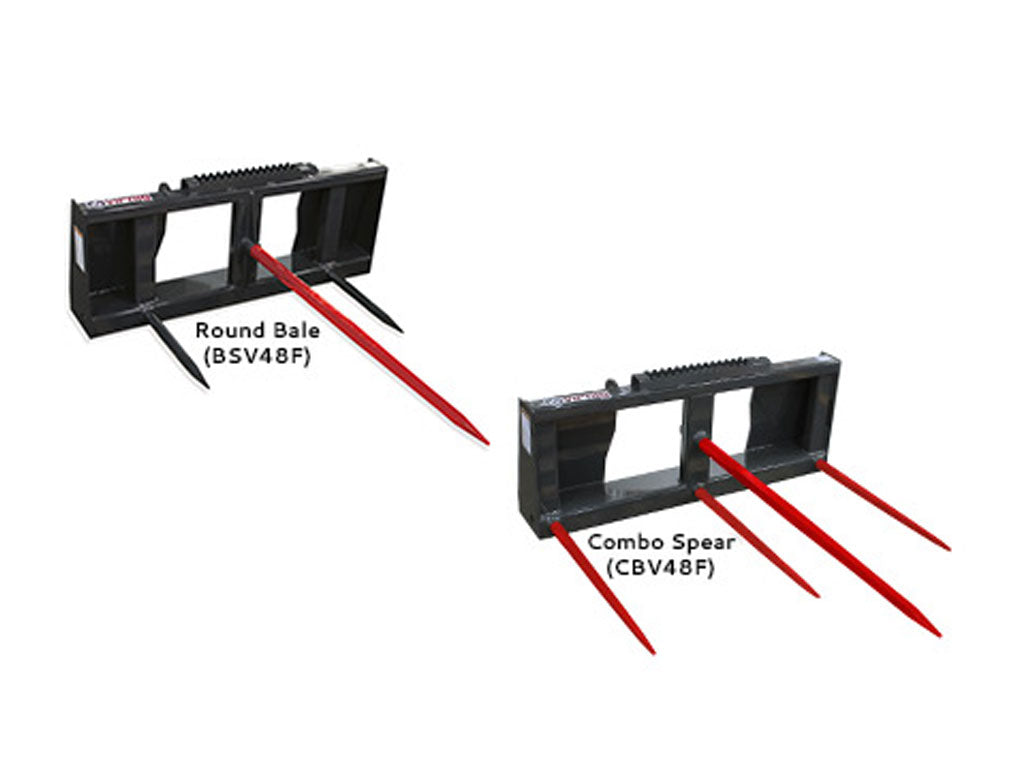

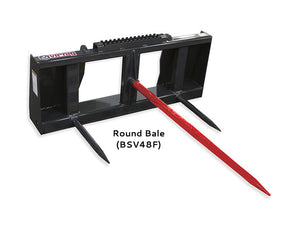

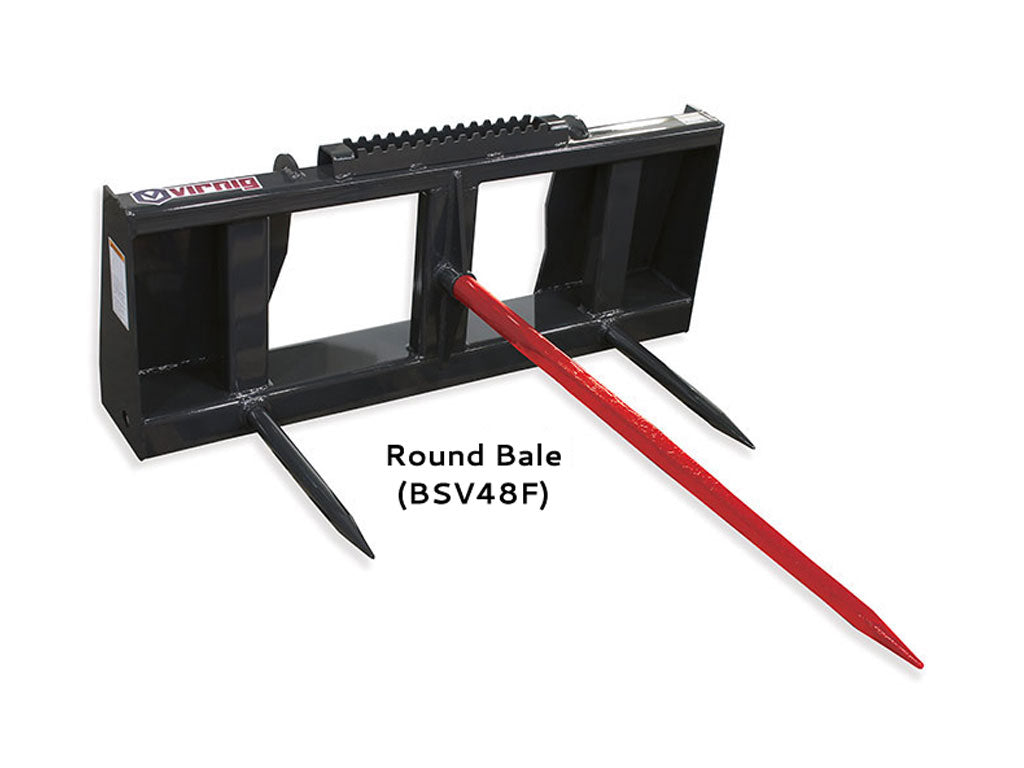

  • Forged Round Bale Spear - BSV48F
    • One 49” Conus II forged main spear
    • Two 1-1/2” x 18" machine pointed stabilizers
    • One bale maximum.

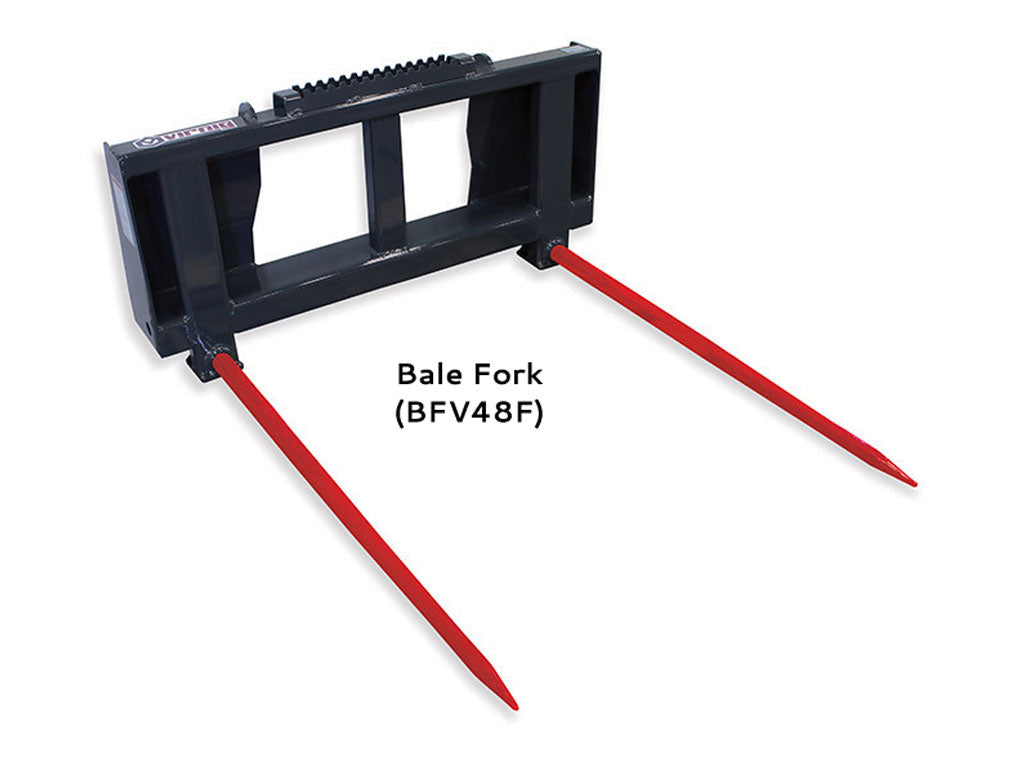

  • Forged Bale Fork - BFV48F
    • Two 49” Conus II forged spears
    • One bale maximum

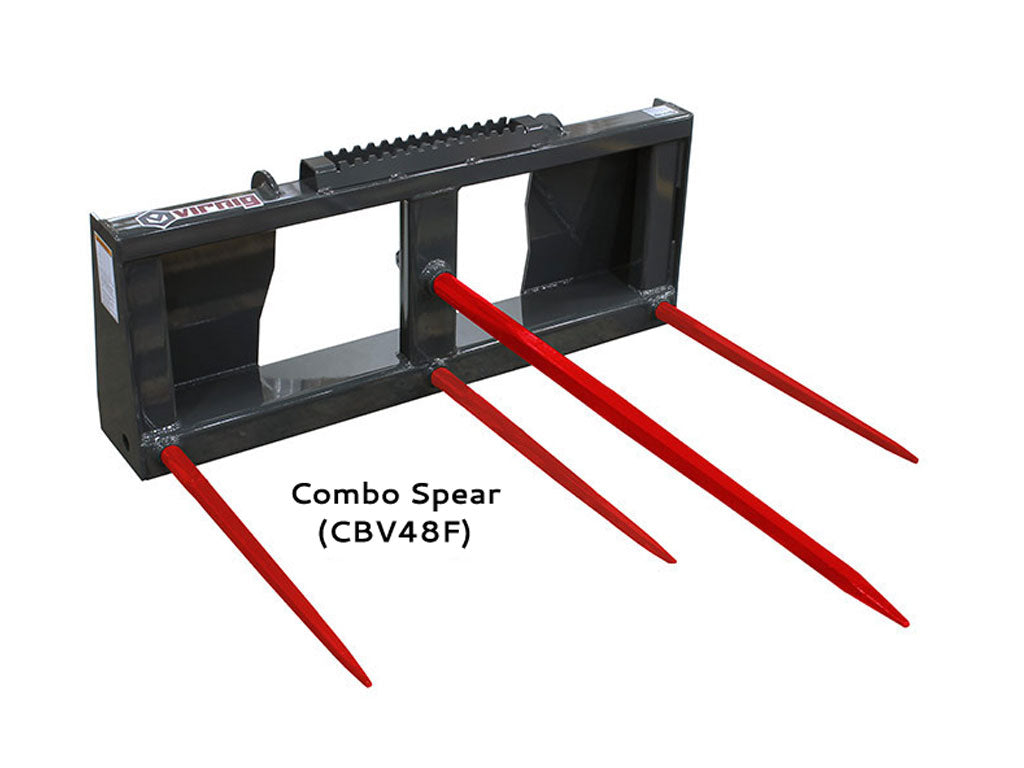

    • Forged Round/Square Bale Combo Spear  - CBV48F
      • One 49” Conus II forged main spear
      • Three 32″ Conus I forged stabilizers
      • One bale maximum

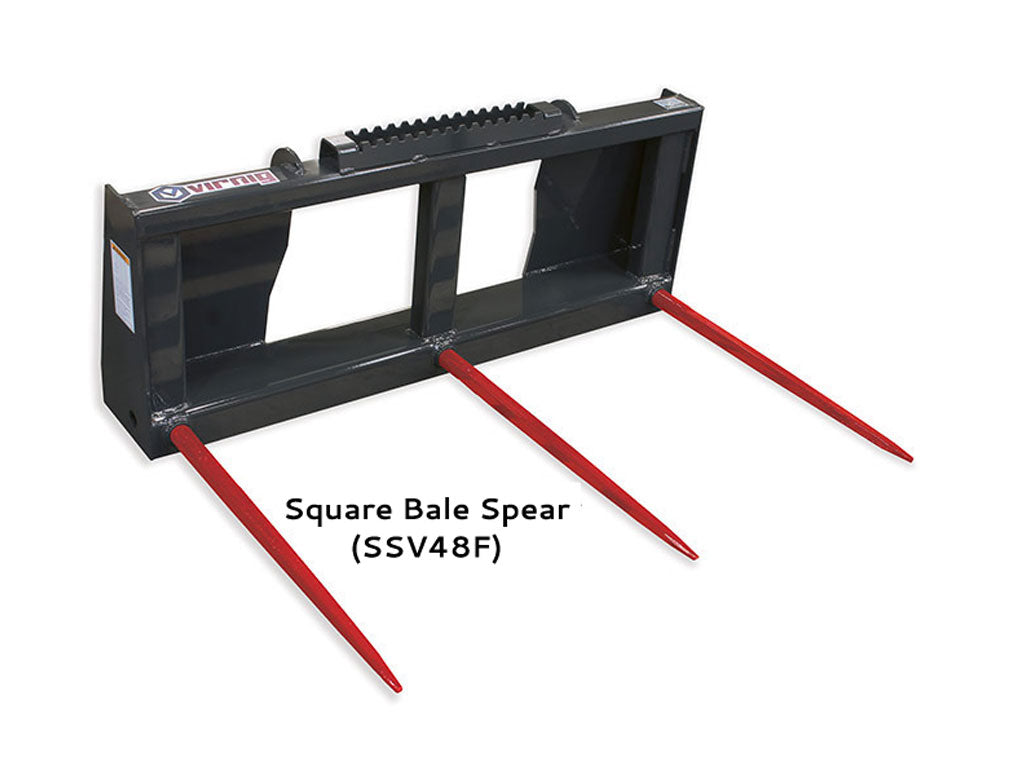

      •  Forged Square Bale Spear - SSV48F
        • Three 32” Conus I forged main spears
        • One bale maximum

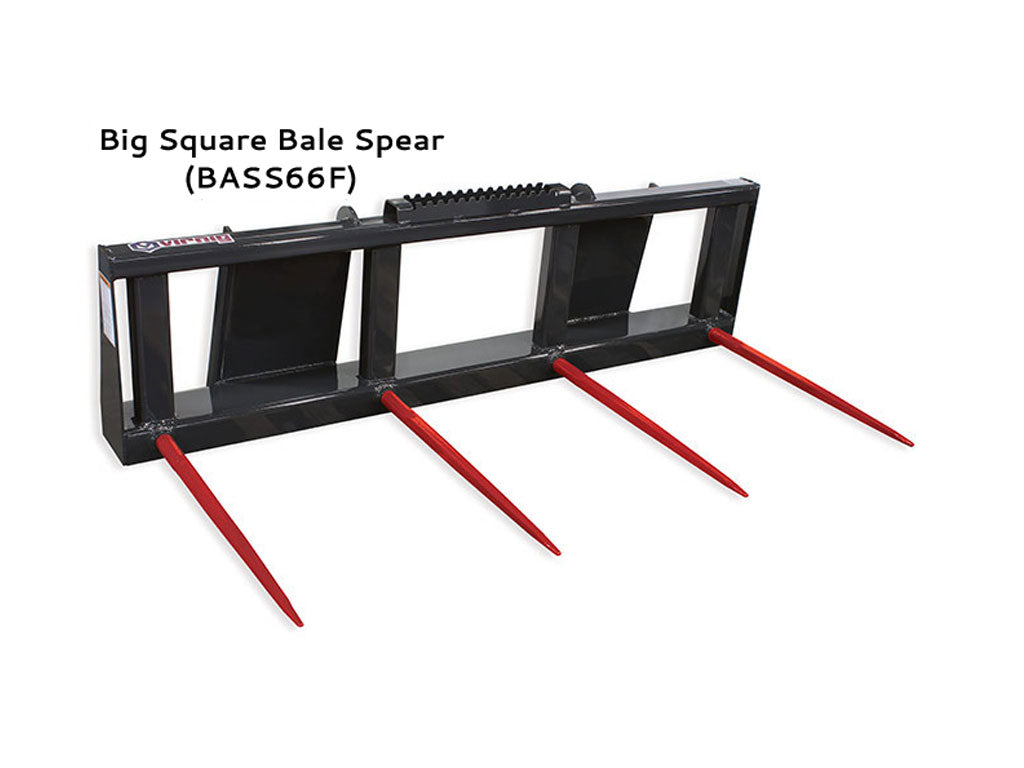

          •  Forged Big Square Bale Spear - BASS66F
            • Four 32” Conus I forged spears
            • One bale maximum



              • Capacity with bale against frame: 2000 lbs ROC
              Model BSV48F BFV48F CBV48F SSV48F BASS66F
              Name Forged Round Bale Spear Forged Bale Fork Forged Bale Combo Spear Forged Square Bale Spear Forged Big Square Bale Spear
              Frame Width (in) 45.5 45.5 45.5 45.5 66.5
              Number of Main Spears 1 2 1 3 4
              Main Spear Usable Length (in) 43.4 43.4 43.4 26.6 26.6
              Main Spear Thickness (in) 1.75 1.75 1.75 1.75 1.75
              Number of Stabilizer Spears 2 - 3 - -
              Stabilizer Spear Usable Length (in) 17.4 - 26.6 - -
              Stabilizer Spear Thickness (in) 1.5 - 1.5 -
              Weight (lbs) 210 235 235 205 260



              In stock items usually ship in 3-5 days

              Non stock items usually ship in 4-6 weeks
