Virnig

TRN36-25

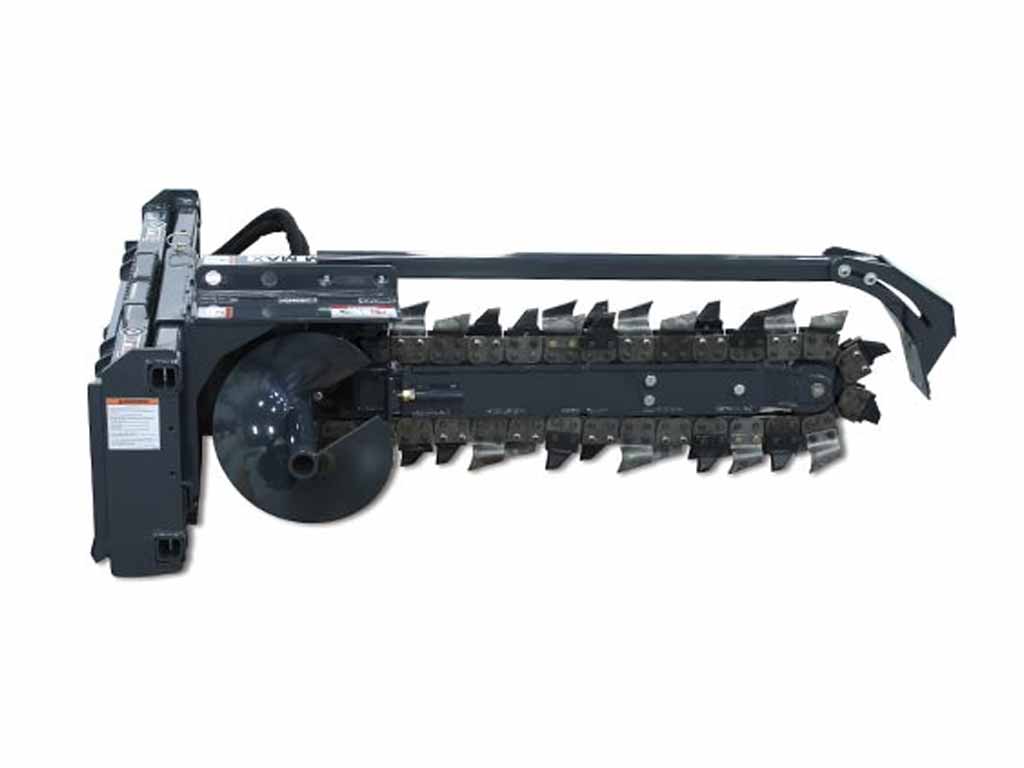

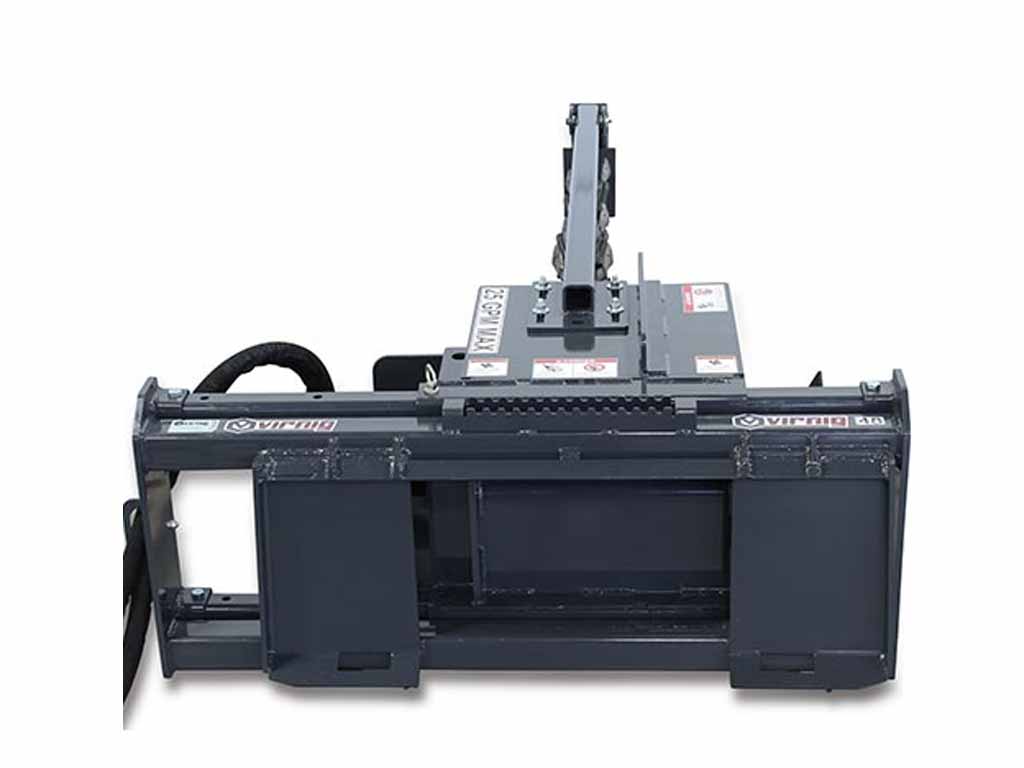

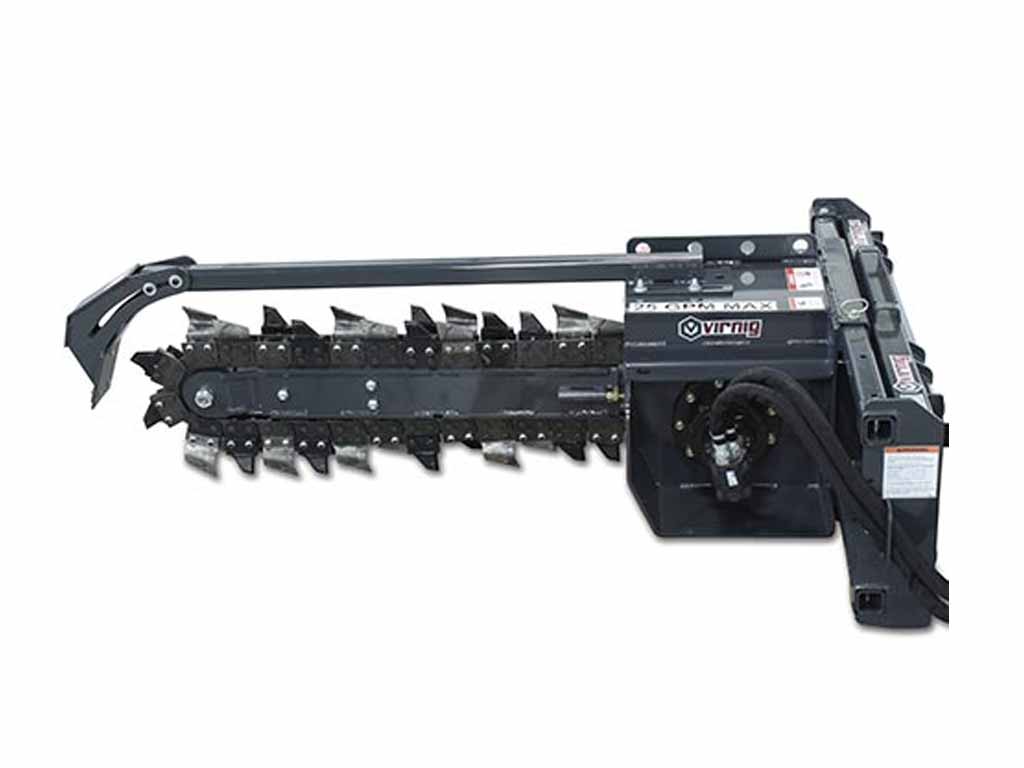

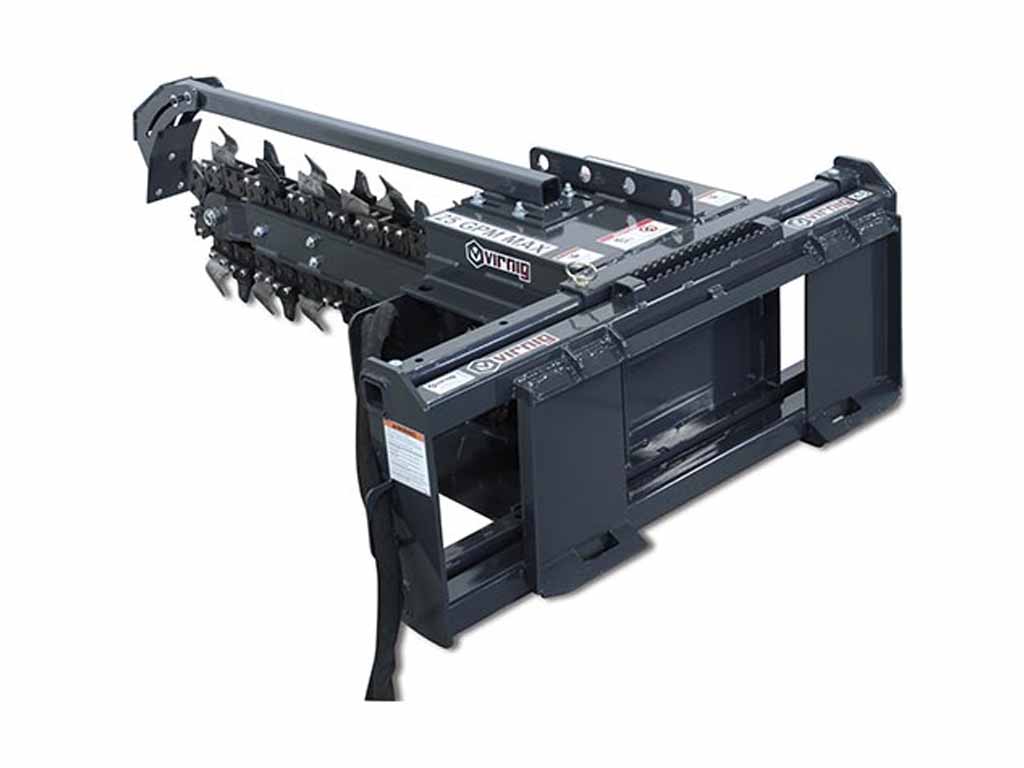

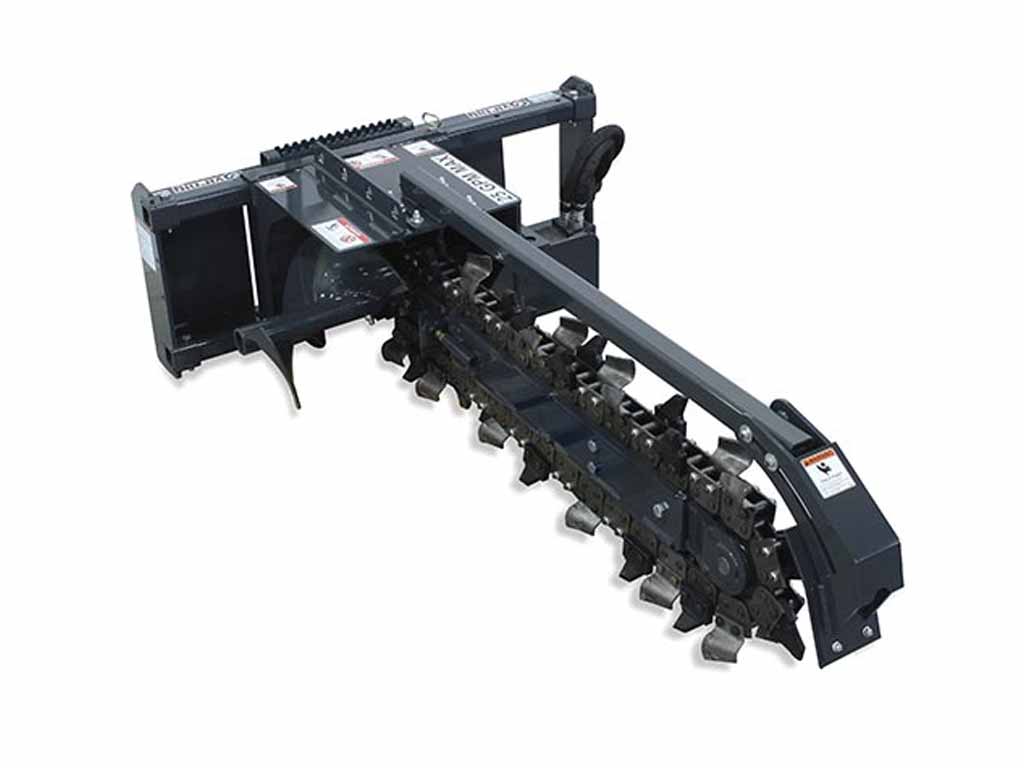

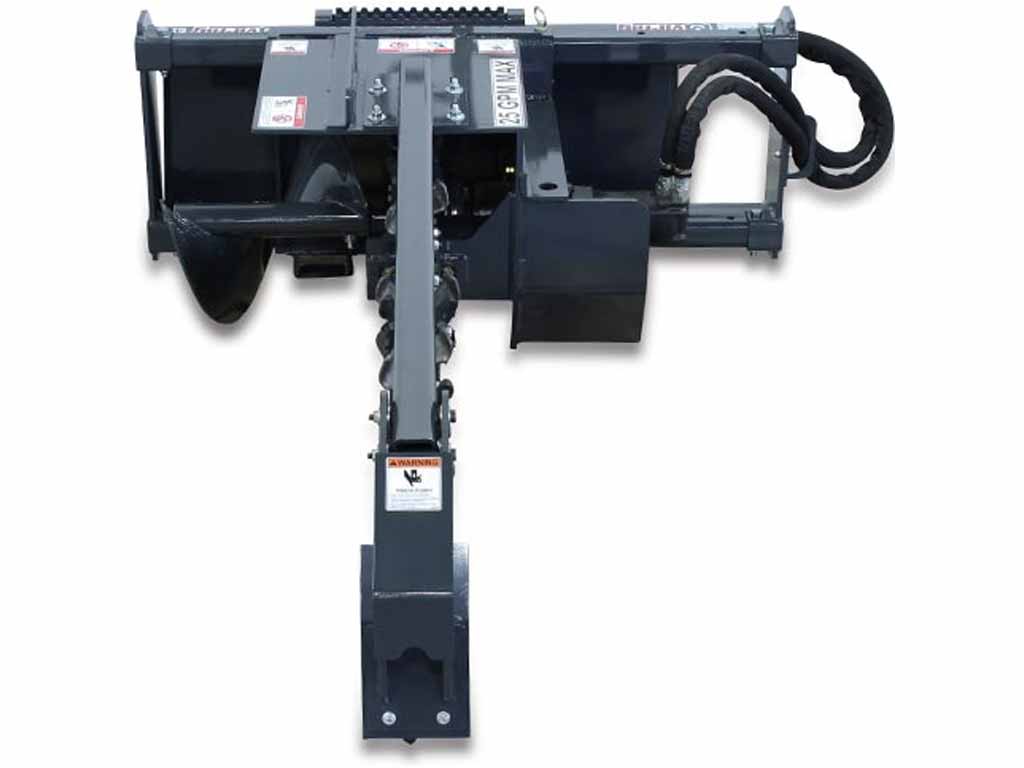

VIRNIG TRN TRENCHER (SSL)(CTL)

FLOW RANGE
BOOM
CHAIN

TRENCHER

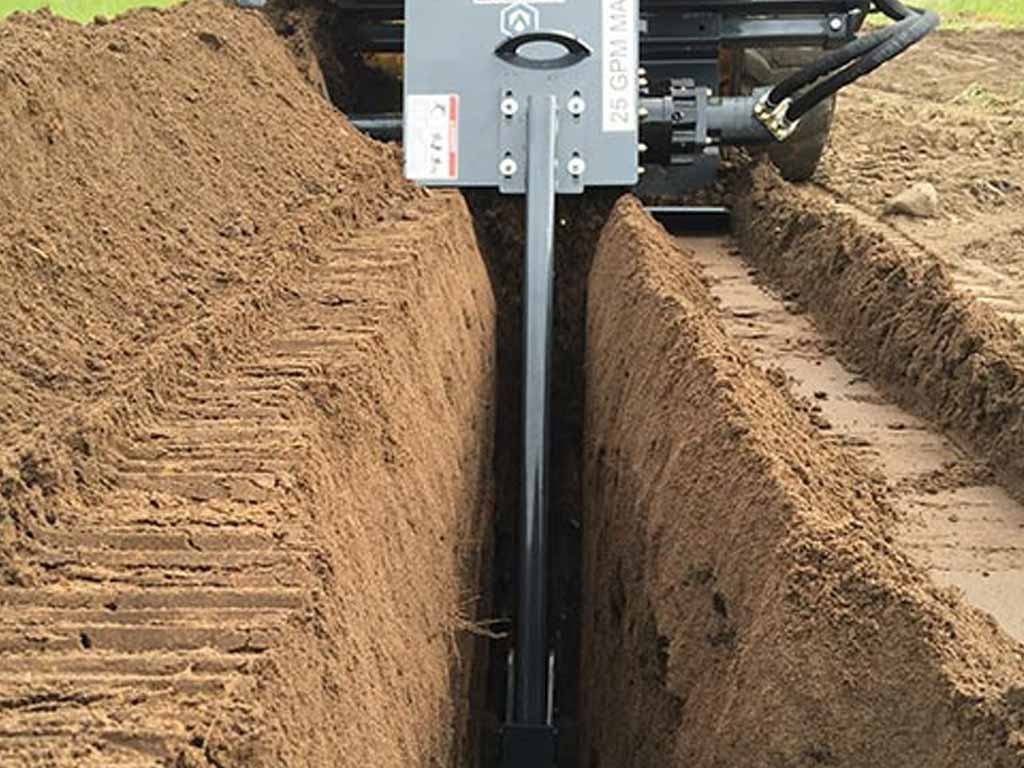

  • Designed to quickly and reliably dig trenches 36, 48, or 60 inches deep.
  • DIRECT DRIVE MOTOR with relief valve protection
  • manual side shift Allows operator to dig near structures and other objects.
  • direct drive motor USA made Eaton® motor ensures optimum performance and longevity.
  • standard crumber Designed to keep the trench bottom clean and smooth.
  • ADJUSTABLE AUGER Clears loose soil from the trenching area. Can be removed if not needed.
  • REVERSE CHAIN ROTATION To expel obstructions. Chain tension can also be adjusted quickly.
  • VARIOUS CHAIN CONFIGURATIONS  6”, 8”, 10” and 12” chain widths available proudly made in the USA

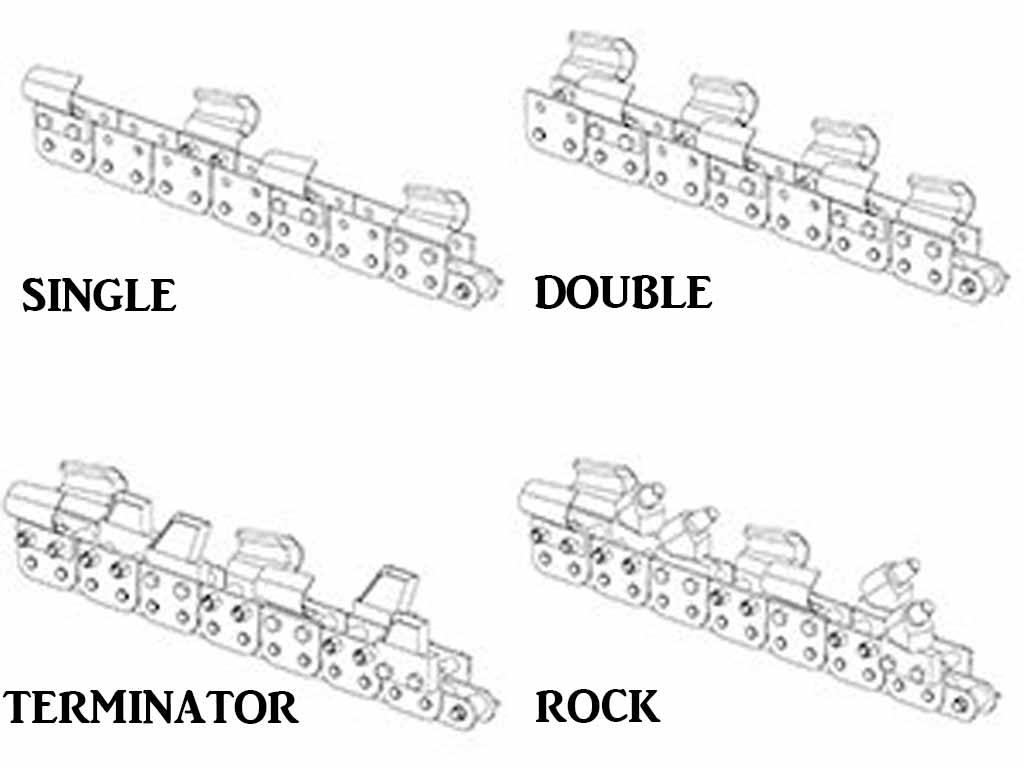

CHAINS

  • Single Standard – cup tooth every other station.
  • Double Standard – cup tooth every station.

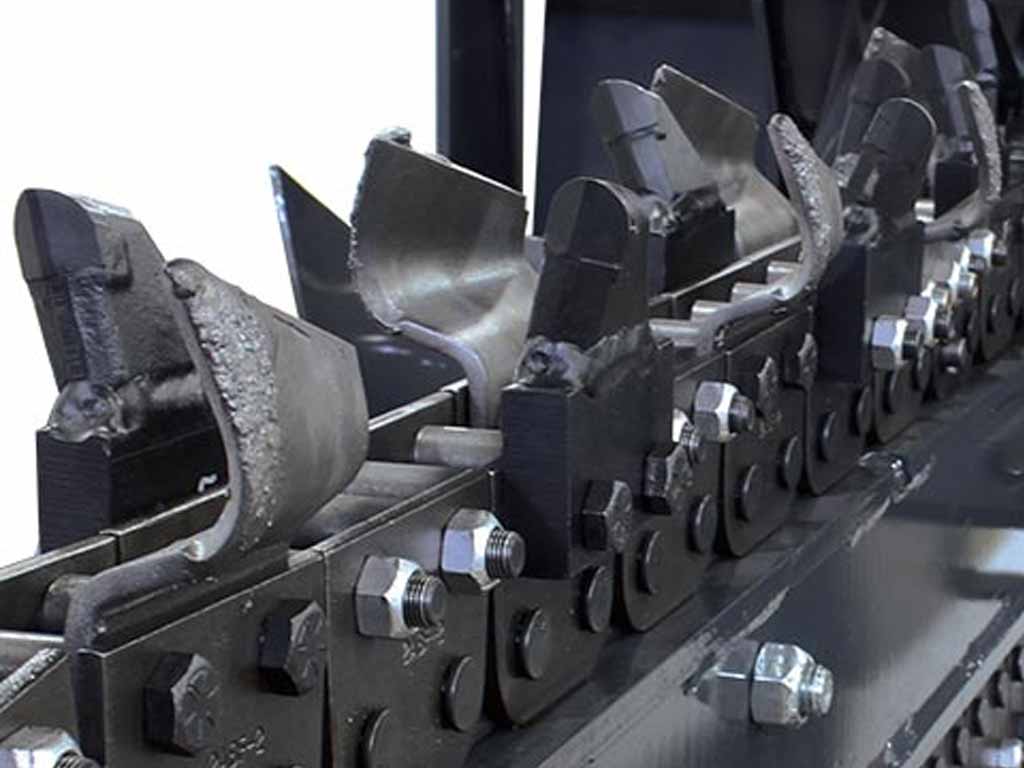

  • Terminator – 50% cup teeth, 50% shark-style teeth with embedded carbide inserts.

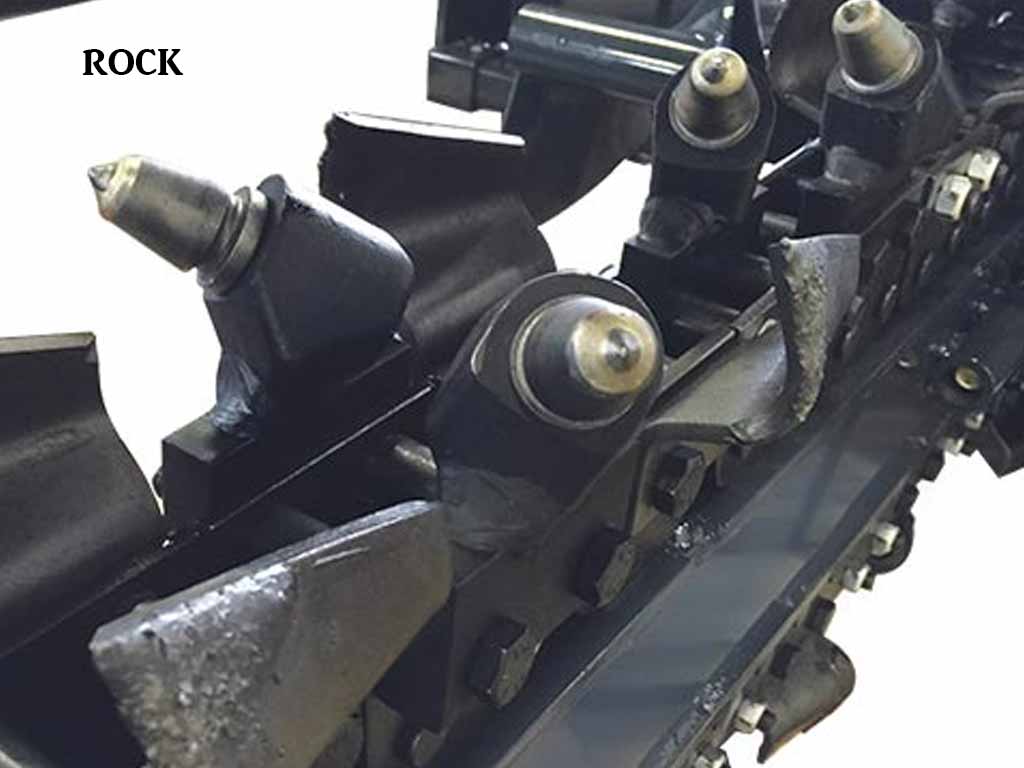

  • Rock and Frost – 50% cup teeth, 50% replaceable carbide tip rock teeth.
  • Other chain configurations are available.
MODEL TRN36 TRN48 TRN60
Dig Depth (Inches) 36.0 48.0 60.0
Overall Width (Inches) 58.5
Frame Width (Inches) 55.8
Overall Height (Inches) 25.8
Overall Length (Inches) 69.7 84.9 95.7
Side Shift Travel (Inches) 8.5 / 17.0
Auger Diameter (Inches) 17.3
Spoil Auger Discharge Reach (Inches) 20.0
Optimal Trenching Angle (Degrees) 60
Recommended Flow Rate Standard Flow up to 25 GPM / High Flow 25-42 GPM
Approximate Weight (Pounds) 1135* 1220* 1285*
Recommended Loader Capacity

Greater than 1500 pounds
