Virnig

SBS72

Virnig V60 Angle Snow Blade with trip edge and oscillation

MODEL
EDGE
SNOW WINGS

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS, CYLINDERS & FITTINGS

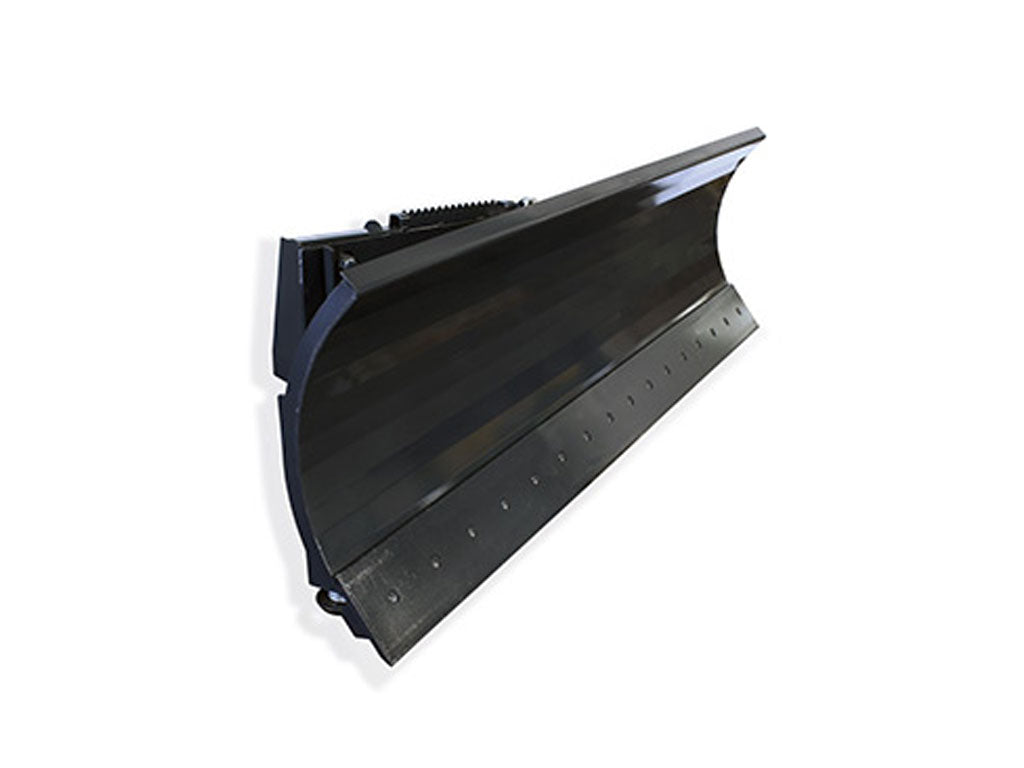

Virnig V60 Angle Snow Blade is a commercial-grade skid steer snow plow.

  • Designed to hug the contours of the ground for effortless snow removal.
  • Two-cylinder hydraulic design allows the blade to angle +/- 30° in either direction to efficiently windrow snow.
  • Designed to maintain full down pressure to help cleanly scrape hard-pack snow and ice.
  • Side-to-side oscillation allows the cutting edge to follow the contour of the surface.
  • Hydraulic crossover relief valve protects the attachment by absorbing shock and angling the entire blade if a curb or other object is struck.
  • Corrosion, dent, and flake resistant NitroSteel® cylinder rods are more salt resistant than chrome.

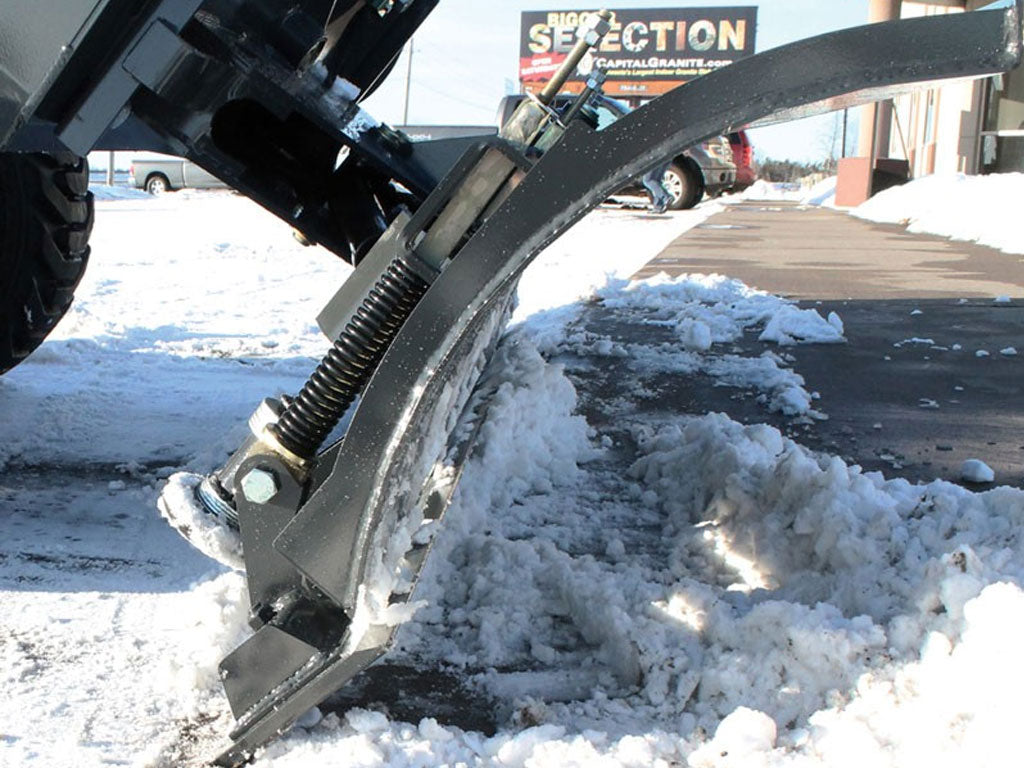

  • Trip edge containing four compression springs and hinge points.

Also available: Two 12" wide pin-on wings angled 20 degrees forward from the moldboard to increase the blade's width by 21 3/4".  Call for pricing.

      EDGE OPTIONS

      • Steel Edge Installed
        • 5/8" x 8ˮ steel bolt-on edge allows 5 ½” of total wear
        • Edge is quickly reversed or replaced.
      • Poly Edge Installed
        • Replaces standard steel cutting edge.
        • 1” x 7 3⁄4” reprocessed UHMW (Ultra High Molecular Weight Polyethylene) allows 5 1⁄4” of total wear.
        • Reversible and replaceable like a steel bolt-on edge.
        • Rubber Edge installed
          • Replaces standard steel edge.
          • 1 1/2” x 10” rubber edge allows 7” of total wear.
          • Reversible and replaceable like a steel bolt-on edge.







            Model SBS72 SBS84 SBS96 SBS108 SBS120
            Overall Blade Width (Inches) 74.0 86.0 98.0 110.0 120.0
            Blade Height (Inches) 31.0
            Blade Angle (Degrees) +/- 30
            Width at Full Angle (Inches) 64.0 74.0 84.0 95.0 104.0
            Moldboard Thickness (Inches) 0.19
            Cutting Edge (Inches) Steel, Poly, or Rubber
            Blade Oscillation (Degrees) +/- 4
            Approximate Weight (Pounds) 1020 1075 1130 1185 1225
            Recommended Loader Capacity Greater than 1500 pounds





            In stock items usually ship in 3-5 days

            Non stock items usually ship in 4-6 weeks
