SBS72

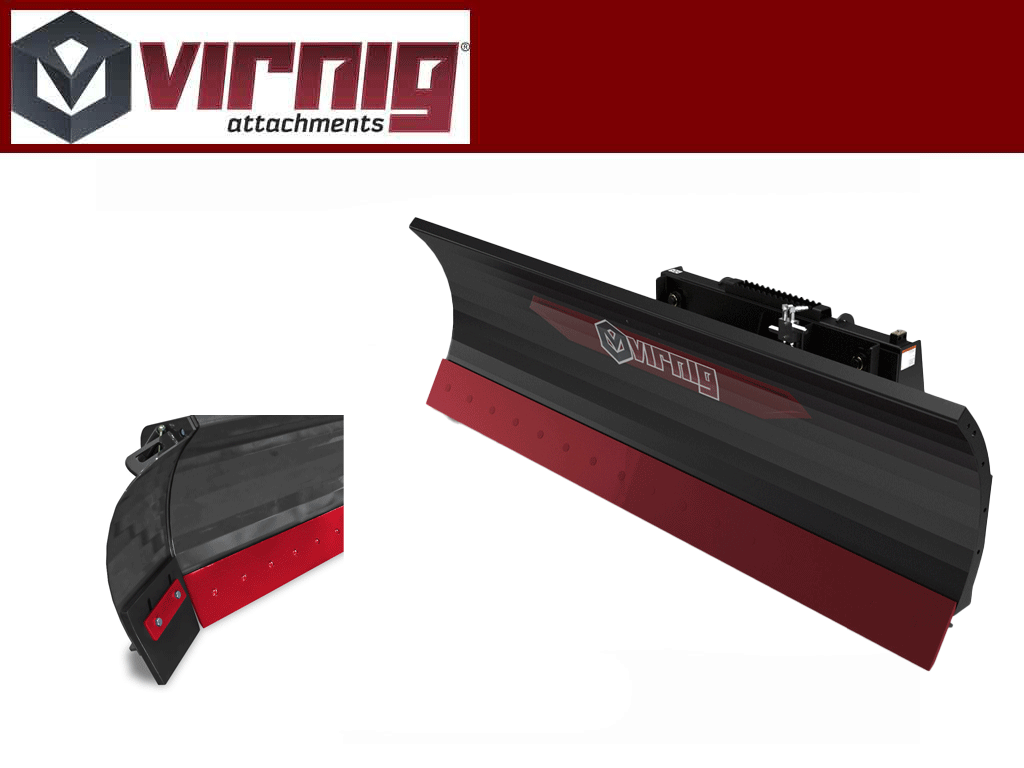

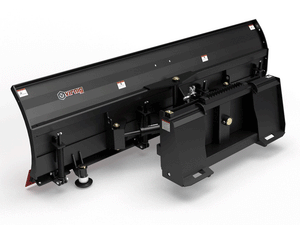

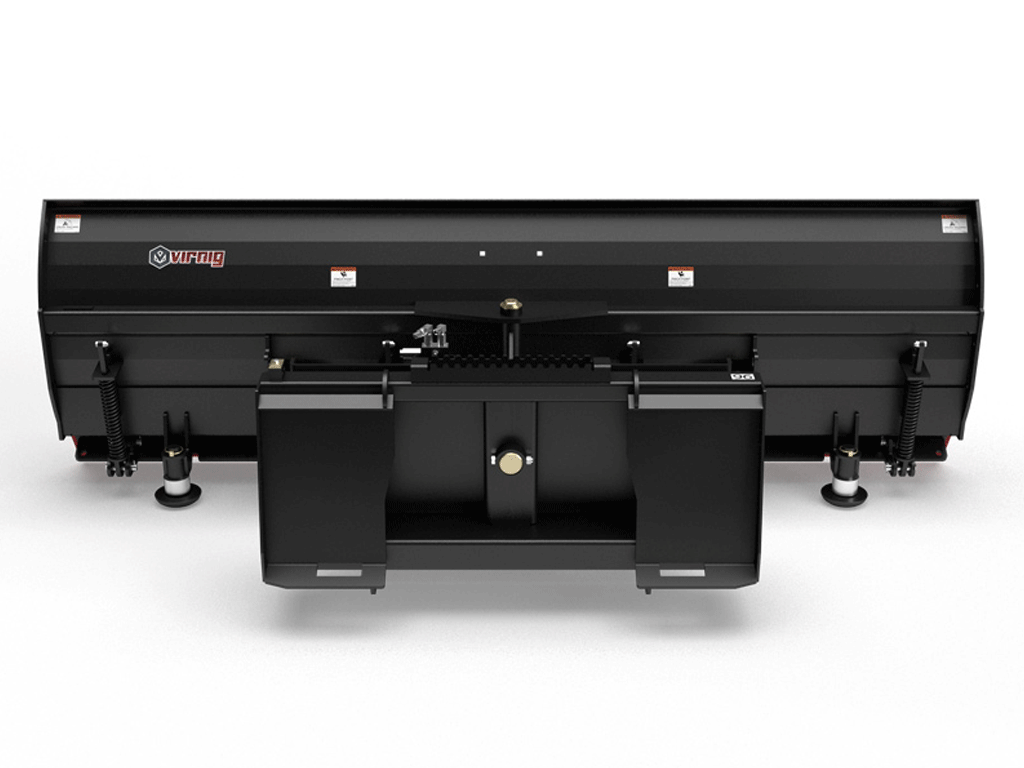

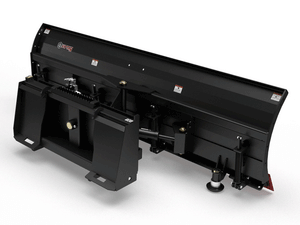

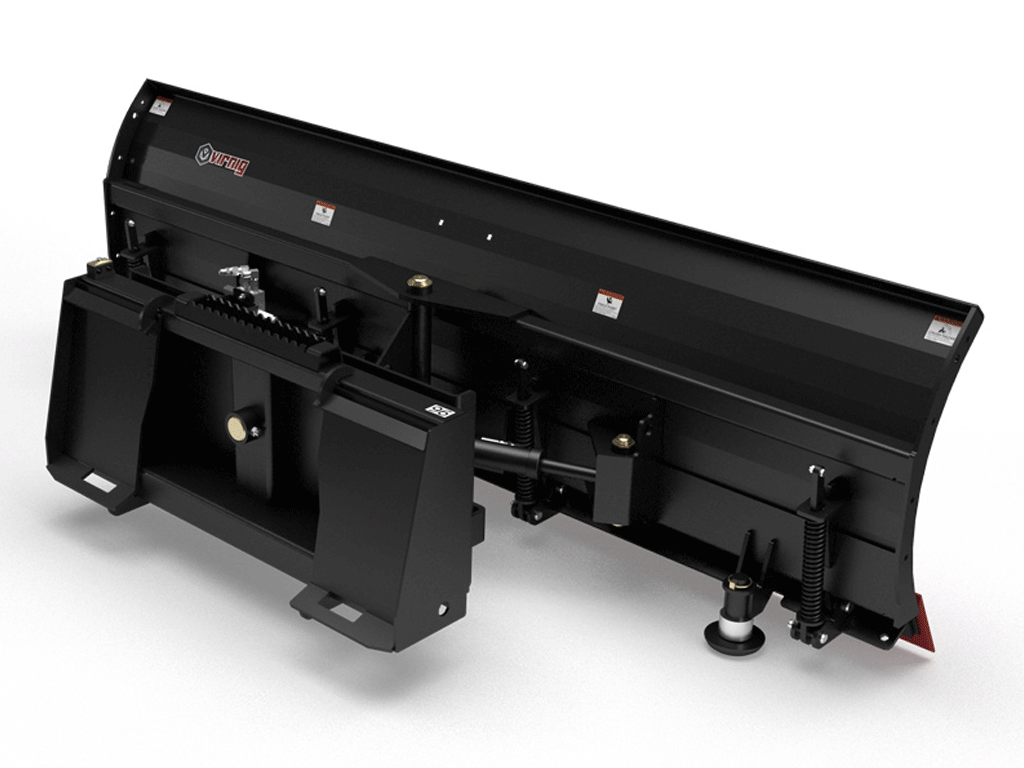

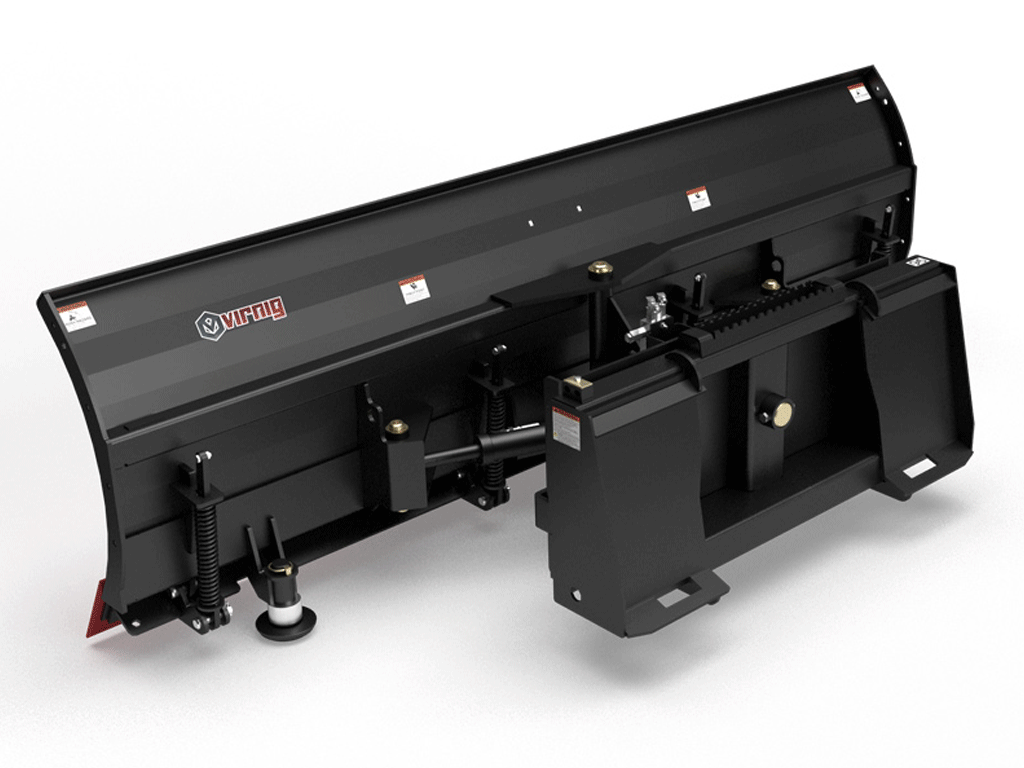

Virnig V60 Trip Edge Angle Snow Blade for machines with skid steer loader mounting

MODEL
EDGE
Pin on wings
10/25

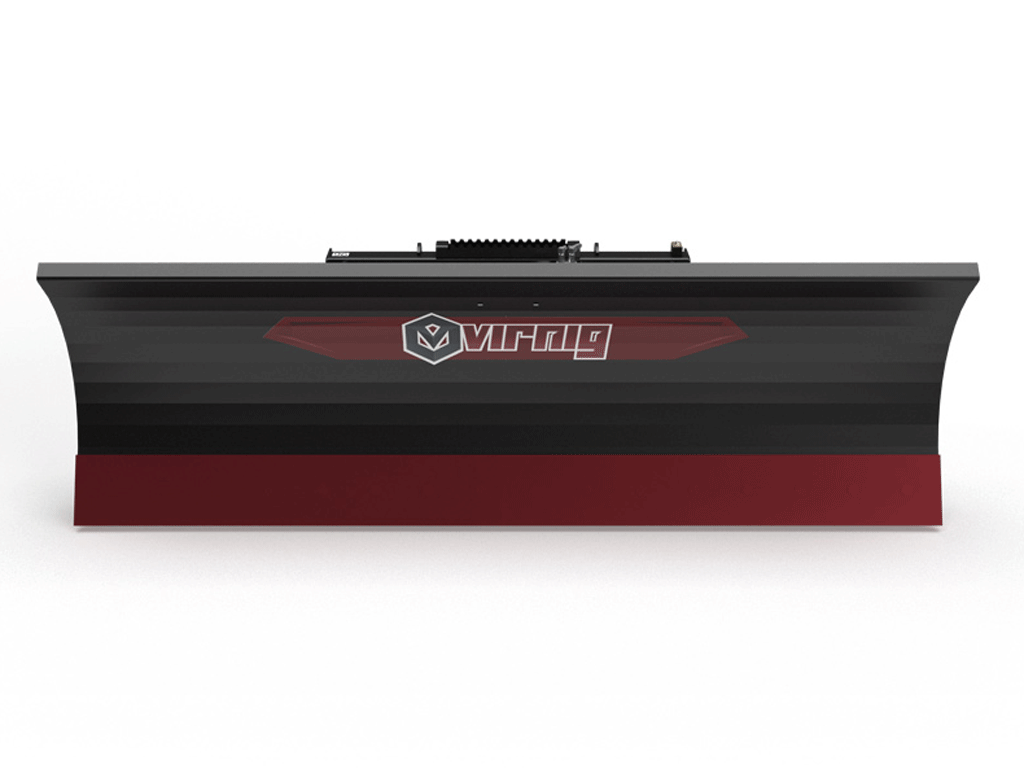

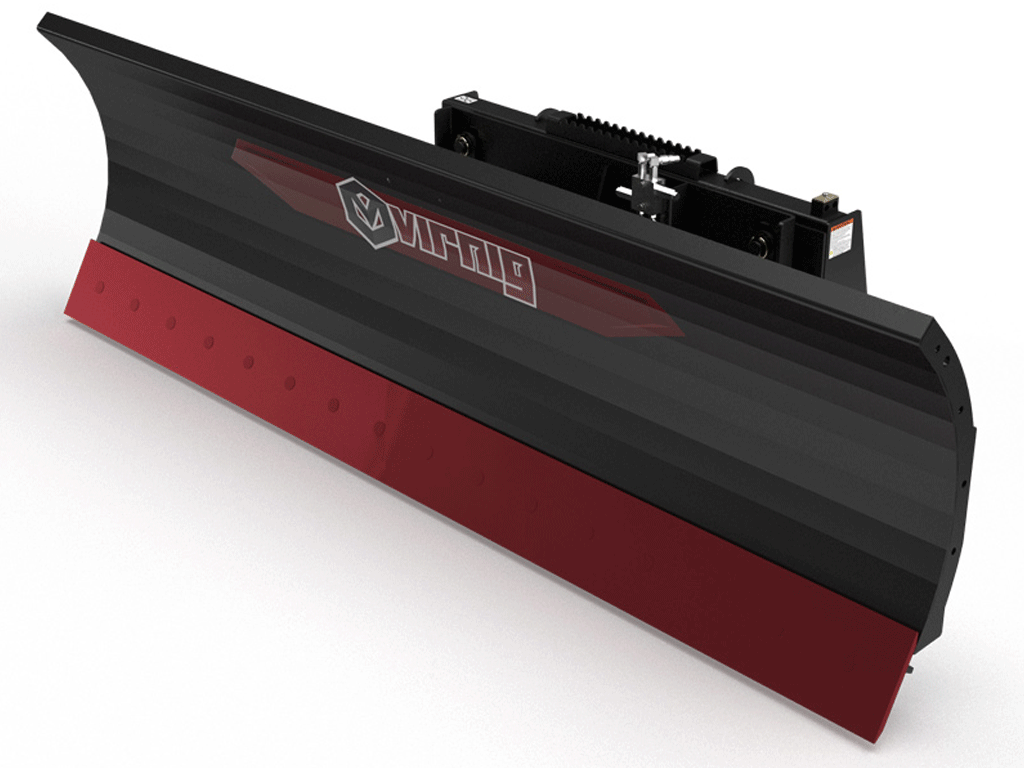

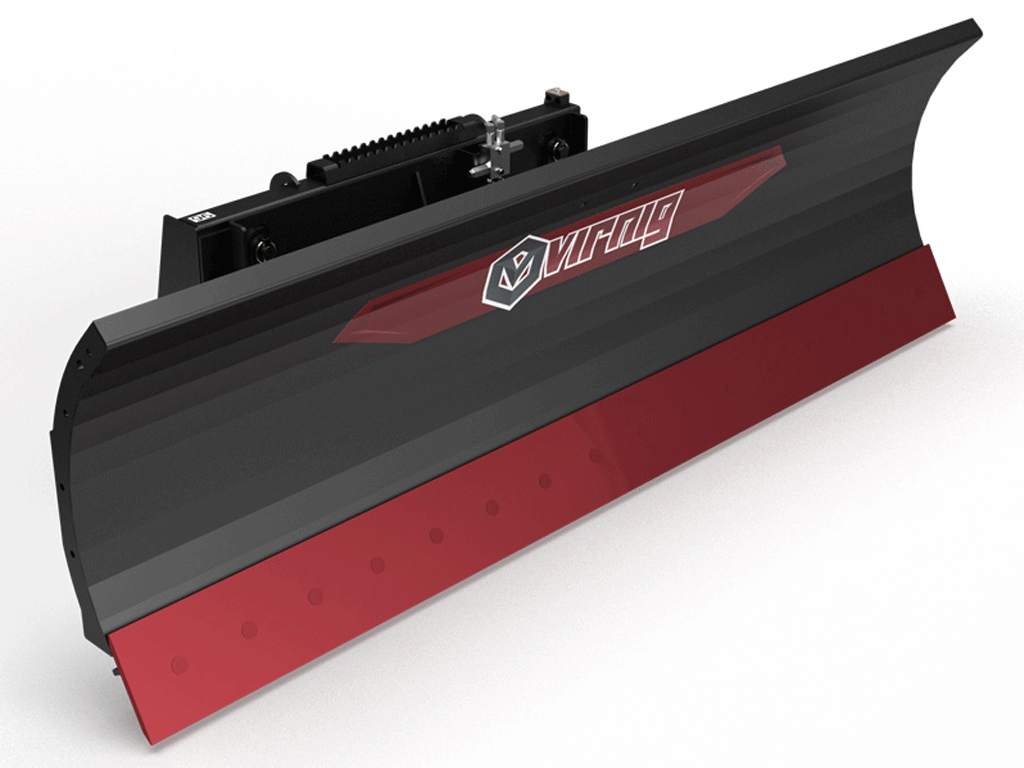

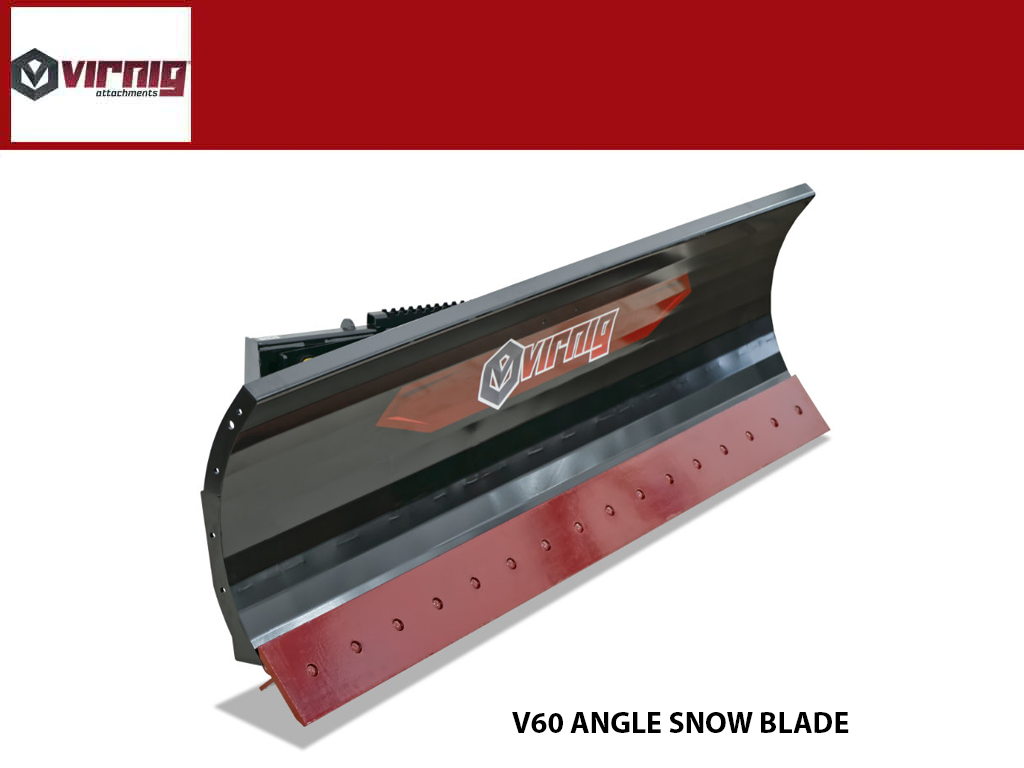

VIRNIG V60 Angle Snow Blade

STYLE  BLADE HEIGHT LOADER CAPACITY
HYDRAULIC 2 CYLINDER 31" MORE THAN 1500 LBS

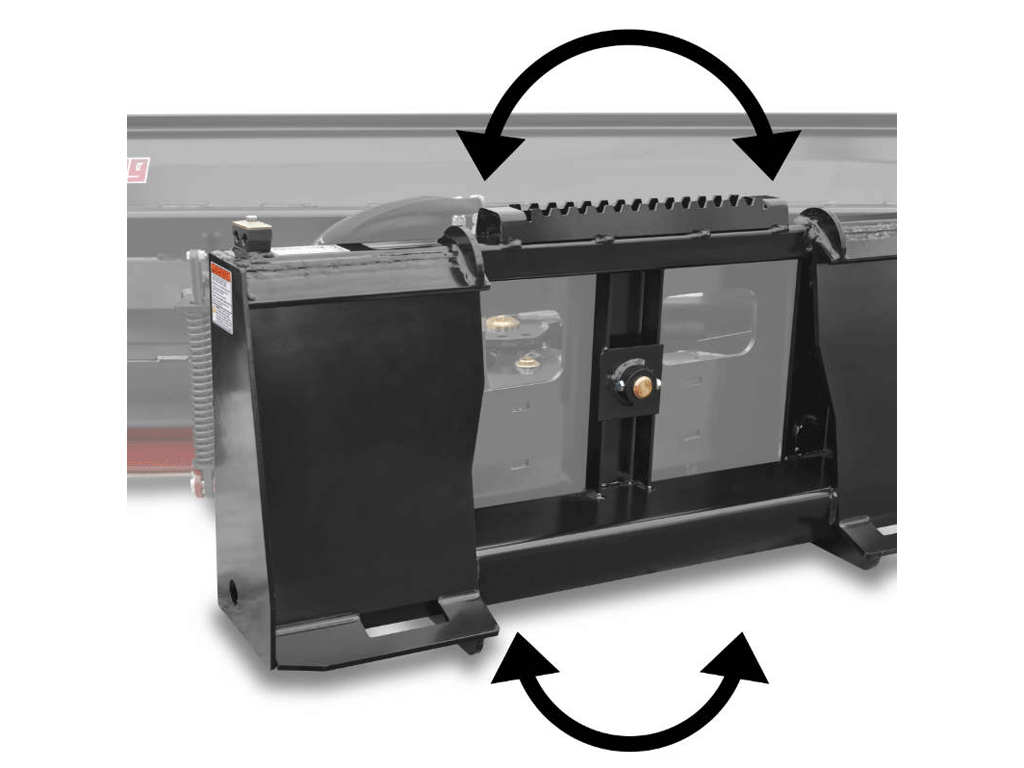

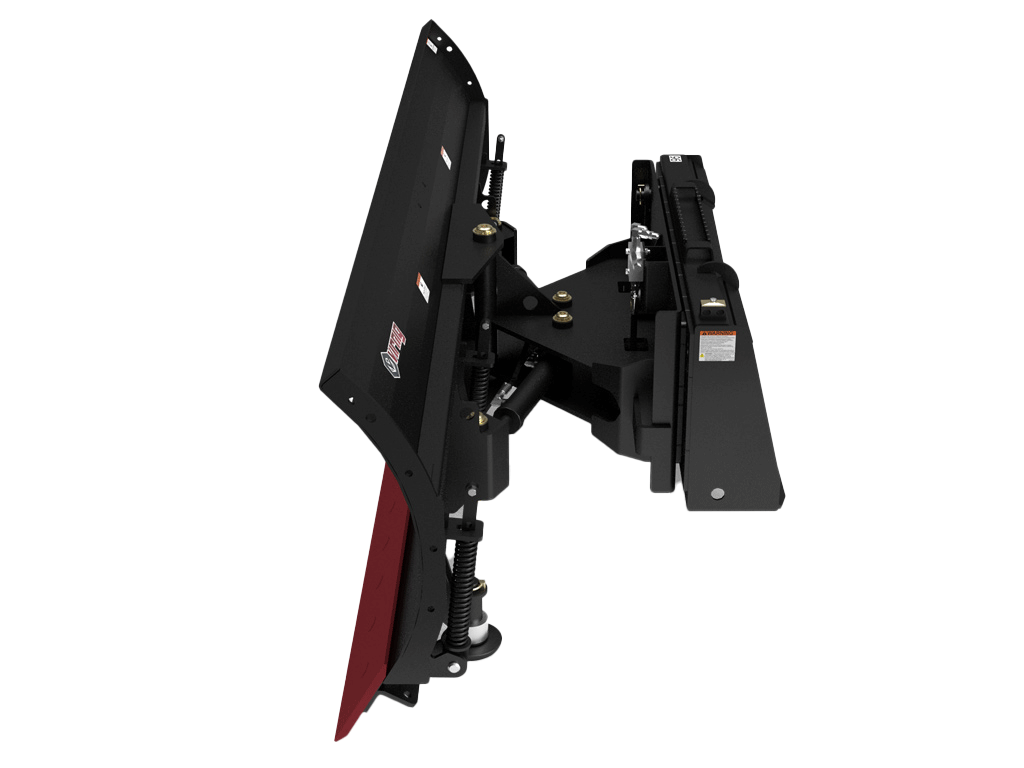

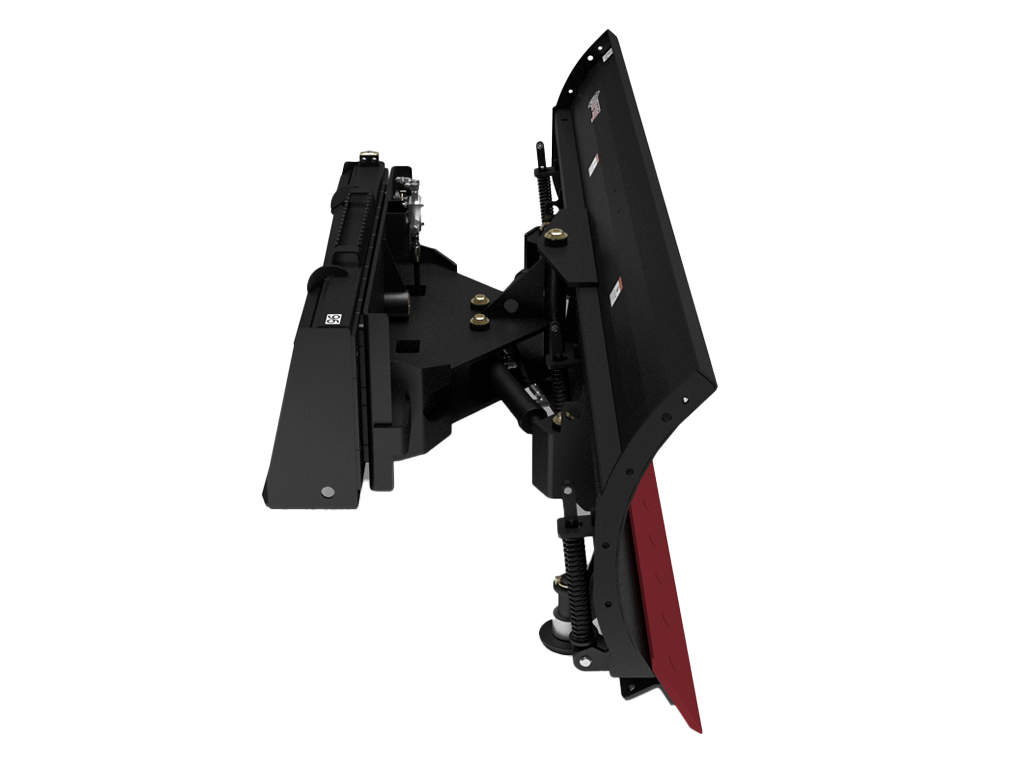

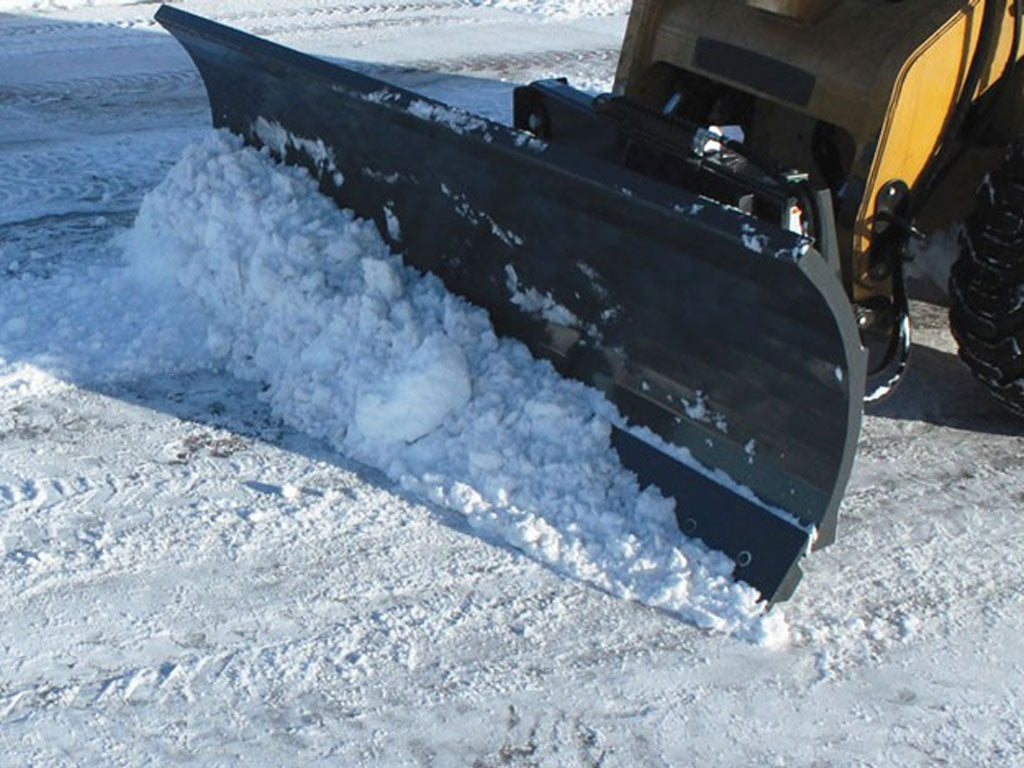

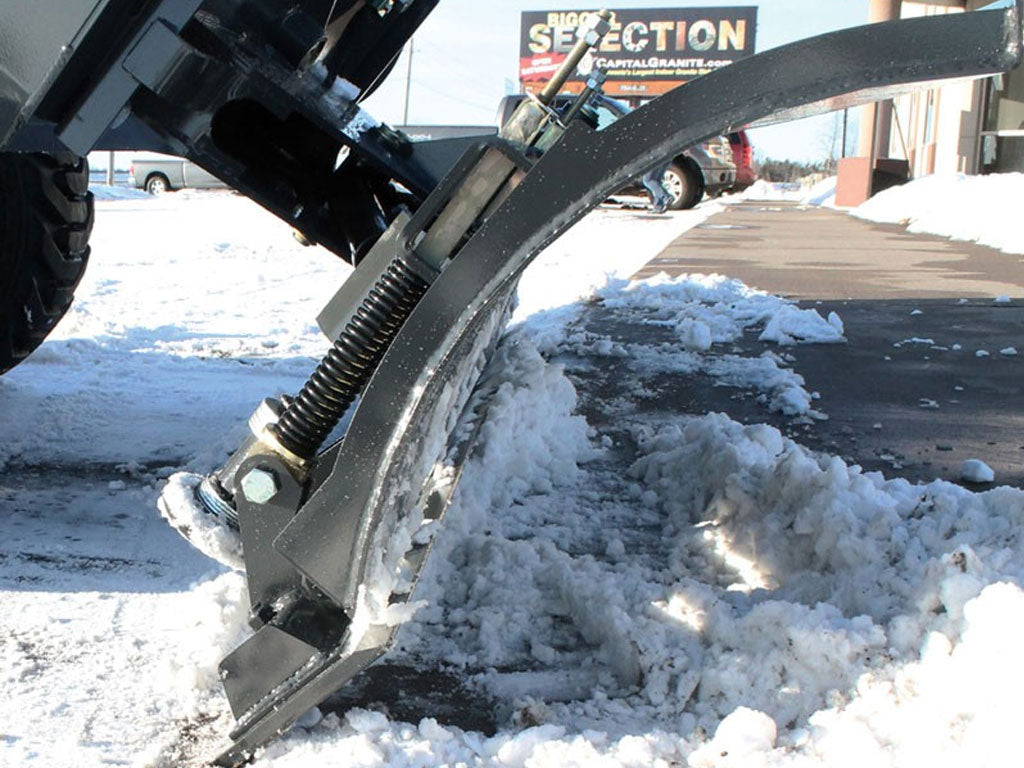

The Virnig V60 Angle Snow Blade is a premium skid steer attachment engineered for fast, efficient, and reliable snow removal. Designed for demanding winter conditions, this hydraulic snow blade angles 30° left or right directly from the cab, allowing operators to clear and windrow snow with precision. Its 4° side-to-side oscillation follows uneven surfaces for a cleaner finish, while the trip edge system protects both the operator and machine from impact. The trip edge protects the operator and the equipment.

Built tough for commercial use, the V60 features a hydraulic crossover relief valve that automatically angles the blade upon impact to reduce stress and damage. A 5/8″ x 8″ reversible bolt-on cutting edge delivers extended wear life and quick replacement.

Optional Upgrades:

  • Poly Edge: 1” x 7 3/4” reversible UHMW polyethylene for smoother operation on sensitive surfaces.

  • Rubber Edge: 1 1/2” x 10” reversible edge ideal for asphalt and decorative pavements.

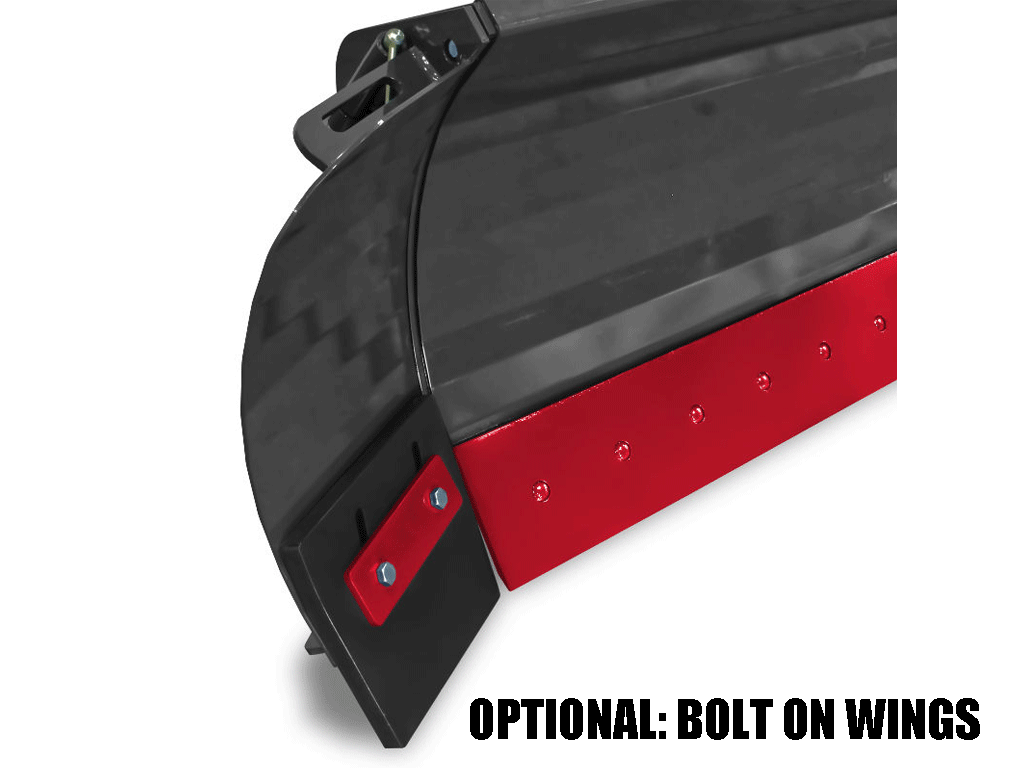

  • Pin-On Wings: Add 12” wide wings (angled 20° forward) to expand blade width and increase efficiency.

Perfect for municipalities, contractors, and property managers, the Virnig V60 Angle Snow Blade combines power, precision, and protection for superior snow control on every job.


      MODEL SBS72 SBS84 SBS96 SBS108 SBS120
      Width: Overall, Straight / Full Angle (Inches) 74.0 / 64.0 86.0 / 74.0 98.0 / 84.0 110.0 / 95.0 120.0 / 104.0
      Overall Height (Inches) 31.0
      Overall Depth, Straight (Inches) 37.5
      Blade Angle (Degrees) +/- 30
      Moldboard Thickness (Inches) 0.19
      Cutting Edge (Inches) 5/8 x 8 Bolt-on
      Blade Oscillation (Degrees) +/- 4
      Cylinder Bore / Stroke (Inches) 2.0 / 8.375
      Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.563
      Approximate Weight (Pounds) 1020* 1075* 1130* 1185* 1225*
      Recommended Loader Capacity Greater than 1500 pounds
