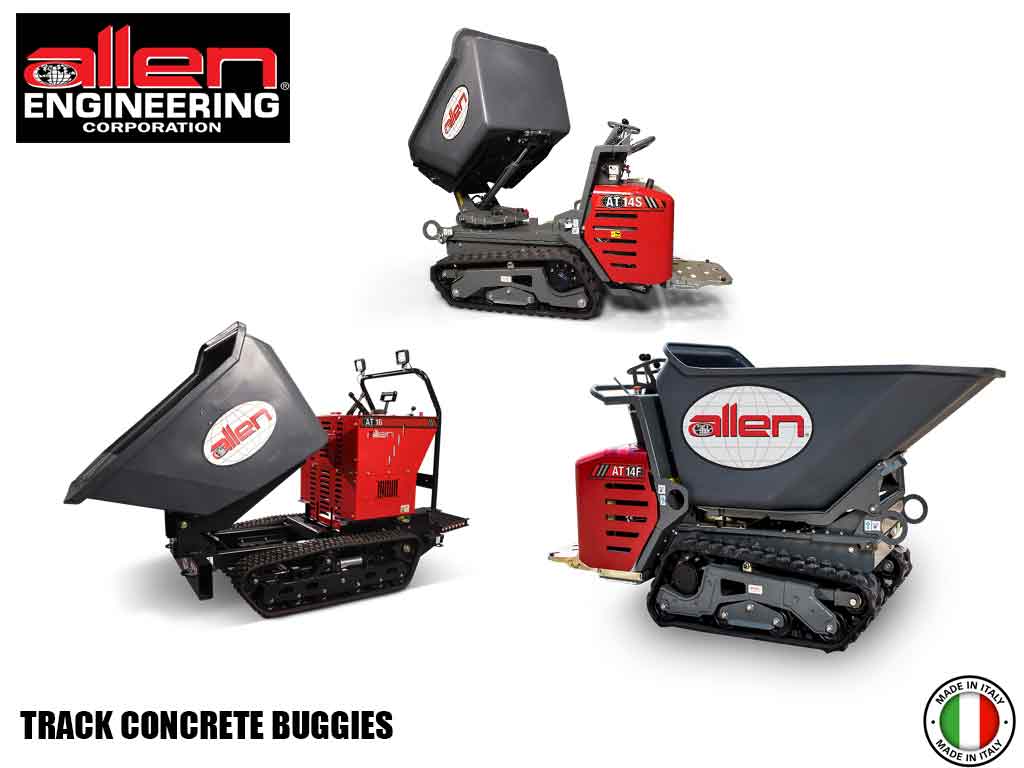

ALLEN ENGINEERING track concrete buggy

MODEL

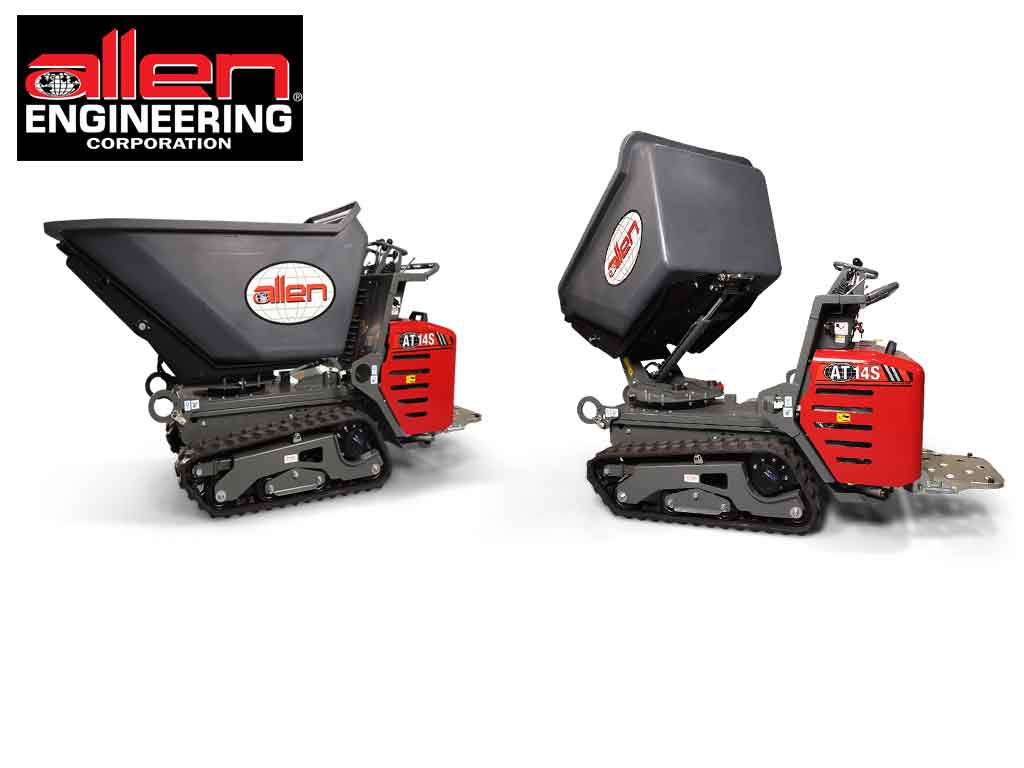

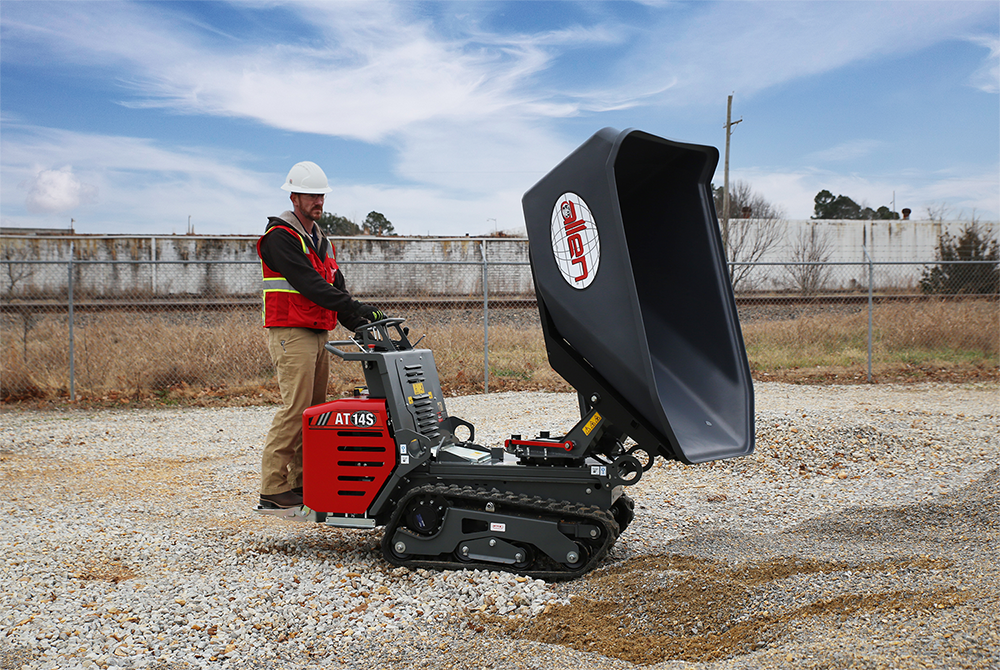

TRACK BUGGIES // AT14S - SWIVEL DUMP

The AT14S rubber track concrete buggy delivers excellent performance and precise maneuverability. Equipped with a 90-degree dump angle and 180-degree pivoting dump, this buggy can place your material exactly where you need it.

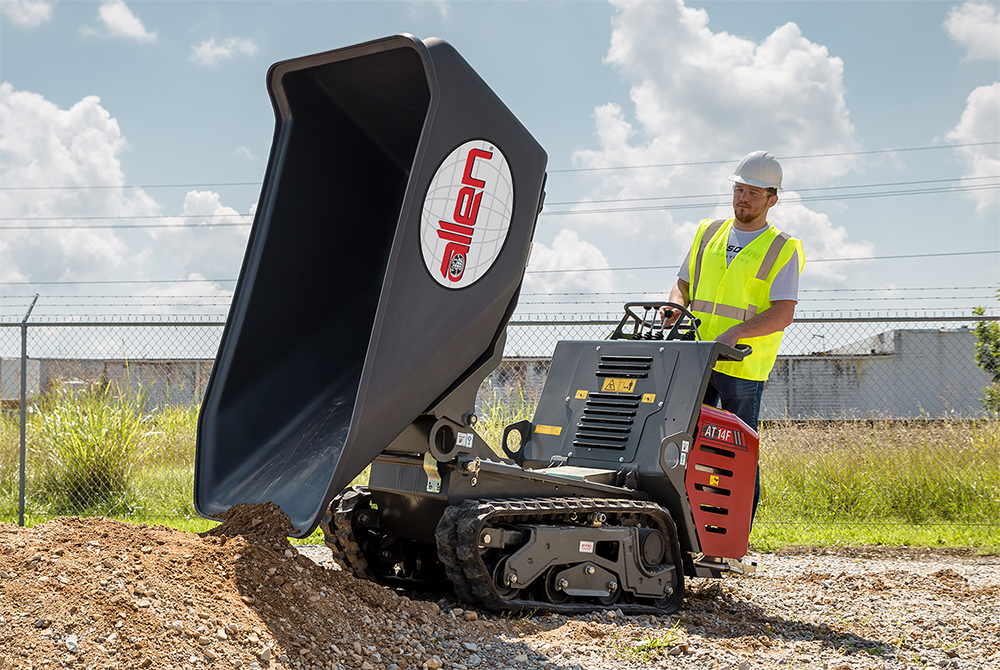

TRACK BUGGIES // AT14F - FIXED DUMP

The AT14F rubber track buggy is a rugged and compact machine that will haul and dump any bulk material. This machine comes equipped with simple intuitive controls, a 20 hp engine, and a 14 cubic foot poly bucket. It is a perfect fit for concrete workers, landscapers, contractors, or anyone else who needs to haul or dump material on a regular basis.

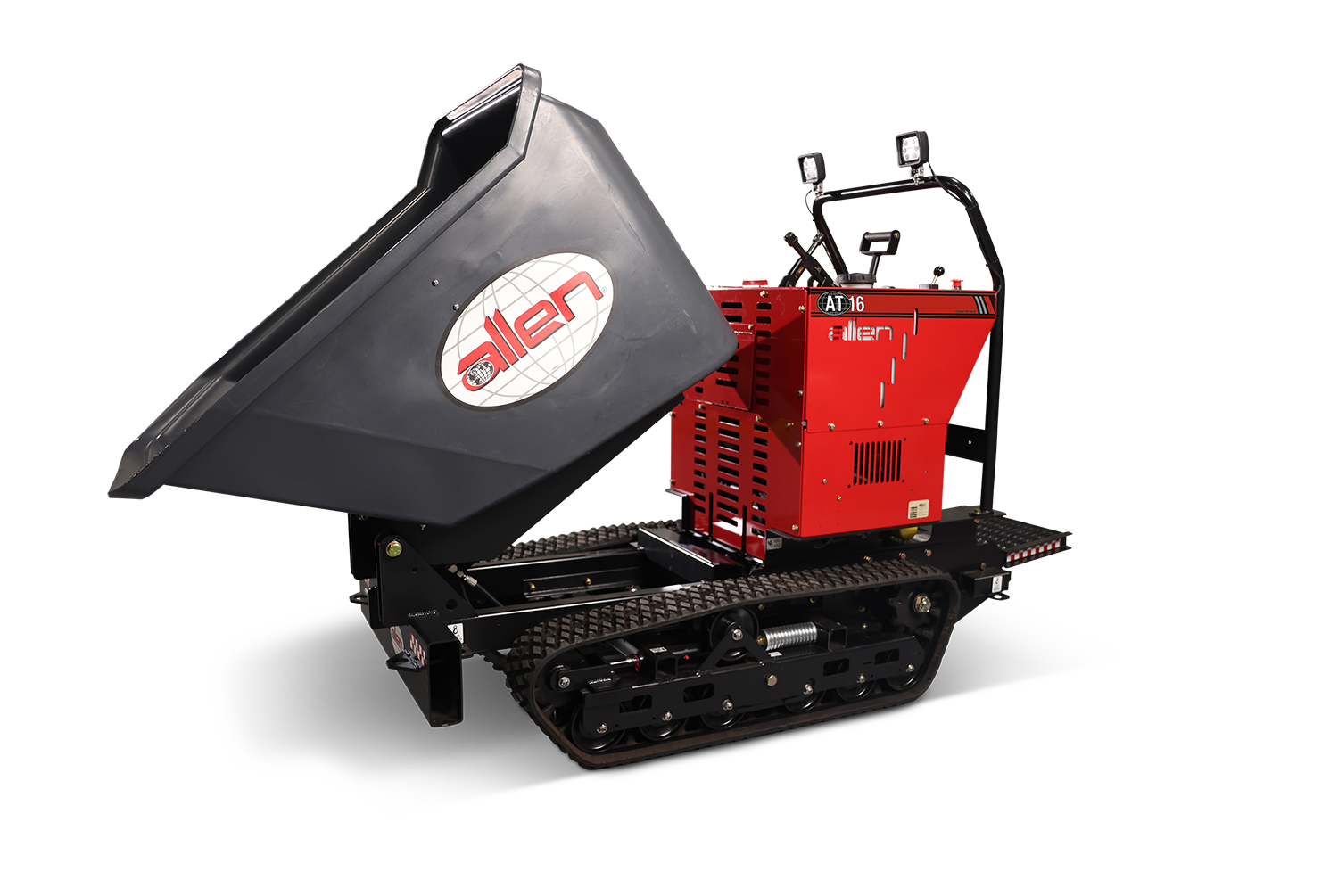

TRACK BUGGIES // AT16 - FIXED DUMP

The AT16 is the largest track buggy offered by Allen Engineering. This buggy comes fully equipped with lights, single- hand drive, 2-inch thick steel frame, and a robust 2,500 lb payload capacity. The AT16 rubber track concrete buggy delivers excellent performance and precise maneuverability. Equipped with a 90-degree dump angle buggy can place your material exactly where you need it.



MODEL AT14S AT14F AT16

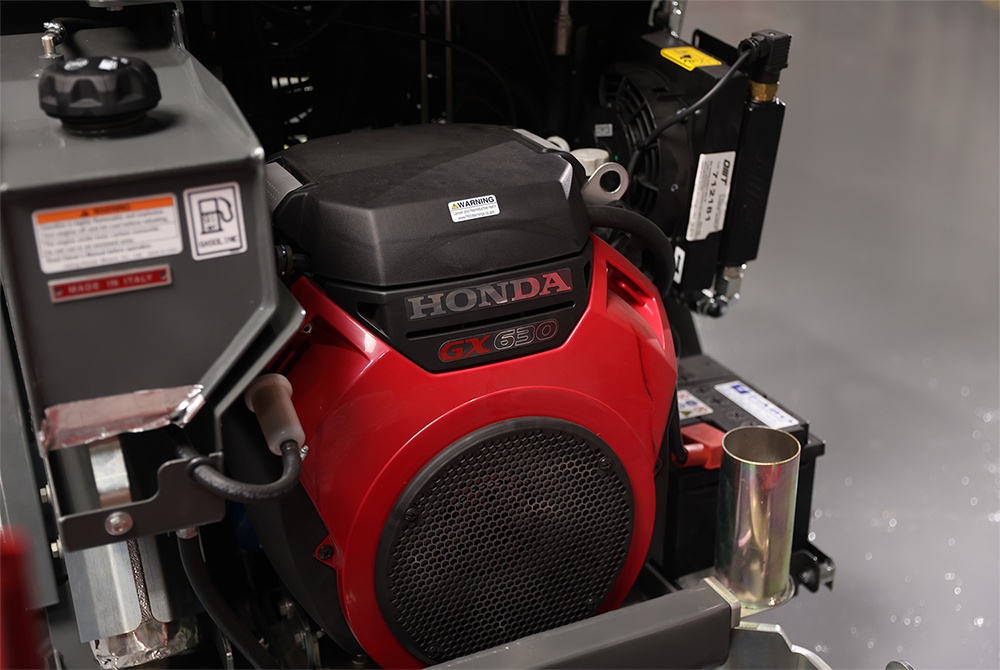

ENGINE HONDA GX630 HONDA GX630 KOHLER CV740
HP CLASS 20 HP / 14.9 KW 20 HP / 14.9 KW 27 HP / 20.1 KW
STARTER ELECTRIC ELECTRIC ELECTRIC
FUEL GAS GAS GAS
FUEL CAPACITY 3 GAL / 11.35 L 3 GAL / 11.35 L 6 GAL / 22.7 L
TOP SPEED 4-6 MPH / 6-10 KPH  4-6 MPH / 6-10 KPH 4-6 MPH / 6-10 KPH
PAYLOAD 1785 LB / 810 KG 2100 LB / 952 KG 2500 LB / 1135 KG
BUCKET CAPACITY 14 CU. FT. / 0.39 CU. M 14 CU. FT. / 0.39 CU. M 16 CU. FT. / 0.45 CU. M
DUMP ANGLE 90 90 90
PIVOT ANGLE 180 0 0
WEIGHT 1540 LB / 699 KG 1420 LB / 644 KG 1475 LB / 669 KG
LENGTH 98.4" 98" 102.5"
WIDTH 33.3" 31.5" 35.6"
HEIGHT 54" 52.5" 62.25"
