ALLIED Excellent series skid steer hydraulic hammers

MODEL

HYDRAULIC HAMMERS

There is a Rammer® hydraulic hammer for virtually any breaking application. So whether you are working with demolition, recycling, mining, construction or quarrying, we have the hammer to give you the best results.

Rammer® hammers are tough, durable and offer you the most economical owning and operating costs while delivering maximum production.

EXCELLENCE LINE

Stronger than time, the Excellence Line is Rammer flagship line of hydraulic hammers, which has been serving customers around the world for over four decades. The Excellence Line continues Rammer's tradition of delivering innovative hammers designed to improve your profitability, safety and performance.

All Excellence Line hammers include integrated smart RD3 remote monitoring system. With MyFleet portal access to data you are able to follow operating hours, GPS location and service intervals for easier fleet management and more efficient processes.

SMALL RANGE

Rammer Small Range hammers are built to last. Silent sound suppressed construction enables working in urban environment and streamlined design allows access in narrow spaces.

At the same time, they provide maximum protection to your personnel and the environment while inflicting maximum damage on the materials being broken.

Rammer's Small Range hydraulic hammers are your reliable long life solution to any breaking application for carriers between 0.6 and 15 tons (1 300–33 100 lb).

MODEL CARRIER (SSL) GPM

ENERGY

CLASS

155E 1500-2200 LBS 4 - 8.7 150
255E 2000-3100 LBS 4 - 9.2 200
355E 2900-4600 LBS 6.6- 14.5 350
455E 4600-11500 LBS 10.6 - 18.5 500
555E 5300-8600 LBS 9.2 - 23.8 750
777E 7300-11500 LBS 10.6 - 31.7 1000
999E 9700-15700 LBS 13.2 - 39.6 1500

155E

The Rammer 155E is one of the fastest hitting hydraulic hammers. The 90 kg hammer is suitable for carriers in the 0.6 to 1.8 tonne range.

The Rammer 155E hammer features an integrated tubular membrane type accumulator which maximizes its surface area, to deliver the maximum breaking power.

The 155E comes with the remote monitoring hardware RD3 installed.

FEATURES

255E

The 255E is your no fuss solution for carriers between 0.9 and 2.5 tons. The 110 kg hammer is protected by box type housing and produces less noise and vibration, whilst is strong enough to take a beating.

The Rammer 255E comes with the remote monitoring hardware RD3 installed.

FEATURES

355E

Versatile and efficient Rammer 355E is your everyday partner for carriers between 1.1 and 3.6 tons. The 150 kg hammer is protected by box type housing and produces less noise and vibration, whilst is strong enough to take a beating.

The Rammer 355E comes with the remote monitoring hardware RD3 installed.

FEATURES

455E

The Rammer 455E is your economical solution for carriers between 2.1 and 4.6 tons. The 230 kg hammer has been designed for high performance.

Low-maintenance 455E is protected by box type housing. The hammer produces less noise and vibration, whilst is strong enough to take a beating.

The Rammer 455E comes with the remote monitoring hardware RD3 installed.

FEATURES

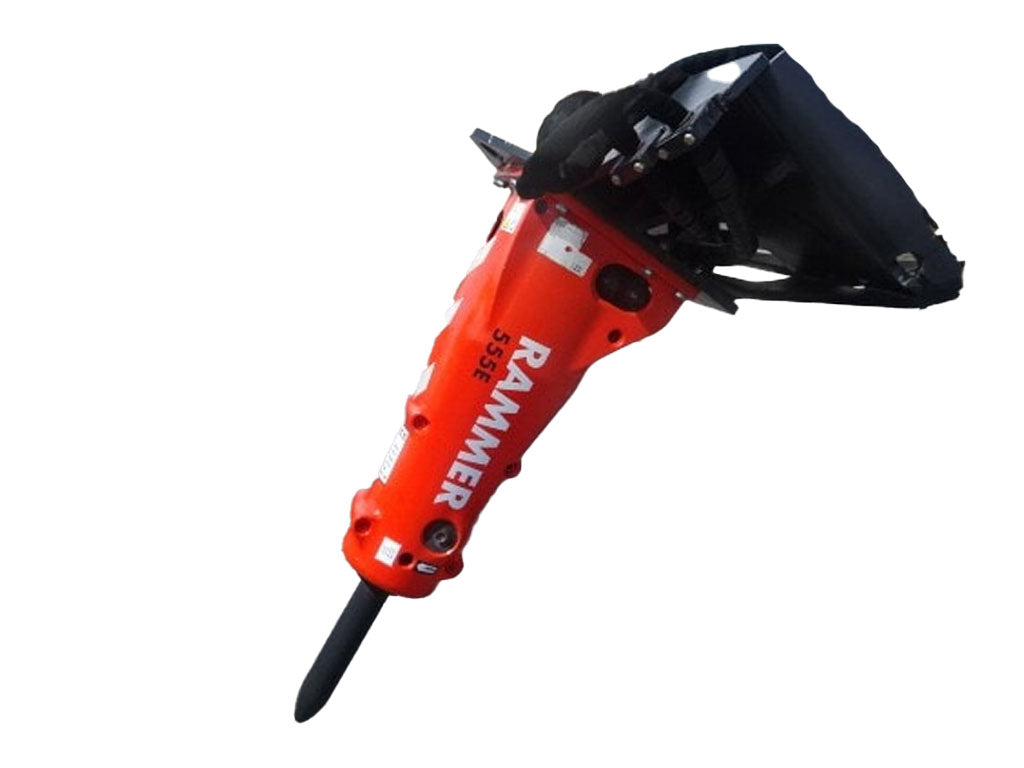

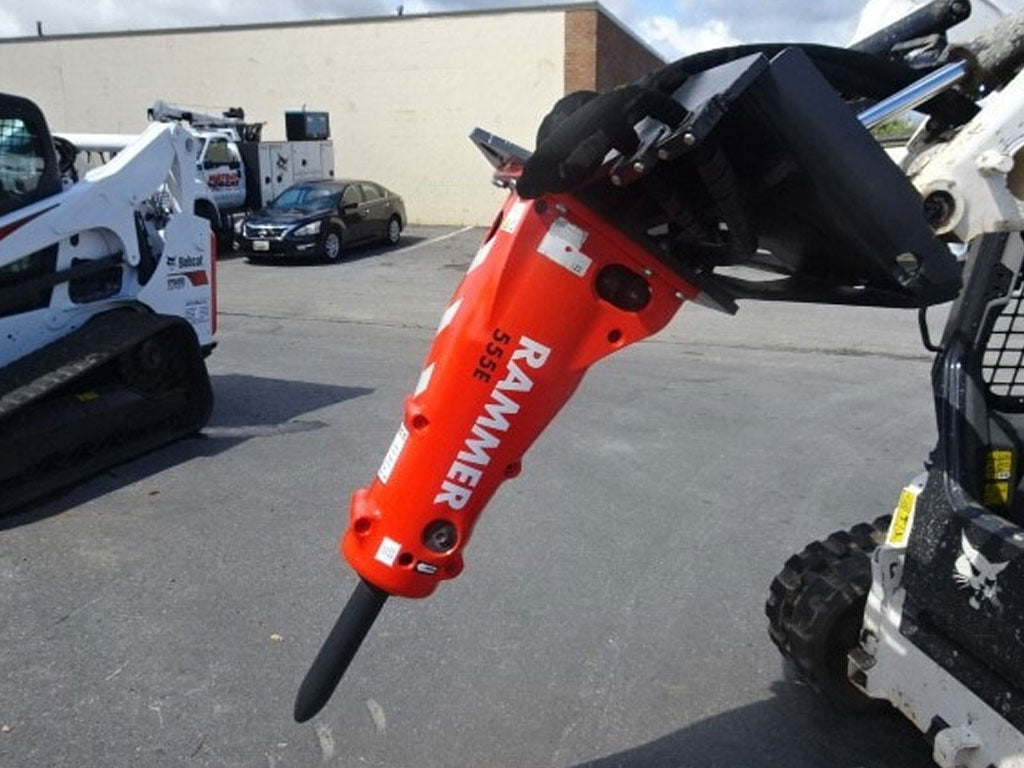

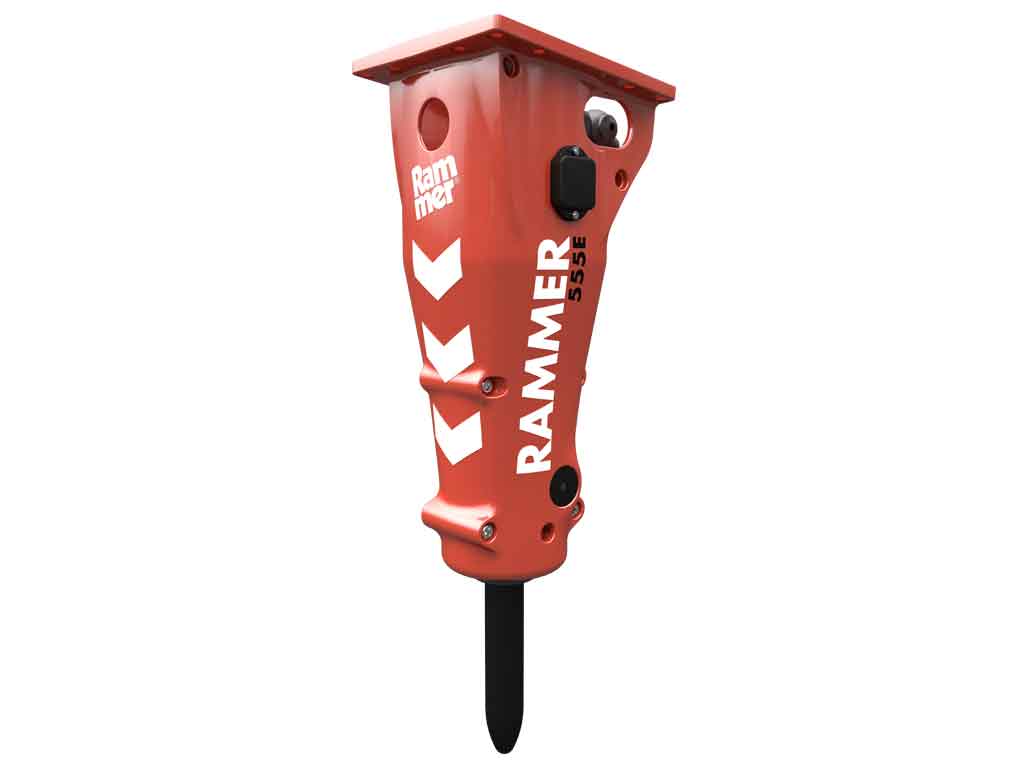

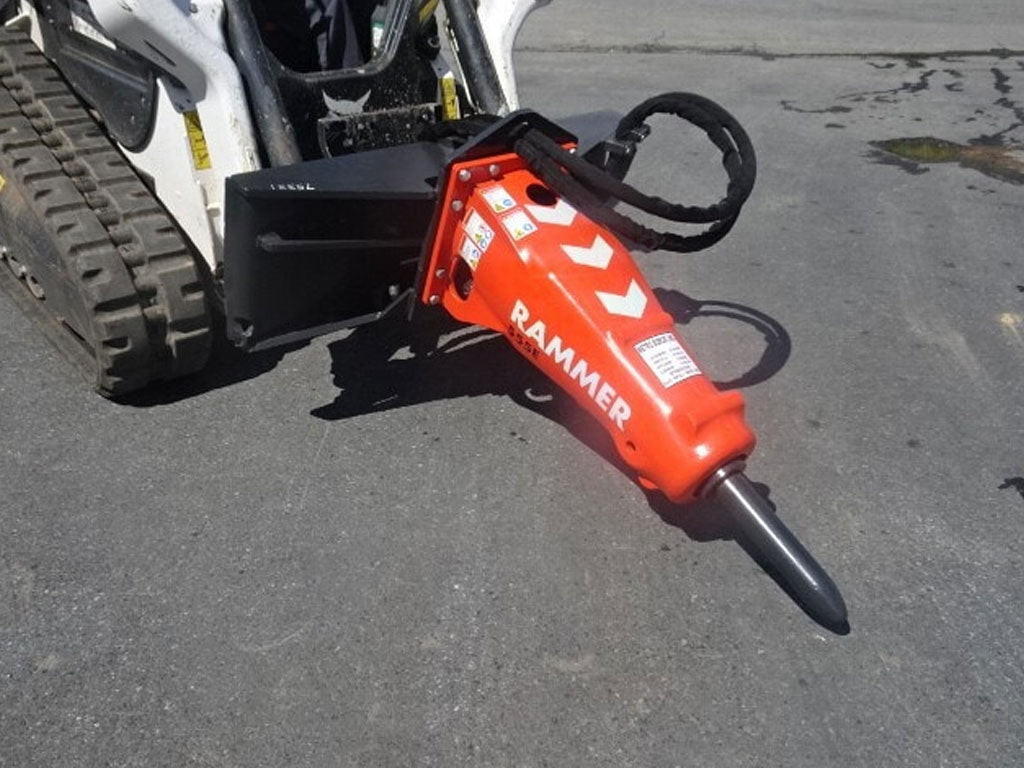

555E

The Rammer 555E is designed for optimum carrier compatibility and installation flexibility in the 1.9 to 8 tonne range. The 275 kg hammer features a pivoting hose connecting block and a reversible manifold that allows for right or left hand hose connections, in addition to it's ability to accept a wide range of oil flows and pressures.

The 555E is designed to satisfy the specific demands of rental fleet operators.

The 555E comes with the remote monitoring hardware RD3 installed.

FEATURES

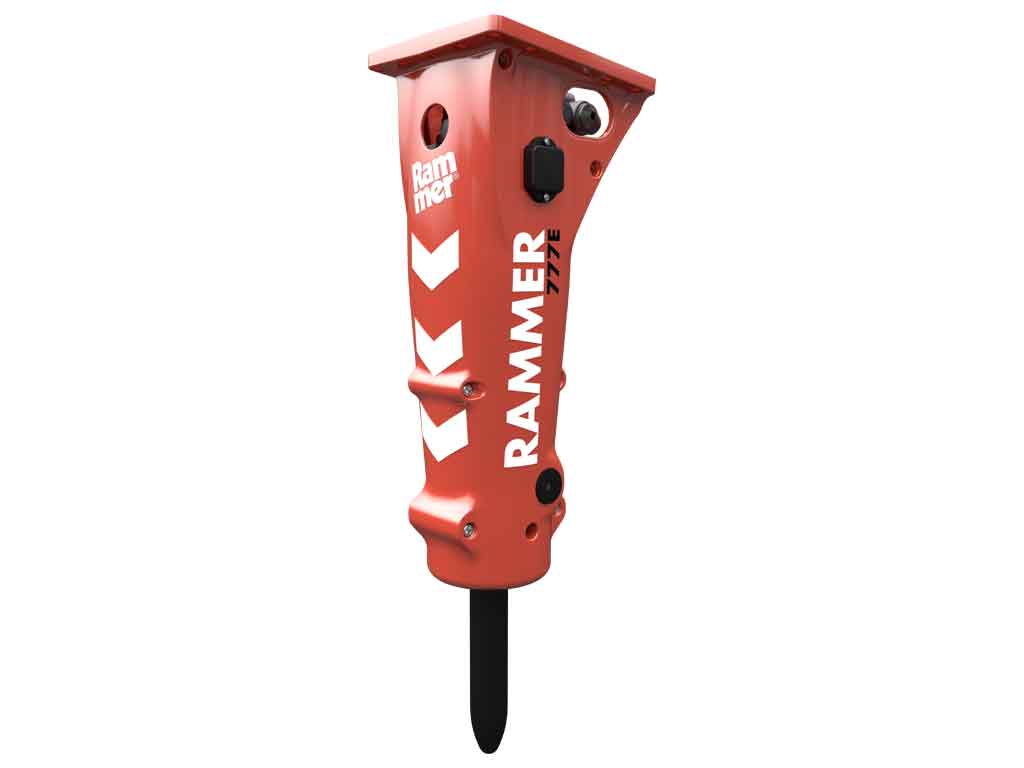

777E

Reliable and versatile Rammer 777E is designed for optimum carrier compatibility in the 2.6 to 9.5 tonne range. The 390 kg hammer has been designed to please the specific demands of rental fleet operators.

The 777E features a pivoting hose connecting block and a reversible manifold that allows for right or left hand hose connections, in addition to its ability to accept a wide range of oil flows and pressures.

The Rammer 777E comes with the remote monitoring hardware RD3 installed.

FEATURES

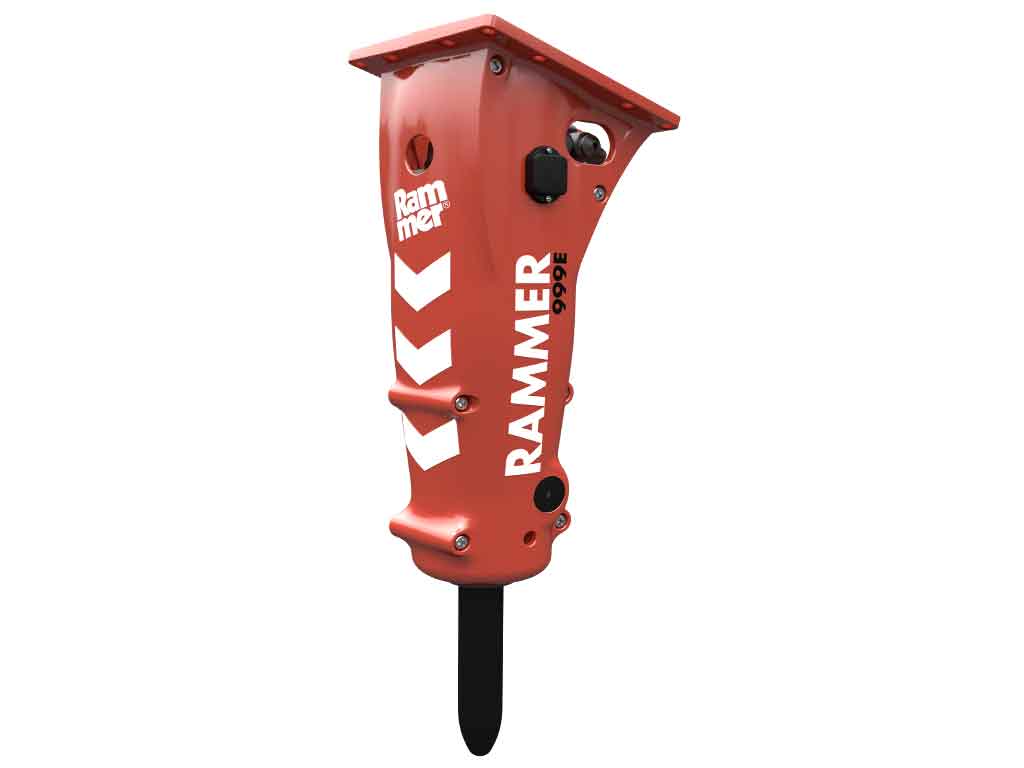

999E

Designed to please the specific needs of rental fleet operators, the 505 kg Rammer 999E is suitable for carriers between 3.9 to 13 tons. The 999E is designed for optimum carrier compatibility and installation flexibility.

The 999E features a pivoting hose connecting block and a reversible manifold that allows for right or left hand hose connections, in addition to its ability to accept a wide range of oil flows and pressures.

The Rammer 999E comes with the remote monitoring hardware RD3 installed.

FEATURES

MODEL 155E 255E
MIN WORKING LBS 200 240
BPM - BLOWS PER MIN 1000-2600 600-3200
PSI - OPERATING PRESSURE 1160-1885 1380-2175
PRESSURE RELIEF 3190 3190
OIL FLOW RANGE 4-8.7 4-9.2
MAX BAR PSI 290 290
INPUT POWER 10 12
TOOL DIAMETER 1.42 1.57
RECOMMENDED CARRIER WEIGHT (EXC) 1800-4000 2600-5500
RECOMMENDED CARRIER WEIGHT (SSL) 1300-2900 1800-3700
NOISE LEVEL 115 115



MODEL 355E 455E
MIN WORKING LBS 330 510
BPM - BLOWS PER MIN 800-3000 700-2600
PSI - OPERATING PRESSURE 1305-2175 1450-2465
PRESSURE RELIEF 3190 3190
OIL FLOW RANGE 6.6-14.5 10.6-18.5
MAX BAR PSI 290 290
INPUT POWER 19 27
TOOL DIAMETER 1.89 2.20
RECOMMENDED CARRIER WEIGHT (EXC) 3500-7900 6000-11500
RECOMMENDED CARRIER WEIGHT (SSL) 2400-5300 4000-7700
NOISE LEVEL 114 115
MODEL 555E 777E
MIN WORKING LBS 610 860
BPM - BLOWS PER MIN 600-1800 500-1700
PSI - OPERATING PRESSURE 1305-2030 1305-2030
PRESSURE RELIEF 3190 3190
OIL FLOW RANGE 9.2-23.8 10.6-31.7
MAX BAR PSI 290 290
INPUT POWER 28 38
TOOL DIAMETER 2.83 3.15
RECOMMENDED CARRIER WEIGHT (EXC) 7100-17600 9500-20900
RECOMMENDED CARRIER WEIGHT (SSL) 4200-11700 5700-13900
NOISE LEVEL 118 120
MODEL 999E 1322E
MIN WORKING LBS 1110 1870
BPM - BLOWS PER MIN 500-1700 500-1000
PSI - OPERATING PRESSURE 1450-2030 1815-2320
PRESSURE RELIEF 3190 3190
OIL FLOW RANGE 13.2-39.6 15.9-31.7
MAX BAR PSI 290 290
INPUT POWER 47 43
TOOL DIAMETER 3.54 3.74
RECOMMENDED CARRIER WEIGHT (EXC) 12800-28700 19800-33100
RECOMMENDED CARRIER WEIGHT (SSL) 8600-19200
NOISE LEVEL 123 136




Chisel tool

The Standard Chisel Tool is used for rock and reinforced concrete.

Long chisel tool

The Long Chisel is designed to be used mainly on a breaker boom, where it supplies the extra length to tackle hard rock that may obstruct a crusher.

Moil point tool

Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunnels.

Pyramid tool

The Pyramid Tool makes light work of breaking non-abrasive material of all strengths. Non-abrasive materials which allow a high penetration rate, especially concrete, are short work for the Pyramid tool.

Spade tool, parallel to boom

"Parallel" tools have the cutting edge in line with the boom.  Spade tools are ideal for cutting through materials such as asphalt and frozen or compact ground. Spade tool allows the material to be broken in such a precise manner that it is ideal for road or pavement repair work.

Spade tool, transverse to boom

"Transverse" tools have the cutting edge across the boom.  Spade tools are ideal for cutting through materials such as asphalt and frozen or compact ground. Spade tool allows the material to be broken in such a precise manner that it is ideal for road or pavement repair work.

Compacting plate tool

The Ground Compacting Tool allows compatible hammers to double in function as a ground compactor, removing the need to have a specialized  compacting attachments or machines at smaller job sites.

Long moil point tool

The Long Moil Point Tool is designed to be used mainly with a breaker boom where it supplies the extra length to break rock which may block a crusher.
