ALLIED Performance series hydraulic hammers for mini excavators 1800-26500 lbs.

MODEL
MOUNTINGS

HYDRAULIC HAMMERS

There is a Rammer® hydraulic hammer for virtually any breaking application. So whether you are working with demolition, recycling, mining, construction or quarrying, we have the hammer to give you the best results.

Rammer® hammers are tough, durable and offer you the most economical owning and operating costs while delivering maximum production.

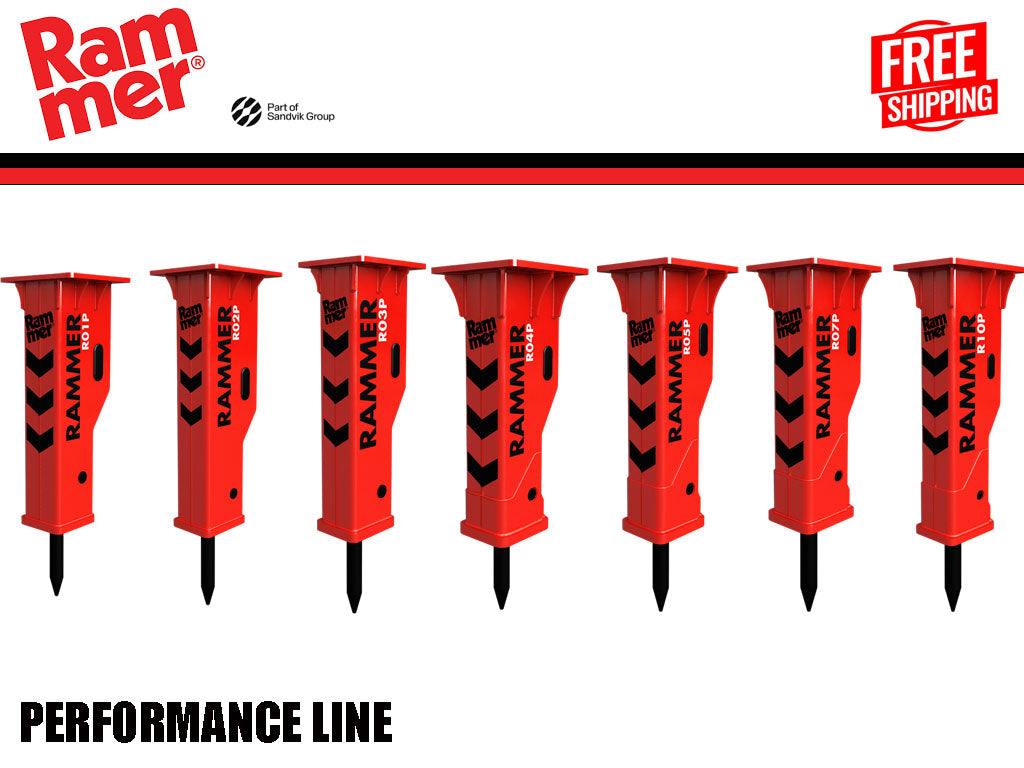

PERFORMANCE LINE

Rammer's Performance Line hammers are the perfect solution for your challenges when you value quality and reliability.

When developing the Performance Line, operator comfort was an important goal. The vibration and soundproof housing minimizes the noise level and effectively dampens vibrations.

Other innovative features such as quick tool change system, our automatic lubrication system Ramlube II and RD3 / MyFleet monitoring system, increase hammer performance and your company's profits. Ramlube II and optional RD3 / MyFleet are available for Performance Line Medium and Large Range models from the R16P upwards.

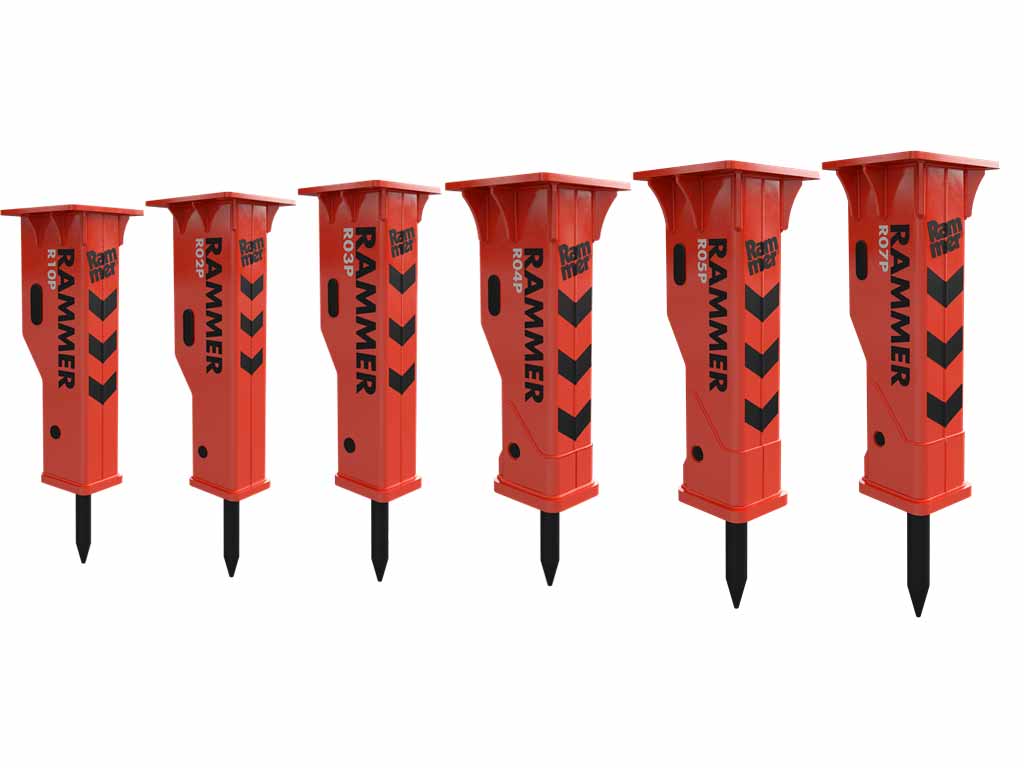

SMALL RANGE HAMMERS

Designed with proven Rammer standards, the Performance Line Small Range hammers feature vibration and soundproof housing, central hose connections for easy mounting of hydraulic quick hitch mounting bracket and fast-change tool system for quick and safe tool changing.

Rammer's Performance Line Small Range hydraulic hammers are your reliable solution to any breaking application for carriers between 0.7 and 12 tons (1500–26500 lbs).

MODEL CARRIER (EXCAVATOR) GPM

ENERGY

CLASS

R01P 1800-4400 LBS 4.0 - 6.6 200
R02P 2900-7300 LBS 4.0 - 10.0 350
R03P 4400-9700 LBS 6.6 - 13.0 500
R04P 6600-13200 LBS 8.0 - 16.0 600
R05P 8800-16500 LBS 9.2 - 18.0 800
R07P 11000-19800 LBS 12.0 - 24.0 1000
R10P 13200-26500 LBS 13.0 - 25.0 1200

R01P

The Rammer R01P is your reliable and profitable solution for carriers between 0.7-2.1 tons. The 95 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.

The R01P's simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.

FEATURES

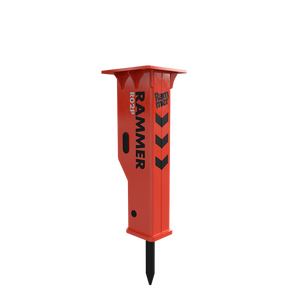

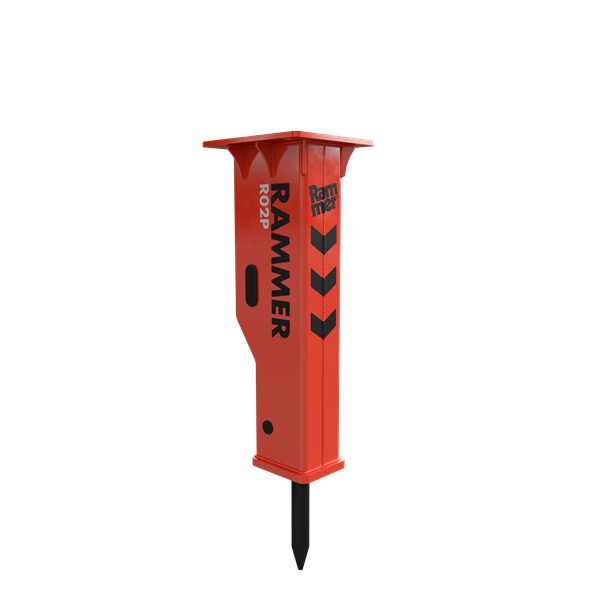

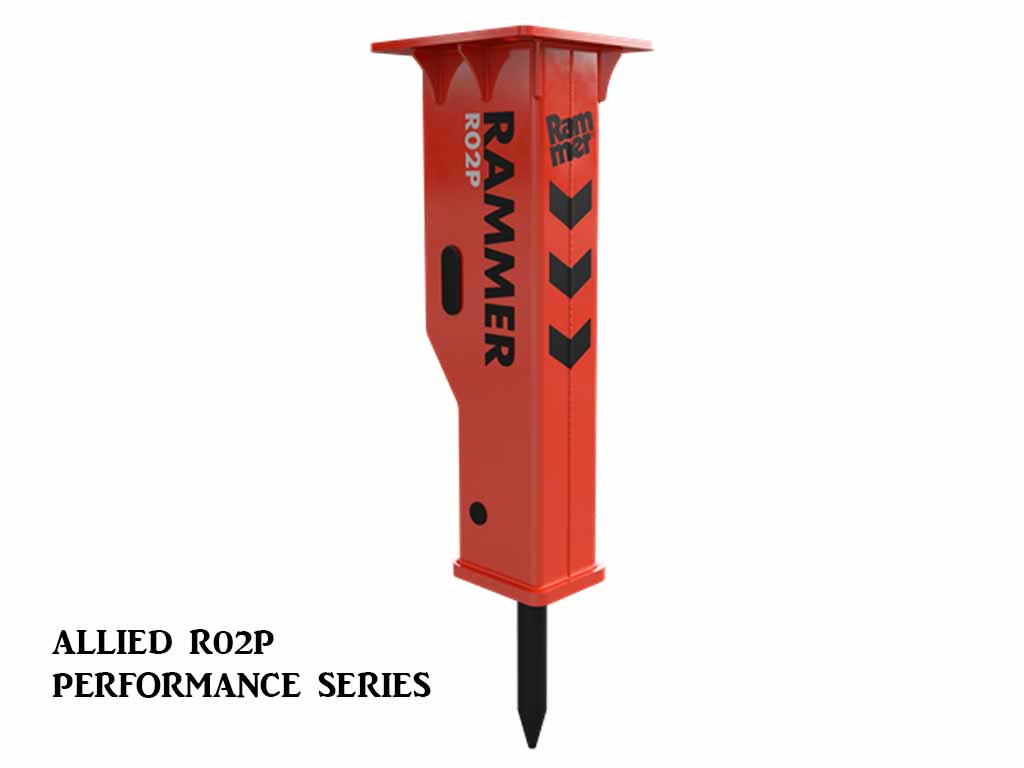

R02P

The Rammer R02P is your reliable and profitable solution for carriers between 1.3-3.3 tons. The 130 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.

The R02P's simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.

FEATURES

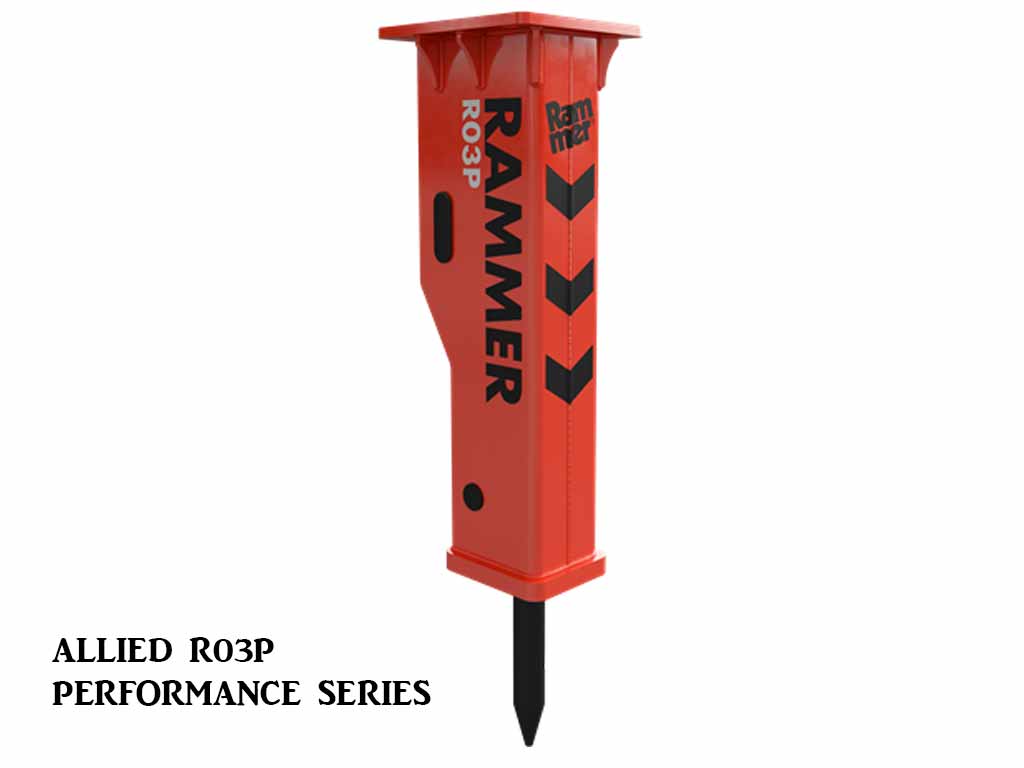

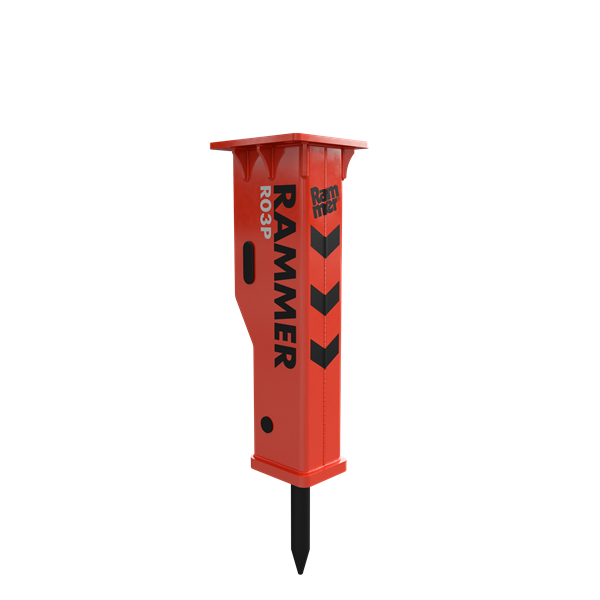

R03P

The Rammer R03P is your solid and profitable partner for carriers between 2.0-4.4 tons. The 180 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.

The R03P's simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.

FEATURES

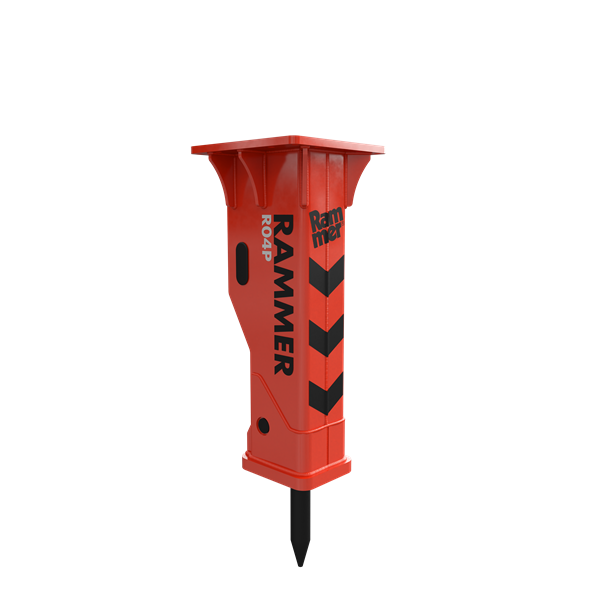

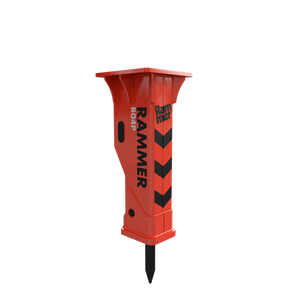

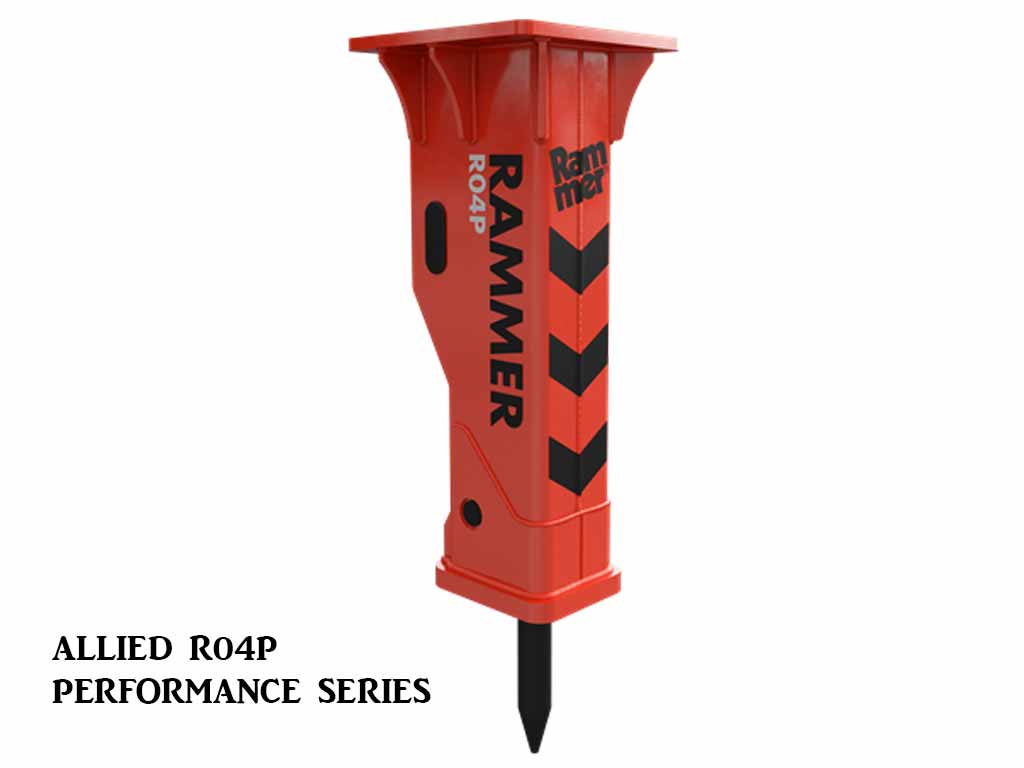

R04P

The Rammer R04P is your partner for a wide range of breaking duties. The 285 kg hammer is suitable for carriers between 2.0-4.4 tons.

The R04P has been designed with proven Rammer features and standards. This hammer offers more than just excellent power-to-weight ratio, it offers the quality reassurance that only a true Rammer hammer can.

FEATURES

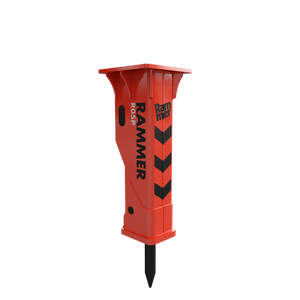

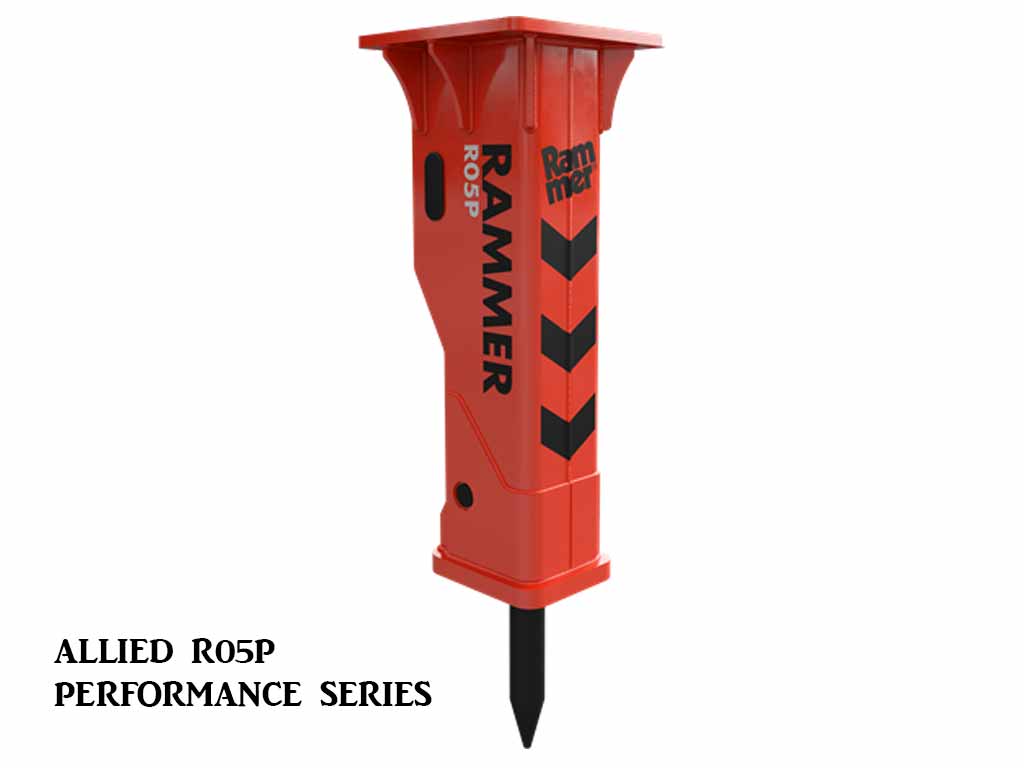

R05P

The 325 kg Rammer R05P is your daily partner for a wide range of breaking demands. Compatible with carriers in the 3.0 to 7.5 tonne range.

The R05P has been designed with proven Rammer features and standards. This Rammer Performance Line hammer offers more than just excellent power-to-weight ratio, it brings the quality reassurance that only a true Rammer hammer can offer.

FEATURES

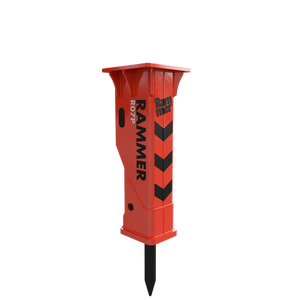

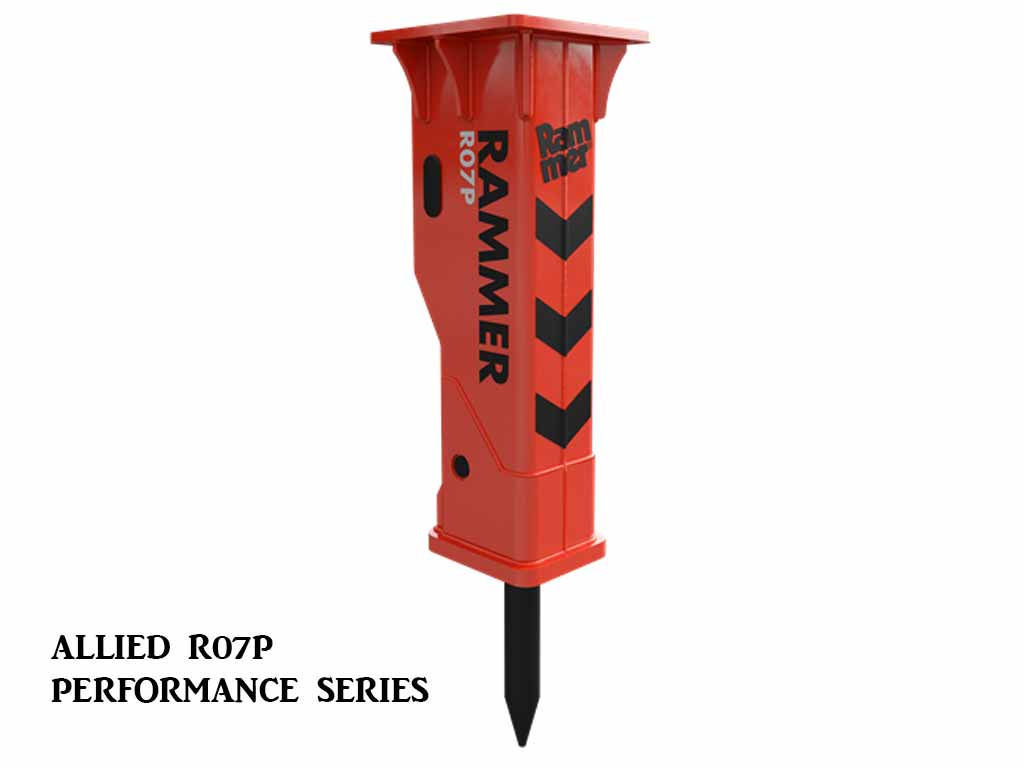

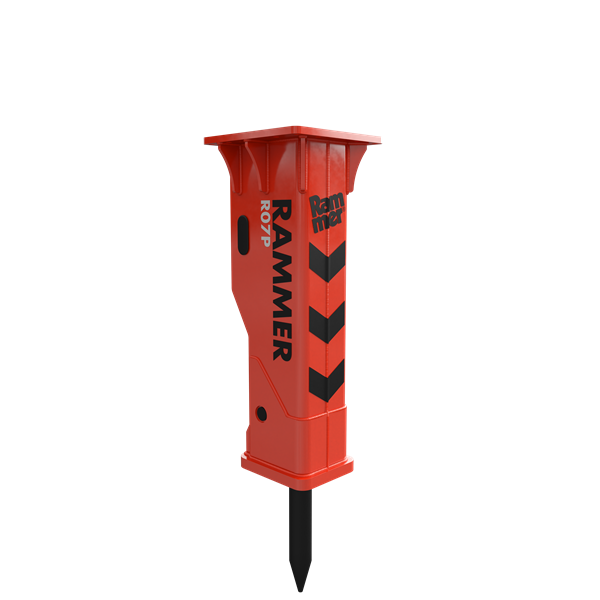

R07P

The Rammer R07P is your reliable and profitable solution for carriers between 3.5-9 tons. The 400 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.

The R07P's simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.

FEATURES

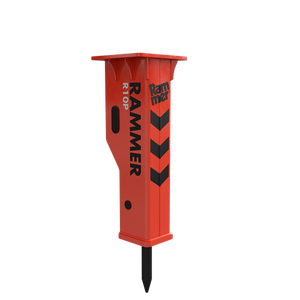

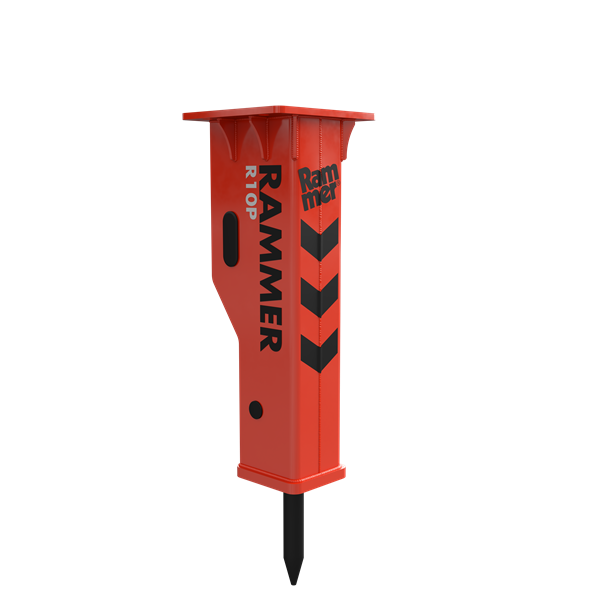

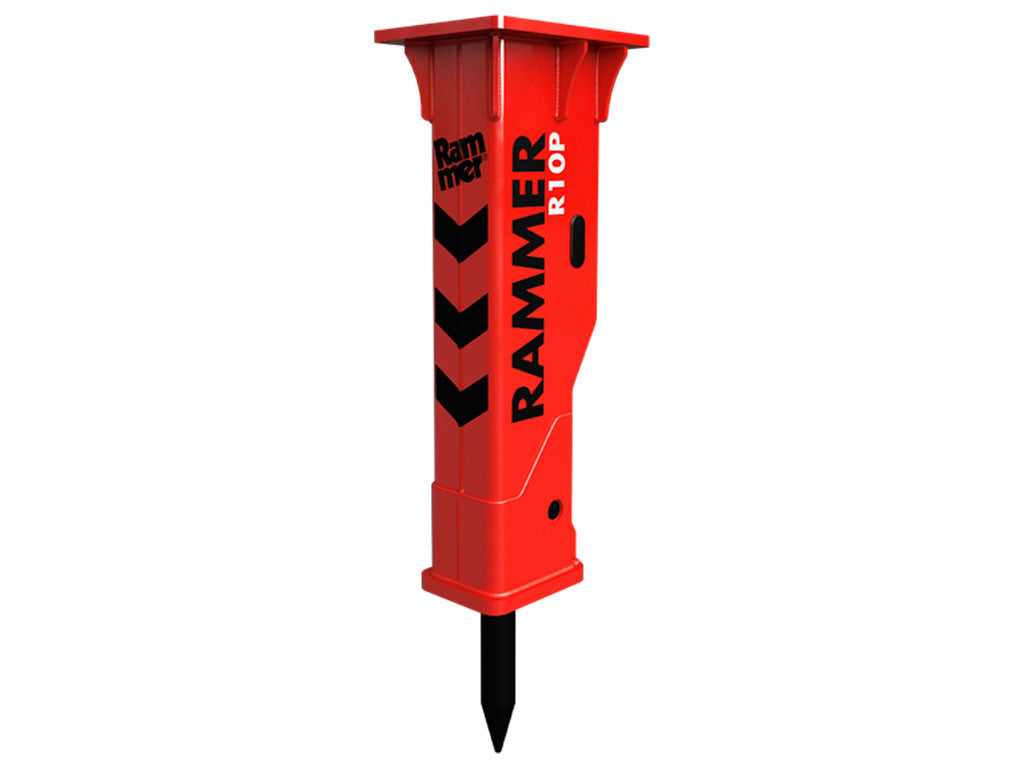

R10P

The Rammer R10P is your solid and profitable solution for carriers between 4-12 tons. The 530 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.

The R10P's simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.

FEATURES



MODEL R01P
MIN WORKING WEIGHT 209 LB
TOOL DIAMETER 1.57"
OIL FLOW RANGE 4-7 GPM
IMPACT RATE 700-1400 BPM
OPERATING PRESSURE 1160-1740 PSI
PRESSURE RELIEF MIN 2176 PSI
PRESSURE RELIEF MAX 2466 PSI
BACK PRESSURE 290 PSI
INPUT POWER 7 HP
MINI EXCAVATOR RANGE 1763-4630 LB
SKID STEER RANGE 1543-3527 LB
NOISE LEVEL 110 DBA
NOISE LEVEL GUARANTEED 114 DBA


 MODEL R02P
MIN WORKING WEIGHT 287 LB
TOOL DIAMETER 1.77"
OIL FLOW RANGE 4-11 GPM
IMPACT RATE 450-1400 BPM
OPERATING PRESSURE 870-1740 PSI
PRESSURE RELIEF MIN 2176 PSI
PRESSURE RELIEF MAX 2466 PSI
BACK PRESSURE 290 PSI
INPUT POWER 11 HP
MINI EXCAVATOR RANGE 2886-7275 LB
SKID STEER RANGE 2646-4850 LB
NOISE LEVEL 111 DBA
NOISE LEVEL GUARANTEED 115 DBA



 MODEL R03P
MIN WORKING WEIGHT 408 LB
TOOL DIAMETER 2.09"
OIL FLOW RANGE 7-13 GPM
IMPACT RATE 600-1200 BPM
OPERATING PRESSURE 1088-1740 PSI
PRESSURE RELIEF MIN 2176 PSI
PRESSURE RELIEF MAX 2466 PSI
BACK PRESSURE 290 PSI
INPUT POWER 13 HP
MINI EXCAVATOR RANGE 4409-9700 LB
SKID STEER RANGE 3086-7055 LB
NOISE LEVEL 112 DBA
NOISE LEVEL GUARANTEED 116 DBA
 MODEL R04P
MIN WORKING WEIGHT 628 LB
TOOL DIAMETER 2.36"
OIL FLOW RANGE 8-16 GPM
IMPACT RATE 550-1050 BPM
OPERATING PRESSURE 1015-1885 PSI
PRESSURE RELIEF MIN 2176 PSI
PRESSURE RELIEF MAX 2466 PSI
BACK PRESSURE 290 PSI
INPUT POWER 17 HP
MINI EXCAVATOR RANGE 6614-13228 LB
SKID STEER RANGE 4409-8157 LB
NOISE LEVEL 114 DBA
NOISE LEVEL GUARANTEED 118 DBA
 MODEL R05P
MIN WORKING WEIGHT 739 LB
TOOL DIAMETER 2.68"
OIL FLOW RANGE 9-18 GPM
IMPACT RATE 400-1050 BPM
OPERATING PRESSURE 1595-2031 PSI
PRESSURE RELIEF MIN 2901 PSI
PRESSURE RELIEF MAX 3191 PSI
BACK PRESSURE 218 PSI
INPUT POWER 24 HP
MINI EXCAVATOR RANGE 8818-16535 LB
SKID STEER RANGE 6614-11464 LB
NOISE LEVEL 115 DBA
NOISE LEVEL GUARANTEED 119 DBA
 MODEL R07P
MIN WORKING WEIGHT 904 LB
TOOL DIAMETER 2.95"
OIL FLOW RANGE 12-24 GPM
IMPACT RATE 450-950 BPM
OPERATING PRESSURE 1160-2031 PSI
PRESSURE RELIEF MIN 2901 PSI
PRESSURE RELIEF MAX 3191 PSI
BACK PRESSURE 218 PSI
INPUT POWER 28 HP
MINI EXCAVATOR RANGE 11023-19842 LB
SKID STEER RANGE 7716-13228 LB
NOISE LEVEL 117 DBA
NOISE LEVEL GUARANTEED 121 DBA




Chisel tool

The Standard Chisel Tool is used for rock and reinforced concrete.

Long chisel tool

The Long Chisel is designed to be used mainly on a breaker boom, where it supplies the extra length to tackle hard rock that may obstruct a crusher.

Moil point tool

Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunnels.

Pyramid tool

The Pyramid Tool makes light work of breaking non-abrasive material of all strengths. Non-abrasive materials which allow a high penetration rate, especially concrete, are short work for the Pyramid tool.

Spade tool, parallel to boom

"Parallel" tools have the cutting edge in line with the boom.  Spade tools are ideal for cutting through materials such as asphalt and frozen or compact ground. Spade tool allows the material to be broken in such a precise manner that it is ideal for road or pavement repair work.

Spade tool, transverse to boom

"Transverse" tools have the cutting edge across the boom.  Spade tools are ideal for cutting through materials such as asphalt and frozen or compact ground. Spade tool allows the material to be broken in such a precise manner that it is ideal for road or pavement repair work.

Compacting plate tool

The Ground Compacting Tool allows compatible hammers to double in function as a ground compactor, removing the need to have a specialized  compacting attachments or machines at smaller job sites.

Long moil point tool

The Long Moil Point Tool is designed to be used mainly with a breaker boom where it supplies the extra length to break rock which may block a crusher.
