ALLIED vibratory compactor

Size
MOUNTING

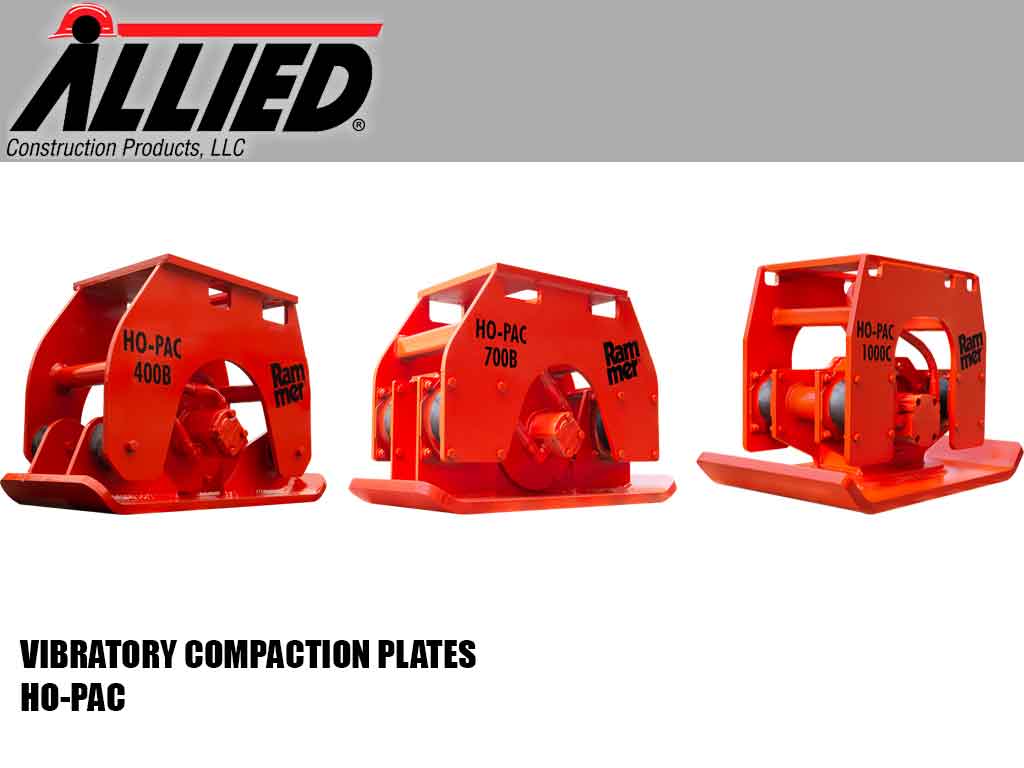

HO-PAC COMPACTOR DRIVERS

Available in North American market only

Ho-Pac compactor drivers save you time, money, and increase productivity by expanding versatility and eliminating the need for special purpose machines. The Ho-Pac models use an eccentric, rotating weight that creates vibrations and impulse energy for effective soil compaction. They are also efficient at driving wood, steel and aluminum sheeting, beams, posts, piling and seawalls.

Ho-Pac 400B

The 500lbs (227kg) Ho-Pac 400B is ideal for trench, slope and excavation compaction. Compatible with carriers in the 3,000 to 12,000  ton range, the attachment is designed for use in mini-excavators, skid-steers, rubber-tired backhoes and trenchers with a backhoe attachment.

The Ho-Pac 400B features Four Function Valve that controls flow, pressure, regeneration and oil flow direction, Grease filled sealed bearings providing maintenance free lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.

Manufactured in the USA

Ho-Pac 700B

The 750lbs (340kg) Ho-Pac 700B is ideal for trench, slope and excavation compaction. Compatible with carriers in the 8,000 to 20,000  ton range, the attachment is designed for use in mini-excavators, skid-steers, rubber-tired backhoes and trenchers with a backhoe attachment.

The Ho-Pac 700B features Four Function Valve that controls flow, pressure, regenerations and oil flow direction, Grease filled sealed bearings providing maintenance free lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.

Manufactured in USA.

Ho-Pac 1000C

The 1120lbs (508kg) Ho-Pac 1000C is ideal for trench, slope and excavation compaction. Compatible with carriers in the 9,000 to 30,000 ton range, the attachment is designed for use in small to medium rubber-tired loader and backhoes.

The Ho-Pac 1000C features Four Function valve that controls flow, pressure, regenerations and oil flow direction, Grease filled sealed bearings providing maintenance free lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.

Manufactured in the USA.

 MODEL 400B 700B 1000C
IMPULSE FORCE (LBS) 4000 6400 8000
OPERATION FREQUENCY (RPM) 2000 2000 2000
HYDRAULIC FLOW (GPM) 6/9/14/18 6/9/14/18 12/18/21
OPERATION PREASURE (PSI) 2800/2800/2500/2000 2800/2800/2500/2000 2800/2000/2000
OVERALL HEIGHT 21" 22" 26"
DIMENSIONS 13X31 18X35 24X37
COMPACTOIN AREA (SQ FT) 2.3 3.4 4.7
MOUNTING BRACKET IN1/IN2/XR XR/BR BR/SR
WORKING WEIGHT 500 LBS 750 LBS 1120 LBS
CARRIER CLASS 3000-12000 LBS 8000-20000 LBS 9000-30000 LBS
