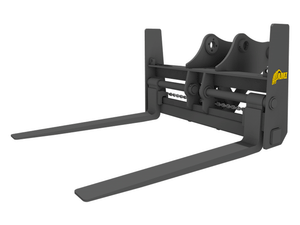

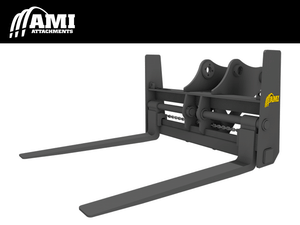

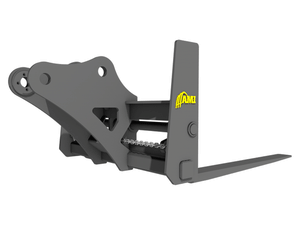

AMI Excavator Fork Rack

AMI Excavator Fork Rack – Heavy-Duty Material Handling for Excavators

Increase the versatility of your excavator with the AMI Excavator Fork Rack, a rugged material handling attachment engineered for lifting, transporting, loading, and unloading palletized materials on demanding jobsites. Whether you're moving construction supplies, pipe, lumber, concrete products, or bundled materials, the AMI Fork Rack transforms your excavator into a powerful lifting solution while extending your reach into areas where forklifts and telehandlers cannot operate.

Built with heavy-duty construction and backed by a 2-Year Manufacturer Warranty, the AMI Excavator Fork Rack is designed for maximum strength, durability, and long-term performance in construction, utility, demolition, and industrial applications.

Built for Maximum Productivity

The AMI Fork Rack features a 60-inch wide frame that provides outstanding stability while maintaining excellent visibility for the operator. Designed for excavators ranging from 24,000 to 90,000 lbs, the fork rack offers exceptional lifting performance while allowing operators to safely transport palletized loads across challenging terrain.

Choose from multiple Standard Taper fork tine lengths to match your application, giving you the flexibility to handle everything from standard pallets to oversized materials.

Features & Benefits

• Heavy-duty excavator pallet fork system
• Extends excavator reach for efficient material handling
• Ideal for loading, unloading, transporting, and positioning palletized materials
• Heavy-duty 60" fork frame for superior strength and stability
• Multiple Standard Taper fork tine lengths available
• Excellent visibility for improved operator control
• Built for demanding construction and industrial environments
• Compatible with excavators from 24,000 to 90,000 lbs
• Manufactured under AMI's Fast Track Program for reduced lead times
• Backed by a 2-Year Manufacturer Warranty

Available Fork Tine Options

FR243360

Machine Class: 24,000–33,000 lbs

• 2" x 6" x 48" Standard Taper
• 2" x 6" x 54" Standard Taper
• 2" x 6" x 60" Standard Taper

Fork Capacity: 12,600 lbs per pair @ 24" load center

Frame Width: 60"

Operating Weight: 1,450 lbs

FR334060

Machine Class: 33,000–45,000 lbs

• 2" x 6" x 48" Standard Taper
• 2" x 6" x 54" Standard Taper
• 2" x 6" x 60" Standard Taper

Fork Capacity: 12,600 lbs per pair @ 24" load center

Frame Width: 60"

Operating Weight: 1,500 lbs

FR404560

Machine Class: 45,000–90,000 lbs

Available Fork Lengths:

• 2.5" x 6" x 48"
• 2.5" x 6" x 54"
• 2.5" x 6" x 60"
• 2.5" x 6" x 72"
• 2.5" x 6" x 84"
• 2.5" x 6" x 96"

Fork Capacity: 21,400 lbs per pair @ 24" load center

Frame Width: 60"

Machine Compatibility

Ideal Applications

The AMI Excavator Fork Rack is perfect for:

• Construction material handling
• Pallet loading and unloading
• Utility installations
• Pipe handling
• Lumber and steel transport
• Concrete product placement
• Landscaping projects
• Demolition cleanup
• Agricultural operations
• Industrial facilities
• Municipal maintenance

AMI Fast Track Program

Many AMI Excavator Fork Rack models are available through the AMI Fast Track Program, providing faster manufacturing and shipping on high-demand products without compromising quality or increasing cost. This program helps contractors minimize downtime and get the equipment they need quickly to keep projects on schedule.

Why Choose the AMI Excavator Fork Rack?

The AMI Excavator Fork Rack delivers exceptional lifting capability, heavy-duty construction, and multiple fork configurations for a wide range of material handling applications. Designed for professional contractors and equipment fleets, it increases excavator productivity by eliminating the need for additional lifting equipment on many jobsites.

Whether you're unloading deliveries, moving pallets around a construction site, or placing heavy materials with precision, the AMI Excavator Fork Rack offers the strength, durability, and reliability needed to get the job done.

Specifications
