AMI REACTOR 4-N-1 trip edge Pusher blade with hose kit

Size
HARNESS

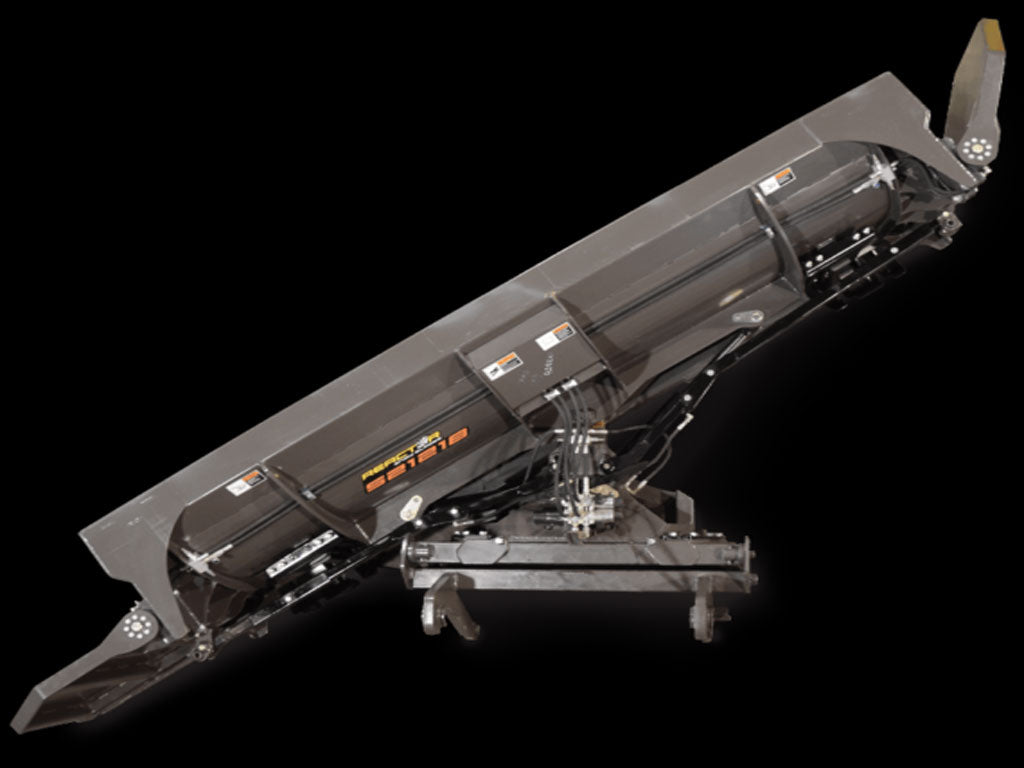

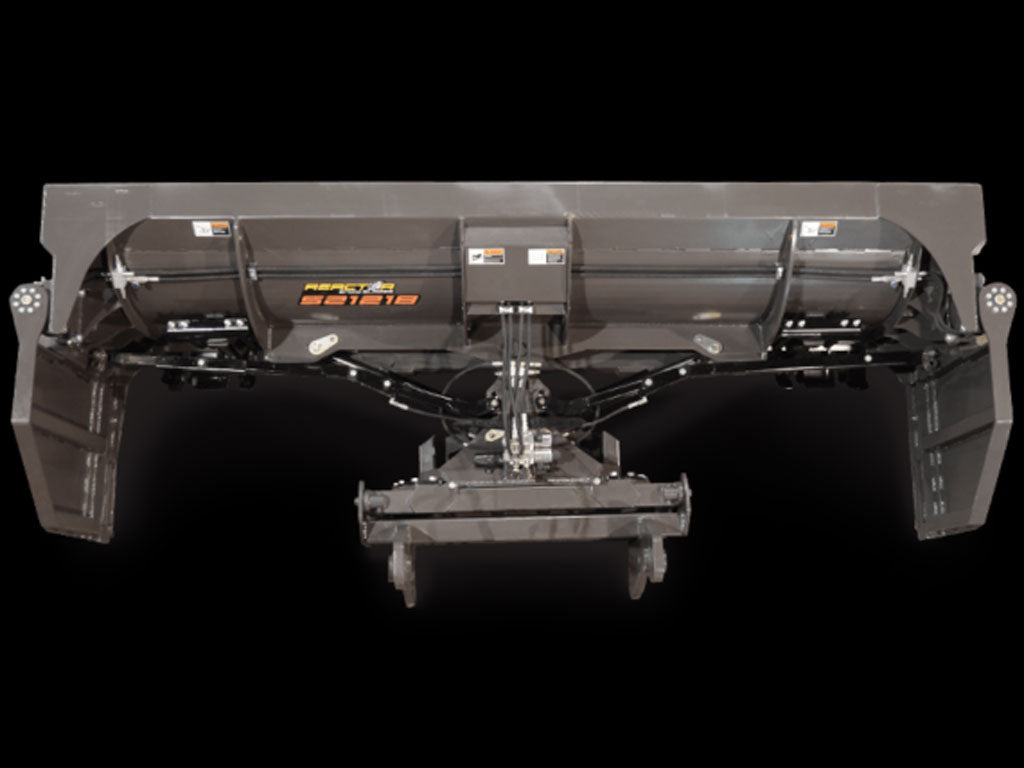

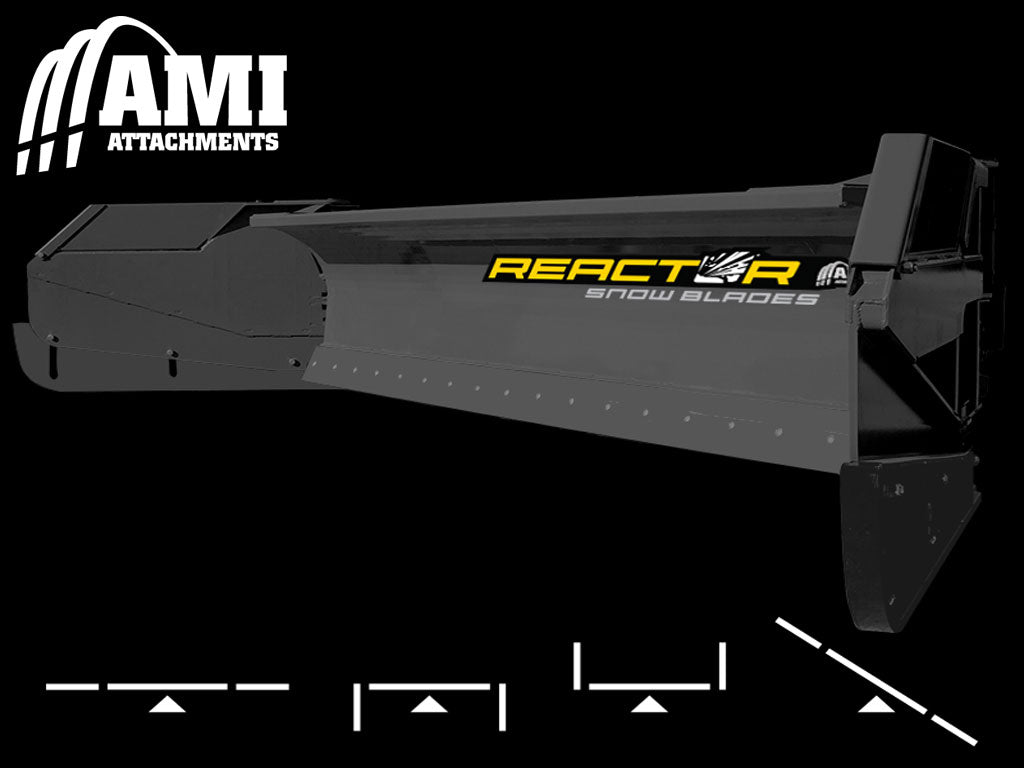

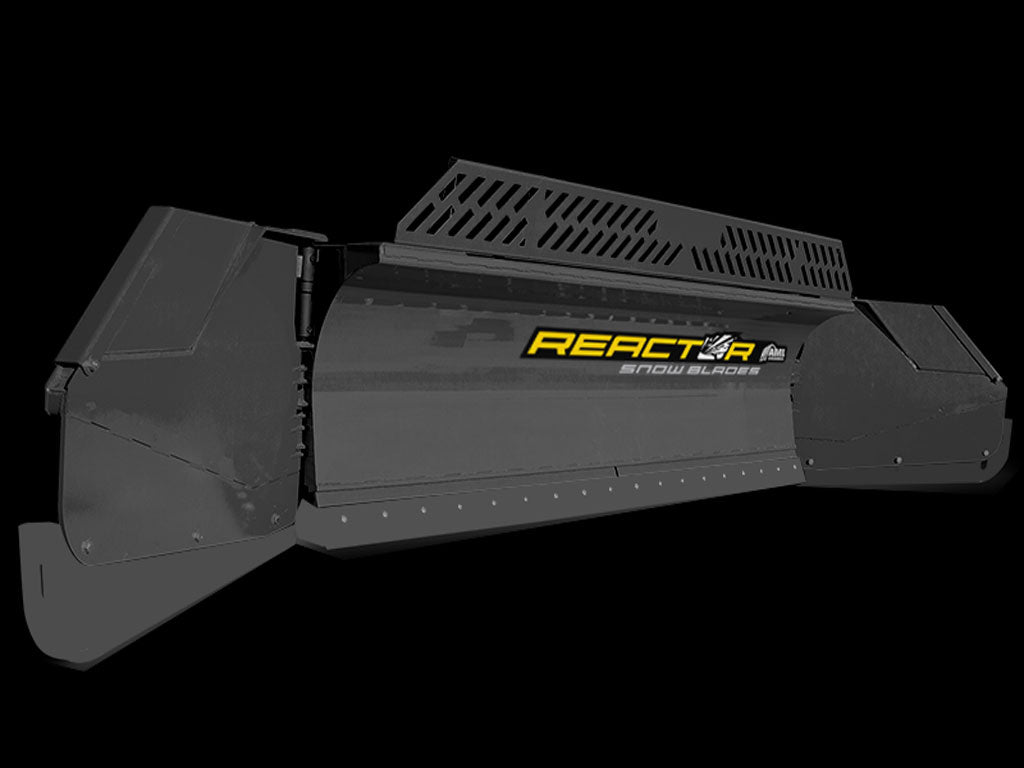

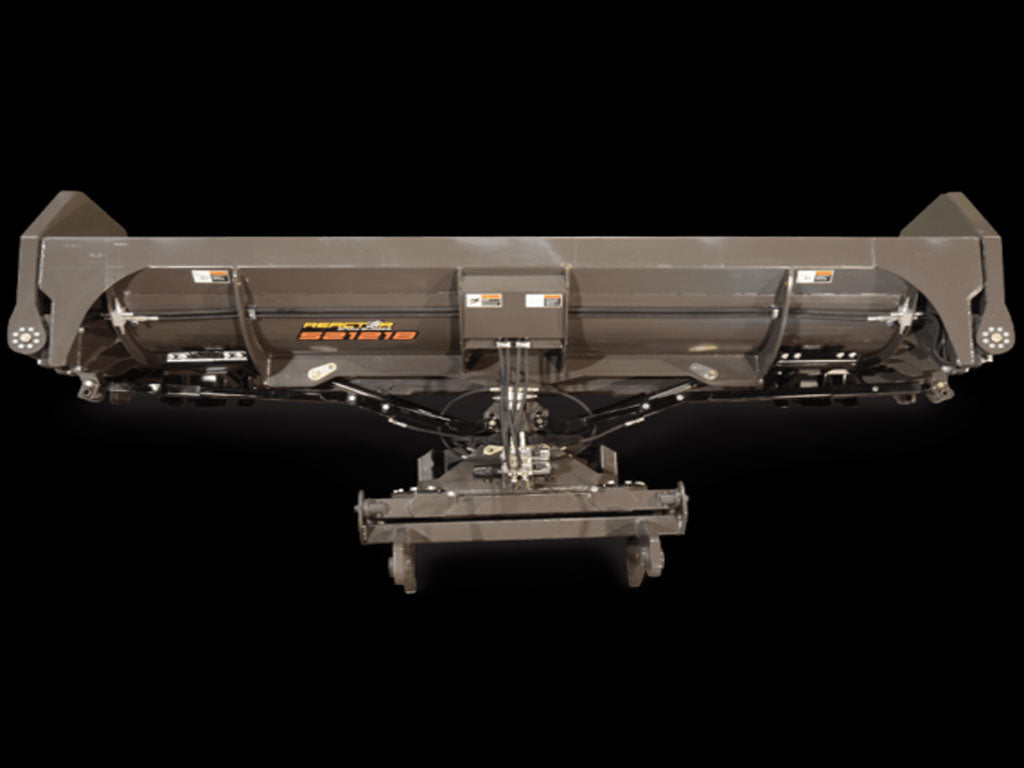

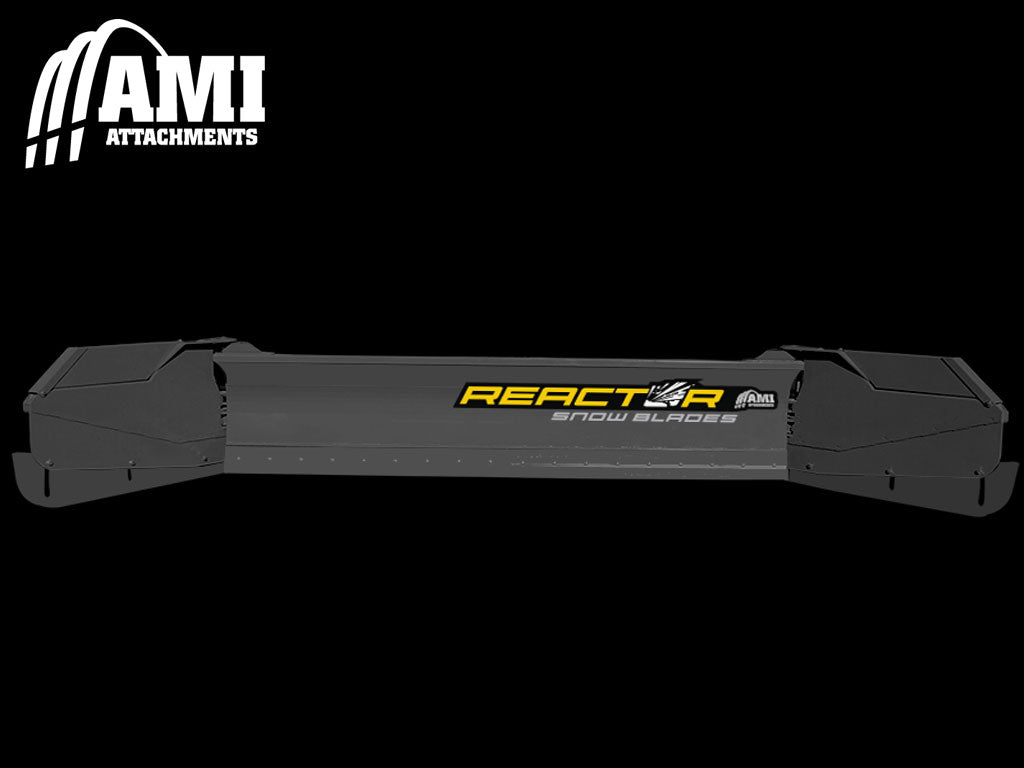

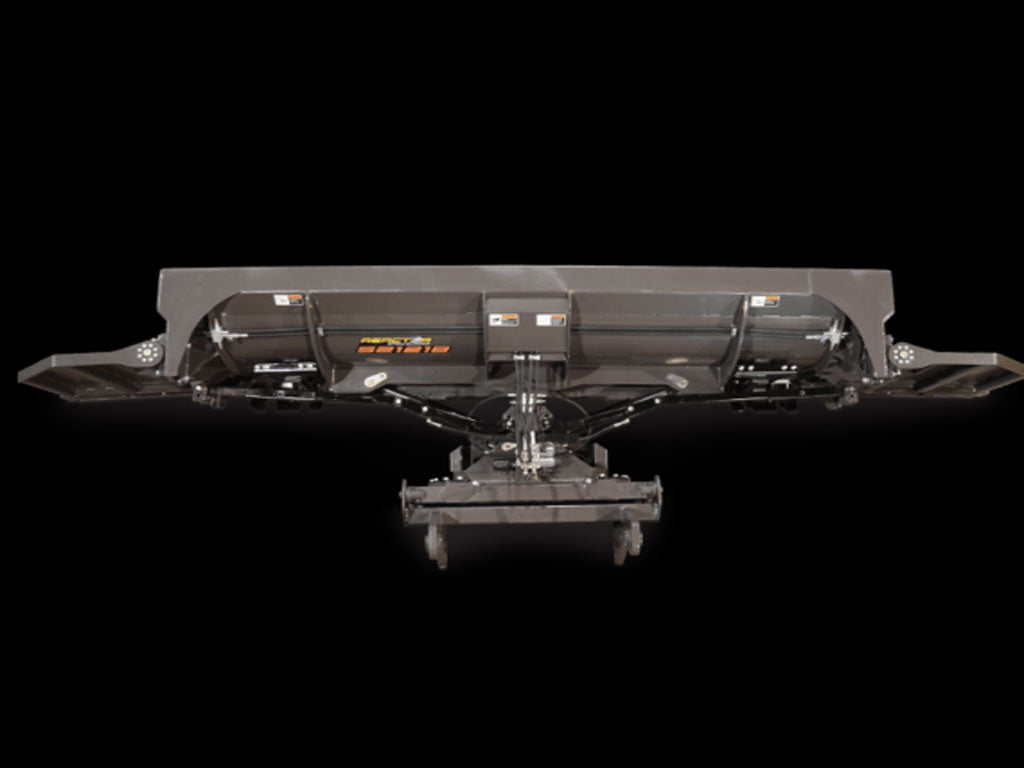

4-IN-1 ANGLE BLADE (5′ WING)

For maximum plowing versatility, the 4205, 5205 and 6205 4-in-1 models allow for greater clearing capacity at large sites with a five foot wing, with the flexibility to handle a smaller plowing area by narrowing down the blades. The endplates are hydraulically-controlled and equipped with industry-proven rotary actuators, giving you rugged and limitless control within the massive 180 degree rotation. Getting close to buildings and other objects is easy with the limitless on-the-fly in-cab adjustability.

    FEATURES

    • FORWARD FLOAT

    • LATERAL FLOAT

    • CROSSOVER RELIEF VALVE

    • SPRING-TRIP CUTTING EDGE

    • 180 DEGREE PIVOT RANGE ROTARTY ACTUATOR

    • TIRE PROTECTION SYSTEM


    ADDITIONAL OPTIONS CAN BE ADDED (CALL FOR PRICE)

    • CURB RUNNERS
    • CORNER MARKERS
    • SPILL GUARD
    FastTrack Category Model Machine Class Retracted Width Extended Width Height Weight
    SSL SB320611SS 6' 11' 30" 1640 lbs
    YES SSL SB320712SS 7' 12' 30" 1705 lbs
    YES SSL SB320813SS 8' 13' 30"
    1765 lbs
    SSL SB320914SS 9' 14' 30"
    1820 lbs
    SSL SB321015SS 10' 15' 30" 1880 lbs

    FastTrack LogoAMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
