AMMANN

AMMANN APF forward moving vibratory plate

MODEL
KIT

VIBRATORY PLATES- VIBRATORY PLATE FOR EVERY APPLICATION

Ammann Vibratory Plate Compactors are ready for any situation. The product line ranges from a light 119 lb (54 kg) to a much heavier 1819 lb (825 kg) – with many models in between.

APPLICATIONS

  • Compaction in confined areas
  • Earthwork
  • Asphalt and paving
  • Light to medium patchwork
  • Pipeline and trench construction
  • Landscaping and gardening

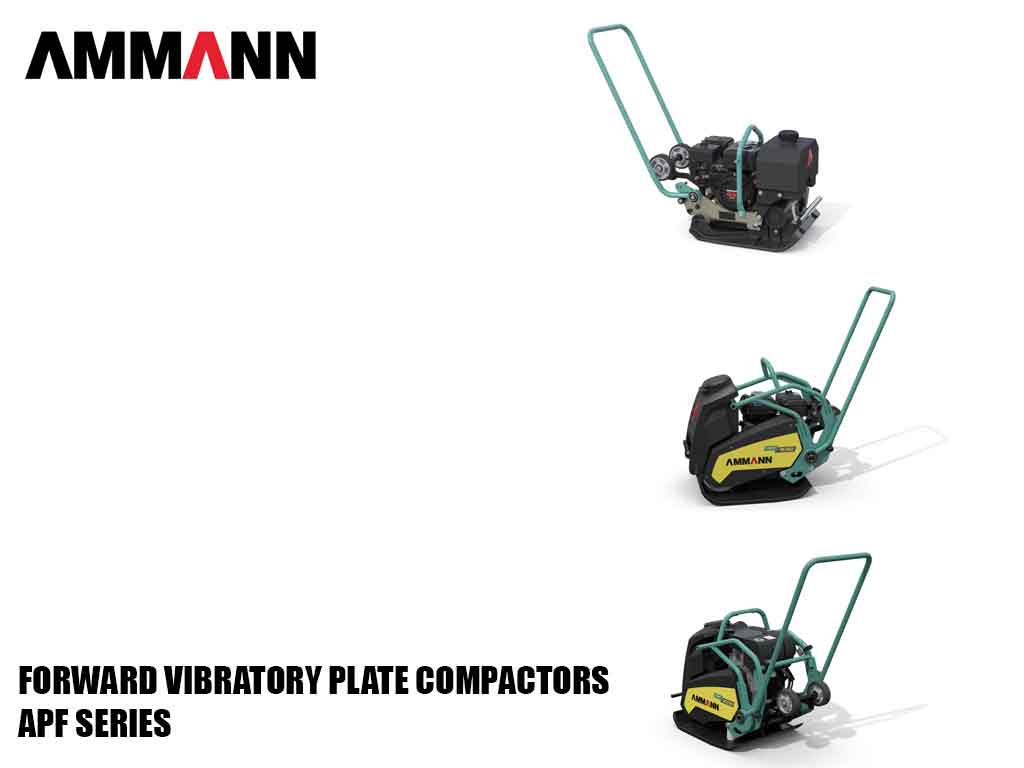

APF VIBRATORY PLATES - FORWARD MOVING VIBRATORY PLATES

PROUCTIVITY

  • Superior compaction output Small machine frame and high force enable quick and complete compaction.
  • Balanced base plate Asymmetric base plate for optimal weight distribution and high durability.
  • Unmatched speed Superior mobility and high working speed.
  • Applications The compactor combines a unique machine concept with an ability to perform in varied applications.
ERGONOMICS
  • Low-vibration guide handle Industry-leading HAV values below 2.5 m/sec2 protect the operator and eliminate the need for time-consuming record keeping.
  • Convenient machine control Ergonomically optimized for perfect machine control during the working shift.
  • Tool-free options Quick and easy machine modifications for multiple applications.
  • Safe transport Simple machine security and optimal safety during transport.

SERVICEABILITY

  • Maintenance-free exciter system Robust design with well protected ball bearings for long, maintenance-free life.
  • Wear-optimized base plate Heavy-duty base plate for extended machine life.
  • Protective frame and covers Protects all key components against damage – on the jobsite or during transport.
  • Tool-free daily inspection No tools are required for daily maintenance.

*** MODEL 12/33 IS BEING PHASED OUT

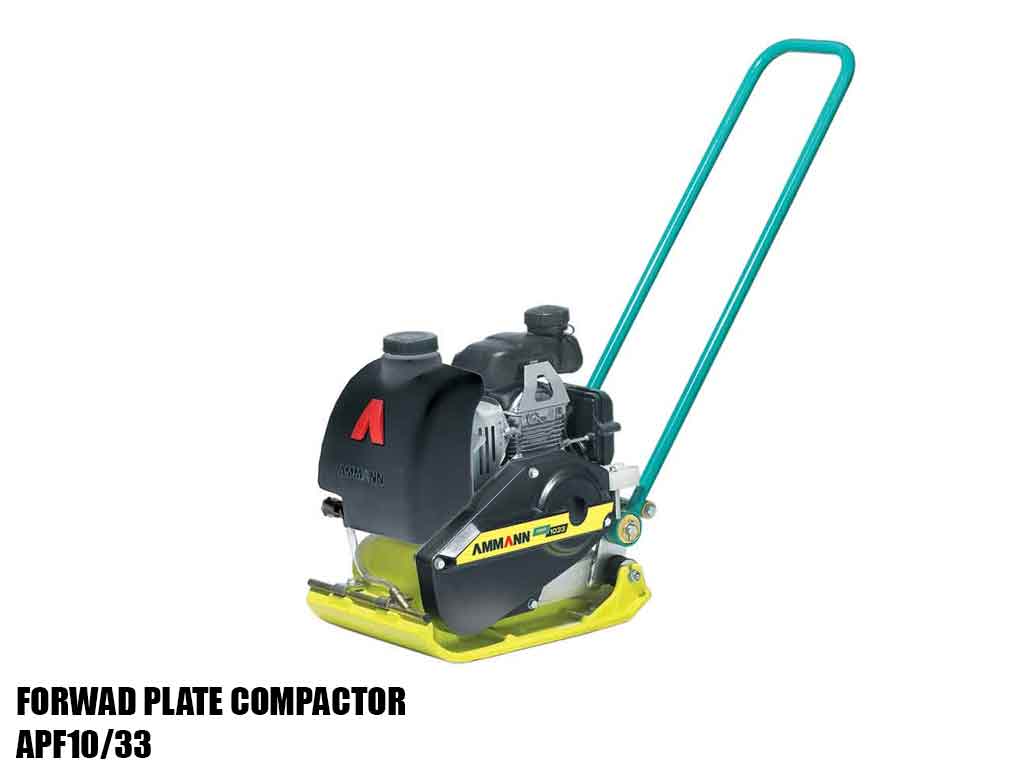

MODEL APF 10/33 APF 12/33
FUEL GAS GAS
WEIGHT 119 LB 150 LB
WIDTH 13" 13"
MAX VIBRATION 6000 VPM 6000 VPM
MAX FORCE 2360 LBF 2697 LBF

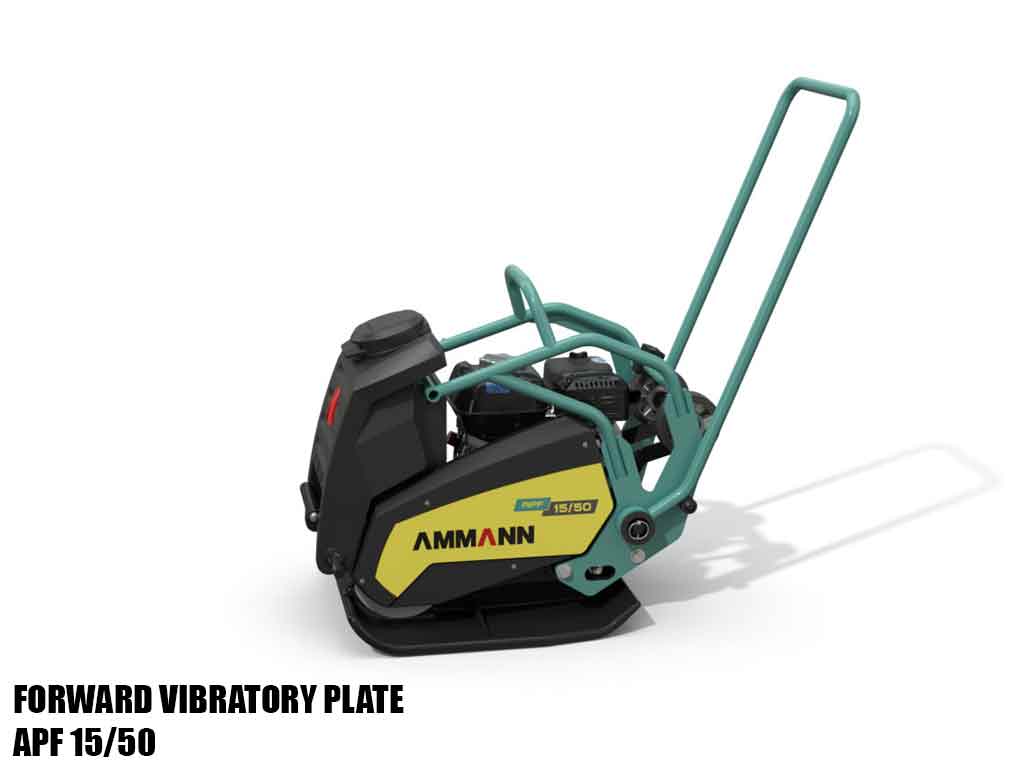

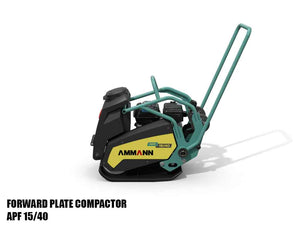

MODEL APF 15/40 APF 15/50
FUEL GAS GAS
WEIGHT 152 LB 176 LB
WIDTH 15.7" 15.7"
MAX VIBRATION 5880 VPM 6000 VPM
MAX FORCE 2697 LBF 3372 LBF

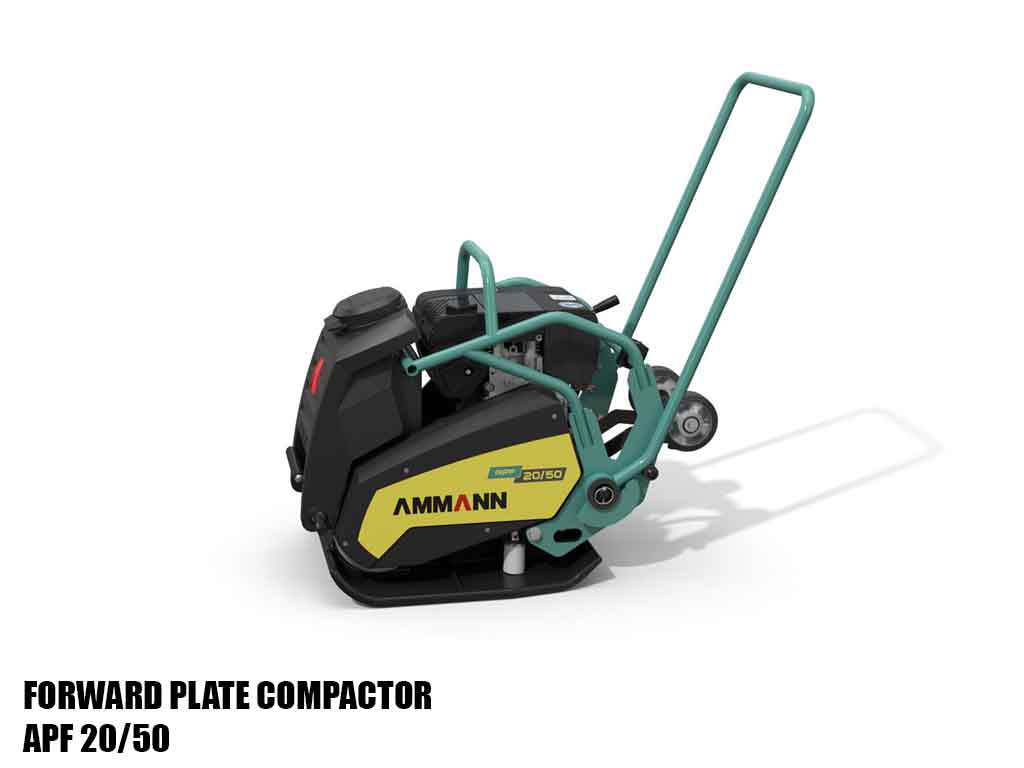

MODEL APF 20/50 APF 20/50
FUEL GAS DIESEL
WEIGHT 194 LB 234 LB
WIDTH 19.7" 13"
MAX VIBRATION 5400 VPM 5400 VPM
MAX FORCE 4046 LBF 4046 LBF
