402-090-000

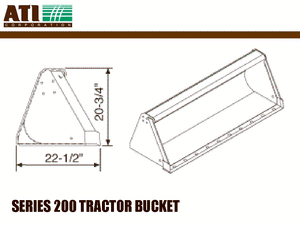

ATI Group Series 200 utility tractor bucket
$1,207.00 - $1,617.00
8/25
Series 200 Utility Bucket
Tractor
Economical bucket for loaders with lift capacities up to 1500 lbs. Made to fit numerous quick attach or 4-pin compact tractor loaders. Flat top design for use as a level indicator. Square heel aids back grading. Pre-drilled holes for optional accessories (Bolt-on cutting edge)
- PREMIUM BUCKET FOR LOADERS WITH LIFT CAPACITIES UP TO 1500 LBS.
- MADE TO FIT NUMEROUS QUICK ATTACH OR 4 PIN COMPACT TRACTORS LOADERS
- ROUNDED BACK FOR EASY CLEAN OUT
- PRE-DRILLED HOLES FOR BOLT ON EDGE
- SQUARE HEAL AIDS BACK GRADING
- COLOR CHOICES: ORANGE , GREEN OR BLACK

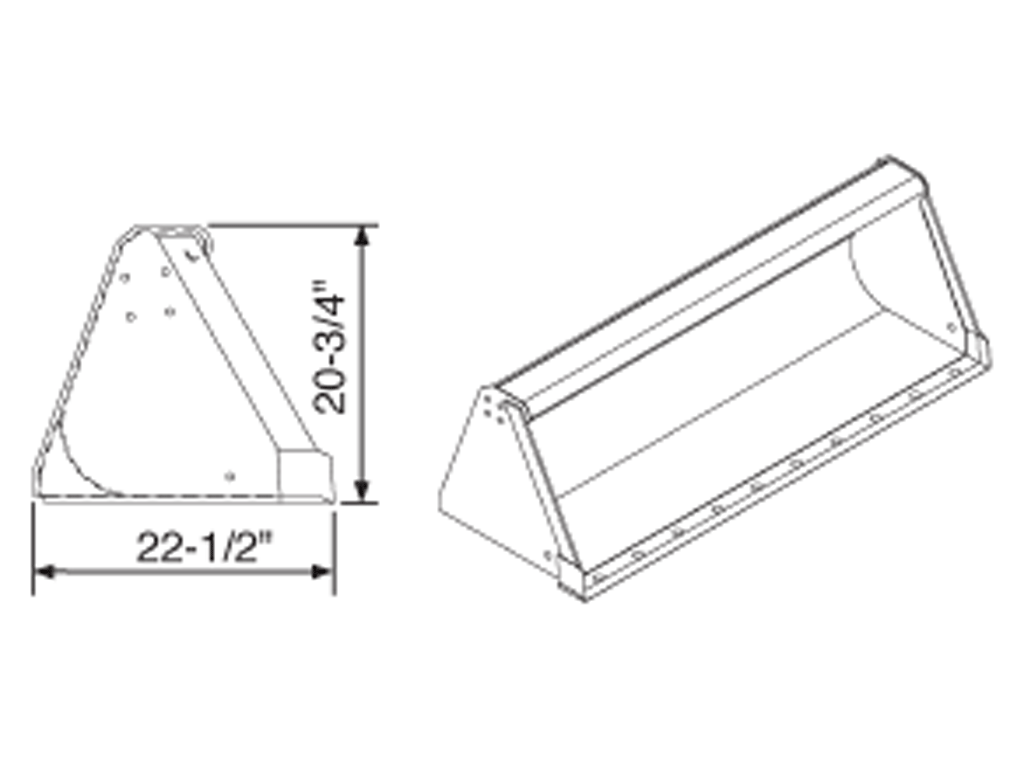

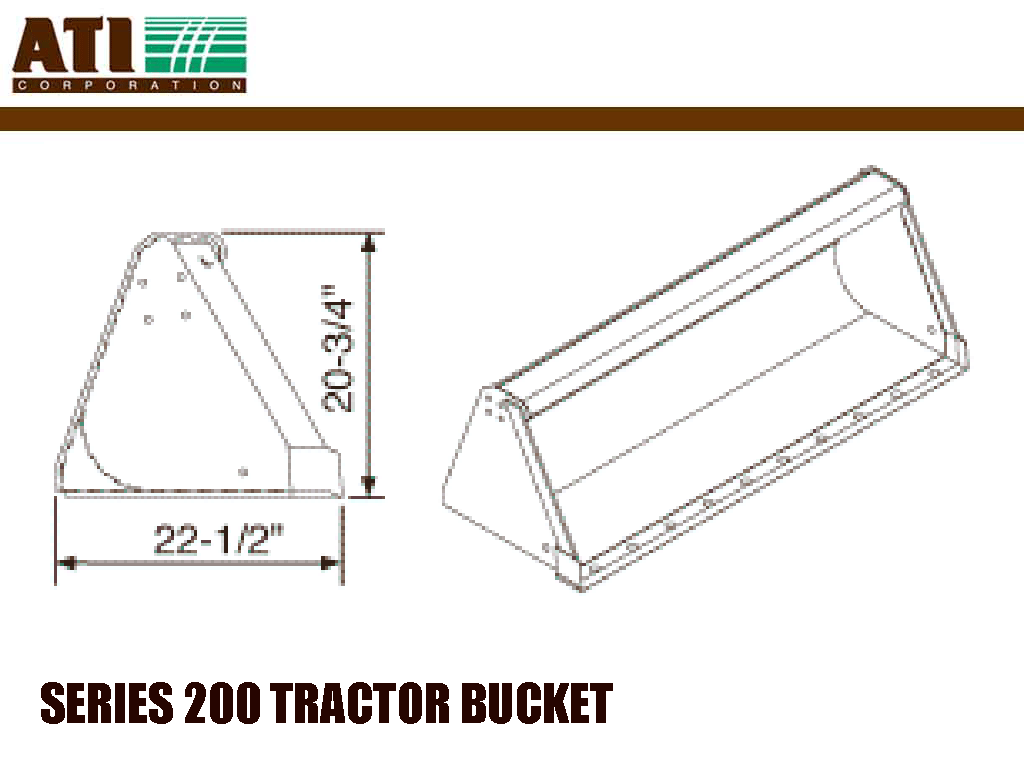

| MODEL | WEIGHT | WIDTH | HEIGHT | DEPTH |
CAPACITY STRUCK |
CAPACITY HEAPED |
| 248 | 248 | 48" | 20.75" | 22.5" | 7.2 | 8.5 |
| 254 | 254 | 54" | 20.75" | 22.5" | 8.1 | 9.6 |
| 260 | 260 | 60" | 20.75" | 22.5" | 9.0 | 10.7 |
| 266 | 266 | 66" | 20.75" | 22.5" | 9.9 | 11.8 |
| 272 | 272 | 72" | 20.75" | 22.5" | 10.8 | 12.9 |
