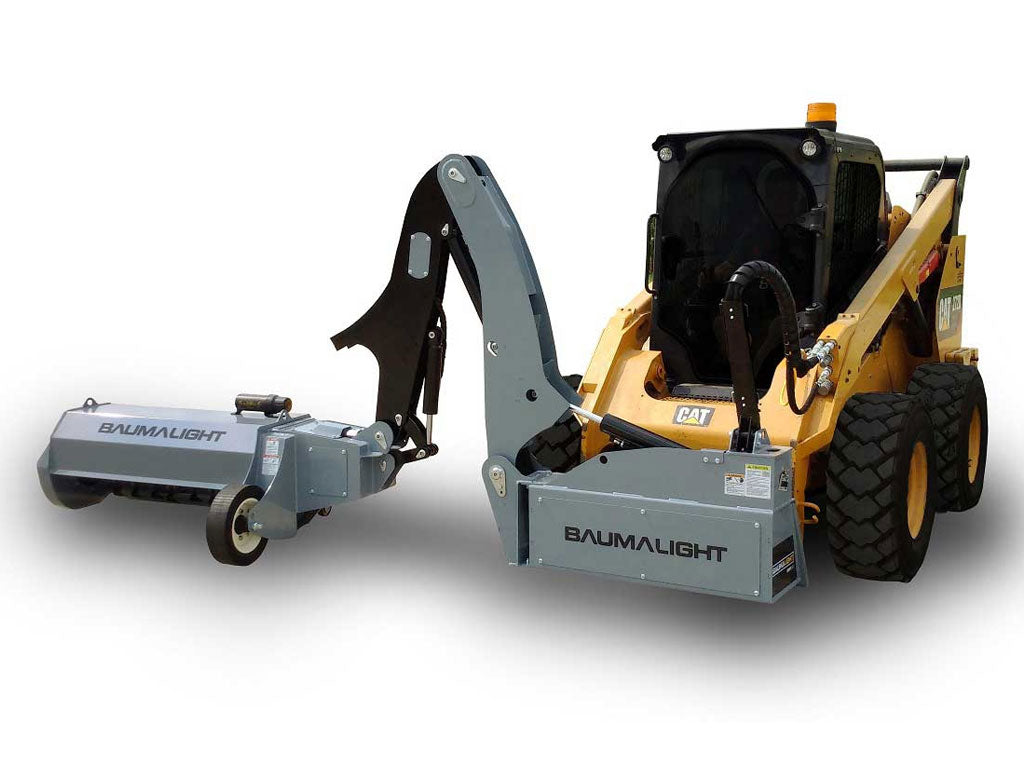

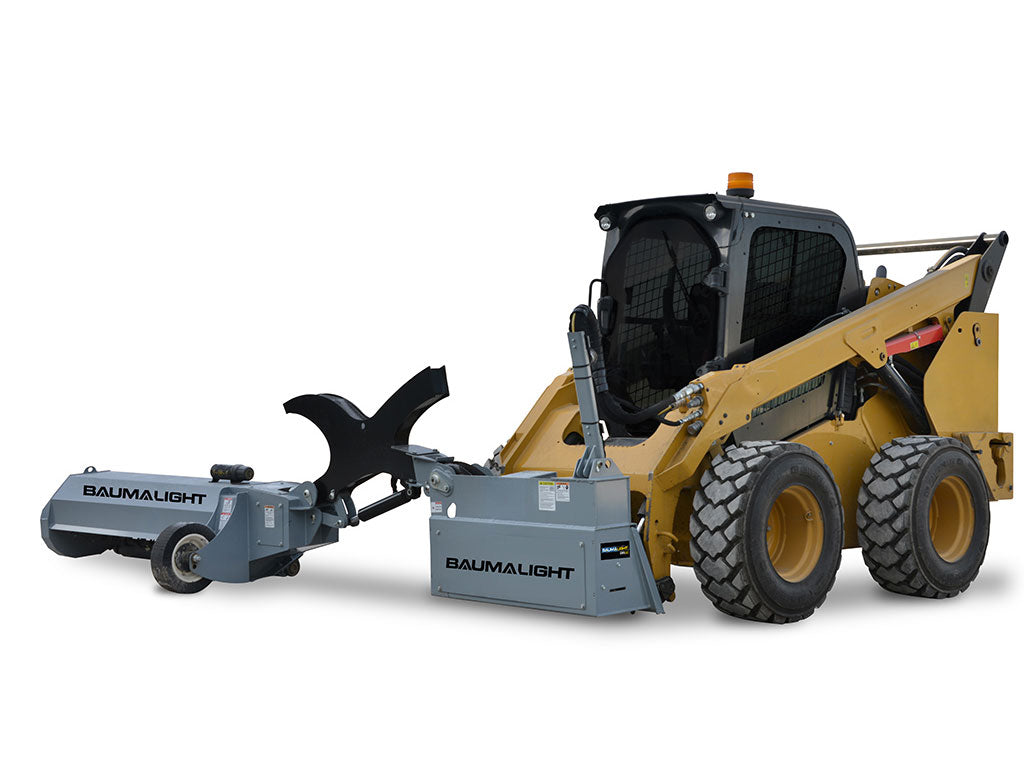

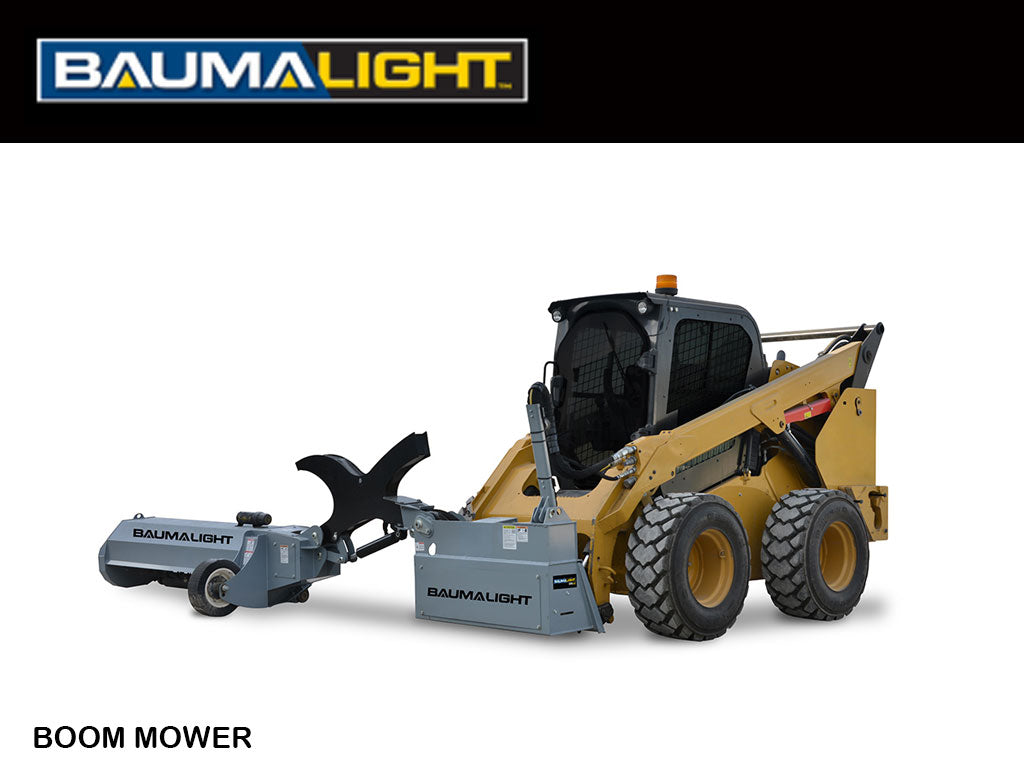

Boom Mower for Skid steer

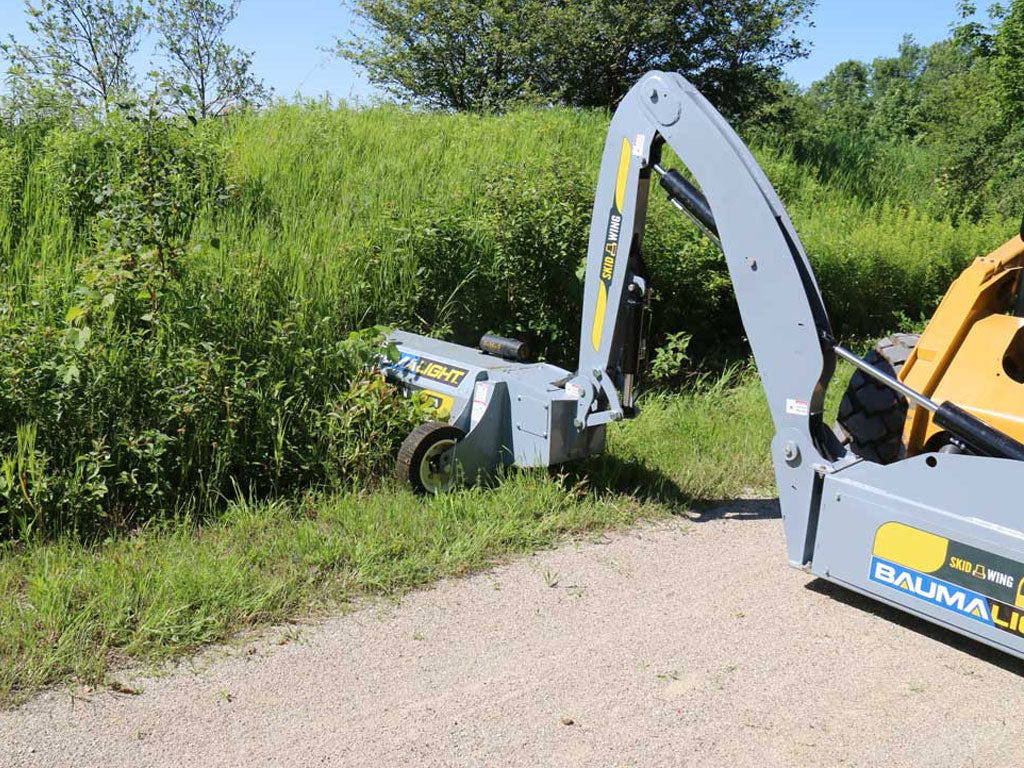

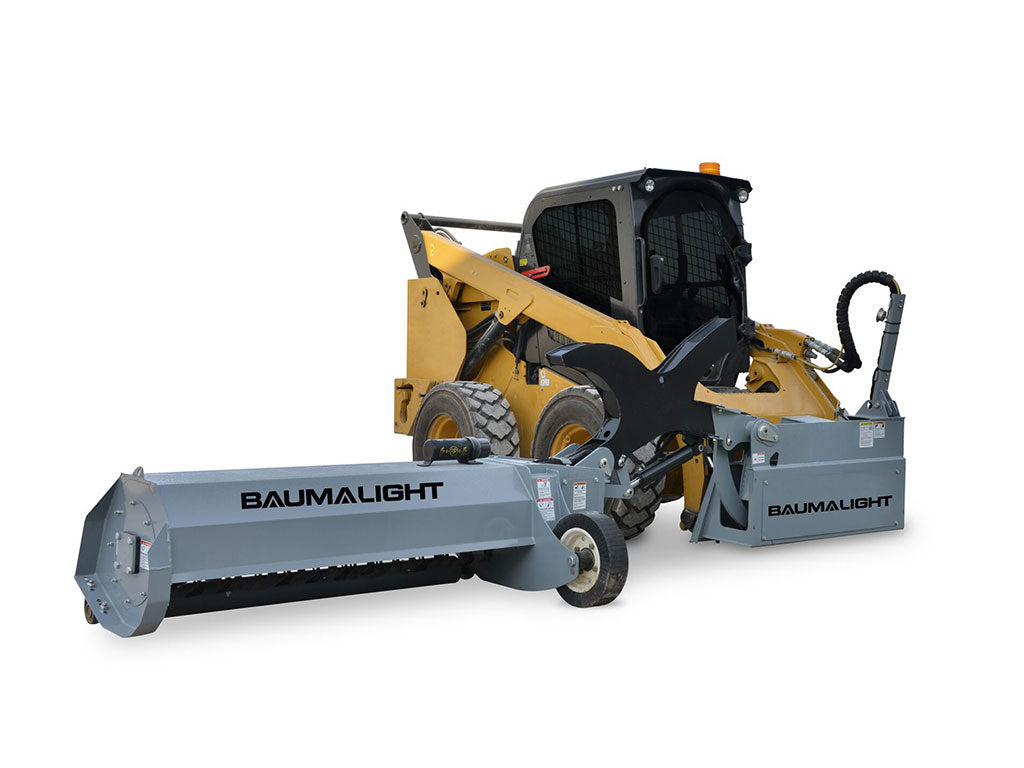

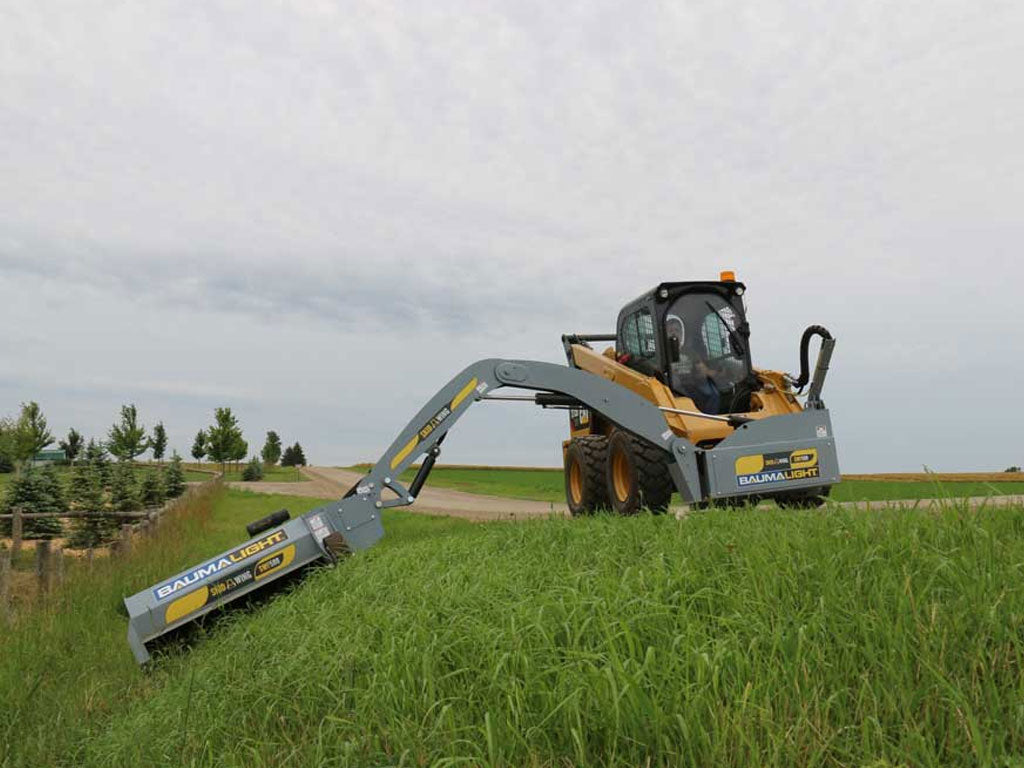

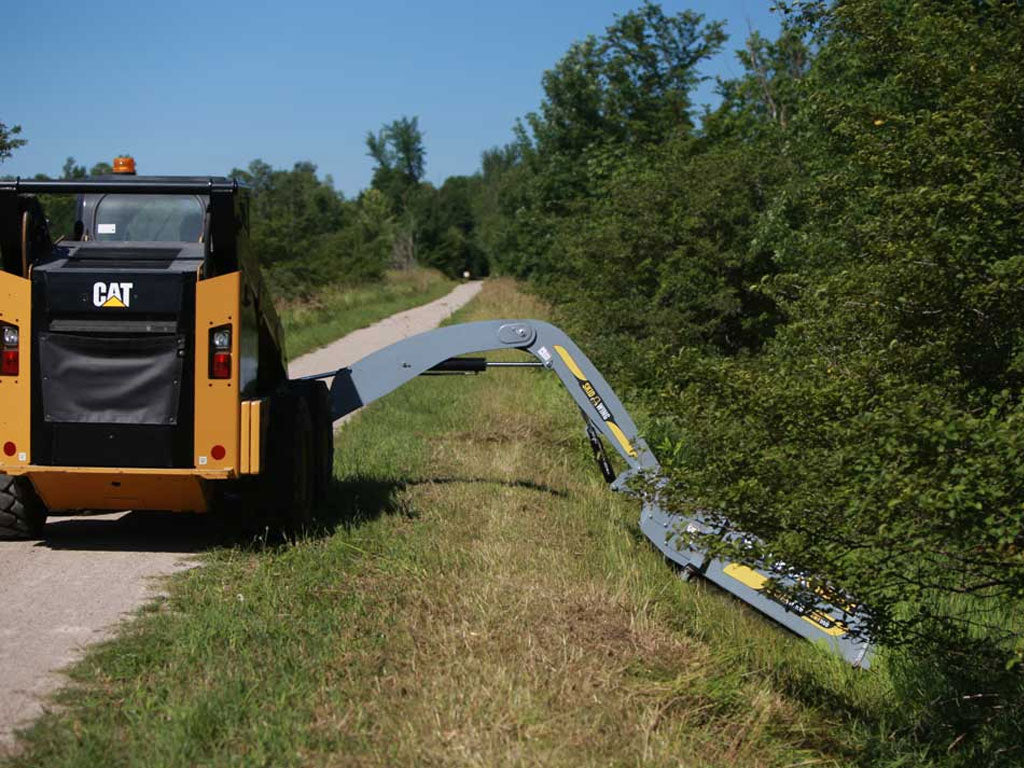

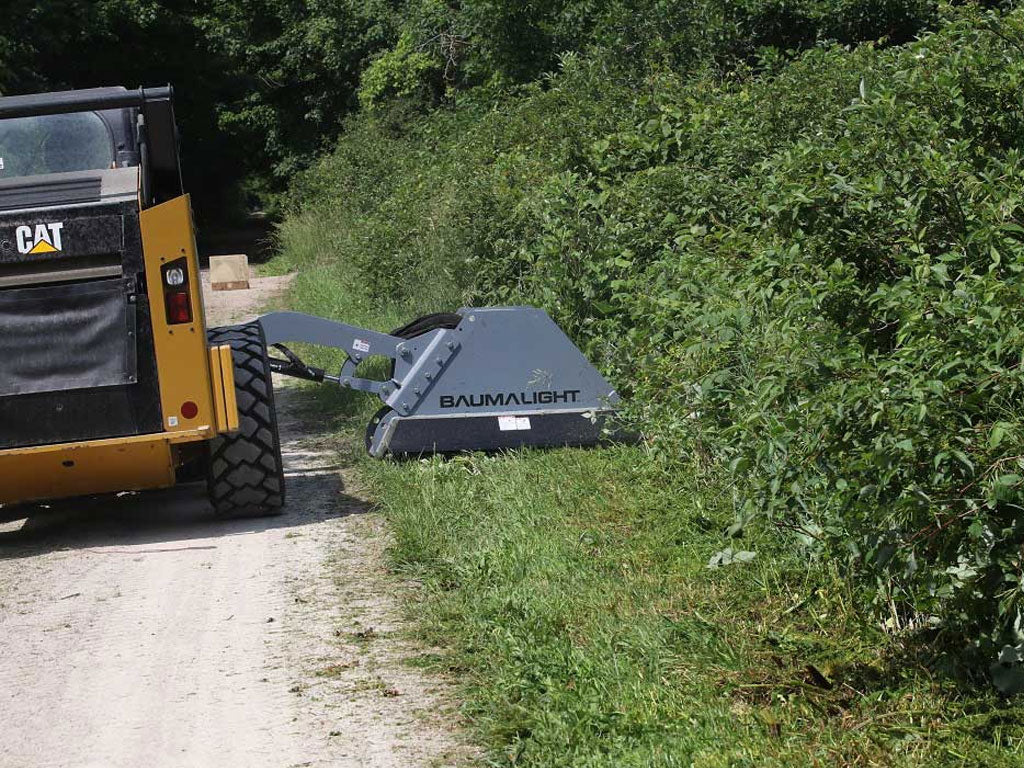

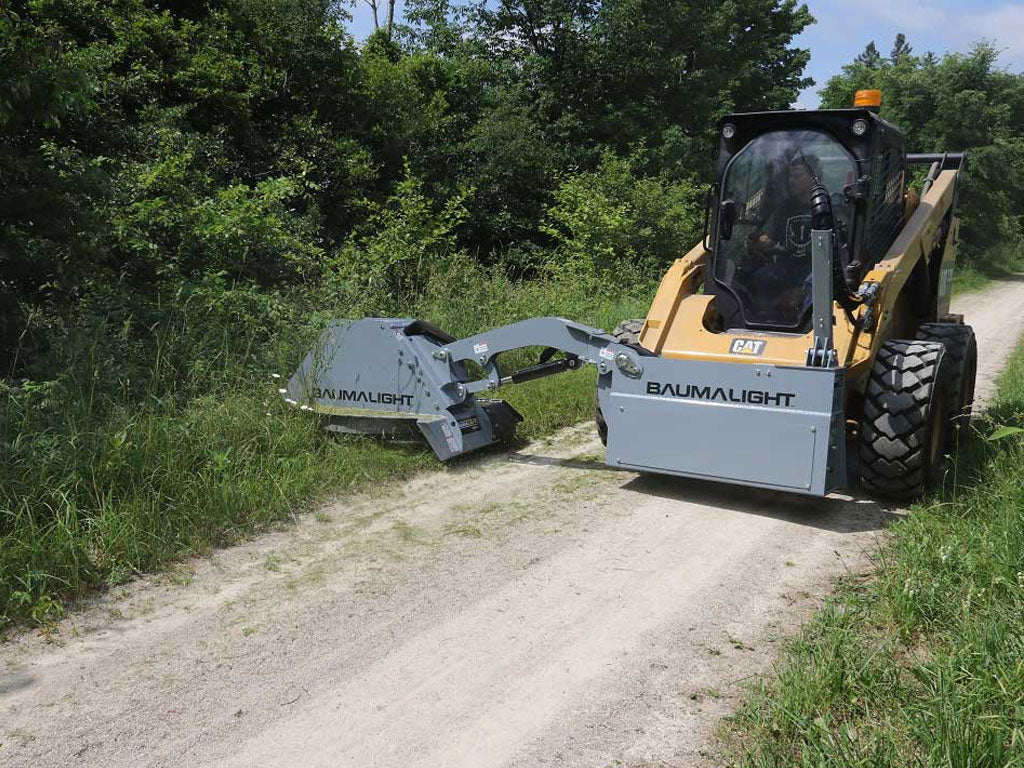

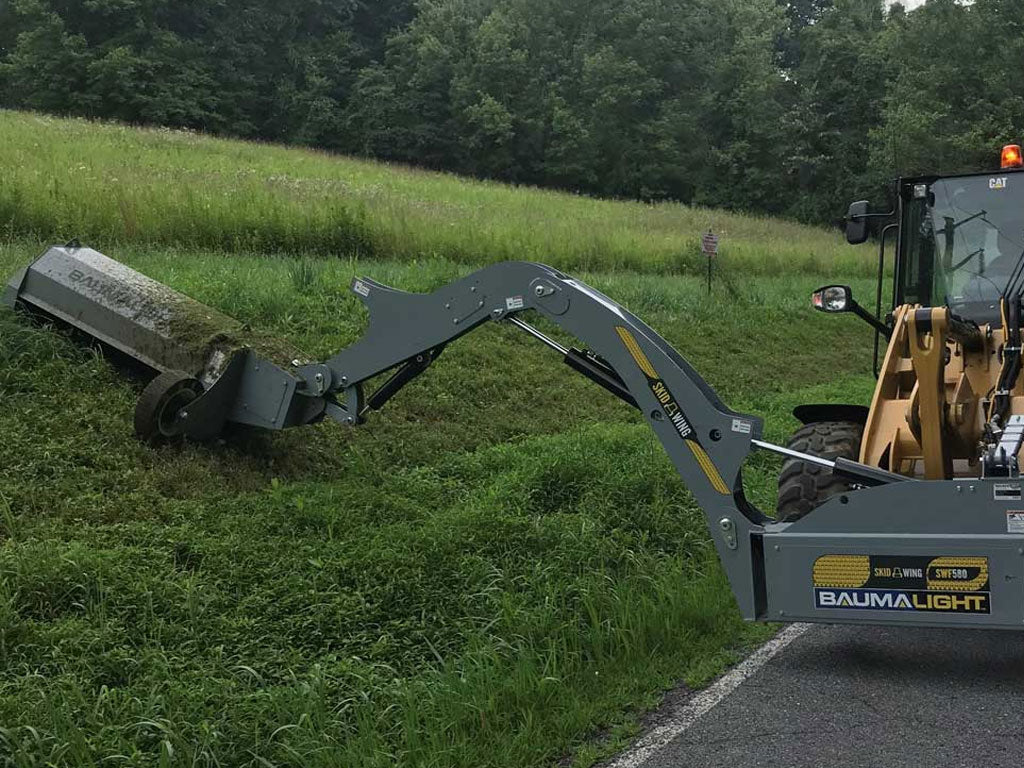

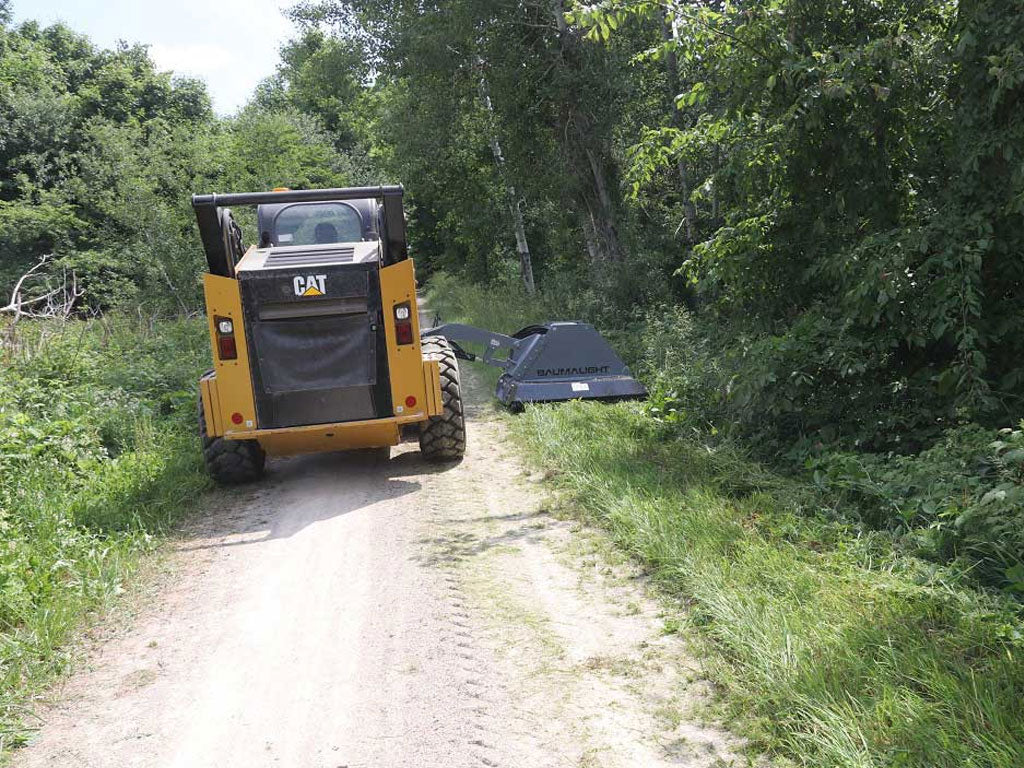

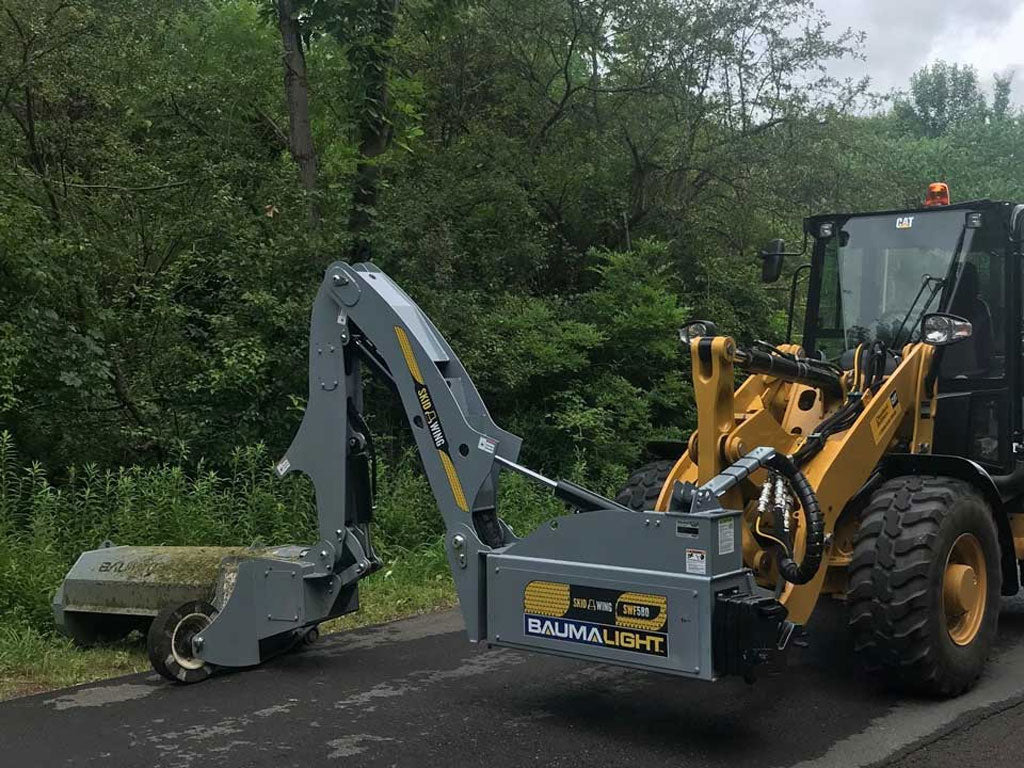

The Baumalight Boom Mower for Skid steer features a variable angle reach and a curved boom for extra clearance. With large cutting heads utilizing our 200 series flail teeth; these ditch mowersare ideal for mowing heavy grass and mulching light brush in ditches and fence lines. With several motor options available, we can match our boom mower to any skid steer size and model.
Contact us for more details if you have a special request, we are very open to customize a model to suit your ditch mowing and mulching needs.
FEATURES
- Curved boom for extra clearance

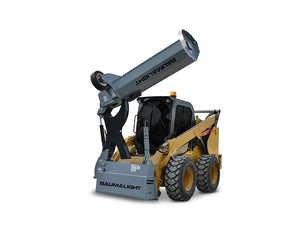

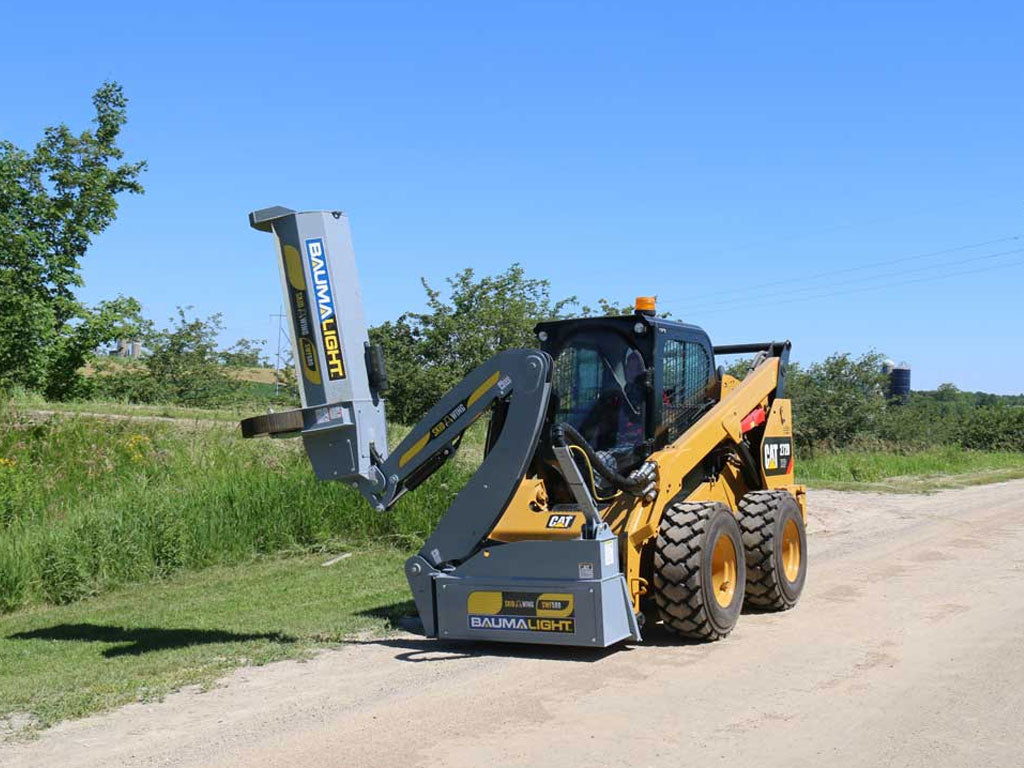

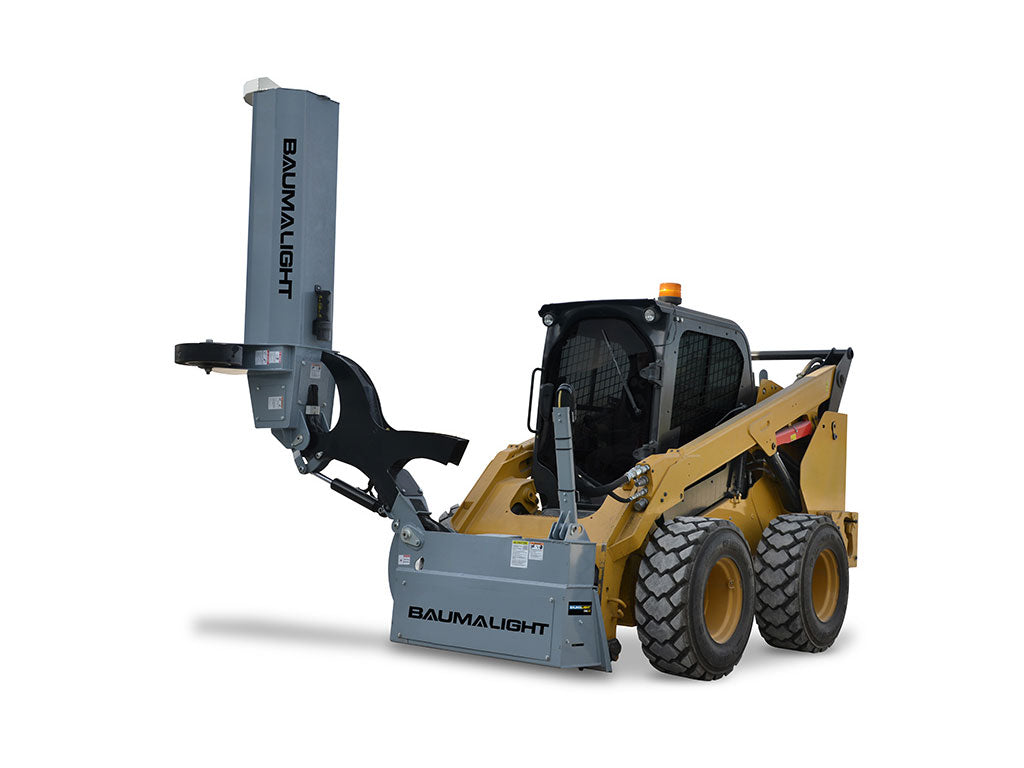

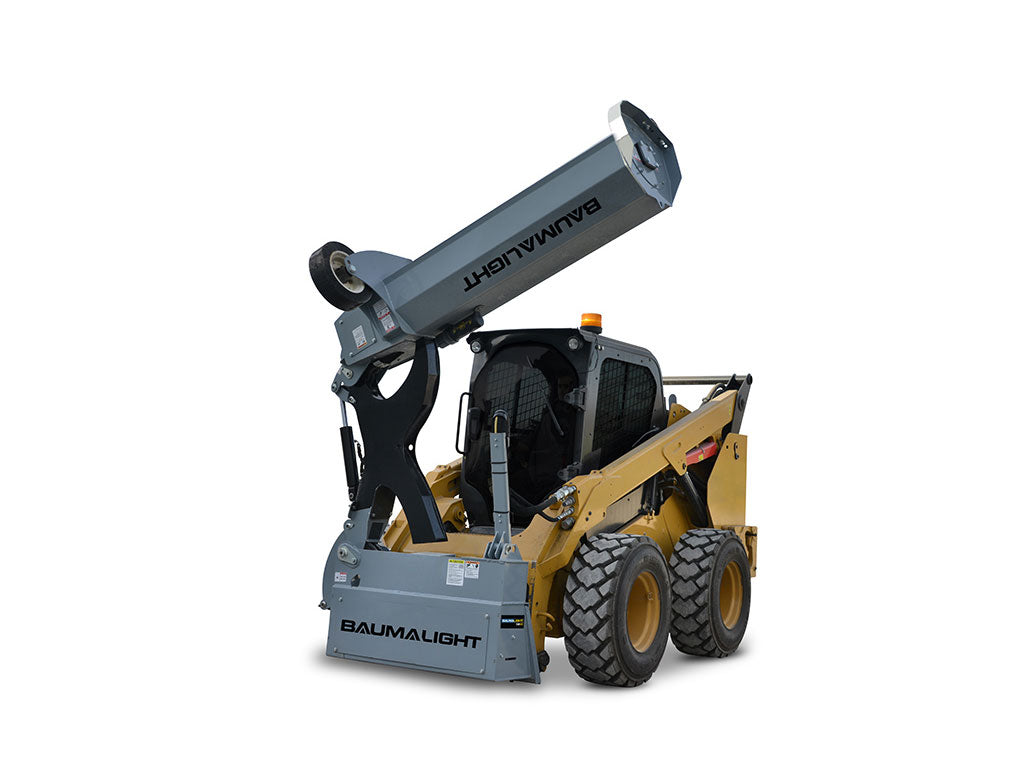

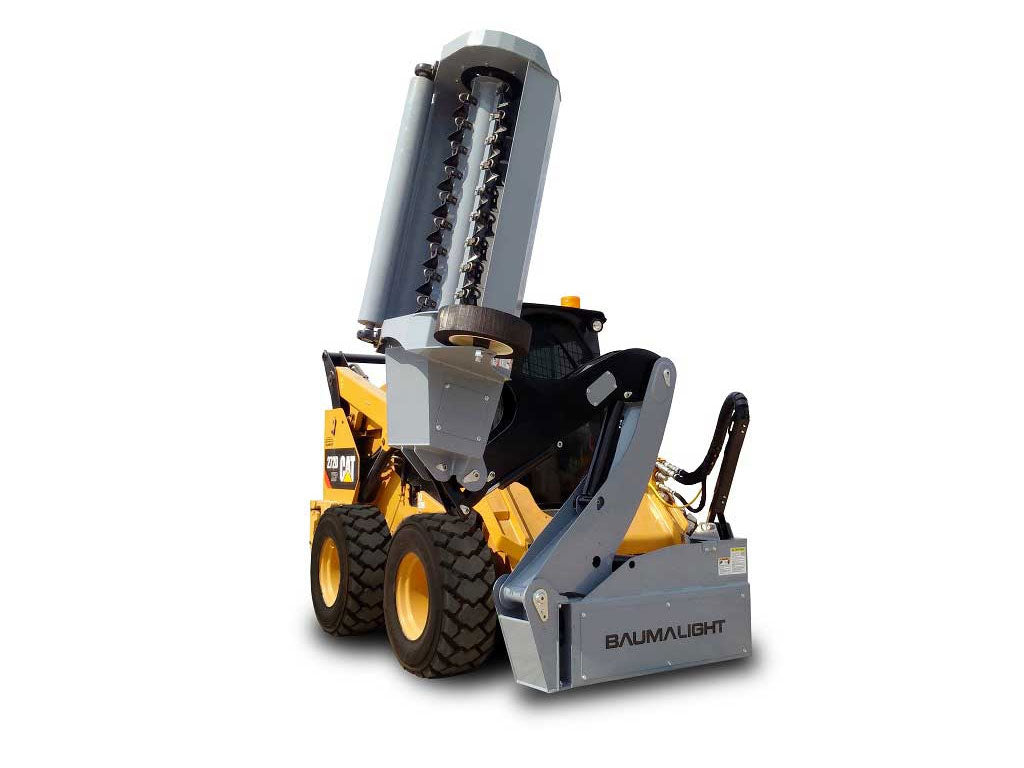

- Boom folds up for travel
- Pressure gauge to see your work load
- AR400 steel plate used on booms
- Available with AUX in cab controls
- Armored and sleeved hose protection
- Zinc plated greaseable pins
- Heavy duty cylinders
- Anti-slip mat for easy access to cab
MODELS
| SWA540 | SWA550 | SWA560 | SWF560 | SWF580 | SWF750 | |
| Minimum carrier weight | 4500 lbs | 5000 lbs | 5500 lbs | 6000 lbs | 8000 lbs | 8000 lbs |
| Flat reach | 6' | 7'5" | 10' | 10' | 14' | 7' |
| Head size | 48" | 60" | 60" | 48" | 48" | 42" |
| Teeth clusters | 38 | 48 | 48 | 38 | 38 | 3 blades |
| Style | SGL ARM | SGL ARM | SGL ARM | BOOM & STICK | BOOM & STICK | SGL ARM |

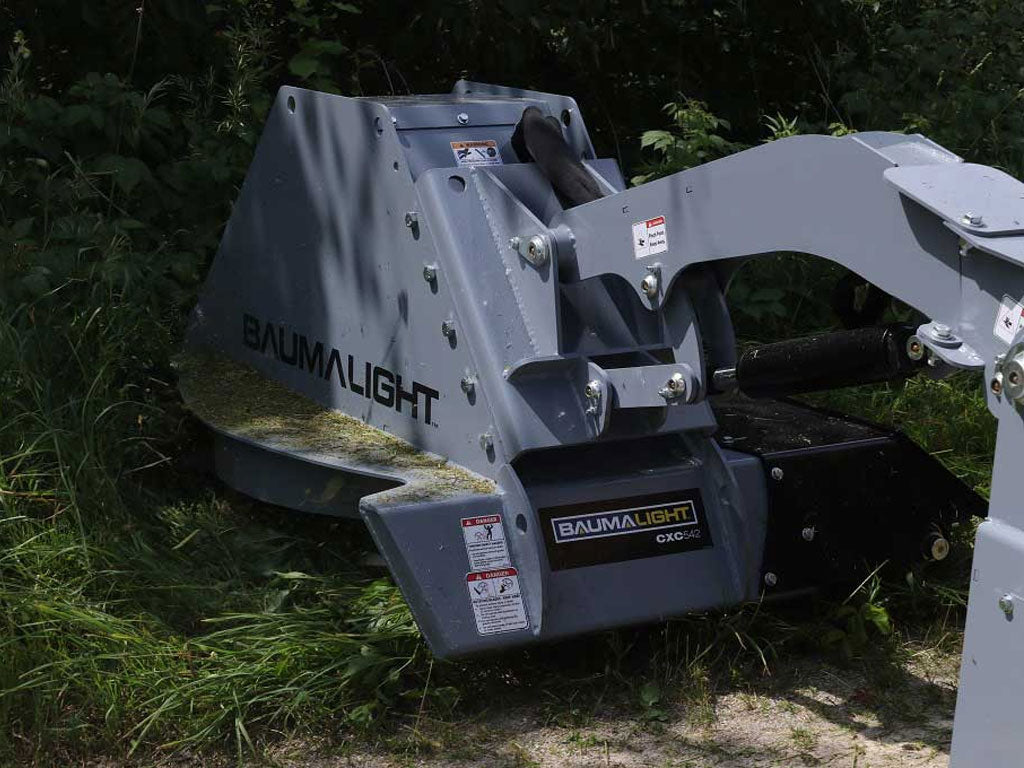

| Teeth | F2000 | F2000 | F2000 | F2000 | F2000 | CXC542 BLADE |
| Weight lbs. | 1775 | 1900 | 1750 | 1650 | 1750 | 2050 |
| MOTOR | TYPE | CC |
CASE DRAIN |
RPM | 20GPM | 25GPM | 30GPM | 35 GPM | 40GPM |
| D510 | PISTON | 34 | CRITICAL | 2200 | 1500RPM | 2000RPM | 2500RPM | 2900RPM | 3400RPM |
| D530 | PISTON | 47 | CRITICAL | 2100 | 1000RPM | 1500RPM | 1800RPM | 2100RPM | 2500RPM |
| HX550 | PISTON | 64 | CRITICAL | 1400 |
800RPM | 1100RPM | 1350RPM | 1600RPM | 1875RPM |
| HX570 | PISTON | 84 | CRITICAL | 1200 | 600RPM | 850RPM | 1000RPM | 1200RPM | 1450RPM |
| SERIES | PART # | AUX PINS | CONTROLLER | |
| SWA | D004904 | 4 LIVE, SWITCHABLE | BUTTONS ON MACHINE JOYSTICK | BEST OPTION |
| SWA | D004905 | 3 LIVE, SWITCHABLE | BUTTONS ON MACHINE JOYSTICK | 2ND BEST OPTION |
| SWA | D004906 | PLUG INTO 12V IN CAB | UNIVERSAL CONTROL BOX | |
| SWA | D004907 | PLUG INTO 12V IN CAB | UNIVERSAL CONTROL BOX | DIFFICULT OPERATION |
| SWF | D004908 | 6 LIVE, SWITCHABLE | BUTTONS ON MACHINE JOYSTICK | BEST OPTION |
| SWF | D004909 | 4 LIVE, SWITCHABLE | BUTTONS ON MACHINE JOYSTICK | 2ND BEST OPTION |
| SWF | D004910 | PLUG INTO 12V IN CAB | UNIVERSAL CONTROL BOX | |
| SWF | D004911 | PLUG INTO 12V IN CAB | UNIVERSAL CONTROL BOX | DIFFICULT OPERATION |
| Motor Options | Minimum Carrier Weight | Recommended G.PM. | Maximum |
| D510 | 4500 | 19-26 GPM | 28 GPM |
| D530 | 4500 | 25-33 GPM | 35 GPM |
| D510 | 5000 | 19-26 GPM | 28 GPM |
| D530 | 5000 | 25-33 GPM | 35 GPM |
| D510 | 5500 | 19-26 GPM | 28 GPM |
| D530 | 5500 | 25-33 GPM | 35 GPM |
| HX550 | 8000 | 25-33 GPM | 35 GPM |
| HX570 | 8000 | 30-40 GPM | 42 GPM |
| D510 | 6000 | 19-26 GPM | 28 GPM |
| D530 | 6000 | 25-33 GPM | 35 GPM |
| D510 | 8000 | 19-26 GPM | 28 GPM |
| D530 | 8000 | 25-33 GPM | 35 GPM |
