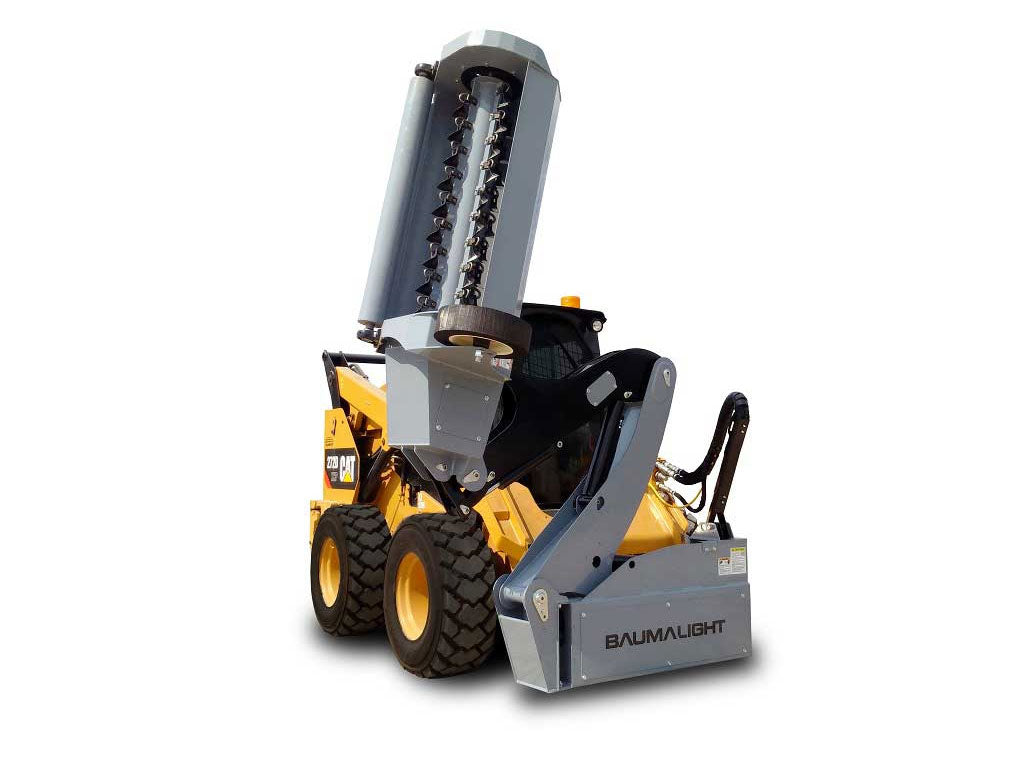

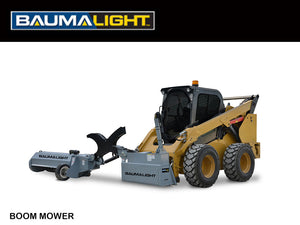

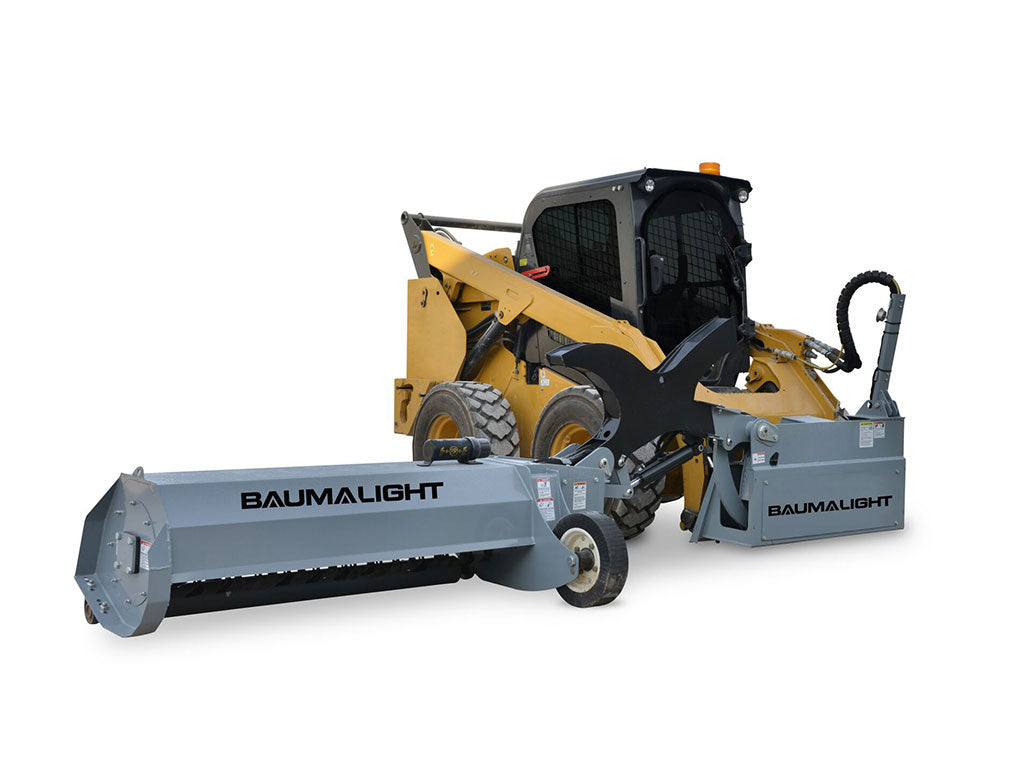

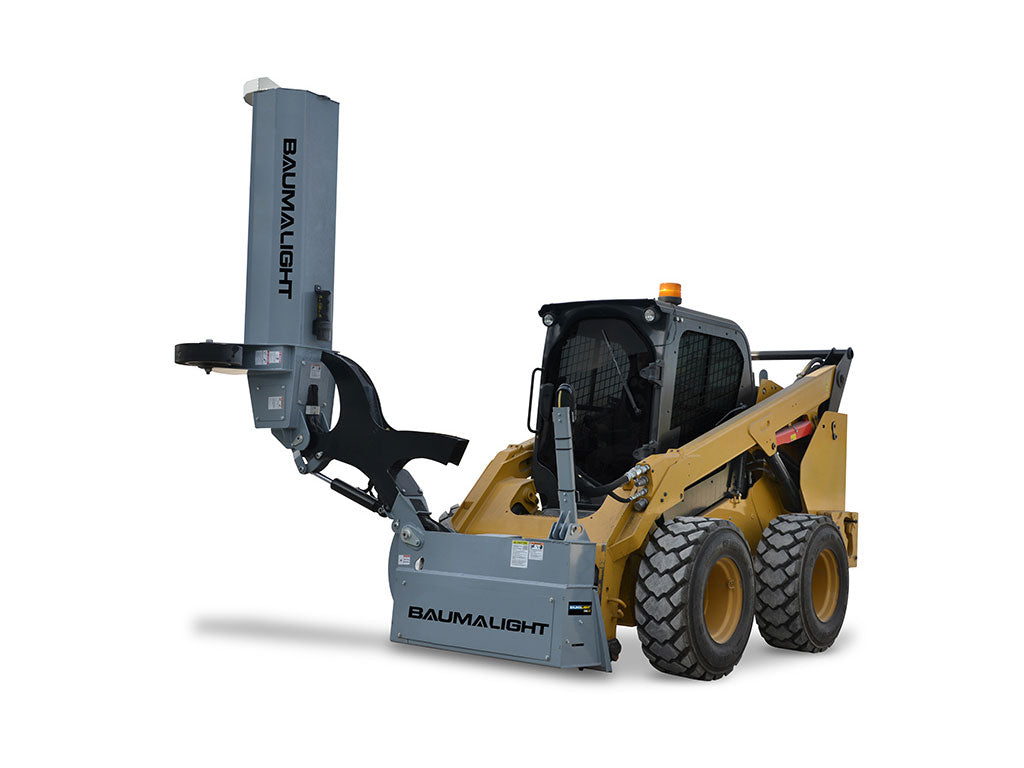

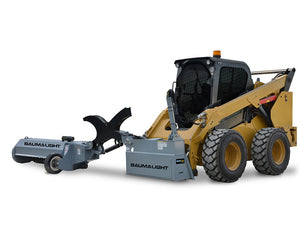

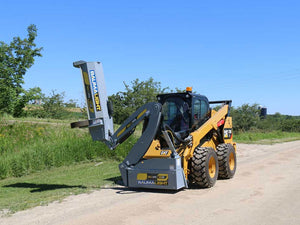

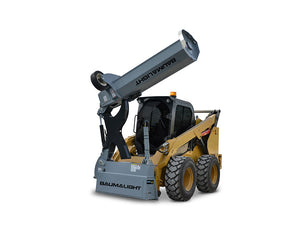

BAUMALIGHT boom mower for skid steer

9/25

* Warning this attachment requires a safety door while using.

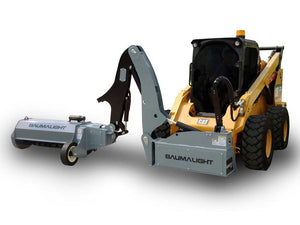

Boom Mower for Skid Steer

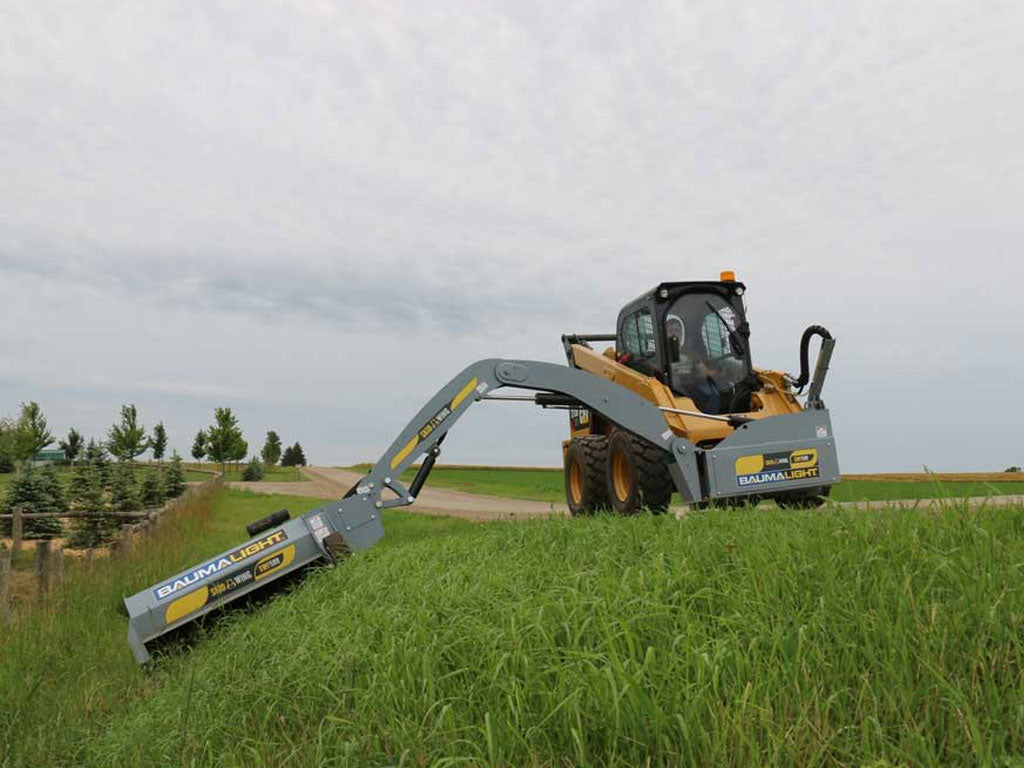

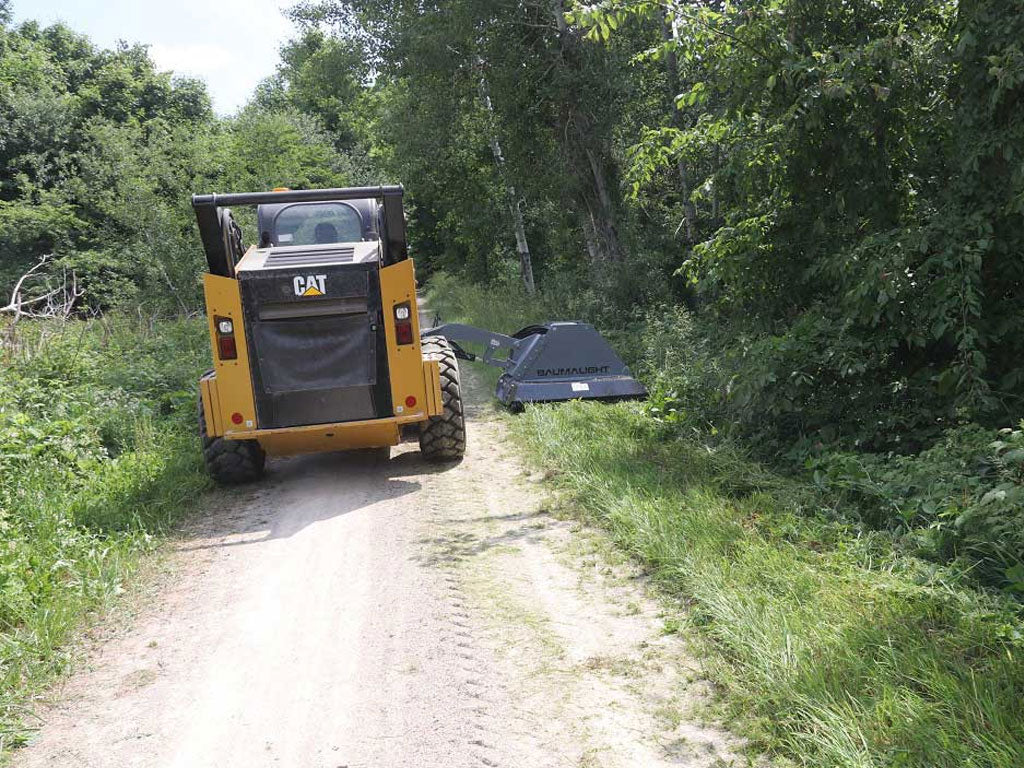

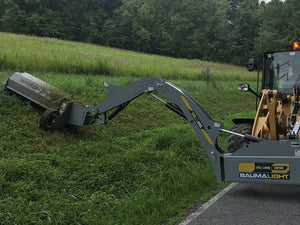

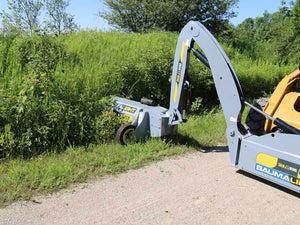

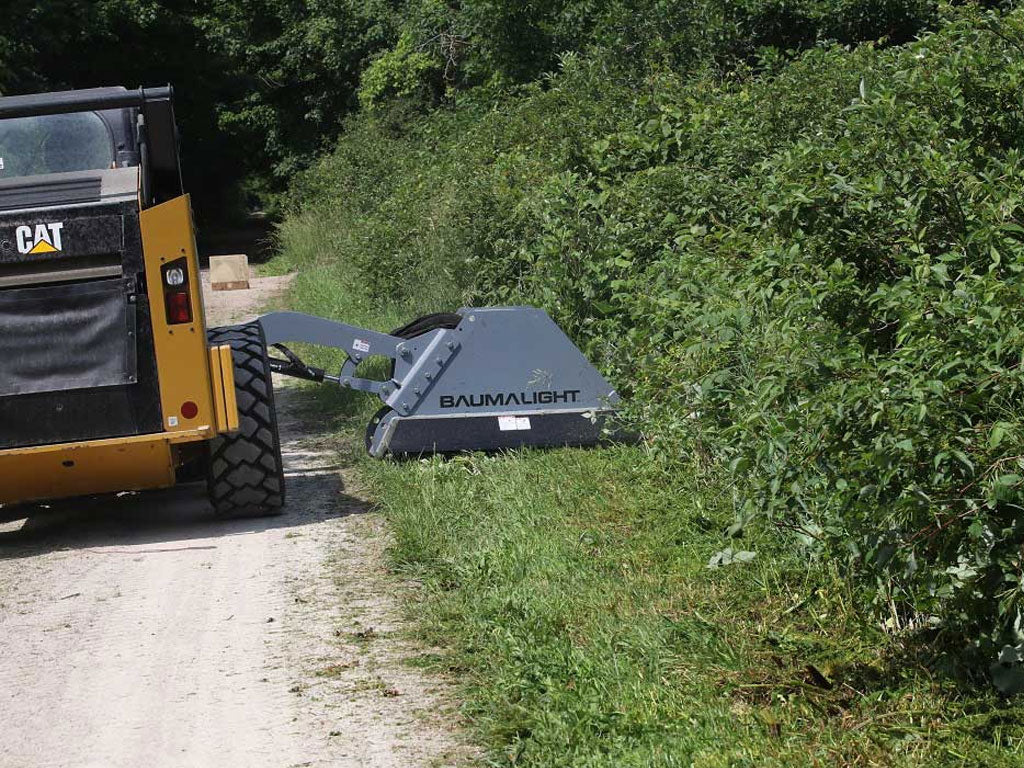

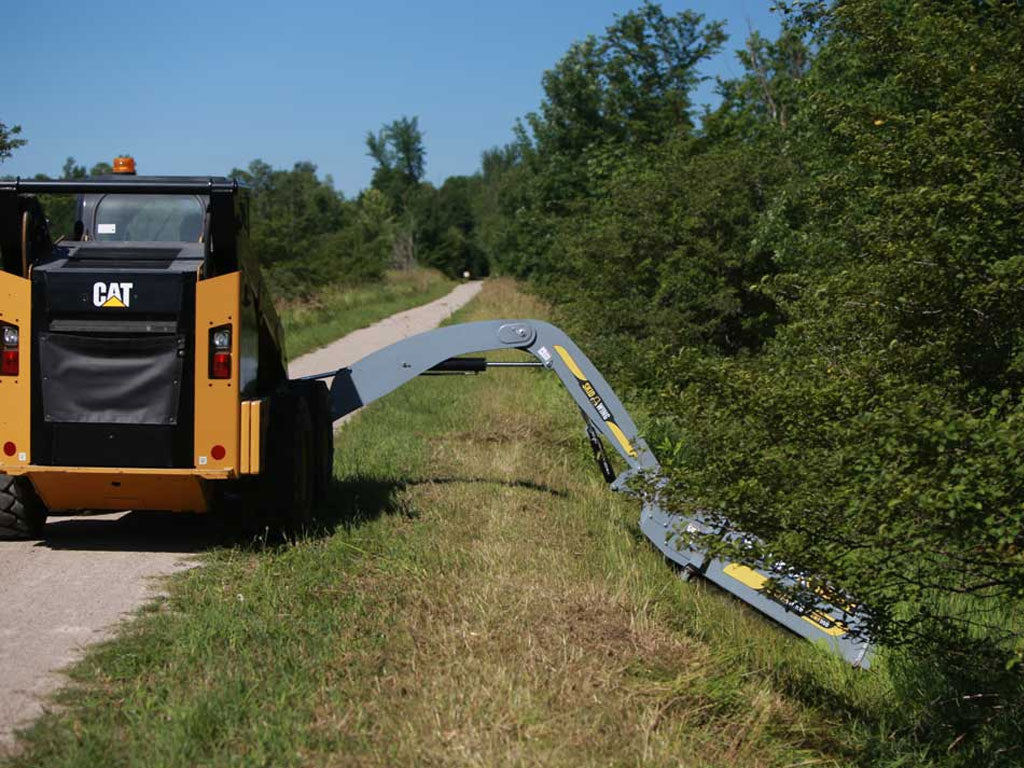

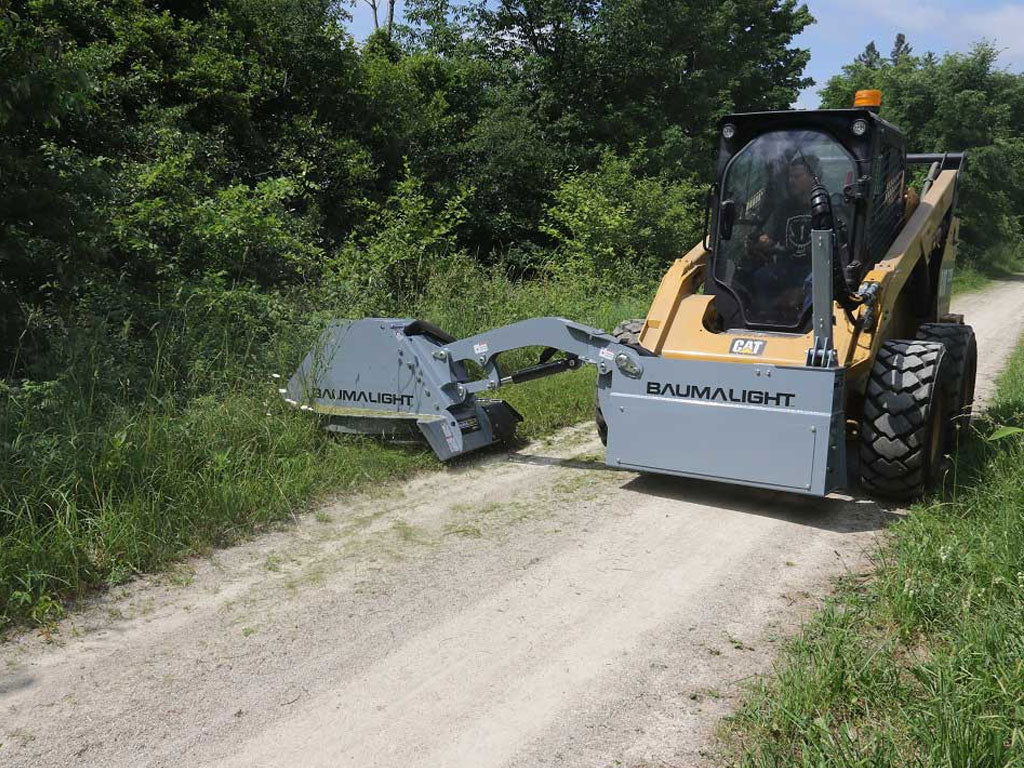

The Baumalight Boom Mower for skid steers is built for versatility, durability, and precision mowing. Its curved boom design provides extra clearance, while the variable angle reach makes it ideal for tackling ditches, fence lines, and other hard-to-reach areas. Equipped with large cutting heads featuring our 200 series flail teeth, this mower handles heavy grass with ease and mulches light brush efficiently.

With multiple motor options available, we can match the boom mower to virtually any skid steer size or model. Choose between a flail cutting deck or a rotary mower deck to best fit your application. For specialized needs, custom models are available to suit your mowing and mulching requirements.

Key Features:

  • Curved boom for extra clearance

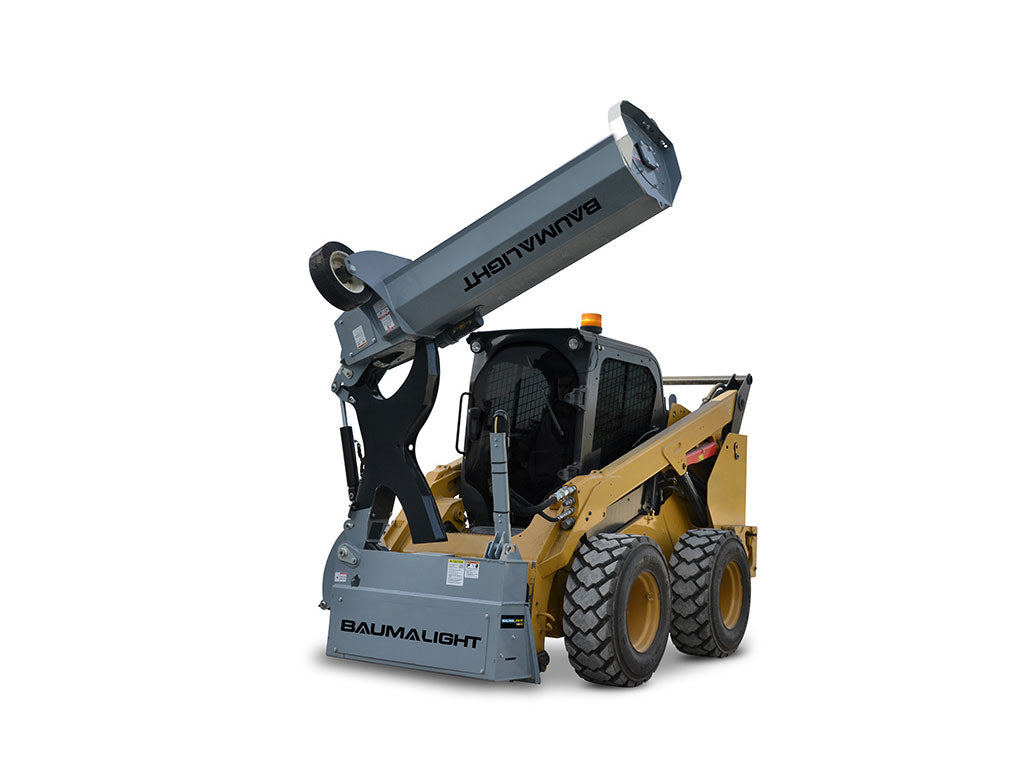

  • Folding boom design for easy travel and transport

  • Onboard pressure gauge to monitor workload

  • AR400 steel plate construction for strength and durability

  • AUX in-cab controls available for operator convenience

  • Armored, sleeved hose protection for long service life

  • Zinc-plated, greaseable pins for easy maintenance

  • Heavy-duty cylinders built to withstand tough jobs

  • Anti-slip mat for safe, easy cab access

  • Requires case drain line

MODELS

  SWA540 SWA550 SWA560 SWF560 SWF580 SWF750
Minimum carrier weight 4500 lbs 5000 lbs 5500 lbs 6000 lbs 8000 lbs 8000 lbs
Flat reach 6' 7'5" 10' 10' 14' 7'
Head size 48" 60" 60" 48" 48" 42"
Teeth clusters 38 48 48 38 38 3 blades

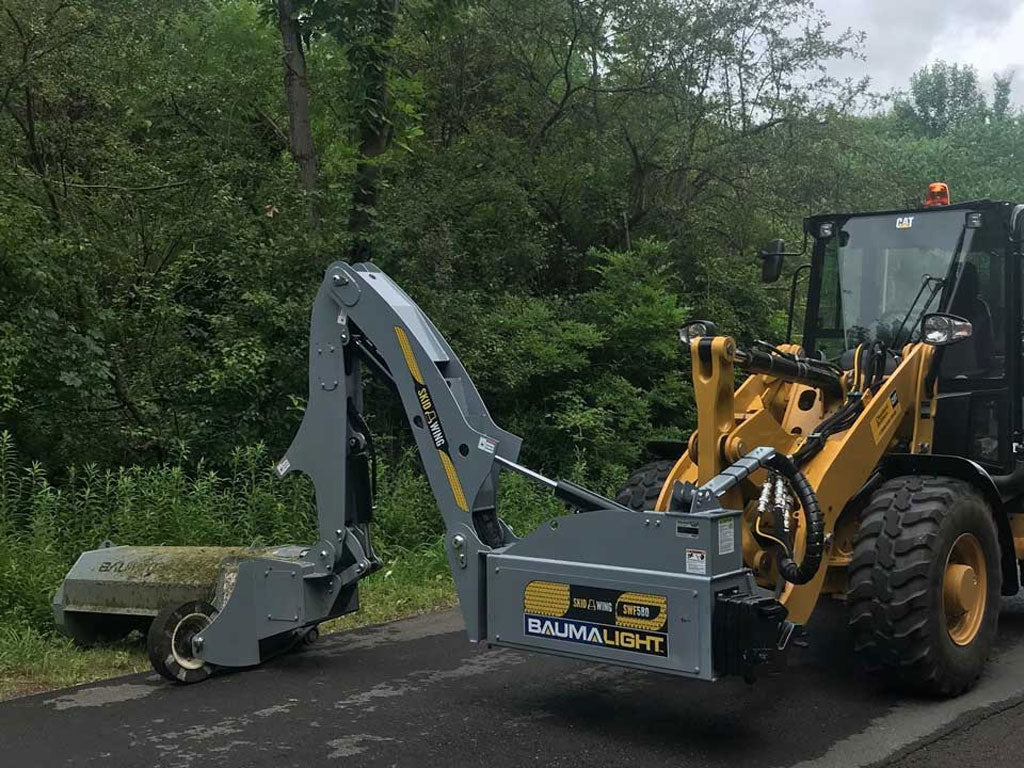

Style SGL ARM SGL ARM SGL ARM BOOM & STICK BOOM & STICK SGL ARM

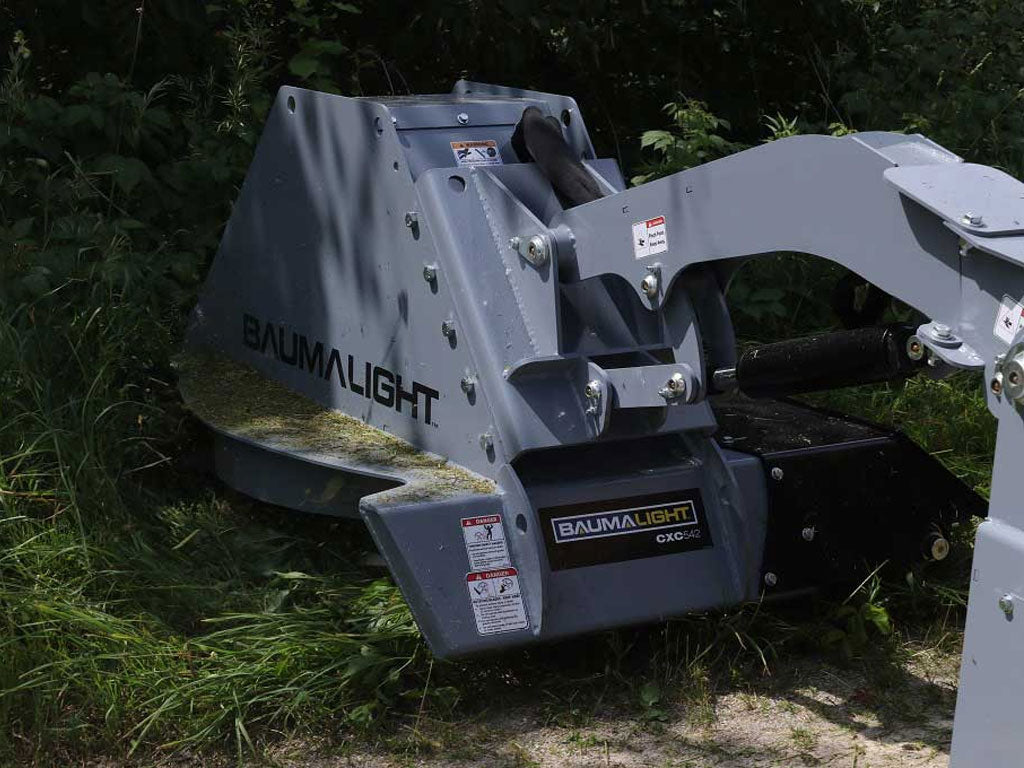

Teeth F2000 F2000 F2000 F2000 F2000 CXC542 BLADE
Weight lbs. 1775 1900 1750 1650 1750 2050
 MOTOR TYPE CC

CASE DRAIN

RPM 20GPM 25GPM 30GPM 35 GPM 40GPM
D510 PISTON 34 CRITICAL 2200 1500RPM 2000RPM 2500RPM 2900RPM 3400RPM
D530 PISTON 47 CRITICAL 2100 1000RPM 1500RPM 1800RPM 2100RPM 2500RPM
HX550 PISTON 64 CRITICAL 1400
800RPM 1100RPM 1350RPM 1600RPM 1875RPM
HX570 PISTON 84 CRITICAL 1200 600RPM 850RPM 1000RPM 1200RPM 1450RPM



 SERIES PART # AUX PINS CONTROLLER
SWA D004904 4 LIVE, SWITCHABLE BUTTONS ON MACHINE JOYSTICK BEST OPTION
SWA D004905 3 LIVE, SWITCHABLE BUTTONS ON MACHINE JOYSTICK 2ND BEST OPTION
SWA D004906 PLUG INTO 12V IN CAB UNIVERSAL CONTROL BOX
SWA D004907 PLUG INTO 12V IN CAB UNIVERSAL CONTROL BOX DIFFICULT OPERATION
SWF D004908 6 LIVE, SWITCHABLE BUTTONS ON MACHINE JOYSTICK BEST OPTION
SWF D004909 4 LIVE, SWITCHABLE BUTTONS ON MACHINE JOYSTICK 2ND BEST OPTION
SWF D004910 PLUG INTO 12V IN CAB UNIVERSAL CONTROL BOX
SWF D004911 PLUG INTO 12V IN CAB UNIVERSAL CONTROL BOX DIFFICULT OPERATION



Motor Options  Minimum Carrier Weight  Recommended GPM  Maximum
D510  4500 19-26 GPM 28 GPM
D530 4500 25-33 GPM 35 GPM
D510 5000 19-26 GPM  28 GPM
D530 5000 25-33 GPM  35 GPM
D510 5500 19-26 GPM  28 GPM
D530 5500 25-33 GPM 35 GPM
HX550 8000 25-33 GPM  35 GPM
HX570 8000 30-40 GPM  42 GPM
D510 6000 19-26 GPM 28 GPM
D530 6000 25-33 GPM 35 GPM
D510 8000 19-26 GPM 28 GPM
D530 8000 25-33 GPM 35 GPM
