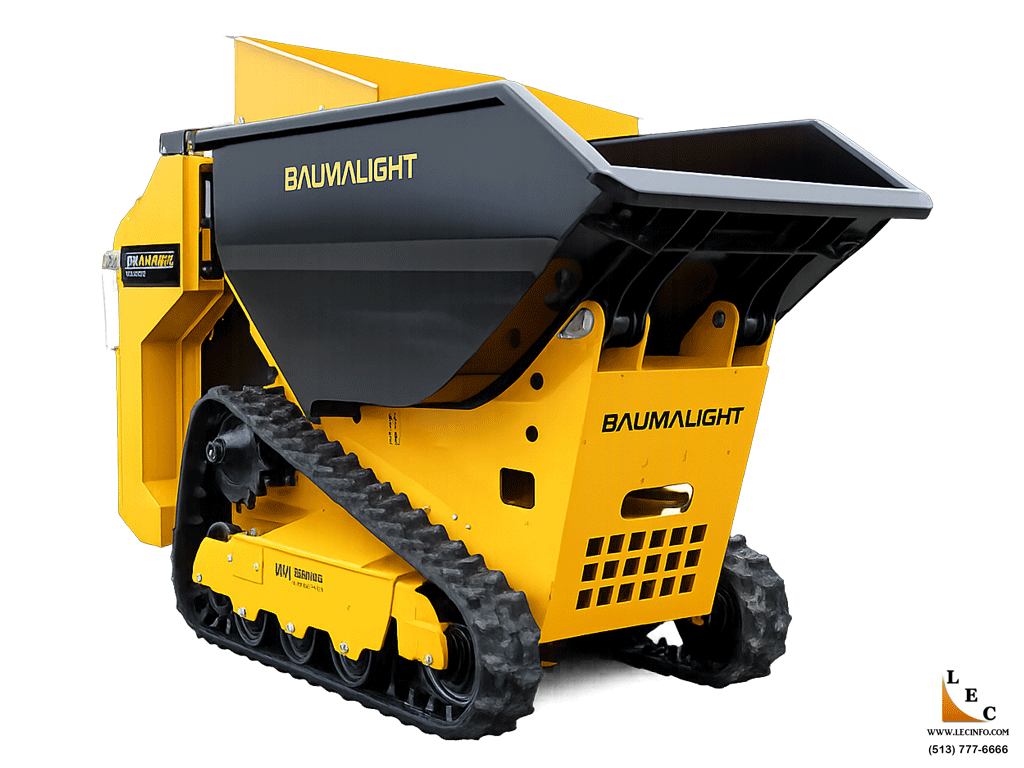

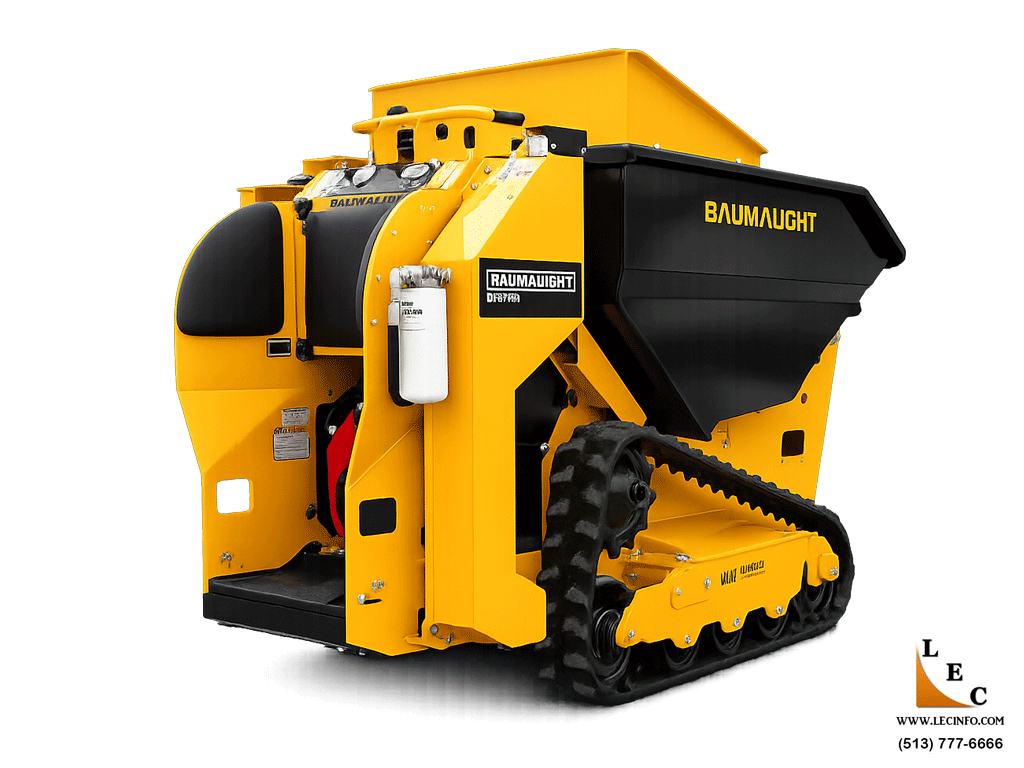

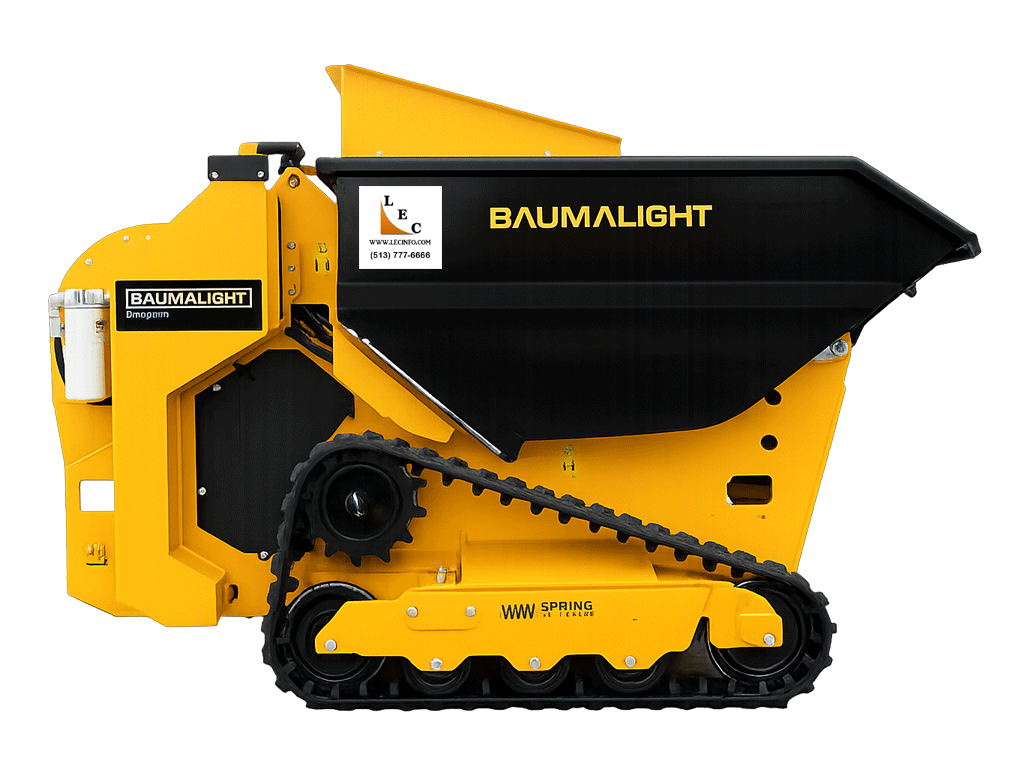

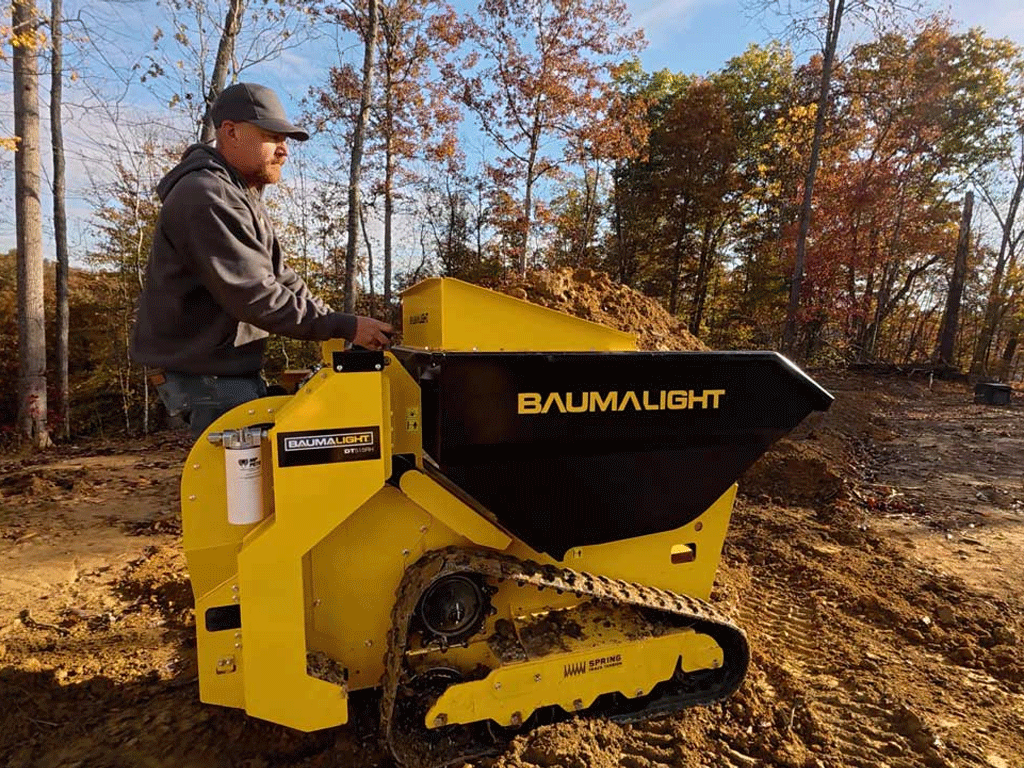

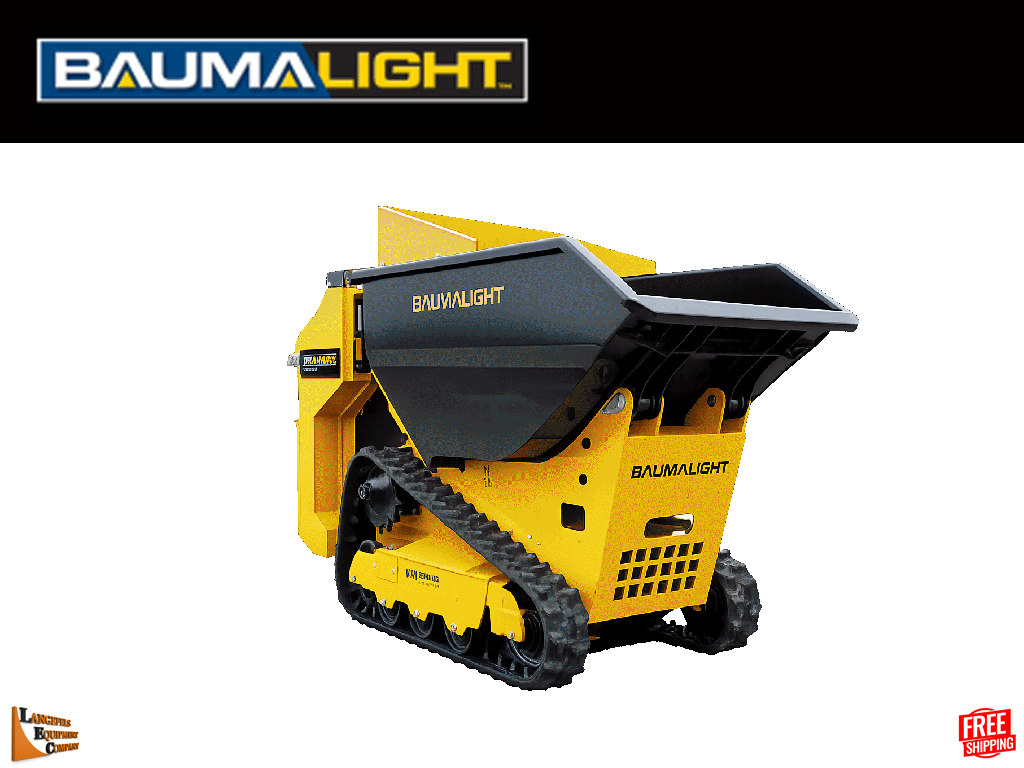

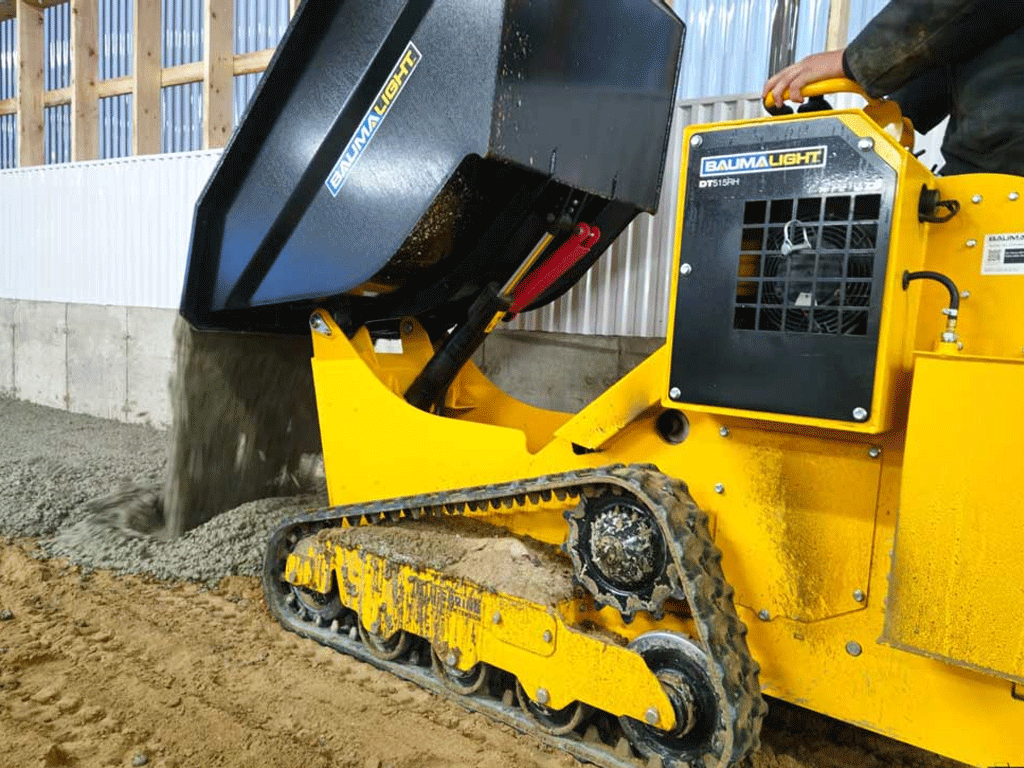

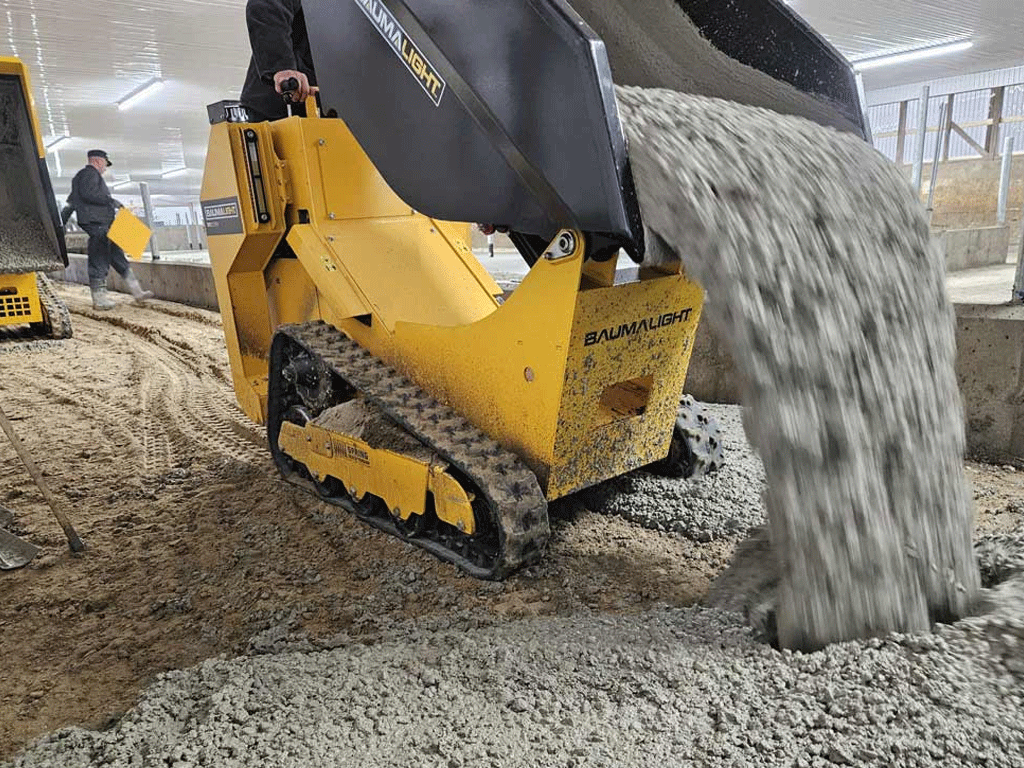

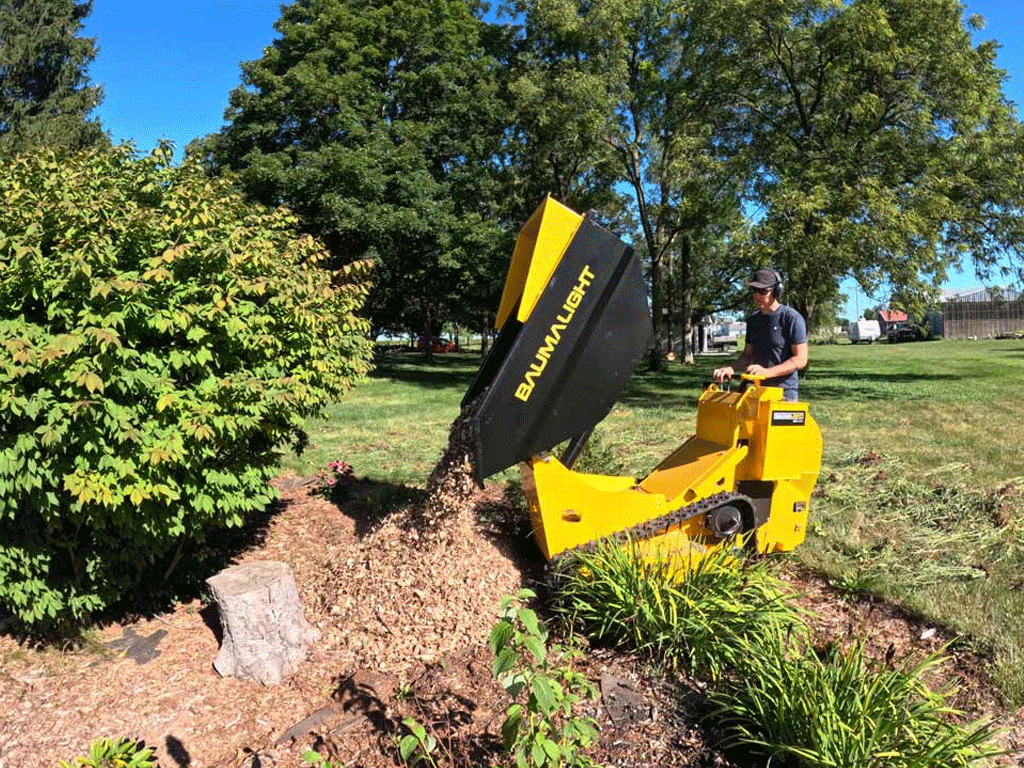

Baumalight DT515RH Self Propelled Mini Dumper

Move More Material Faster with the Baumalight DT515RH Mini Dumper

The Baumalight DT515RH Self Propelled Mini Dumper is designed to help landscapers, contractors, rental companies, and property owners transport soil, gravel, mulch, concrete, demolition debris, and other bulk materials through narrow access points where larger equipment simply can't go. Built with the same rugged engineering that Baumalight is known for, the DT515RH combines a powerful 22.1 HP Honda GX690 engine, hydrostatic drive, heavy-duty steel construction, and an operator-friendly control system into one highly productive machine.

Unlike many compact dumpers on the market, the DT515RH is built with a commercial-grade dual piston hydrostatic drive system similar to Baumalight's mini skid steer platform. Each track is independently powered for exceptional traction, maneuverability, and control, while a dedicated third hydraulic pump operates the dump bucket for smooth simultaneous driving and dumping.

Whether you're working on residential landscaping projects, construction sites, farms, municipalities, or rental fleets, the Baumalight Mini Dumper delivers outstanding performance, durability, and ease of operation.

Built for Professional Material Handling

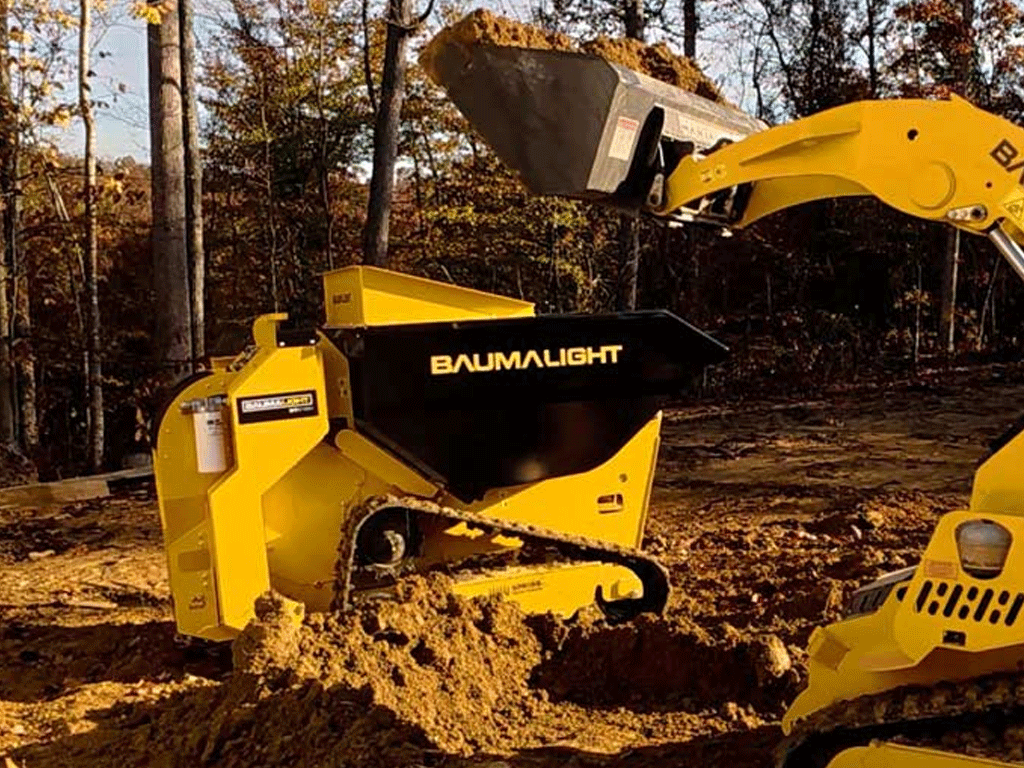

The DT515RH was engineered specifically for demanding jobs where wheelbarrows and traditional dump carts become inefficient.

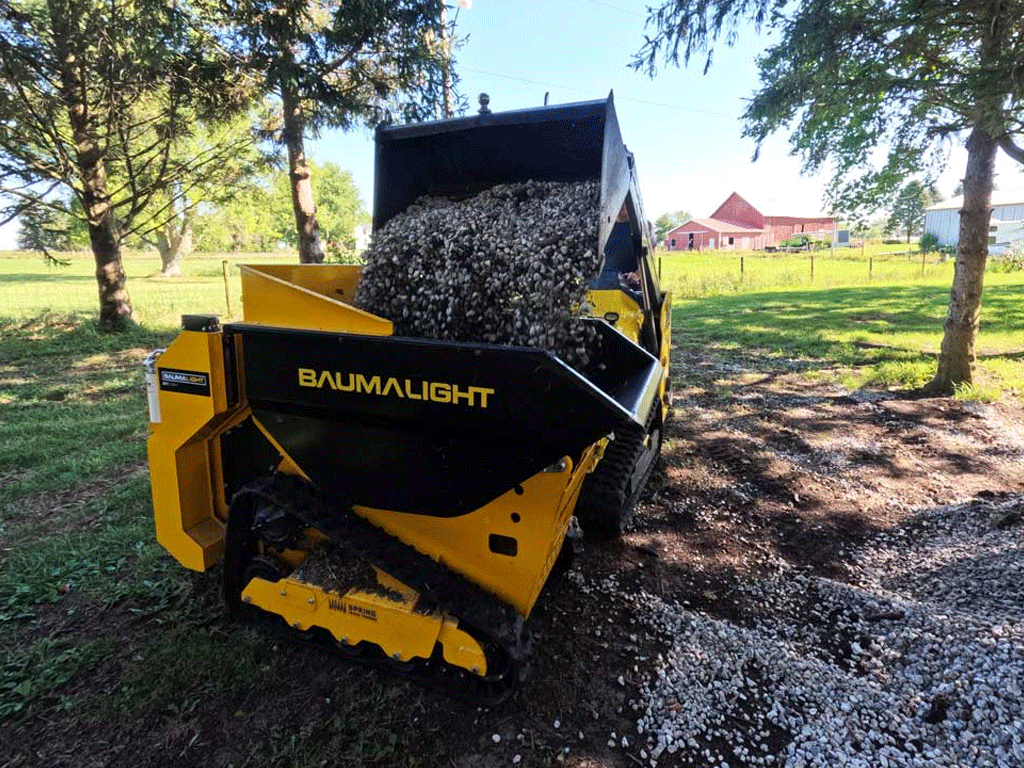

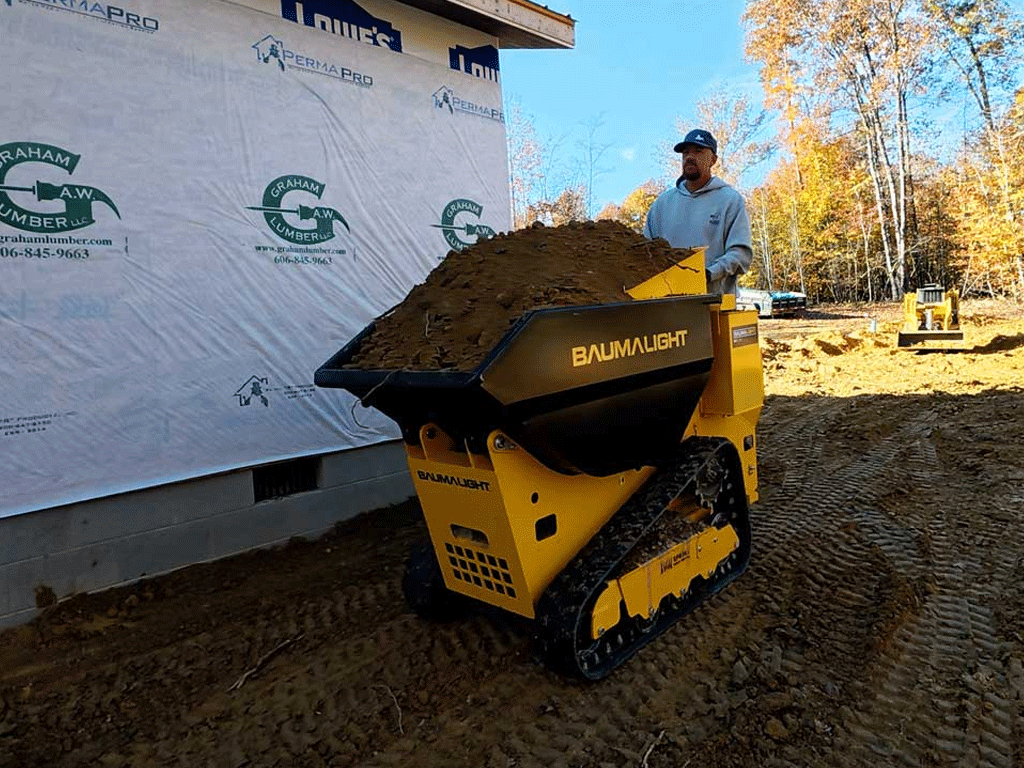

Its compact footprint allows operators to travel through gates, narrow pathways, backyards, and confined work areas while carrying up to 0.9 cubic yards of heaped material.

Applications include:

• Landscaping
• Excavation
• Construction
• Concrete work
• Property maintenance
• Tree service
• Agriculture
• Municipal projects
• Demolition cleanup
• Rental fleets

Powerful Honda GX690 Engine

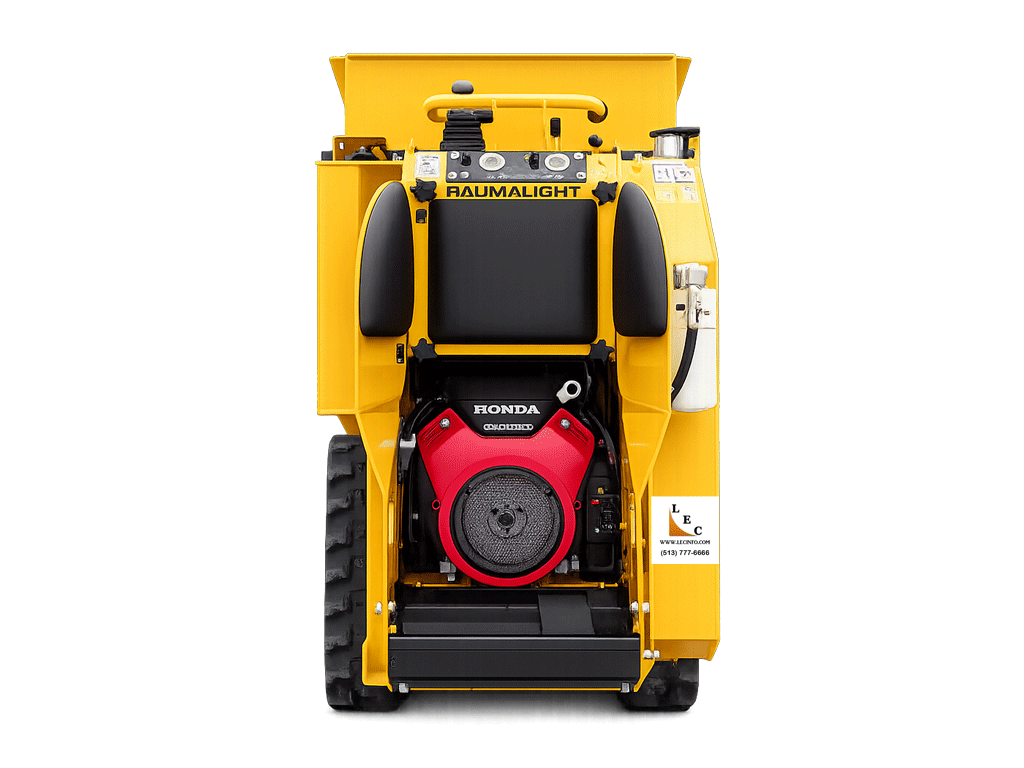

At the heart of the DT515RH is the legendary 22.1 HP Honda GX690 V-Twin gasoline engine.

Known worldwide for reliability, easy starting, and low maintenance, the GX690 provides the horsepower needed to keep production moving all day.

Benefits include:

• 22.1 HP commercial engine
• 688cc displacement
• Excellent fuel efficiency
• Easy parts availability
• Proven Honda reliability

Heavy-Duty Hydrostatic Drive System

Unlike basic chain-driven dumpers, the Baumalight DT515RH features a hydrostatic drive powered by three hydraulic pumps.

Two dedicated dual-piston pumps independently power each track while a third auxiliary pump operates the dump bucket.

Advantages include:

• Smooth operation
• Precise steering
• Excellent traction
• Reduced maintenance
• Outstanding control on uneven terrain

Joystick Controls for Maximum Productivity

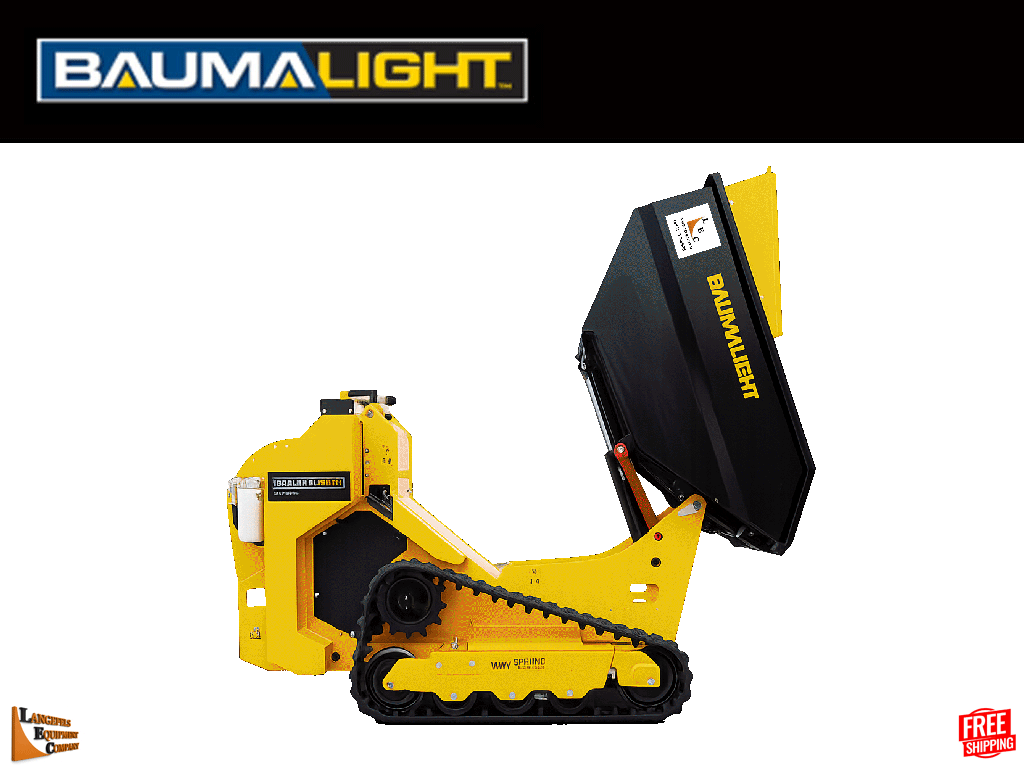

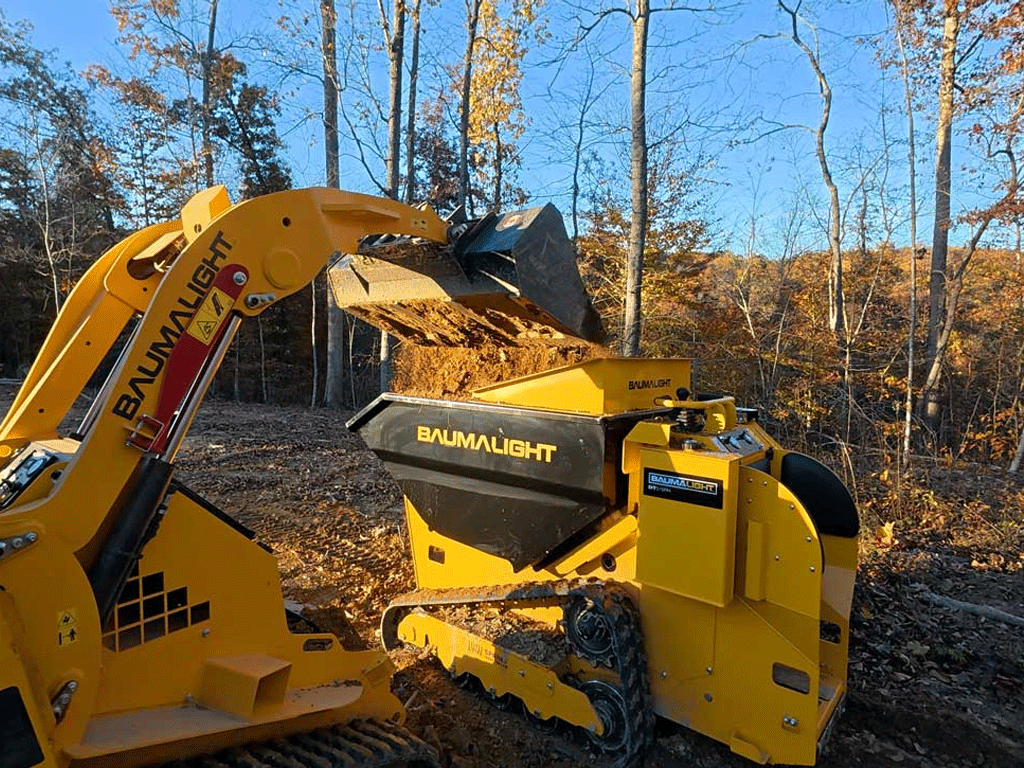

The intuitive joystick controls allow operators to drive and raise or dump the bucket simultaneously, reducing cycle times and increasing productivity.

The responsive controls make the DT515RH easy for new operators while providing the precision professionals expect.

Heavy-Duty 1/4" Steel Bucket

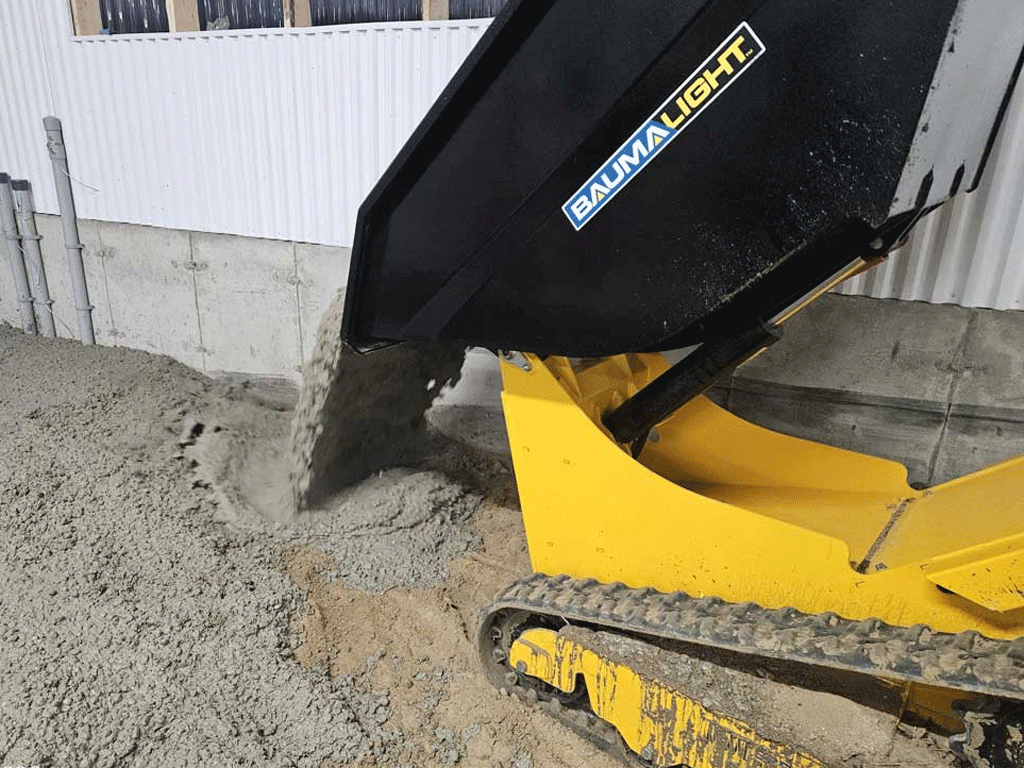

The dump bucket is built from 1/4-inch thick steel plate, providing exceptional durability for demanding commercial applications.

Bucket capacities include:

• Normal Capacity: 0.70 yd³ (0.55 m³)
• Heaped Capacity: 0.90 yd³ (0.66 m³)
• Liquid Capacity: 0.50 yd³ (0.38 m³)

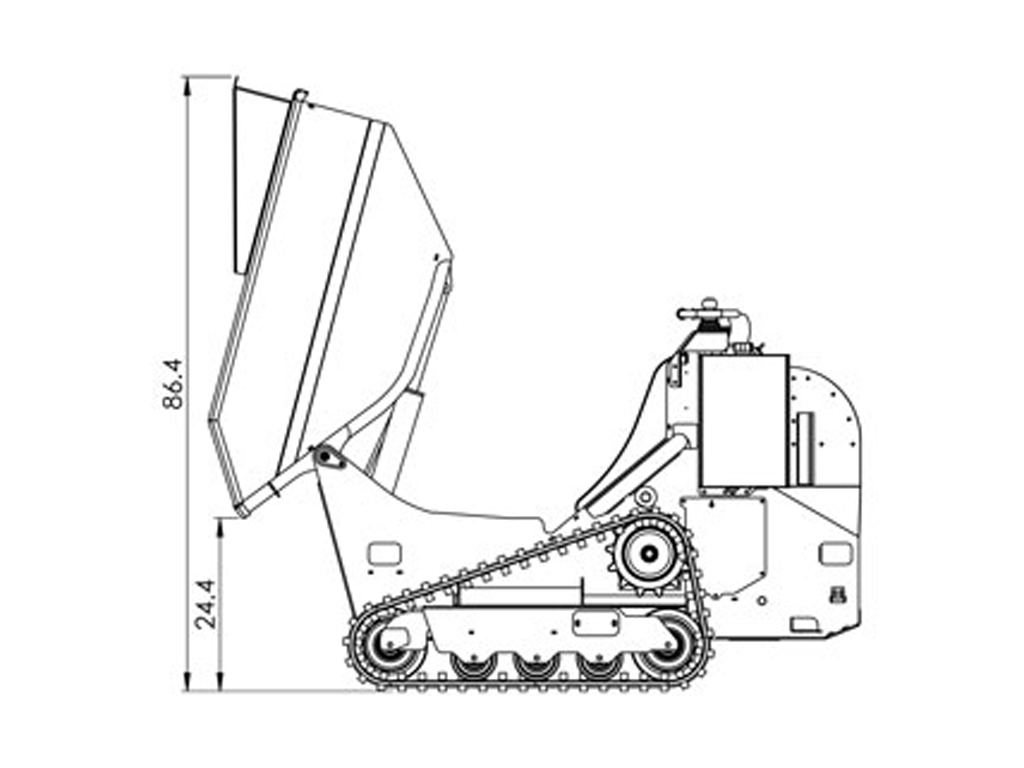

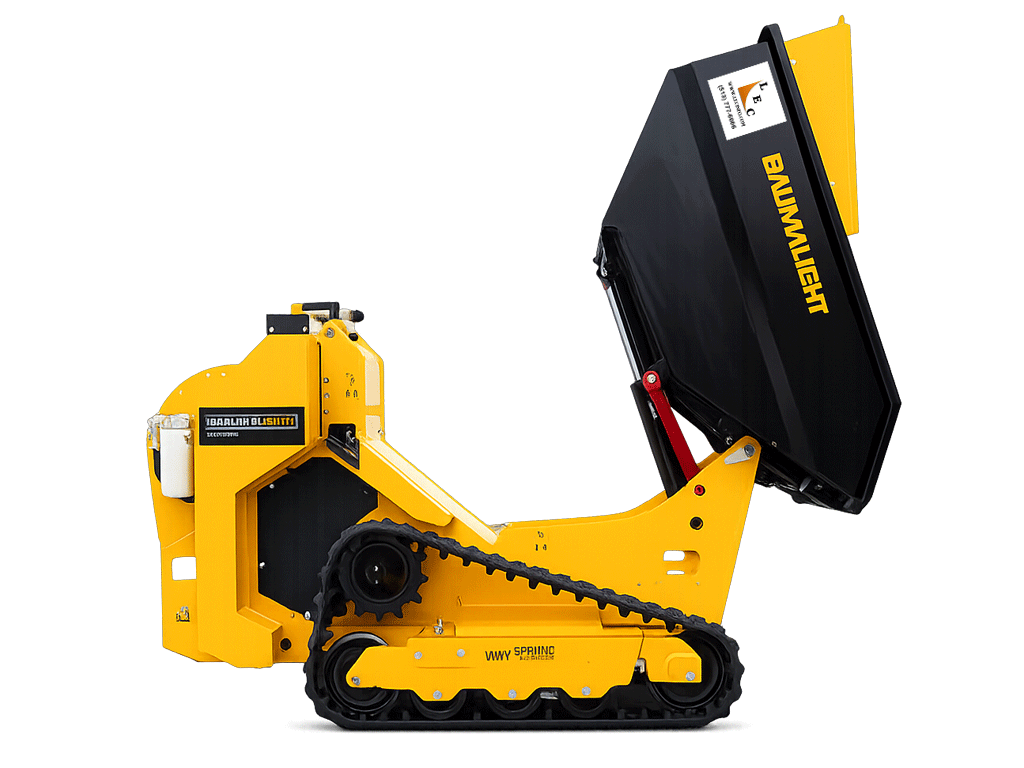

The bucket lifts to a maximum dump height of 86.4 inches, making loading trucks, trailers, or stockpiles simple.

Spring-Cushioned Track System

The tracked undercarriage features a spring-cushioned front idler that absorbs impacts from rocks, curbs, and uneven terrain.

Benefits include:

• Longer undercarriage life
• Reduced shock loads
• Smoother ride
• Improved durability

The standard track size is:

150 × 72 × 45

Optional wider tracks:

230 × 72 × 45

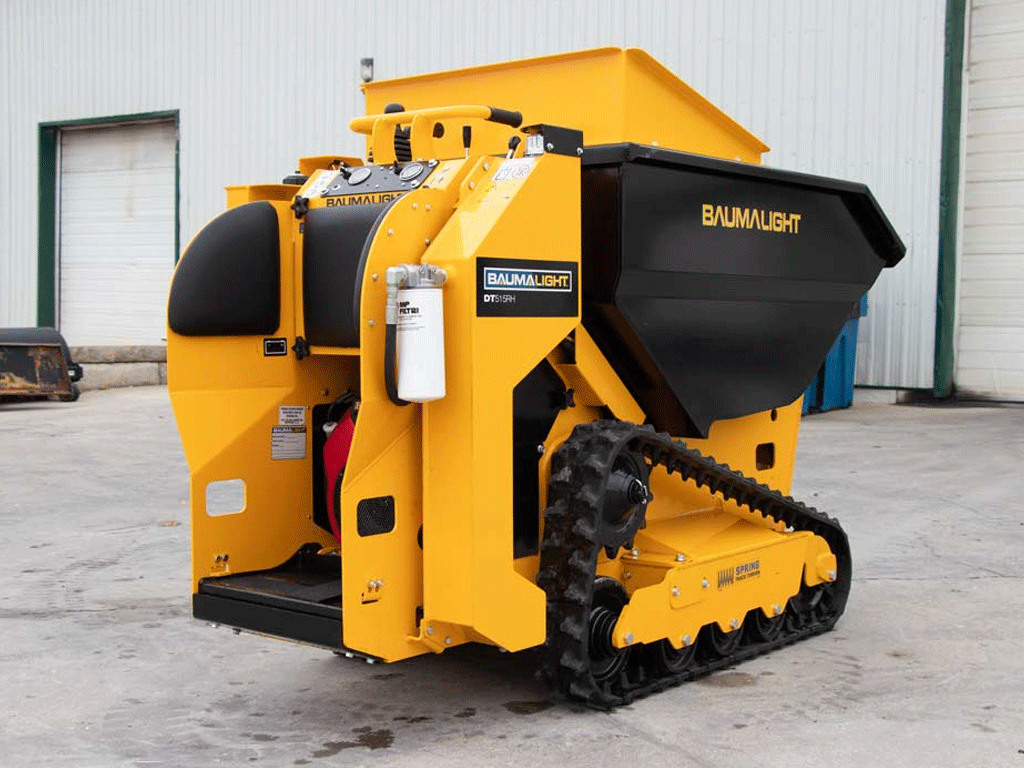

Comfortable Stand-In Operator Platform

Operator comfort and safety were priorities during development.

Features include:

• Full stand-in operator compartment
• Excellent visibility
• Easy access
• Comfortable controls
• Stable operating position

Built for Easy Maintenance

Routine maintenance is quick and straightforward thanks to numerous service-friendly features.

Highlights include:

• Grease fittings on all pivot points
• Chrome-vanadium hardened steel bushings
• Bucket safety lock bar
• Easy-access engine compartment
• Industry-standard replacement parts

Baumalight also supports Right to Repair, offering instructional service videos that help owners perform maintenance, troubleshooting, and repairs without unnecessary downtime.

Long Operating Time

The DT515RH is equipped with a large 19-liter fuel tank complete with an integrated fuel gauge, allowing operators to spend more time working and less time refueling.

Additional convenience features include:

• Auxiliary hydraulic pressure gauge
• 12-volt accessory outlet
• Easy-to-read controls
• Simple maintenance access

Industry-Leading Durability

Every major pivot point uses hardened chrome-vanadium steel bushings designed for years of commercial use.

Combined with heavy-duty construction, hydrostatic drive, and premium Honda power, the DT515RH is engineered to withstand demanding jobsite conditions.

Why Choose the Baumalight DT515RH?

• Commercial-grade Honda GX690 engine
• Heavy-duty hydrostatic drive
• Three hydraulic pump system
• Simultaneous drive and dump operation
• 1/4" steel bucket construction
• Spring-cushioned tracked undercarriage
• Excellent ground clearance
• Stand-in operator compartment
• Easy maintenance
• Right-to-Repair support
• Dealer-backed service network

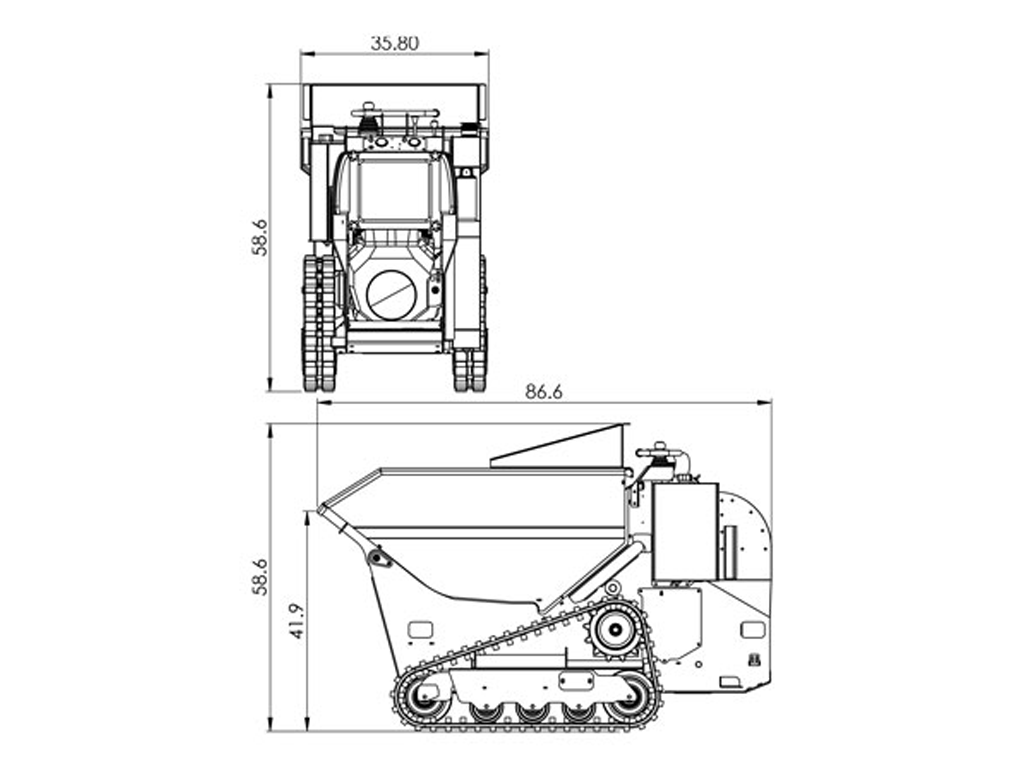

Baumalight DT515RH Specifications

Order Your Baumalight Mini Dumper from LEC

LEC offers the Baumalight DT515RH Self Propelled Mini Dumper for professionals looking for dependable, high-capacity material handling equipment. Whether you're expanding your landscaping fleet, outfitting a construction crew, or adding a profitable rental machine, the DT515RH delivers the durability, performance, and productivity Baumalight is known for.

Contact our equipment specialists today for pricing, availability, financing options, and expert assistance selecting the right Baumalight equipment for your operation.
