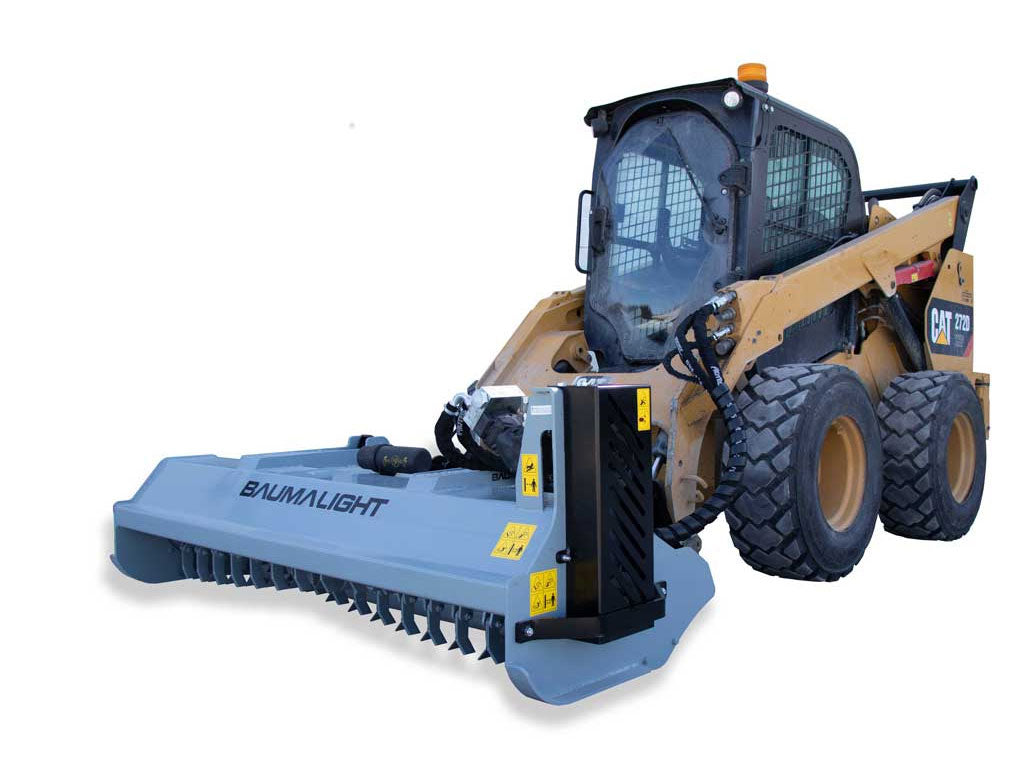

BAUMALIGHT FEB700 Flail Mower for skid steer

FEB700 Flail Mower for Skid steer

The Baumalight FEB700 flail mower is a heavy duty and versatile agricultural tool designed for efficiently mowing and mulching a variety of vegetation, including grass, weeds, light brush, and small trees. The mower features a sturdy frame that is designed to withstand the rigors of demanding work environments, making it ideal for use in agricultural, commercial, and municipal applications. Its low-profile design allows for excellent forward visibility and eliminates “blind spots” as material nears or enters the machine. With a path width of 88 inches and a rotor width of 80 inches, this flail mower is capable of covering large areas quickly and efficiently. The specially designed back discharge feature allows material to flow evenly and smoothly through the machine resulting in unmatched capacity and performance.

The rotor is equipped with heavy-duty, free-swinging flail knives that are designed to effectively cut and shred vegetation while minimizing damage to the underlying soil. The FEB700 Flail mower comes with 42 blade clusters in a spiral pattern, which are mounted on a rotor shaft that measures 1.75 inches in diameter. The rotor diameter at the tips is 17.5 inches, and the rotor weight, including tools, is 253 lbs.

The FEB700 uses a standard universal skid steer mounting plate making it easy to attach and remove from your vehicle and works well from 18-35 GPM and takes up to 4000 PSI. However, it does require a case drain to be installed for smooth operation. To maintain a steady, even mow height, the flail mower can be easily adjusted by lifting or lowering the skid steer plate as the mower pivots on the roller bar. The unique floating skid steer plate and independent linkage provide free movement and allows the mower to glide over uneven surfaces ensuring a uniform and consistently mowed finish in most types of terrain.

To ensure the longevity of the FEB700 Flail mower and reduce repair costs over time, a built-in relief system is installed to provide protection against overload or other damaging events. This system protection plays a critical role in safeguarding the machine from potential damage. Overall, the Baumalight FEB700 flail mower is a heavy build light industrial tool with a goal to give reliable performance, durability, and versatility for a variety of mowing and mulching applications.

FEATURES

• INTEGRATED SKID SHOES

  These durable skid shoes help the mowers to better float over the ground for optimal cutting action.

• HYDRAULIC FLOW & PRESSURE DATABASE

  For your convenience Baumalight has Developed a PSI Flow and Pressure database with over 1000 different carrier models to help you decide the best Baumalight model for your machine.

• F7000 FLAIL TEETH IN A SPIRAL PATTERN

  The heavy F7000 flail teeth are mounted in a spiral patter for maximum efficiency as more material can be cut with less power if the flail teeth are in a spiral pattern on the rotor.

• 6 FREE TEETH

  All FEB700 Flail mowers comes with a free set of 6 replacement teeth.

• FIXED ROLLER BAR

  The fixed roller bar ensures that the flail mower cuts at a consistent height, which is important for maintaining a neat and tidy appearance, resulting in a more even cut across the entire area being mowed.
  The fixed roller bar helps protect the flail mower's blades from damage, as it prevents the blades from hitting rocks, stumps, or other obstacles on the ground.

• LOW-PROFILE

  The body is designed with a low profile in order to provide good forward visibility so operator does not lose sight of material as it enters the mower.

• BENT AXIS PISTON MOTOR

  Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.

• CASE DRAIN – VENT TO ATMOSPHERE

  To prevent pressure relief activation on the motor seal, the FEB700 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you. A properly installed case drain protected by a vent to atmosphere relief valve will save the work of replacing your shaft seal and save you from down time of unexpected maintenance. T

• ARMOURED AND SLEEVED HYDRAULIC HOSES

  Baumalight hoses are sleeved for hose protection and operator safety.

• UNIVERSAL SKIDSTEER ADAPTOR

  Quickly and easily mount the Flail Mower to any skid steer with the universal skid steer plate.

• OVERTORQUE PROTECTION - RELIEF

  The relief valve protects the motor and the hydraulic system from pressure spikes. When an obstacle is hit the relief valves open and relieves the pressure.

• ADJUSTABLE BELT TENSIONER

  The adjustable belt tensioner ensures the proper tension of your belts, with no extra idler wheel that could wear out. Simply loosen the bolts and raise the motor mount to tighten the belt.

• LARGE DISCHARGE

  This design encourages discharge so the capacity of the machine increases substantially.

• FLOATING SKIDSTEER PLATE

  The unique floating back plate and independent linkage provide free movement and allows the mower to glide over uneven surfaces ensuring a uniform and consistently mowed finish in most types of terrain.

• POWDER COATED FINISH

  Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.

• GREASEABLE PINS

  Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
