BAUMALIGHT FELLER BUNCHER

Control Options

Baumalight Logo

BAUMALIGHT FELLER BUNCHER

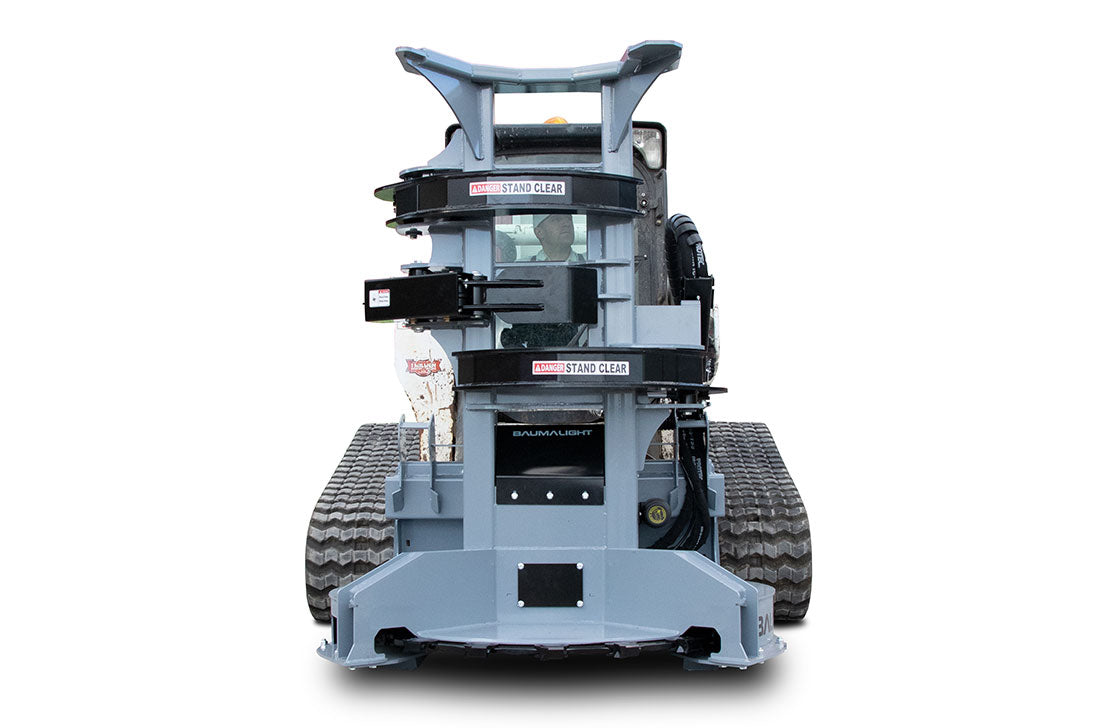

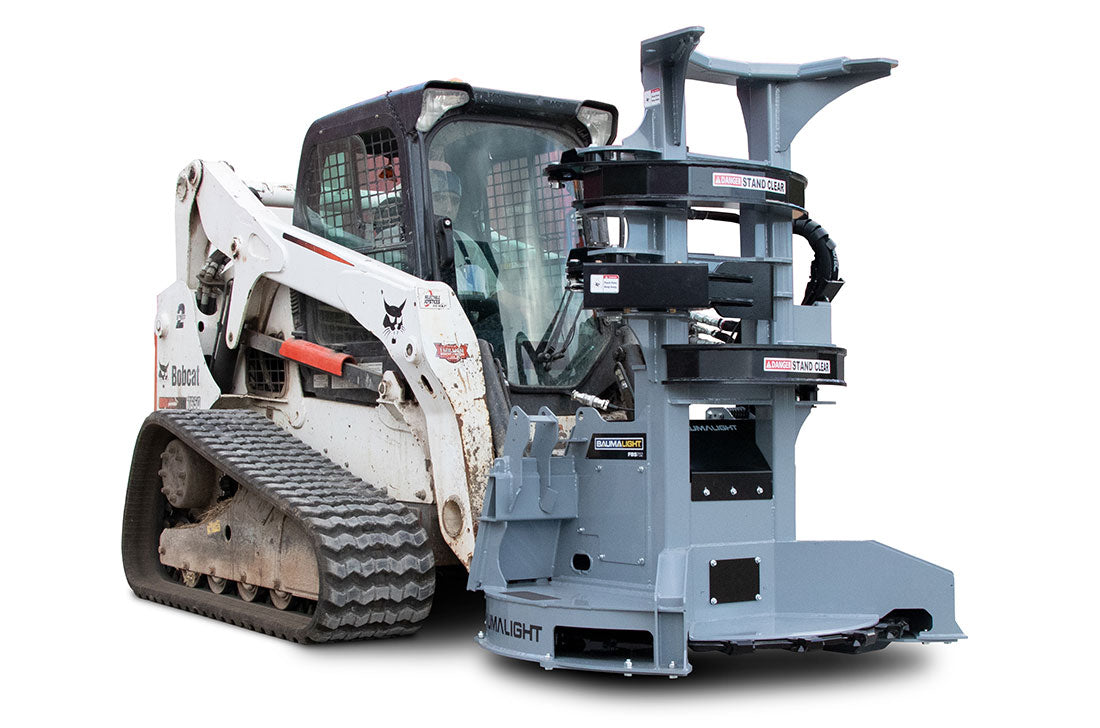

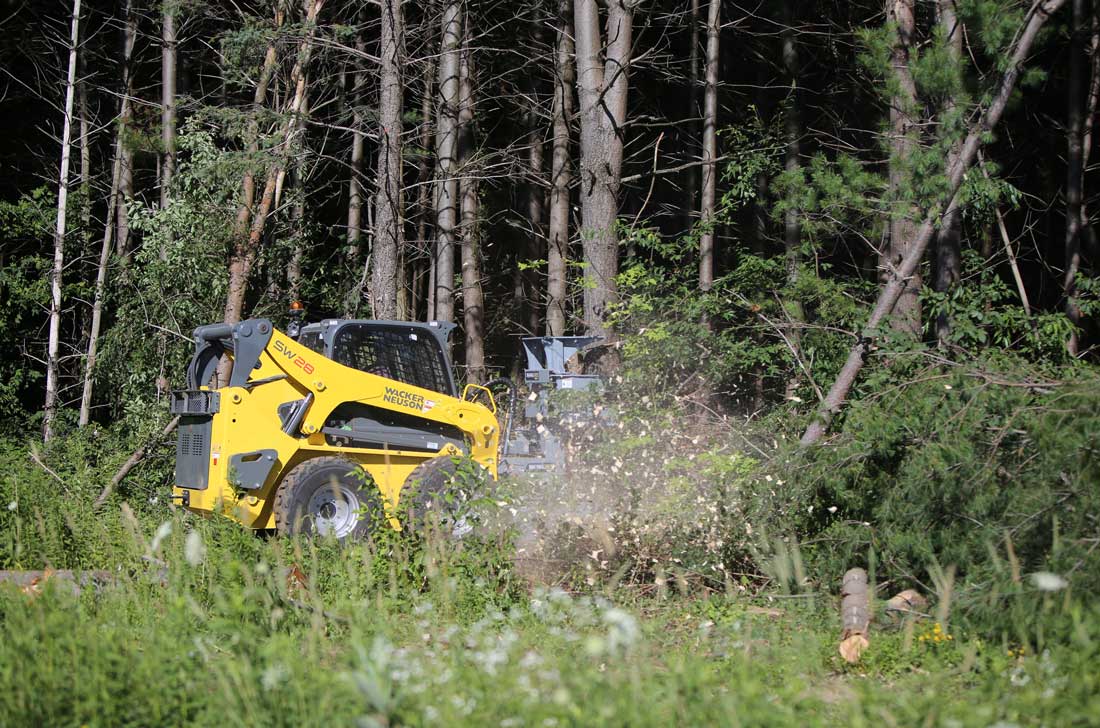

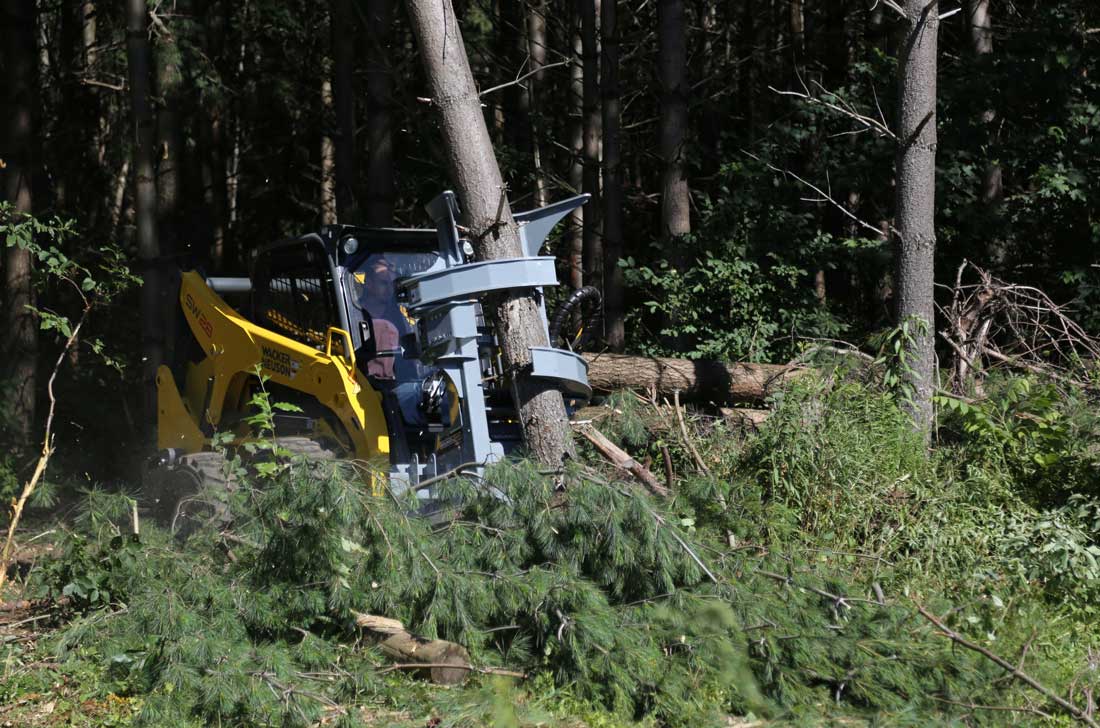

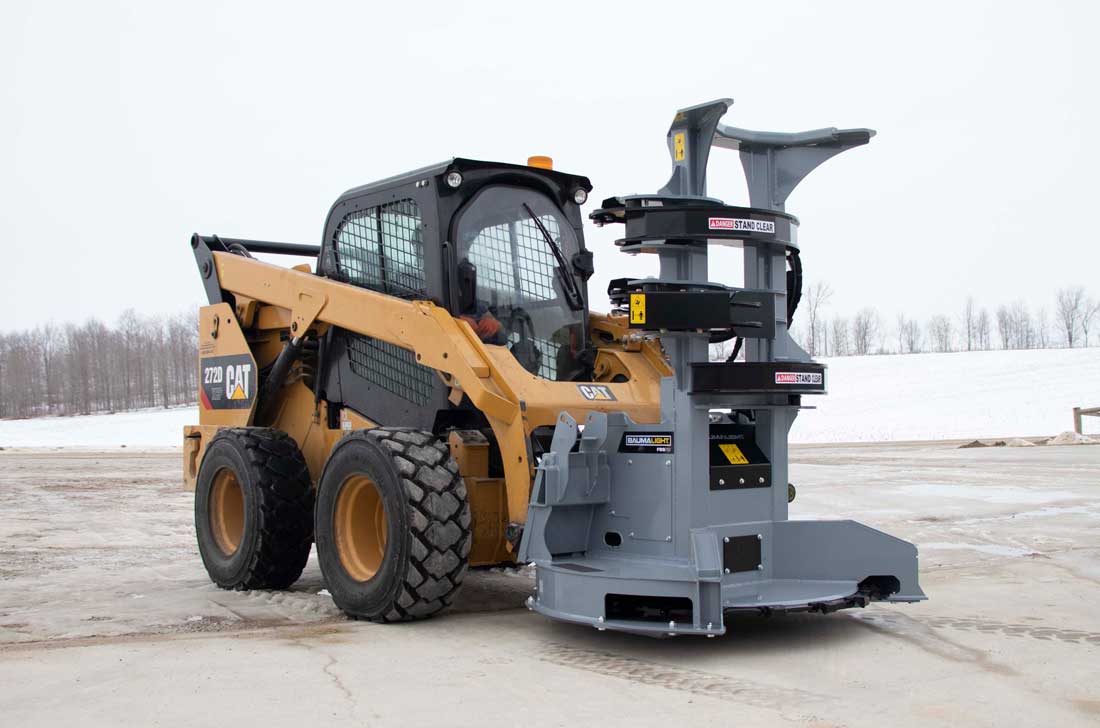

The FBS752 Skidsteer Mounted Feller Buncher we designed features a 52” cutting disc that can take up to 20” trees and is equipped with 18 Beaver cutting teeth. The tower is build with 4x4 tubing to allow more visibility for the operator and high stress areas use AR400 steel for added strength. It has an electric-over-hydraulic system which operates efficiently on hydraulic flows as little as 25 gpm and is powered by a bent axis piston motor. Only one set of remote hydraulics is required to operate all functions if you have an AUX electrical connection.

Special Features

  • D004956 OPTIONAL HAND CONTROL
  • SERVICE AND INSTRUCTIONAL VIDEOS & RIGHT TO REPAIR
  • AUX ELECTRICAL CONNECTION FOR IN-CAB CONTROL
  • 36" THROAT OPENING
  • OPEN FRAME FOR BETTER VISIBILITY
  • BENT AXIS PISTON MOTOR
  • HEAVY DUTY FRAME
  • BLADE MOUNTED ON HEAVY DUTY BEARING SUPPORT
  • SAW BLADE SHIELDING

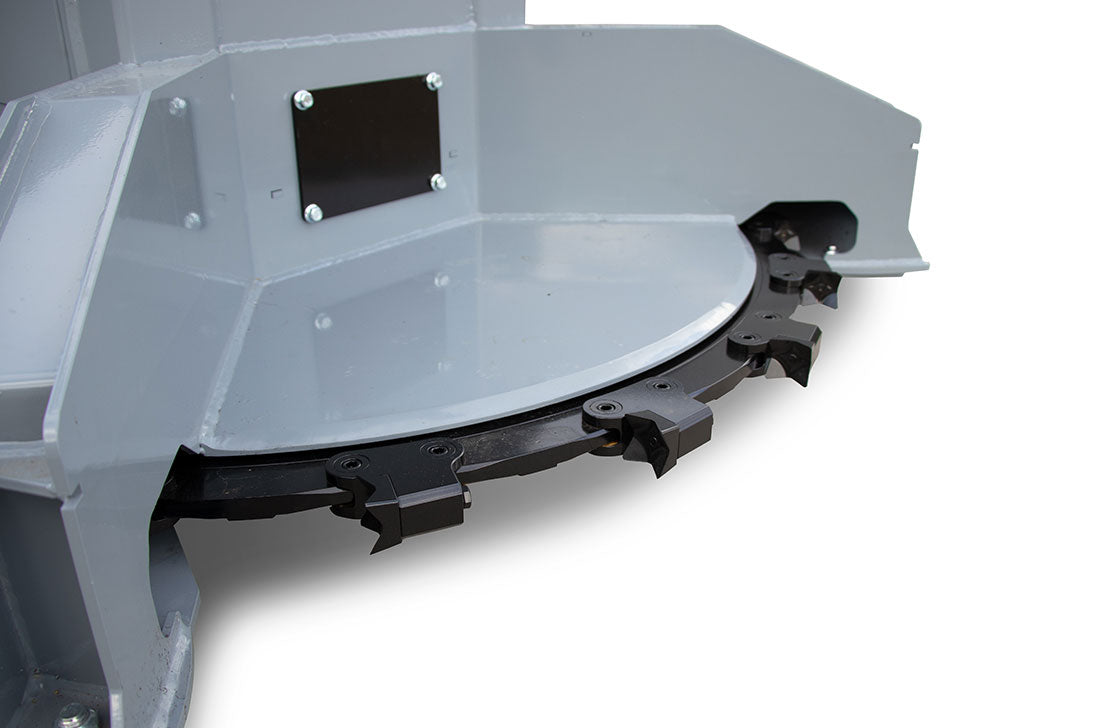

  • CLEAN CUTS WITH B8000 BEAVER TEETH
  • POWDERED COATED
  • HOSE SUPPORT MOUNTED LEFT OR RIGHT
  • SPRING LOADED HOSE SUPPORT
  • CURVED HOSE BRACKET
  • ARMOURED AND SLEEVED HOSES
  • ROUND EDGES
  • ROUNDED EDGES ON PUSH BAR/FELLER HOOK

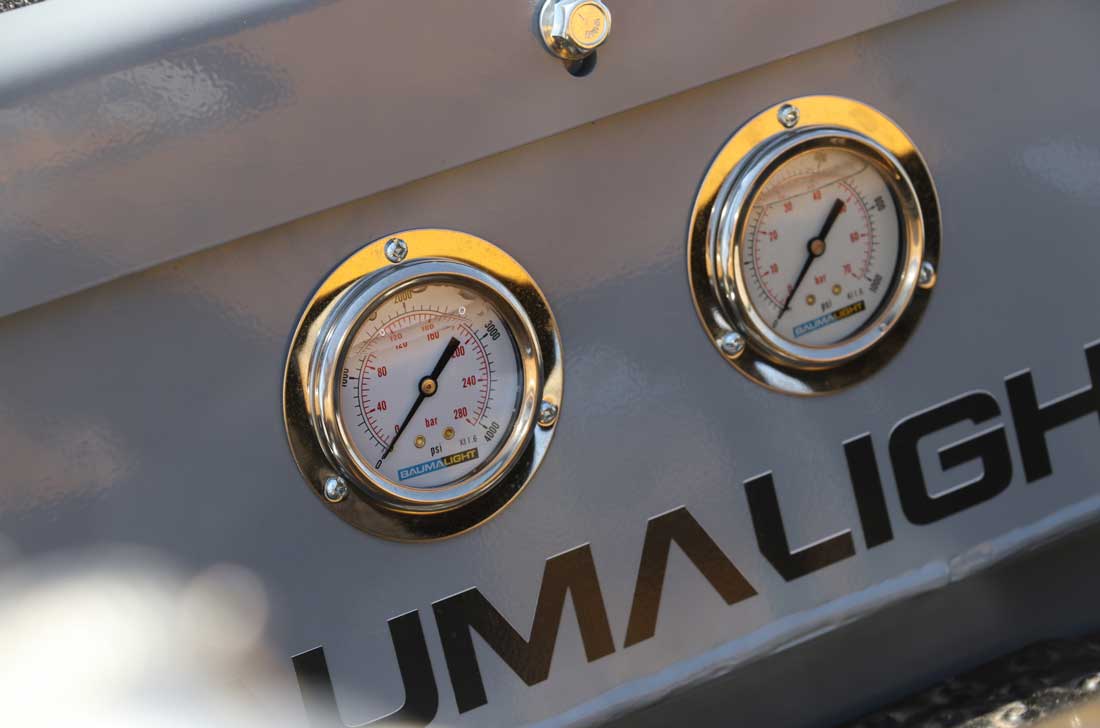

  • PRESSURE GAUGE
  • 6 FREE TEETH

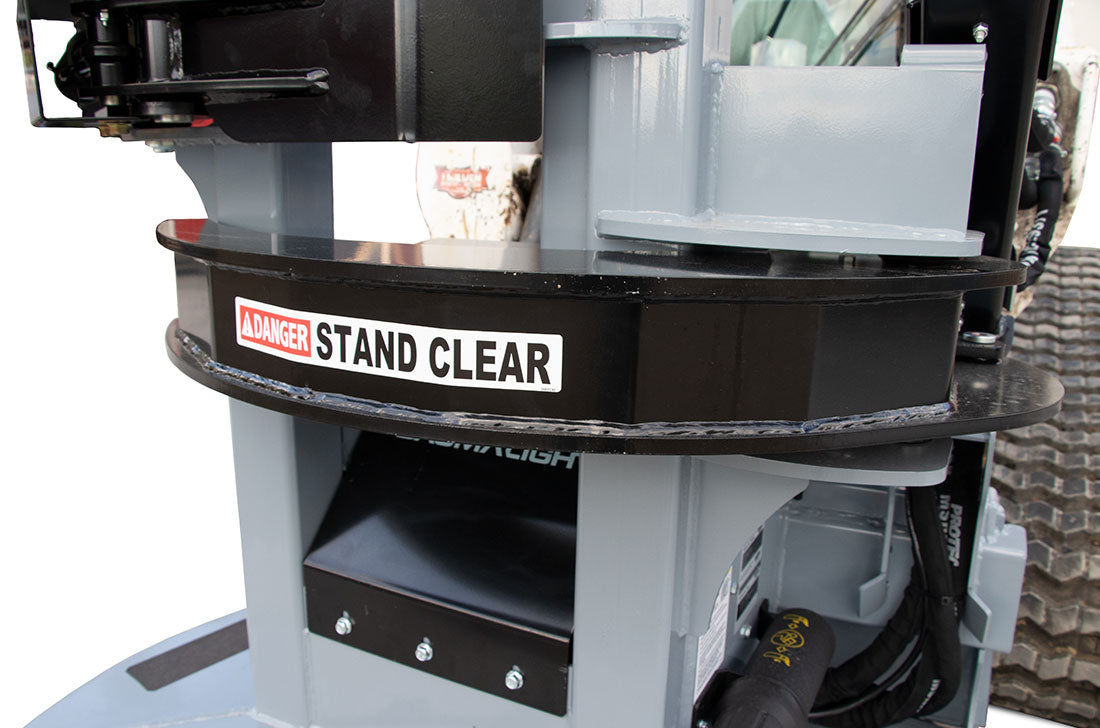

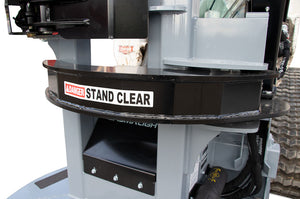

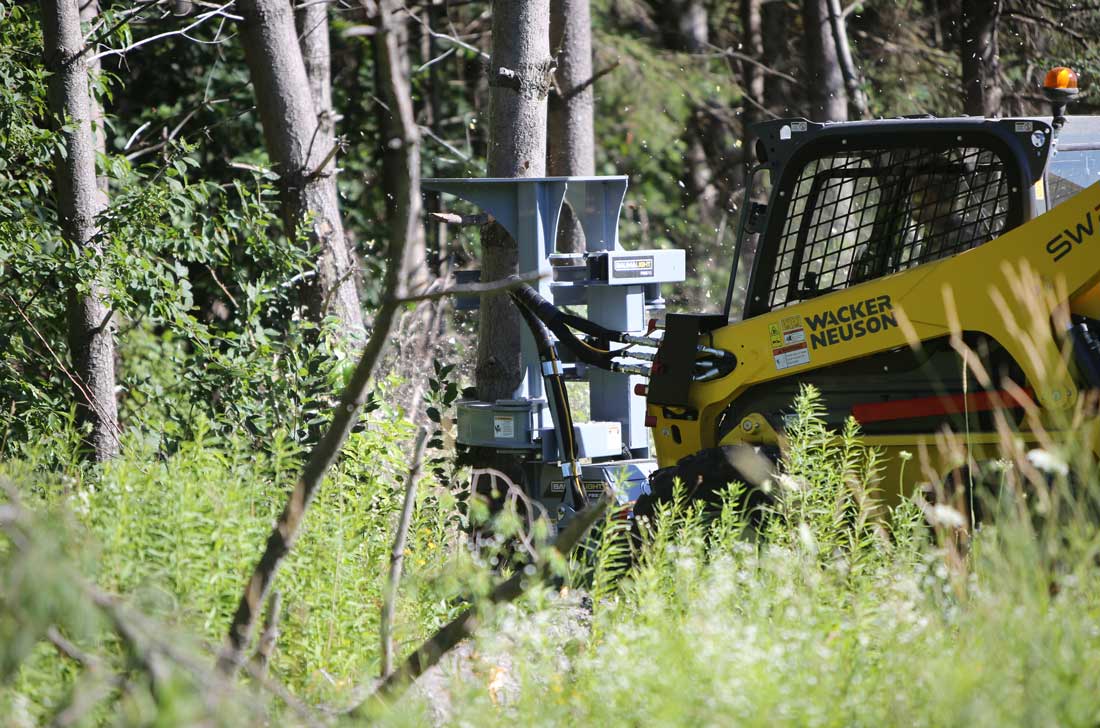

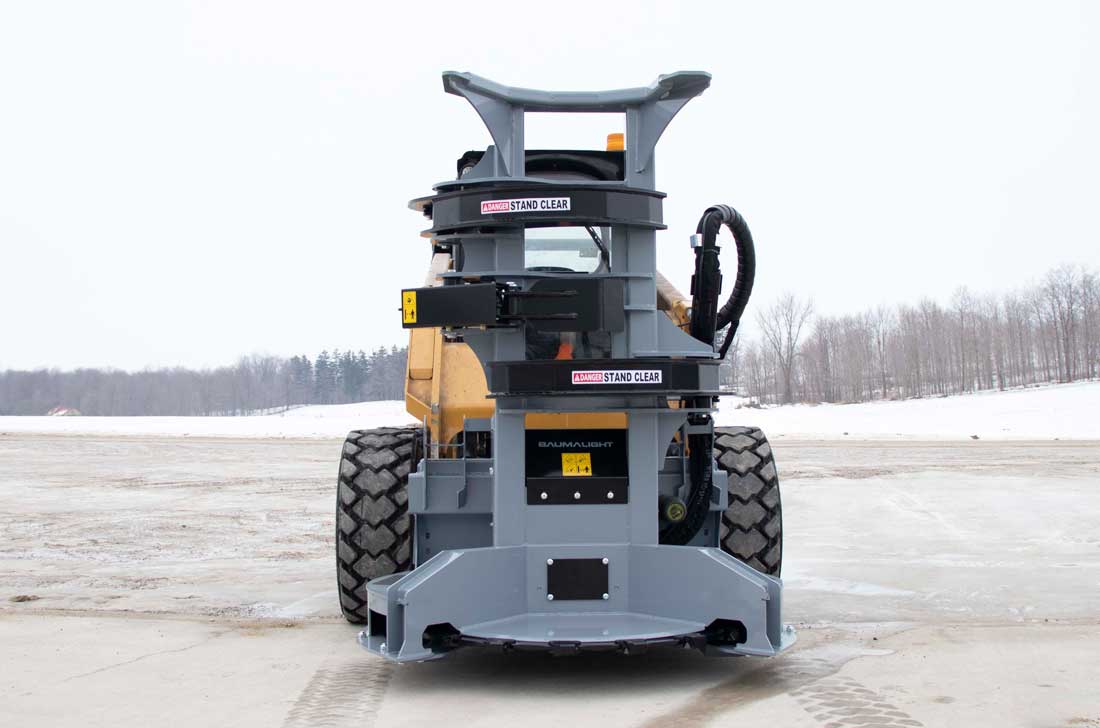

  • GRABBER ARMS

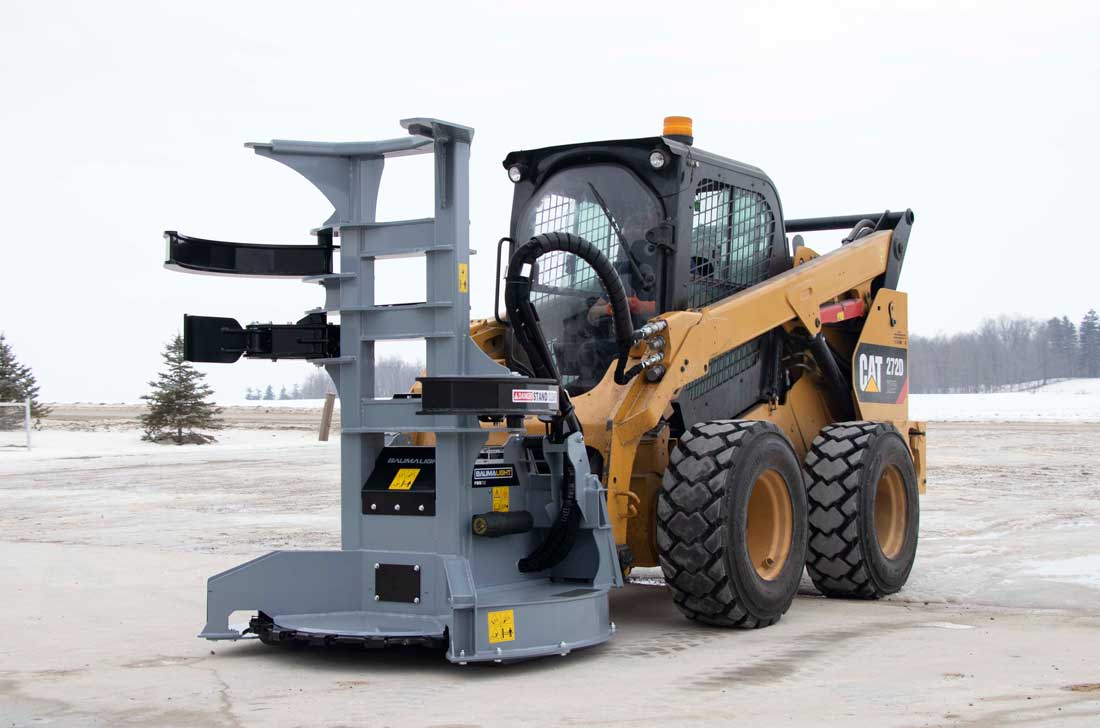

  • BUNCHER ARM
  • BOLT-ON SKIS
  • SERVICE ACCESS
  • GREASEABLE PINS
  • HARDENED STEEL BUSHING
 FBS752
Skidsteer Mounted
Fixed Horizontal Blade
Universal Skidsteer Adaptor
4000 PSI
Requires Case Drain
Requires 12V Electric
Four 12V positive switchable signals required
Wire Supplied to AUX
Hoses Included
Couplers NOT Included
52" Diameter Blade
20" Max Cut
3/4" Steel Blade
1 5/8" Cutt Thickness
4 Edges Per Tooth
18 Teeth
B8000 Beaver Teeth
Throat Opening at teeth: 36"



MOTOR MOTOR
TYPE
CC CASE
DRAIN
IDEAL
RPM
20
GPM
25
GPM
30
GPM
35
GPM
40
GPM
45
GPM
T590 Bent Axis Piston 108 Yes  800-1400 - 700 RPM 900 RPM 1050 RPM 1230 RPM 1400 RPM
