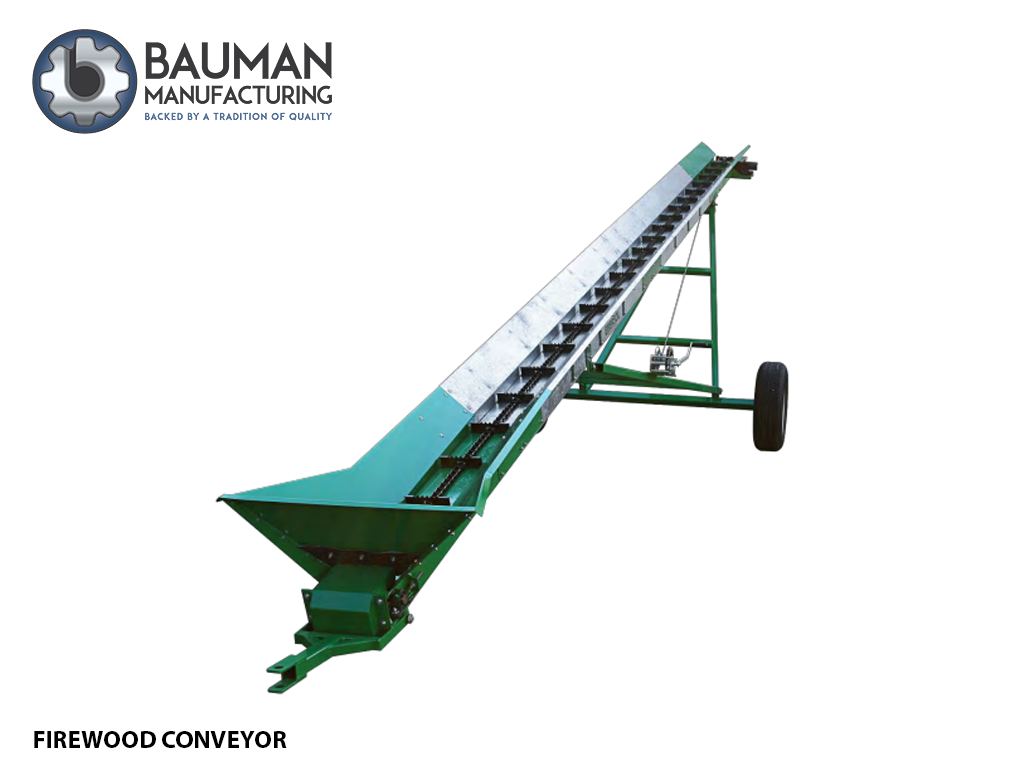

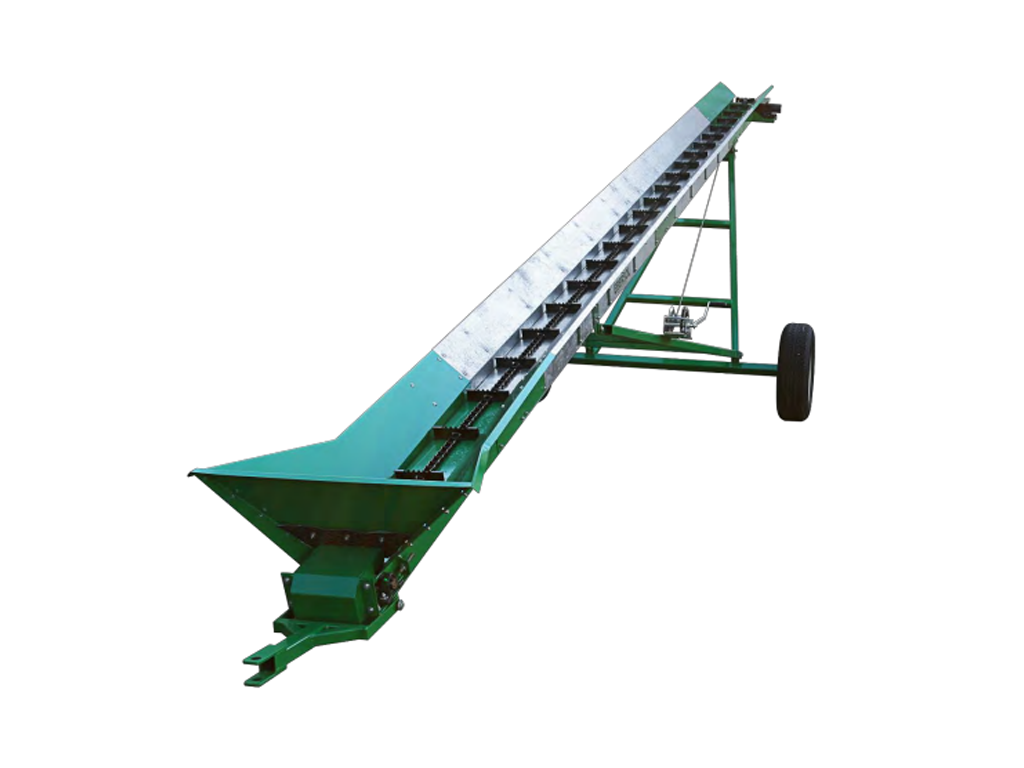

FIREWOOD CONVEYOR

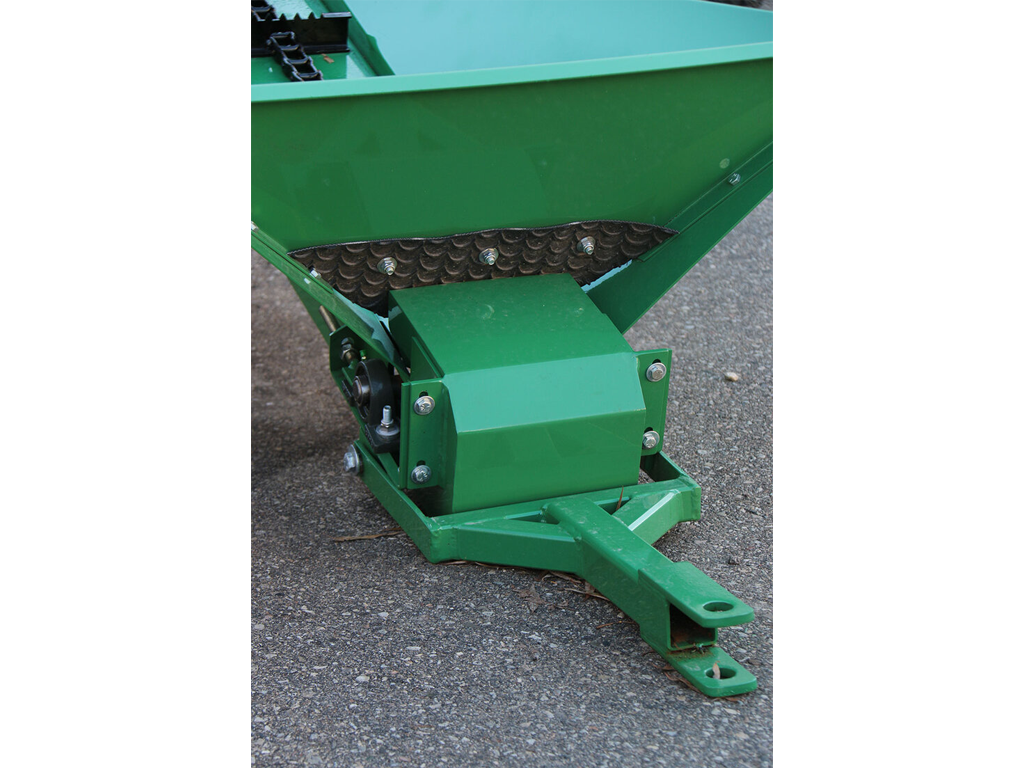

The Ebersol Firewood conveyor utilizes a single chain design with a standard 662 pintle chain and a heavy, 2” steel serrated flite to grab wood as it comes off the wood processor in 14” to 18” lengths. The 16 gauge galvanized sides flair from 8” at the bottom to 18” at the top allowing for smooth efficient movement of the wood with very little jamming or catching on the sides. The bottom section is built from heavy 12 gauge steel to withstand the additional pounding from the wood falling off the processor or tractor bucket onto the conveyor.

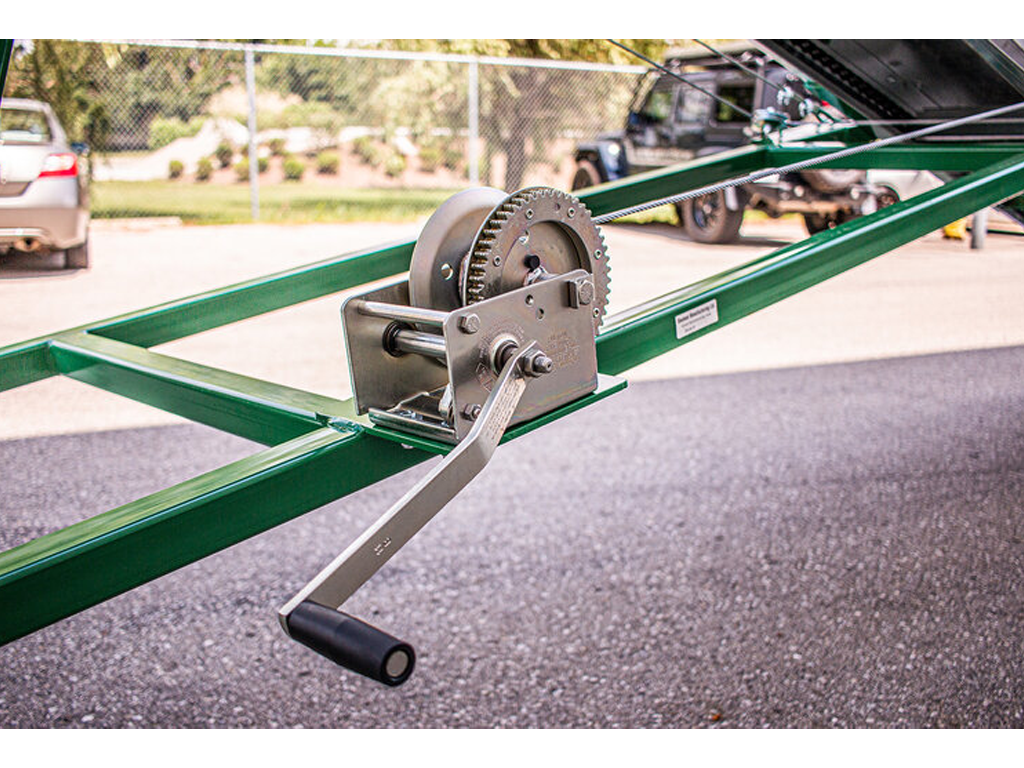

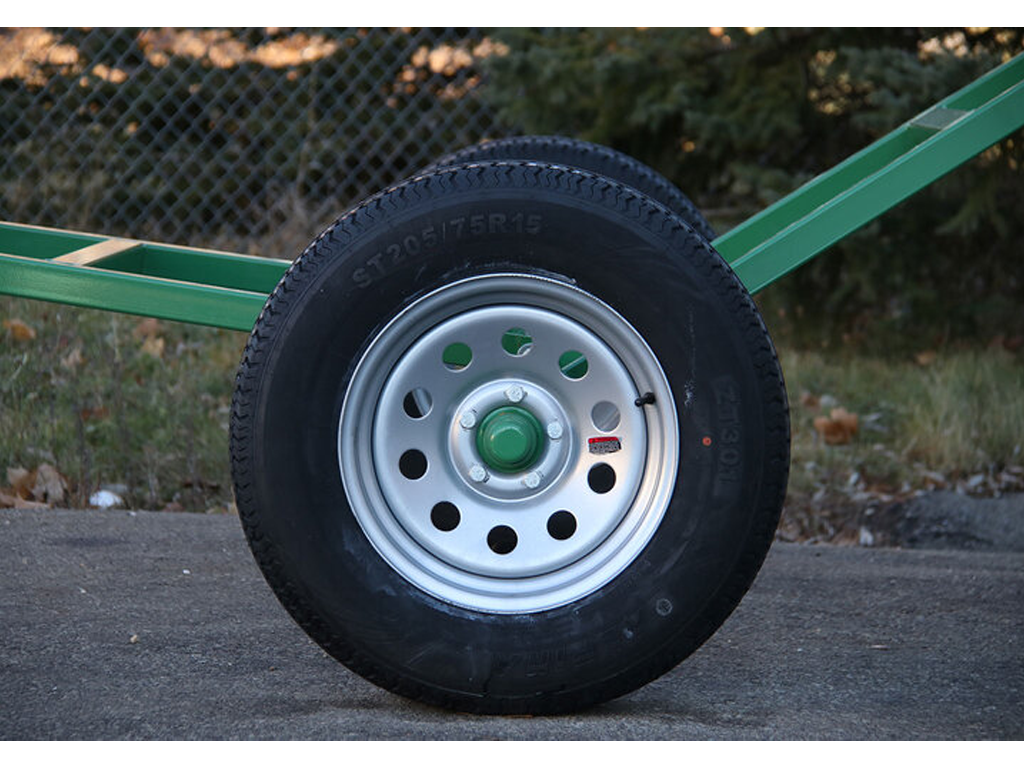

The standard 32” wide hopper directs the wood into the conveyor when loading.  An optional undercarriage is available to easily transport the conveyor from A to B, and comes with a safety winch, new tires and wheels and a clevis hitch to fit most tractors and pickup trucks. The operator has the choice of a ¾ hp electric motor or a hydraulic drive that can be run from the wood processor.

Offered in 3 standard lengths of 20’, 25’ and 30’ with easy to handle 5’ and 10’ sections for assembly. This unit is ideal for the individual who uses firewood for home heating or the commercial firewood vendor selling hundreds of cords of firewood annually.

Construction Features:

• 12 ga. heavy duty 5' bottom section
• 8" wide trough flared out to 18" at top
• 8" deep trough
• Flared style trough conveyor

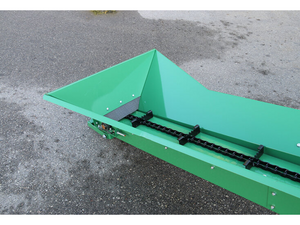

• Standard hopper included 32" wide
• Heavy conveyor chain (662 pintle)
• 2" high serrated chain flight
• Easy bolt together construction

Operating Features:

• Handles firewood and similar types of material
• Available 20', 25' & 30' lengths

Options:

• Optional undercarriage allows for easy
• transportation and height adjustment
• Hydraulic or electric drive
• Hydraulic power pack
