BPFF-42-MPM-2

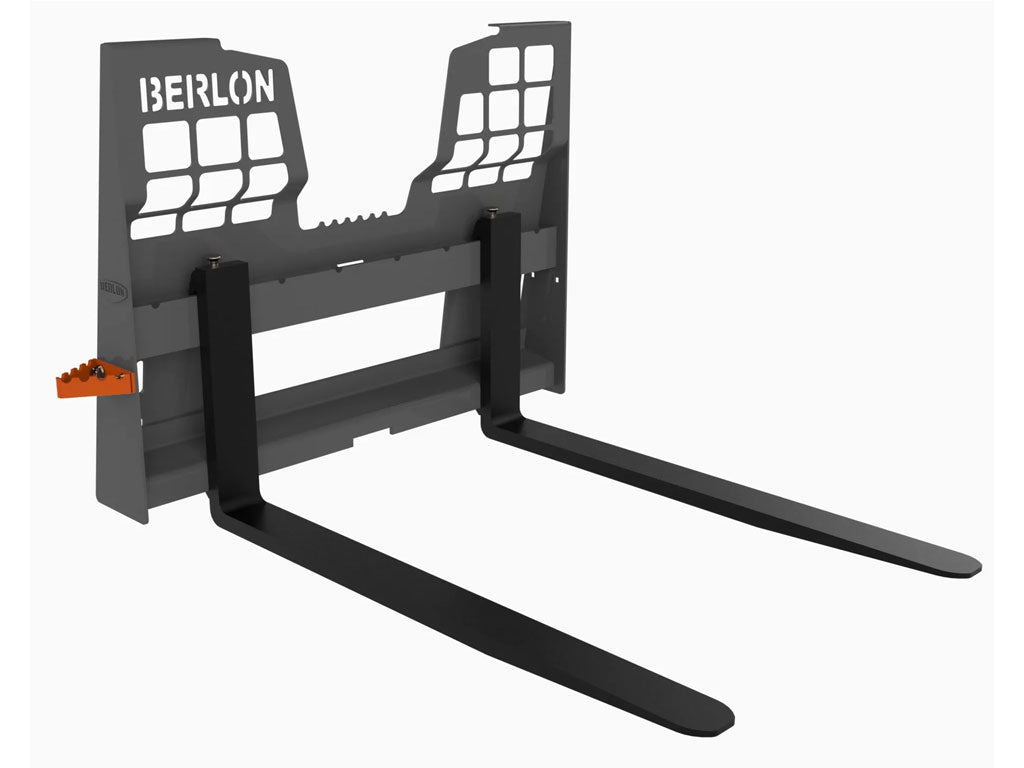

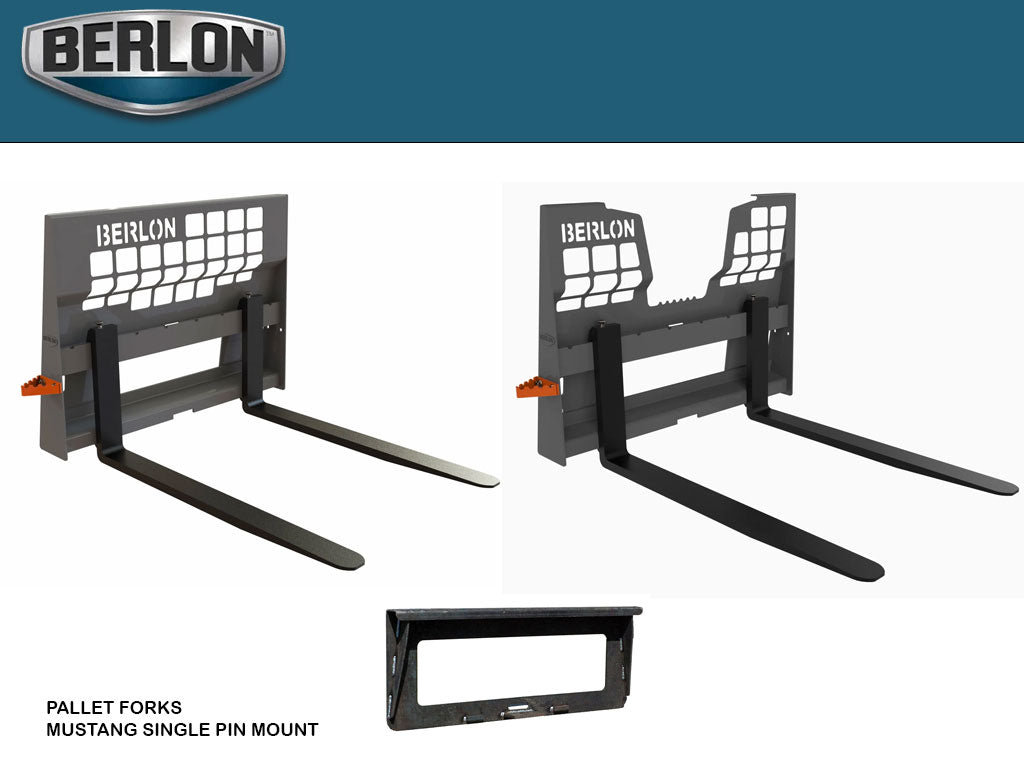

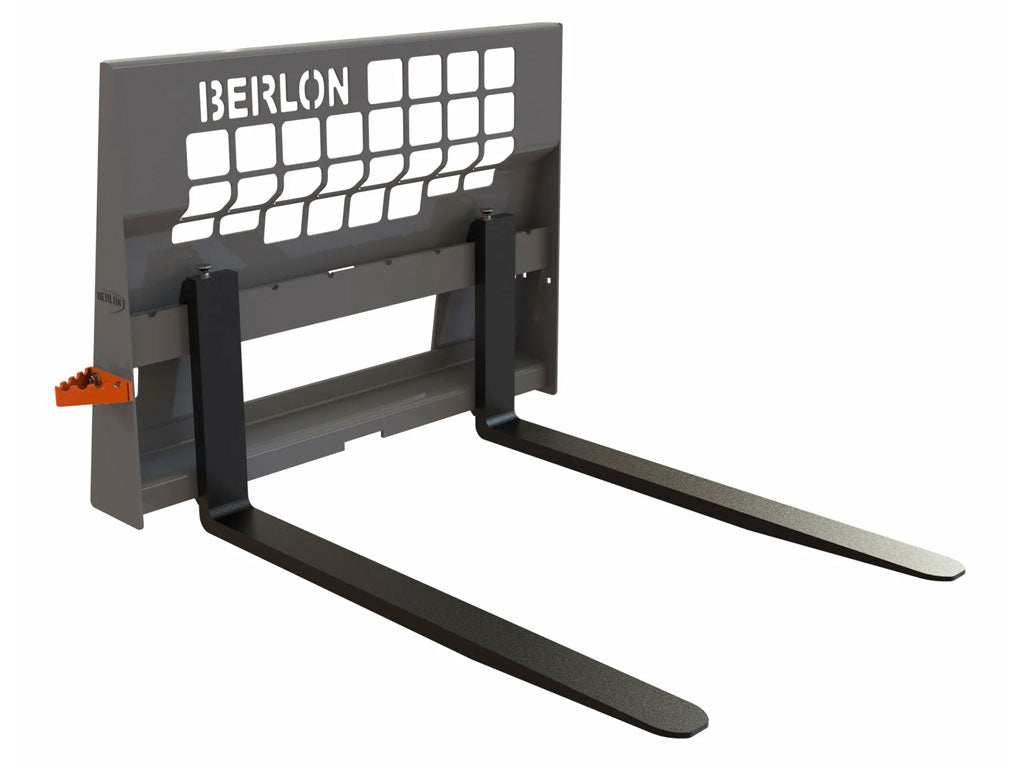

BERLON pallet forks for old style single pin MUSTANG skid steer mounting
$1,116.50 - $2,068.50
DESCRIPTION
PALLET FORKS
Berlon Pallet Forks are made in the USA. These forks have load capacity from 4,000 lbs. to 5,000 lbs. and are classified as standard duty. Ratings are based on a 24-inch load center, with a 3:1 safety factor.
- Single pin mounting (Old Style) MUSTANG MFG.
- Class 2 pallet forks
- 4000 - 5000 lbs. lift capacity
- Full brick guard or Walk through brick guard
- Step(s)
- All forks are forged, heat-treated and made in the USA
- Forks have fully tapered ends for easy entry and include spring-loaded positioning pins
- Heavy-duty formed steel brick guards provide excellent operator protection and visibility
Option:
- 60 degree angle on back guard. The 60 degree angle improves attachment rollback.
| STD BRICK GUARD | |||
| PART # | HEIGHT | WIDTH | WEGHT |
| BPFF-42-MPM-2 | 36" | 52" | 436 |
| BPFF-48-MPM-2 | 36" | 52" | 454 |
| BPFF-48-2-MPM-2 | 36" | 52" | 475 |
| BPFF-54-MPM-2 | 36" | 52" | 494 |
| BPFF-60-MPM-2 | 36" | 52" | 512 |
| BPFF-72-MPM-2 | 36" | 52" | 540 |
| WT BRICK GUARD | |||
| PART # | HEIGHT | WIDTH | WEGHT |
| WTBPFF-42-MPM-2 | 36" | 52" | 426 |
| WTBPFF-48-MPM-2 | 36" | 52" | 444 |
| WTBPFF-48-2-MPM-2 | 36" | 52" | 465 |
| WTBPFF-54-MPM-2 | 36" | 52" | 484 |
| WTBPFF-60-MPM-2 | 36" | 52" | 502 |
| WTBPFF-72-MPM-2 | 36" | 52" | 530 |
| FORK TINES | |||
| PART # | LENGTH | THICK | WIDTH |
| (WT)BPFF-42 | 42" | 1.375" | 4" |
| (WT)BPFF-48 | 48" | 1.375" | 4" |
| (WT)BPFF-48-2 | 48" | 1.56" | 4" |
| (WT)BPFF-54 | 54" | 1.56" | 4" |
| (WT)BPFF-60 | 60" | 1.56" | 4" |
| (WT)BPFF-72 | 72" | 1.56" | 4" |
FITS

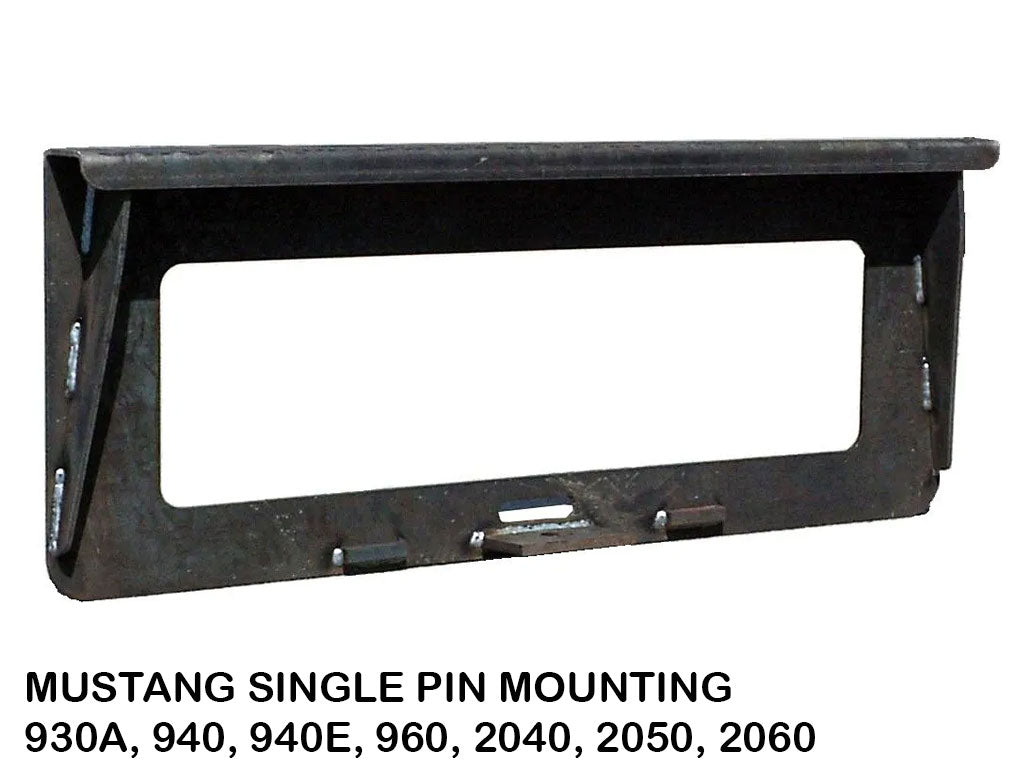

MUSTANG - WITH SINGLE PIN MOUNT
- 930A
- 940
- 940E
- 960
- 2040
- 2050
- 2060
