BIG DAVE SPECIAL - ALLIED R03P Performance series hydraulic hammers for mini excavators 4400-9700 lbs.
$6,999.00
BIG DAVE SPECIAL - TWO MOUNTINGS AND FREE SHIPPING
- ALLIED R03P HAMMER
- MINI EXCAVATOR OF YOUR CHOICE

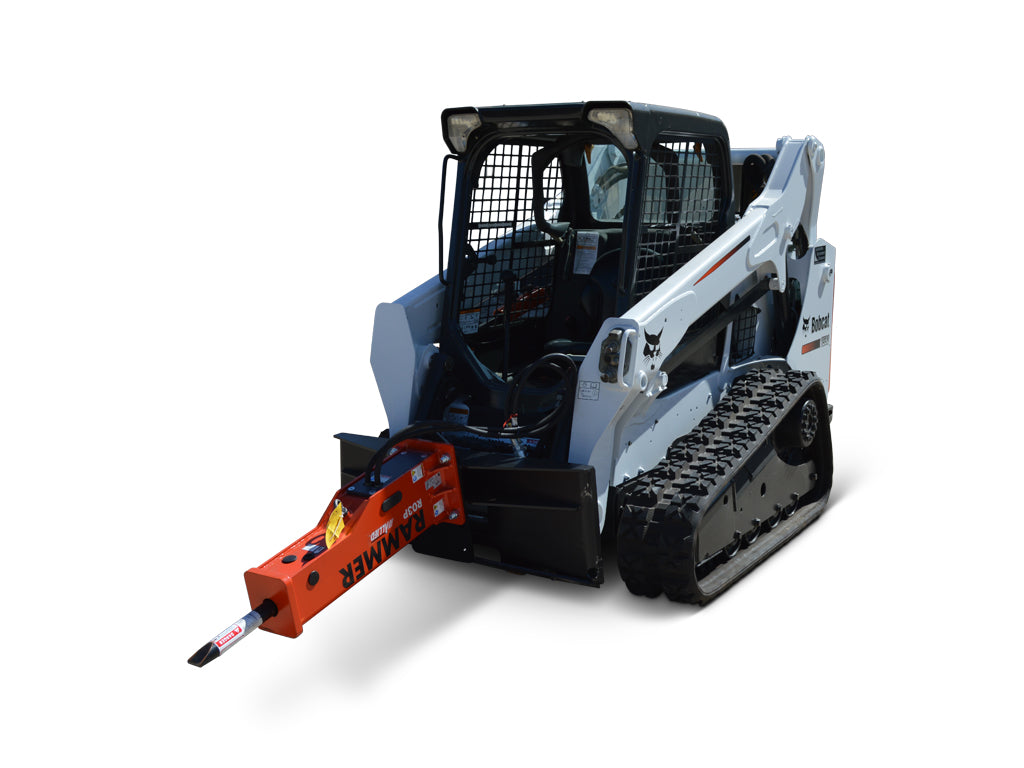

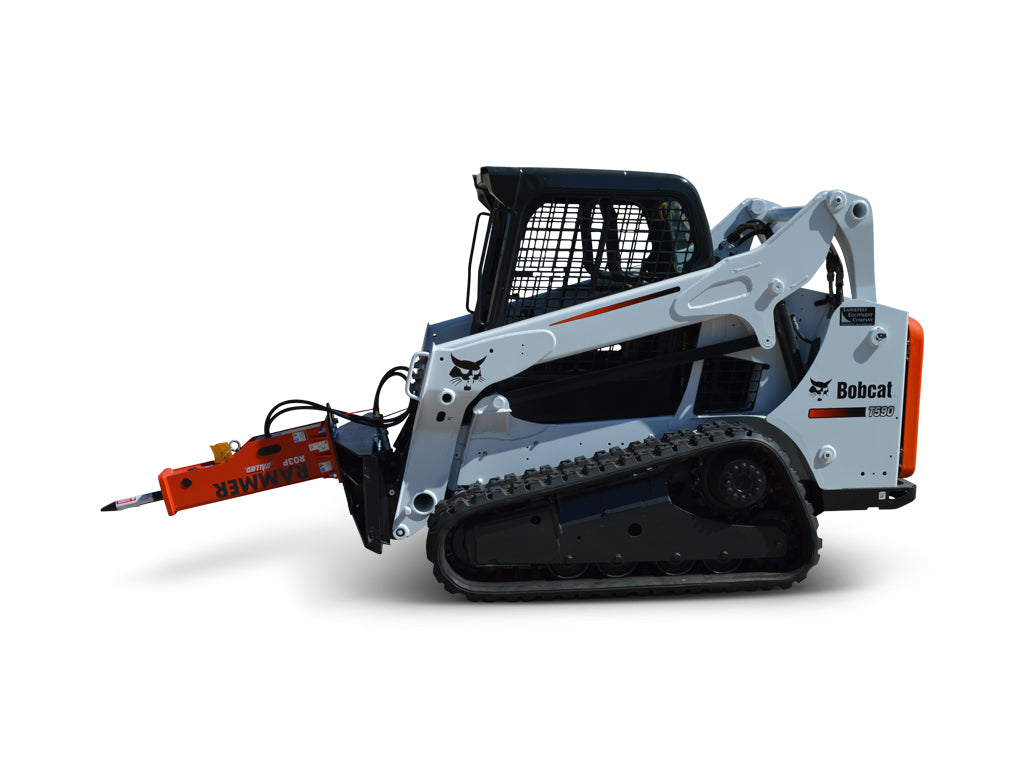

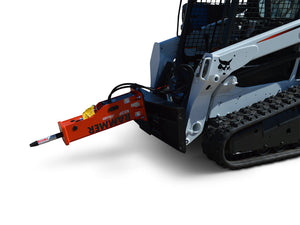

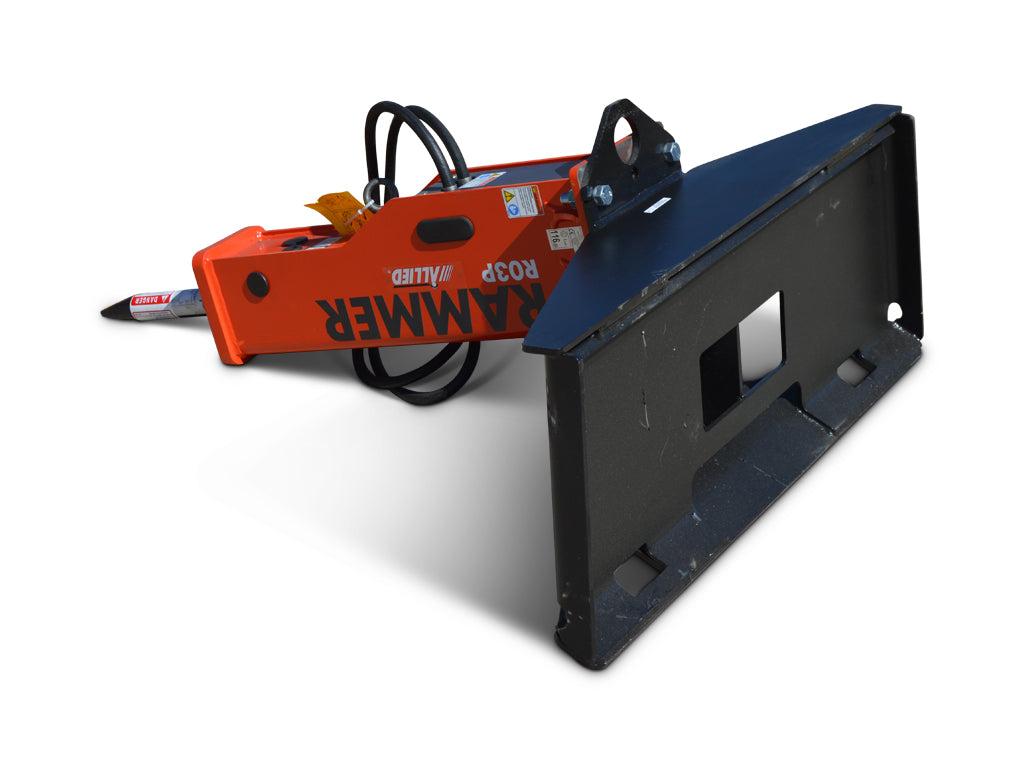

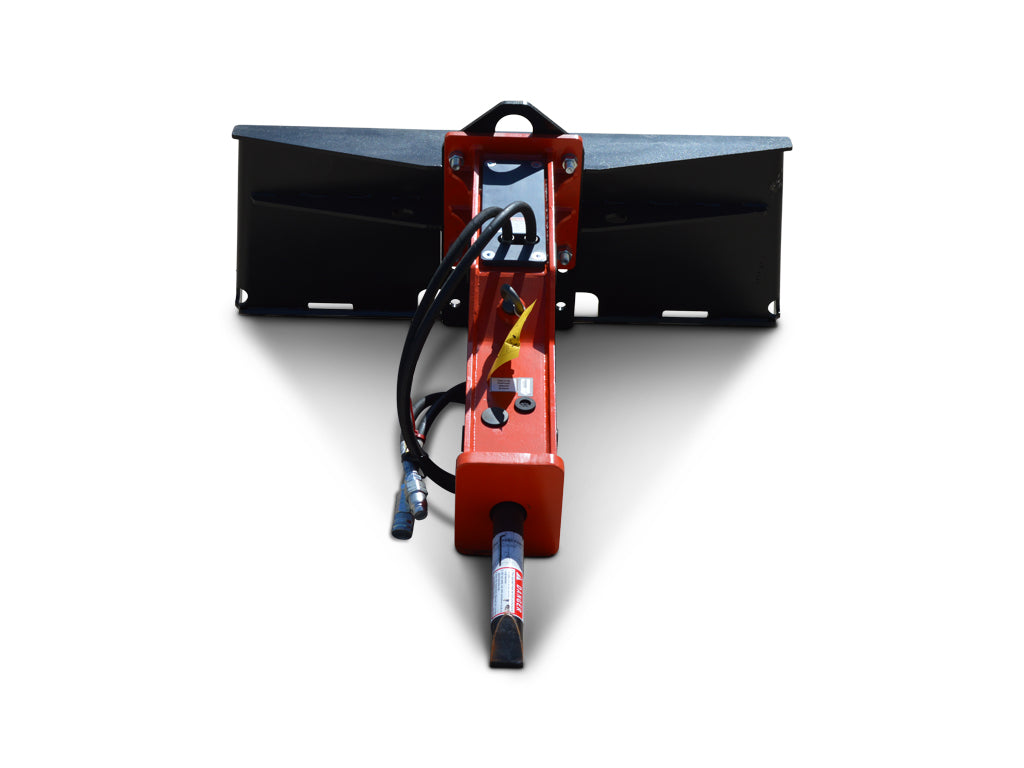

- SKID STEER MOUNTING
- FREE SHIPPING
- LOW RATE FINANCING
- WHILE SUPPLIES LAST
HYDRAULIC HAMMERS
There is a Rammer® hydraulic hammer for virtually any breaking application. So whether you are working with demolition, recycling, mining, construction or quarrying, we have the hammer to give you the best results.
Rammer® hammers are tough, durable and offer you the most economical owning and operating costs while delivering maximum production.

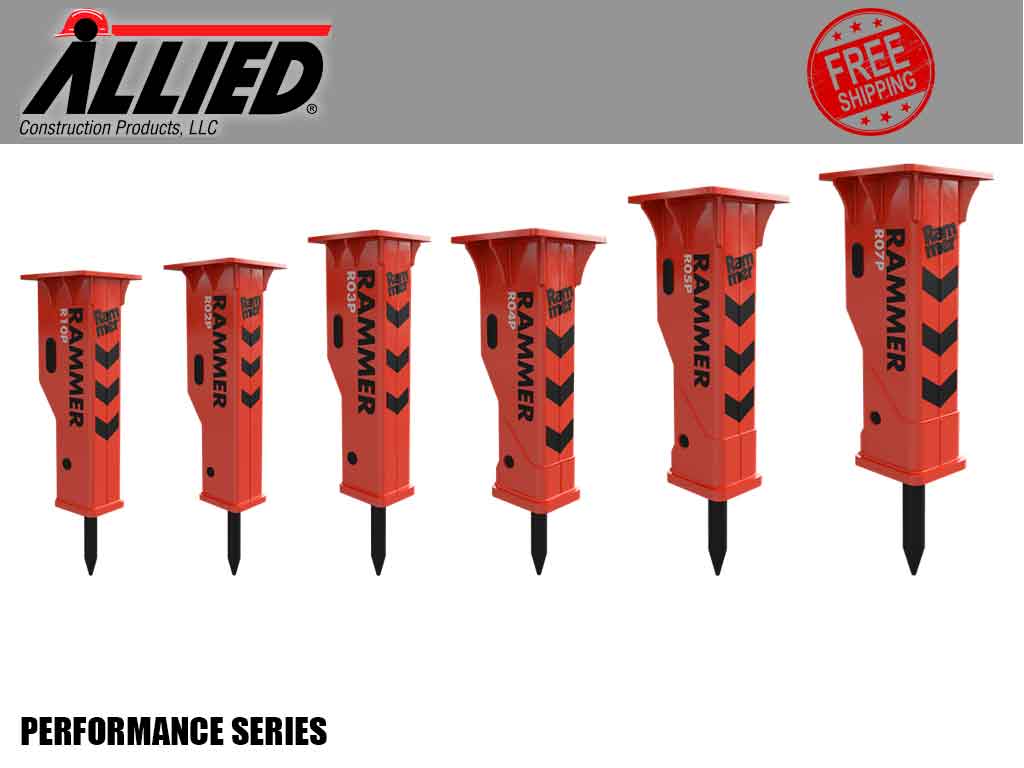

PERFORMANCE LINE
Rammer's Performance Line hammers are the perfect solution for your challenges when you value quality and reliability.
When developing the Performance Line, operator comfort was an important goal. The vibration and soundproof housing minimizes the noise level and effectively dampens vibrations.
Other innovative features such as quick tool change system, our automatic lubrication system Ramlube II and RD3 / MyFleet monitoring system, increase hammer performance and your company's profits. Ramlube II and optional RD3 / MyFleet are available for Performance Line Medium and Large Range models from the R16P upwards.

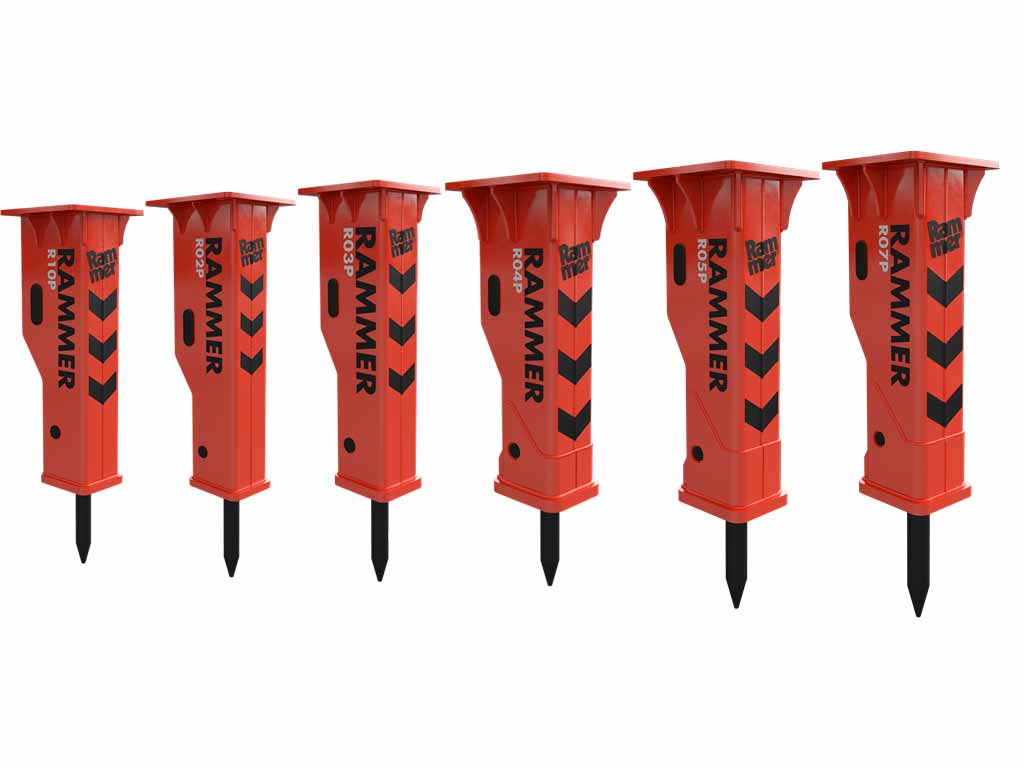

SMALL RANGE HAMMERS
Designed with proven Rammer standards, the Performance Line Small Range hammers feature vibration and soundproof housing, central hose connections for easy mounting of hydraulic quick hitch mounting bracket and fast-change tool system for quick and safe tool changing.
Rammer's Performance Line Small Range hydraulic hammers are your reliable solution to any breaking application for carriers between 0.7 and 12 tons (1500–26500 lbs).
| MODEL | CARRIER (EXCAVATOR) | GPM |
ENERGY CLASS |
| R01P | 1800-4400 LBS | 4.0 - 6.6 | 200 |
| R02P | 2900-7300 LBS | 4.0 - 10.0 | 350 |
| R03P | 4400-9700 LBS | 6.6 - 13.0 | 500 |

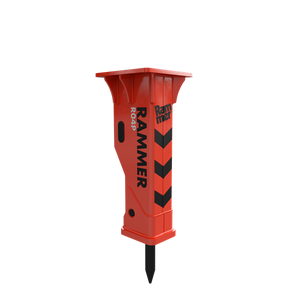

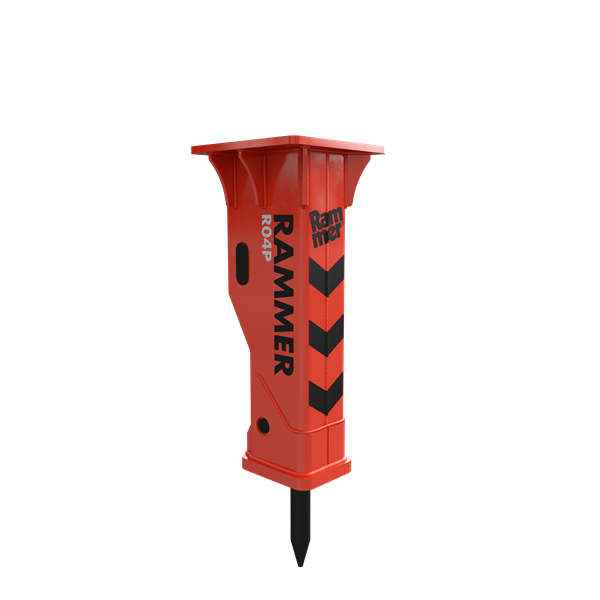

| R04P | 6600-13200 LBS | 8.0 - 16.0 | 600 |

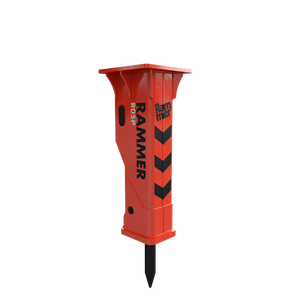

| R05P | 8800-16500 LBS | 9.2 - 18.0 | 800 |

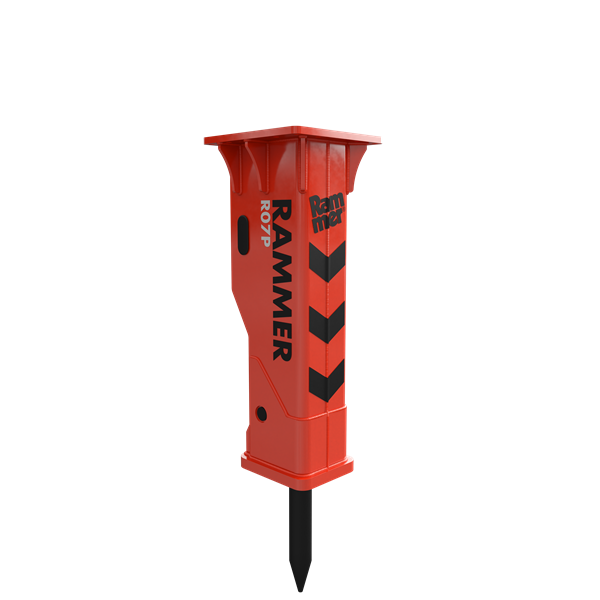

| R07P | 11000-19800 LBS | 12.0 - 24.0 | 1000 |
| R10P | 13200-26500 LBS | 13.0 - 25.0 | 1200 |
| MODEL | CARRIER (SKID STEER) | GPM |
ENERGY CLASS |
| R01P | 1500-3500 LBS | 4 - 6.6 | 200 |
| R02P | 2600-4900 LBS | 4 - 10 | 350 |
| R03P | 3100-7100 LBS | 6.6- 13 | 500 |
| R04P | 4400-8200 LBS | 8 - 16 | 600 |
| R05P | 6600-11500 LBS | 9.2 - 18 | 800 |
| R07P | 7700-13200 LBS | 12 - 24 | 1000 |
| R10P | 8800-16500 LBS | 13 - 25 | 1500 |

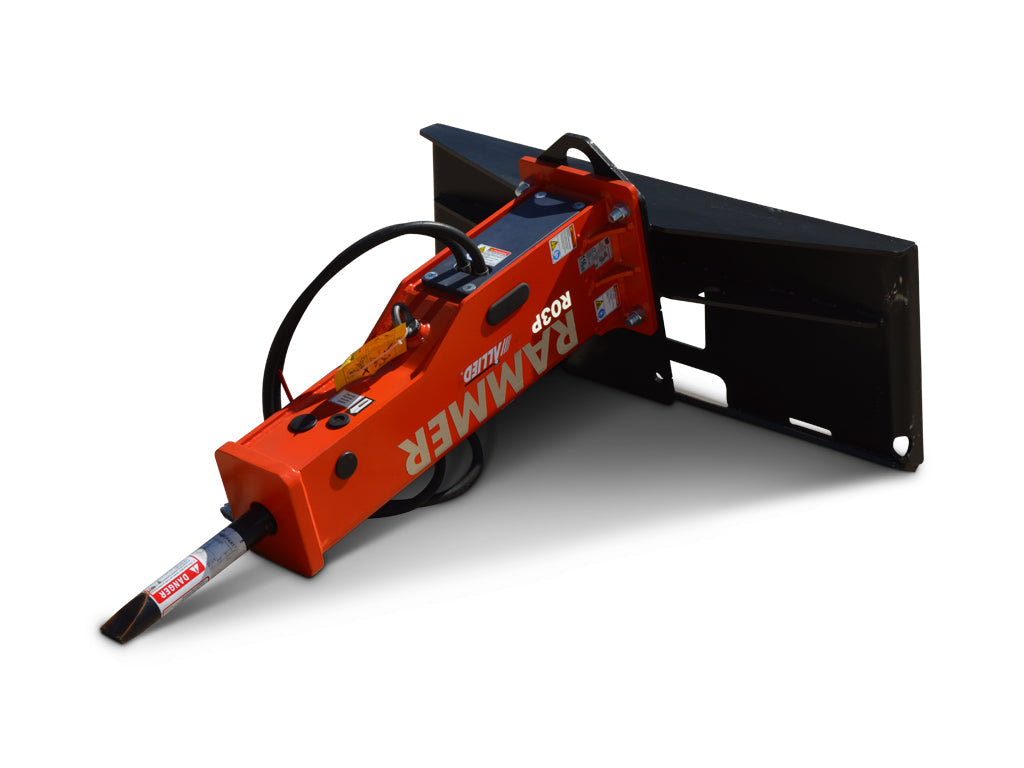

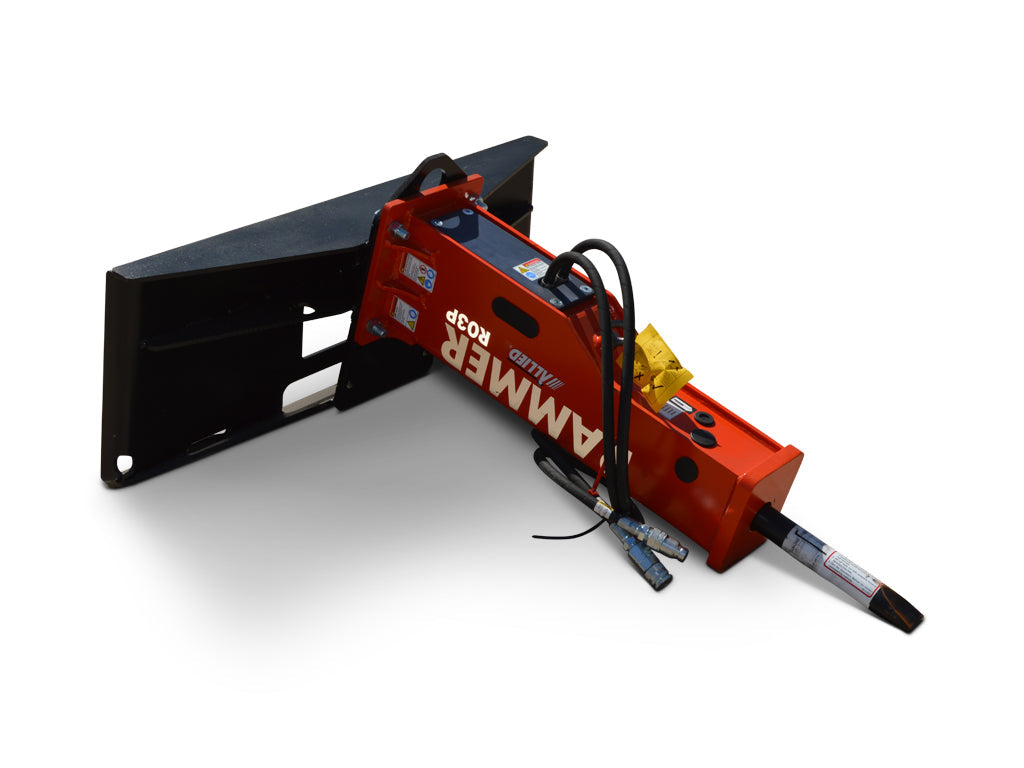

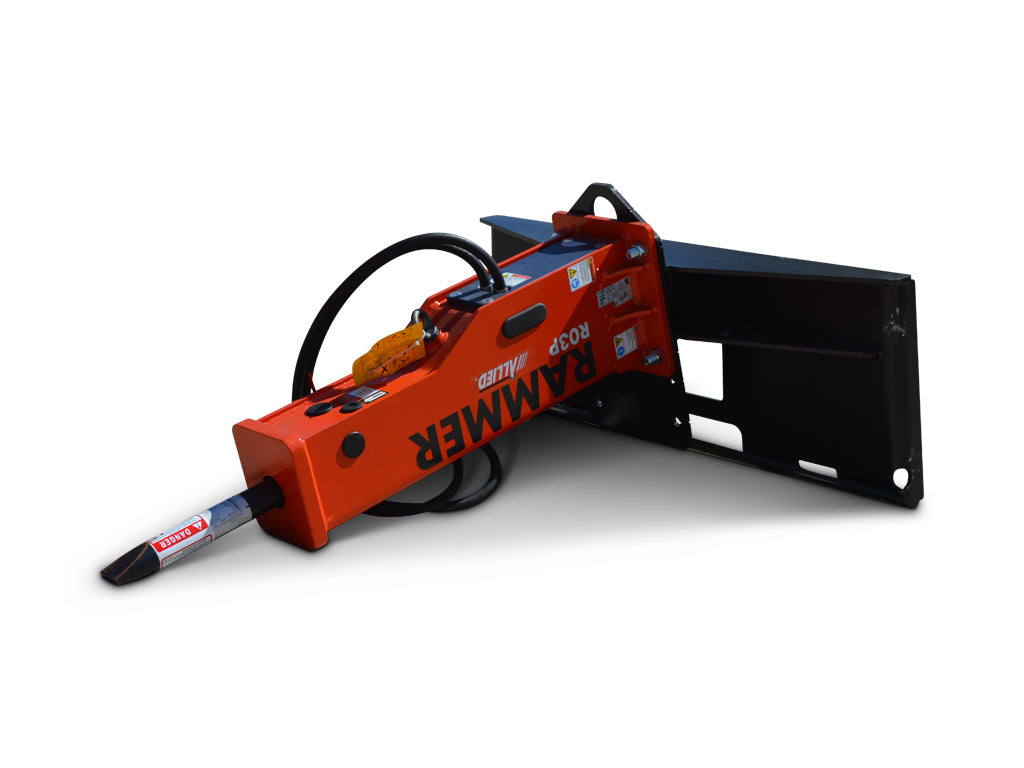

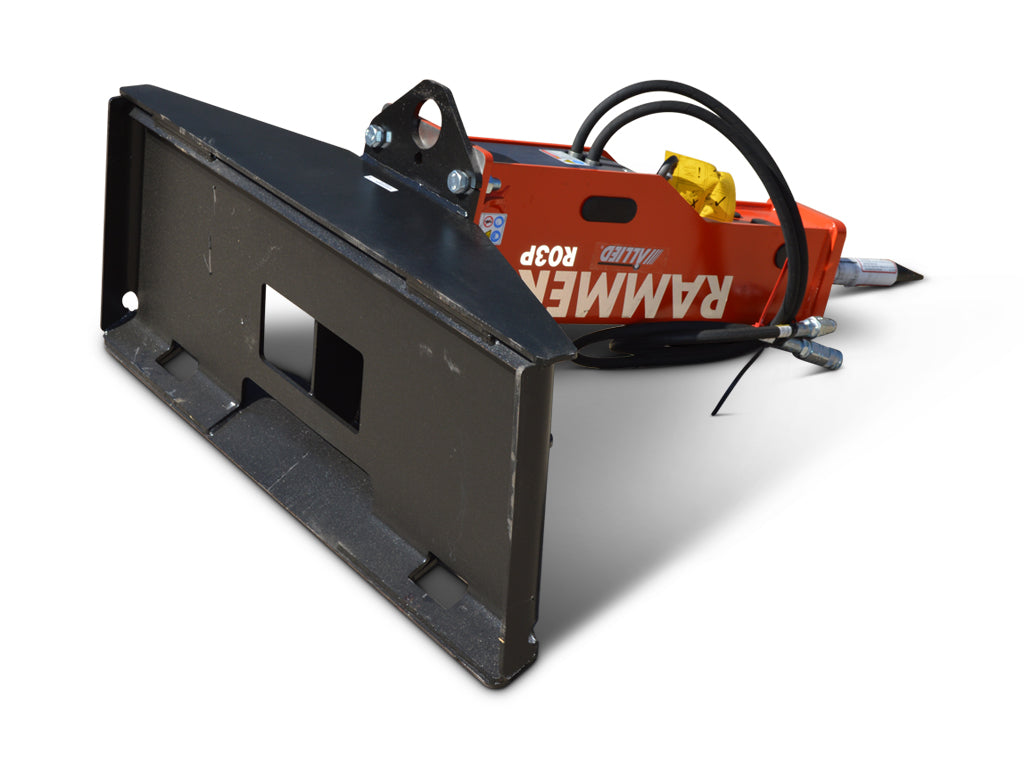

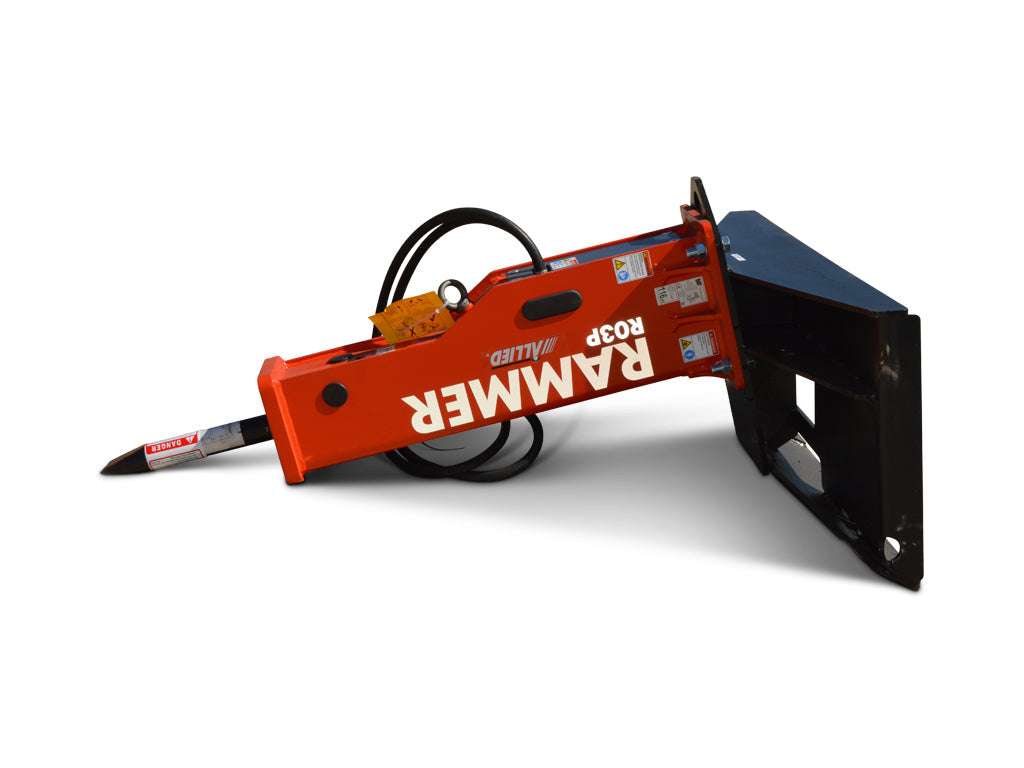

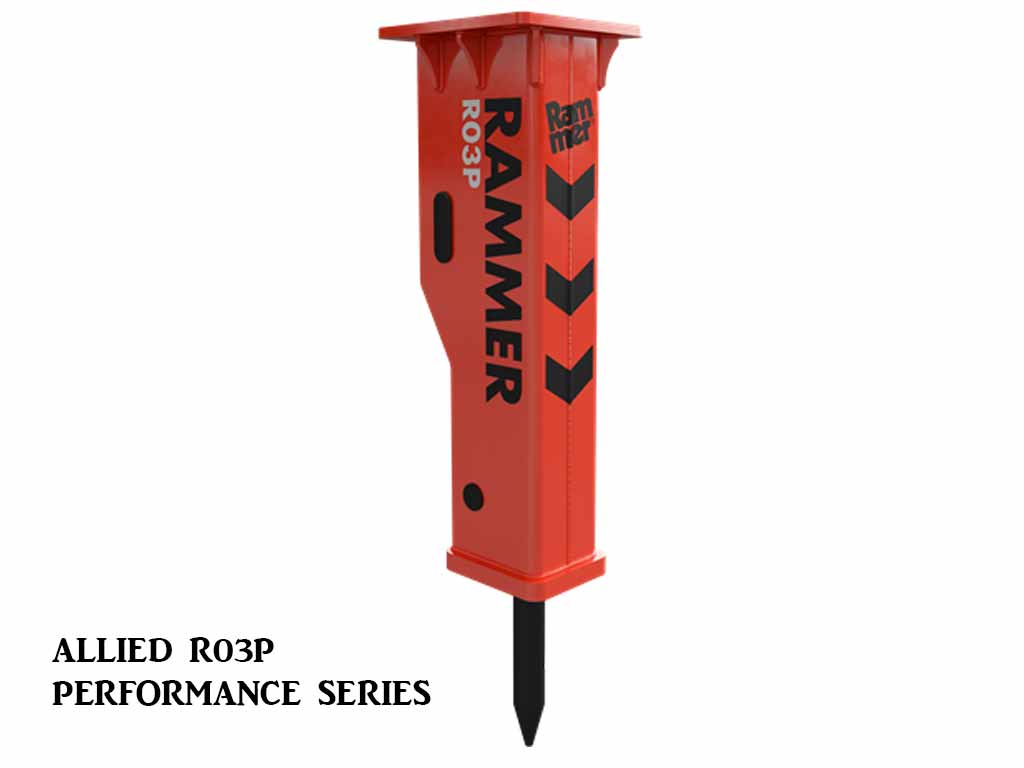

R03P
The Rammer R03P is your solid and profitable partner for carriers between 2.0-4.4 tons. The 180 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.
The R03P's simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.
FEATURES
| MODEL | R03P |
| MIN WORKING WEIGHT | 408 LB |
| TOOL DIAMETER | 2.09" |
| OIL FLOW RANGE | 7-13 GPM |
| IMPACT RATE | 600-1200 BPM |
| OPERATING PRESSURE | 1088-1740 PSI |
| PRESSURE RELIEF MIN | 2176 PSI |
| PRESSURE RELIEF MAX | 2466 PSI |
| BACK PRESSURE | 290 PSI |
| INPUT POWER | 13 HP |
| MINI EXCAVATOR RANGE | 4409-9700 LB |
| SKID STEER RANGE | 3086-7055 LB |
| NOISE LEVEL | 112 DBA |
| NOISE LEVEL GUARANTEED | 116 DBA |
 |
|
|
|
 |
|
 |
|
 |
|
|
|
 |
|
|
