108776
3/24

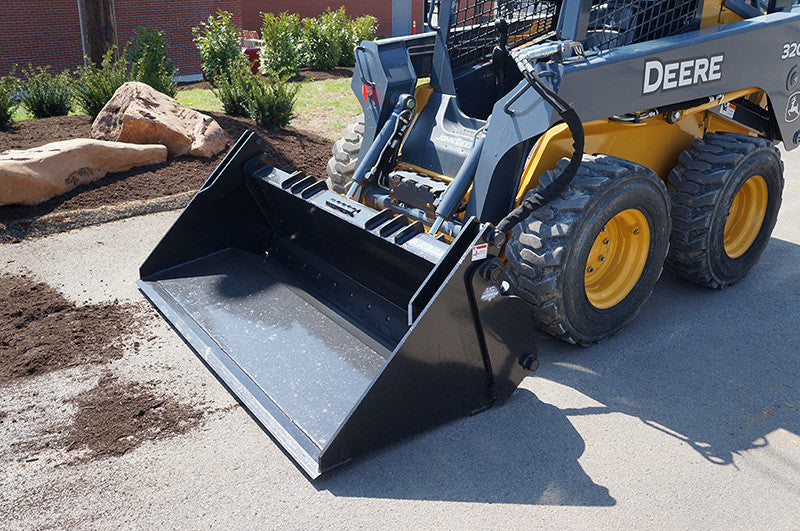

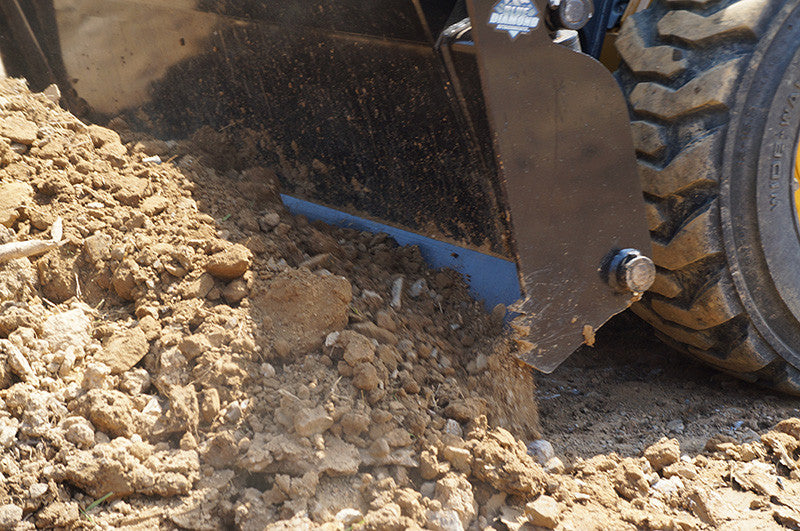

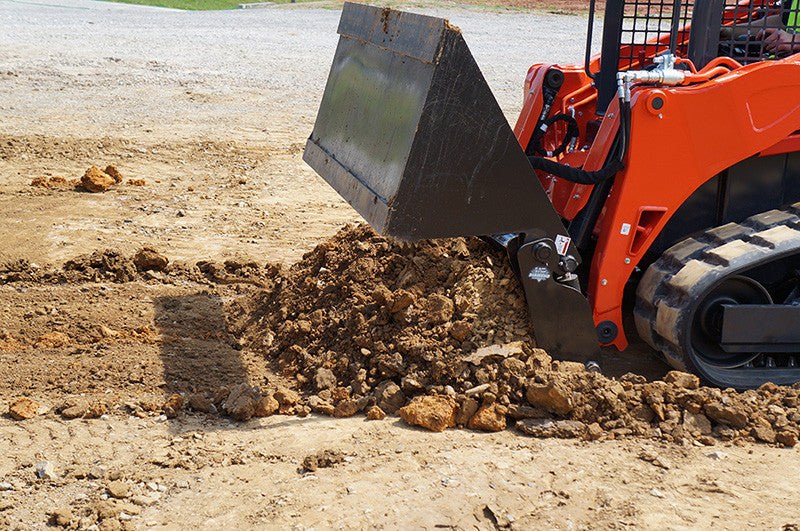

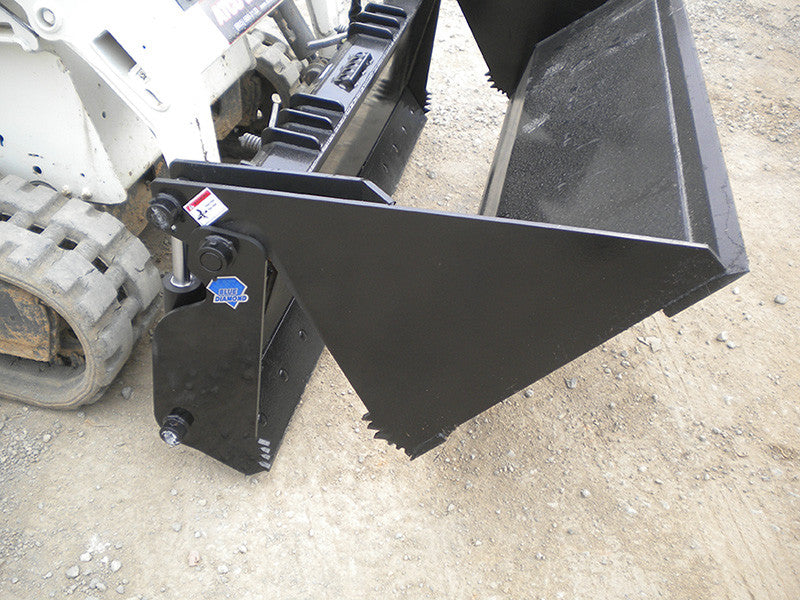

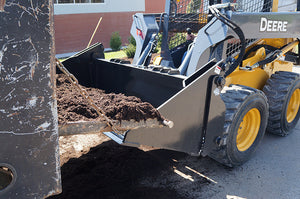

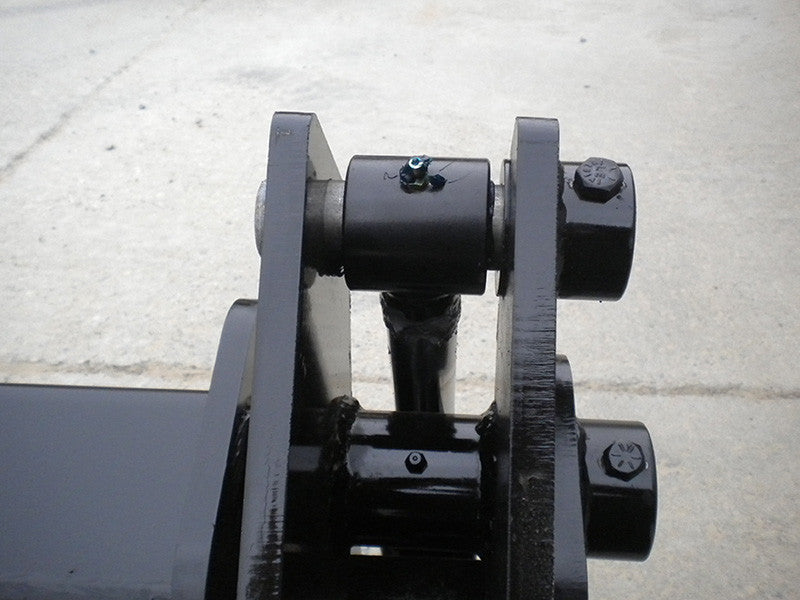

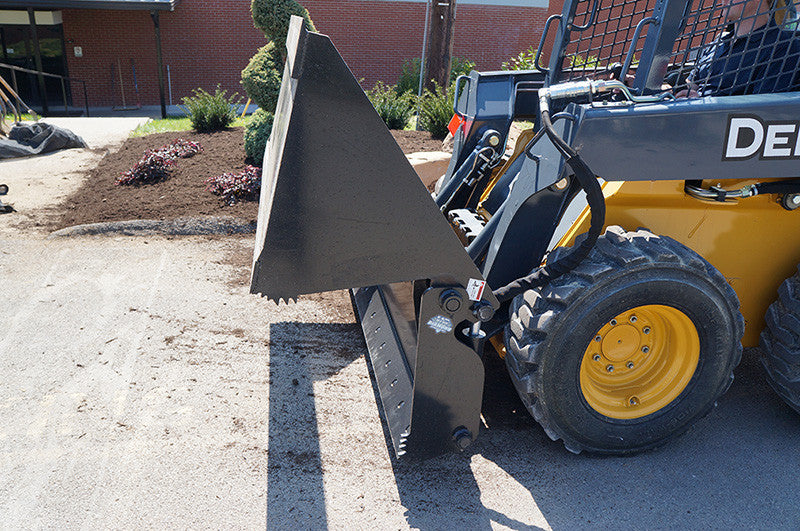

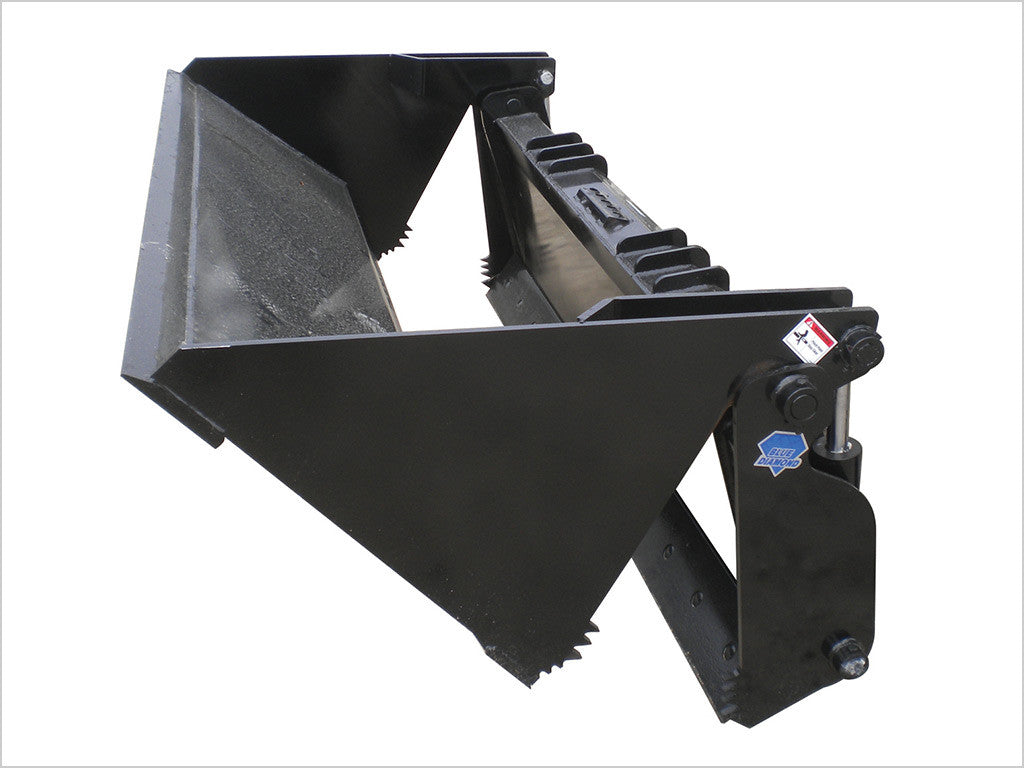

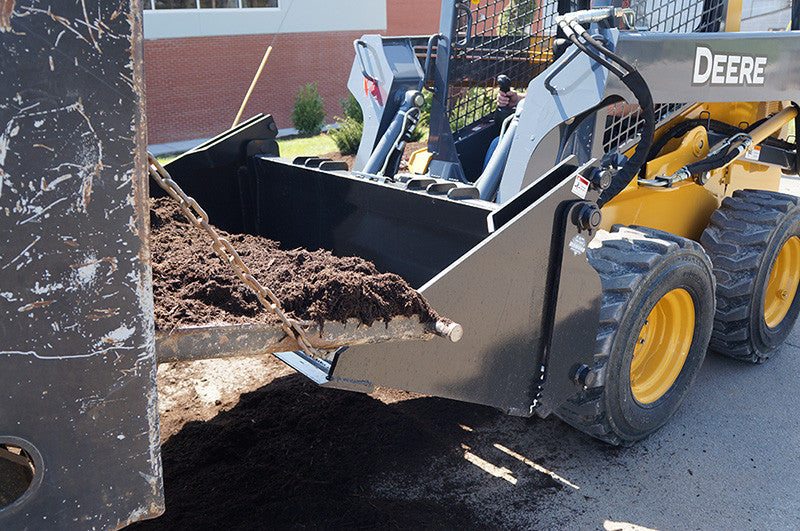

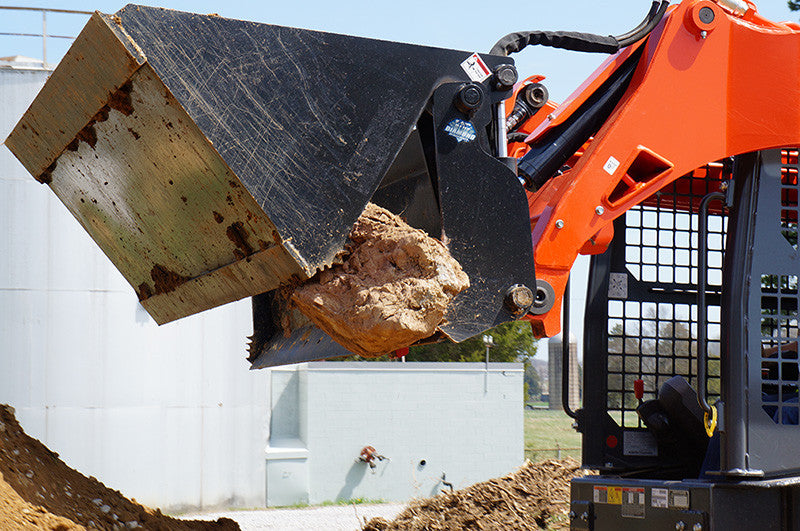

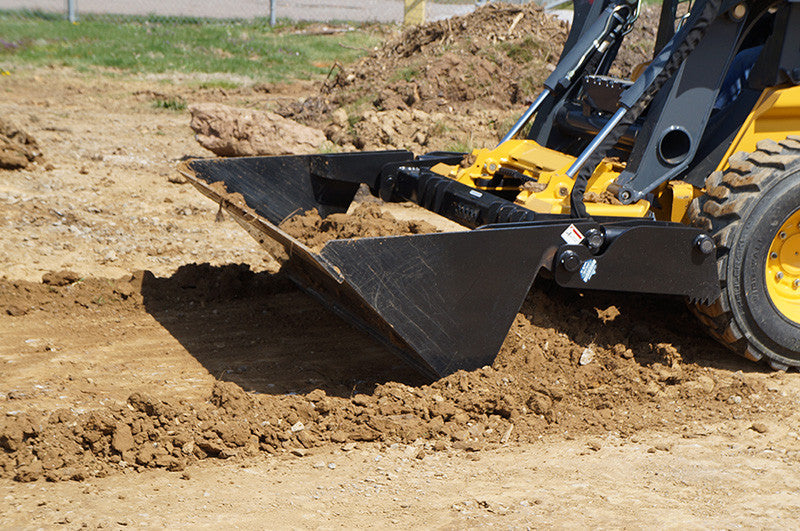

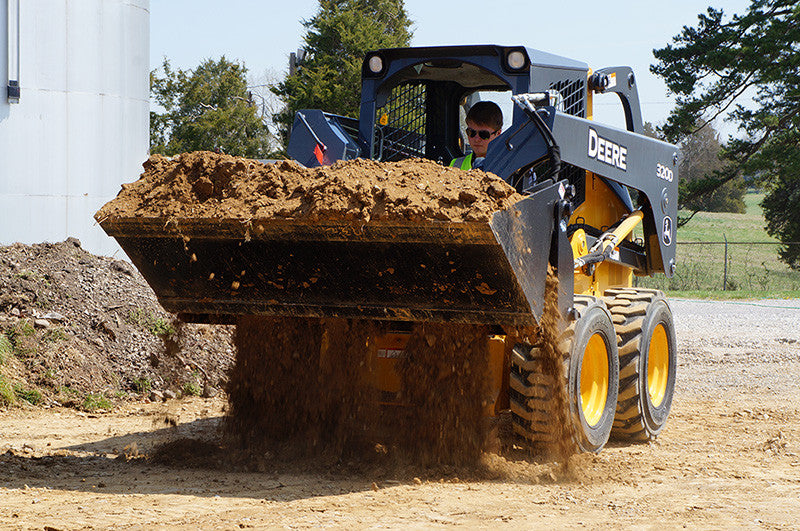

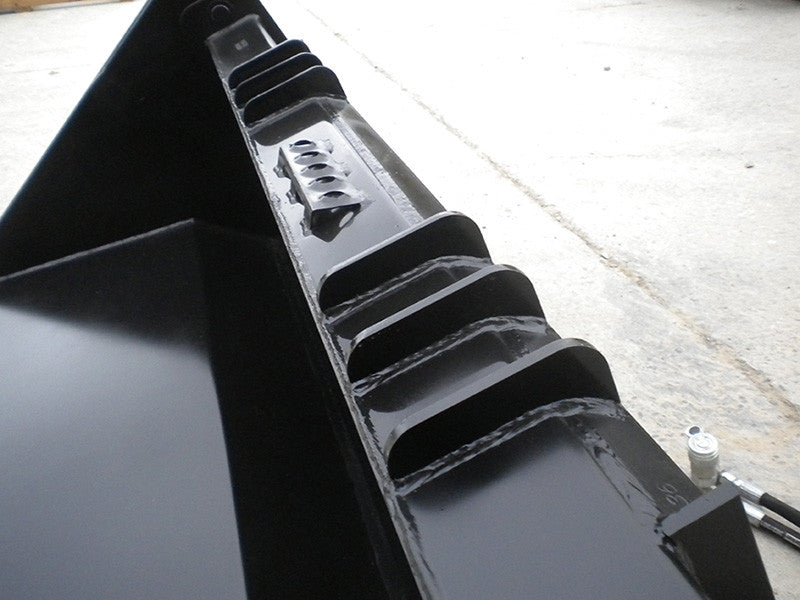

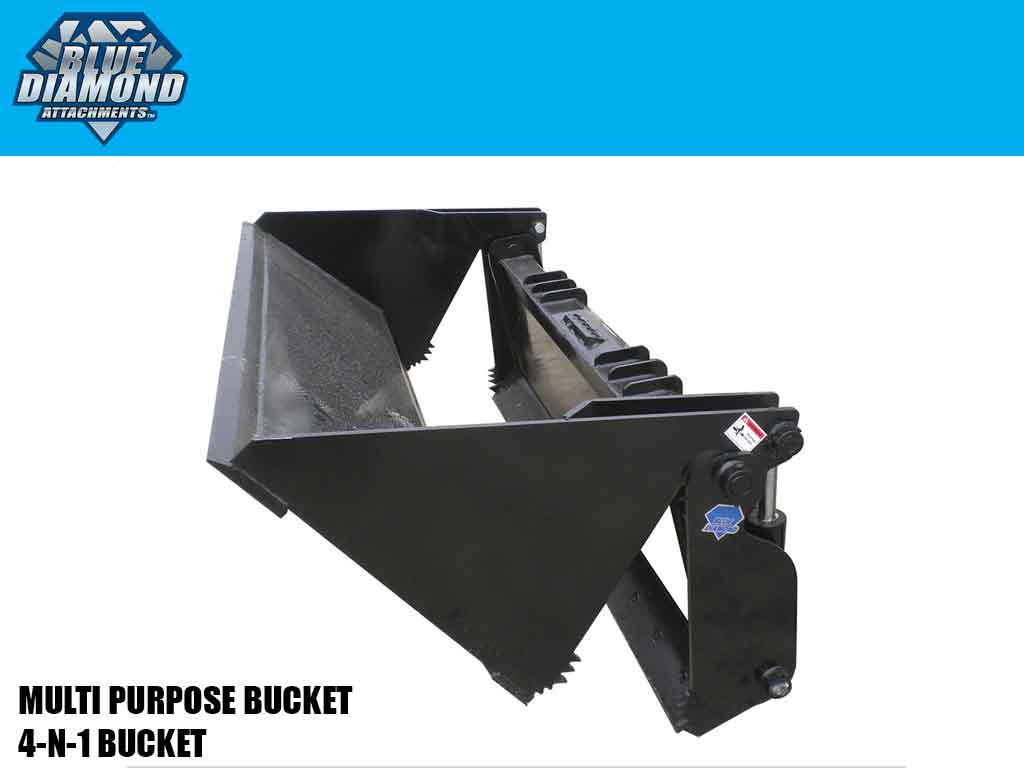

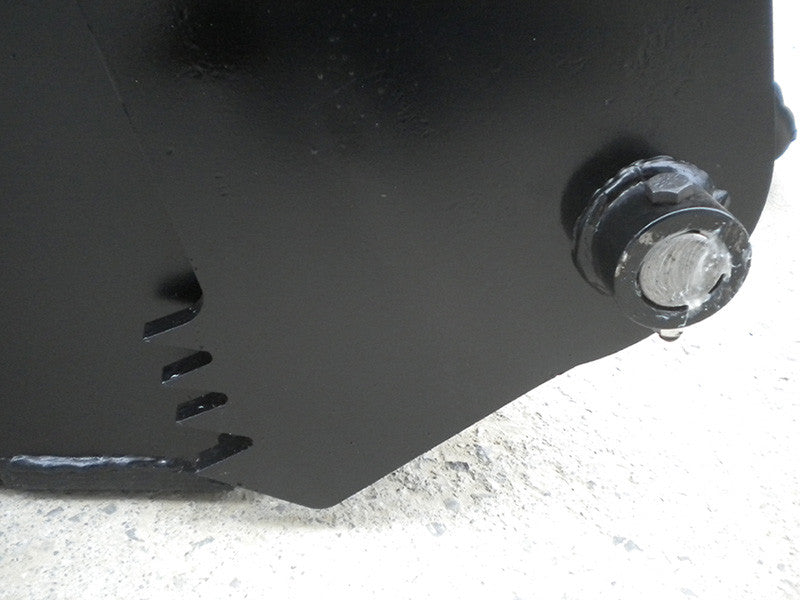

The Blue Diamond 4-in-1 bucket has set the standard with this extremely durable attachment. It will make a skid steer or compact track loader into a very versatile machine. Use as a grapple for moving logs or debris, push dirt with the blade like a dozer, dig with the bucket, or back drag with the open bucket like a box blade. Uses 2 powerful cylinders and can be greased on all pivot points. Pilot operated check valve to control drifting available. Other options available are teeth or a bolt-on-edge. The hose routing keeps the hoses out of the pinch point and the oversize pins and bushings with grease fittings will keep this attachment functioning effectively for many years!
Part Number | Model | Struck Capacity | Weight |
---|---|---|---|
108780 | 66" 4-in-1, W/Smooth Edge | 13.9 cu ft | 862 lbs |
108785 | 72" 4-in-1, W/Smooth Edge | 15.2 cu ft | 908 lbs |
108790 | 78" 4-in-1, W/Smooth Edge | 16.5 cu ft | 979 lbs |
108795 | 84" 4-in-1, W/Smooth Edge | 17.7 cu ft | 1,004 lbs |
108776 | 60" 4-in-1, W/Teeth | 12 cu ft | 855 lbs |
108781 | 66" 4-in-1, W/Teeth | 13.9 cu ft | 750 lbs |
108786 | 72" 4-in-1, W/Teeth | 15.2 cu ft | 981 lbs |
108791 | 78" 4-in-1, W/Teeth | 16.5 cu ft | 959 lbs |
108796 | 84" 4-in-1, W/Teeth | 17.7 cu ft | 932 lbs |
