Blue Diamond

124010

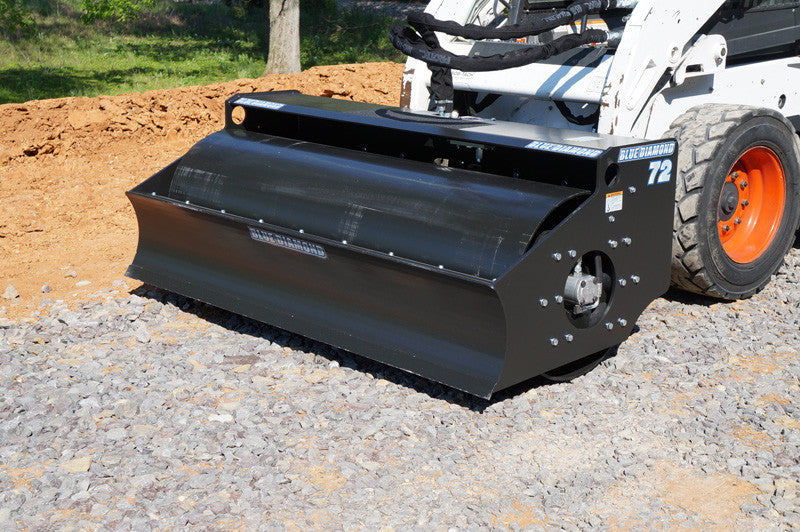

BLUE DIAMOND vibratory roller for skid steer

Size
DRUM

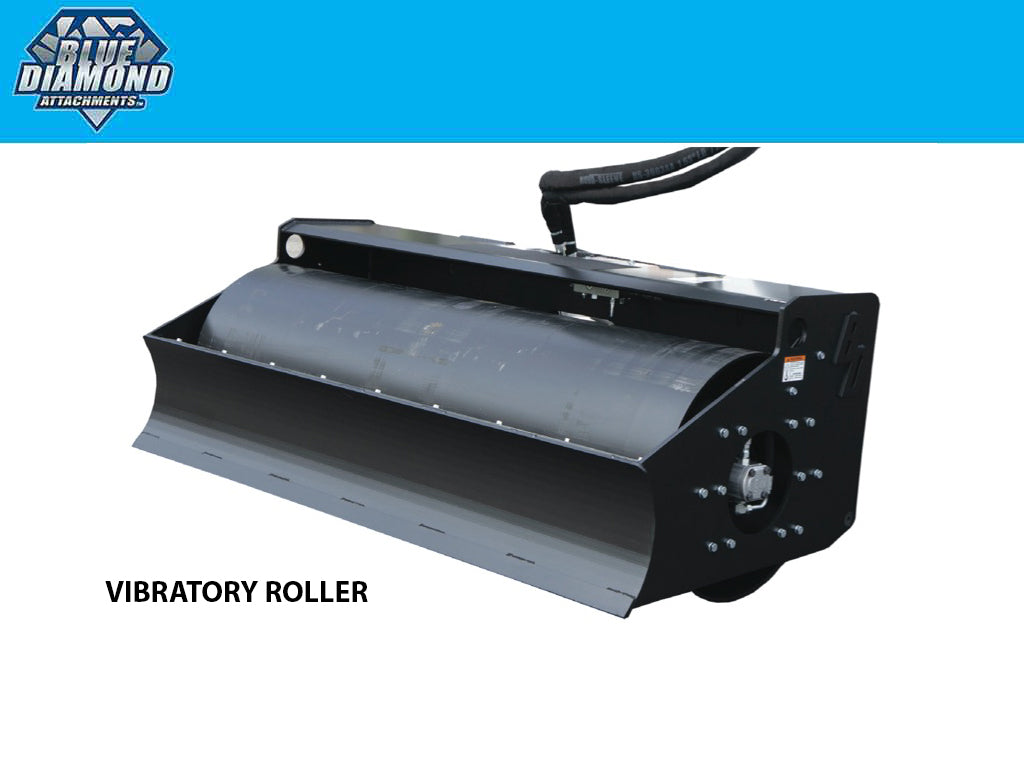

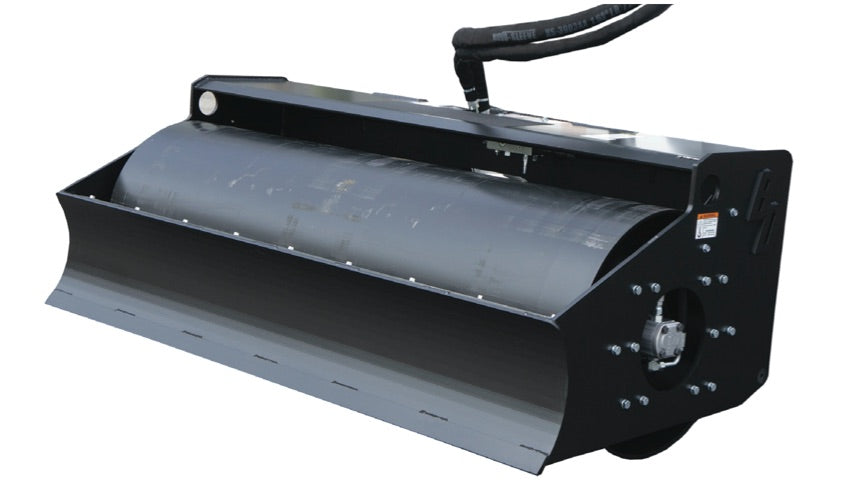

VIBRATORY ROLLER

The Blue Diamond roller models are available in 73 and 84 inch working widths. All models feature hydraulically powered exciter systems lubricated by an oil mist design. All models minimize exciter shaft deflection, lower operating temperatures, and provide Blue Diamond Attachments with the industry’s lowest incidence of bearing and seal failure. A knockdown blade is integral to the roller frame. Vibrating drums are isolated from the frame minimizing transmission of vibration to the host machine. All models come with a universal quick attach system. Smooth or pad foot drums options are available. Blue Diamond compaction attachments for skid-steer loaders offer contractors and rental yards a cost effective, low maintenance alternative to comparatively high cost self-contained rollers.

FEATURES INCLUDE:

  • Industry leading bearing design

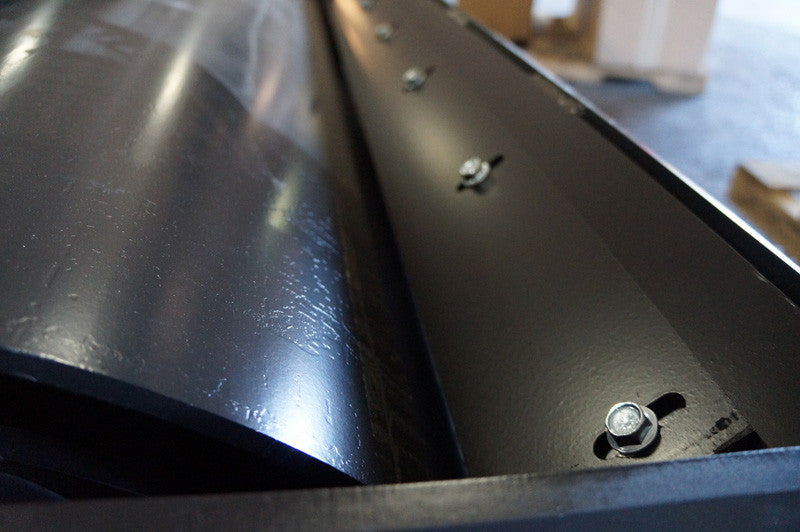

  • Integral knockdown blade
  • Smooth or pad foot models
  • Exciter systems are oil mist lubricate
  • Vibrating drums are effectively isolated from the roller frame

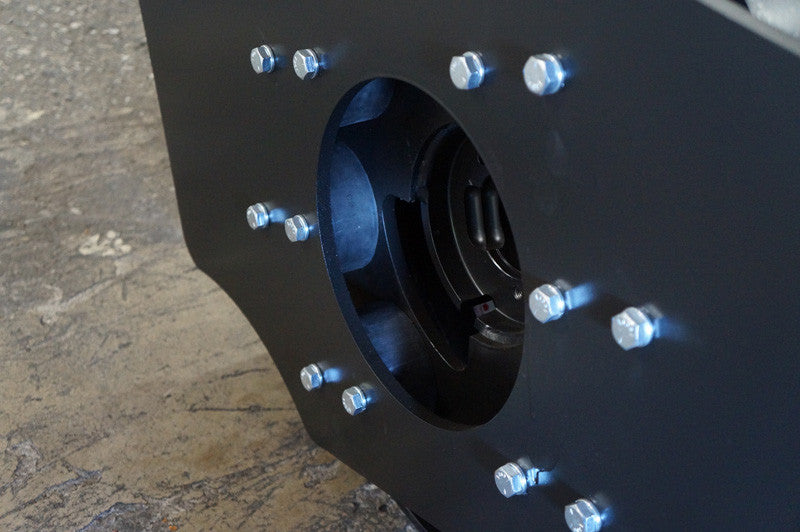

  • 12 heavy duty rubber shock mounts
  • Control valve block compensates for the correct flow of oil to prevent over speeding and over pressure of the exciter shaft
  • Universal adapter plate

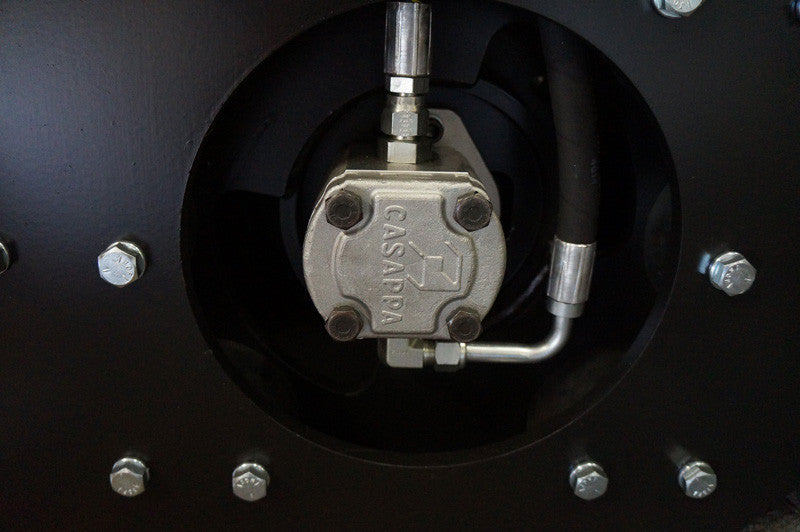

  • Drive motor is inside a heavy duty steel frame



  •
    PART NUMBER  124010 124015 124030 124035
    MODEL 73” Smooth 73” Pad Foot 84" Smooth  84" Pad Foot
    LENGTH 43.3" 43.3" 43.3" 43.3"
    HEIGHT 29" 30" 29" 30"
    WEIGHT (LBS) 2050 2210 2300 2450
    EXCITER SPEED (RPM) 3000 3000 3000 3000
    CENTRIFUGAL FORCE (LBS) 8850 8850 9765 9765
    FLOW REQUIREMENTS (GPM) 10-50 10-50 10-50 10-50
    PRESSURE REQUIREMENTS 1500-3000 1500-3000 1500-3000 1500-3000
    HYDRAULIC CONNECTION ½" Flat ½" Flat ½" Flat ½" Flat
