103870/103885

BLUE DIAMOND brush cutters SWING ARM

MODEL
HARNESS

3/24


CUTTERS - SWING ARM

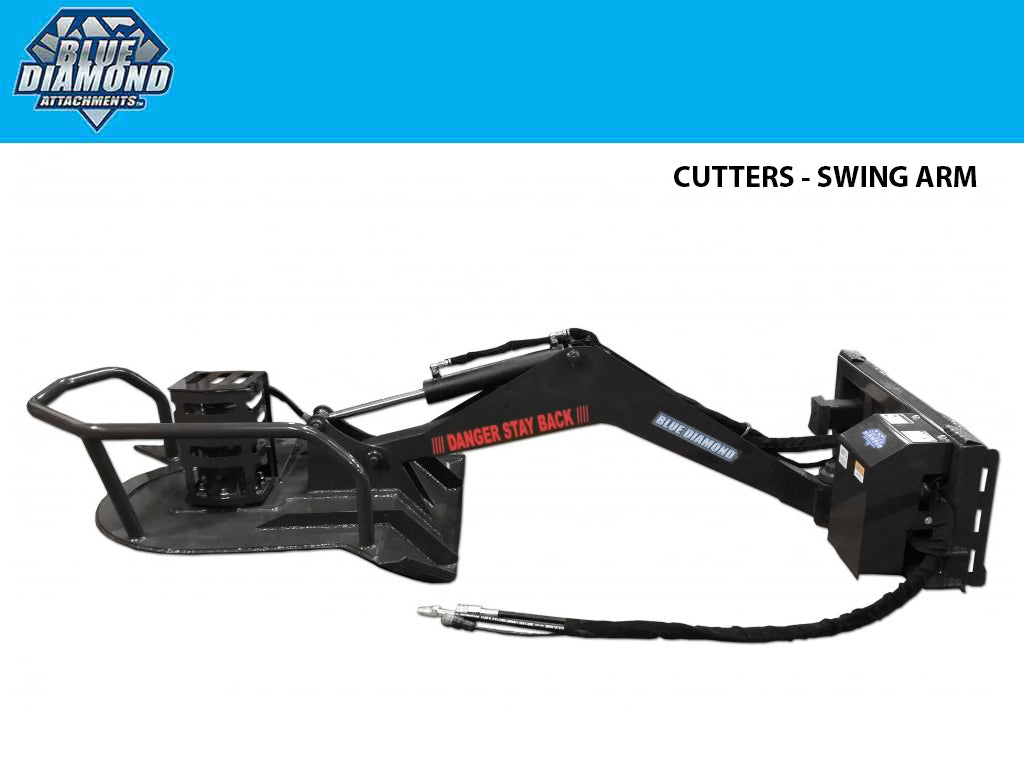

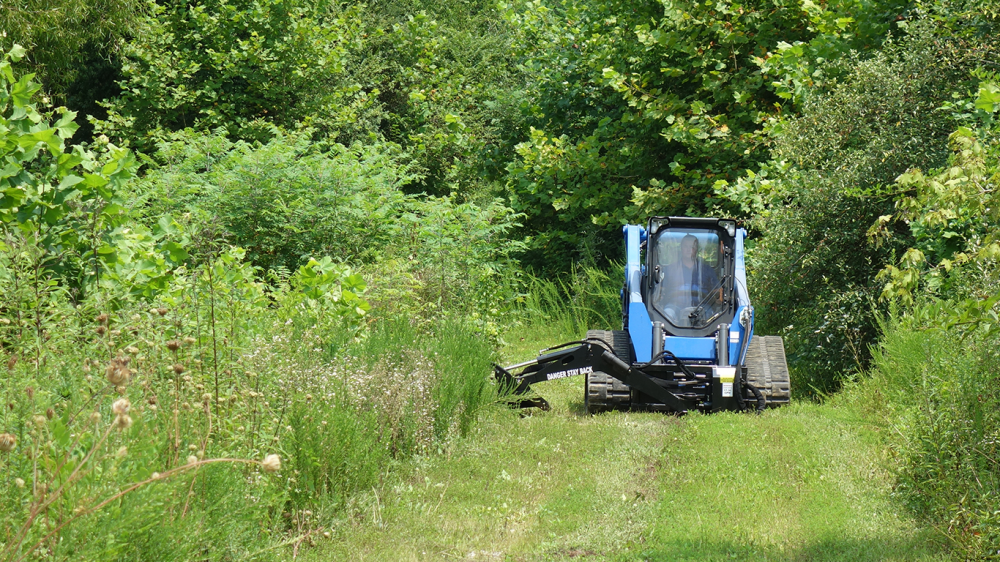

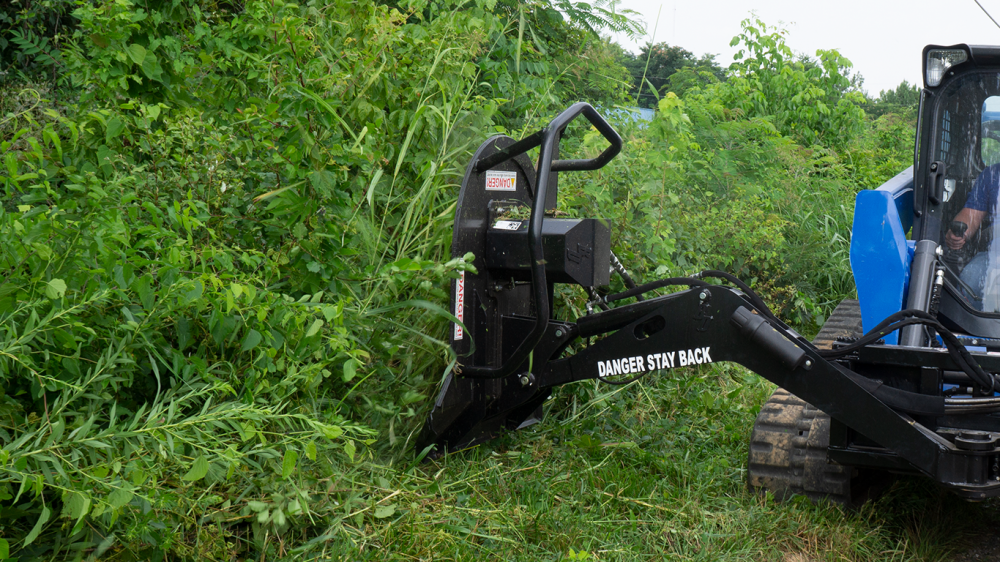

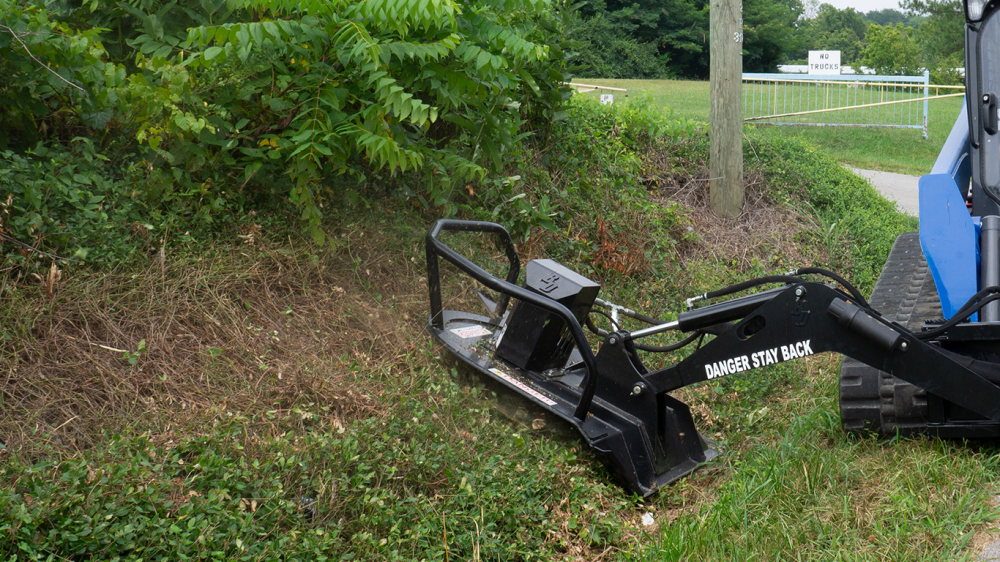

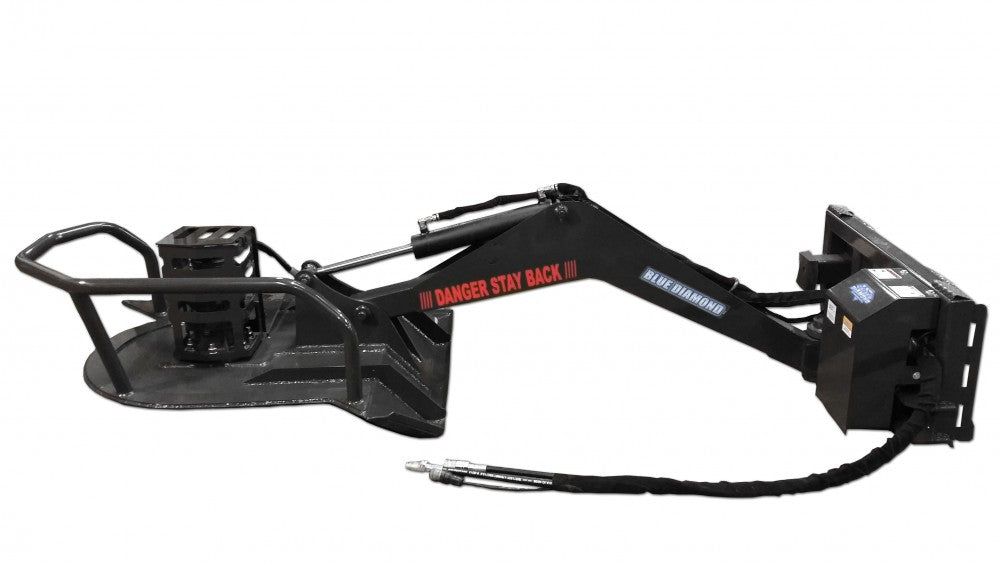

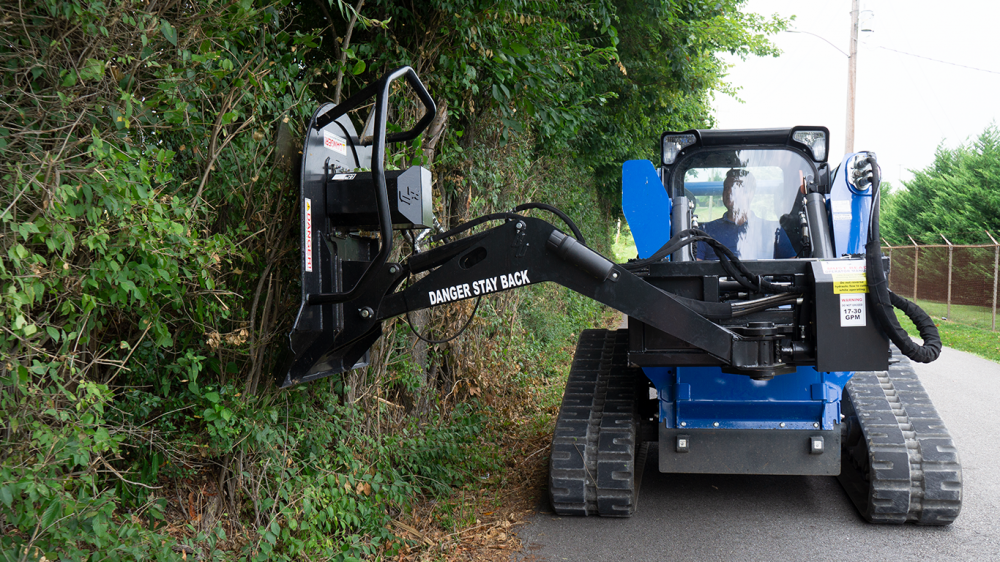

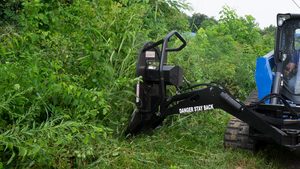

The Blue Diamond® Swing Arm Cutter is a great implement to add to your collection. It is designed for cutting banks, right of ways, and fence lines. The cutter also works great for clearing pond banks and cutting trails. This cutter has a significant reach advantage over our typical cutter. With a reach of 96″ when extended horizontally and a vertical reach of 16′, it makes clearing unwanted tree limbs less of a hassle. The cutter will also swing to the right and can be used as a side cutter. It is powered by a Gerolar or direct drive piston motor with a bearing housing with a 4000 max PSI. The Gerolar motor requires 14-20 GPM and the piston motor requires 17-30 GPM.

FEATURES INCLUDE

  • Reach advantage over our typical cutter
  • Can be used as a side cutter
  • Direct drive piston motor with max 4000 PSI • 3″ x 16″ tilt cylinders
  • 5/8″ AR400 Blades
  • 44″ cut
  • 4″ cutting capacity
  • Requires case drain
  • Optional universal, 8 pin or 14 pin wiring harness are available

*The one year warranty does not cover the blades and hoses.

* Requires wire harness and case drain line hookup to operate properly.

PART NUMBER  MODEL REQ FLOW  WEIGHT
103870 Swing arm brush cutter- Gerolar motor 14-20 845 lbs
103875 Swing arm brush cutter - piston motor 17-30  1,025 lbs
