Blue Diamond

160810

BLUE DIAMOND COLD PLANER SEVERE DUTY HIGH-FLOW

Size
GPM
Harness

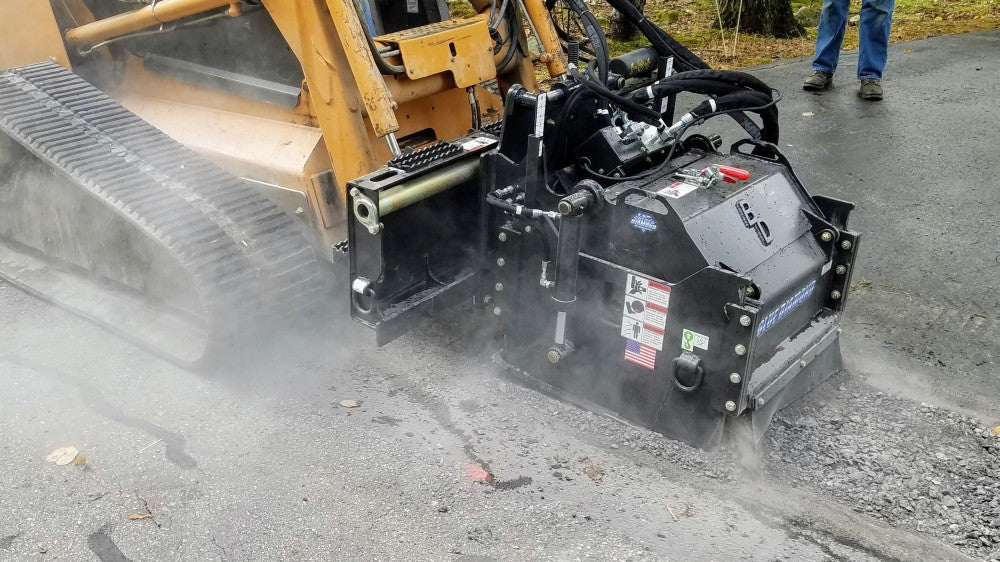

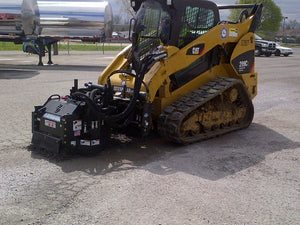

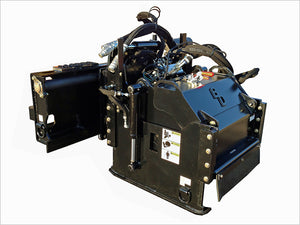

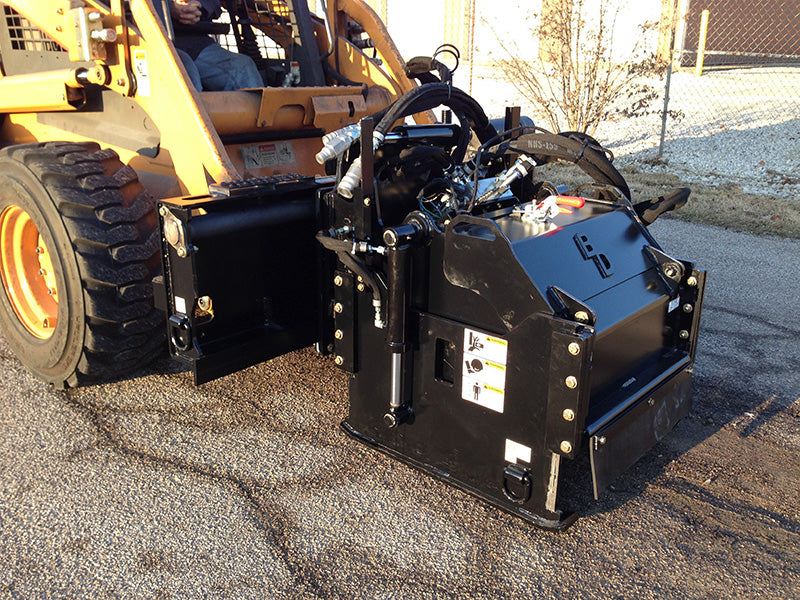

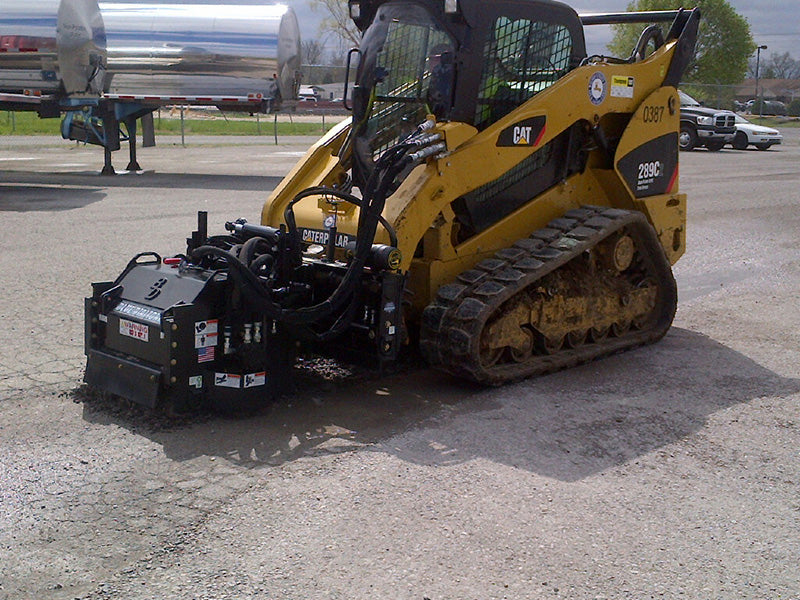

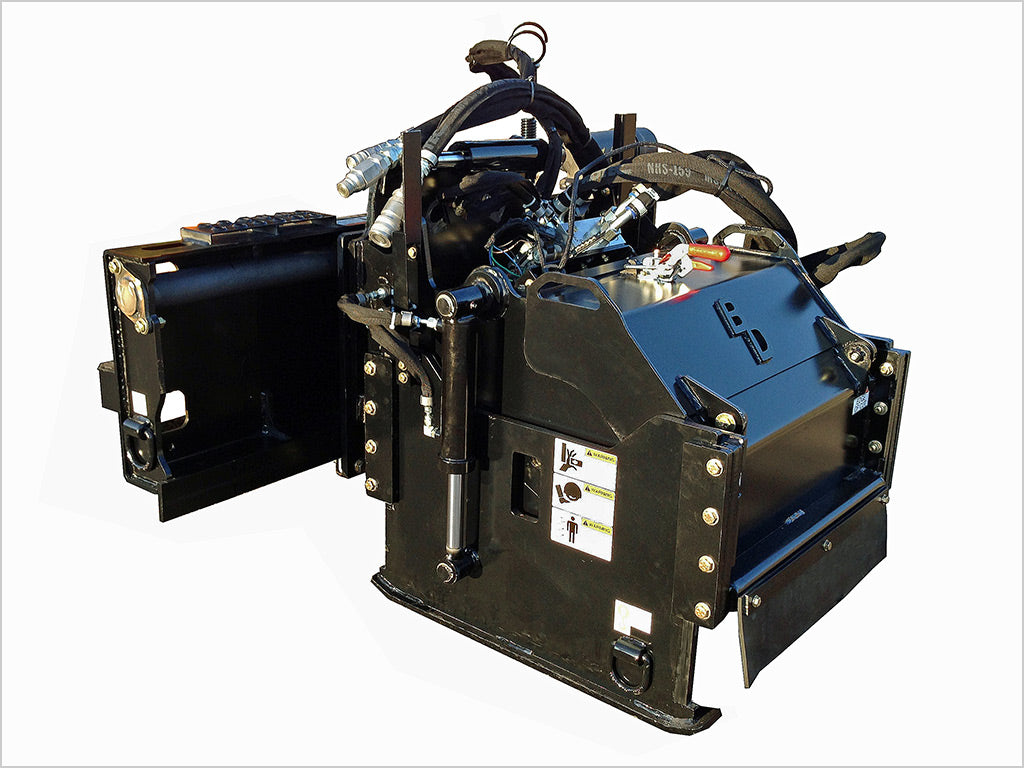

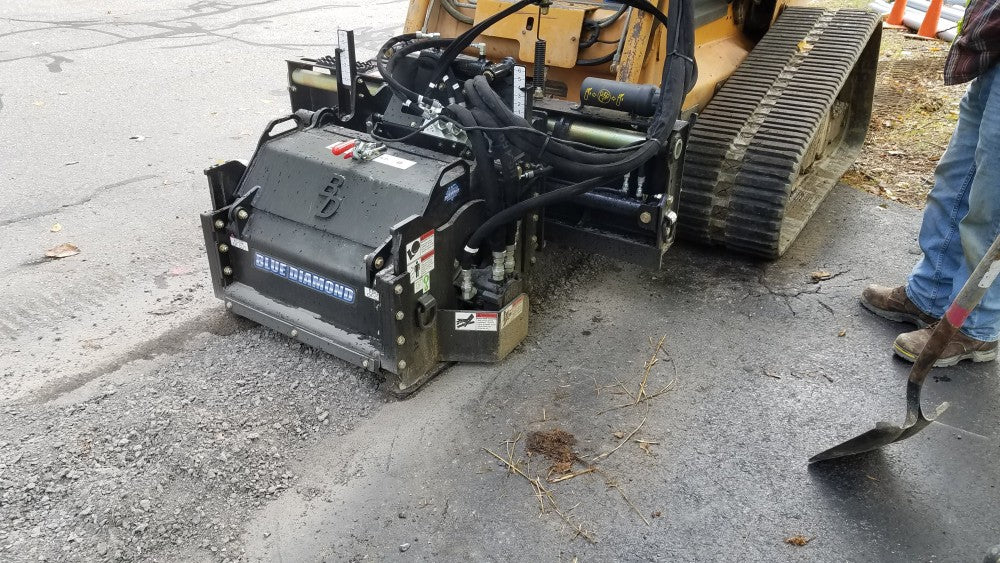

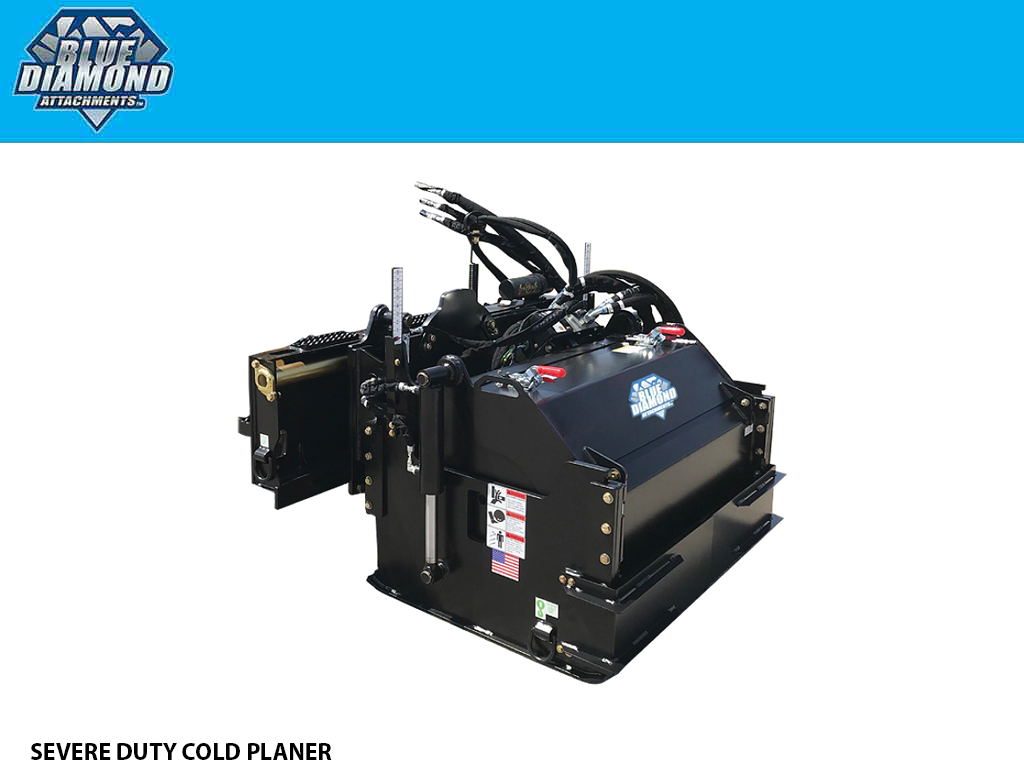

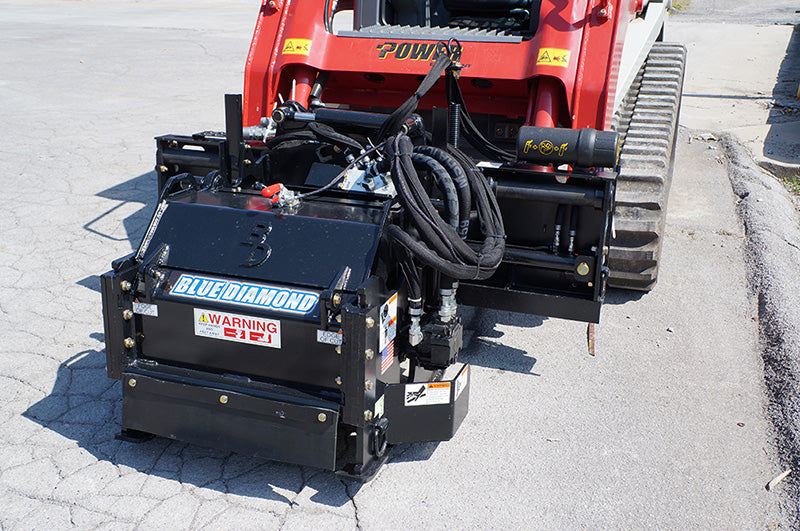

COLD PLANER – SEVERE DUTY HIGH-FLOW

The Blue Diamond® Cold Planer uses the most trusted components in the industry, from the Sauer piston motor, to the Fairfield planetary hub featured in the high-flow models. These high end components, combined with the highly engineered design, makes this one of the most reliable units available for a skid steer attachment.

*COUPLER INCLUDED*

FEATURES INCLUDE:

  • Hydraulic adjustment controls
  • Hydraulic side shift
  • Direct Drive
  • High drum weight = less vibration
  • 1 1/2″ thick drum tube

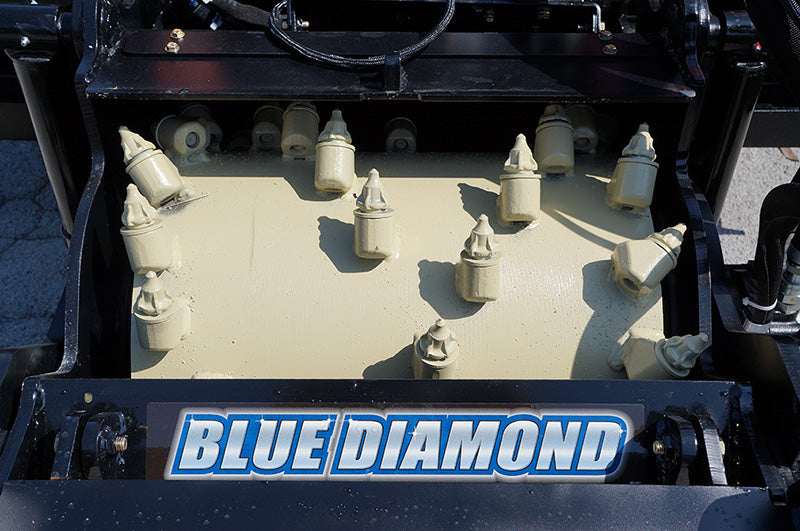

  • Easy access tooth replacement
  • Water kit available

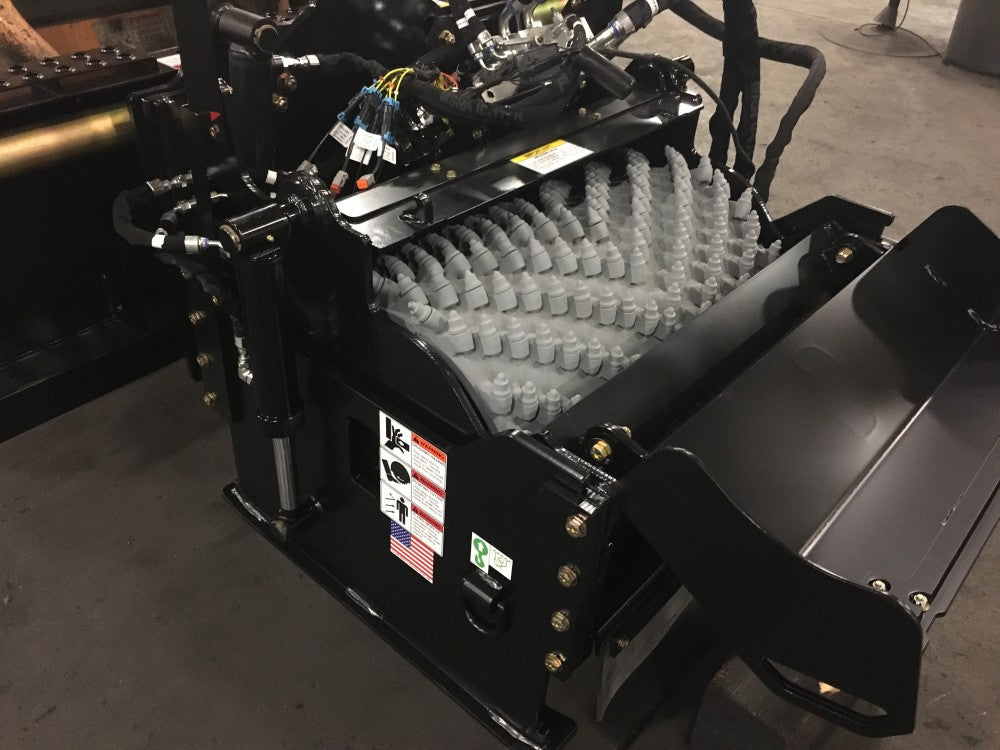

  • Fine-cut drum available
  • Hard facing & stand-off blocks

APPLICATION INCLUDE:

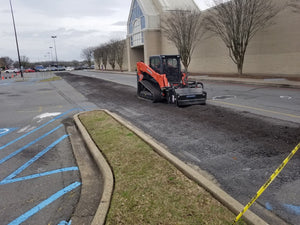

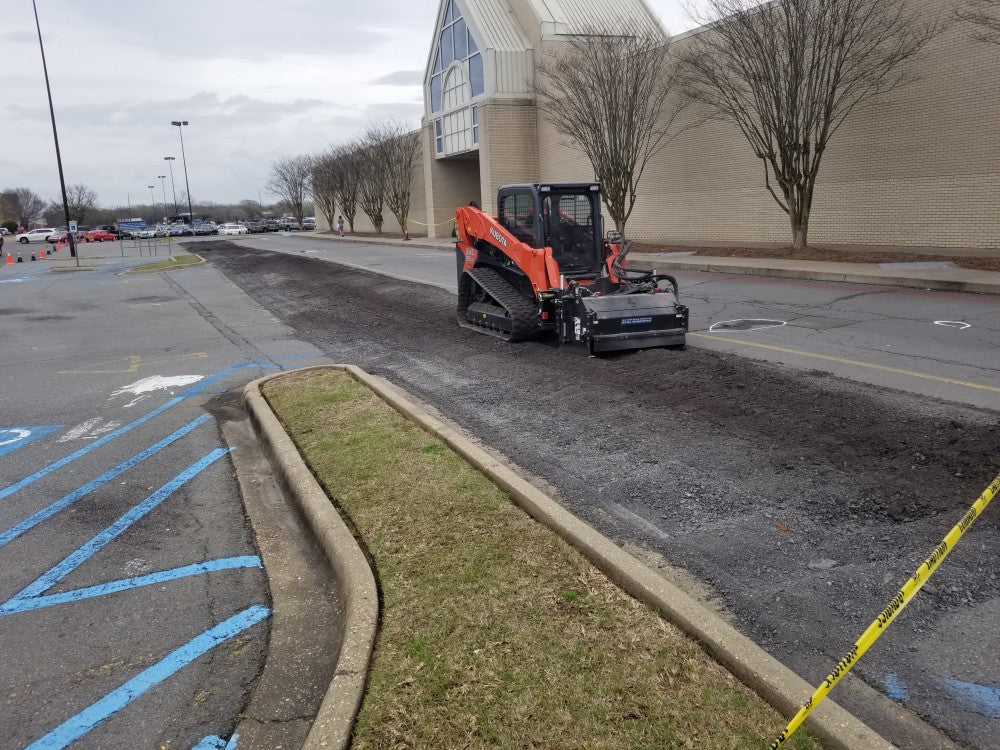

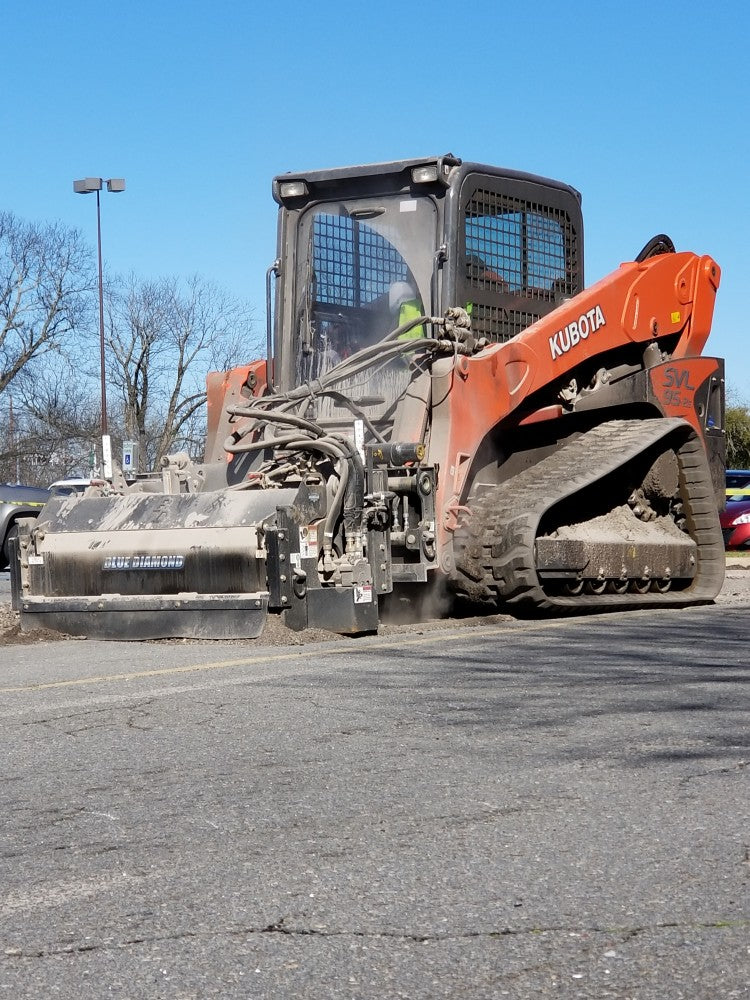

  • Removing asphalt surfaces prior to overlay
  • Widening shoulders
  • Repairing potholes
  • Restoring drainage lines
  • Mixing stabilizing agents into base for a more durable repair






     MODEL # OF TEETH MIN-MAX FLOW MIN-MAX PRESSURE WEIGHT
    18" Severe Duty 46 24-45 GPM 2000-3500 PSI 1,990 lbs
    18" Severe Duty 46 30-45 GPM 3000-5000 PSI 2,050 lbs
    24" Severe Duty 56 27-45 GPM 2000-3500 PSI 2,300 lbs
    24" Severe Duty 56 30-45 GPM 3000-5000 PSI 2,300 lbs
    30" Severe Duty 66 30-45 GPM 2500-3500 PSI 2,770 lbs
    30" Severe Duty 66 32-45 GPM 3000-3500 PSI 2,550 lbs
    40" Severe Duty 76 30-45 GPM 3000-3500 PSI 2,975 lbs
    40" Severe Duty 76 32-45 GPM 3000-3500 PSI 3,000 lbs
    48" Severe Duty 106 34-45 GPM 3250-5000 PSI 3,200 lbs

    USUALLY SHIPS IN (3) TO (5) DAYS

    WE WILL NEED TO KNOW YOUR MAKE AND MODEL OF MACHINE AND THE HYDRAULIC CONTROL TYPE YOU HAVE.

    • BOBCAT (3) LINE - MOST COMMON
    • BOBCAT (5) LINE
    • CASE (3) LINE
    • CASE (5) LINE XT SERIES
    • CAT (5) LINE A,B,C-SERIES
    • CAT (3) LINE D-SERIES
    • DEERE (3) LINE D-SERIES
    • DEERE (5) LINE
    • JCB (3) LINE
    • NEW HOLLAND (3) LINE
    • VOLVO (3) LINE
