123065/216900/200011

BLUE DIAMOND six way dozer blade for skid steer

Size
HARNESS
OPTIONS

3/24

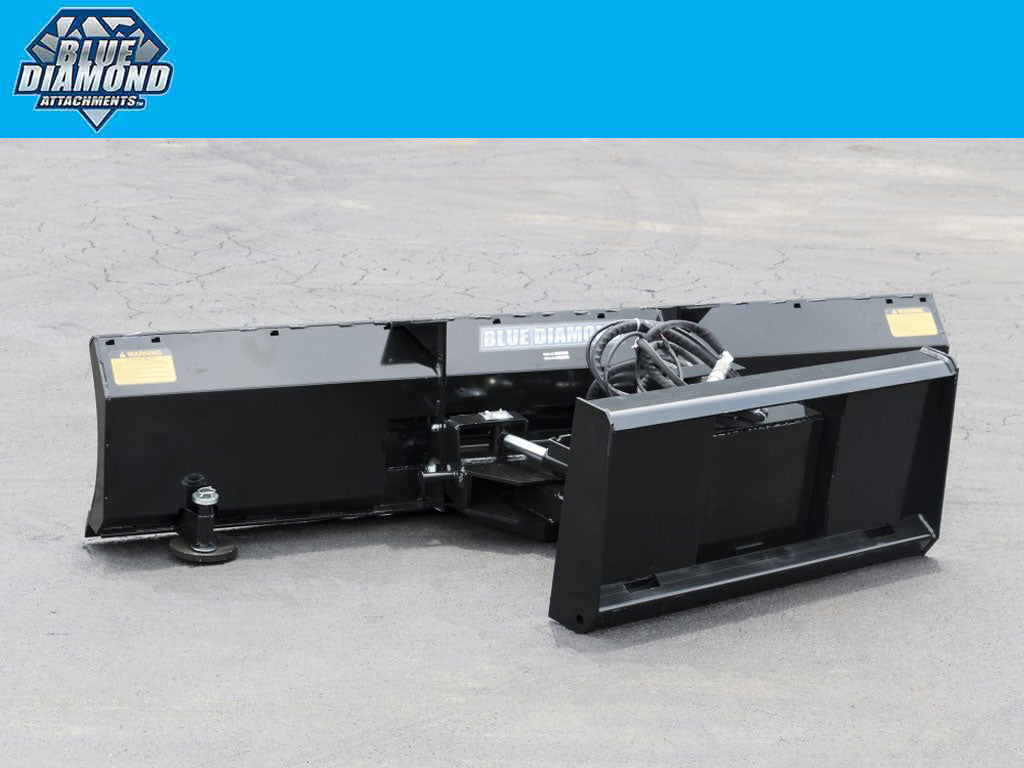

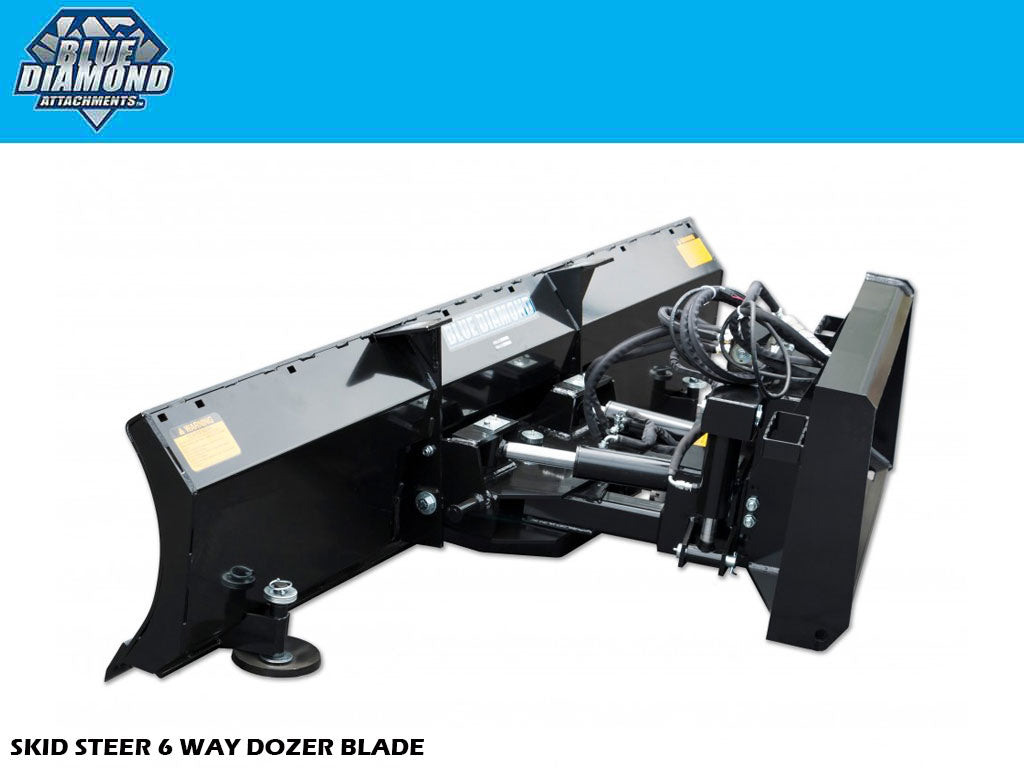

    SIX WAY DOZER BLADE

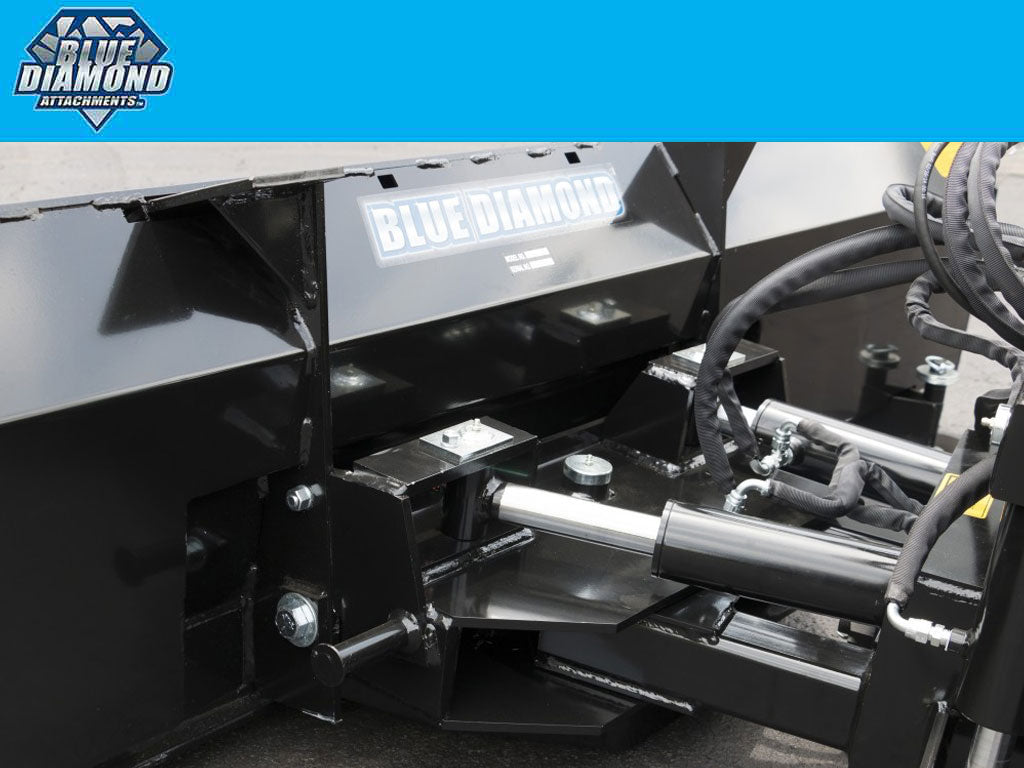

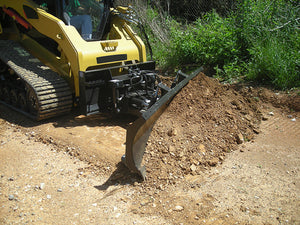

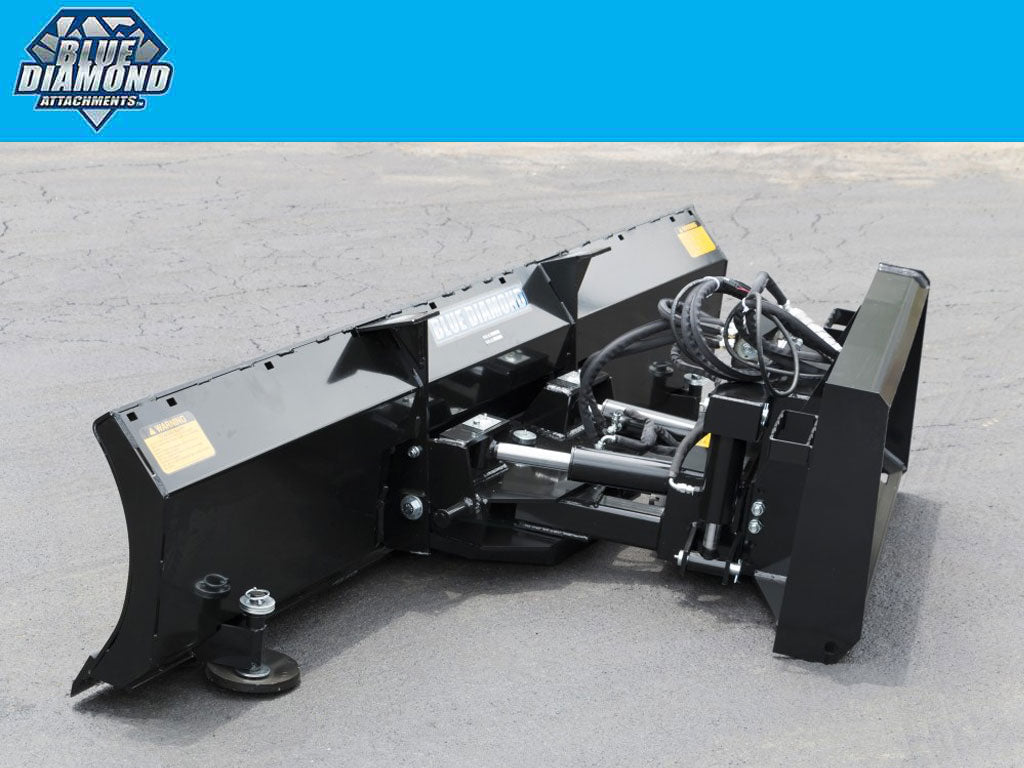

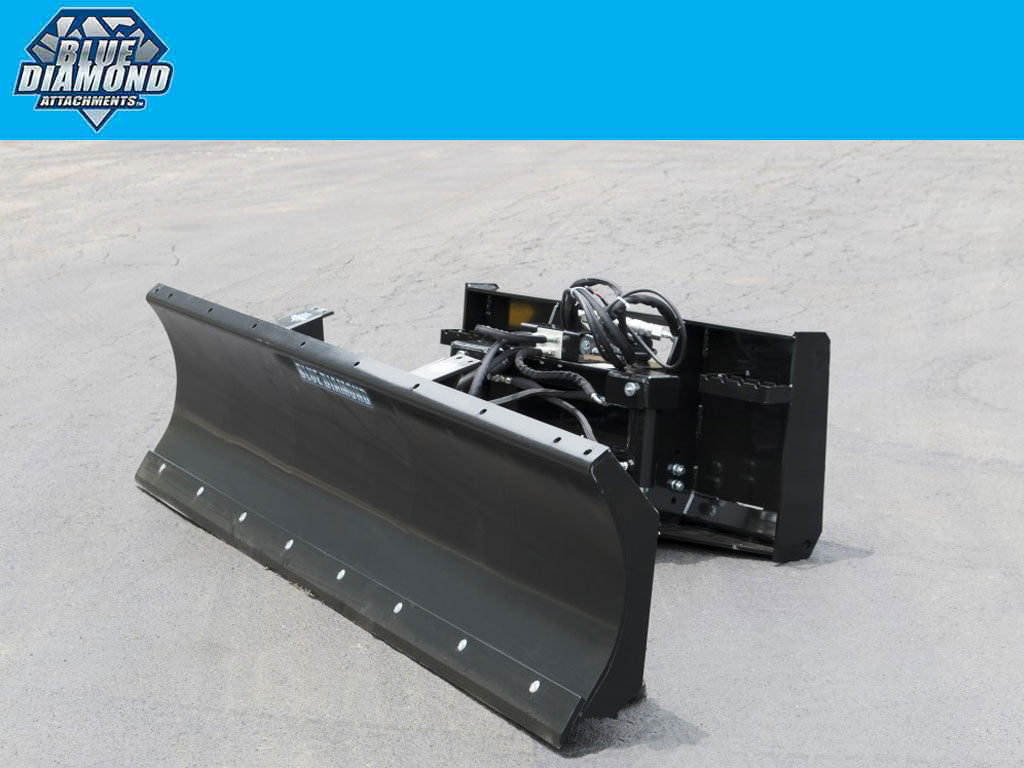

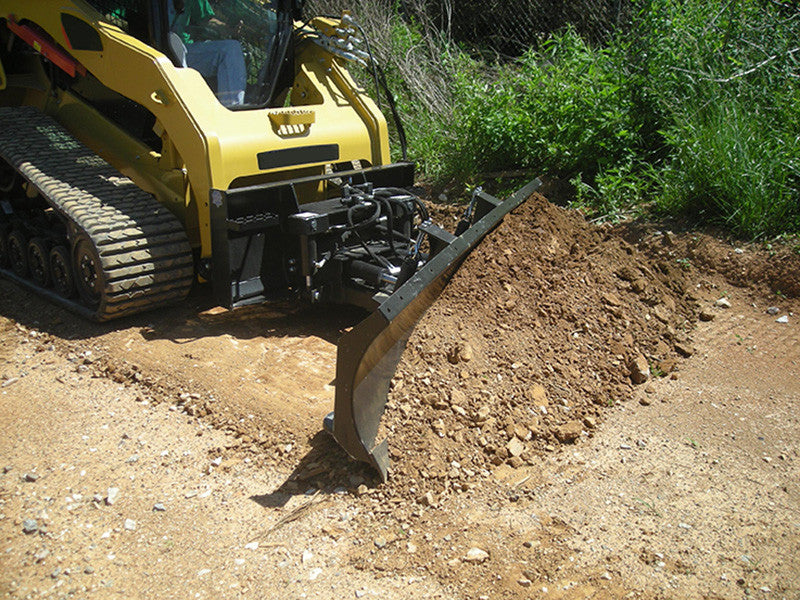

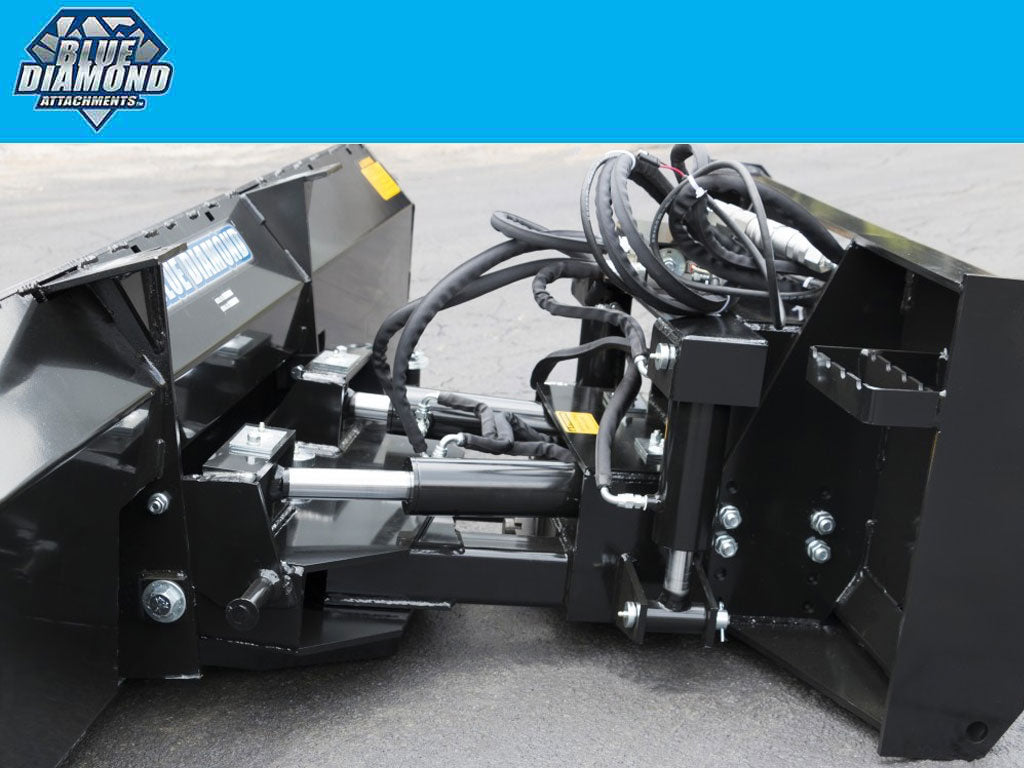

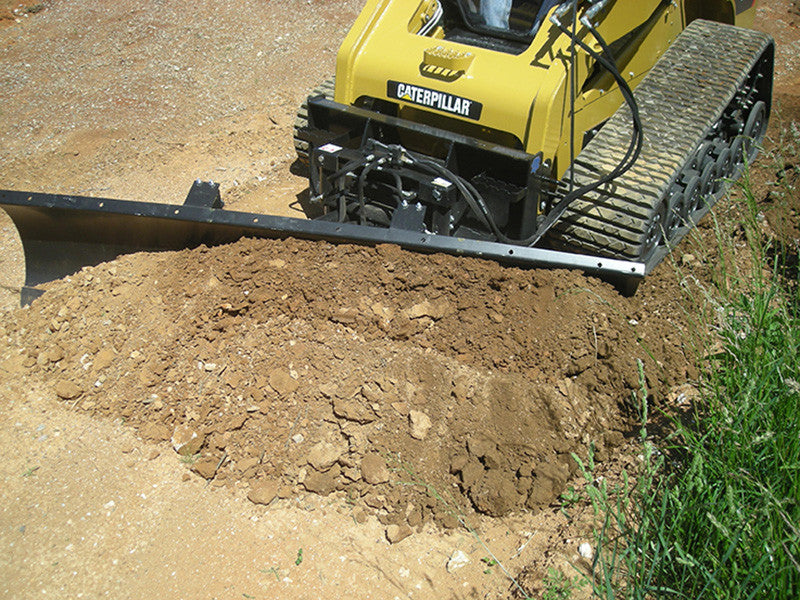

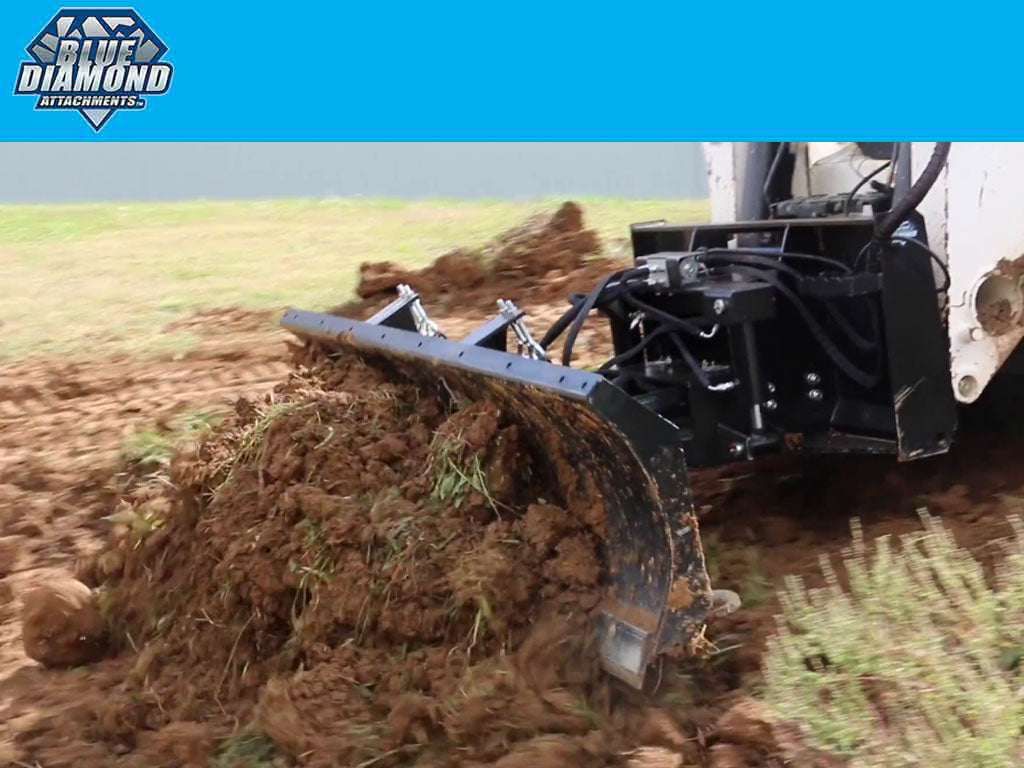

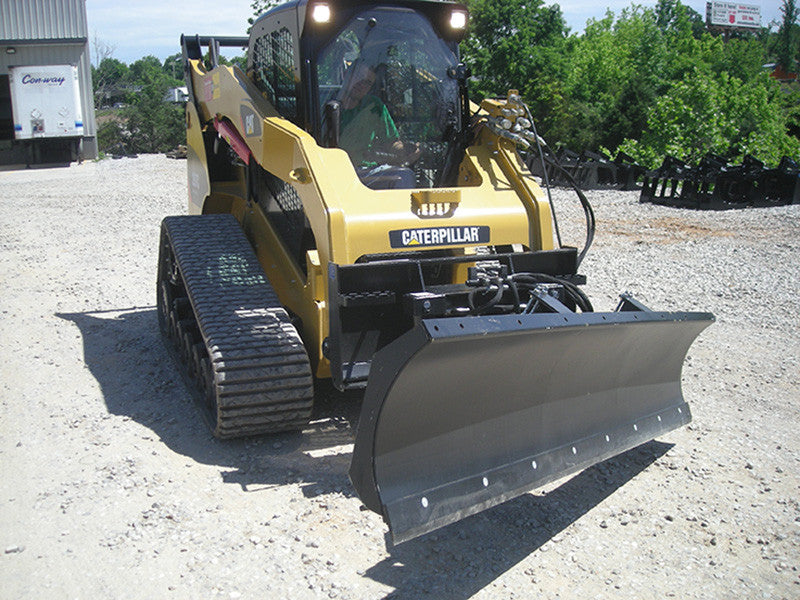

    The updated Blue Diamond 6 Way Dozer Blade for skid steers is extremely rugged, easy to use, and offers superior visibility. It has a bolt-on-edge, skid shoes, and heavy-duty cylinders. Using a proven pivot system, it can tilt 10˚ and angle 30˚. A blade extension is available for 8” of added height. Don’t settle for anything less! It converts to a snow plow by pulling two pins and adding a height extension and trip springs.

    FEATURES:

    • NEW, heavier moldboard design
    • NEW, even heavier cylinders
    • NEW, electrical now compatible with Bobcat 7 pin
    • NEW, grease fittings on all cylinder pins

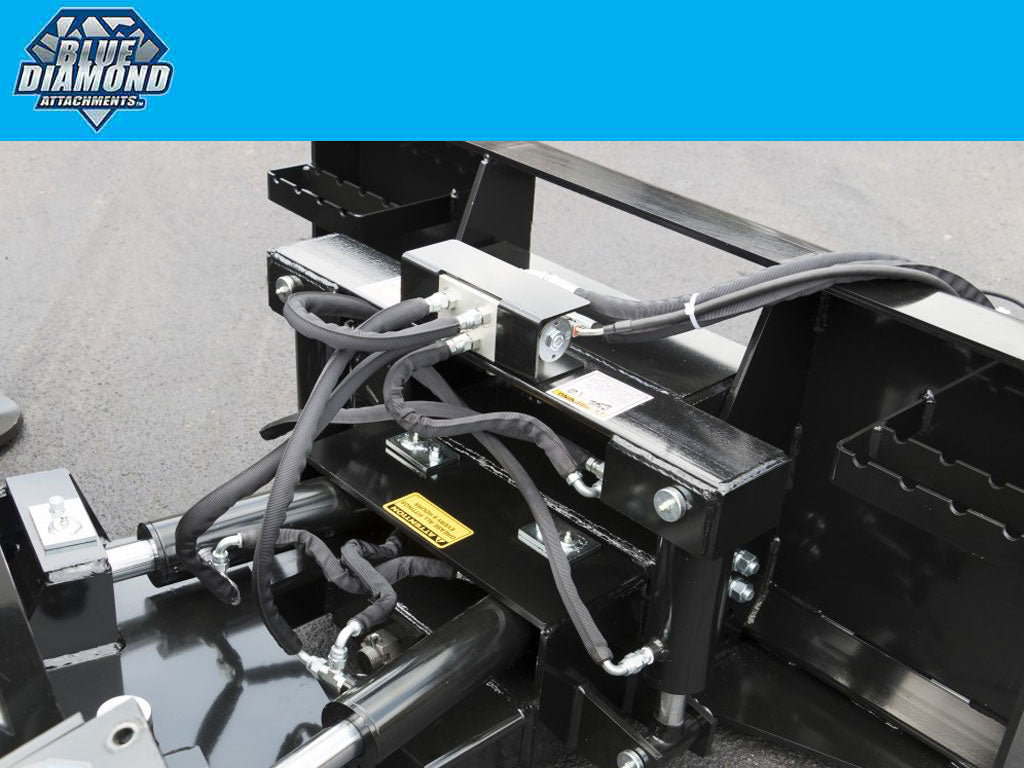

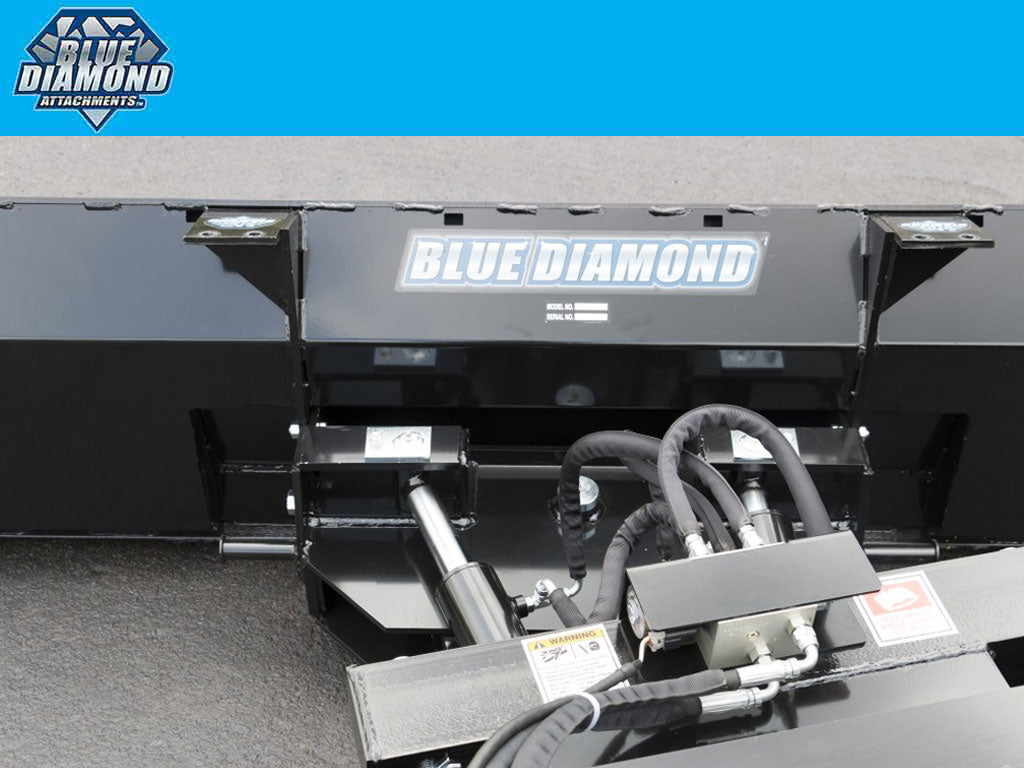

    • NEW, more protection on electrical and hydraulic valve components
    • Tried and proven tilt system
    • Optional trip springs
    • Trip override pin
    • Replaceable skid shoes
    • Replaceable bolt-on edge
    • Optional 8″ blade height extension

    INCLUDES:

    • UNIVERSAL MOUNTING
    • HOSES AND FITTINGS
    • CAN BE USED ON DIRT OR SNOW
    • HEAVY DUTY SIX WAY BLADE
    • 22" MOLDBOARD FOR GREAT VISIBILITY
    • INCLUDES ELECTRIC HARNESS FOR MACHINE CONTROLS
    • REPLACEABLE BOLT-ON EDGE

    PART NUMBER MODEL MAX WIDTH ANGLE WEIGHT  HEIGHT
    123065 6′ HD Series 2 66.25″ 1012 lbs. 22″
    123070 7′ HD Series 2 72.50″ 1040 lbs. 22″
    123075 8′ HD Series 2 82.80″ 1068 lbs. 22″

    This is a nice blade that can be used in dirt or snow. Blade height extensions are available for these blades and listed for sale on website. Make sure your angled with is wider than your machine width.
