Blue Diamond

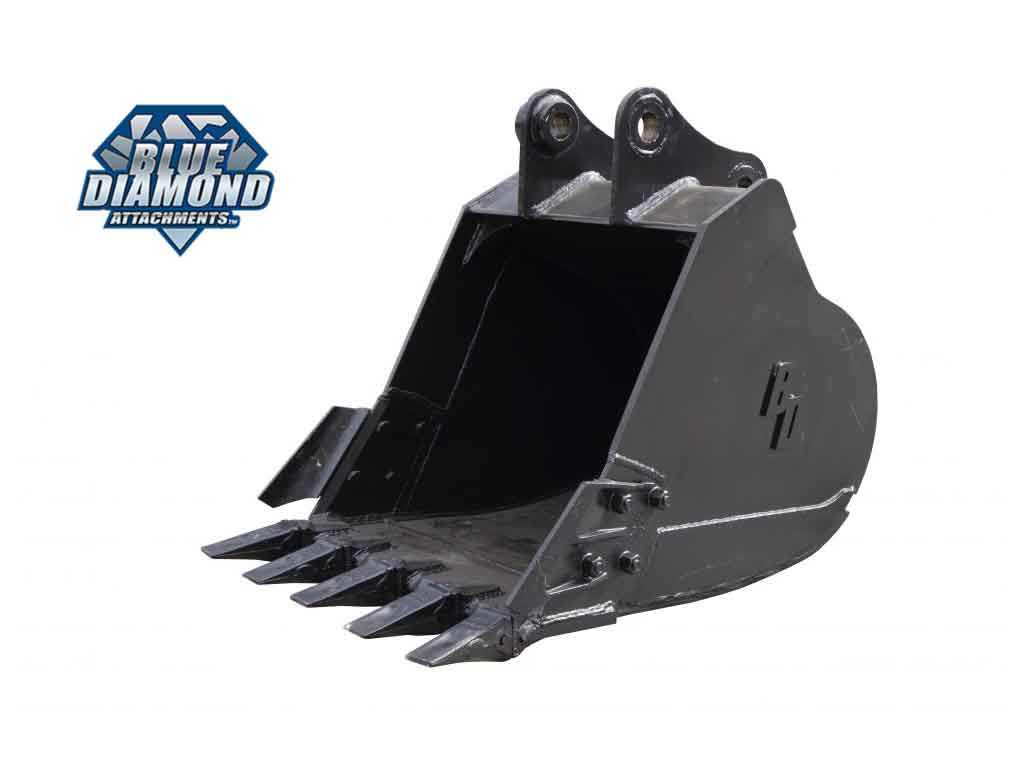

BLUE DIAMOND EXCAVATOR BUCKETS FOR TAKEUCHI

Size
MACHINE

EXCAVATOR BUCKET



Blue Diamond® Buckets are our most popular, general-purpose, heavy-duty excavator buckets. They are used for digging in a broad range of materials, including dirt, clay, and rock. Optional side cutters are available for all buckets for machines 12,000 lbs and larger. We use AR400 on the sides, cutting edge, mounting brackets, and reinforcing wear bars. AR400 is much stronger than T1 and more wear-resistant. The shell is constructed from A-572-50 because it has to be rolled. J Series Style Teeth are standard, but other teeth are available.



FEATURES INCLUDE:

  • Designed with heavy-duty AR400 steel and optional side cutters
  • Equipped with thick wear straps and wear pads
  • Included with standard J Series Style Teeth
  • All excavator buckets are built to OEM specifications
  • Optional dead pins available
 PRODUCT MODEL SIZE CUTTERS STYLE
7051012 TB135/TB235 12" WELD ON PIN ON
7051018 TB135/TB235 18" WELD ON PIN ON
7051024 TB135/TB235 24" WELD ON PIN ON
7051030 TB135/TB235 30" WELD ON PIN ON
7051512 TB145/TB250 12" WELD ON PIN ON
7051518 TB145/TB250 18" WELD ON PIN ON
7051524 TB145/TB250 24" WELD ON PIN ON
7051530 TB145/TB250 30" WELD ON PIN ON
7051536 TB145/TB250 36" WELD ON PIN ON
7052012 TB260 12" WELD ON PIN ON
7052018 TB260 18" WELD ON PIN ON
7052024 TB260 24" WELD ON PIN ON
7052030 TB260 30" WELD ON PIN ON
7052036 TB260 36" WELD ON PIN ON
7052518 TB1140
18" BOLT ON PIN ON
7052524 TB1140 24" BOLT ON PIN ON
7052530 TB1140 30" BOLT ON PIN ON
7052536 TB1140 36" BOLT ON PIN ON

BRAND

MODEL

AVAILABLE SIZES

CAT

303/303.5/304E

12”–30”

304C/304C-CR/305

12”–36”

305

12”–24”

308

12”–24”

307E/308D/308E

12”–36”

311/312/313/314

18”–42”

JOHN DEERE

COUPLER BUCKET

27ZTS, 27C, 27D, 26G, 35ZTS,

35C, 35D, 35G

12”–30”



COUPLER BUCKET

50ZTS, 50C, 50D, 50G

60D, 60G

12”–36”

190E, 70, 75D, 75G, 85D, 85G

12”–36”

490E, 120, 120C, 120D, 120G

135, 135C, 135D,

18”–42”

KUBOTA

COUPLER BUCKET

KX057 QC

12”–36”

COUPLER BUCKET

KX 121/040/91/71/U35

12”–36”

COUPLER BUCKET

KX161 QC

12”–36”

TAKEUCHI

TB135/TB235

12”–30”

TB145/TB250

12”–36”

TB260

12”–36”

TB1140

18”–36”
