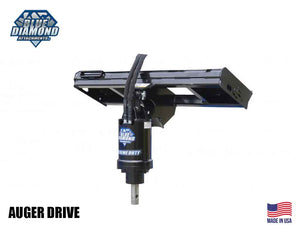

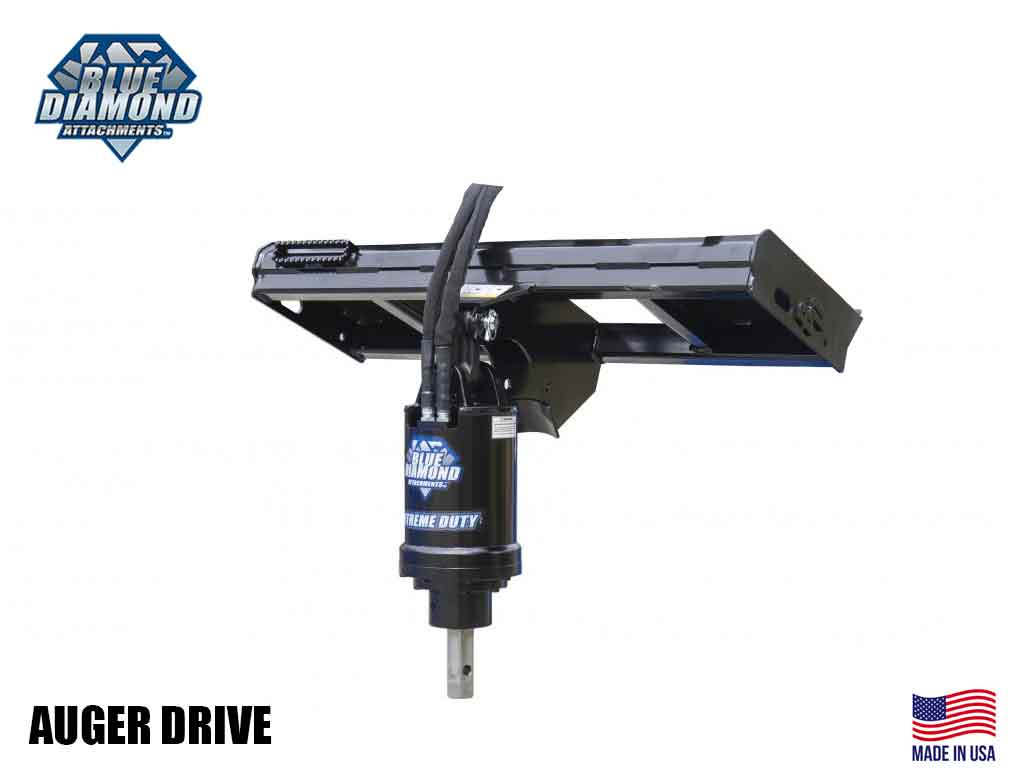

BLUE DIAMOND extreme duty series 2 auger drive

MODEL

SKID STEERS

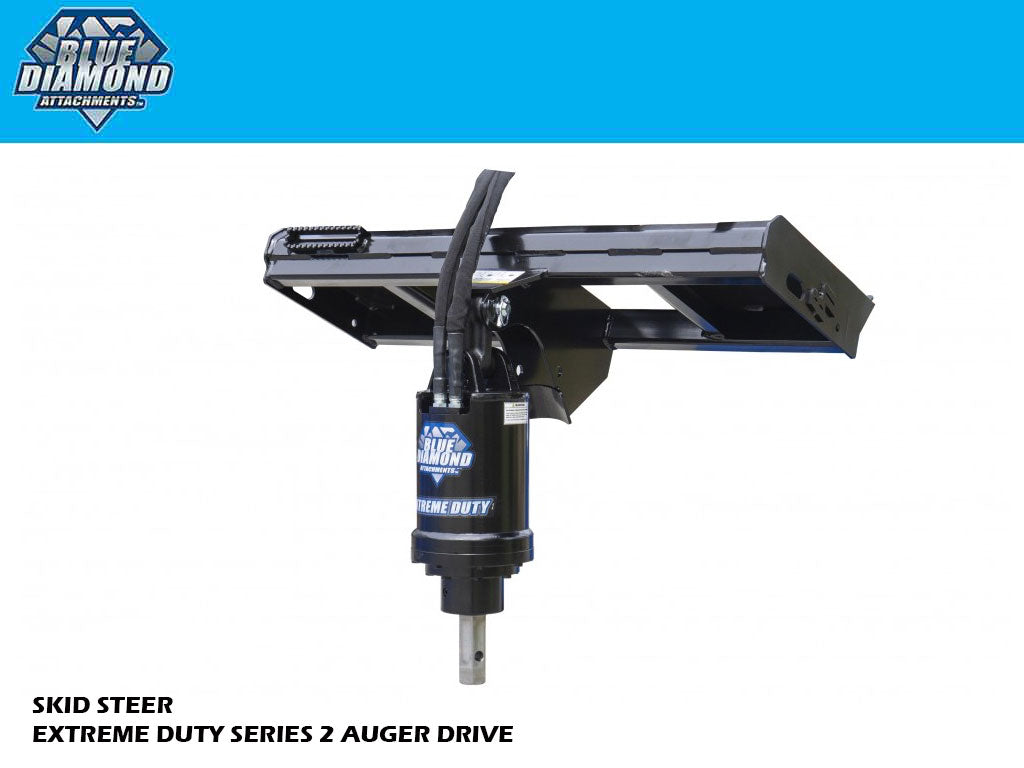

AUGER – EXTREME DUTY SERIES 2

Blue Diamond® Extreme Duty Series 2 Auger offers the ultimate in performance, quality, and cost-effectiveness. Designed with high-grade materials and innovation, this design allows the gearbox to go down the hole, maximizing drilling depth while eliminating downtime. The Blue Diamond® Extreme Duty Auger Series 2 drives are perfect for drilling and auguring in most ground conditions.

FEATURES INCLUDE :

  • Compact high torque manufactured gearbox
  • • 2-piece shaft design ensures maximum side load ratings
  • • 2” hex shaft comes standard but also available with 2 9/16” round
  • • 5-year gear box warranty, 3-year motor warranty and lifetime shaft pull-out warranty, 4-year planetary drive warranty
  • Includes hoses, mounts, couplers, & mount
  • Planetary drive
MODEL EX1 EX2 EX3 EX4 EX4HF
TORQUE / 3000PSI 1467 2254 2829 3275 3583
TORQUE MAX 1712 2630 3300 3821 4180
FLOW RANGE GPM 6-16 10-26 10-30 10-30 10-36
PEAK GPM 8-11 12-16 17-20 19-23 21-26
MOTOR EATON EATON EATON EATON EATON
MAX PSI 3500 psi @ 16 gpm 3500 psi @ 16 gpm 3500 psi @ 16 gpm 3500 psi @ 16 gpm 3500 psi @ 27 gpm
MAX FLOW 30 gpm @ 1800 psi 30 gpm @ 1800 psi 30 gpm @ 1800 psi 30 gpm @ 1800 psi 42 gpm @ 3100 psi
MAX HP 33 33 33 33 55
RELIEF VALVE N/A N/A N/A N/A INCLUDED
STD SHAFT HEX HEX HEX HEX HEX
MAX BIT (CLAY) 12" 24" 24" 24" 24"
MAX BIT (DIRT) 24" 30" 30" 30" 40"
WEIGHT 101 123 123 123 180
LENGTH 24.5″ 25.9″ 25.9″ 25.9″ 29"
DIAMETER 7.4" 9.4″ 9.4″ 9.4″ 9.4″



MODEL MAX CLAY MAX DIRT
EX1 12" 24"
EX2 24" 30"
EX3 24" 30"
EX4 24" 30"
EX4HF 24" 40"
EX5HF 30" 40"
EX6HF 30" 40"
EX7HF 30" 48"
