Blue Diamond

103015

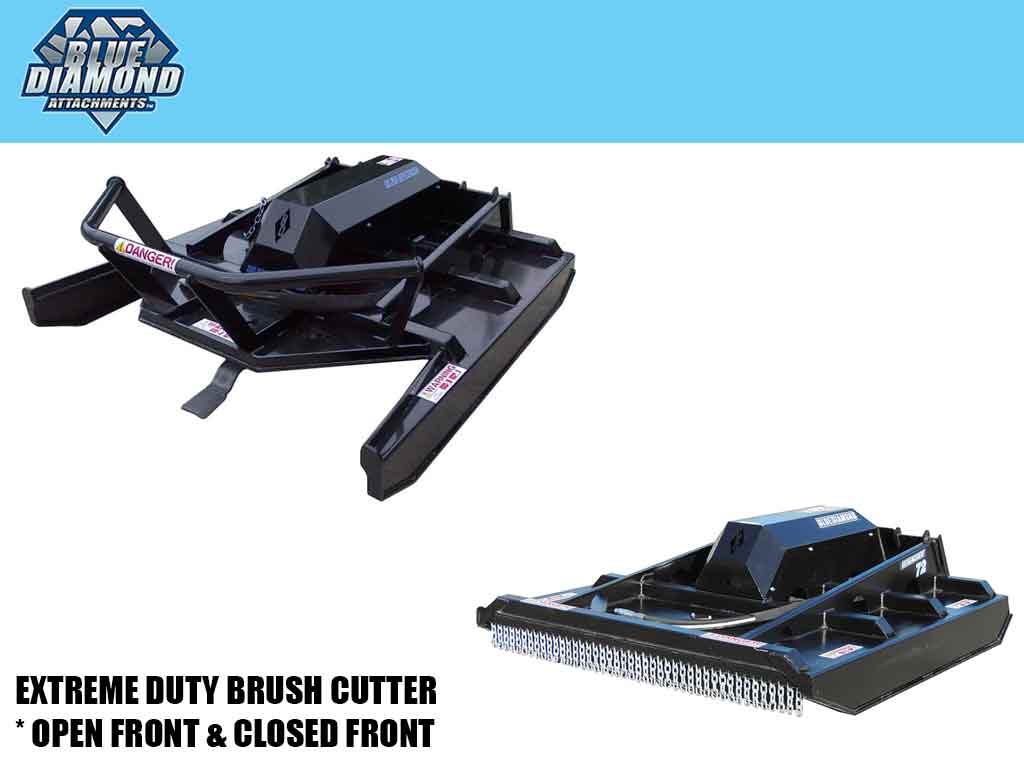

BLUE DIAMOND EXTREME DUTY SERIES BRUSH CUTTER (SSL)(CTL)

Flow
Size
Frame

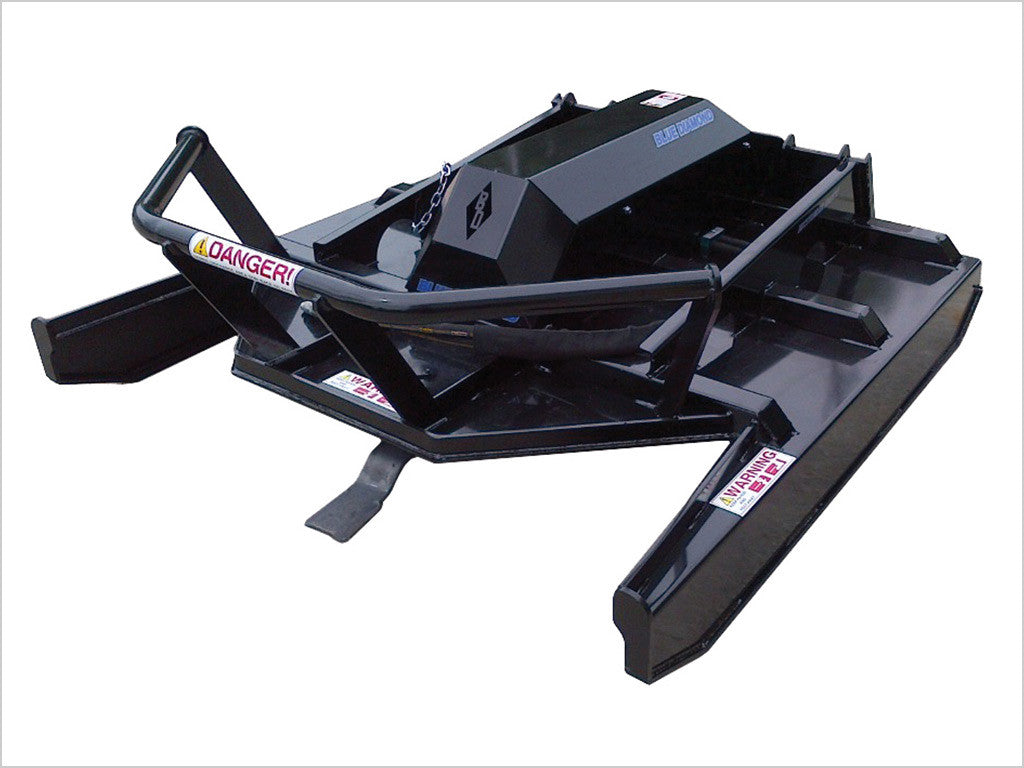

BRUSH CUTTER – EXTREME DUTY

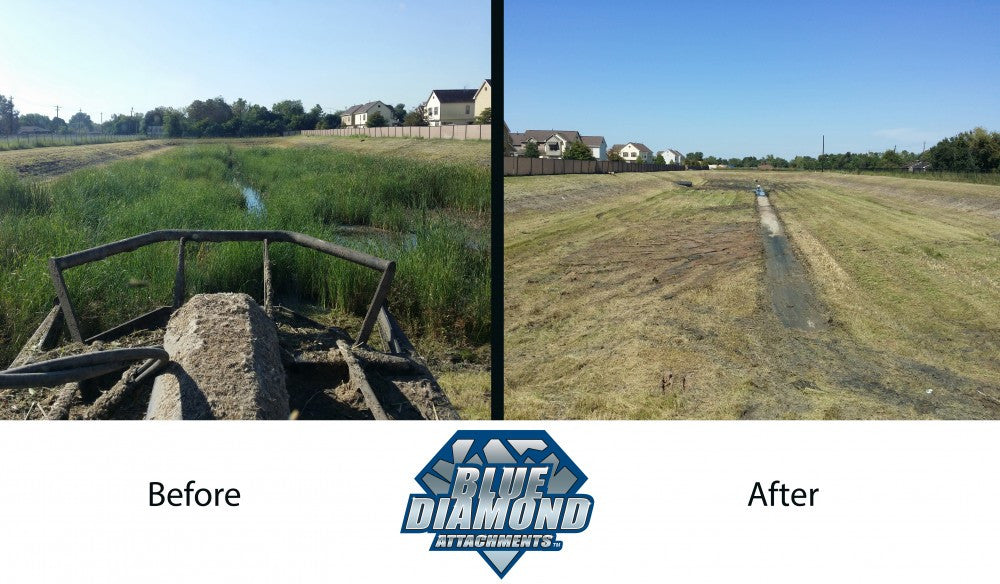

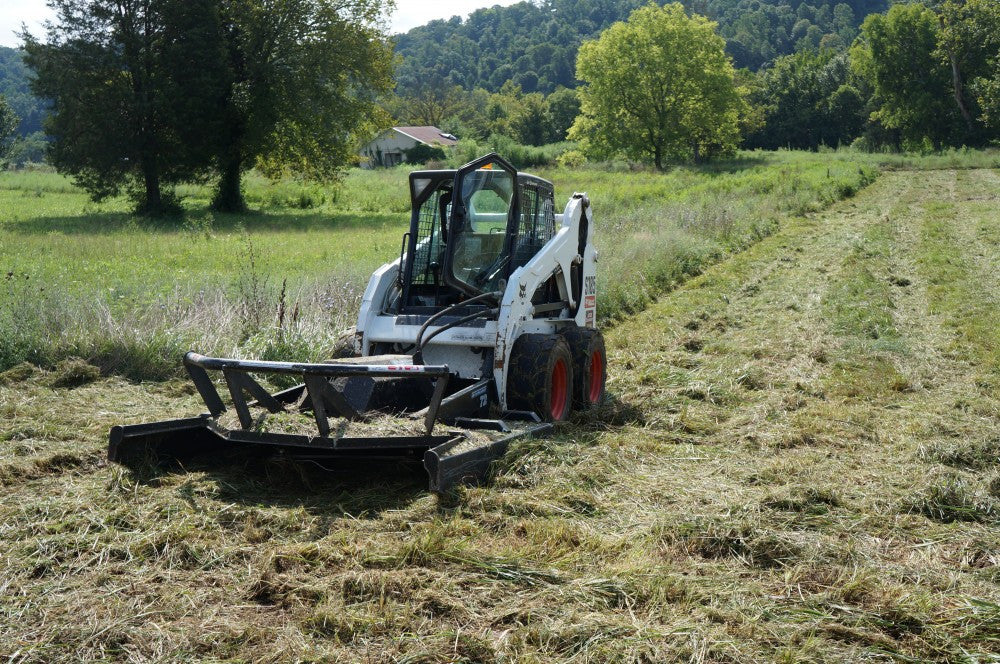

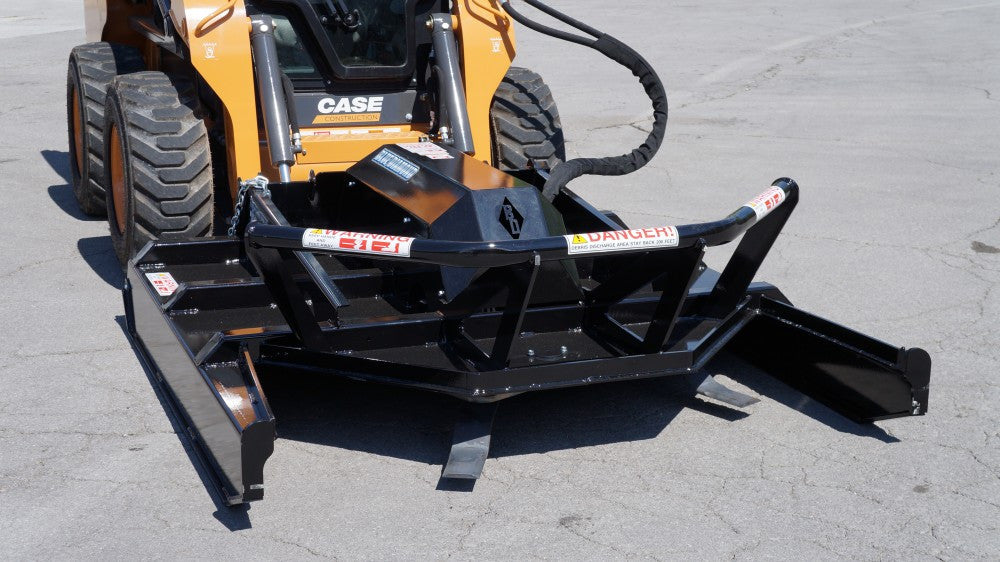

The Blue Diamond Open Front Extreme Duty brush cutter is not only a brutal machine in mowing up to 6″ to 8″ brush, yet cuts grass better than any of its competitors. Why limit yourself to doing one or the other? You don’t have to sacrifice any performance to be versatile! Find out why the Blue Diamond Brush cutter is the most popular brush cutter in the industry!

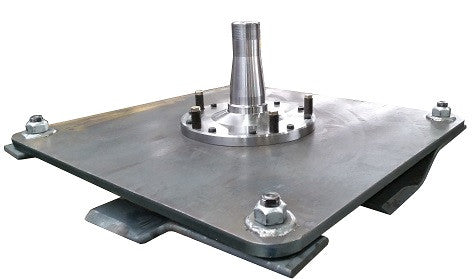

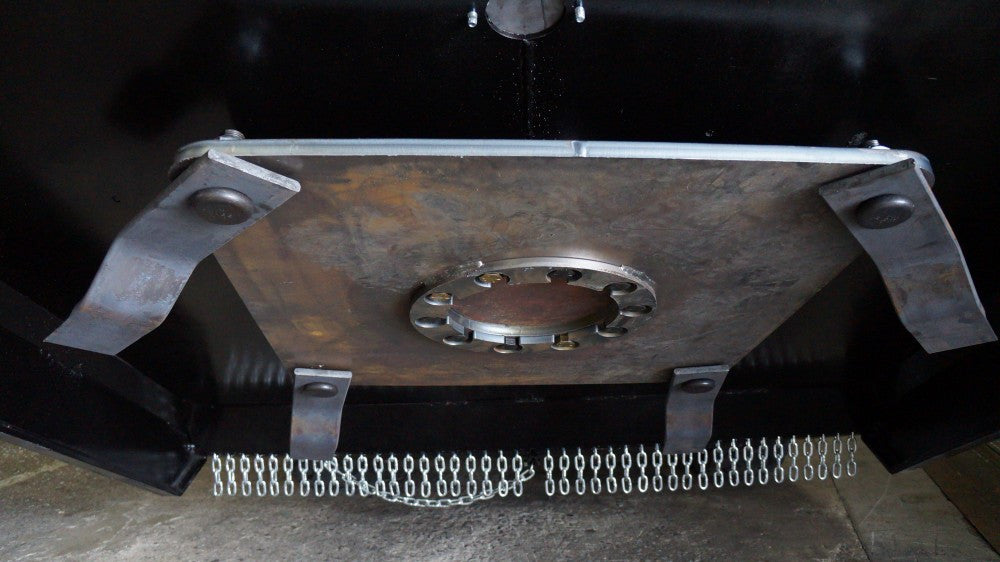

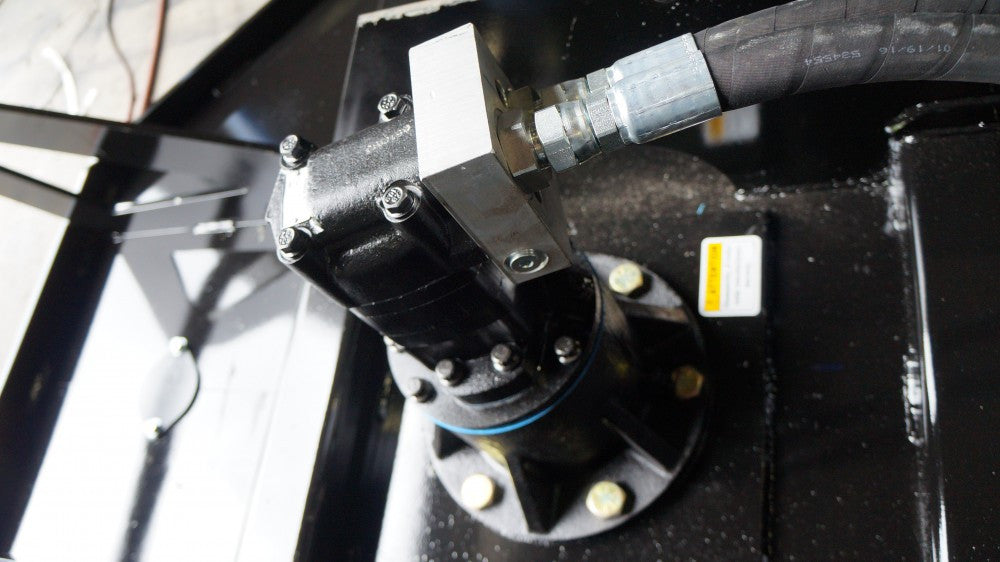

The extreme duty open front brush cutter is a high-powered, standard flow or high flow, direct drive unit with a 1-year warranty. The purpose built hydraulic motor drives a 3.5” forged one piece drive spindle with a LIFETIME warranty against breakage ! that is housed in 2 massive bearings. The direct drive bearing carrier is now grease packed versus oil and can be greased from a zerk under the hood. This new improvement has dramatically reduced down time and bearing failures! Under the deck, instead of a spline shaft, it has a 13” x 1” flange with 10 3/4″ bolts connecting the blade carrier. The wire protection kit between the deck and the blade carrier keeps fence wire and vines away from the lower bearing seal and reduces down time from hidden debris. This powerful yet quiet cutter will produce a cleaner cut at a quicker travel speed than was thought possible on a low flow skid steer. The 10” deck clearance and the raised back allow cut debris to escape and to easily avoid bunching under the deck.

  • 3.5″ (at bearing, 4″ at seal) forged one piece spindle is the toughest in the industry. We have yet to see one break!
  • Grease filled drive dramatically improves bearing life and down time due to seal damage
  • Custom purpose built motor and relief block out last industry standard motors
  • External cross-port reliefs protect motor versus internal relief valves
  • Fully enclosed motor compartment keeps out the debris that causes overheating issues, especially see in new Teir 4 version machines.
  • No rear roller to bounce off stumps or pull cut debris along. Open design allows smoother operation
  • Bi-directional cutting allows for control of the discharge angle, as well as doubling the use of the blades

The Best just keeps getting better!!

 

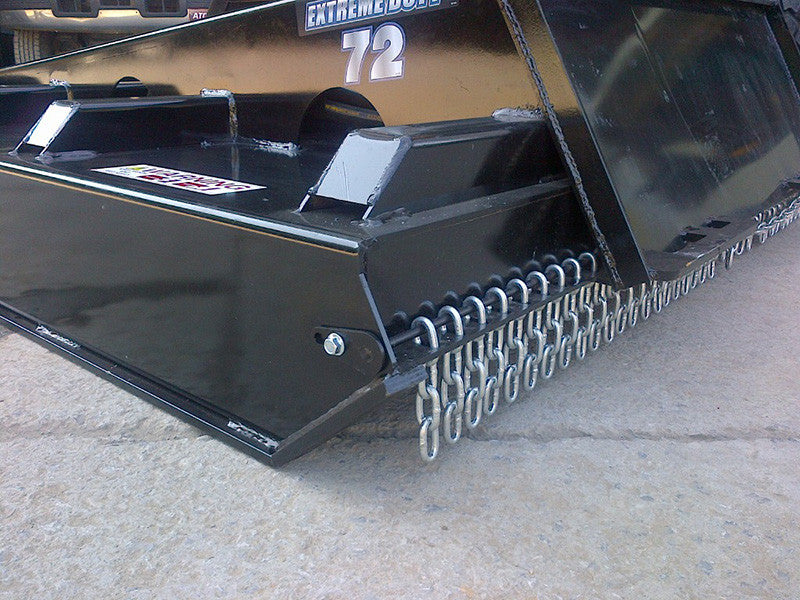

BRUSH CUTTER – EXTREME DUTY CLOSED FRONT



This brush cutter is the most versatile skid steer brush cutter on the market. Cuts grass like a lawn mower and still cut 5″ trees!! Why buy a brush cutter that limits you to one or the other? Very few, if any other  cutters are able to preform in such a variety of applications, like the Blue Diamond Extreme Duty cutters will!

The extreme duty brush cutter is a high-powered, low flow or high flow direct drive unit with a 1-year warranty. The purpose built hydraulic motor drives a 3.5” forged one piece drive spindle!  that is housed in 2 massive bearings. The direct drive bearing carrier is now grease packed and can be greased from a zerk under the hood. This new improvement has dramatically reduced down time and bearing failures! Under the deck, instead of a spline shaft, it has a 13” x 1” flange with 10 bolts connecting the blade carrier. The wire protection kit between the deck and the blade carrier keeps fence wire and vines away from the lower bearing seal and reduces down time from hidden debris. This powerful yet quiet cutter will produce a cleaner cut at a quicker travel speed than was thought possible on a low flow skid steer. The 10” deck clearance and the raised back allow cut debris to escape and to easily avoid bunching under the deck.

  • no case drain needed on low flow units
  • new faster acting external cross port relief and brake
  • new longer lasting stamped blades
  • available in low or high flow



  •  MODEL LBS FLOW BLADES FRAME WIDTH
    103015 1170 16-26 3 CLOSED 60"
    103016 1220 16-26 3 OPEN 60"
    103020 1617 16-26 4 CLOSED 72"
    103025 1547 16-26 4 OPEN 72"
    103017 1220 27-45 3 OPEN 60"
    103023 1585 27-35 4 CLOSED 72"
    103024 1585 36-45 4 CLOSED 72"
    103030 1555 27-35 4 OPEN 72"
    103032 1555 36-45 4 OPEN 72"
    • DOUBLE EDGED BLADES
    • 3/4 SOLID BLADE CARRIER
    • CUTS UP TO 6" TREES
    • REQUIRES ONLY 16 GPMs
    • BEARING SEAL PROTECTION KIT UNDER DECK
    • RUGGED DECK WITH HEAVY REINFORCEMENTS
    • DUAL CROSSOVER RELIEF VALVES IN MOTOR

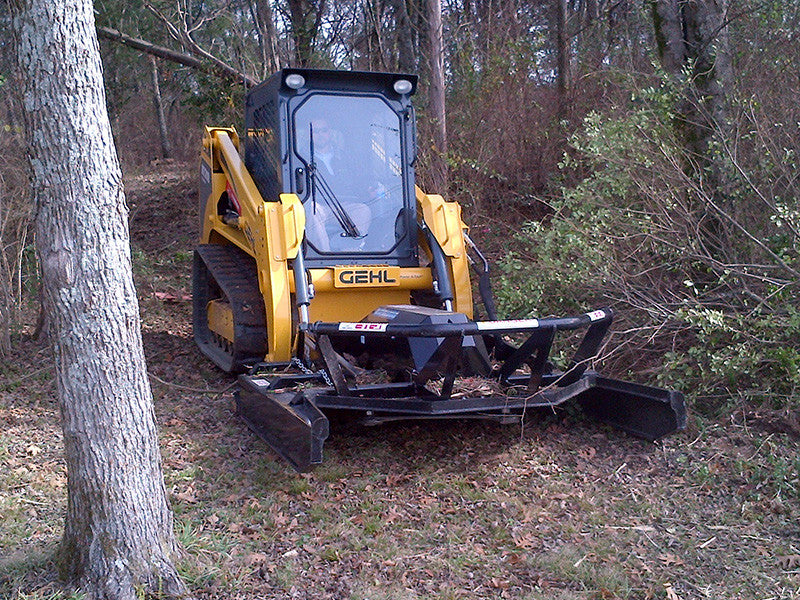

    The Blue Diamond Extreme Duty Series brush cutter is our most popular selling brush cutter. This cutter just chews up trees. We put these on medium and large frame skid steer loaders and compact track loaders all the time. One of my favorite products for sure!
